Customization: Available
After-sales Service: Online Technical Support
Warranty: 1 Year Warranty
Send Inquiry

Product Description

Basic Information
Model NO.
YSAV-CV7
Customized
Non-Customized
Structure
Portable
Certification
ISO
Application
Lab / NICU
Type
HFOV Ventilator
Display
15.6 Inch Touch Screen
Origin
China
Product Overview

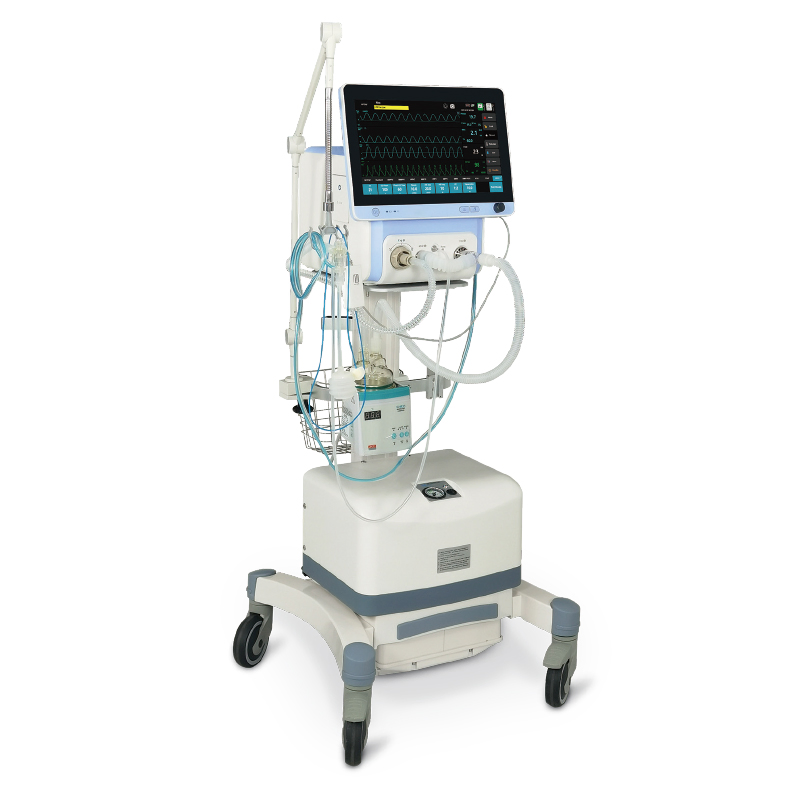

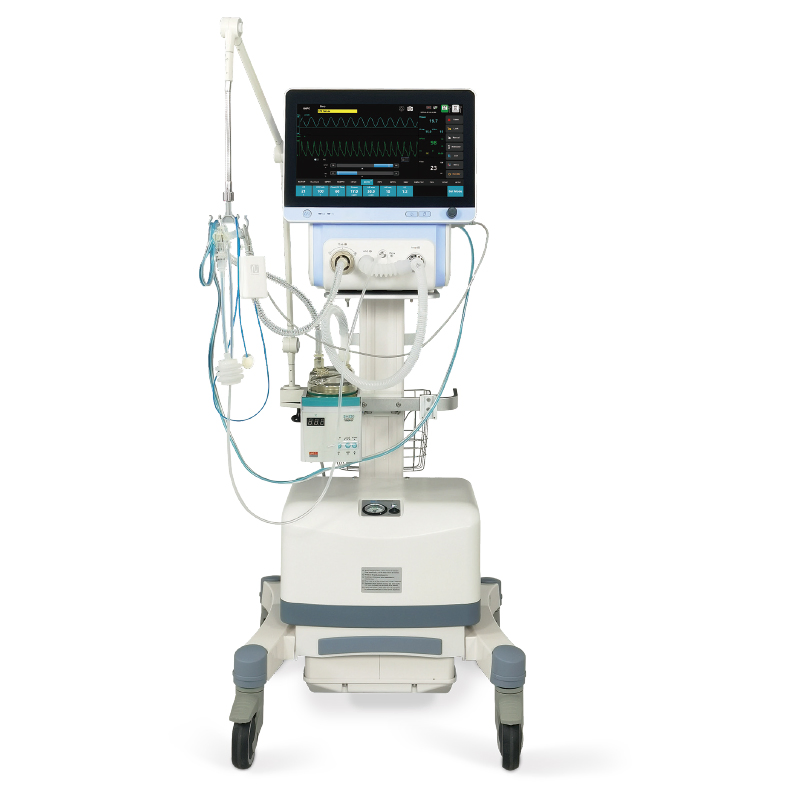

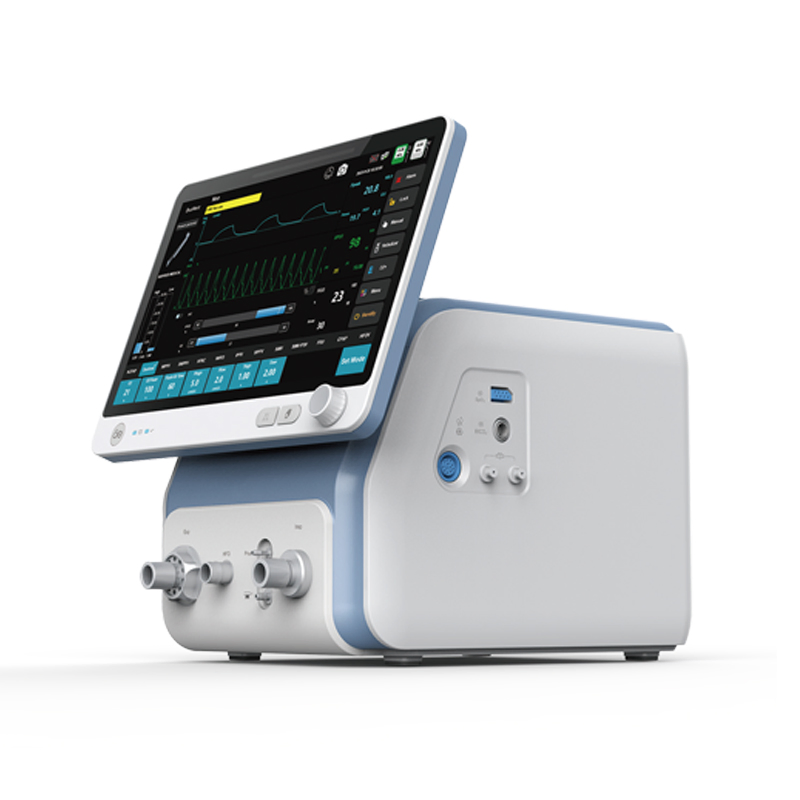

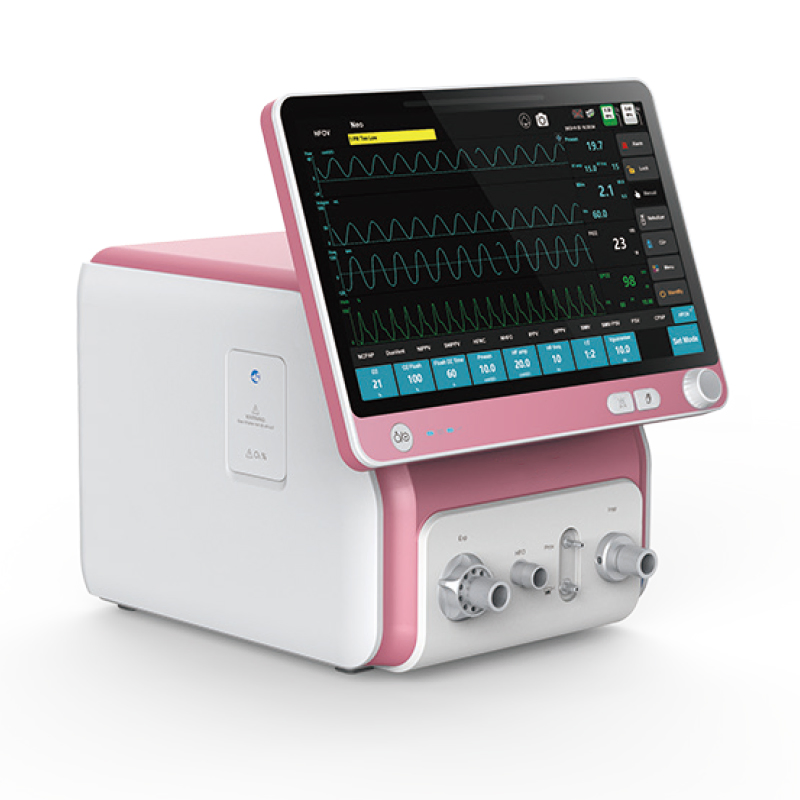

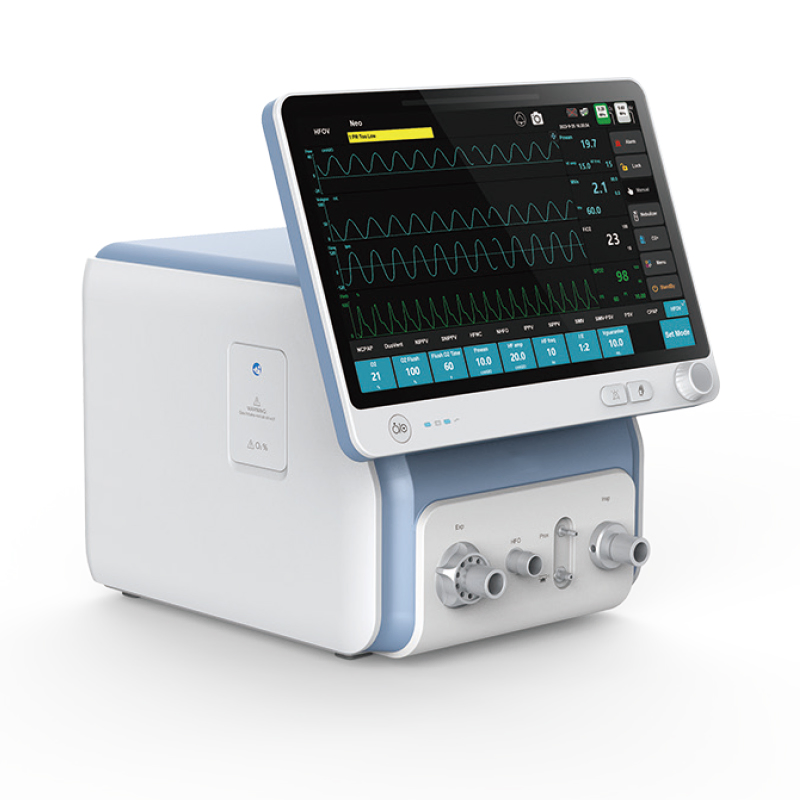

YSAV-CV7 Medical Equipment HFOV High Frequency Oscillatory Ventilator

YSAV-CV7 HFOV Ventilator
YSAV-CV7 is a pneumatic and electronically controlled therapeutic ventilator. It integrates high-flow oxygen therapy ventilation (HFNC), non-invasive ventilation (NIV), and invasive ventilation (IV), manual ventilation (M), constant frequency ventilation (CV) and high frequency oscillatory ventilation (HFOV). This 5-in-1 device is suitable for premature infants, newborns, and children of all ages.
Key Features
  • ◈
    15.6" Intuitive Display: Sensitive capacitive touch screen with a one-step menu design.
  • ◈
    Oxygenation Monitoring: Includes OSI and SpO2/FiO2 for evaluation of newborn oxygenation status.
  • ◈
    Leak Monitoring: Real-time leak% tracking for quick interface adjustments.
  • ◈
    Stability & Safety: Built-in air/oxygen mixer and precise apnea wake-up function.
  • ◈
    Long Battery Life: Built-in lithium battery provides at least 240 minutes of power.
  • ◈
    Quiet Environment: Low-noise compressor ensures a quiet NICU workspace (46dB).
Clinical Advantages

EASE OF USE: Designed to optimize clinical workflow, reducing the time needed to manage configurations.

PATIENT SAFETY: Reduced risk of volutrauma in HFO with VG and reduced risk of contamination with HFO pulse generation.

DEVELOPMENTAL CARE: Silent operation supports undisturbed bonding and kangaroo care.

MOBILITY: Compact size allows for hospital transport from the delivery room to the NICU.

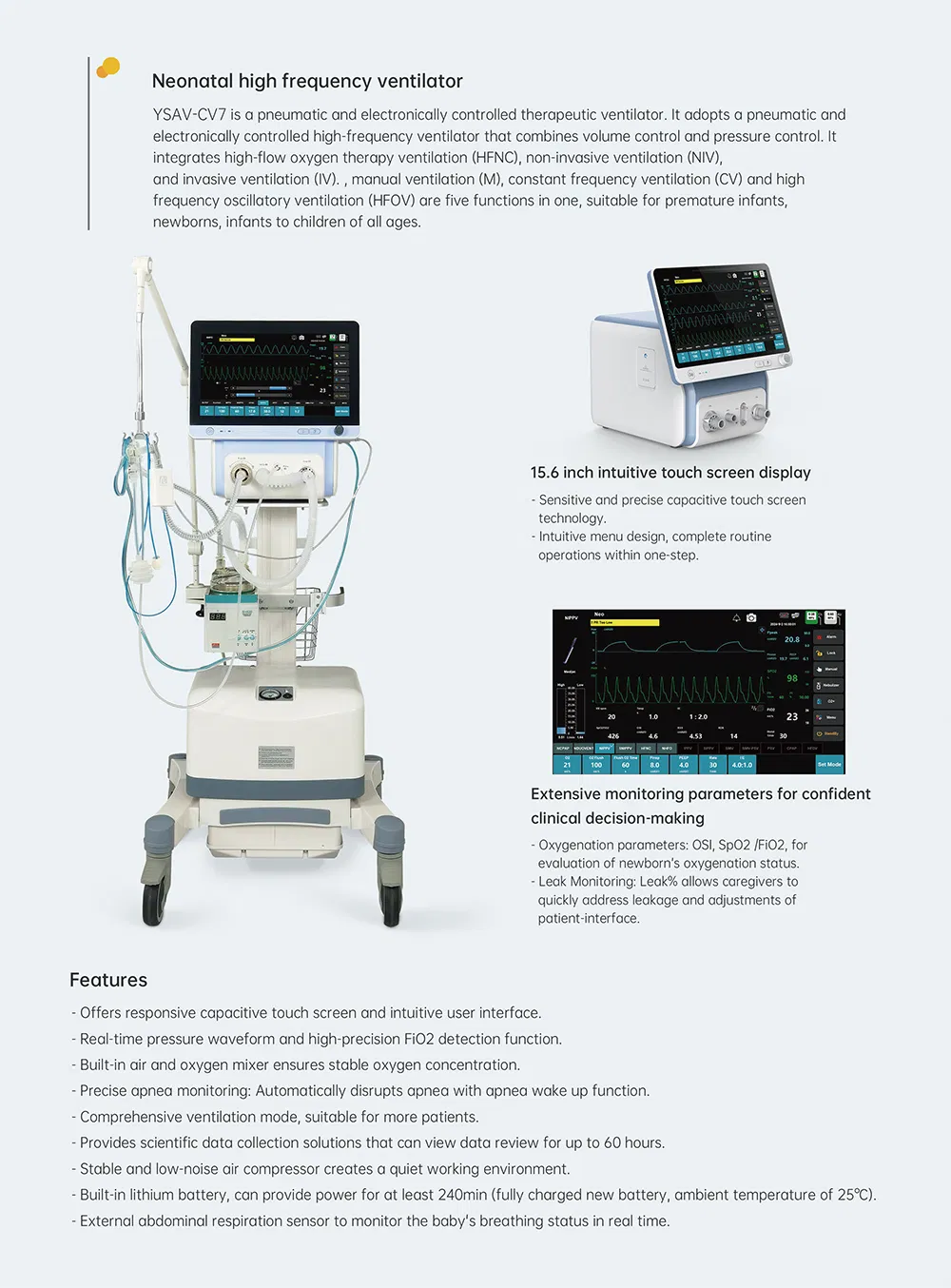

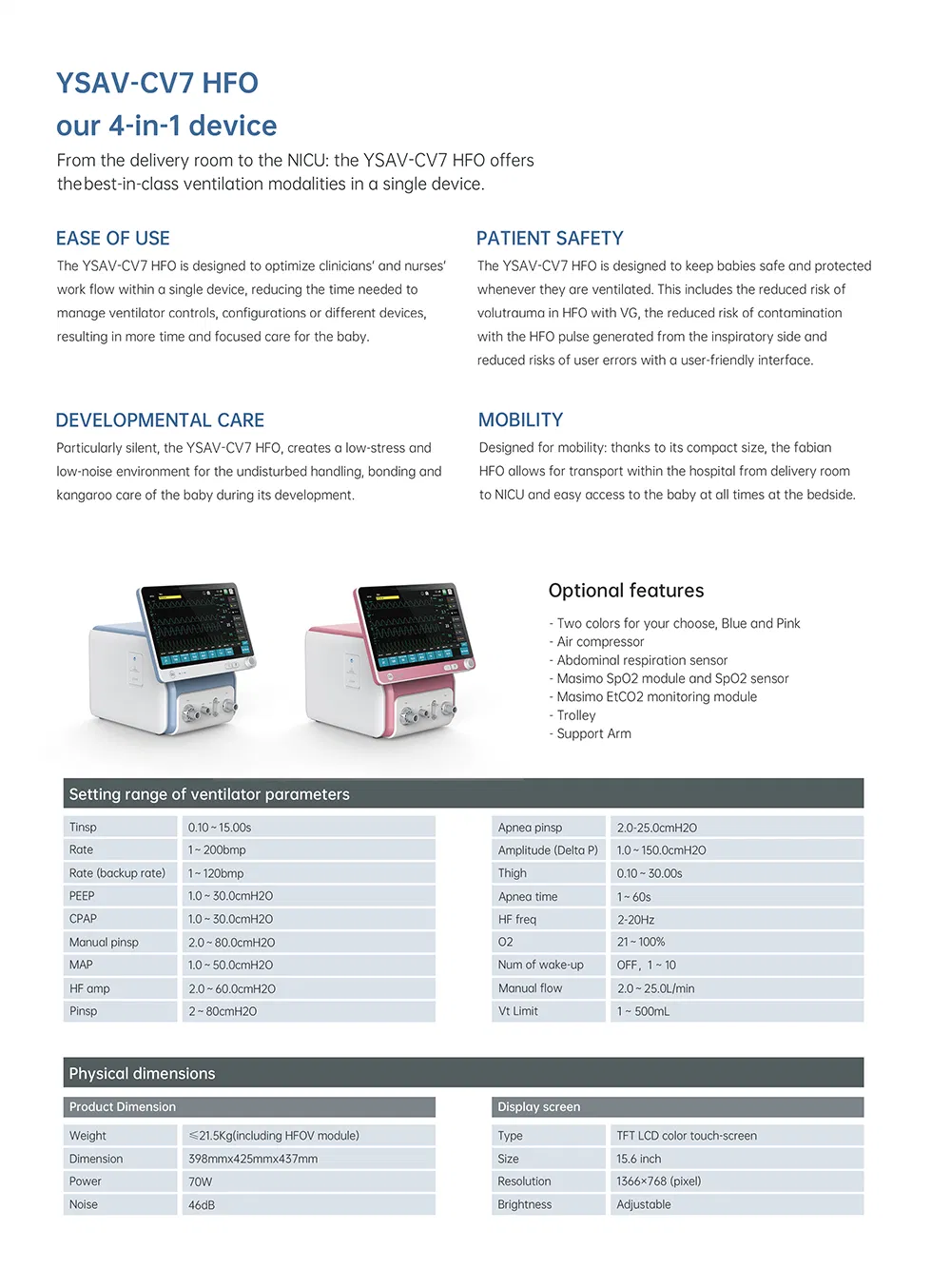

YSAV-CV7 Feature Detail 1 YSAV-CV7 Feature Detail 2
Technical Specifications
Ventilator ParameterSetting Range
Tinsp0.10~15.00s
Rate1~200bmp
PEEP1.0~30.0cmH2O
MAP1.0~50.0cmH2O
HF amp2.0~60.0cmH2O
HF freq2-20Hz
O2 Concentration21~100%
Vt Limit1~500mL
Physical Dimensions
Weight≤21.5Kg (including HFOV module)
Dimension398mm x 425mm x 437mm
Power Consumption70W
Noise Level46dB
Display Resolution1366x768 (pixel)
YSAV-CV7 Detailed Technical Diagram
Frequently Asked Questions
What patients is the YSAV-CV7 suitable for?
It is designed for premature infants, newborns, infants, and children of all ages, providing specialized high-frequency ventilation.
How many ventilation modes does it offer?
The YSAV-CV7 is a 5-in-1 device integrating HFNC, NIV, IV, CV, and HFOV modalities.
Does the device have an internal battery?
Yes, it features a built-in lithium battery that provides at least 240 minutes of operation when fully charged.
What are the key monitoring parameters?
The system monitors oxygenation status (OSI, SpO2/FiO2), real-time pressure waveforms, and precise leak percentages.
Is the ventilator portable for hospital use?
Yes, its compact design and mobile trolley support easy transport from delivery rooms to the NICU.
How does it ensure a quiet environment?
The built-in air compressor is designed for stable and low-noise operation, maintaining a quiet environment at approximately 46dB.
