Medical Equipment High Frequency Neonatal Infant Ventilator
Medical Equipment High Frequency Neonatal Infant Ventilator
Medical Equipment High Frequency Neonatal Infant Ventilator
Medical Equipment High Frequency Neonatal Infant Ventilator
Medical Equipment High Frequency Neonatal Infant Ventilator
1 / 5
Medical Equipment High Frequency Neonatal Infant Ventilator
Medical Equipment High Frequency Neonatal Infant Ventilator
Medical Equipment High Frequency Neonatal Infant Ventilator
Medical Equipment High Frequency Neonatal Infant Ventilator
Medical Equipment High Frequency Neonatal Infant Ventilator

Medical Equipment High Frequency Neonatal Infant Ventilator

Customization: Available
Display: 10.4TFT Color Screen
Mode: A/C, A/C+Sigh, Simv, Simv+Psv
Send Inquiry

Product Description

Basic Information
Model NO.
COMEN NV10
MV
1.0~30.0L/Min
PSV Pressure
0~3.5kpa
Oxygen Conc.
21~100%
Warranty
12 Months
I:E Ratio
3:1~1:3
Tidal Volume
50~500ml
Frequency
2~60bpm
Certificate
CE certificate
Product Description
Neonatal Infant Ventilator

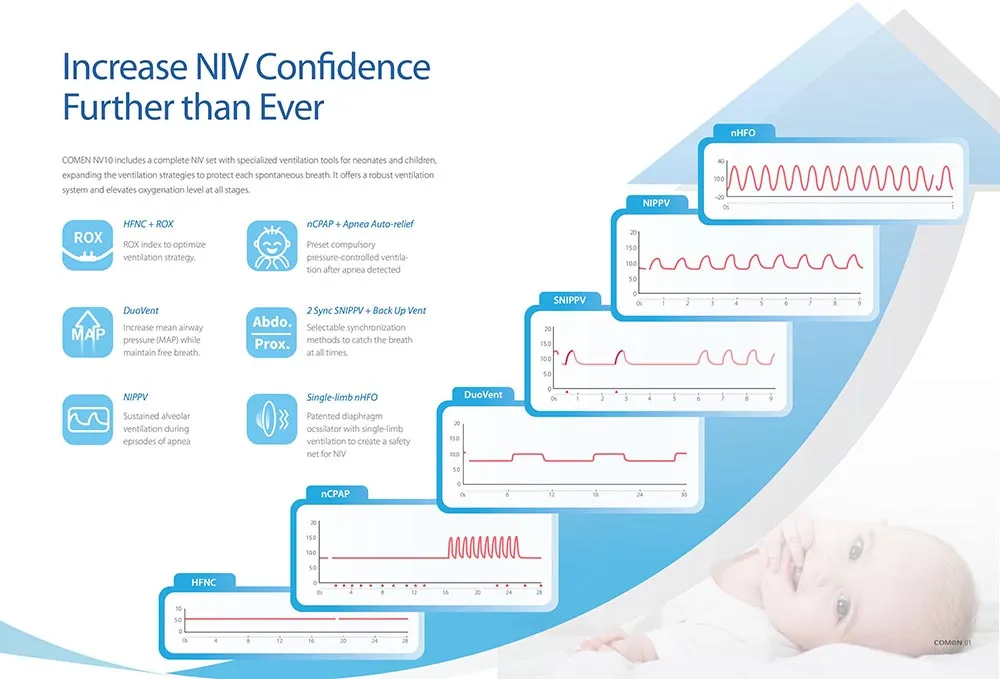

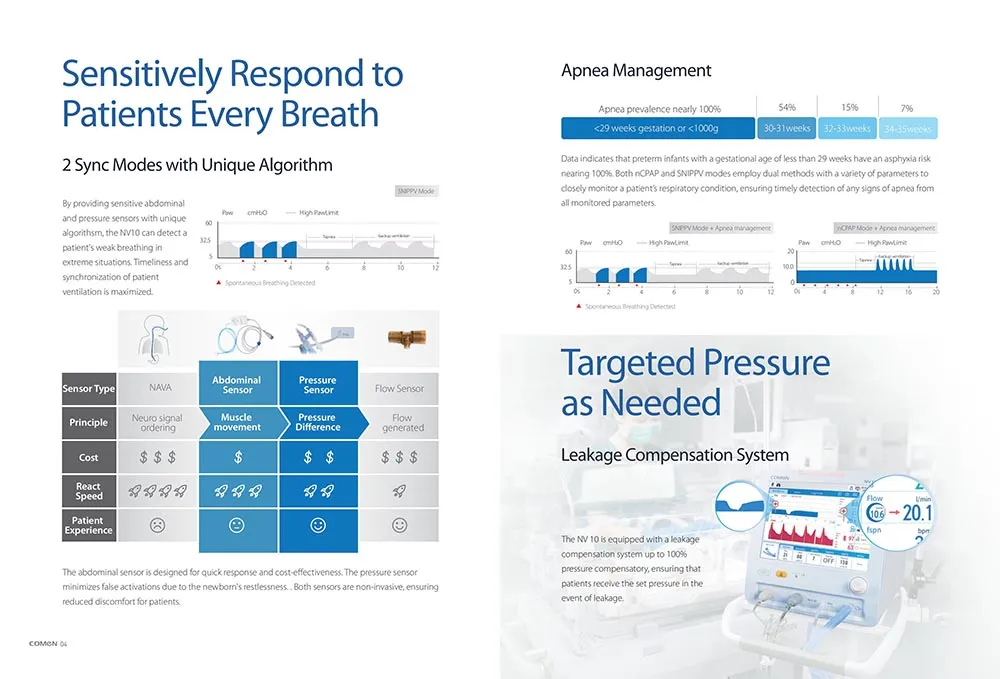

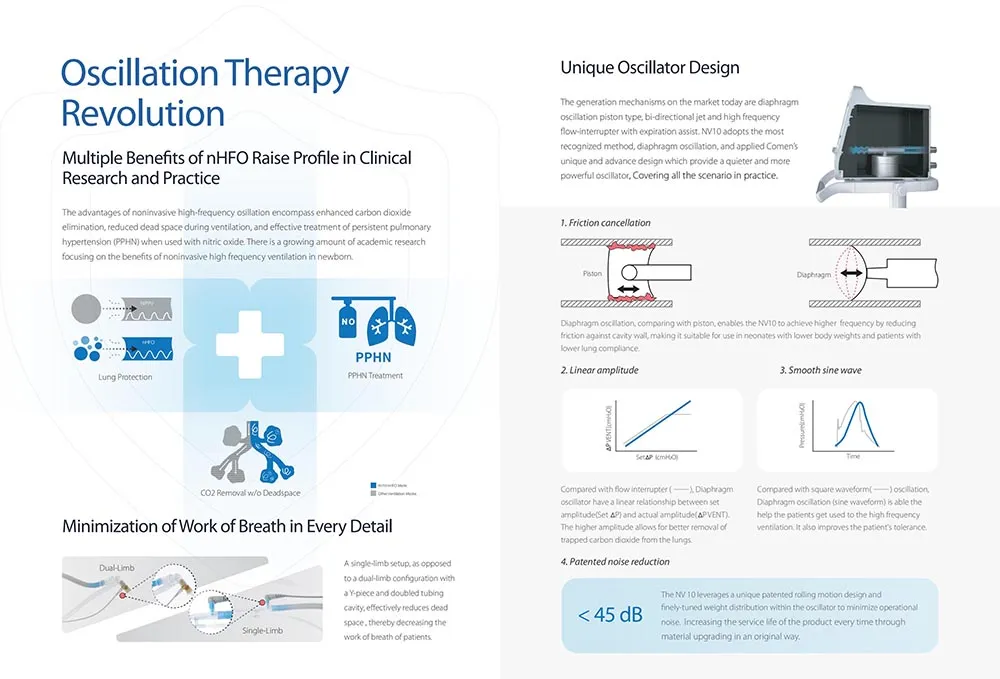

Ventilator Detail 1 Ventilator Detail 2 Ventilator Detail 3
System Specifications
ModesA/C, A/C+SIGH, SIMV, SIMV+PSV, PCV, PSV, MMV, PEEP, CPAP
MV Range1.0~30.0L/min
Oxygen Conc.21~100% (Adjustable)
Tidal Volume50~500ML
I:E Ratio3:1~1:3
Flow Rate50L/MIN
Air Filtration0.04um Precision
Operating Parameters
A/C & SIMV Mode
PEEP Pressure: 0~20 cmH2O
Tidal Volume: 50~1500 ml
Frequency: 2~60 bpm
SIMV Frequency: 2~35 bpm
PCV & PSV Mode
Inspiratory Pressure: 0~35 cmH2O
Support Pressure: 0~35 cmH2O
Apnea Time: 3~12 S
Flow Rate Ascending: 10~400 L/min/S
Monitoring
Peak Pressure: 0~68 cmH2O
MV: 0~99.9 L/min
Oxygen Concentration: 21~100 %
Respiratory Frequency: 0~100 bpm
Detailed Technical Specifications
Frequently Asked Questions
1. What ventilation modes does this equipment support?
The neonatal ventilator supports multiple modes including A/C, SIMV, PCV, PSV, MMV, PEEP, and CPAP to meet various clinical requirements.
2. Can the oxygen concentration be adjusted?
Yes, the oxygen concentration is fully adjustable ranging from 21% to 100%.
3. What is the tidal volume range for infants?
The tidal volume is adjustable from 50ml to 500ml, with some modes supporting up to 1500ml for broader clinical use.
4. Does the device have a backup power supply?
Yes, it features a built-in 12V 7AH lead-acid storage battery for continuous operation during power transitions.
5. What is the warranty period for this ventilator?
This medical equipment comes with a 12-month warranty period for peace of mind.
6. Is the unit suitable for transport?
The unit weighs approximately 65kg and is delivered in a secure wooden case, suitable for professional medical facility environments.
