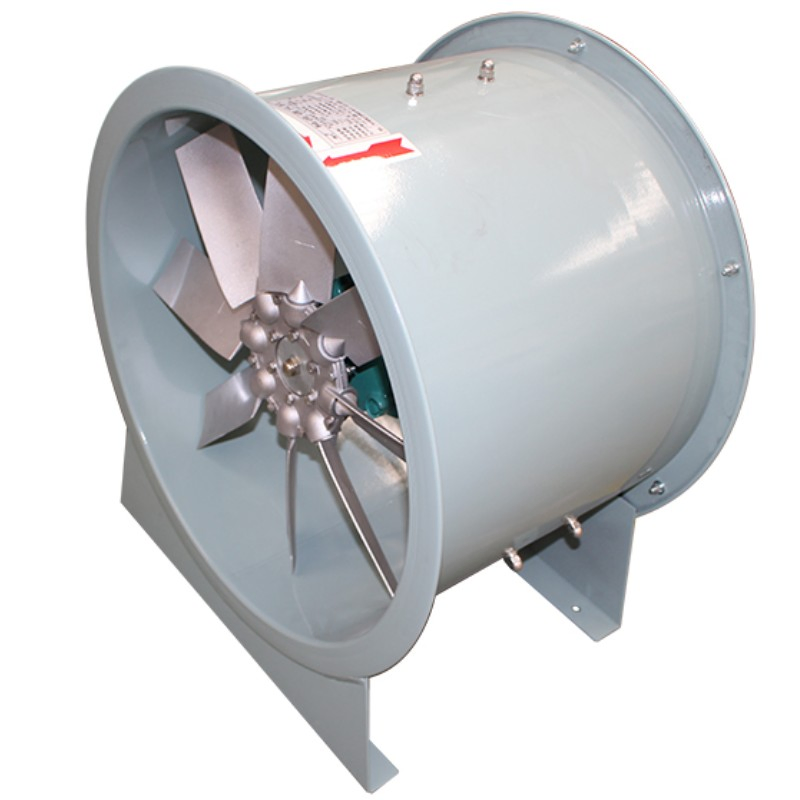

Byt-500 Axial Flow Ventilator Manufactured in China

1 / 5

Byt-500 Axial Flow Ventilator Manufactured in China

Send Inquiry

Product Description

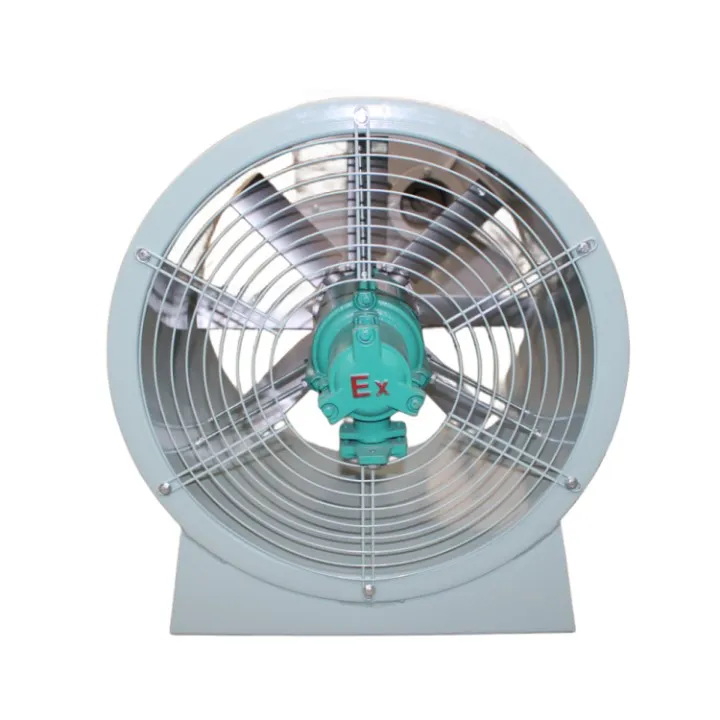

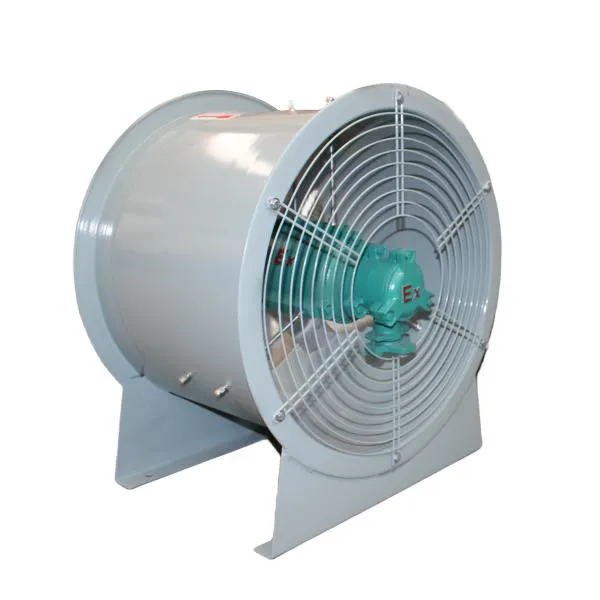

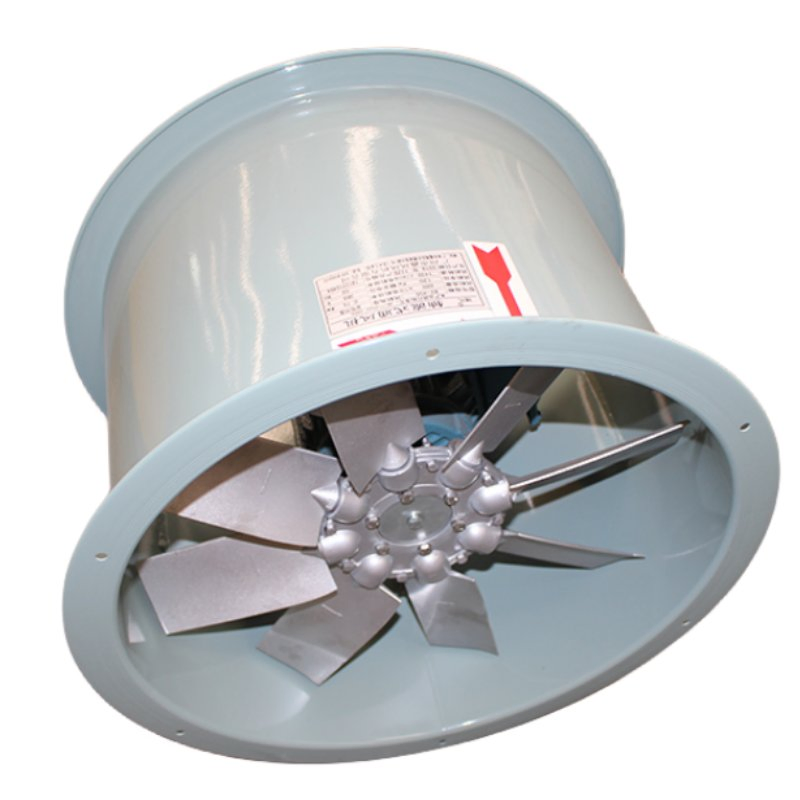

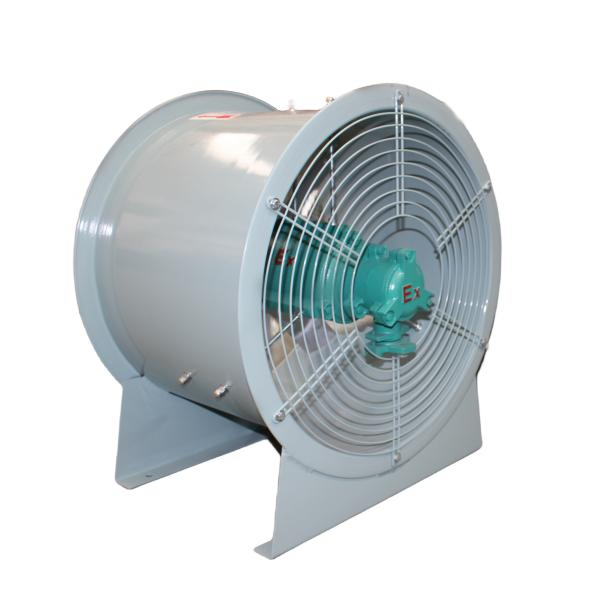

BYT Series Axial Flow Fan

Product Overview

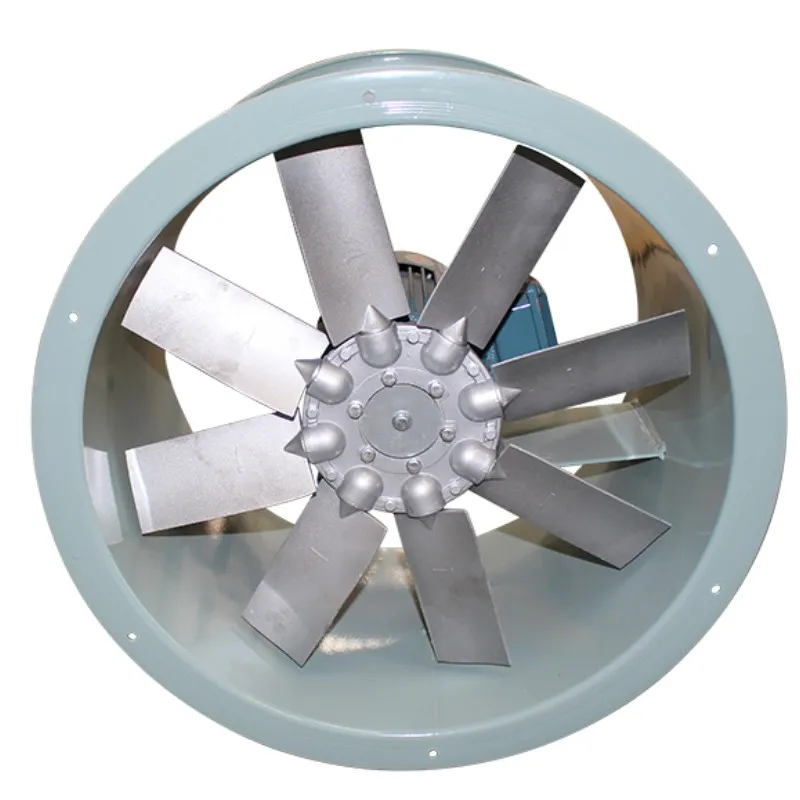

BYT series axial flow fan is a new generation of low noise axial flow fan, utilizing optimized aerodynamic designs and advanced processing technologies. The entire unit is engineered for durability, safety, and practicality. It features an adjustable aluminum alloy impeller and a body finished with high-temperature paint that resists fading.

Bidirectional Ventilation: Realizes positive and reverse ventilation in the same installation position.

High Performance: Air volume increased by 42% and air pressure by 30% compared to common fans.

Low Noise: Noise levels (A noise) decreased by 10-18dB (A) with efficiency up to 82.3%.

Extreme Durability: Equipped with Class F insulation and IP54 protection for high-temperature environments (up to 120°C).

Technical Parameters

Model	Revolution (r/min)	Volume (m³/h)	Full Pressure (Pa)	Static Pressure (Pa)	Power (KW)	Voltage (V)
BYT-280	1450 / 2900	662~3542	39~254	20~135	0.025~0.37	220V / 380V
BYT-315	1450 / 2900	1473~5957	56~316	32~181	0.04~0.55	220V / 380V
BYT-355	1450 / 2900	2128~6942	60~366	32~170	0.04~1.1	220V / 380V
BYT-400	960/1450/2900	1908~9312	32~496	32~279	0.12~2.2	220V / 380V
BYT-450	720/960/1450/2900	1991~14539	20~710	20~369	0.18~4	220V / 380V
BYT-500	720/960/1450/2900	2142~19679	31~710	18~416	0.18~5.5	220V / 380V
BYT-600	720/960/1450/2900	3664~33466	65~1211	48~755	0.18~15	220V / 380V
BYT-800	720 / 960 / 1450	6854~37807	96~532	73~397	0.37~7.5	220V / 380V
BYT-1000	720 / 960 / 1450	19127~69513	150~923	119~608	1.5~18.5	220V / 380V
BYT-1250	720 / 960 / 1450	29853~136982	240~1477	207~1038	3~75	220V / 380V
BYT-1600	720 / 960	23384~195148	202~1116	153~766	2.2~90	220V / 380V
BYT-2000	720 / 960	109347~381147	645~1744	499~1159	37~250	220V / 380V

Application & Excellence

Our products are widely used in environmental protection and purification, industrial dust removal, building ventilation, air conditioning engineering, fire smoke exhaust, and environmental protection. Specifically ideal for food machinery, printing, coating machinery, kiln equipment, ceramic machinery, and chemical industries dealing with high temperature and high humidity corrosive gases.

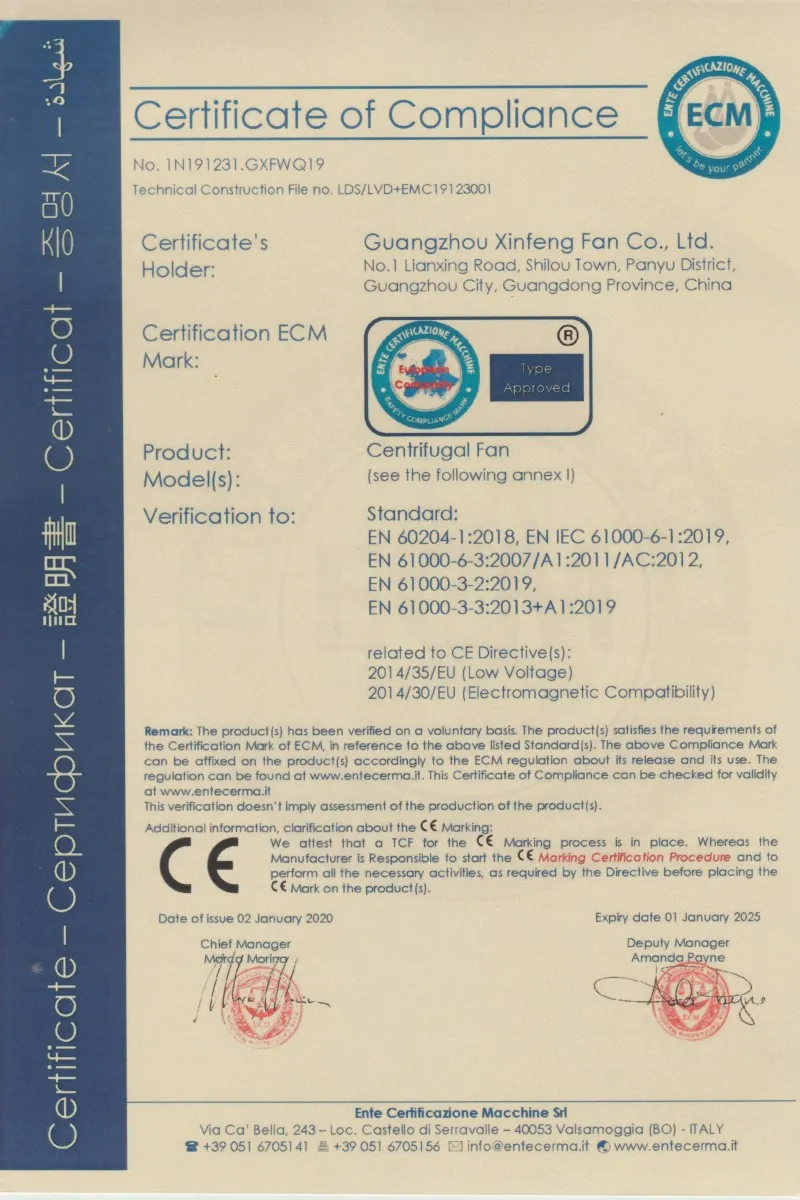

Professional Technology & Certifications

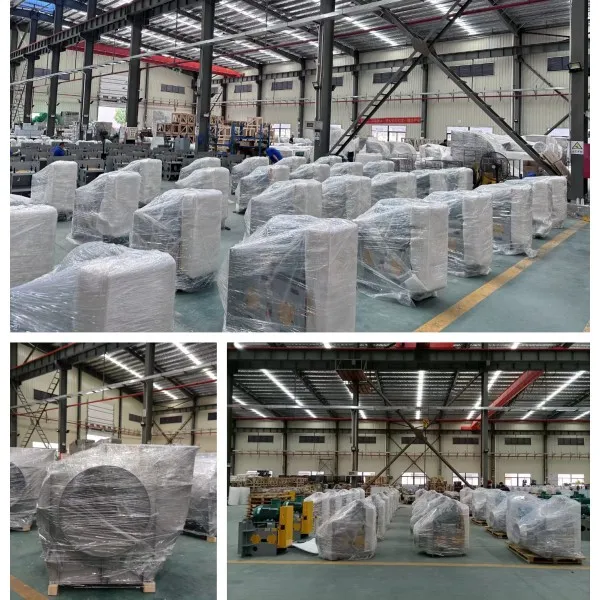

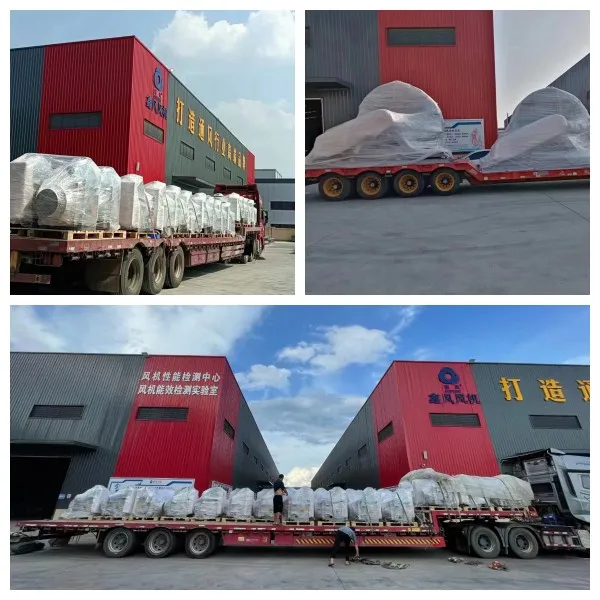

Packaging & Shipment

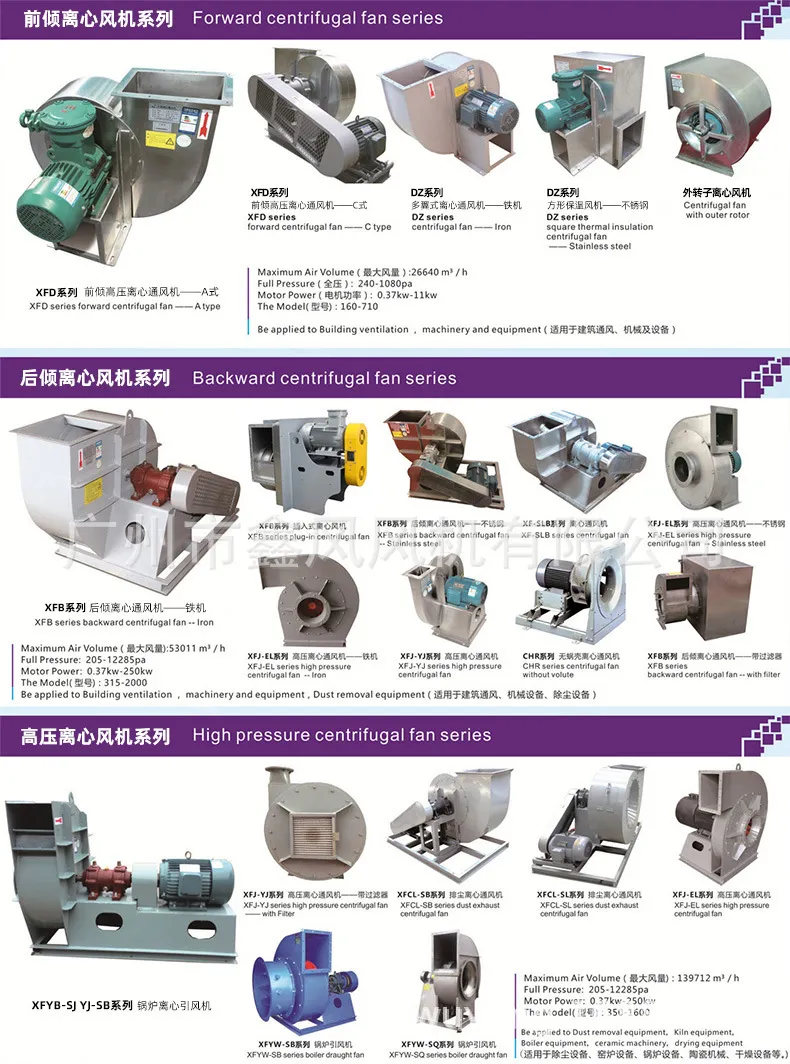

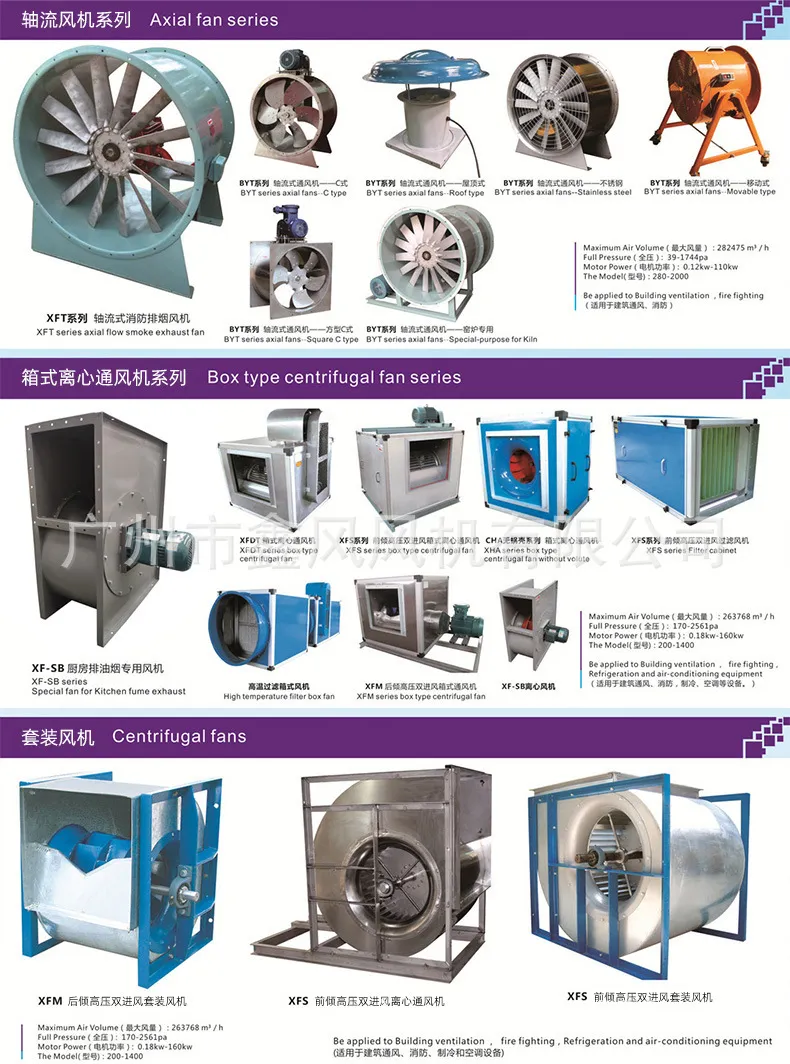

Other Product Series
