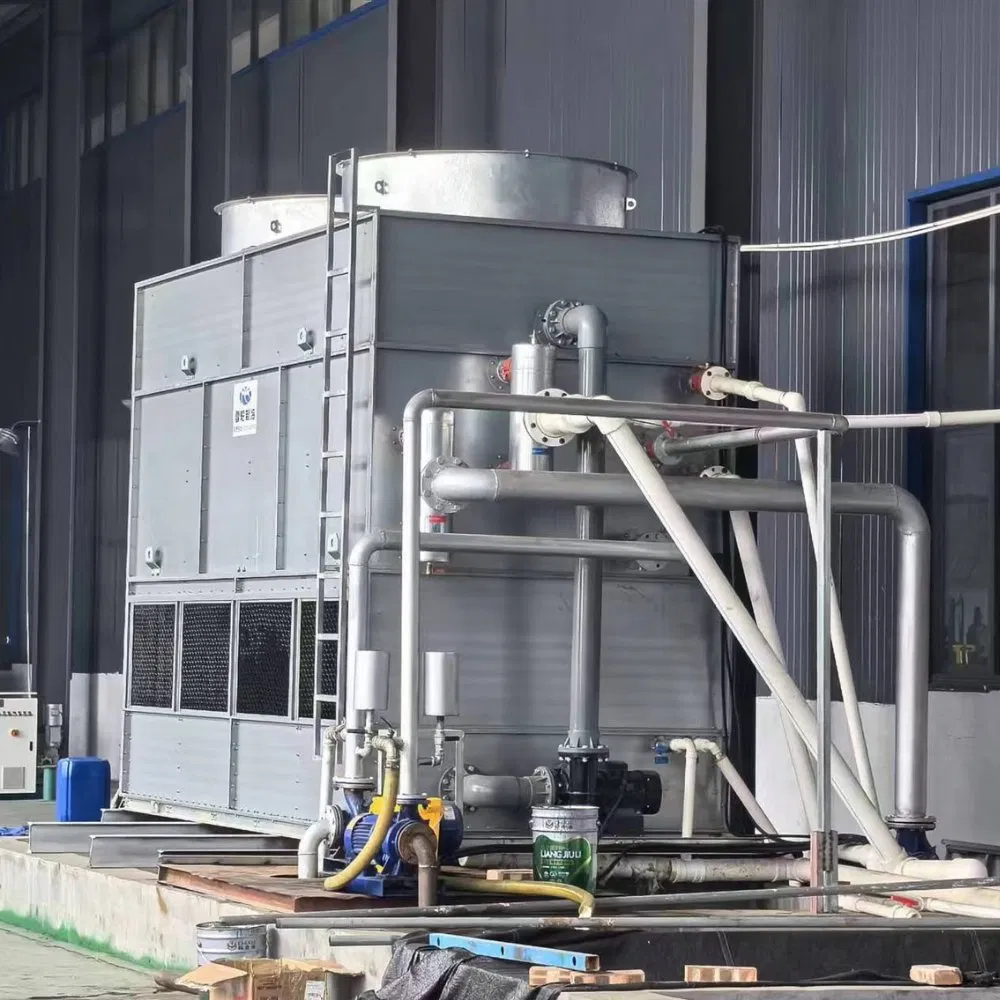

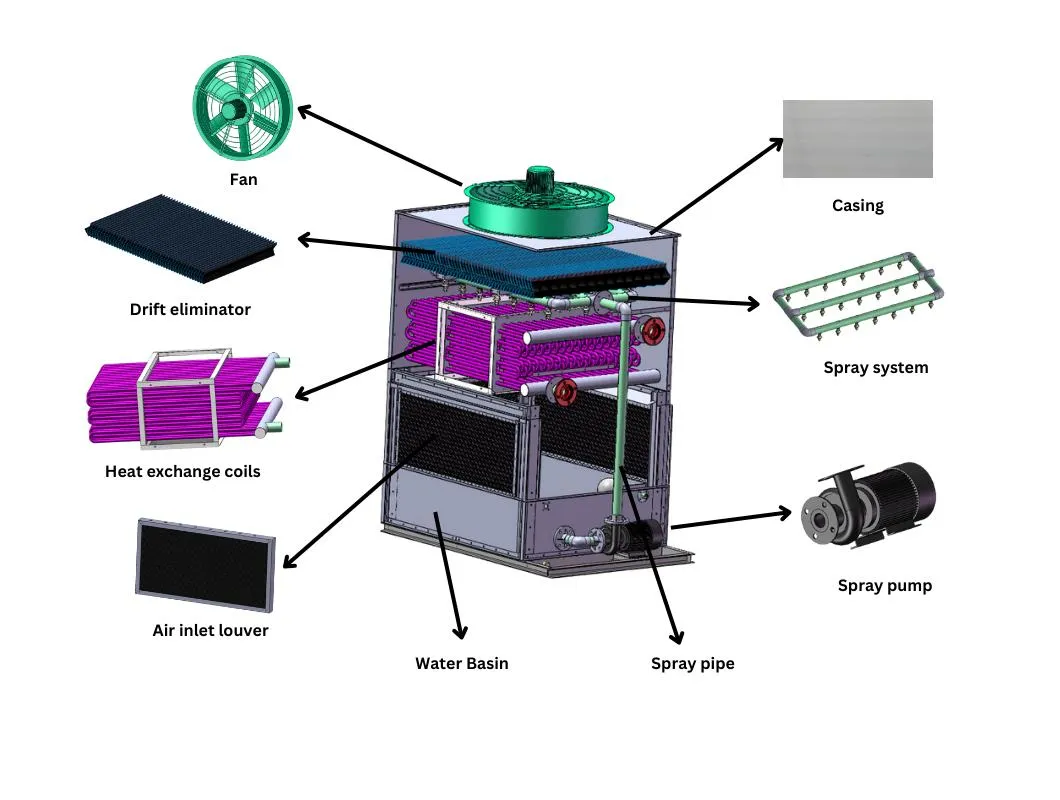

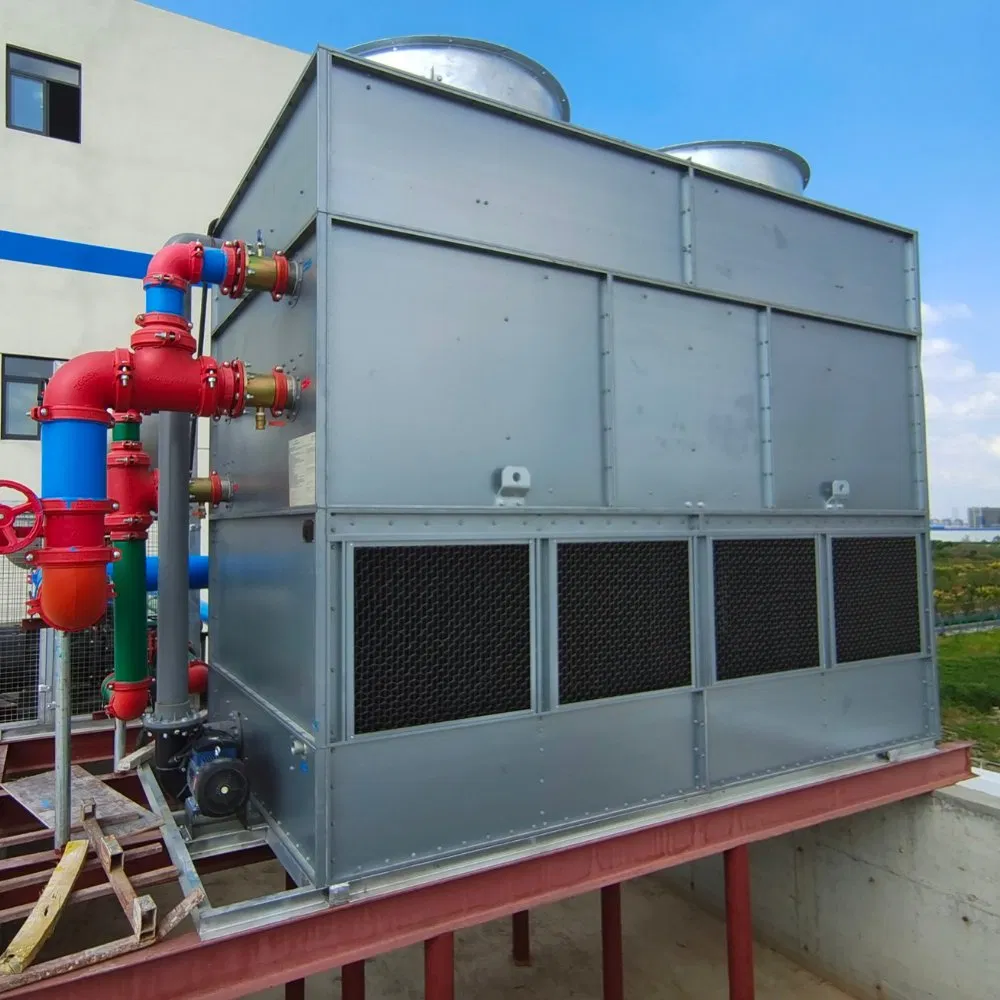

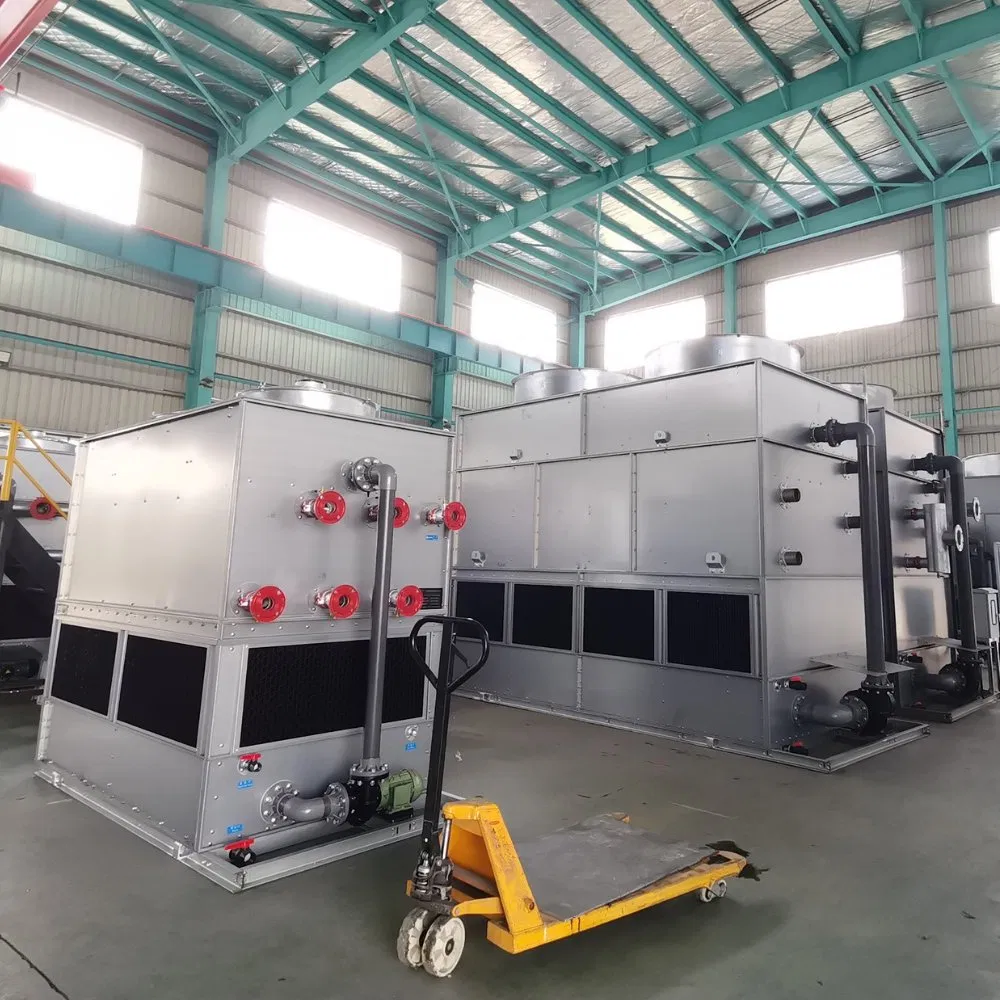

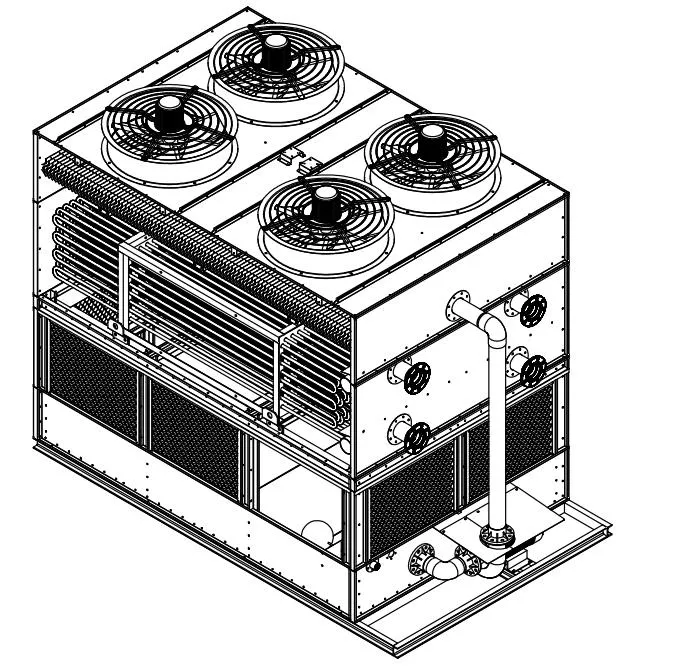

The XLN Series Counter Flow Closed Circuit Cooling Tower offers advanced cooling solutions for efficiency and reliability. Featuring a vertical airflow design, it maximizes heat exchange efficiency while minimizing footprint. Ideal for industrial applications requiring optimal cooling performance, the XLN Series ensures superior performance through its robust construction and high-quality materials. It is tailored to meet specific customer needs and provides customized cooling plans based on detailed operational environments and application scenarios. With a commitment to excellence and cost-effectiveness, the XLN Series sets a new standard in closed-circuit cooling technology.

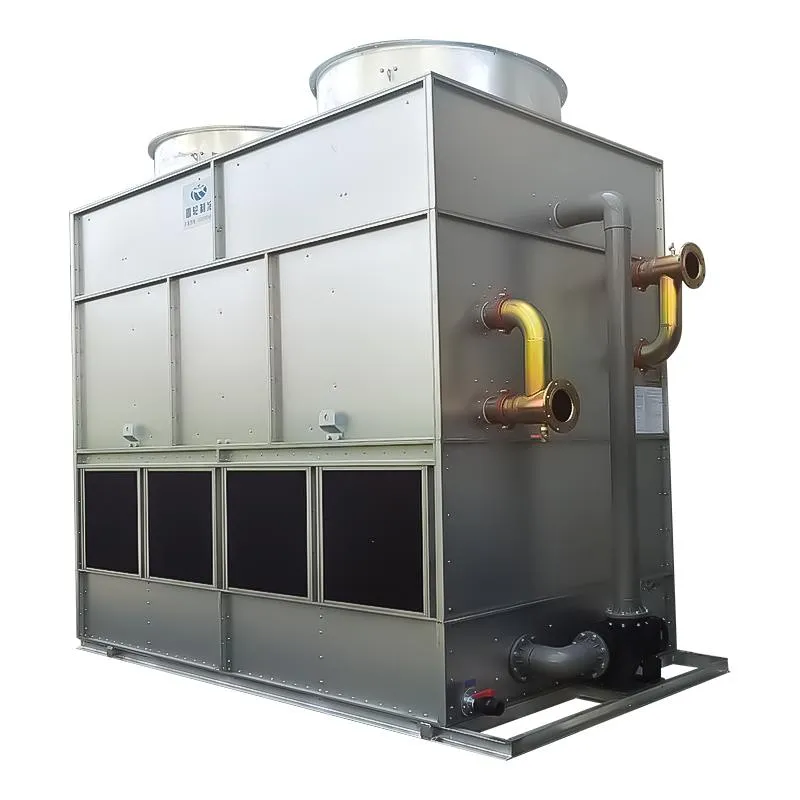

XLN Counter Flow

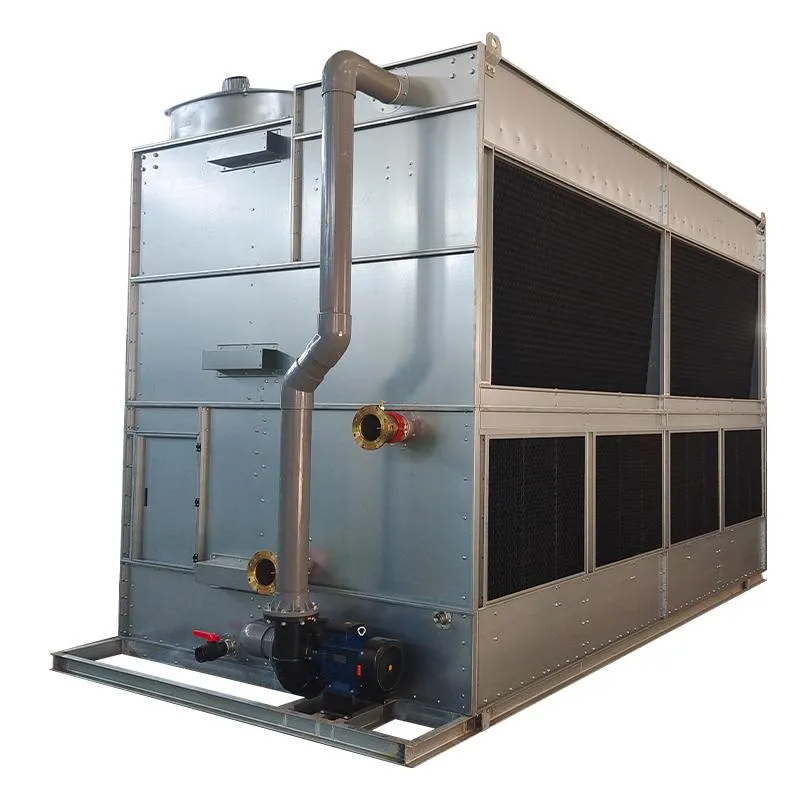

XLH Cross Flow

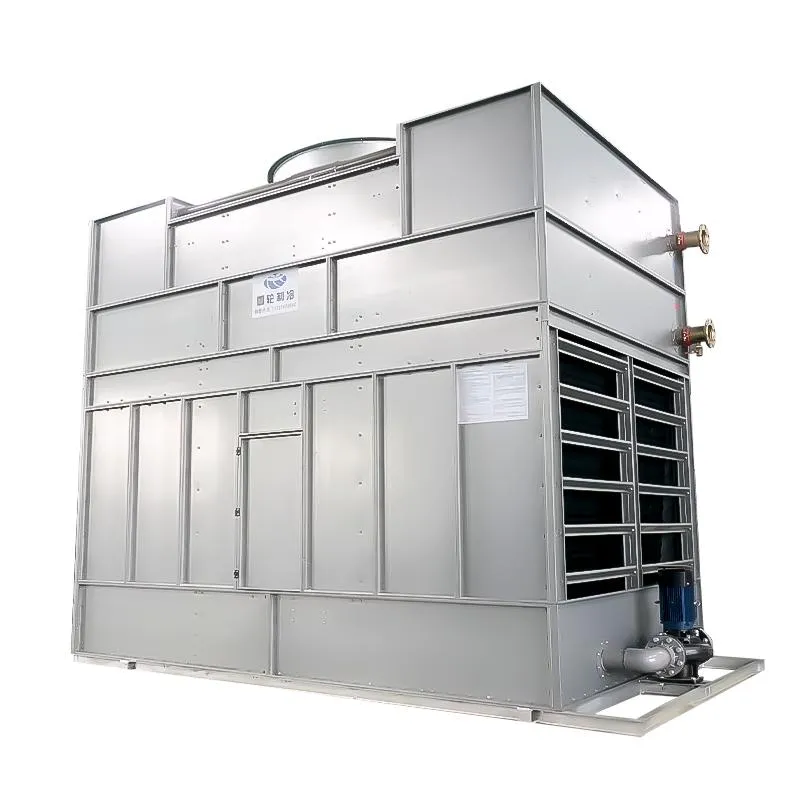

XLHY Hybrid Flow
| Model | Flow Rate (m³/h) | Cooling Capacity | Pressure (MPa) | Pipe Diameter (mm) | Fan System | Spray Pump | Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Kcal/h | Inlet | Outlet | Drain | Make-up | Power(Kw) | Qty | Air(m³/h) | Power(Kw) | Qty | Lift(m) | ||||
| XLN-6T | 6 | 30,000 | 0.8 | DN50 | DN50 | DN25 | DN25 | 0.75 | 1 | 10000 | 0.75 | 1 | 5 | 2400×850×1900 |
| XLN-20T | 20 | 100,000 | 0.8 | DN65 | DN65 | DN25 | DN25 | 2.2 | 1 | 25000 | 0.75 | 1 | 5 | 2700×1230×2500 |
| XLN-50T | 50 | 250,000 | 0.8 | DN80 | DN80 | DN40 | DN25 | 1.5 | 2 | 22000×2 | 1.5 | 1 | 5 | 3700×1400×2550 |
| XLN-100T | 100 | 500,000 | 0.8 | DN125 | DN125 | DN40 | DN40 | 1.5 | 4 | 22000×4 | 2.2 | 1 | 5 | 3500×2000×3000 |

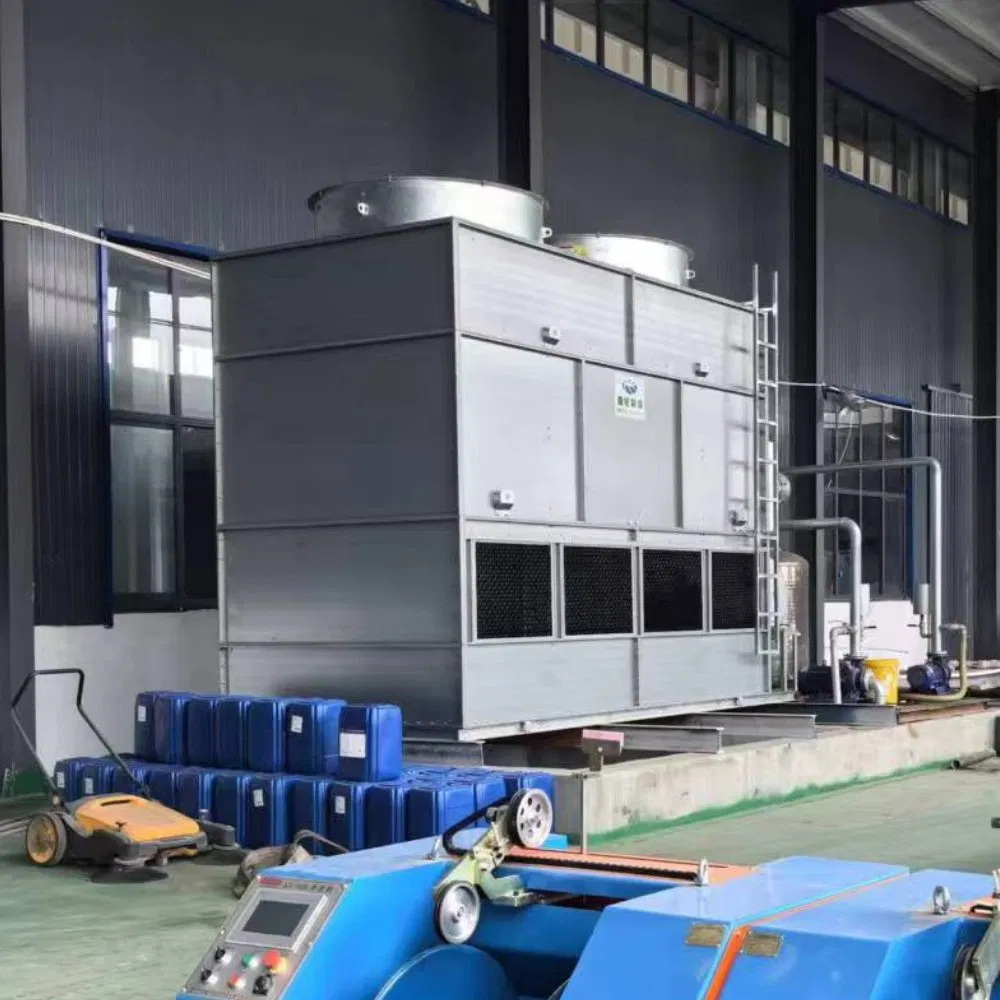

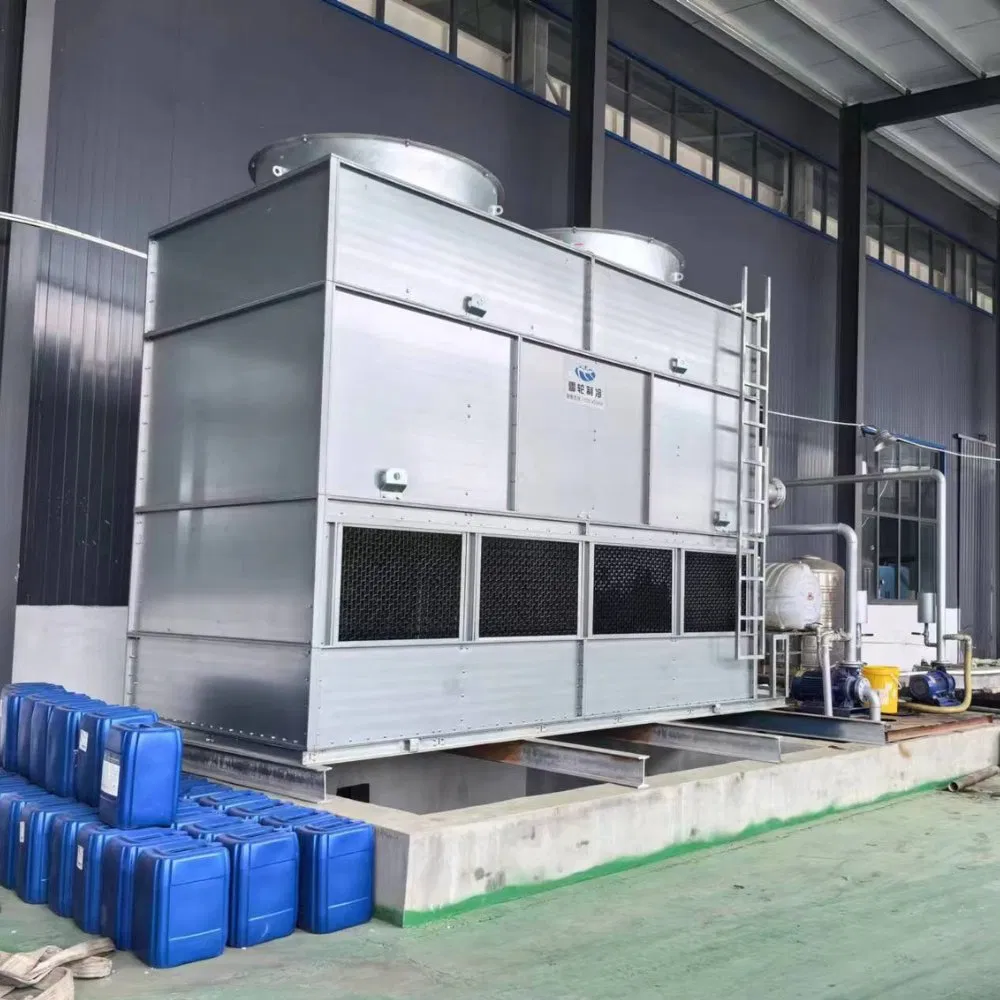

| XLN-200T | 200 | 1,000,000 | 0.8 | DN150 | DN150 | DN40 | DN40 | 4 | 2 | 65000×2 | 4 | 1 | 5 | 4500×2000×3600 |
*Please note: The above product data is for standard models. We provide specialized customization for closed-loop cooling towers based on requirements.
