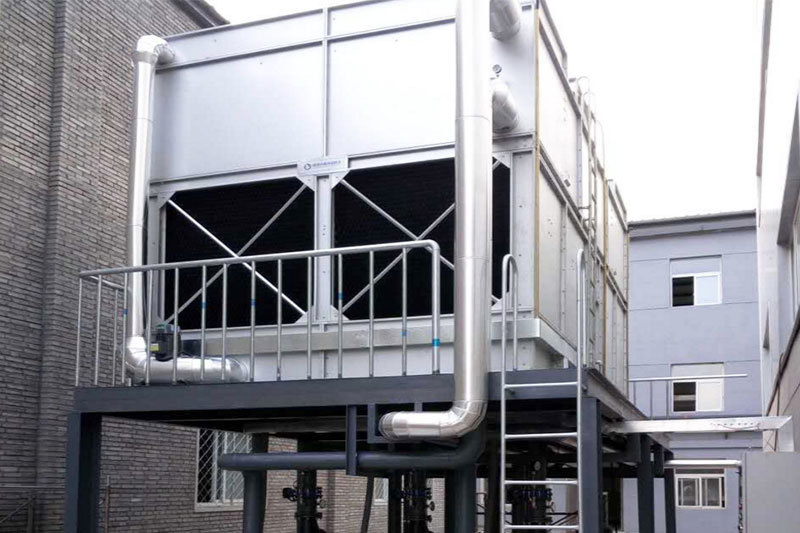

CE Certified Customized Industrial Cooler Equipment for Factory Use

Customization:	Available
After-sales Service:	Lifetime After-Sales
Warranty:	12 Months

Basic Info.

Model NO.

ZB-BCL457362

Cooling Method

Counter Flow

Ventilation Mode

Mechanical Ventilation

Material

Metal

Air Contact Form

Wet and Dry

Tower Shape

Square

Noise Level

Ultra Low

Certification

RoHS, UR, ISO, CE, CCC

Housing Material

Aluminum Zinc Plated Sheet / Stainless Steel

Production Capacity

5000 sets/Year

Product Description

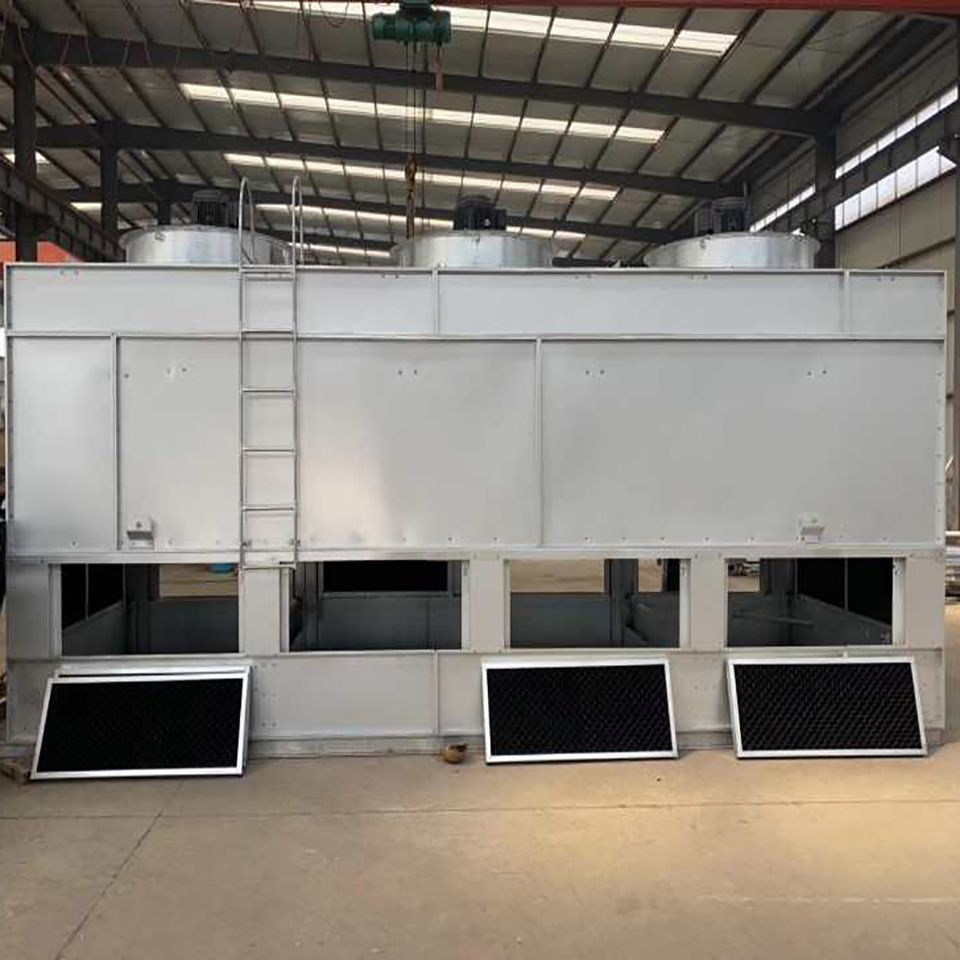

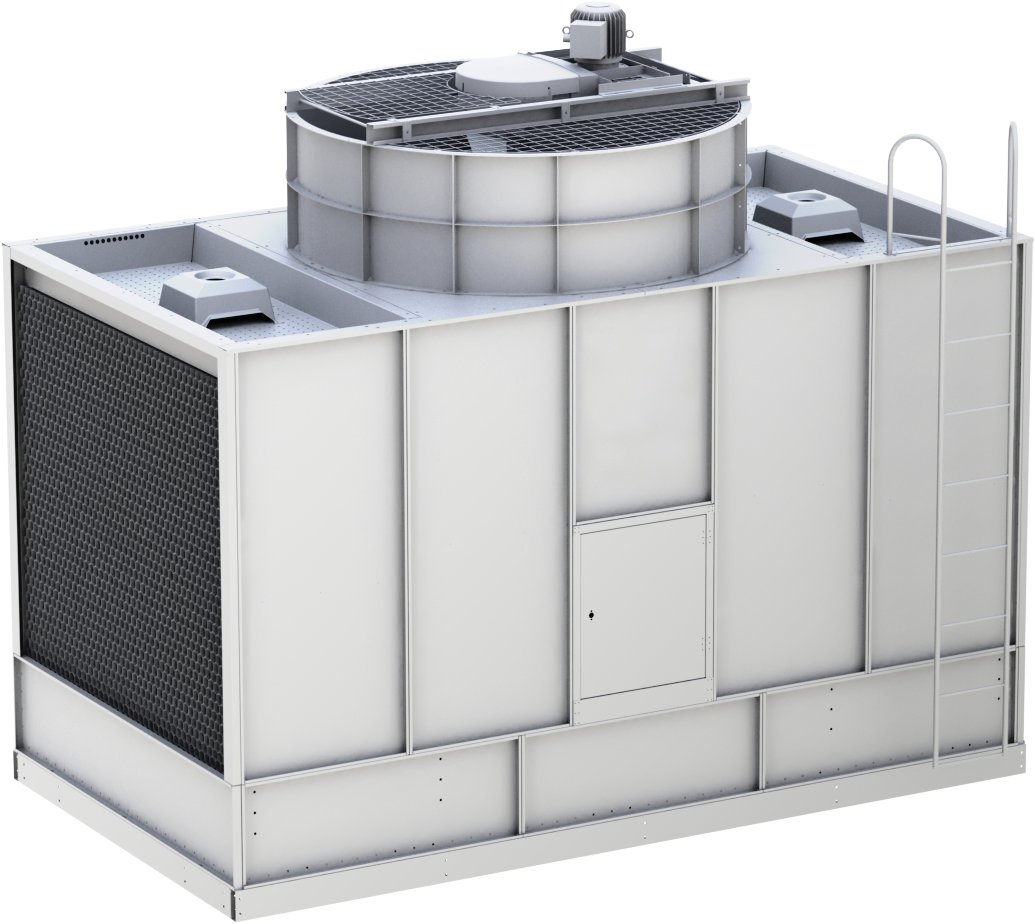

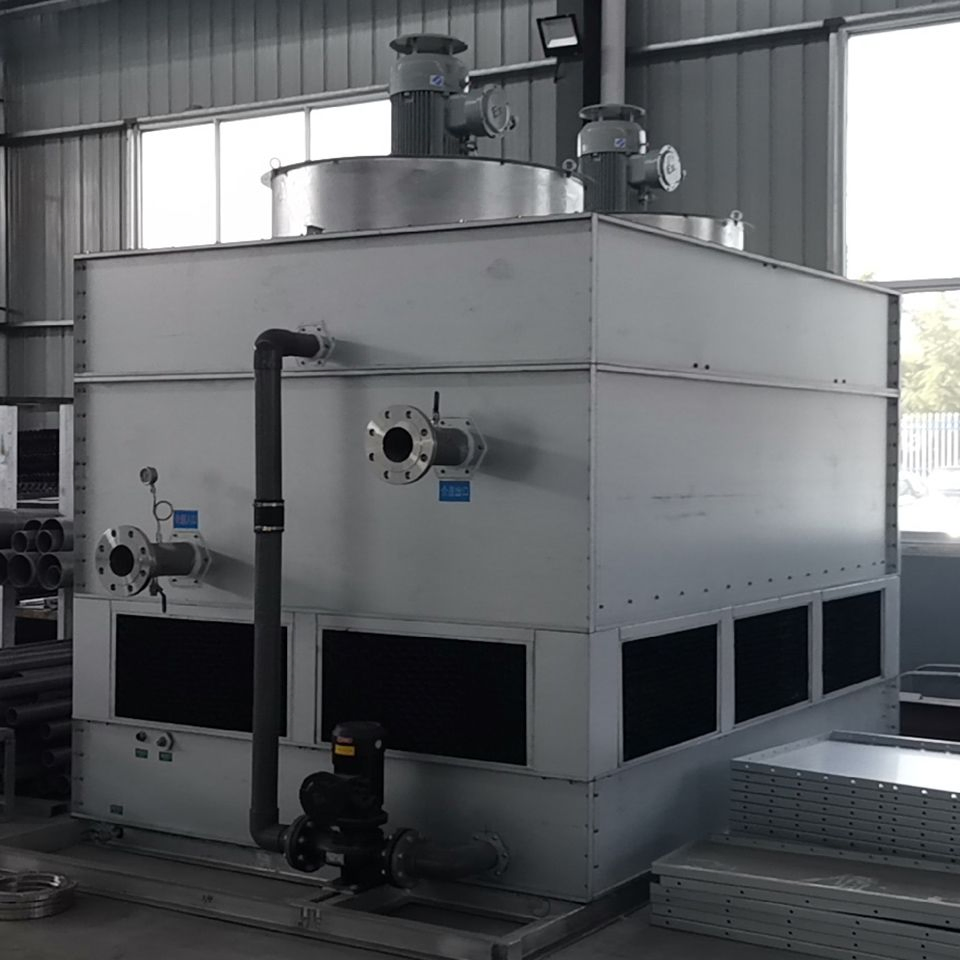

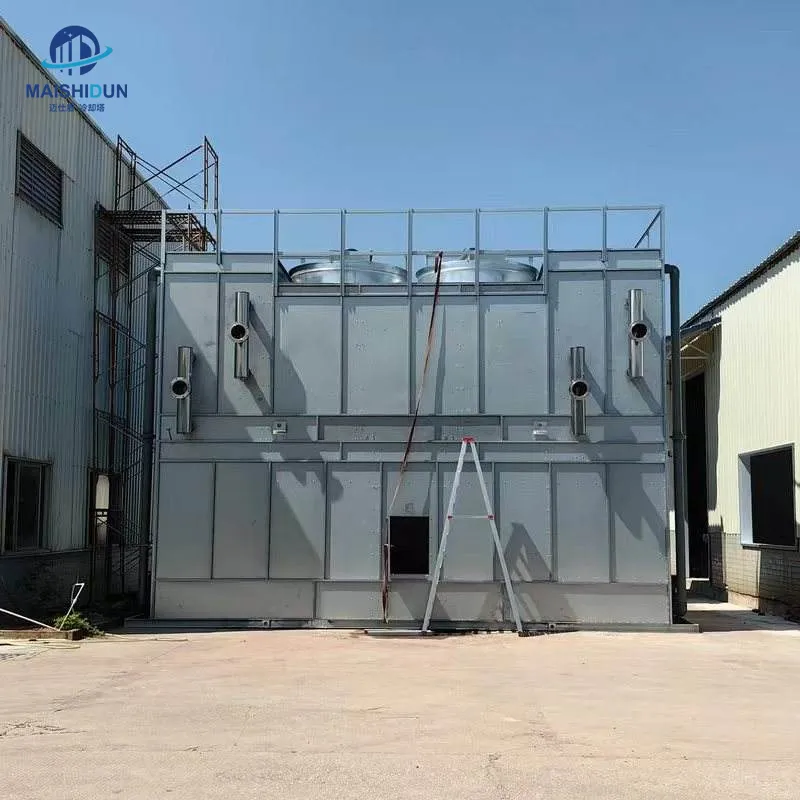

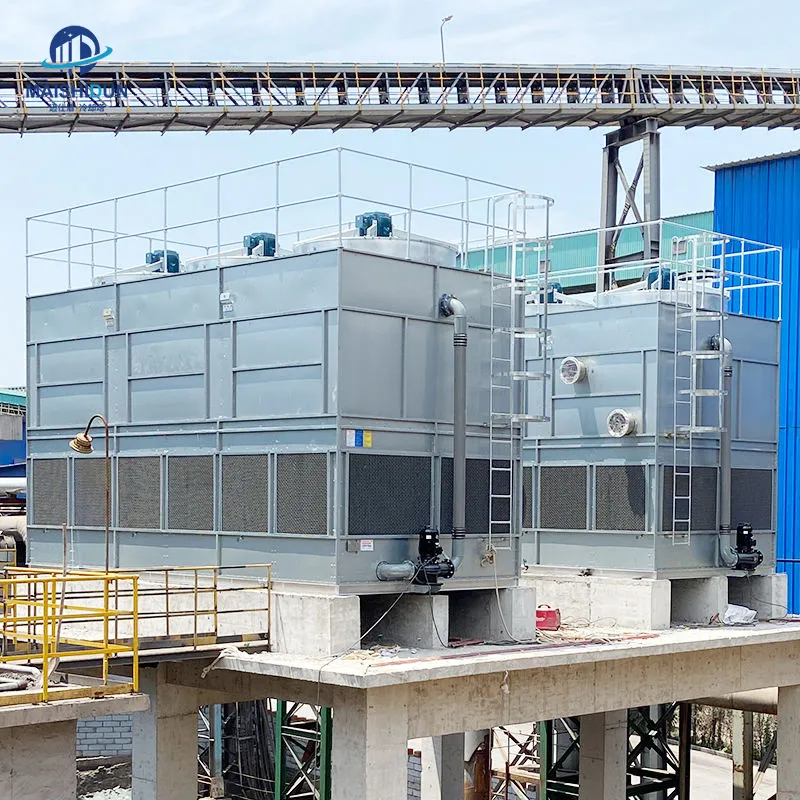

REVERSE FLOW CLOSED COOLING TOWER

Cooling medium: water, oil, or other liquids. Condenser Material: Copper Tube Condenser, Stainless Steel Tube Condenser. Shell material: 304 stainless steel plate, Galvanized sheet, magnesium aluminum zinc plated plate. Compact structure, small footprint, and relatively high height. Adopting modular design, maintenance is convenient and fast. Meanwhile, due to the adoption of a closed-loop system, impurities and dirt in the cooling water are less likely to accumulate, reducing maintenance cost.

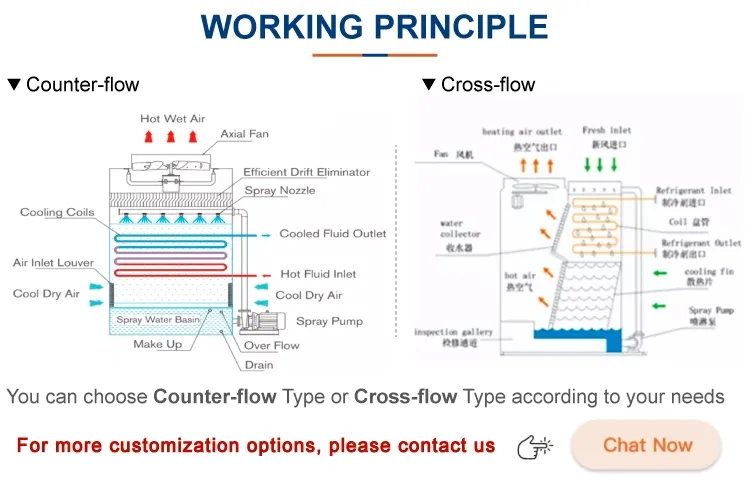

Working Principle:

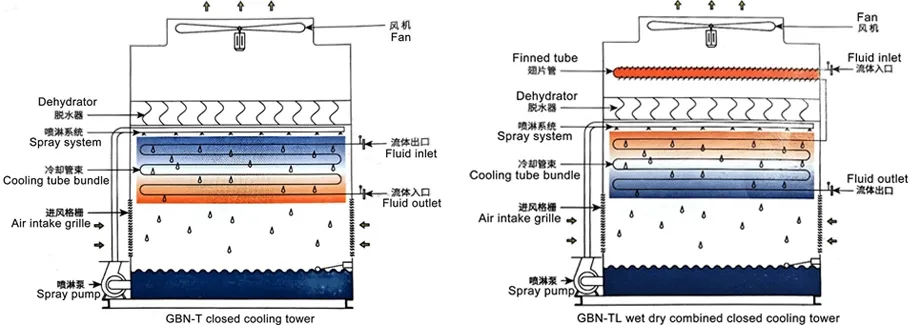

A counter current closed cooling tower is a type of cooling tower where the wind direction is opposite to the direction of the spray water. Dry low-temperature air is sucked in from the lower part of the tower, alternating with the falling spray water. After absorbing heat and moisture, the hot air is discharged by the top fan.

Product Advantages:

Efficient cooling: Counterflow design increases the cooling area and duration.
Energy conservation: Closed loop system reduces evaporation loss and water waste.
Stable and reliable: Stable steel structure adapts to harsh environments and maintains temperature stability.
Long Service Life: High-quality corrosion-resistant materials used throughout.

Technical Parameters

Model	Capacity (kcal/h)	Water Vol (m³/h)	Fan Power (KW)	Pump Power (KW)	Overall Size (mm)	Net Weight (Kg)
ZM-BNL200	50000	10	0.37*1	0.75	1630x910x2180	400
ZM-BNL400	100000	20	0.37*2	0.75	2380x910x2380	700
ZM-BNL600	150000	30	0.37*2	1.5	2380x1160x2380	800
ZM-BNL1000	250000	50	1.5*2	1.5	2880x1160x2635	1000
ZM-BNL2000	500000	100	1.5*4	3	3480x1910x2655	1600

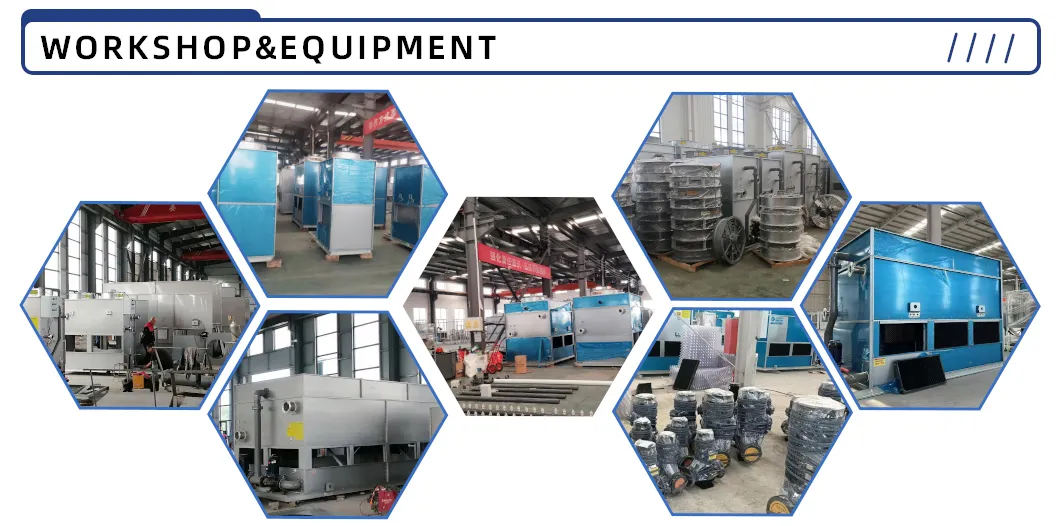

Workshop & Equipment

Certifications

Packaging & Shipping

Frequently Asked Questions

Are you a trader or a manufacturer?

We are a direct factory. All our products are developed and produced in our self-built factory with a complete production line and technical team, ensuring quality and cost advantages.

Can the products be customized?

Yes, we support full customization! We can customize functions, specifications, and appearance according to your needs. The cycle usually ranges from 15 to 60 days depending on complexity.

How is the equipment quality guaranteed?

We maintain a dual guarantee system: technical perfection using patented technologies and strict quality control with multiple inspection procedures and factory testing.

How does your after-sales service respond?

We offer 7×24-hour technical consultation, response within 48 hours for core issues, and provide free operation training and maintenance guidance.

Does the cooling tower save energy?

Yes, our equipment adopts variable frequency control and heat recovery technology, making it 20% - 35% more energy-efficient than traditional models.

How can I obtain a detailed quotation?

Submit your requirements (scenario/parameters/budget), and our technical team will provide a preliminary plan within 24 hours followed by sample experience or factory inspection.
