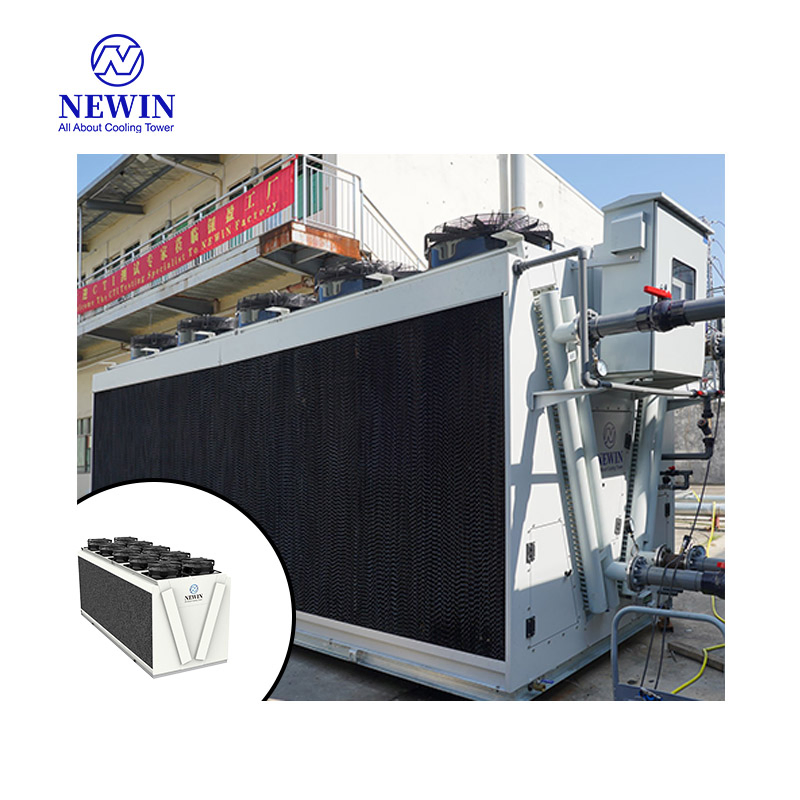

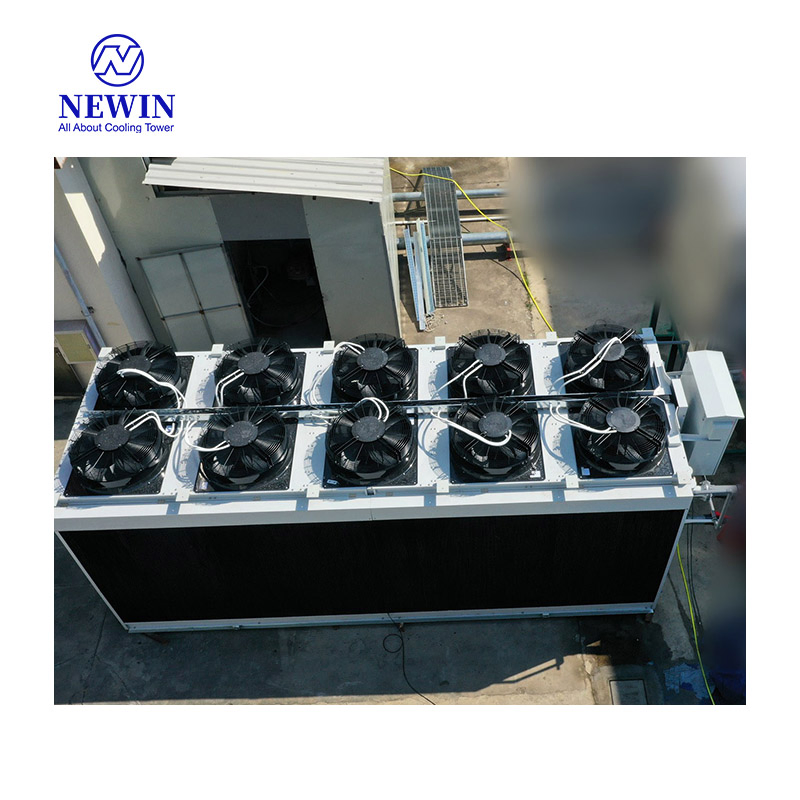

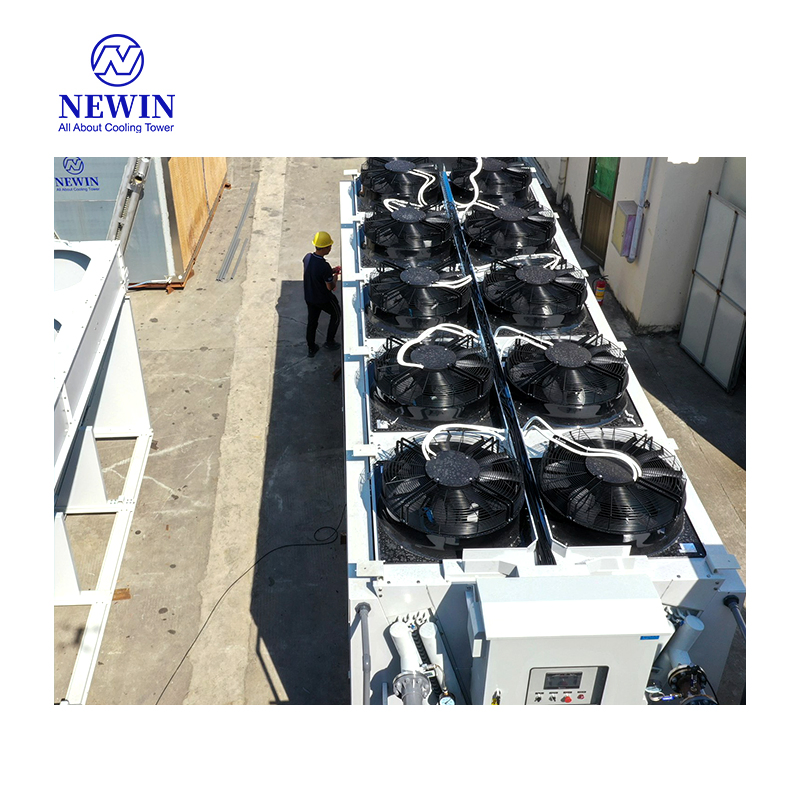

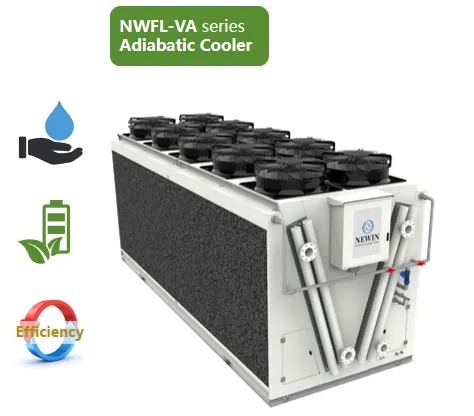

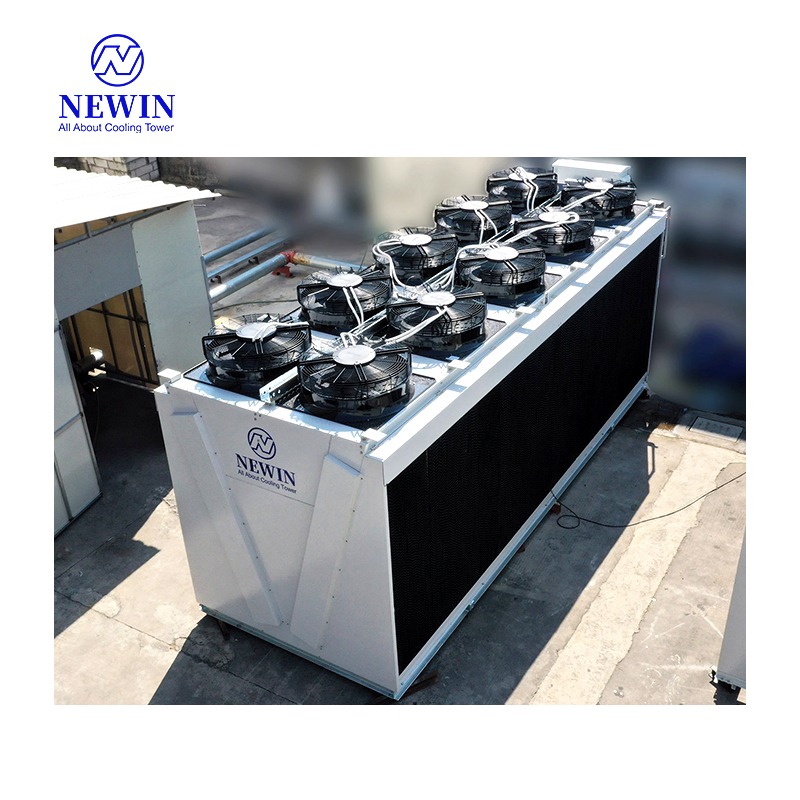

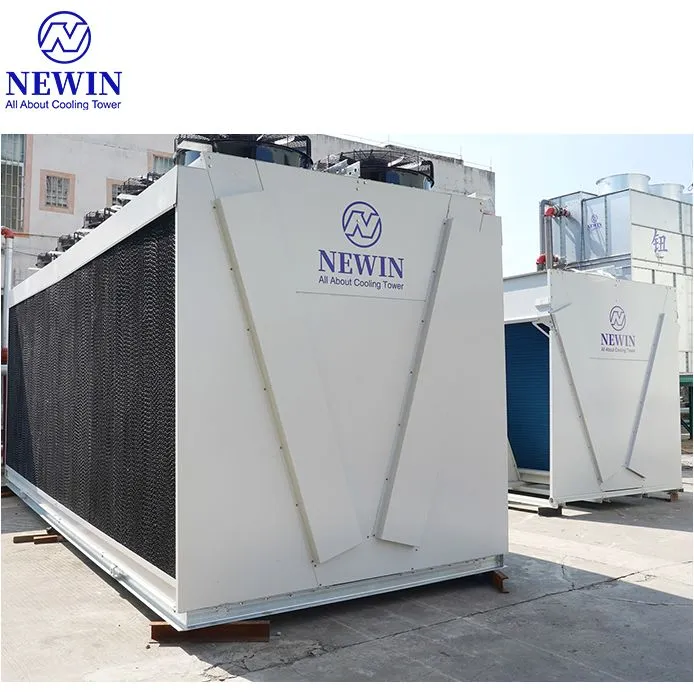

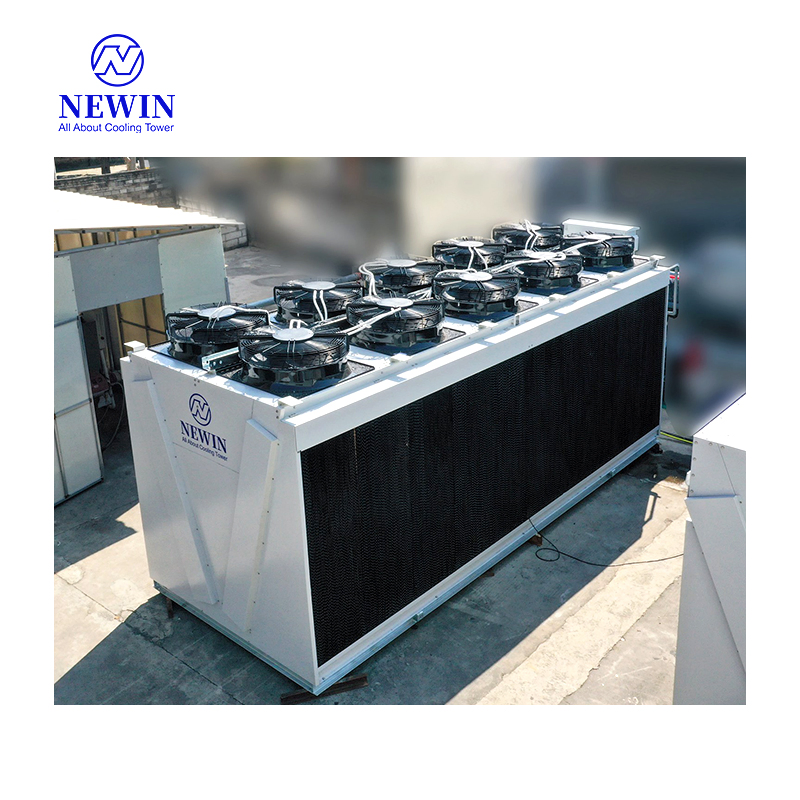

Introducing the NWFL-VA series—a groundbreaking V-type dry air cooler that redefines excellence in cooling technology with its state-of-the-art Adiabatic Cooling System. Dive into an unmatched cooling performance that promises exceptional efficiency throughout the year, precisely engineered for data centers and a wide range of other facilities.
This cutting-edge solution delivers an elite free cooling experience, significantly minimizing water usage when compared to conventional evaporative cooling technologies. It stands as a sustainable and economically savvy choice for forward-thinking enterprises striving for modernity and environmental responsibility.

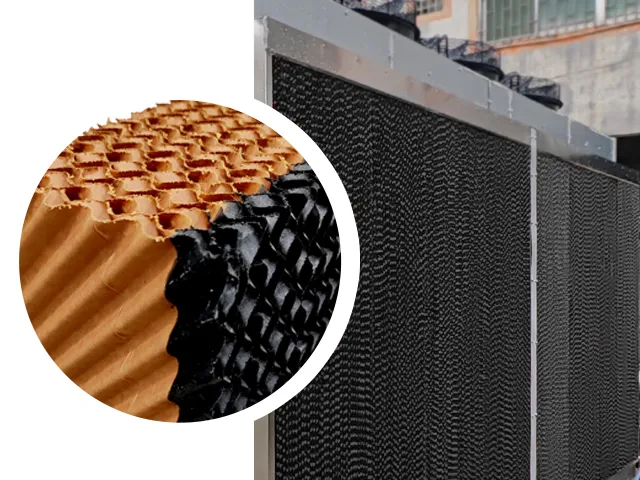

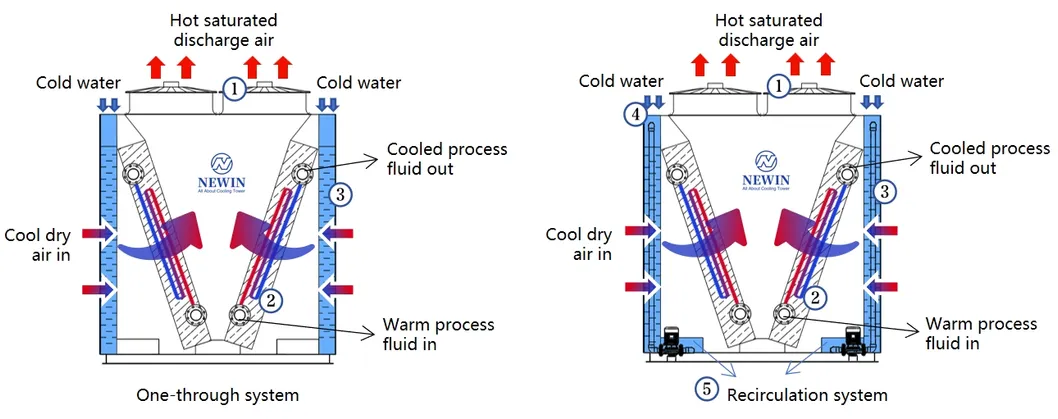

When the adiabatic cooler springs into action: refreshingly cold water cascades from the apex of the cooler, smoothly permeating high-efficiency evaporative cooling pads. Meanwhile, the EC axial fan draws in cool and dry air, allowing it to glide over the pads and undergo a remarkable precooling process. This significantly amplifies the cooling capability for warm process fluids.

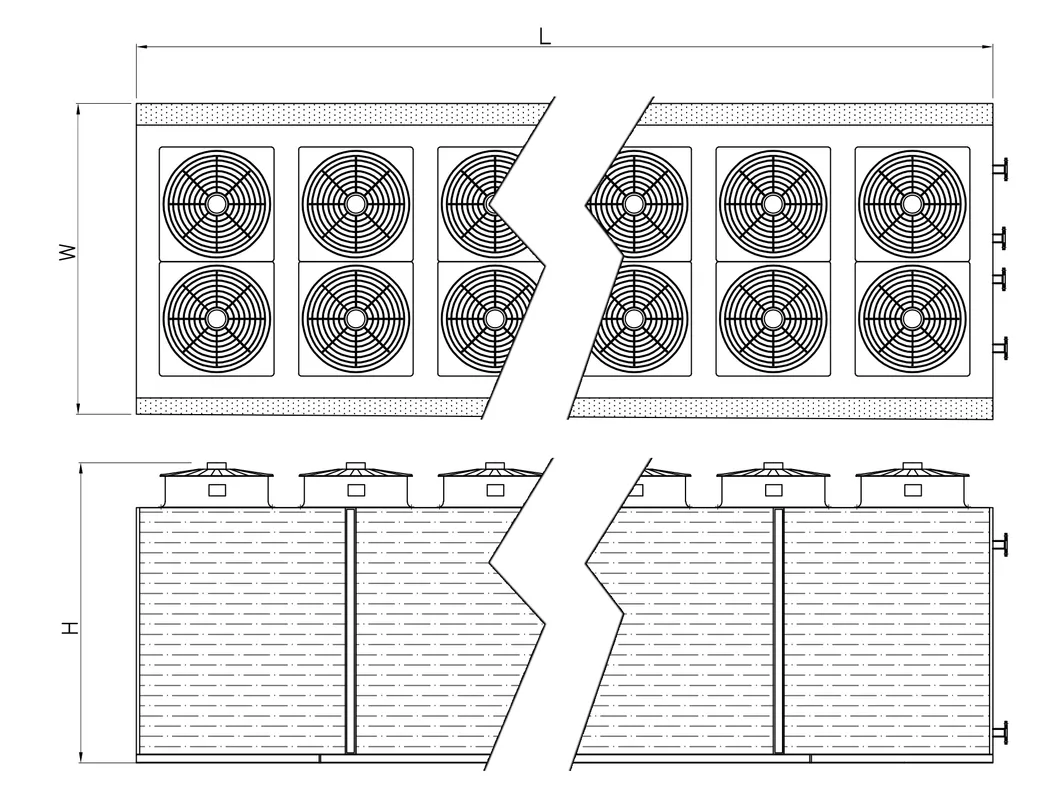

| Model | Cooling Capacity (kw) | Dimensions (L/W/H mm) | Fans (Nos) | Noise dB(A) | Power (kw) | Ship Weight (kg) |
|---|---|---|---|---|---|---|
| NWFL-231-4D10-800VA | 200 | 2500/2400/2190 | 4 | 83.7 | 4.05 | 1348 |
| NWFL-231-6D10-800VA | 250 | 2500/2400/2190 | 4 | 89.1 | 5.21 | 1494 |
| NWFL-241-4D10-800VA | 255 | 2500/2400/2550 | 4 | 82.2 | 5.61 | 1498 |
| NWFL-241-6D10-800VA | 315 | 2500/2400/2550 | 4 | 85.2 | 6.75 | 1690 |
| NWFL-251-4D10-800VA | 310 | 2500/2400/2980 | 4 | 83.3 | 7.78 | 1670 |
| NWFL-251-6D10-800VA | 400 | 2500/2400/2980 | 4 | 85.5 | 9.18 | 1909 |
Note: Standard design based on 5ºC fluid difference and 17ºC temp approach.
Galvanized steel panel fortified with anti-corrosion coating. Resilience matches stainless steel, reducing water consumption via more concentrated cycles.

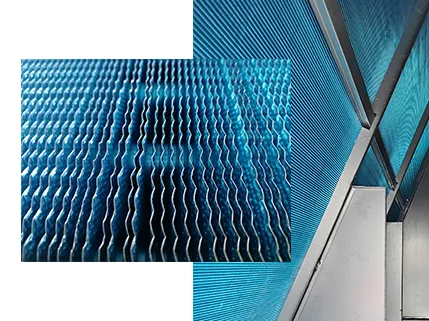

Copper tubes and aluminum fins maximize heat transfer efficiency. Robust design ensures superior thermal conduction and outstanding performance.

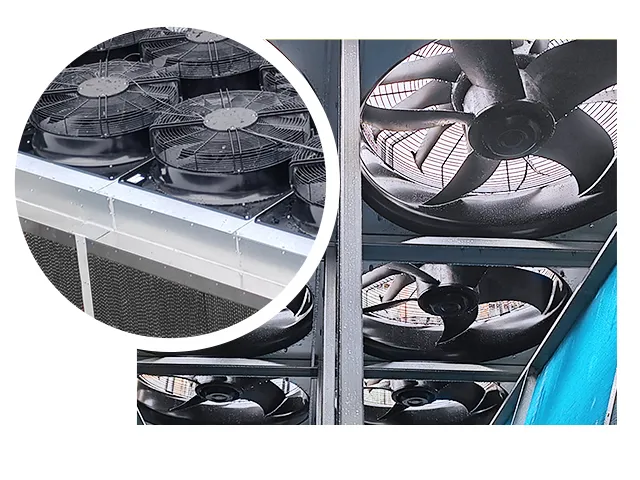

IP55 protection, F insulation, and efficiency exceeding IE4 standards. Noise is expertly minimized without compromising heat exchange efficacy.

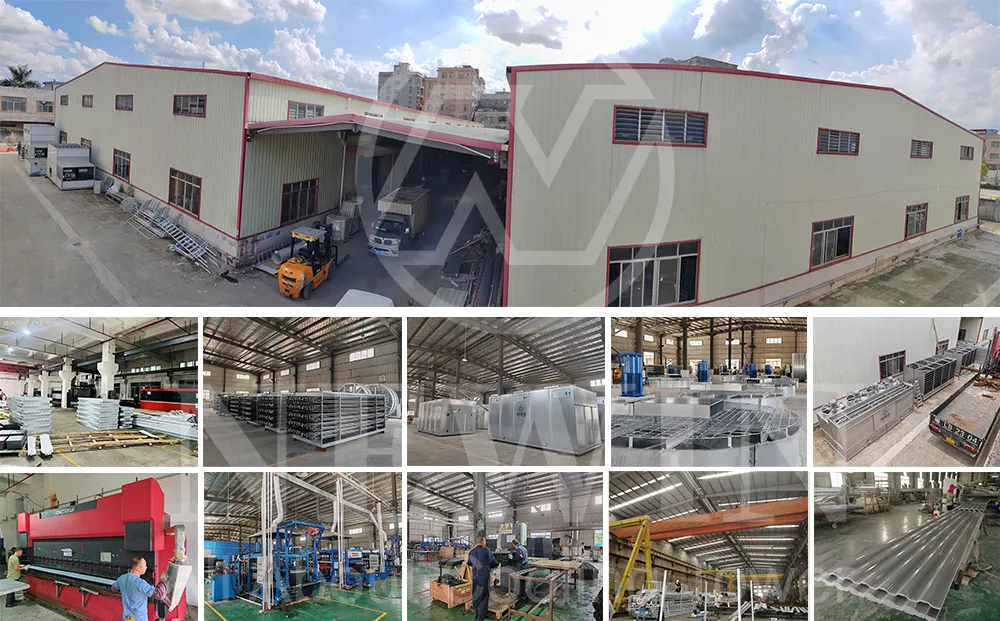

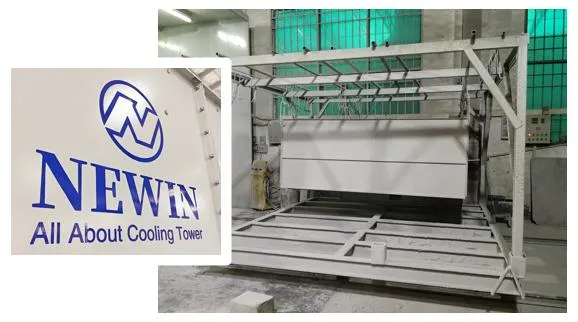

Our expansive manufacturing base spans 10,000 square meters, fully equipped for world-class production. We hold ISO9001:2015 and ISO14001:2015 certifications, reflecting our adherence to rigorous international standards.
