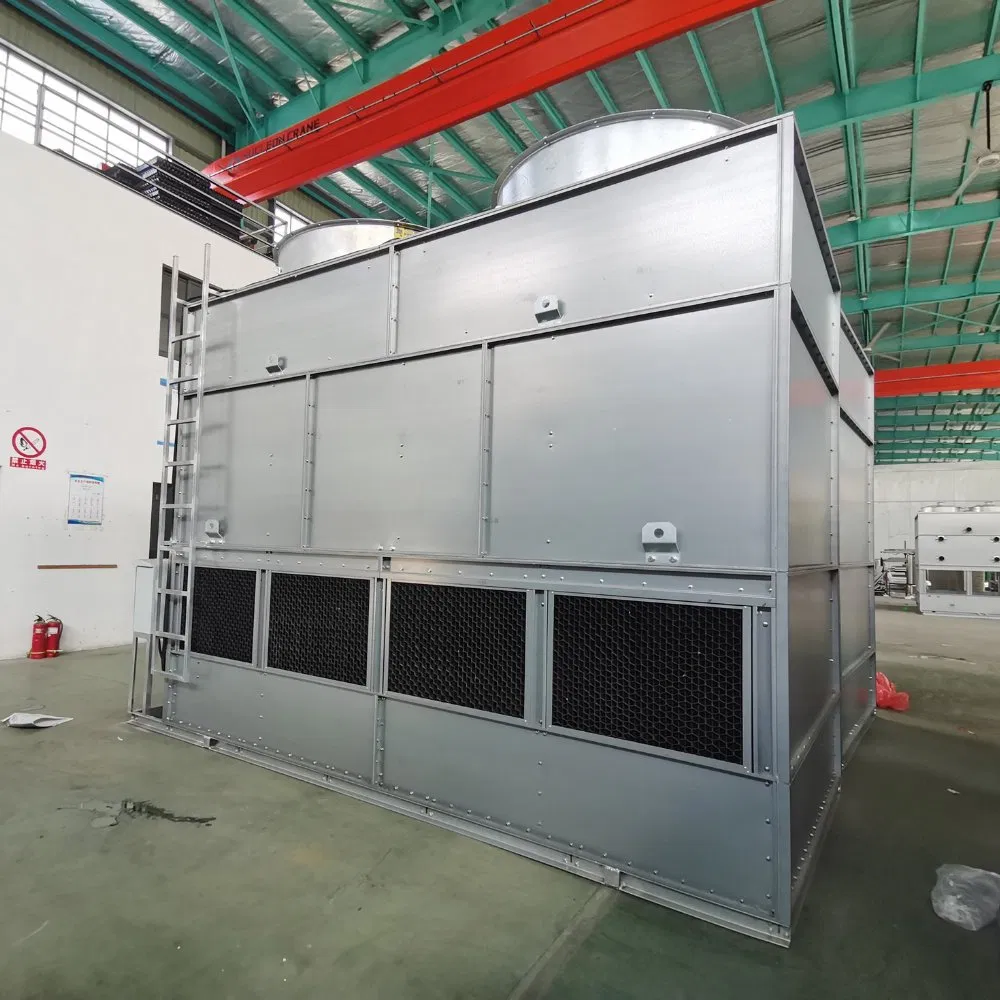

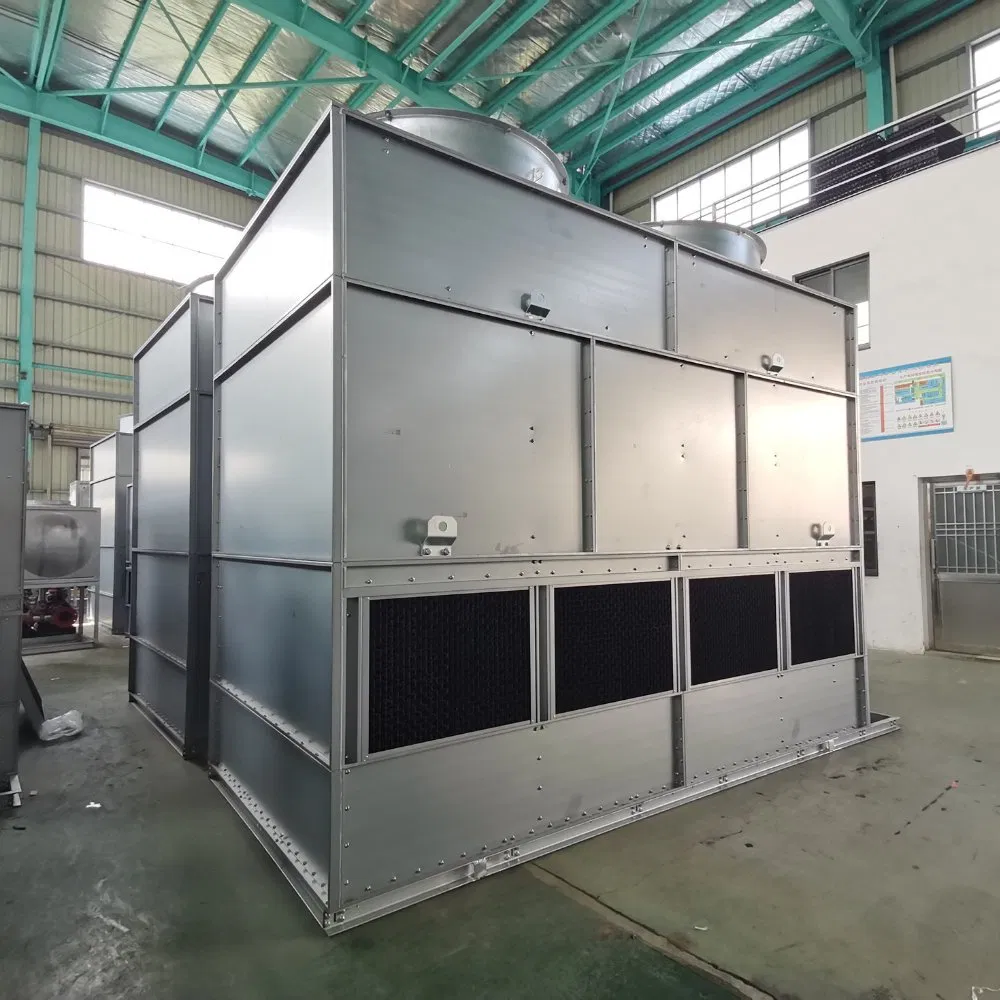

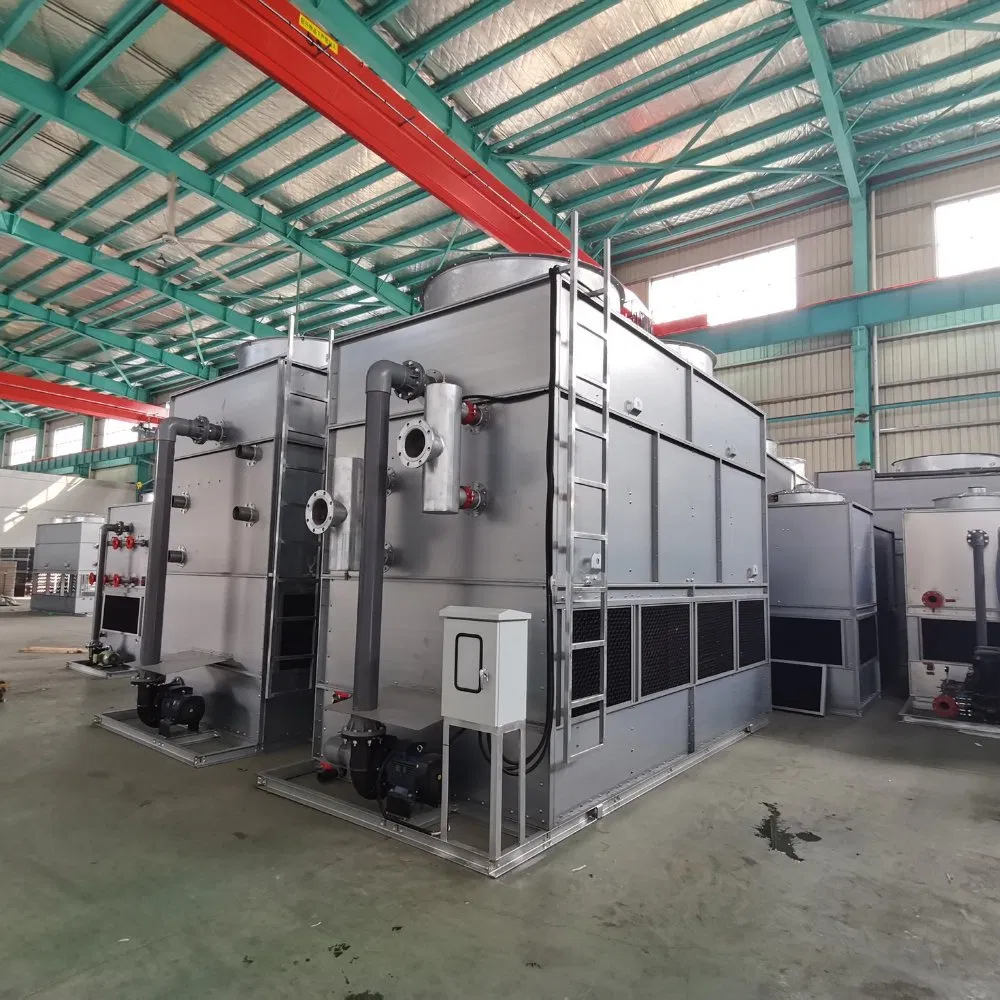

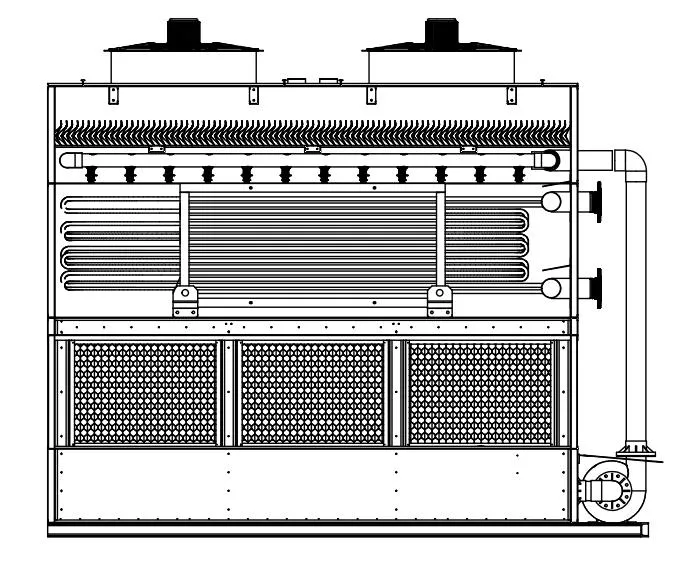

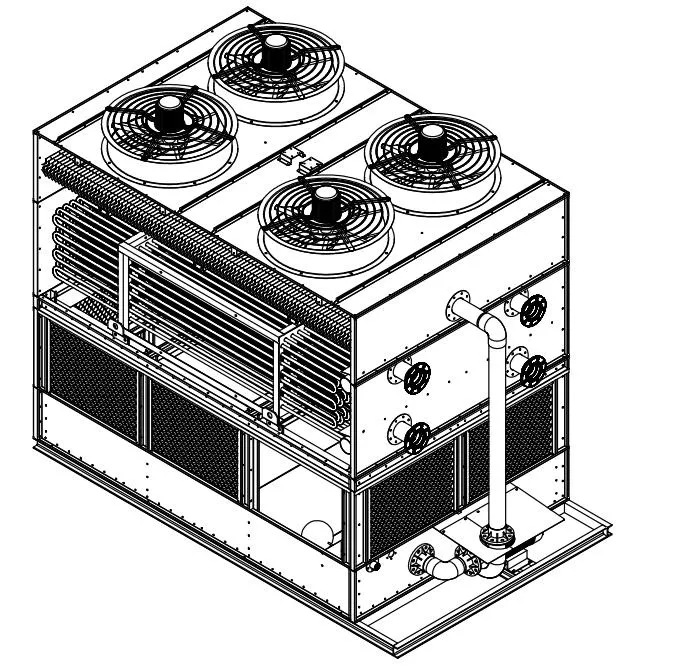

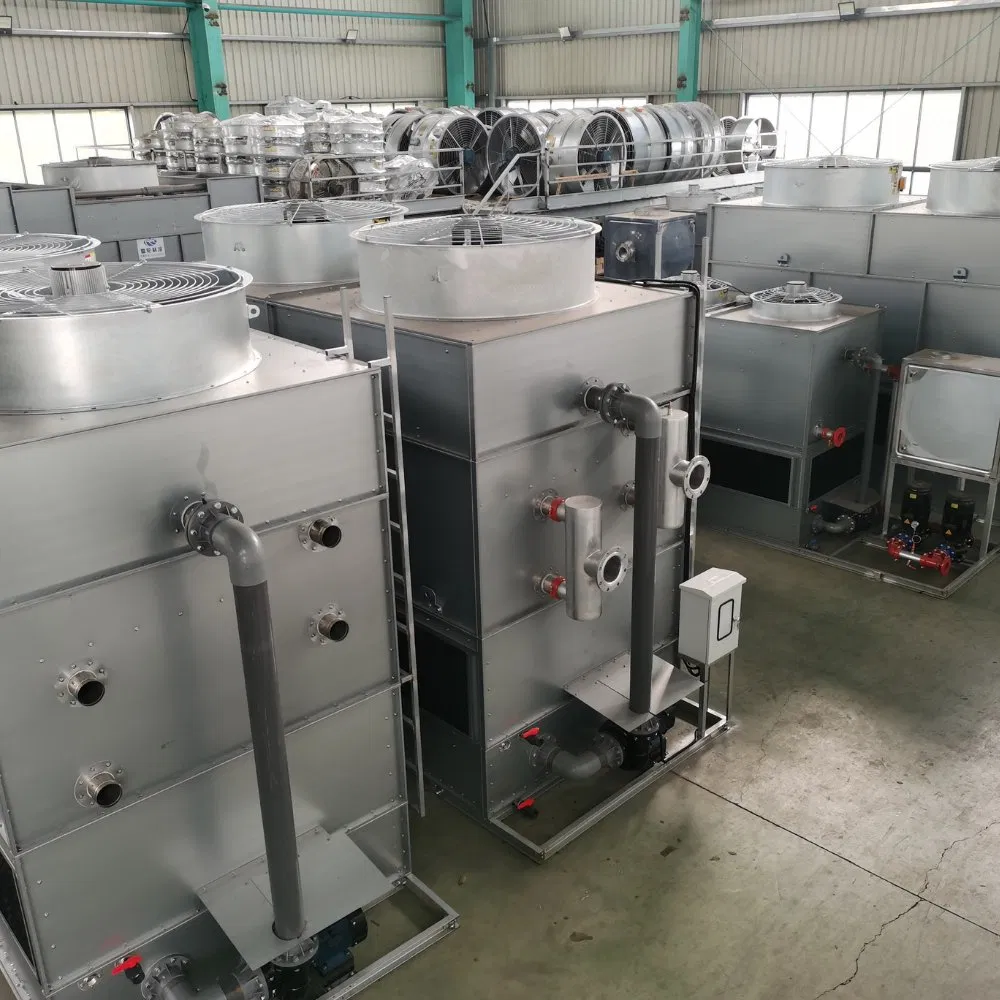

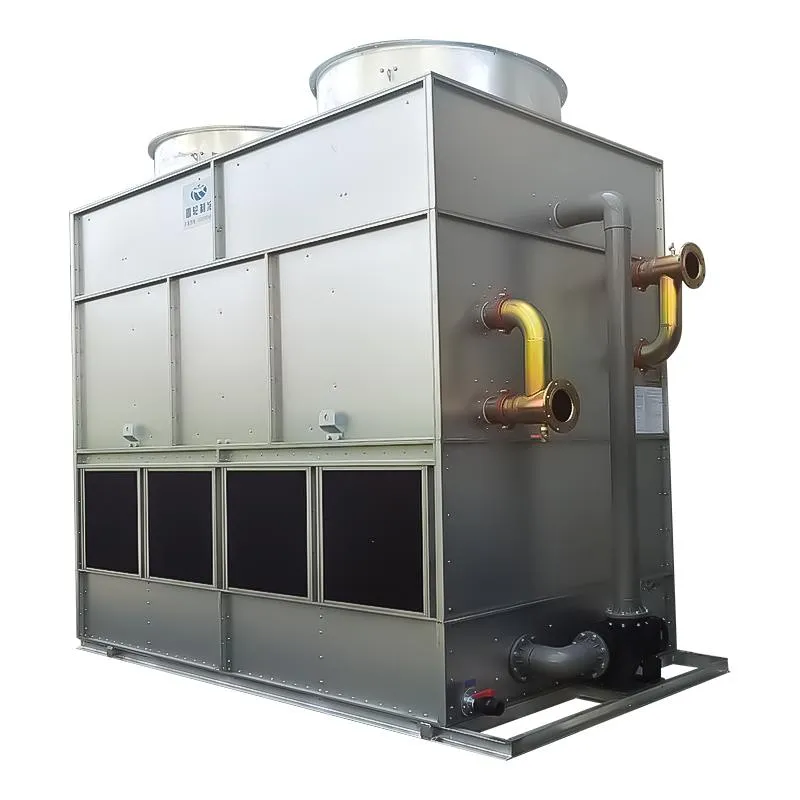

XLN Series Counter Flow Closed Circuit Cooling Tower
The XLN Series Counter Flow Closed Circuit Cooling Tower offers advanced cooling solutions for efficiency and reliability. Featuring a vertical airflow design, it maximizes heat exchange efficiency while minimizing footprint. Ideal for industrial applications requiring optimal cooling performance, the XLN Series ensures superior performance through its robust construction and high-quality materials. It is tailored to meet specific customer needs and provides customized cooling plans based on detailed operational environments and application scenarios. With a commitment to excellence and cost-effectiveness, the XLN Series sets a new standard in closed-circuit cooling technology.
| Model | Operating Flow (m³/h) | Cooling Cap. | Pipe Diameter (mm) | Fan | Spray Pump | Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Kcal/h | Inlet | Outlet | Drain | Make-up | Kw | Set | m³/h | Kw | Set | Flow | Lift | L*W*H (mm) | ||
| XLN-6T | 6 | 30,000 | DN50 | DN50 | DN25 | DN25 | 0.75 | 1 | 10000 | 0.75 | 1 | 5 | 11 | 2400×850×1900 |
| XLN-10T | 10 | 50,000 | DN50 | DN50 | DN25 | DN25 | 0.75 | 1 | 10000 | 0.75 | 1 | 5 | 11 | 2400×850×1900 |
| XLN-20T | 20 | 100,000 | DN65 | DN65 | DN25 | DN25 | 2.2 | 1 | 25000 | 0.75 | 1 | 5 | 25 | 2700×1230×2500 |
| XLN-50T | 50 | 250,000 | DN80 | DN80 | DN40 | DN25 | 1.5 | 2 | 22000×2 | 1.5 | 1 | 5 | 50 | 3700×1400×2550 |
| XLN-100T | 100 | 500,000 | DN125 | DN125 | DN40 | DN40 | 1.5 | 4 | 22000×4 | 2.2 | 1 | 5 | 100 | 3500×2000×3000 |

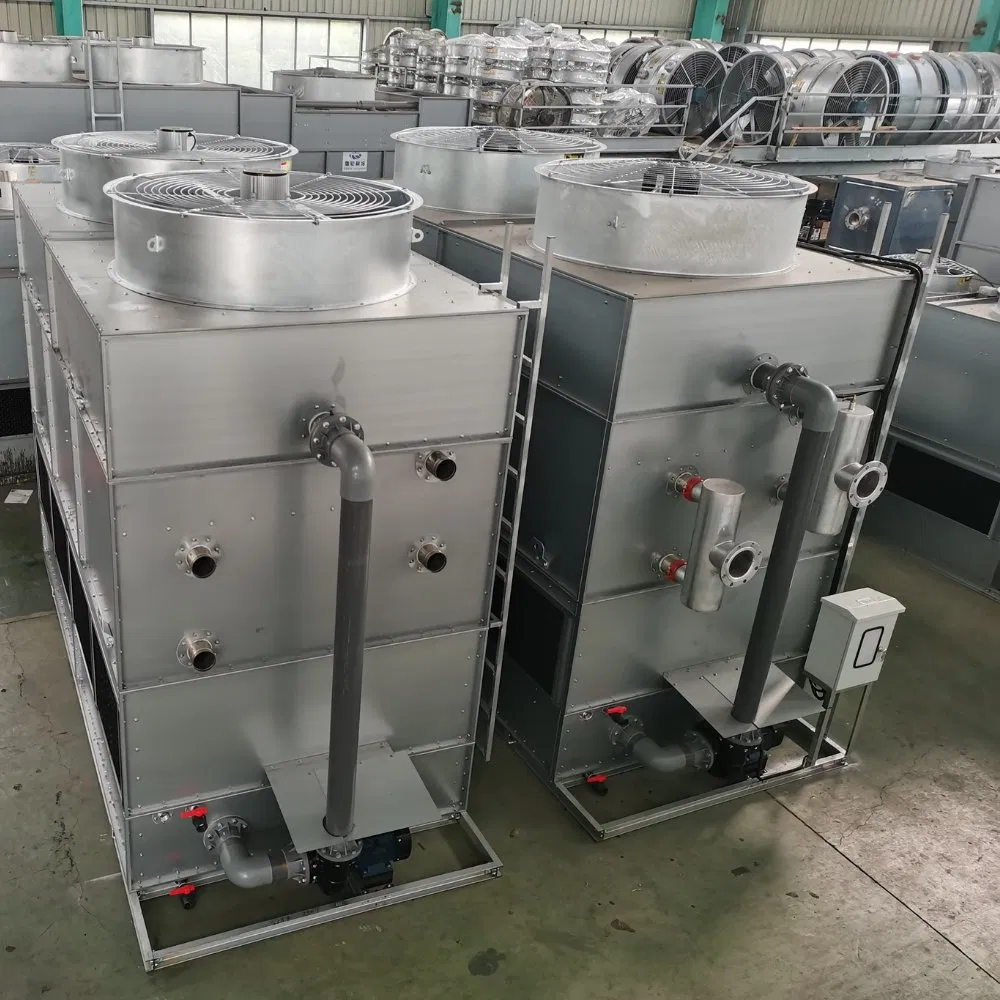

| XLN-200T | 200 | 1,000,000 | DN150 | DN150 | DN40 | DN40 | 4 | 2 | 65000×2 | 4 | 1 | 5 | 200 | 4500×2000×3600 |
*Please note: Standard data provided for reference. We specialize in customized closed-loop cooling tower solutions.

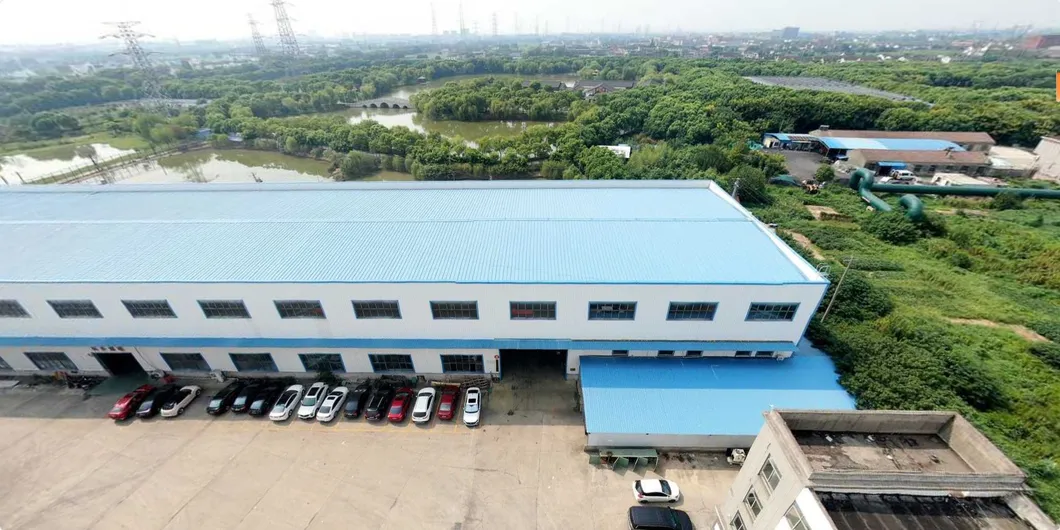

Founded in 2017, our organization has grown significantly through technical leadership and innovation. Our team has established partnerships with over 1,500 companies and manufacturers worldwide. Committed to continuous product improvement, we strive to repay the steadfast support of both new and long-standing customers with cutting-edge products and exceptional service. "Quality first, customer foremost" remains our unwavering commitment.
Our experienced engineering team tailors cooling solutions to meet specific customer needs and operational environments.
We continuously apply the latest cooling technologies to enhance product performance, reliability and efficiency.
Our products are produced under strict quality management systems ensuring high durability and performance.
Every product undergoes stringent inspection to ensure 100% factory compliance before shipping.
We provide comprehensive 24-hour after-sales support as a continuation of our commitment to product excellence.

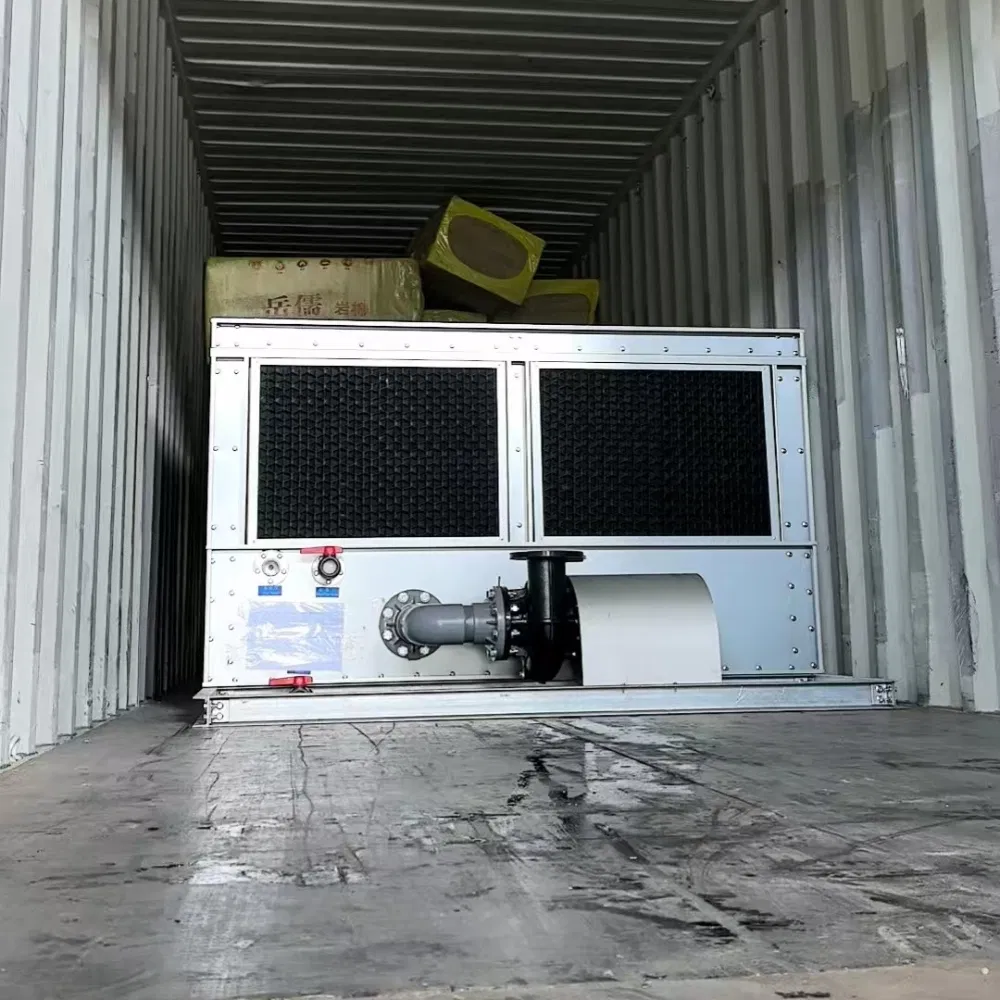

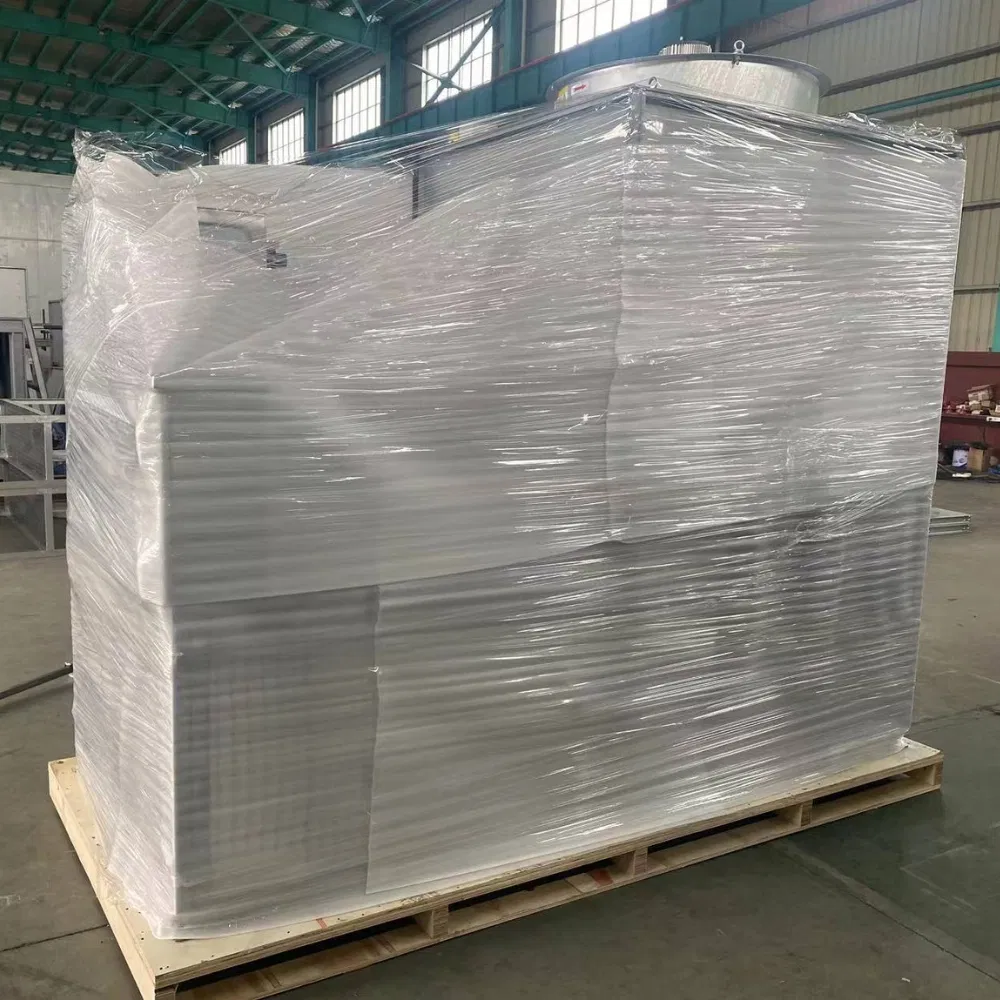

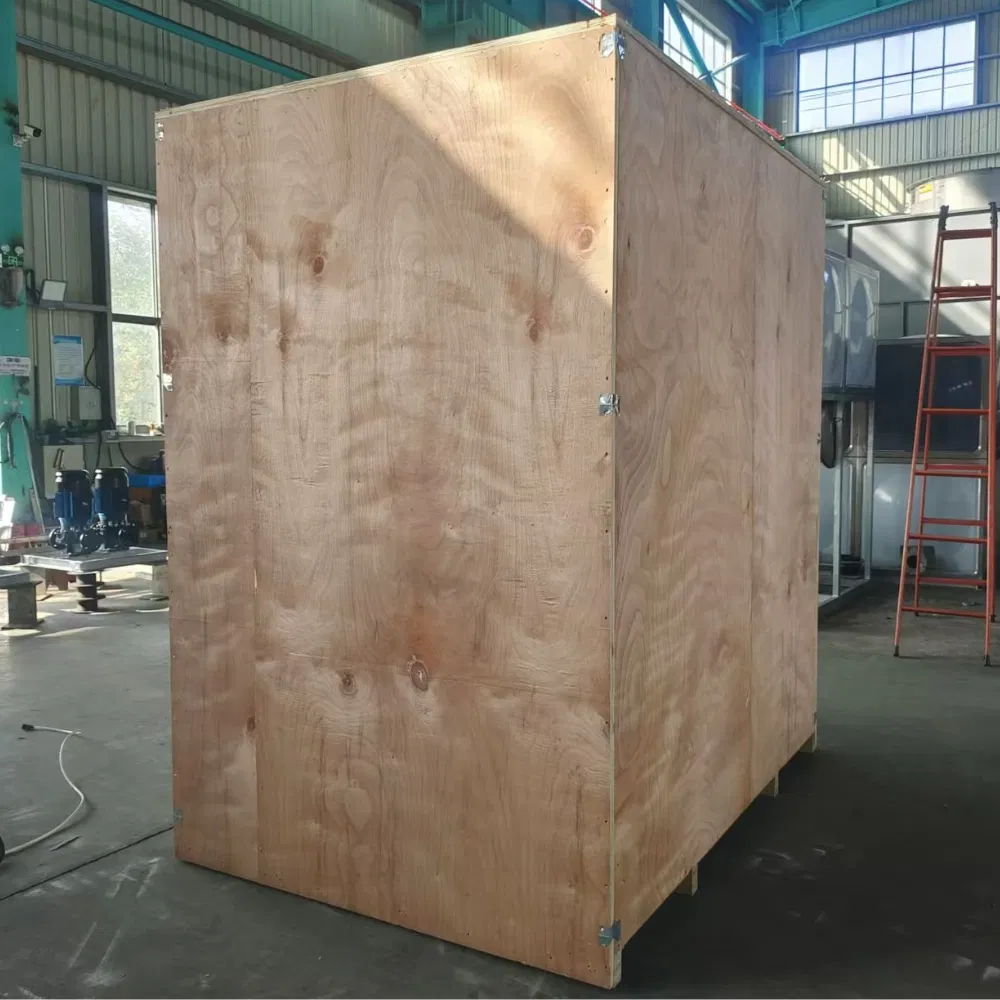

Modular factory assembly design allows for easy transportation, rapid installation, and simplified maintenance.
