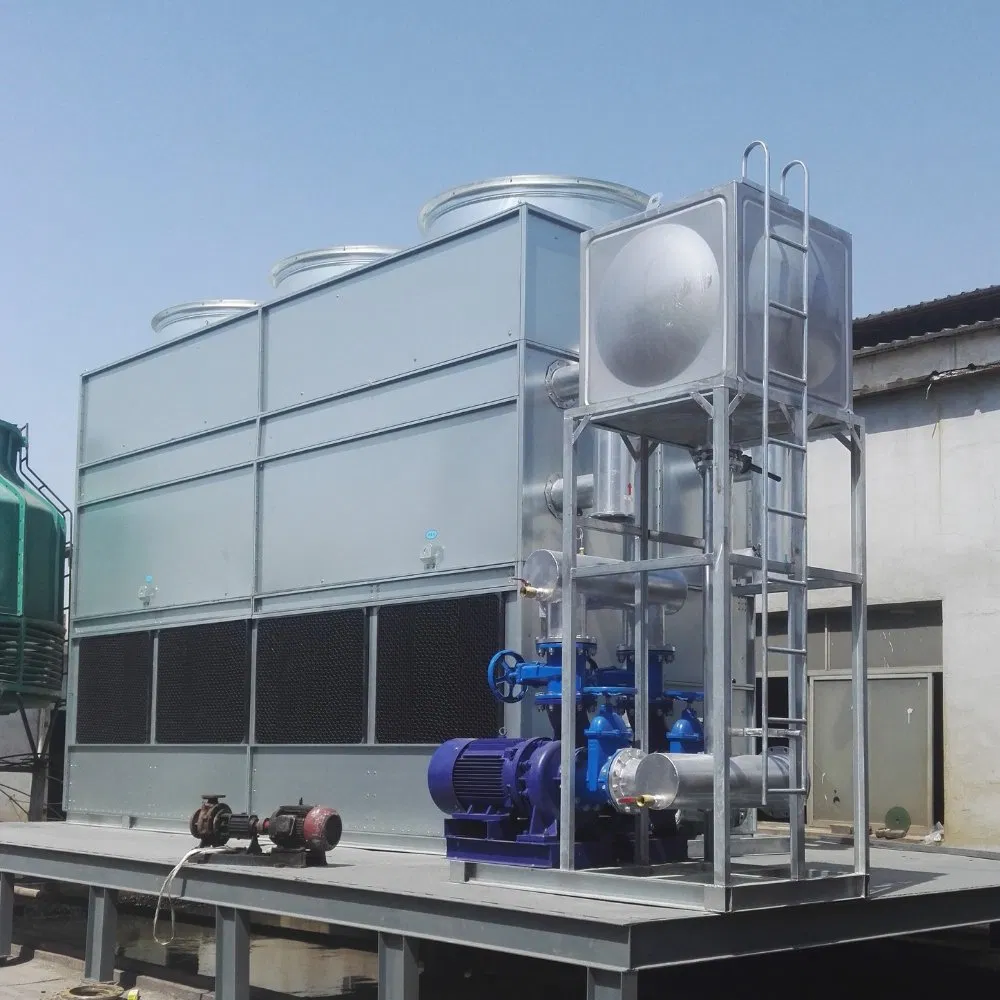

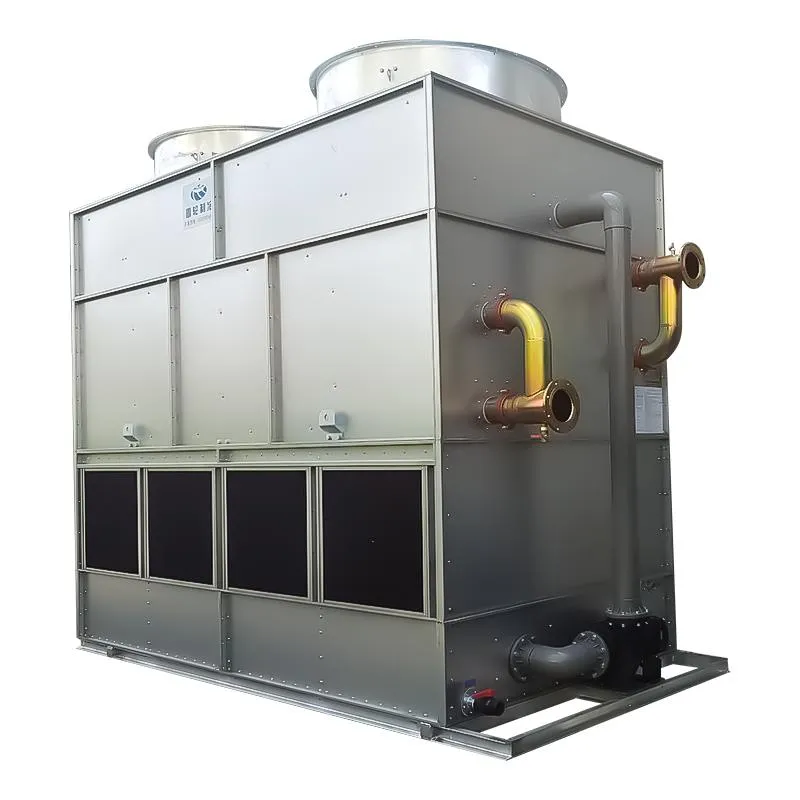

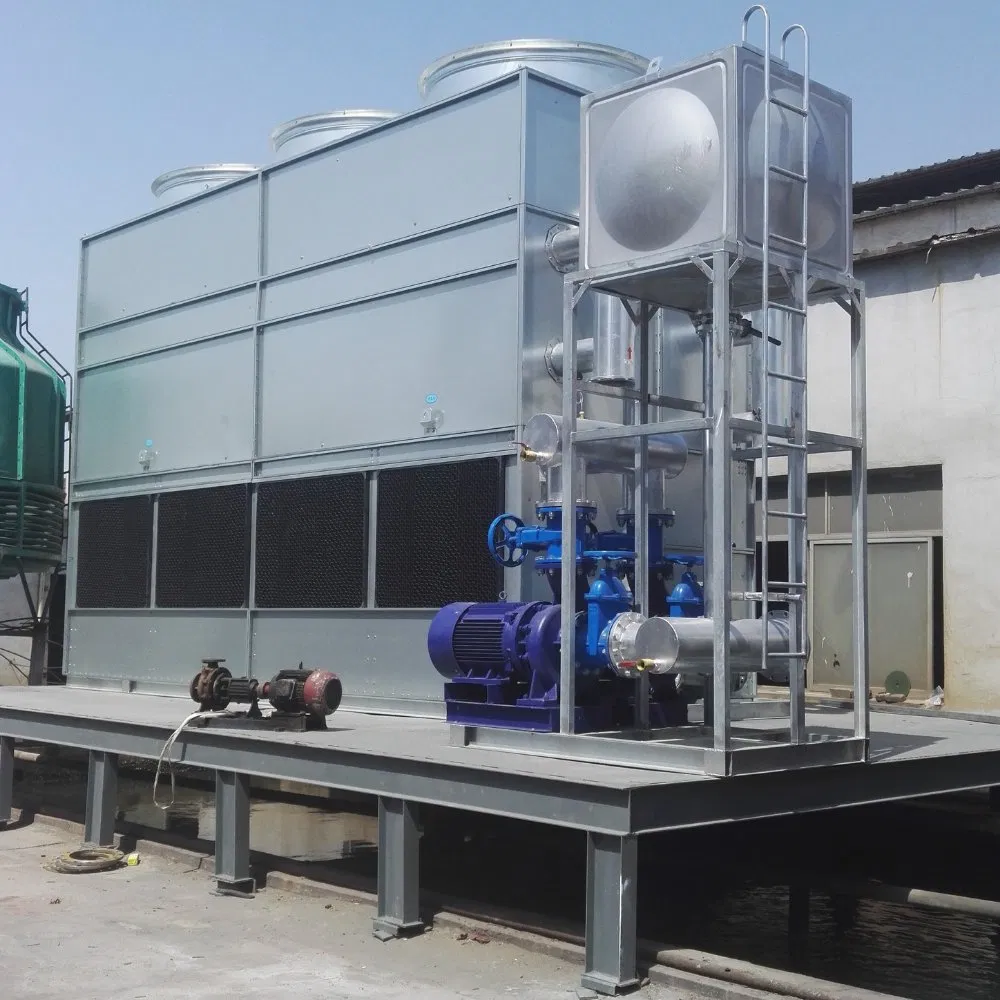

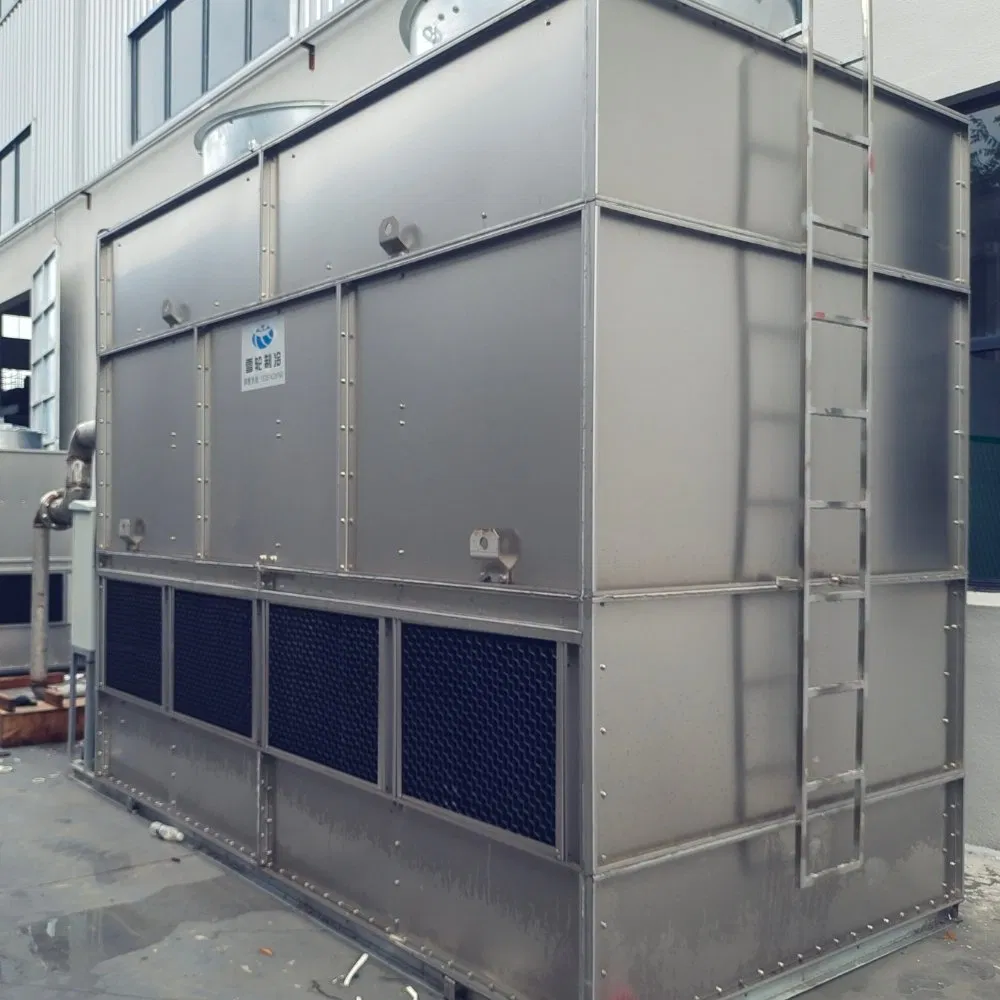

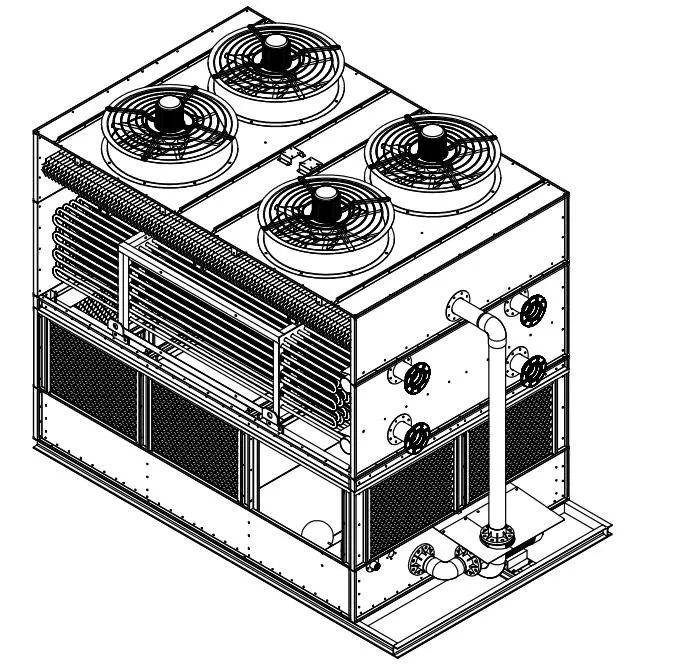

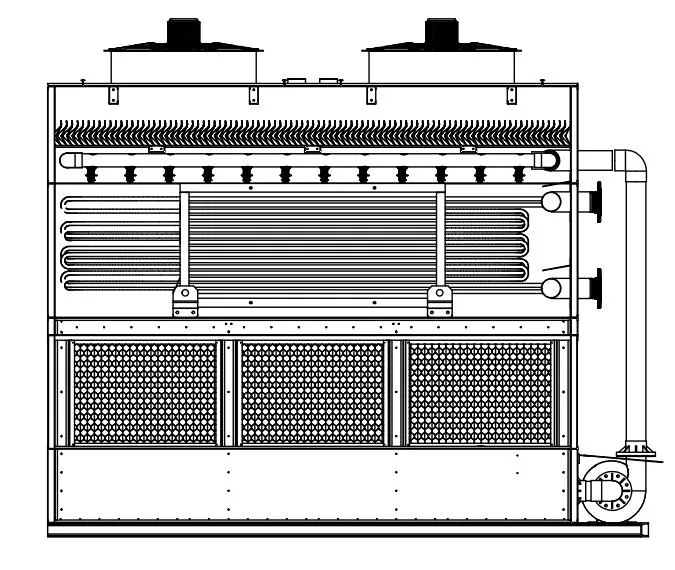

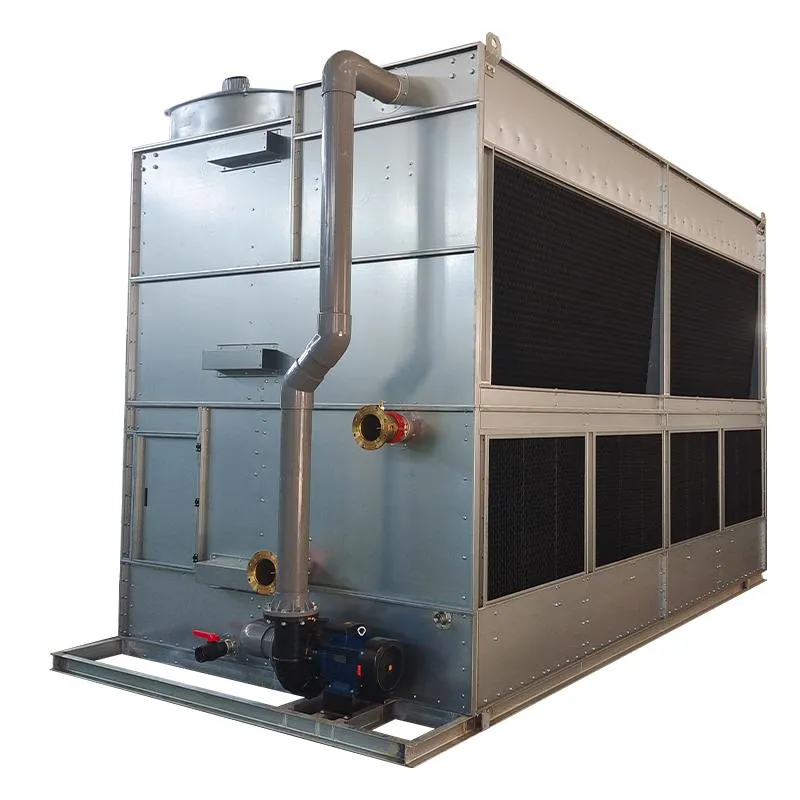

XLN Series Counter Flow Closed Circuit Cooling Tower
The XLN Series Counter Flow Closed Circuit Cooling Tower offers advanced cooling solutions for efficiency and reliability. Featuring a vertical airflow design, it maximizes heat exchange efficiency while minimizing footprint. Ideal for industrial applications requiring optimal cooling performance, the XLN Series ensures superior performance through its robust construction and high-quality materials. It is tailored to meet specific customer needs and provides customized cooling plans based on detailed operational environments and application scenarios. With a commitment to excellence and cost-effectiveness, the XLN Series sets a new standard in closed-circuit cooling technology.
| Model | Operating Flow Rate (m³/h) | Cooling Capacity (Kcal/h) | Water Inlet Pressure (MPa) | Inlet/Outlet (mm) | Fan Power (Kw) | Spray Pump Power (Kw) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|
| XLN-6T | 6 | 30,000 | 0.8 | DN50 | 0.75 | 0.75 | 2400×850×1900 |
| XLN-15T | 15 | 75,000 | 0.8 | DN65 | 2.2 | 0.75 | 2700×1230×2500 |
| XLN-50T | 50 | 250,000 | 0.8 | DN80 | 1.5*2 | 1.5 | 3700×1400×2550 |
| XLN-100T | 100 | 500,000 | 0.8 | DN125 | 1.5*4 | 2.2 | 3500×2000×3000 |

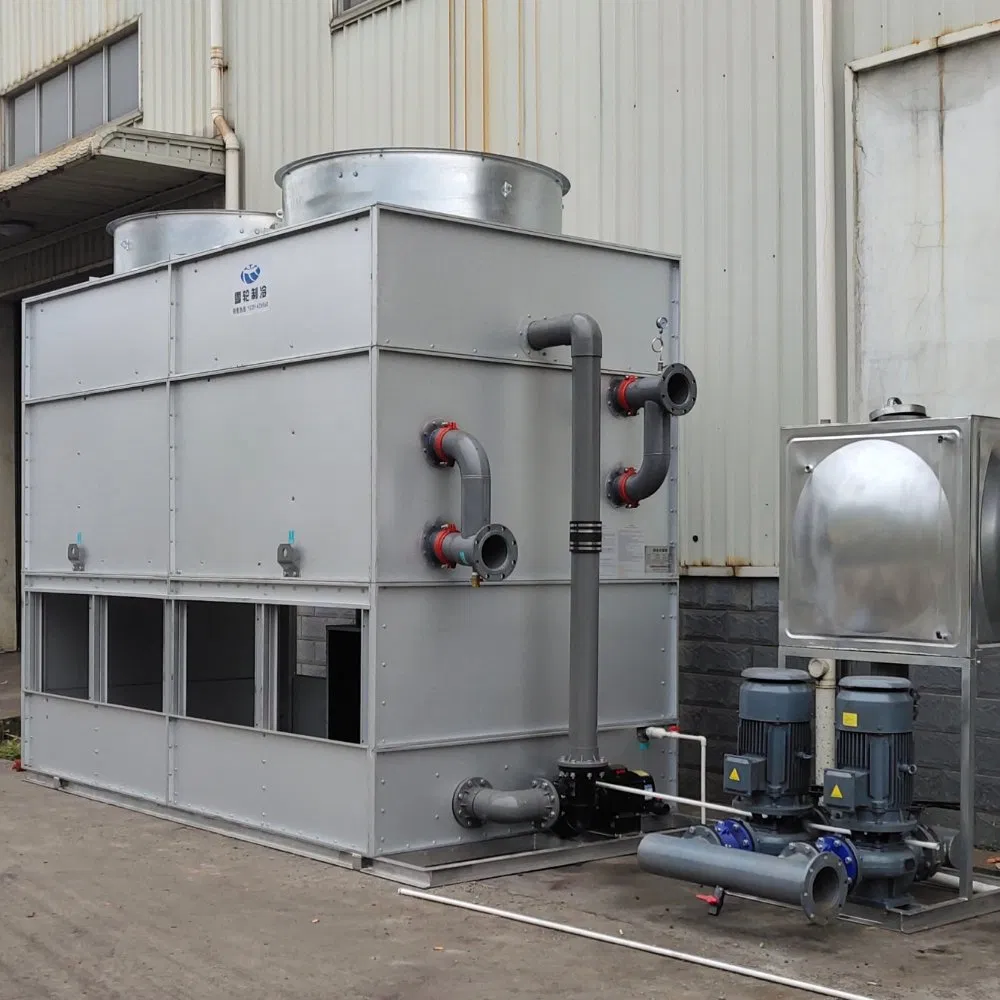

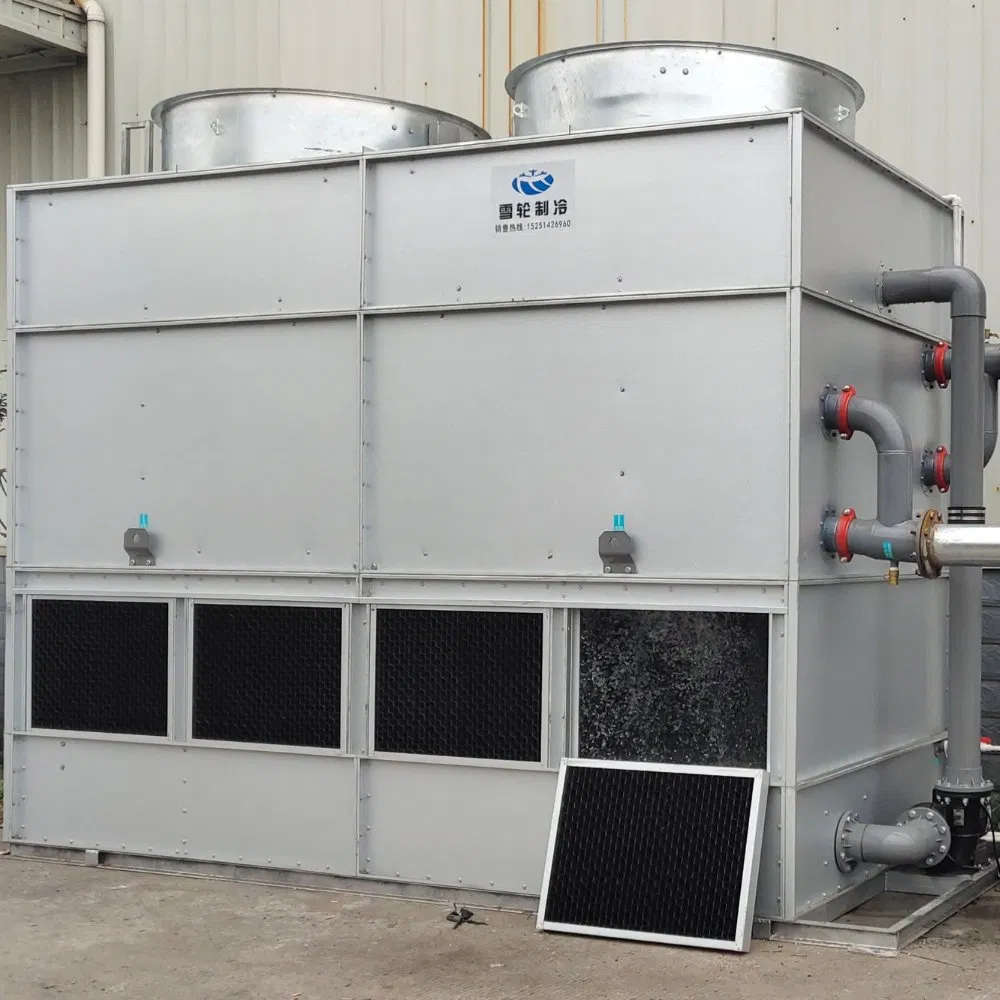

| XLN-200T | 200 | 1,000,000 | 0.8 | DN150 | 4*2 | 4 | 4500×2000×3600 |
| XLN-300T | 300 | 1,500,000 | 0.8 | DN250 | 4*4 | 5.5 | 5400×3200×3950 |
*Note: Data for standard models. Customization for specific closed-loop requirements is available.
Established as a leader in cooling technology, our team has partnered with over 1,500 companies worldwide. Committed to continuous product improvement, we strive to provide cutting-edge products and exceptional service. "Quality first, customer foremost" remains our unwavering commitment.
Tailored cooling systems to meet specific operational needs.
Applying the latest cooling tech for maximum efficiency.
Rigorous inspection ensures 100% factory compliance.
Module assembly design for easy transportation and installation.
