Basic Info.
Back-up Power Supply
at Least 4 Hours
Trigger Sensitivity
1-10L/M
Pressure Limit
1.0kpa~6.0kpa
Production Capacity
1000units/Month
Product Description

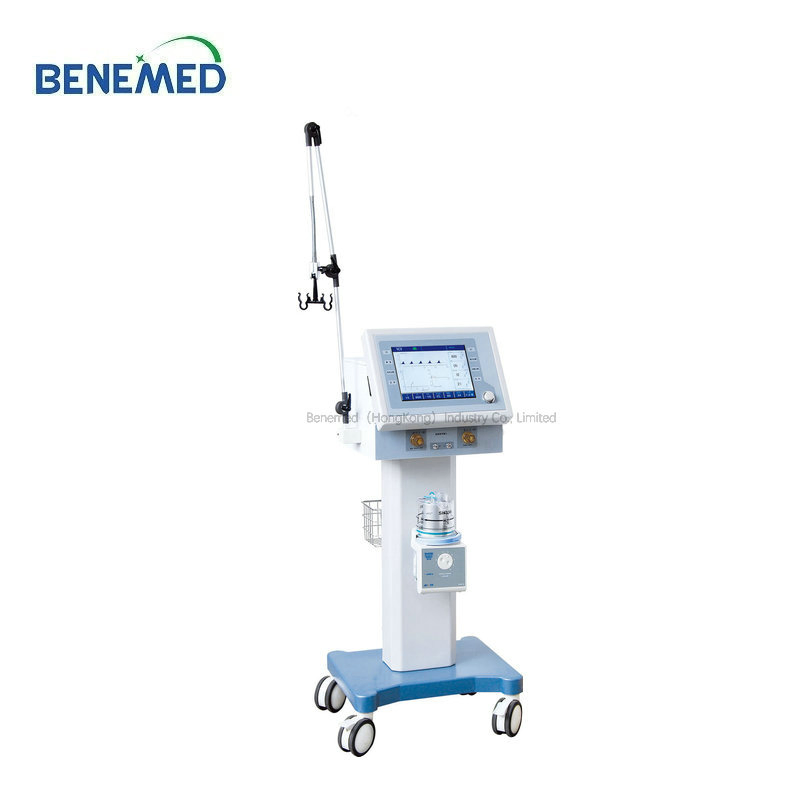

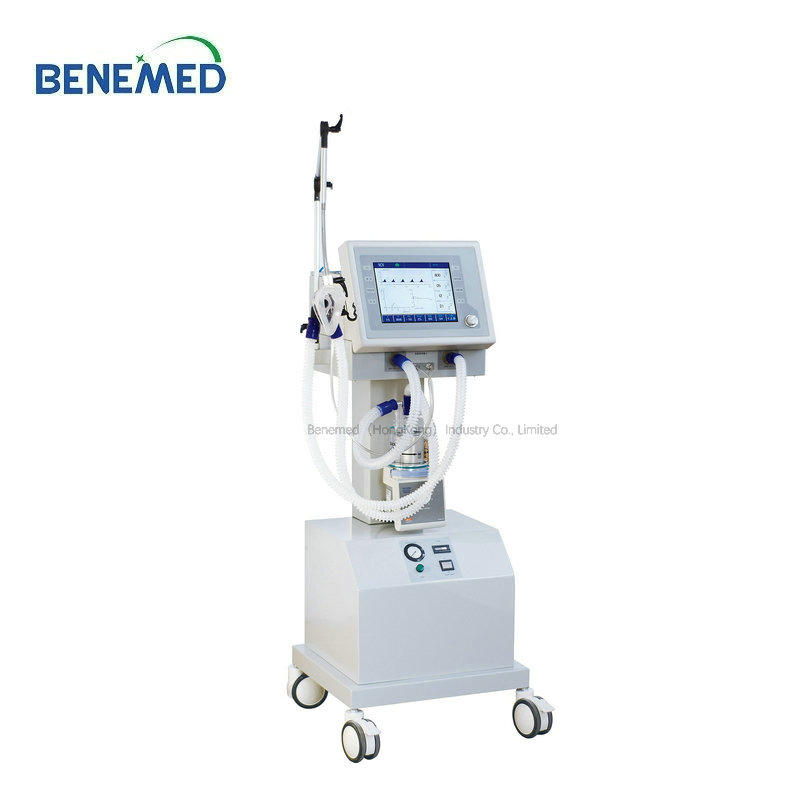

BM-V900B (STANDARD & ADVANCED MODEL)
Common Features
- Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
- Applications: Can be used for emergency clinical resuscitation and respiratory therapy

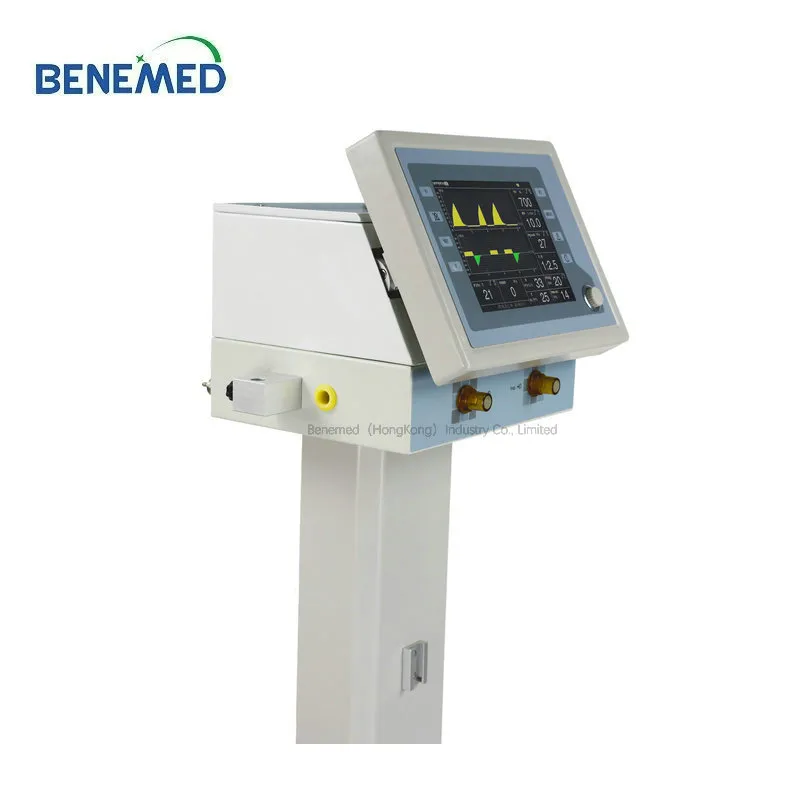

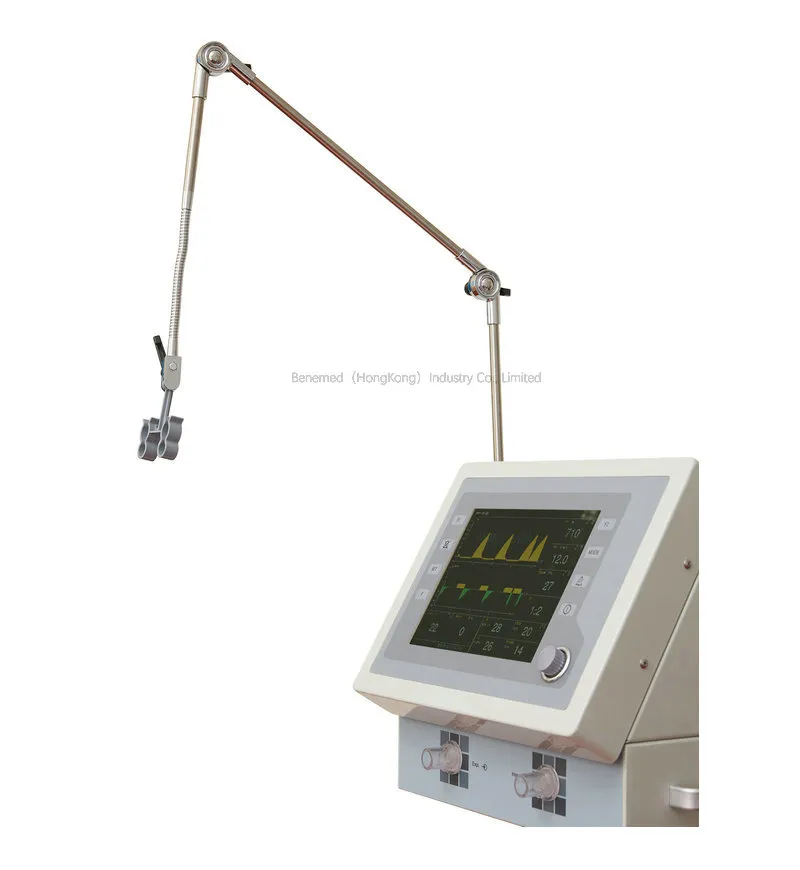

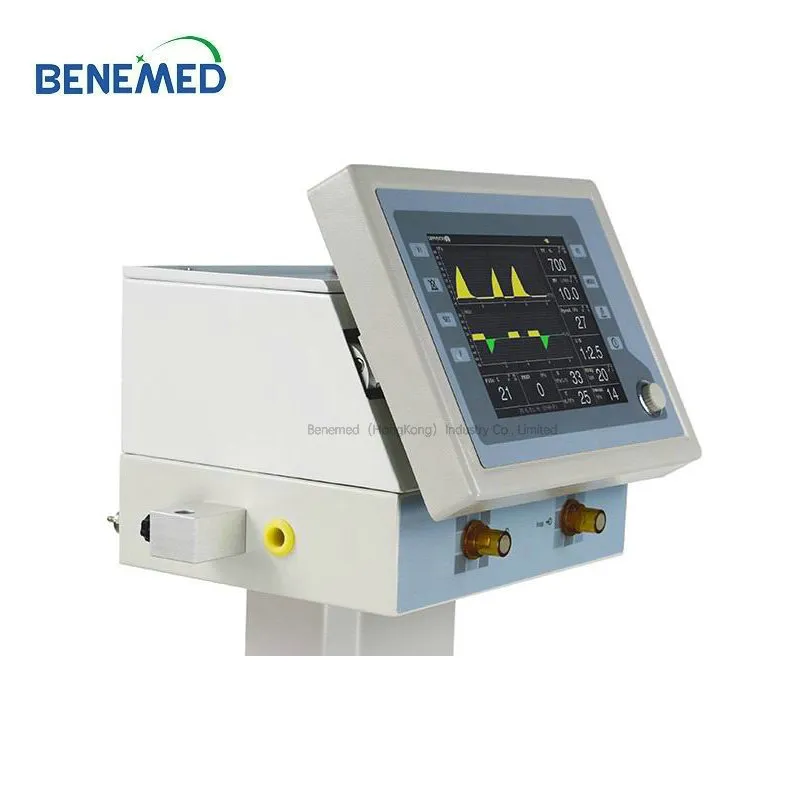

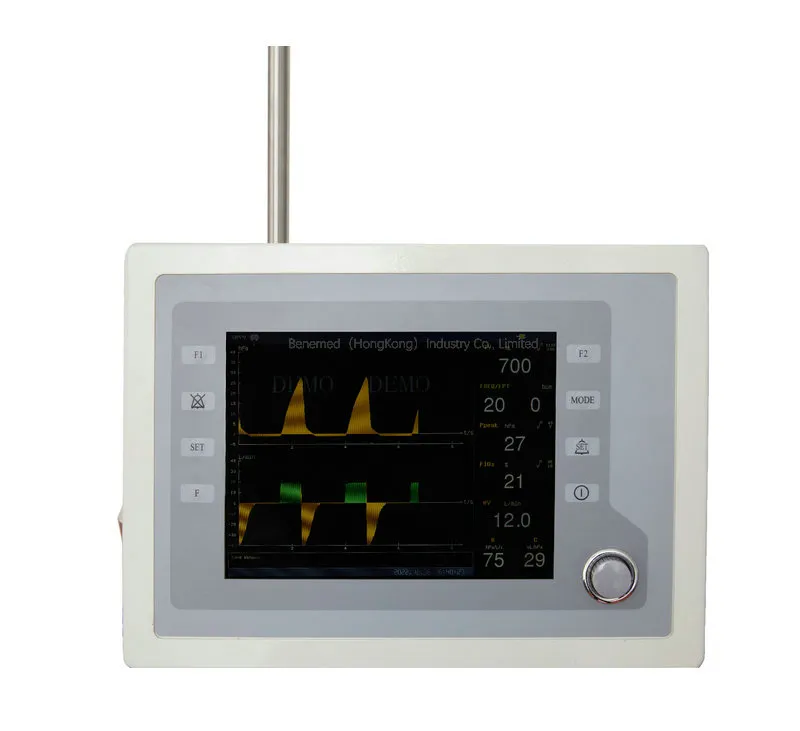

- Display: Built-in 10.4 inch color TFT fully adjustable display, displays Pressure-Time, Frequency-Time, Pressure-Volume, Frequency-Volume waveforms
- Trigger Types: Pressure trigger and Flow trigger
- Sigh Function: Ability to insert 1-8 sigh breaths in every 100 breaths
- Sensor System: Built-in dual electronic flow sensors and dual respiratory modules
- Power Failure Support: Automatically converts to standby mode during AC power outages
- Monitor Parameters: Tidal volume, respiration rate, airway pressure, I:E ratio, and more
- Reliability: Equipped with infrared turbine flow sensor for precise gas flow measurement
- 9 Level adjustable humidifier for patient comfort
- Nonhazardous environmentally friendly frame with automated self-checking function
- Comprehensive Alarms: Audible/visual alarms for ventilation volume, oxygen concentration, asphyxia, airway pressure, and power failure
Advanced Model Exclusive Features

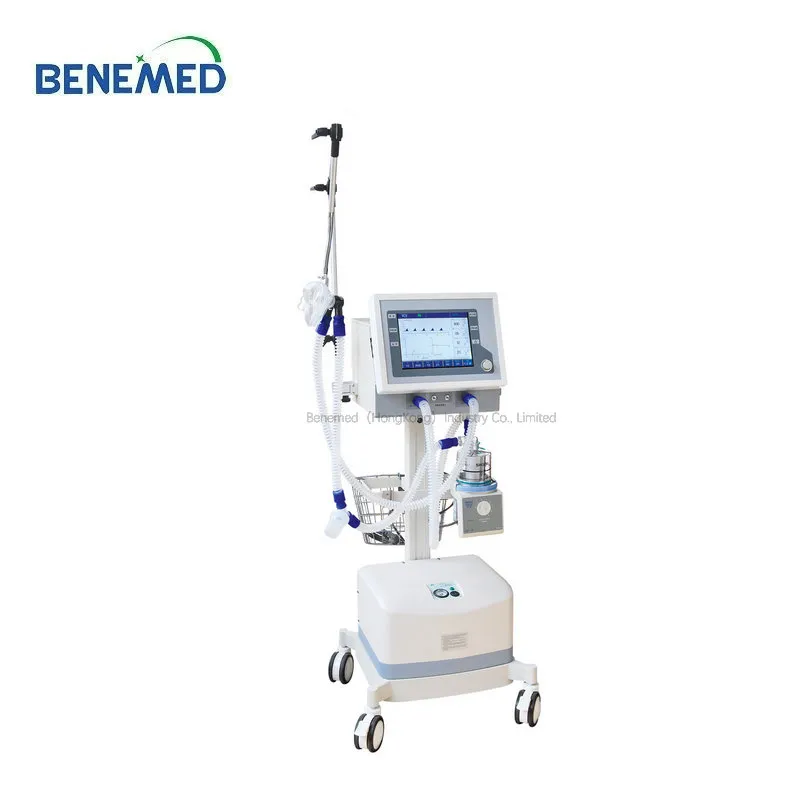

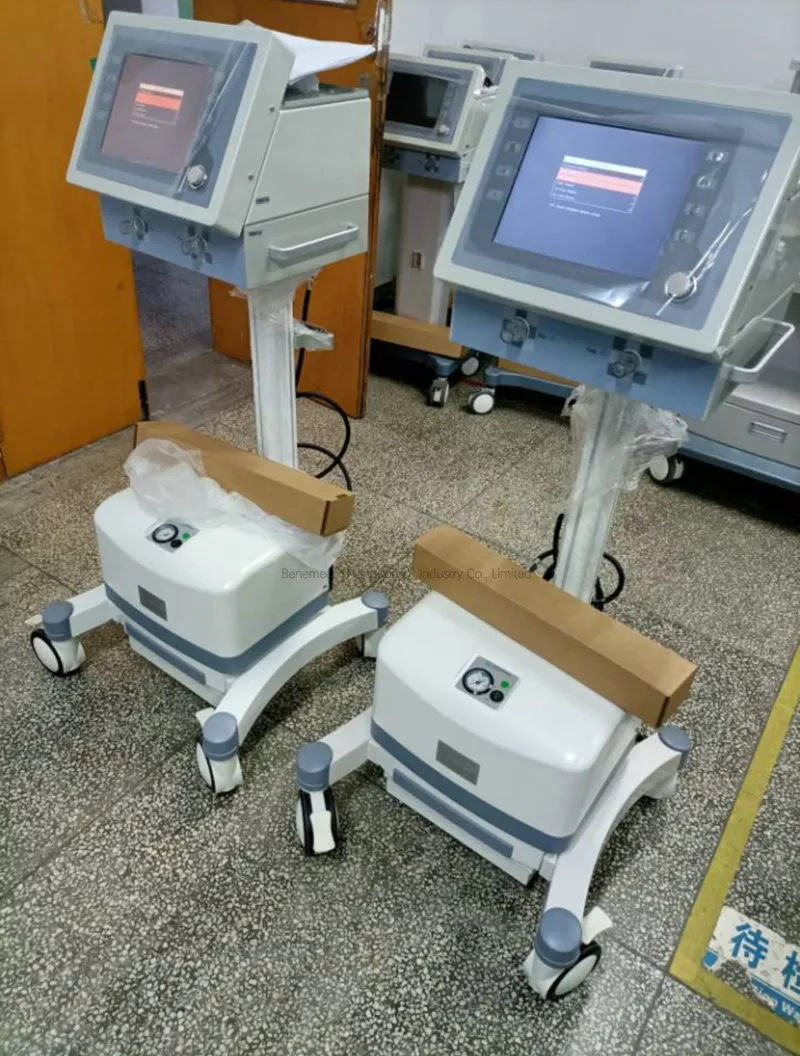

- Equipped with professional medical grade air compressor tailored for long clinical times and low noise requirements
Air Compressor Specifications
- Power Requirement: 220V AC±10%, 50±1Hz, 700VA
- Output Gas Pressure: 0.4MPa±20%
- Continuous output gas flow: ≥ 20L/min
- Instantaneous output gas flow: ≥ 60L/min
Technical Specifications
| Model |
900B (Standard Model) |
900B (Advanced Model) |
| Display |
10.4 inch high visibility color TFT display |
| Ventilation Mode |
A/C, SIPPV, IPPV, SIMV, PSIMV, PSV, CPAP, PCV, VCV, SPONT MANUAL |
| Minute Volume |
Greater than or equal to 18L |
| Back-up Power Supply |
At least 4 hours |
| Tidal Volume |
Adjustable: 20-1500ml, Display: 0-2000ml |
| Respiratory Rate |
1-99bpm |
| I:E ratio |
4:1-1:4 |
| PEEP |
0-10cmH2O |
| SIMV Rate |
1-20bpm |
| Trigger Sensitivity (flow) |
1-10L/m |
| Oxygen Concentration |
45-100% |
21-100% |
| Pressure Limit |
1.0kPa~6.0kPa |
Product Gallery
Frequently Asked Questions
What type of display does the BM-V900B use?
The ventilator features a built-in 10.4 inch color TFT fully adjustable display, providing high visibility for monitoring waveforms and parameters.
How long can the backup battery last during a power outage?
The machine is equipped with a backup power supply that can support operations for at least 4 hours.
What are the main ventilation modes available?
It supports multiple modes including A/C, SIPPV, IPPV, SIMV, PSIMV, PSV, CPAP, PCV, VCV, and SPONT MANUAL.
Does the advanced model include an air compressor?
Yes, the Advanced Model is equipped with a professional medical-grade air compressor designed for long clinical use with low noise.
What kind of safety alarms are integrated into the system?
The system includes audible and visual alarms for ventilation volume, tidal volume, oxygen concentration, asphyxia, airway pressure, and power failure.
What is the adjustable range for the tidal volume?
The adjustable range for tidal volume is 20-1500ml, with a display range of up to 2000ml.
