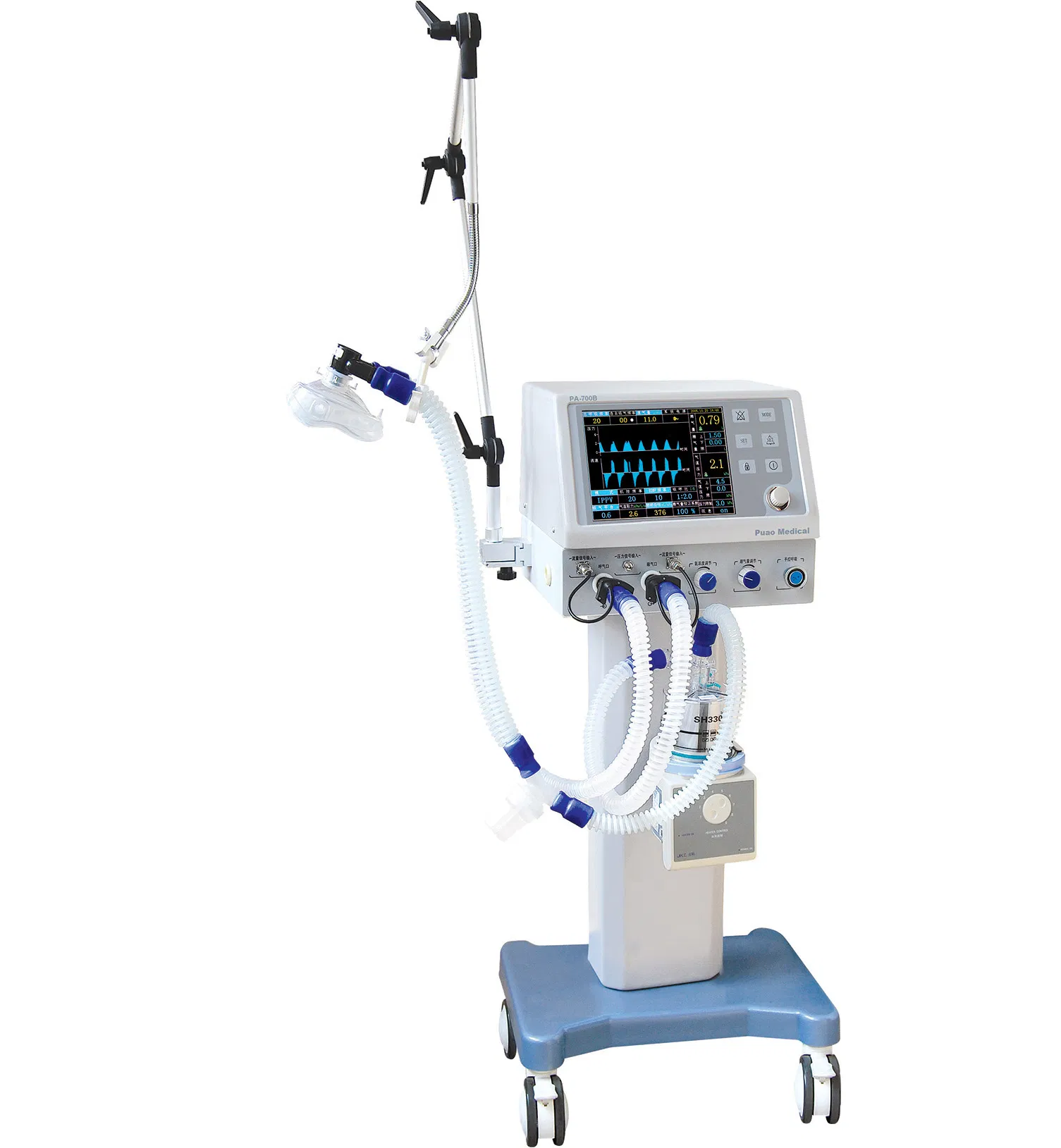

Ventilator of ICU & Emergency Factory Supply Respirator Breathing Machine with High Flow Therapy
Ventilator of ICU & Emergency Factory Supply Respirator Breathing Machine with High Flow Therapy
Ventilator of ICU & Emergency Factory Supply Respirator Breathing Machine with High Flow Therapy
Ventilator of ICU & Emergency Factory Supply Respirator Breathing Machine with High Flow Therapy
Ventilator of ICU & Emergency Factory Supply Respirator Breathing Machine with High Flow Therapy
1 / 5
Ventilator of ICU & Emergency Factory Supply Respirator Breathing Machine with High Flow Therapy
Ventilator of ICU & Emergency Factory Supply Respirator Breathing Machine with High Flow Therapy
Ventilator of ICU & Emergency Factory Supply Respirator Breathing Machine with High Flow Therapy
Ventilator of ICU & Emergency Factory Supply Respirator Breathing Machine with High Flow Therapy
Ventilator of ICU & Emergency Factory Supply Respirator Breathing Machine with High Flow Therapy

Ventilator of ICU & Emergency Factory Supply Respirator Breathing Machine with High Flow Therapy

Customization: Available
Type: Emergency Ventilator
Used for: Adult, Child, Infant
Send Inquiry

Product Description

Basic Information
Model NO.
PA-700B
Ventilation Mode
A/C, Ippv, Sippv, Imv, Simv, Standby, Manual
Tidal Volume
50-1500ml
Respiratory Rate
1-99bpm
(I:E) Ratio
4:1-1:4
Source
Oxygen and Air
Specification
0.50 CBM; 77kg GS
Origin
China
HS Code
9019200000
Ventilator of ICU & Emergency respirator breathing machine with High Flow Therapy
Ventilator ICU Emergency
Breathing Machine High Flow

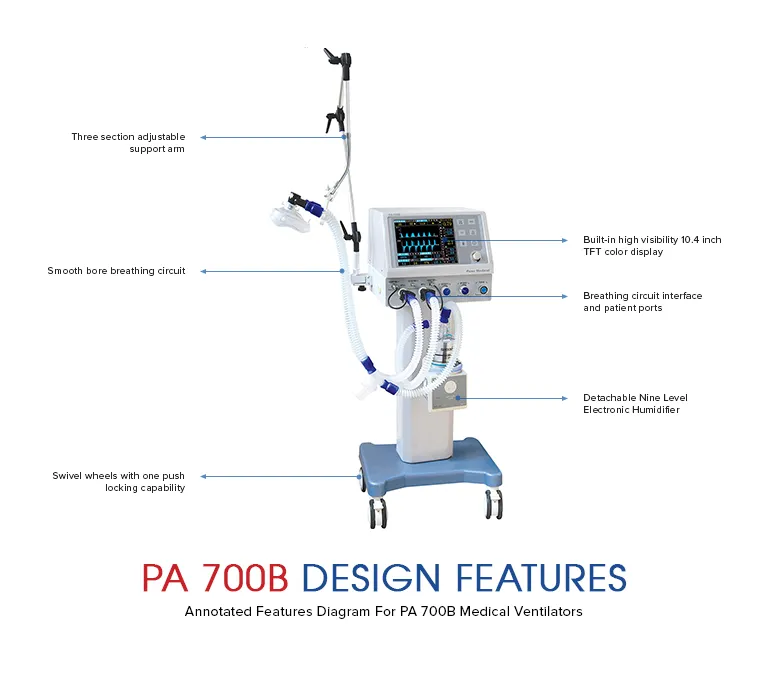

Common Features
  • 🔹
    Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open systems. Suitable for emergency clinical resuscitation and respiratory therapy.
  • 🔹

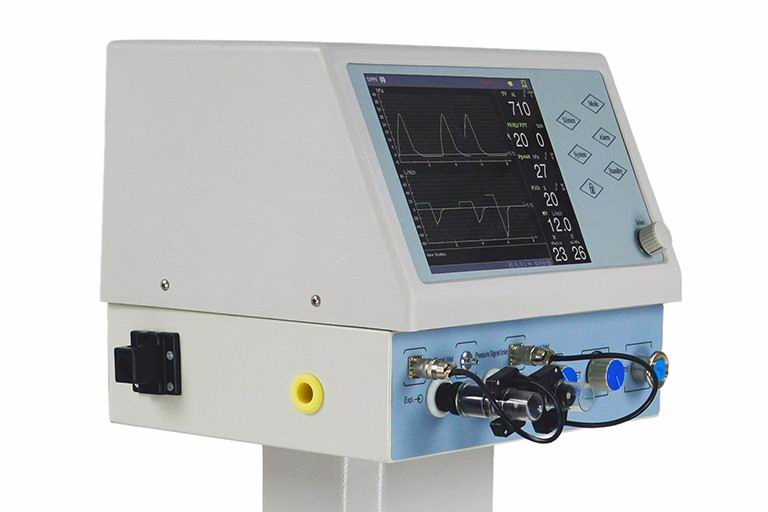

    High-Visibility Display: Built-in 10.4 inch color TFT display, showing Pressure-Time and Frequency-Time waveforms in real time.
  • 🔹
    Sigh Function: Ability to insert 1-8 sigh breaths in every 100 breaths (no less than 1.5 times the tidal volume).
  • 🔹
    Precision Sensors: Equipped with infrared turbine flow sensor for stable and reliable gas flow measurement.
  • 🔹
    Safety Alarms: Audible and visual alarms for ventilation volume, oxygen concentration, asphyxia, airway pressure, and power failure with history query.
  • 🔹
    Adjustable Humidifier: Features a 9-level adjustable humidifier for patient comfort.
Advanced Air Compressor (Exclusive Features)

Medical Grade Air Compressor: Tailored for long clinical use with low noise requirements.

  • • Power: 220V AC±10%, 50±1Hz, 700VA
  • • Output Gas Pressure: 0.4MPa±20%
  • • Continuous Output Flow: ≥ 20L/min
  • • Instantaneous Output Flow: ≥ 60L/min
Detailed Specifications
Parameter Standard Model (PA-700B)
Display10.4 inch high visibility color TFT display
Ventilation ModeA/C, SIPPV, IPPV, SIMV, PSIMV, PEEP, SPONT MANUAL
Minute Volume≥ 18L
Back-up Power SupplyAt least 4 hours
Tidal Volume50-1500ml (Display range: 0-2000ml)
Respiratory Rate1-99bpm
I:E Ratio4:1 - 1:4
PEEP0-10 cmH2O
Oxygen Concentration45-100%
Airway Pressure AlarmUpper: 0.1-6kPa | Lower: 0-5kPa
Ventilator Detail 1
Ventilator Detail 2
Frequently Asked Questions
What are the primary ventilation modes supported?
The PA-700B supports multiple modes including A/C, SIPPV, IPPV, SIMV, PSIMV, PEEP, SPONT, and MANUAL, making it suitable for various clinical scenarios.
How long can the backup battery last?
The built-in back-up power supply is designed to provide at least 4 hours of operation during AC power outages.
Is the tidal volume adjustable for different patients?
Yes, the tidal volume is highly adjustable, ranging from 50ml to 1500ml, catering to a wide range of patient needs.
Does this model include an integrated air compressor?
The advanced model comes equipped with a professional medical-grade air compressor specifically designed for low noise and long-duration clinical use.
What kind of monitoring and alarms are available?
It monitors tidal volume, respiratory rate, airway pressure, and I:E ratio. Alarms are included for oxygen concentration, asphyxia, pressure limits, and intubation disconnection.
Is the display easy to read in ICU environments?
Absolutely. It features a 10.4-inch high-visibility color TFT display that shows real-time Pressure-Time and Frequency-Time waveforms.
