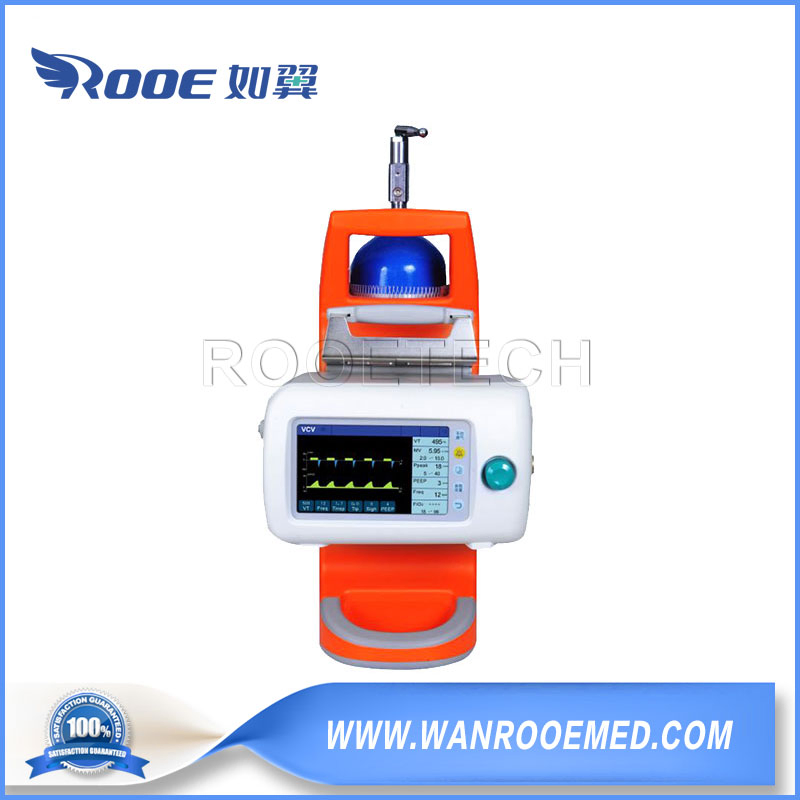

AV-2020 Hospital ICU Mobile Portable Ventilation System
Safety & Reliability
AV-2020 is designed for respiratory depression, respiratory paralysis, and emergency rescue failure.
Advanced monitoring and alarm systems for patient parameters (Pressure, flow) and ventilator function (air leakage, power failure).
Built-in Li-battery supports recharging and emergency use for up to 6 continuous hours.
Equipped with air or oxygen tank compatibility.
Sturdy, solid housing designed to withstand shocks from dropping, compression, or accidental impact.
Accurate Delivery & Easy Control
Allows exact adaptation of pressure and flow characteristics to individual patient needs. Delivers an oxygen and air mix with adjustable concentrations.
Lightweight: Only 4 kg for high portability.
One-step parameter setting for simplified operational processes.
Humanized design for easy handling by emergency operators.
Ambulance & Transport Partner
Power options: DC 12V charge and AC 100V-240V.
Regulator compatible with on-vehicle cylinders and oxygen supply systems.
Includes a 3L Oxygen cylinder for extra usage.
Flexible mounting: Can be equipped on transport beds, chair backs, stretchers, or placed standalone on the ground.
Multiple Ventilation Modes
Applied for both children and adults. Volume control delivery with multi-function working modes including:
VCV, SIMV, PCV (Optional), PSV (Optional), Manual for all ICU ventilator purposes.
Alarms: No VT, MV high/low, Airway pressure high/low, AC power off, Low battery, Audio alarms
Unit Information
Power: Battery, AC Power 220V/50Hz, Car charger 12V
Accessory Set: Main body x1, Oxygen cylinder 3L x1, Silicon mask/circuit x1, Other basic operation accessories
Net Weight: < 4 KG | Battery: ≥6 hours
Frequently Asked Questions
What is the battery life of the AV-2020 ventilator?
The AV-2020 features a built-in Li-battery that provides at least 6 hours of continuous operation, making it ideal for emergency transport and power failure situations.
Can this device be used for pediatric patients?
Yes, the AV-2020 is versatile and can be used for both children and adults with a weight greater than 5kg.
How portable is the AV-2020 for ambulance use?
The main body weighs less than 4kg and it is compatible with 12V car chargers and on-vehicle gas supply systems, making it a perfect partner for ambulances.
What ventilation modes are available?
The system supports multiple modes including VCV, SIMV, AC, SIGH, MANUAL, and CPAP, with optional PCV and PSV modes available.
Does it have a monitoring display?
Yes, it is equipped with a 7-inch LCD screen that displays real-time monitoring parameters such as tidal volume, minute volume, breathing rate, and airway pressure.
