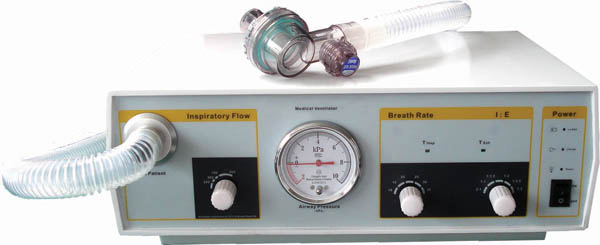

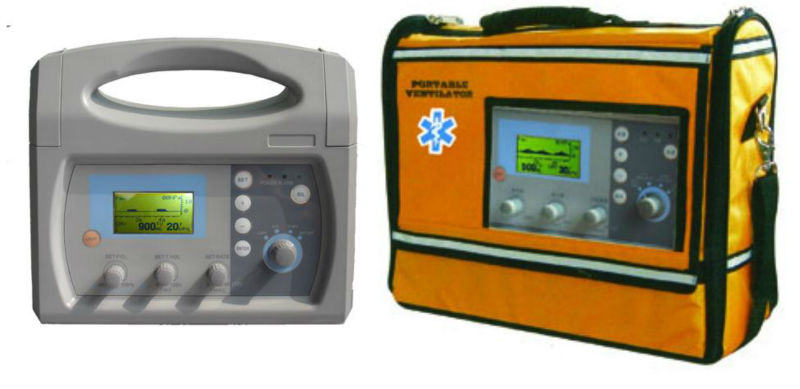

The PA-100C is a pneumatically driven and electronically controlled emergency ventilator designed for first-aid, ambulance services, and internal hospital patient transportation. Its robust design ensures stability in critical situations.
| Parameter | Range / Specification |
|---|---|
| Ventilation Modes | CMV, A/C, SIMV, SPONT, PEEP |
| Tidal Volume | 50~1200ml |
| Breath Rate | 5~60 bpm |
| PEEP | 0~2KPa |
| Oxygen Concentration (%O2) | 45~90% |
| Sigh | 1~10 per 100 breaths |
| Trigger Level | -10~0hpa |
| Over Pressure Relief | <6kpa |
| High Pressure Alarm Limit | 2~6kpa (Flash, red indicator) |
| Low Pressure Alarm Limit | 0.2~2kpa (Red indicator) |
| Alarm Silence | 60 sec. max |
| Dimensions (W×D×H) | 300×160×230mm |
| Ventilator Main Unit | 1pc | Carry bag (With cylinder) | 1pc |
| Oxygen Cylinder (2.5L) | 1pc | Breath Circuit (1.2m) | 1pc |
| Breath Valve | 1pc | Mask | 1pc |
| Chargers | 1pc | Battery (8-hour capacity) | 1set |
| Wrench Tool | 1set | Oxygen Pressure Reducer | 1pc |
| Oxygen Bridge | 1pc | CD For Operation & Manual | 1set |
