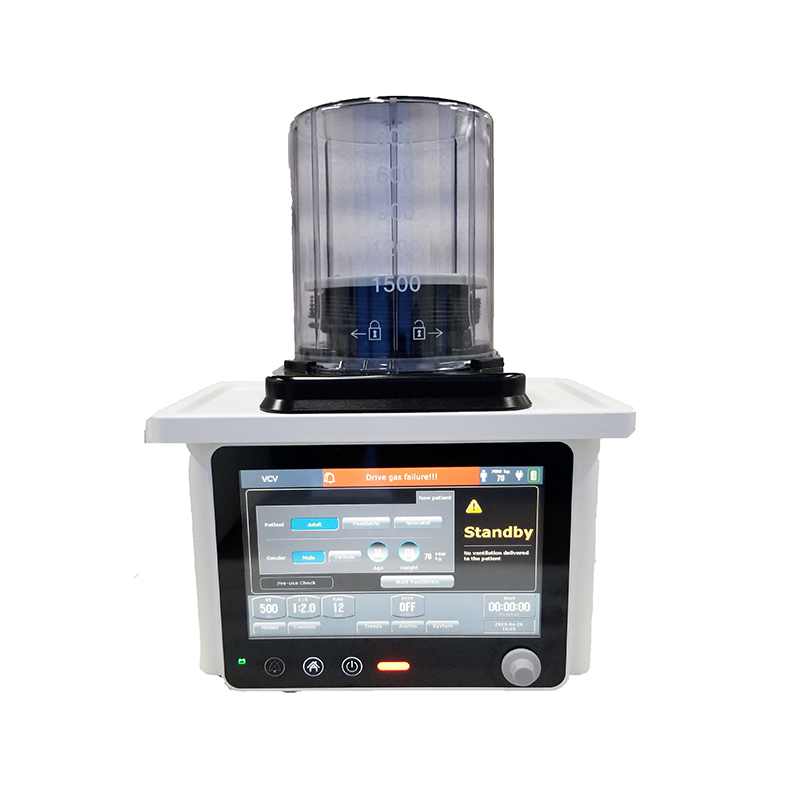

YSAV560BV anesthesia ventilator is an excellent machine designed for veterinary use. It features multiple ventilation modes, waveform display, parameter settings, and parameter alarms. Equipped with an internal battery providing over 3 hours of operation, it is compatible with various anesthesia machines.
Drive gas: O2 or Air, Inlet pressure: 280-600 kPa. Max flow ≤ 120 L/min.
Safety Pressure: System pressure does not exceed 10 KPa.
Battery Type: Li-ion, work time more than 3 hours.
Tidal volume: 50-1500ml (Optional: 10-1500ml);
Respiratory rate: 1 ~ 100 bpm; Inspiratory time: 0.1 ~ 10.0s;
Respiratory ratio: 4:1 to 1:10; Inspiratory pause: 0 to 50%;
PEEP: OFF, 3~20 cmH2O; Pressure Support: 0~70 cmH2O;
Pressure Control: 5~70 cmH2O; Flow trigger: 0.5~20L/min;
Pressure Trigger: 0~20 cmH2O; PSV Insp Termination Level: 5~80%;
Tidal volume (Inspiratory/Expiratory): 0~2500mL; Minute ventilation: 0~60 L/min;
Respiratory rate (Total/Spontaneous): 0~100 bpm; Respiratory ratio: 30:1 to 1:150;
Airway pressure (Peak/Mean/Plateau): 0~100 cmH2O; PEEP: 0~100 cmH2O;
FiO2 (optional): 15 to 100%; Compliance: 0~300mL/cmH2O;
High/Low Tidal Volume; High/Low Minute Ventilation; High/Low Respiratory Rate; High/Low Airway Pressure; Continuous Positive Airway Pressure/Negative pressure alarm; Apnea alarm; Oxygen deficiency alarm; AC power failure; Low battery alarm.
Comprehensive equipment range for professional veterinary clinics, including laboratory, diagnostic, and surgical tools.
| Department | Equipment Category | Items |
|---|---|---|
| Radiology | X-Ray System | X-ray machine, processor, film, cassette, Intensifying screen |
| Protection | Lead glove, glasses, cap, apron, collar | |
| Ultrasound | Imaging | B/W 2D, 2/3/4D color ultrasound |
| Laboratory | Analyzers | Chemistry, hematology, urine analyzer, ELISA reader, centrifuge, pipette |
| Operation Room | Surgery & Support | Patient monitor, ECG, oxygen generator, operating lamp/table, ventilator, anesthesia machine, infusion pump, autoclave |
