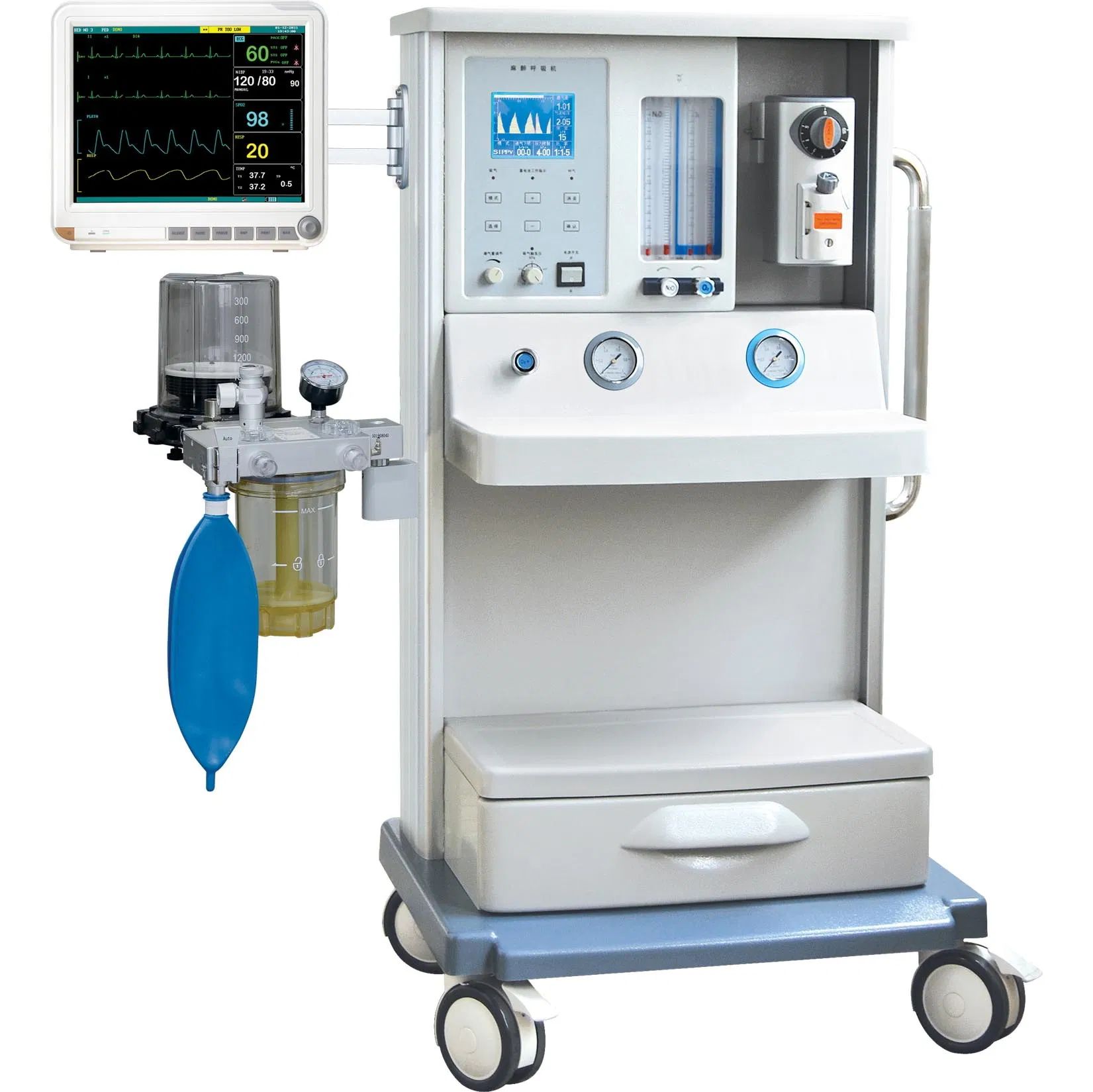

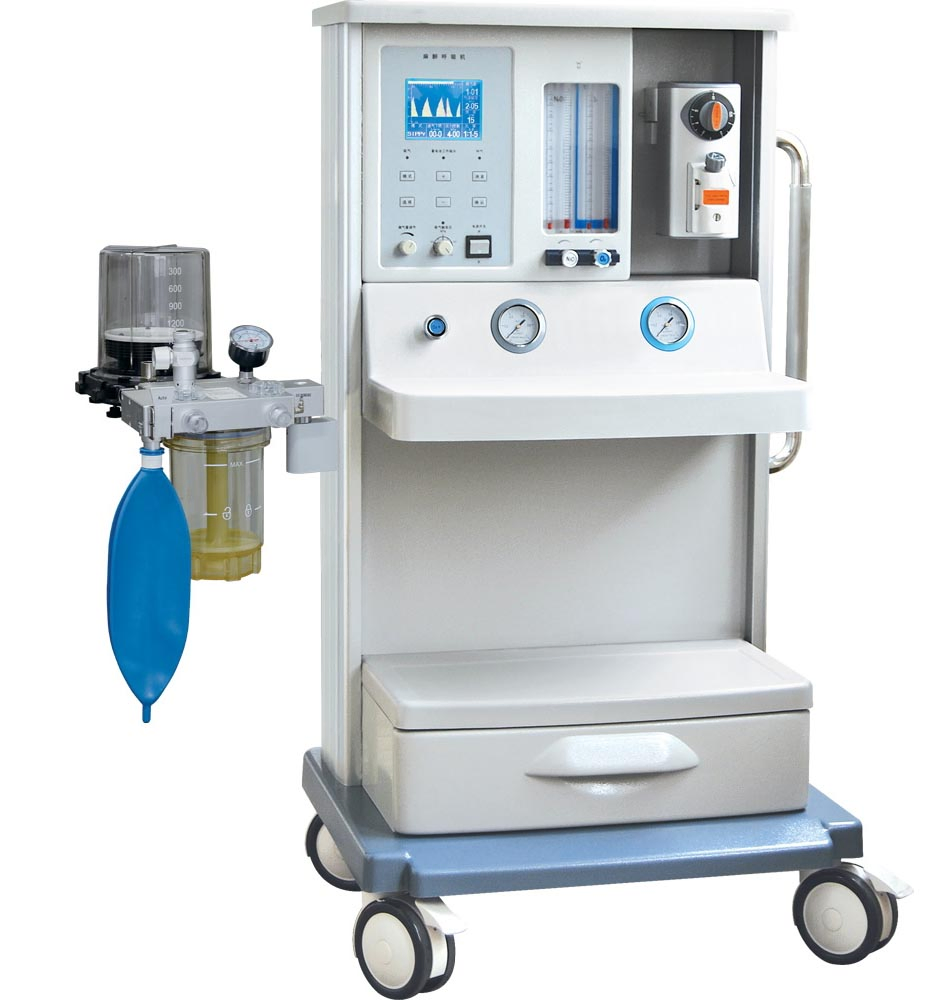

Surgical Equipment Anesthesia Machine Ventilator with 5.4 Inch TFT Display
📋 Basic Information
LCD Display
5.4 Inch TFT Display
Ventilation Mode
IPPV, SIPPV, IMV, SIMV, Manual
Respiratory Rate
1 ~ 99bpm
Back up Power
At least 4 Hours
⭐ Common Features
- Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open.

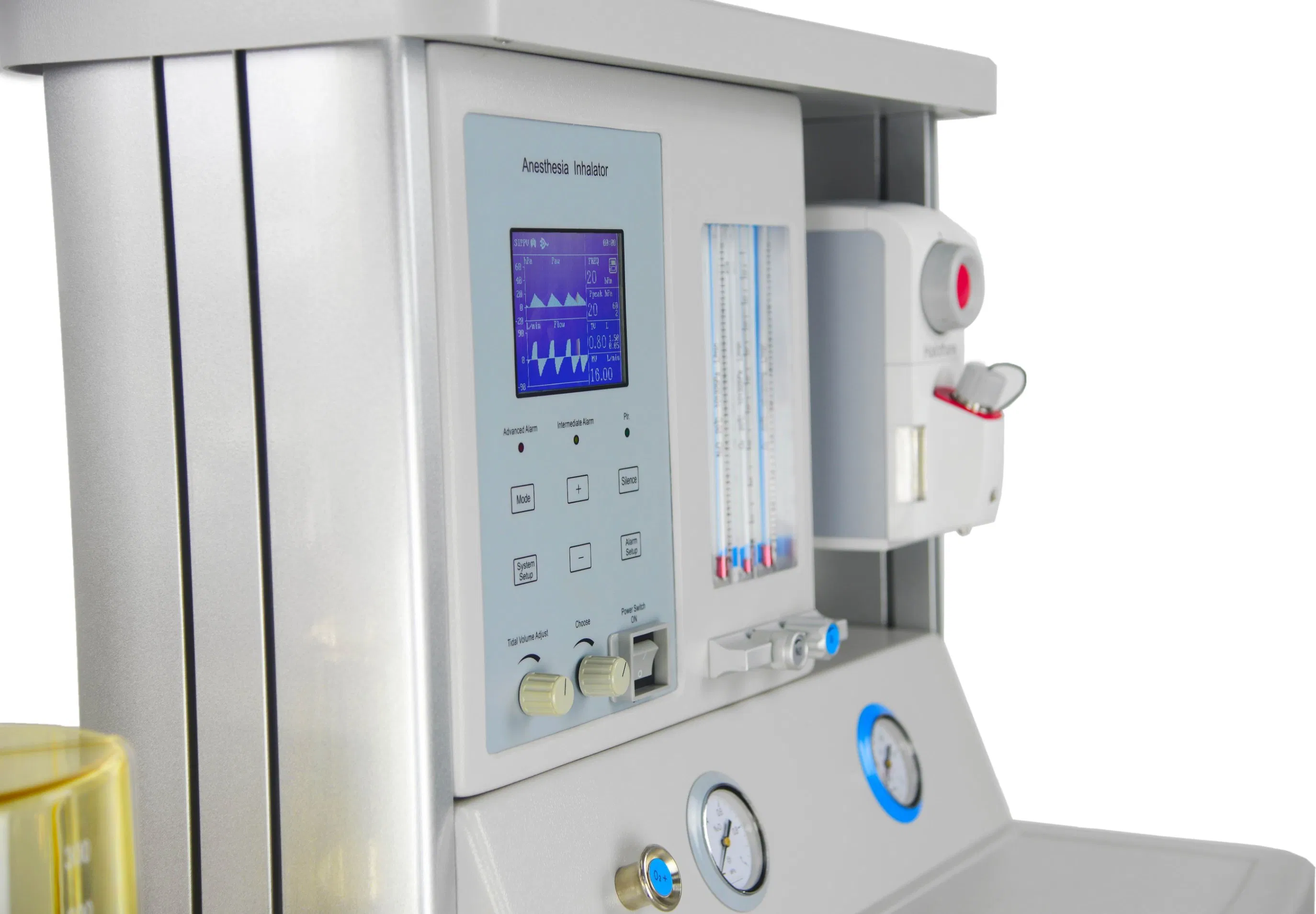

- Built-in 5.4 inch TFT display: Displays Pressure-Time and Frequency-Time waveforms instantly.
- Standard integrated metallic modular respiratory circuit: Solves gas sealing problems under high temperature disinfection.
- High precision four tube flowmeter: Interlocking O2-N2O supply guarantees oxygen output is never lower than 21%.
- Safety Alarms: Audible and visual alarms for tidal volume, airway pressure, power failure, and oxygen failure.
- Infrared turbine flow sensor: Precisely measures gas flows with stable and reliable performance.
- Advanced Na-lime tank: Easy-operate rotating tank using imported PPSU material, temperature resistant to 134°C.
⚙️ Technical Specifications
| Parameter |
Details |
| Model | JINLING 01B Standard model |
| Display | 5.4 inch TFT display |
| Flowmeter Range | O2: 0.1-10L/min, N2O: 0.1-10L/min |
| I:E Ratio | 4:1 - 1:10 (capable of inverse ratio ventilation) |
| Oxygen Supply Flow | 25 ~ 75 L/min |

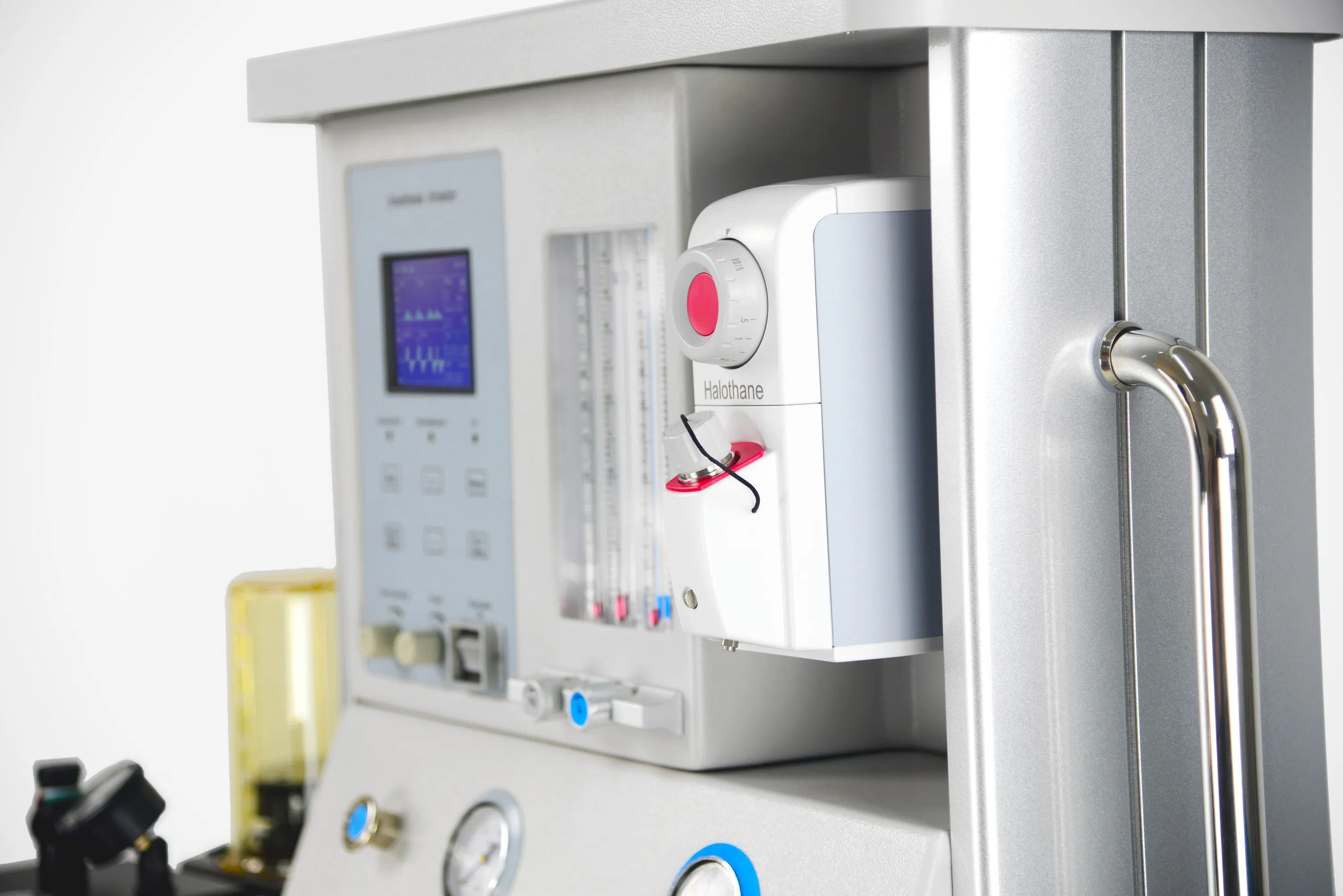

| Vaporizer Slots | Single PA-I type slot (Enflurane, Isoflurane, Sevoflurane) |
| Gas Supply Pressure | O2: 0.32MPa~0.6MPa; N2O: 0.32MPa~0.6MPa |
| SIGH | 1 sigh breath in every 80-160 breaths |
❓ Frequently Asked Questions
What are the available ventilation modes on this machine?
The machine supports IPPV, SIPPV, IMV, SIMV, and MANUAL ventilation modes to accommodate various clinical needs.
How long does the backup battery last during a power failure?
The integrated backup power supply provides at least 4 hours of operation, ensuring patient safety during AC power outages.
Is the respiratory circuit easy to disinfect?
Yes, it features a standard integrated metallic modular respiratory circuit designed for easy cleaning and high-temperature disinfection.
What is the tidal volume range of the JINLING-01B?
The tidal volume is adjustable from 50ml up to 1500ml, making it suitable for both adult and pediatric patients.
What safety mechanisms are in place for oxygen delivery?
The machine includes an interlocking oxygen-nitrous oxide supply system that guarantees oxygen output is never lower than 21%, along with alarms for oxygen failure.
What types of vaporizers can be used with this model?
The single vaporizer slot supports Enflurane, Isoflurane, or Sevoflurane, with Halothane available as an optional choice.
