Basic Specifications
LCD Display
Without LCD Display
Flow Rate (Oxygen)
25~75L/Min
Ventilation Mode
Ippv, Sippv, Simv, Peep, Manual
Product Overview

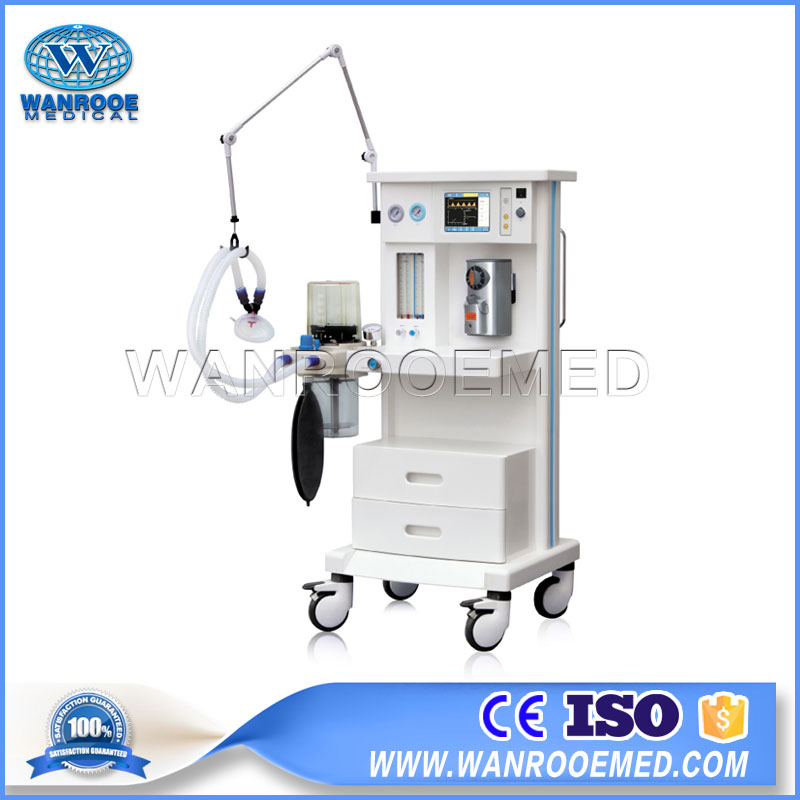

The AMJ-560B3 Anesthesia Machine features an ergonomic design, integrating a concise and smooth structure with high mobility. This microcomputer-controlled ventilator adopts high-quality sensors and components, ensuring mechanical ventilation is secure and visible through folded respiratory bellows.
- High-definition TFT color LCD display for respiratory control and monitoring parameters.
- High-precision Vaporizer with stable concentration output and automatic compensation.
- Four-tube flowmeter with oxygen and nitrous oxide stoppers for precise concentration control.
- Reliable pneumatic transmission system and modularized design for easy upgrades.
Technical Specifications
Gas Source
O2: 0.27~0.55MPa; N2O: 0.27~0.55MPa
Flow Meter Range
O2/N2O: 0.1~10L/min
Vaporizer Range
0-5vol% (Halothane, Enflurane, Isoflurane, Sevoflurane)
Respiratory Circuit
All-close, semi-close, semi-open
Ventilator Performance
Ventilation Modes: IPPV, SIPPV, SIMV, PEEP, MANUAL, SIGH, IMV, VCV, PCV
Parameters:
Tidal volume: 50~1500 ml | Rate: 1~99 bpm | I:E: 2:1~1:8 | PEEP: 0~2.0Kpa
Monitoring: Tidal volume, IPPV/SIMV rate, I/E, peak airway pressure, pressure-time waveform, flow-volume loop, oxygen concentration (21%-100%).
Security Alarm System
- Oxygen Concentration: Upper limit 21%~100%, Low limit 10%~80%
- Airway Pressure: Upper limit 0.3~6.0 kPa, Low limit 0.2~5.0 kPa
- Per-minute Ventilation Volume: Upper limit 3.0~30L/min, Low limit 1.0~10L/min
Product Details
Frequently Asked Questions
What patient groups is the AMJ-560B3 suitable for?
The anesthesia machine is designed for both adult and pediatric patients, with adjustable tidal volumes ranging from 50ml to 1500ml (optionally down to 20ml).
Which ventilation modes are supported?
It supports multiple modes including IPPV, SIPPV, SIMV, PEEP, MANUAL, and SIGH, as well as IMV, VCV, and PCV for versatile clinical applications.
Does the vaporizer compensate for environmental changes?
Yes, the high-precision vaporizer features automatic compensation for pressure, temperature, and flow rate to ensure stable concentration output.
What safety alarms are included in the system?
The system includes alarms for oxygen concentration, airway pressure (upper/lower limits), per-minute ventilation volume, and low oxygen pressure sound alarms.
What gases can be used with the flowmeter?
The machine is equipped with a high-definition four-tube flowmeter for Oxygen (O2) and Nitrous Oxide (N2O), featuring a linkage system to ensure O2 concentration stays above 25%.
What are the display features?
It utilizes a high-definition TFT color LCD screen that displays monitoring parameters, pressure-time waveforms, flow-rate waveforms, and flow-volume loops.
