⚙️ Technical Specifications
Drive: Pneumatic driven and electrical control
Operation: Button control
Respiratory mode: IPPV, MAN
Tidal Volume: 50-1600mL
I:E Ratio: 1:2
BPM: 3-40bpm
TV monitoring: 20-300mL, 300-2000mL
Airway pressure monitoring: -20-100cmH2O
Maximum input current: 5A
Power cable: 3 meters (Medical grade)
Operating Temp: 18-36ºC
Weight: 5.8kg
Size: 240mm(W) * 370mm(H) * 230mm(L)
Altitude Operation: 500 to 800mmHg
❓ Frequently Asked Questions
Q1: What is the tidal volume range of this veterinary ventilator?
The MSLPV10 supports a wide tidal volume range from 50mL to 1600mL, making it suitable for various animal sizes.
Q2: Which respiratory modes are available on this device?
It features IPPV (Intermittent Positive Pressure Ventilation) and MAN (Manual) respiratory modes.
Q3: Is the unit portable for field or different clinic rooms?
Yes, with a weight of only 5.8kg and a compact design, it is highly portable and easy to transport within medical facilities.

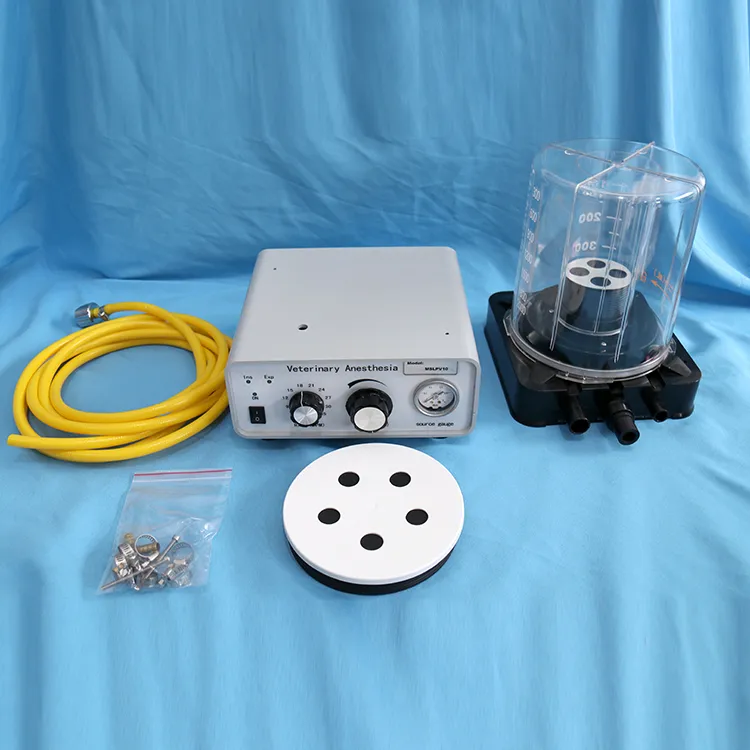

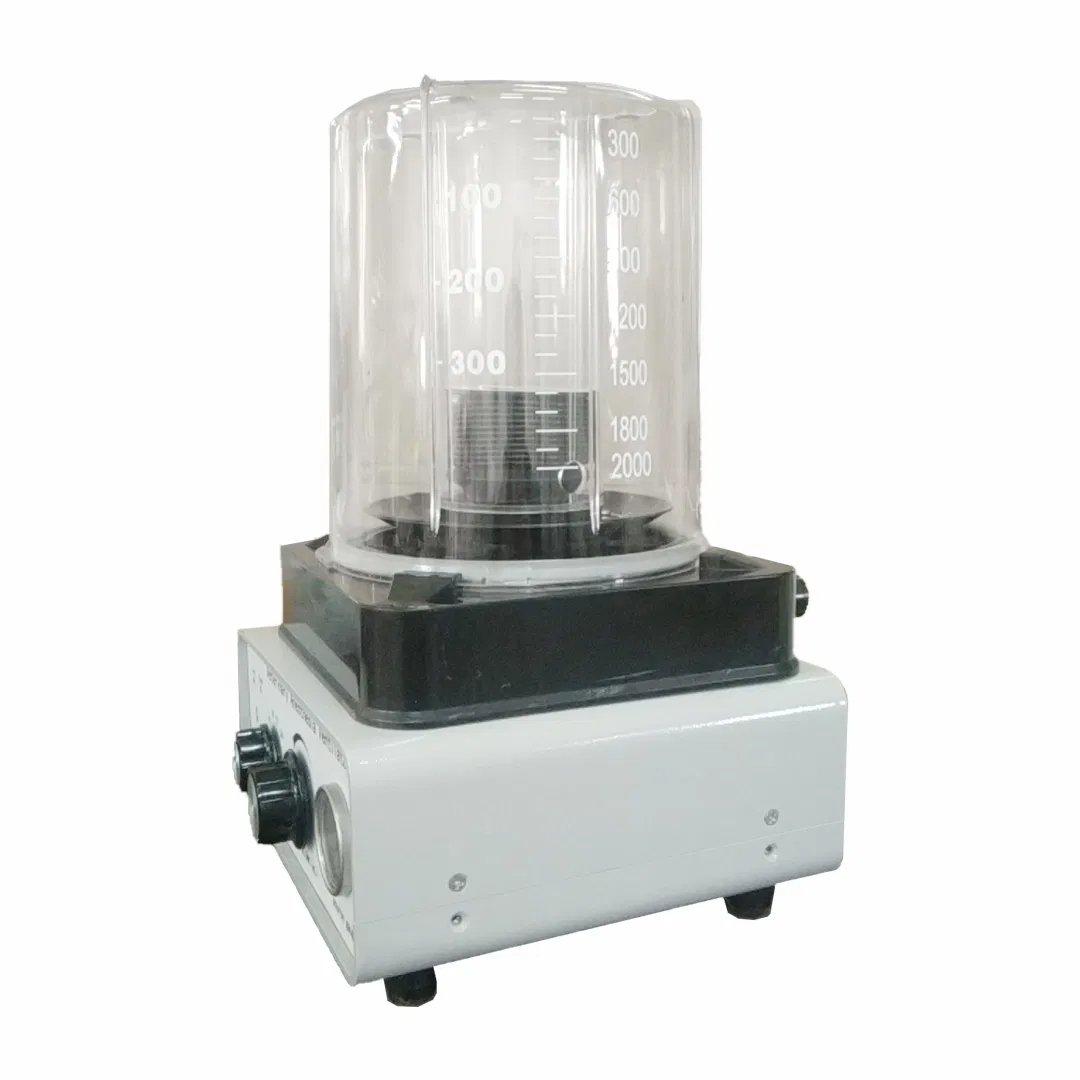

Q4: Does it include specific bellows for small animals?
Yes, it comes with small animal bellows (0-300ml) and big animal bellows (300-1600ml) to ensure versatility.
Q5: What are the power requirements for international use?
The device is compatible with both 220V/50Hz and 110V/60Hz power supplies, accommodating different regional electrical standards.

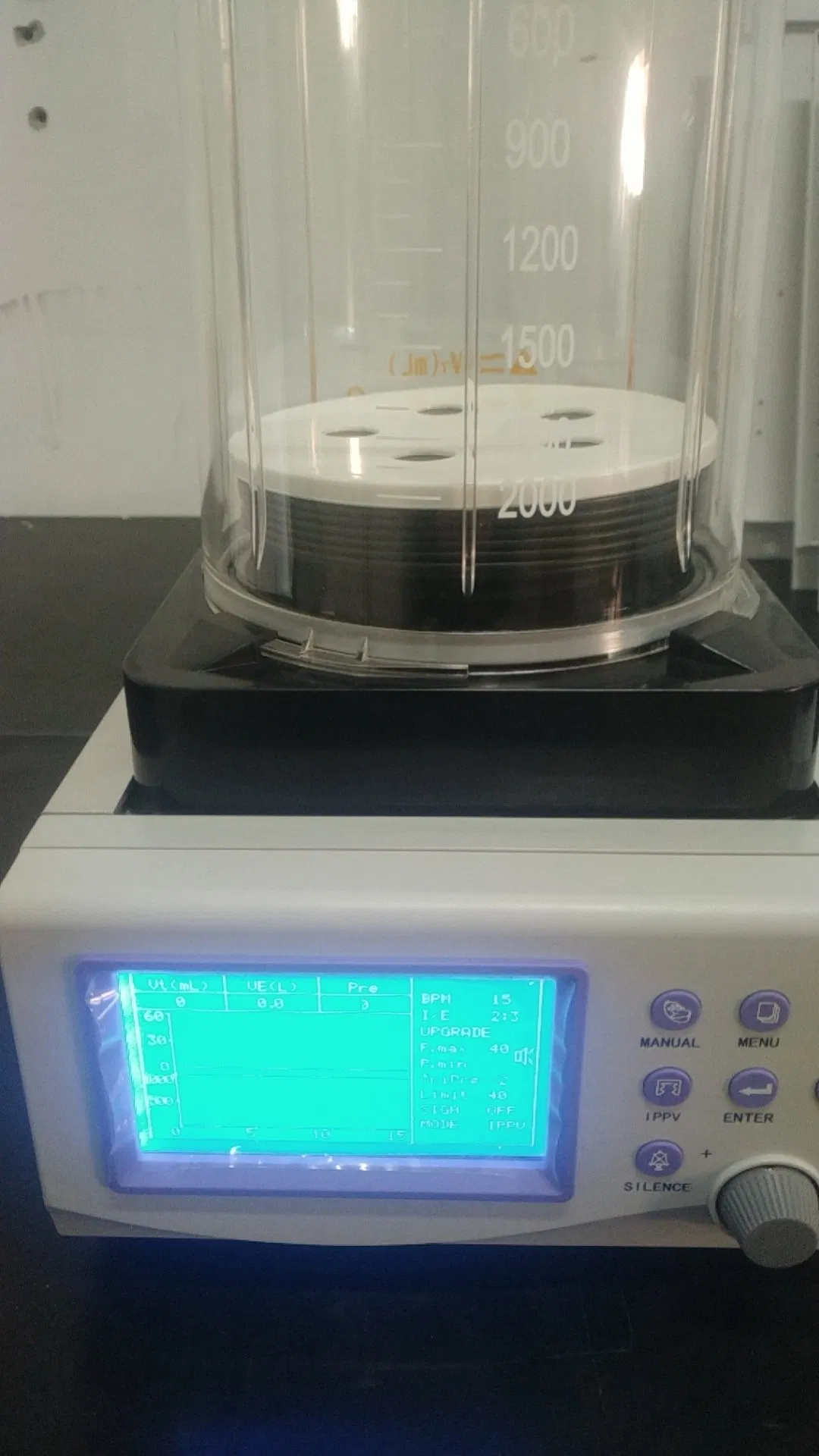

Q6: What parameters can be monitored during operation?
The unit monitors Tidal Volume (20-2000mL), Airway Pressure (-20-100cmH2O), and Gas Source Gauge (0-1MPa).
