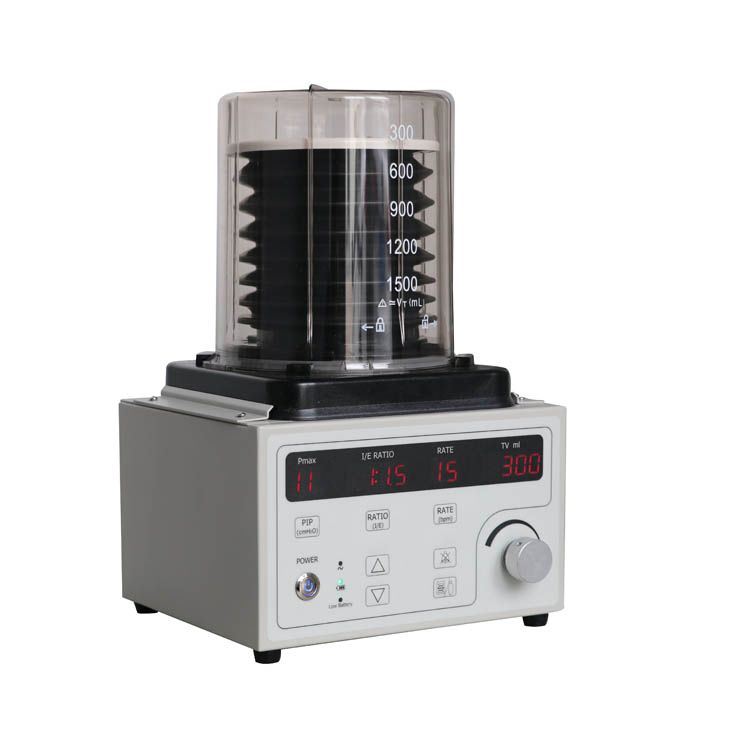

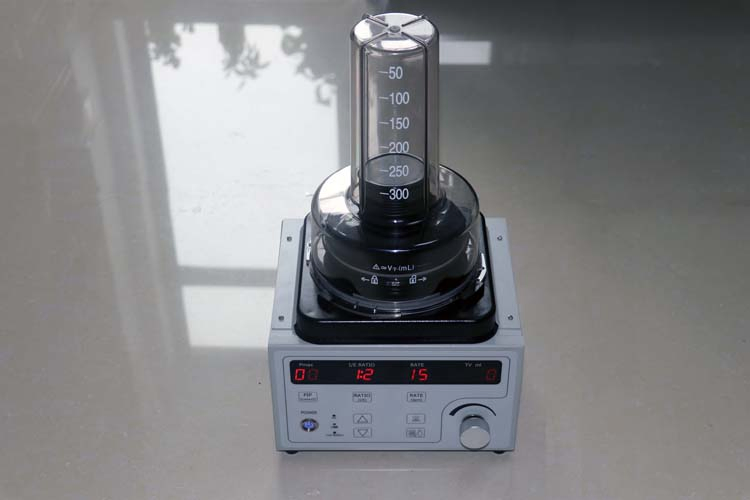

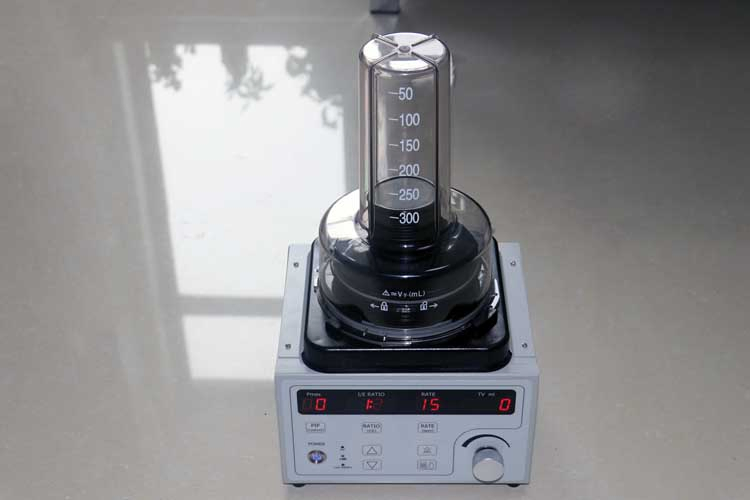

Portable Veterinary Anesthesia Ventilator Machine for Big and Small Animal
Portable Veterinary Anesthesia Ventilator Machine for Big and Small Animal
Portable Veterinary Anesthesia Ventilator Machine for Big and Small Animal
Portable Veterinary Anesthesia Ventilator Machine for Big and Small Animal
Portable Veterinary Anesthesia Ventilator Machine for Big and Small Animal
1 / 5
Portable Veterinary Anesthesia Ventilator Machine for Big and Small Animal
Portable Veterinary Anesthesia Ventilator Machine for Big and Small Animal
Portable Veterinary Anesthesia Ventilator Machine for Big and Small Animal
Portable Veterinary Anesthesia Ventilator Machine for Big and Small Animal
Portable Veterinary Anesthesia Ventilator Machine for Big and Small Animal

Portable Veterinary Anesthesia Ventilator Machine for Big and Small Animal

Send Inquiry

Product Description

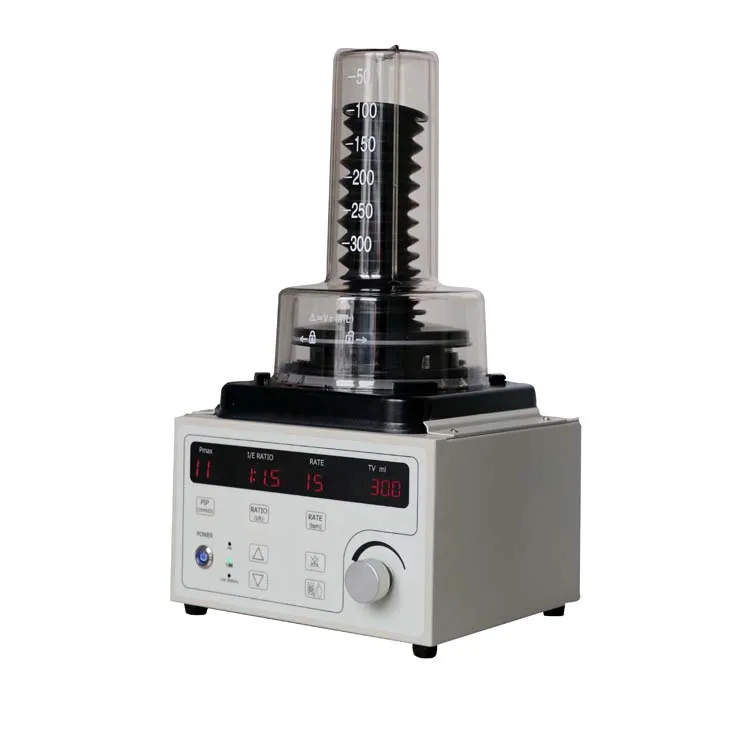

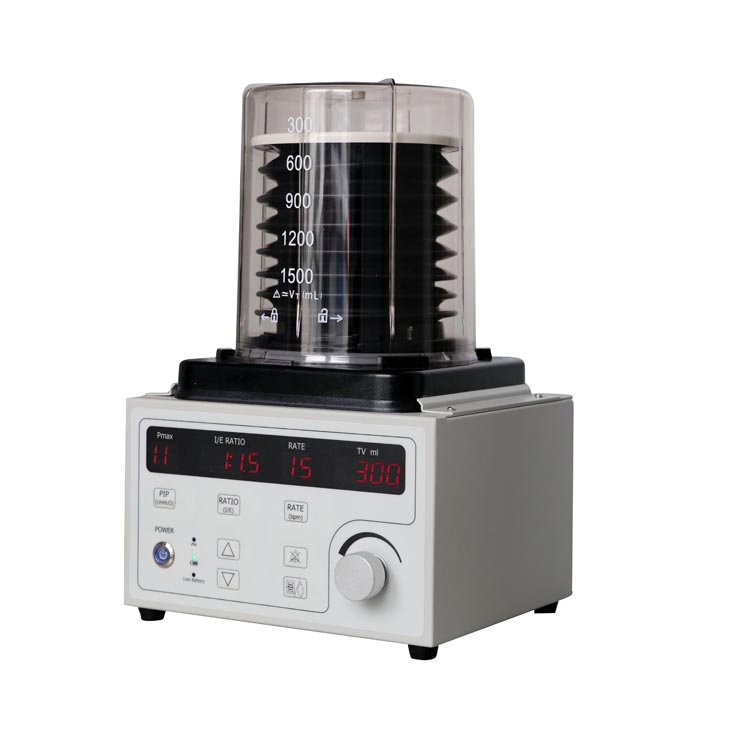

Portable Veterinary Anesthesia Ventilator Machine

This specially designed veterinary anesthesia ventilator is suitable for both large and small animals. It is widely applicable in veterinary hospitals, animal R&D institutes, university laboratories, animal clinics, and zoos.

◈ Key Product Features
✓ Space-Saving: Compact design to optimize your workspace.
✓ Portable: Light and easy to move, reducing equipment management costs.
✓ IPPV Mode: Features automatic breathing mode to ensure animal comfort.
✓ Versatile Bellows: Includes both large (300-2000ML) and small (0-300ML) animal bellows.
✓ High Precision: Gas source pipeline ensures no leakage for long-term safety.
✓ Digital Monitoring: LCD display for all critical parameters.
✓ Easy Operation: One-key interface for quick and simple parameter setting.
✓ Battery Backup: Built-in battery provides over 1 hour of operation during power failures.
◈ Product Parameters
Operating Mode Pneumatically driven and electrically controlled
Display LCD digital display
Animal Bellows Big animal: 300-2000ML (optional); Small animal: 0-300ML
Monitoring Tidal volume, breathing rate, I:E ratio, Peak airway pressure
Tidal Volume (TV) 0-300ml, 300-1600ml
Breathing Rate 4~60 bpm
I:E Ratio 1:1~1:4 adjustable
Upper Airway Pressure 2~6 kpa
Lower Airway Pressure 0.6~2 kpa
Alarm System Battery low, Power failure, Airway pressure high/low
PIP Scope 5-60 kpa
Configuration Main unit, bellows (0-300ml), foldable bag, bellow cover, medical corrugated pipelines, O2 supply pipeline, power cable, flow sensor, bellow: 300-2000ml (Optional)
◈ Detailed Photos
Ventilator Detail 1
Ventilator Detail 2
Ventilator Detail 3

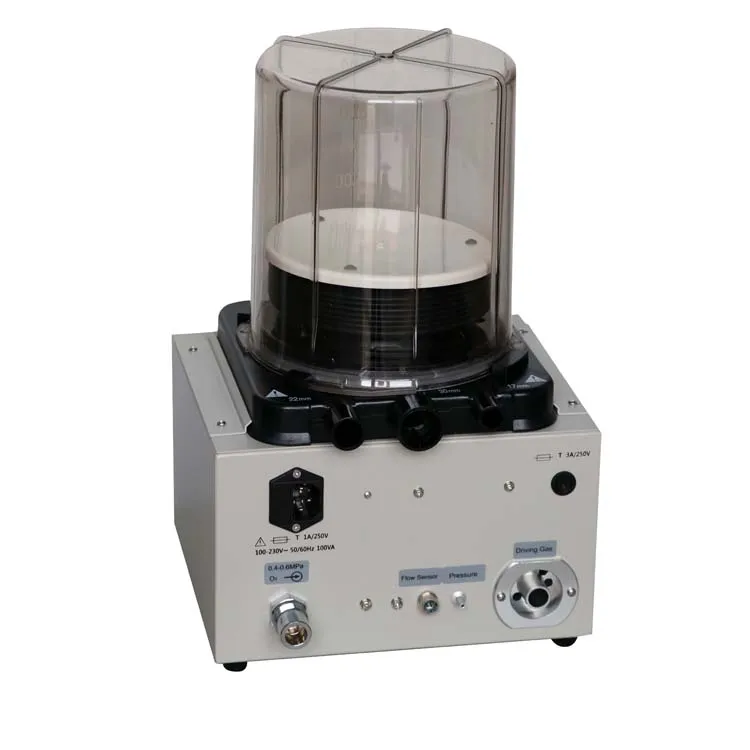

Ventilator Detail 4
◈ Manufacturing & Quality Control
Production View 1
Production View 2
Production View 3
Production View 4
Frequently Asked Questions
What types of animals can use this ventilator?
This ventilator is versatile and suitable for both small animals (using the 0-300ml bellows) and large animals (using the 300-2000ml bellows).
Is the machine compatible with other anesthesia equipment?
Yes, it is designed to match and work seamlessly with various brands of veterinary anesthesia machines.
What happens if there is a sudden power outage?
The unit features a built-in backup battery that allows the ventilator to continue operating for more than one hour in the event of a power failure.
What parameters can be monitored during operation?
The LCD digital display monitors essential data including tidal volume, breathing rate, I:E ratio, and peak airway pressure.
What safety alarms are included?
The system includes safety alerts for low battery, power failure, and high/low airway pressure to ensure patient safety.
Is the ventilation mode automatic?
Yes, it utilizes the IPPV (Intermittent Positive Pressure Ventilation) mode to achieve breathing automatically, enhancing the animal's comfort during anesthesia.
