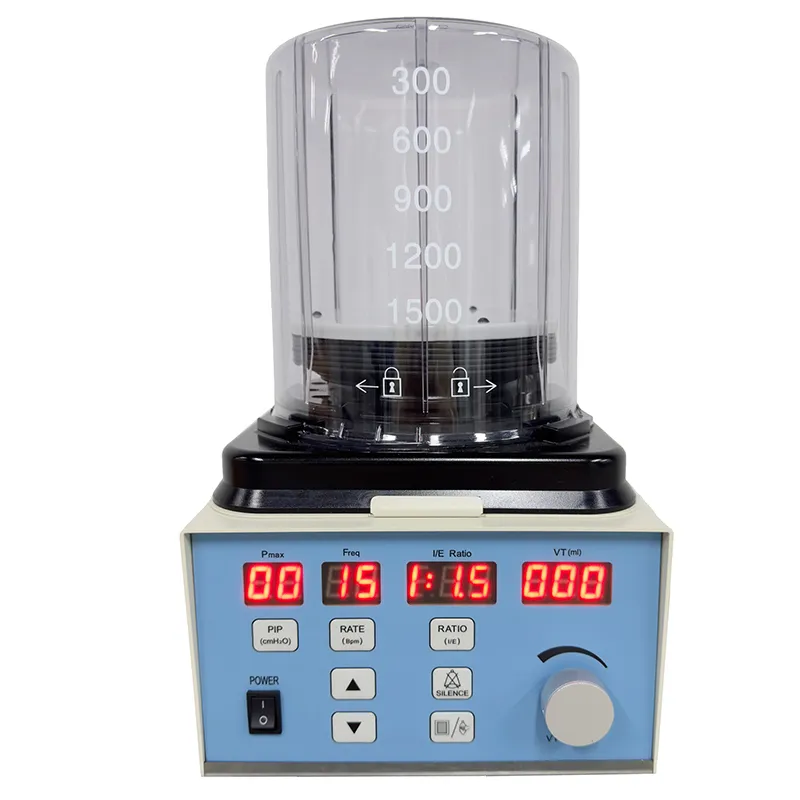

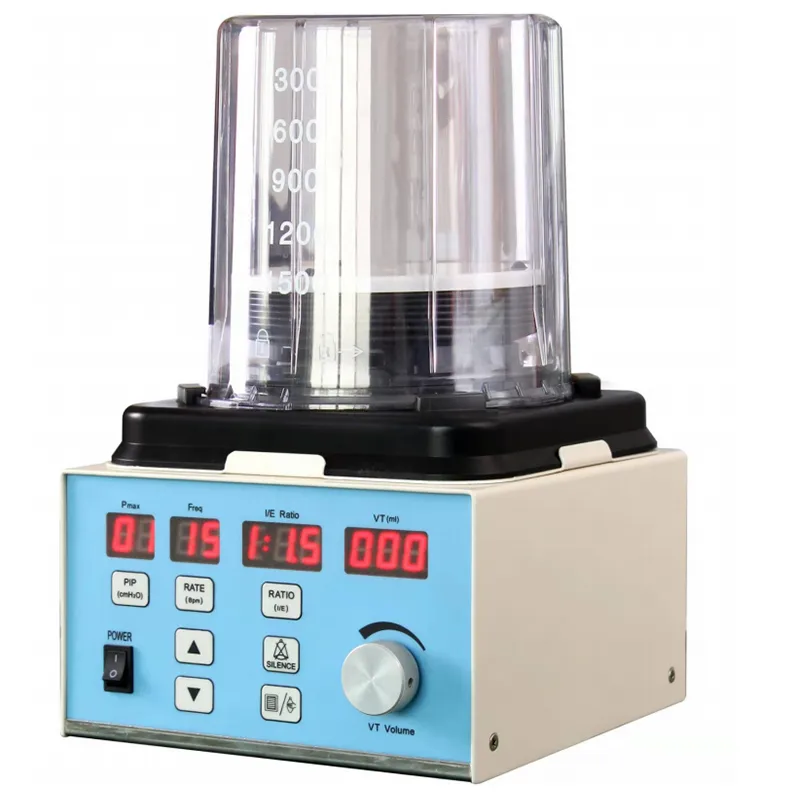

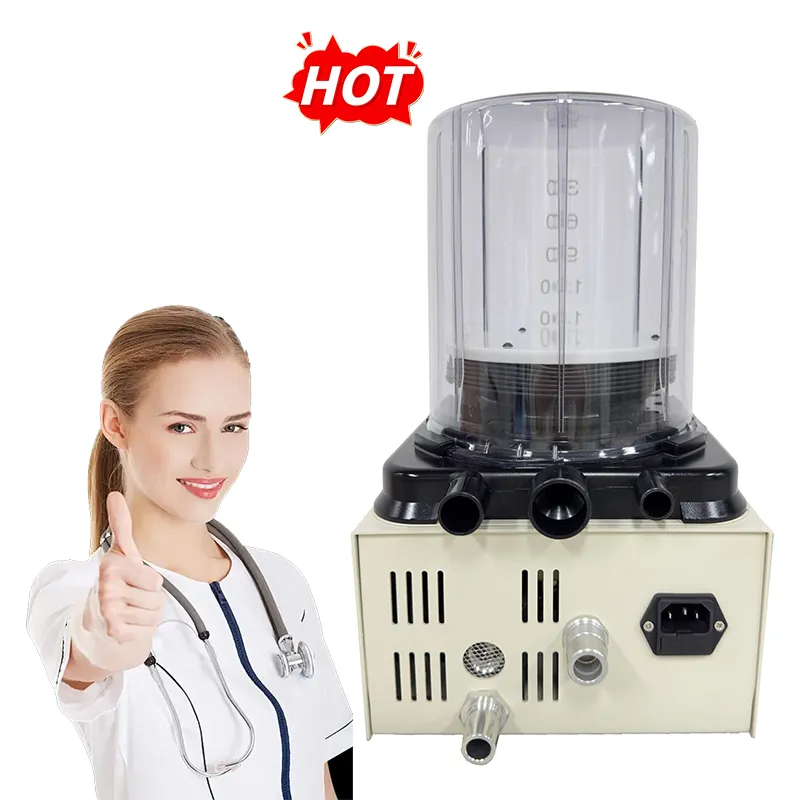

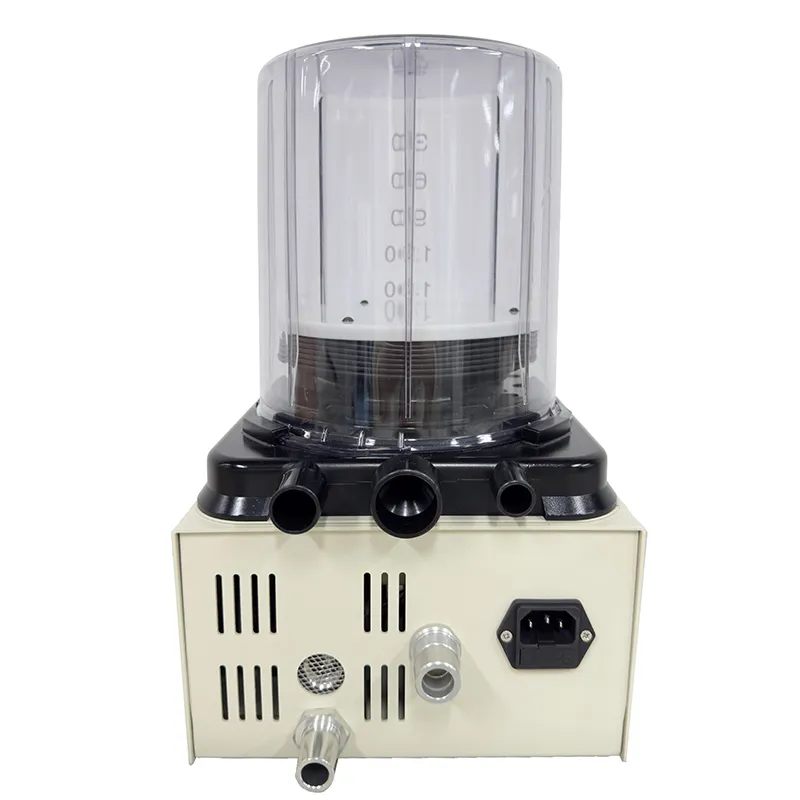

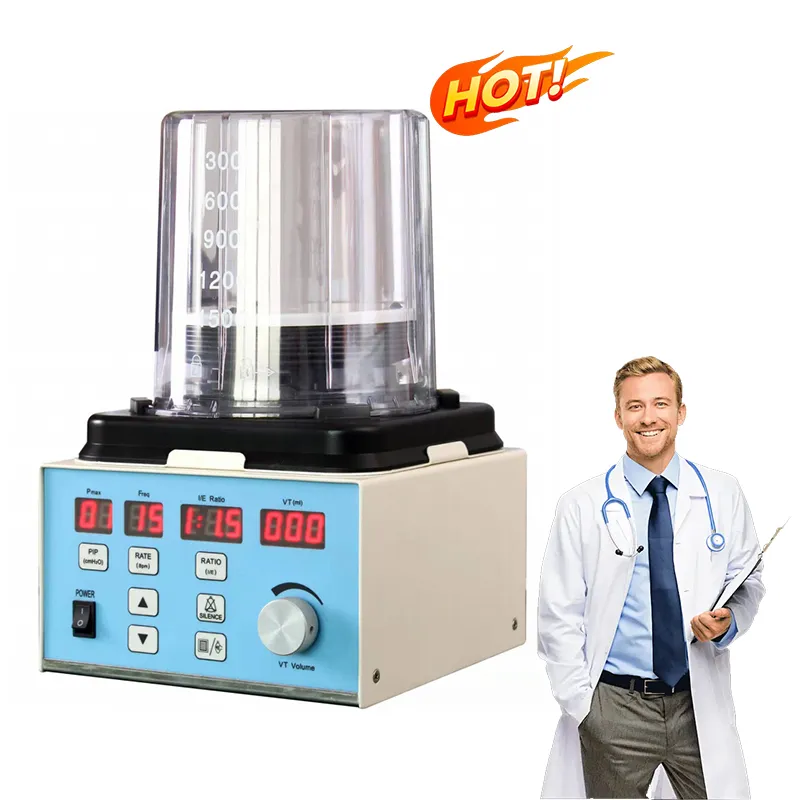

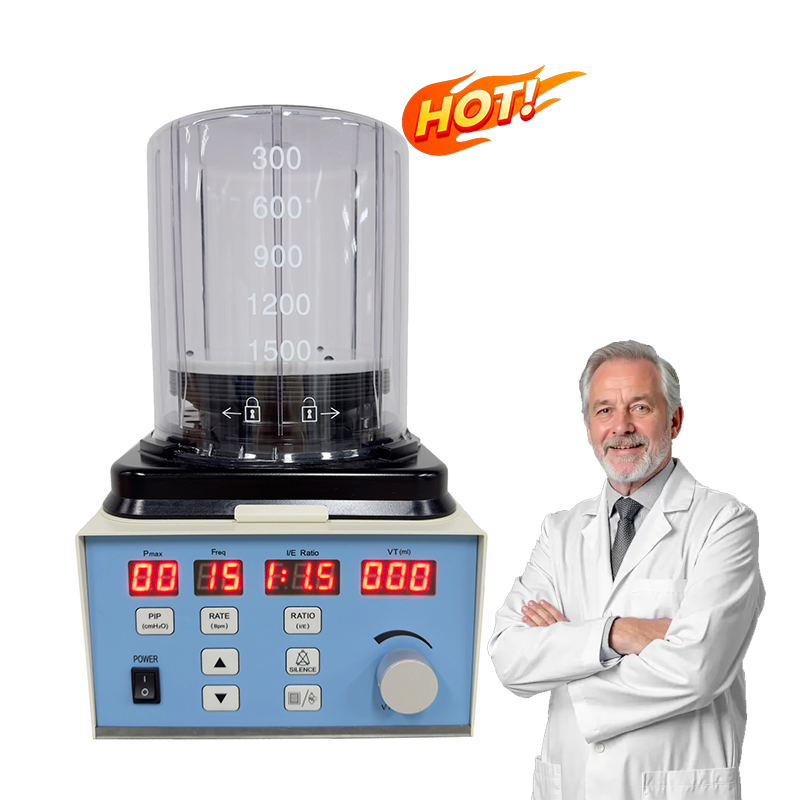

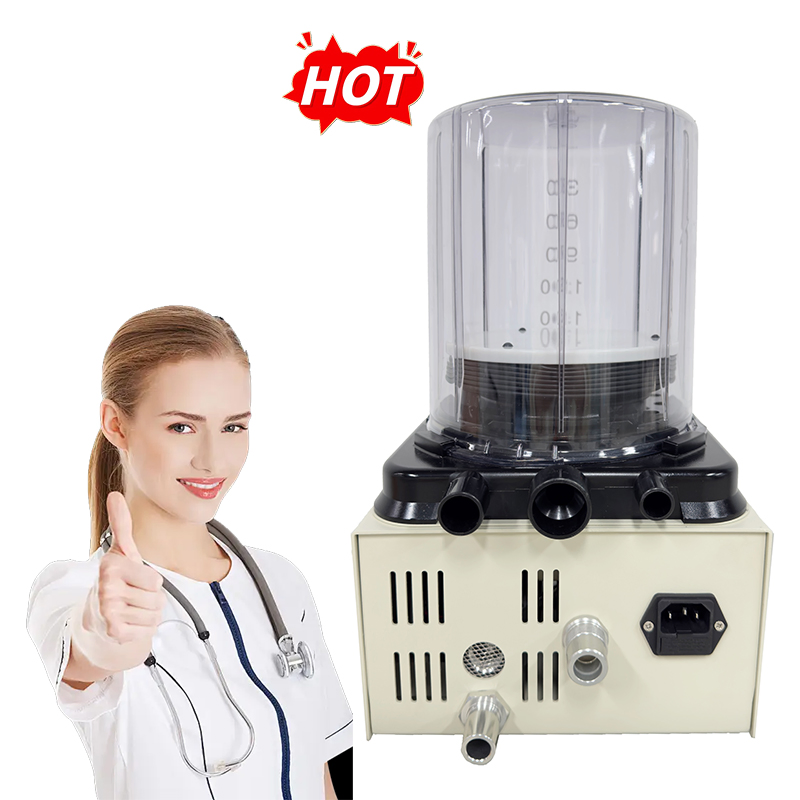

IN-V Portable Reusable Veterinary Anesthesia Ventilator Machine
Monitoring display: high-definition digital tube display
Monitoring parameters: tidal volume, respiratory rate, inspiratory ratio, peak airway pressure
Breathing mode: IPPV, MAN
Respiratory rate: 2 times/minute to 99 times/minute
Respiration ratio: 1:8 ~ 5:1, continuously adjustable
Tidal volume: 0, 50 ~ 1500mL (using a turbine-type flow sensor)
Minute ventilation volume: not less than 16L/min
Peak airway pressure: 0 ~ 9.9kPa
Maximum safe pressure of anesthesia breathing system: 6kPa
High pressure limit: Automatic limitation to ensure airway pressure cannot continue to rise.
Insufficient gas source pressure alarm: Sounds when oxygen supply is lower than 0.2MPa.
Airway pressure upper limit alarm: 2KPa ~ 6KPa, continuously adjustable with sound and text display.
Airway pressure lower limit alarm: 0KPa ~ 2KPa with intelligent sound/text alarm delay.
Alarm mute: Mute function (except oxygen supply) for up to 120 seconds.
We are a leading exporter and supply chain service provider of medical machines with extensive experience. Our main product range includes X-ray machines, B ultrasound scanners, ECG, patient monitors, ICU equipment, Lab equipment, and other related medical disposables. We have exported products to more than 50 countries and built long-term partnerships with clients globally.
Frequently Asked Questions
What are the primary breathing modes of the IN-V ventilator?
The machine supports both IPPV (Intermittent Positive Pressure Ventilation) and Manual (MAN) breathing modes to suit different surgical requirements.
How is the quality of the medical equipment guaranteed?
Quality is ensured through a rigorous process including a pre-production sample before mass production and a final inspection before every shipment.
What monitoring parameters are displayed on the device?
The high-definition digital tube displays tidal volume, respiratory rate, inspiratory ratio, and peak airway pressure in real-time.
What kind of safety alarms does this anesthesia ventilator have?
The system includes alarms for insufficient gas source pressure, airway pressure upper/lower limits, and a built-in alarm mute function for up to 120 seconds.
What is the tidal volume range for this veterinary machine?
It features a tidal volume range of 50 to 1500mL, utilizing a precision turbine-type flow sensor for accurate delivery.
What payment methods and delivery terms are accepted?
We accept various delivery terms such as FOB, CIF, and EXW. Accepted payment types include T/T, L/C, Credit Card, and PayPal.
