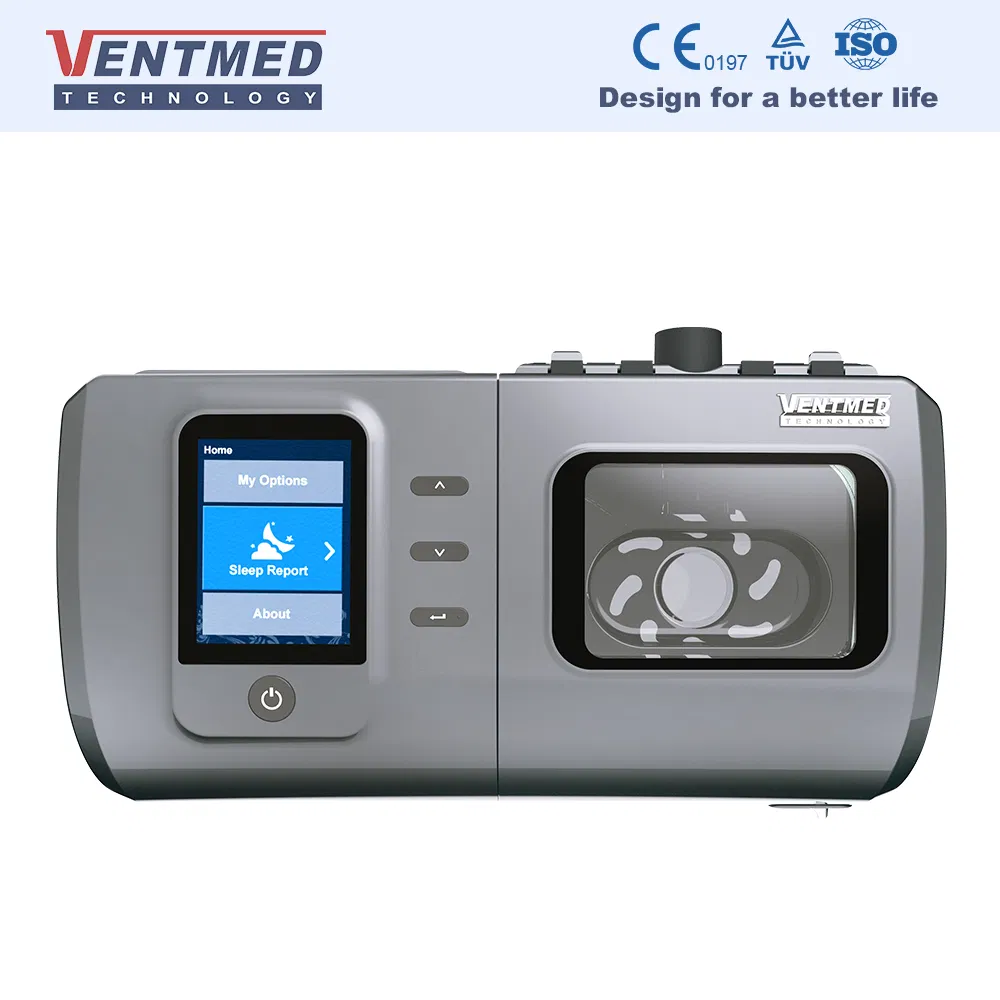

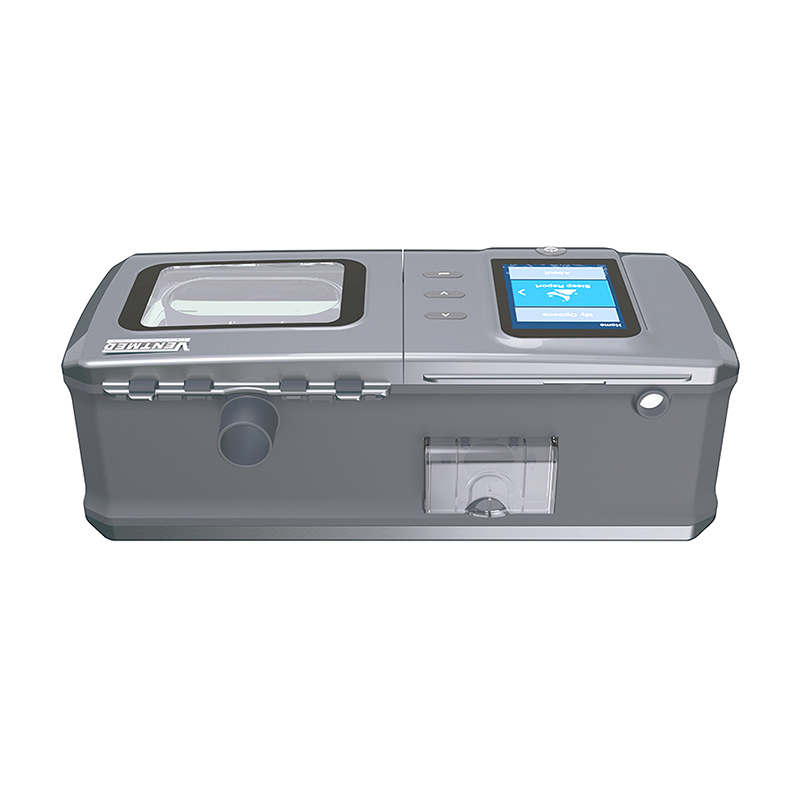

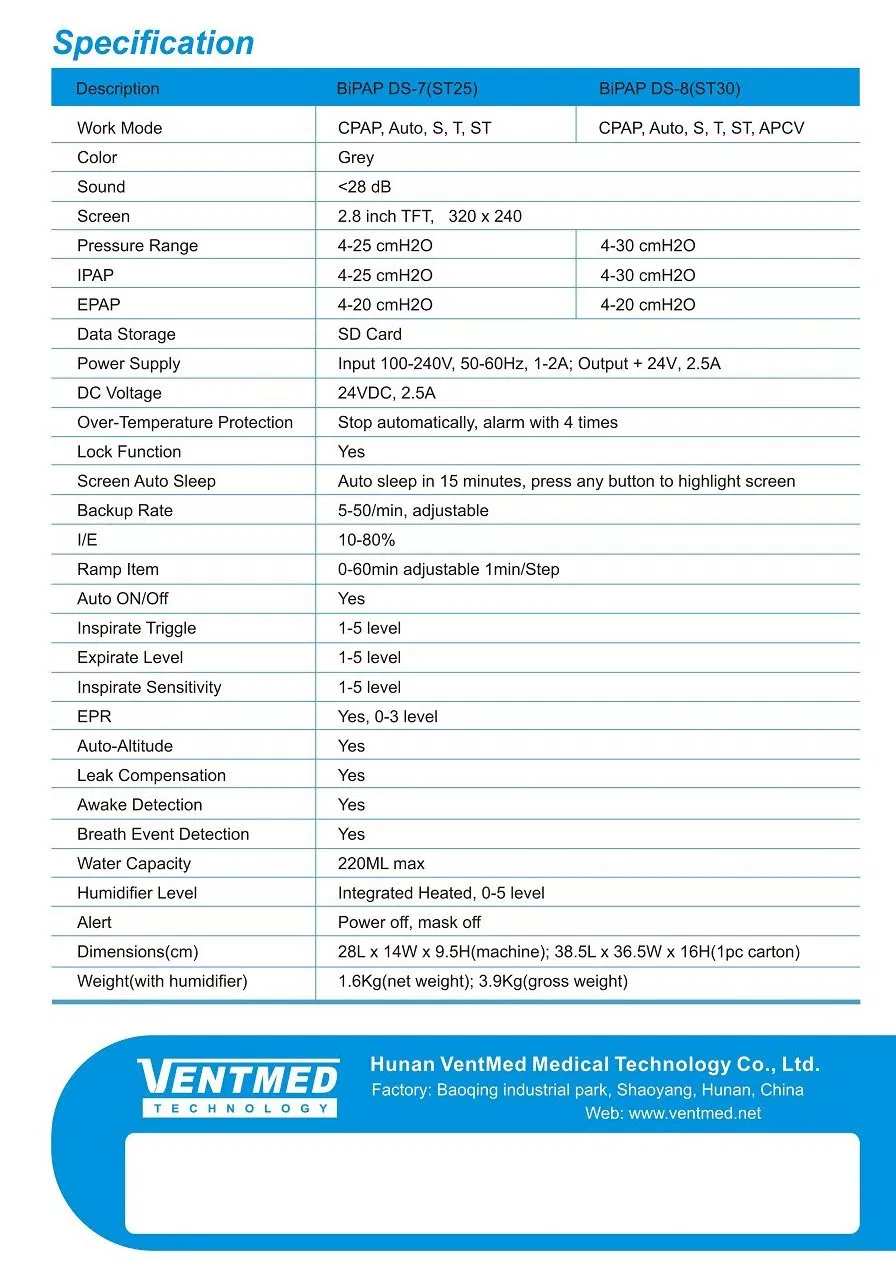

| Model NO. | DS-8 |
| Work Mode | CPAP, Auto, S, T, St |
| Pressure Range | 4-30CMH2o (Auto Adjust) |
| Screen | 2.8inch Color TFT, 320*240 |
| Power Supply | Input 100-240V, 50-60Hz; Output +24V, 2.5V |
| Data Storage | SD Card |
| Weight | 1.6kg (Net Weight); 3.9kg (Gross Weight) |
| Application | Hospital or Home (Anti-Snoring, CSA and OSA Patients) |
| Warranty | 2 Years |
S Mode T Mode S/T Mode Automatic Breathing Apparatus To Treat MSA

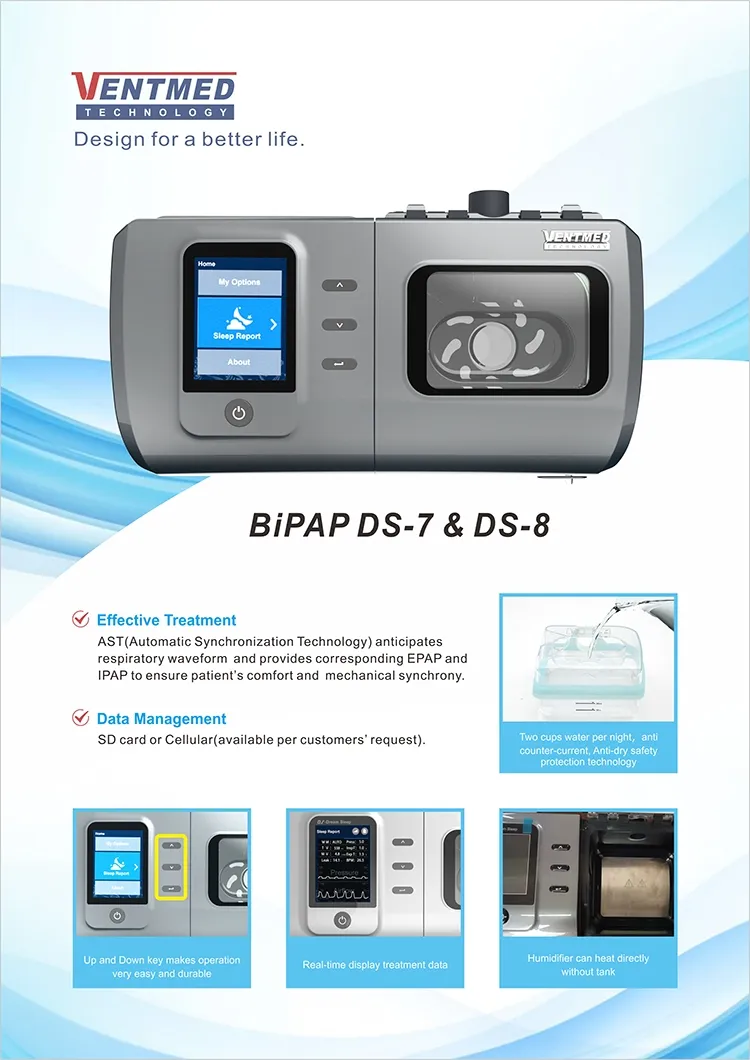

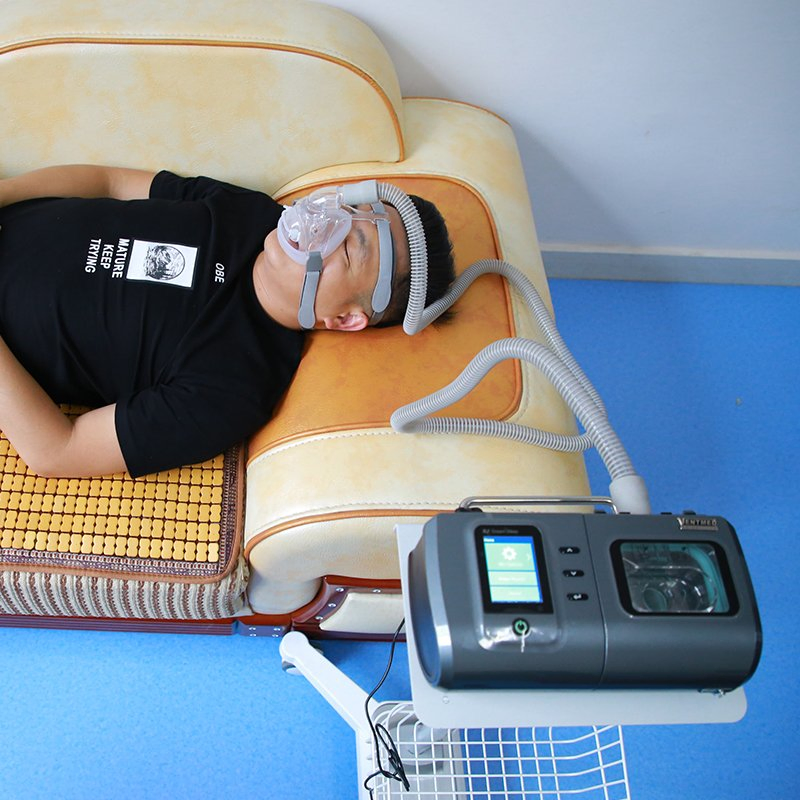

Bi-level Positive Airway Pressure (BiPAP) with EPR (Expiratory Pressure Relief) offers the ultimate in sleep therapy comfort. It combines auto-adjusting pressure delivery with breath-by-breath pressure relief for natural sleep therapy. It provides non-invasive ventilation for patients with respiratory insufficiency in the hospital or home.
The key distinguishing feature is that the pressurized air is delivered at two alternating levels: inspiratory positive airway pressure (IPAP) and expiratory positive airway pressure (EPAP). The inspiratory pressure is higher to support breathing in, while the expiratory pressure is lower to allow easier breathing out.
Key Highlights:
| Working Mode | CPAP, Auto, S, T, STM, APCV |
| IPAP / EPAP | 4-30 cmH2O / 4-20 cmH2O |

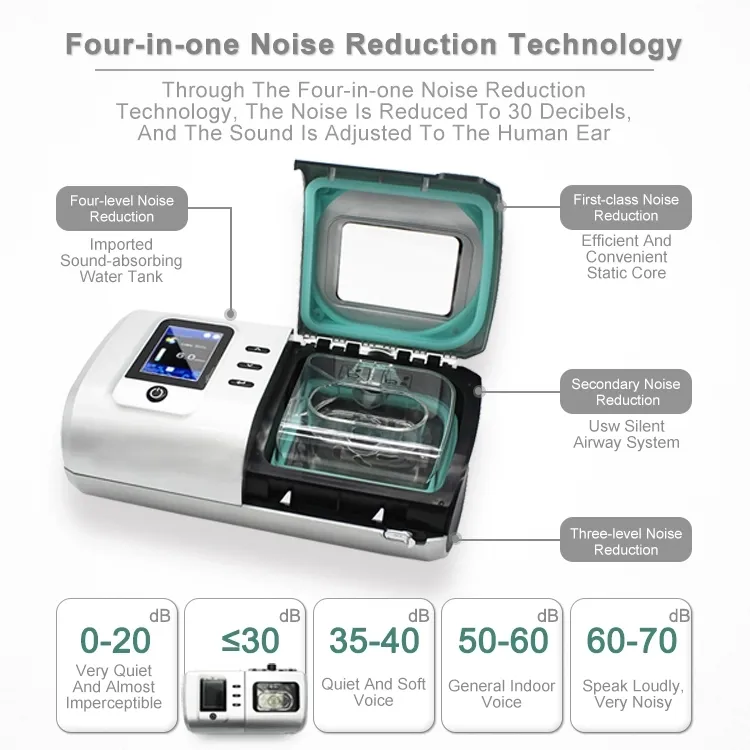

| Sound Level | < 28db |
| Backup Rate | 5-50min, adjustable |
| Ramp Item | 0-60min adjustable |

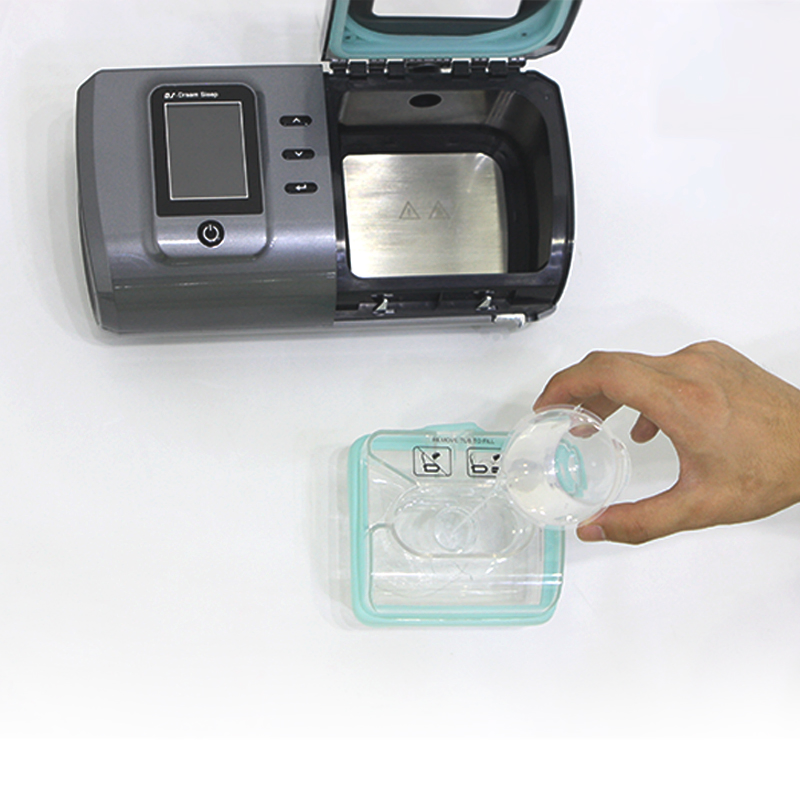

| Humidifier | 0-5 level, Integrated Heated |
| Alarms | Mask Off Alarm, Power Off Alarm |
| Water Capacity | 220ML max |
