Basic Information
Product Name
Bipap Machine
Working Mode
CPAP, Auto, S, T, St, Apcv
Product Overview

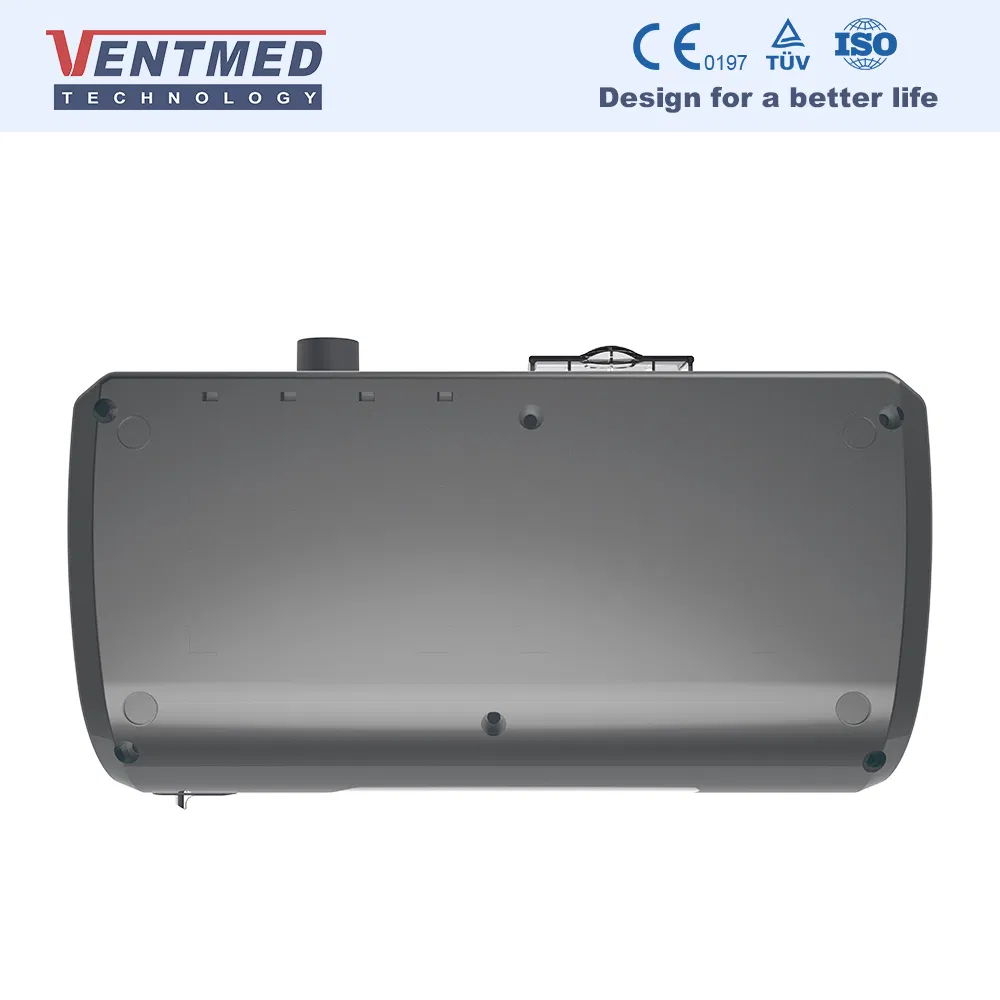

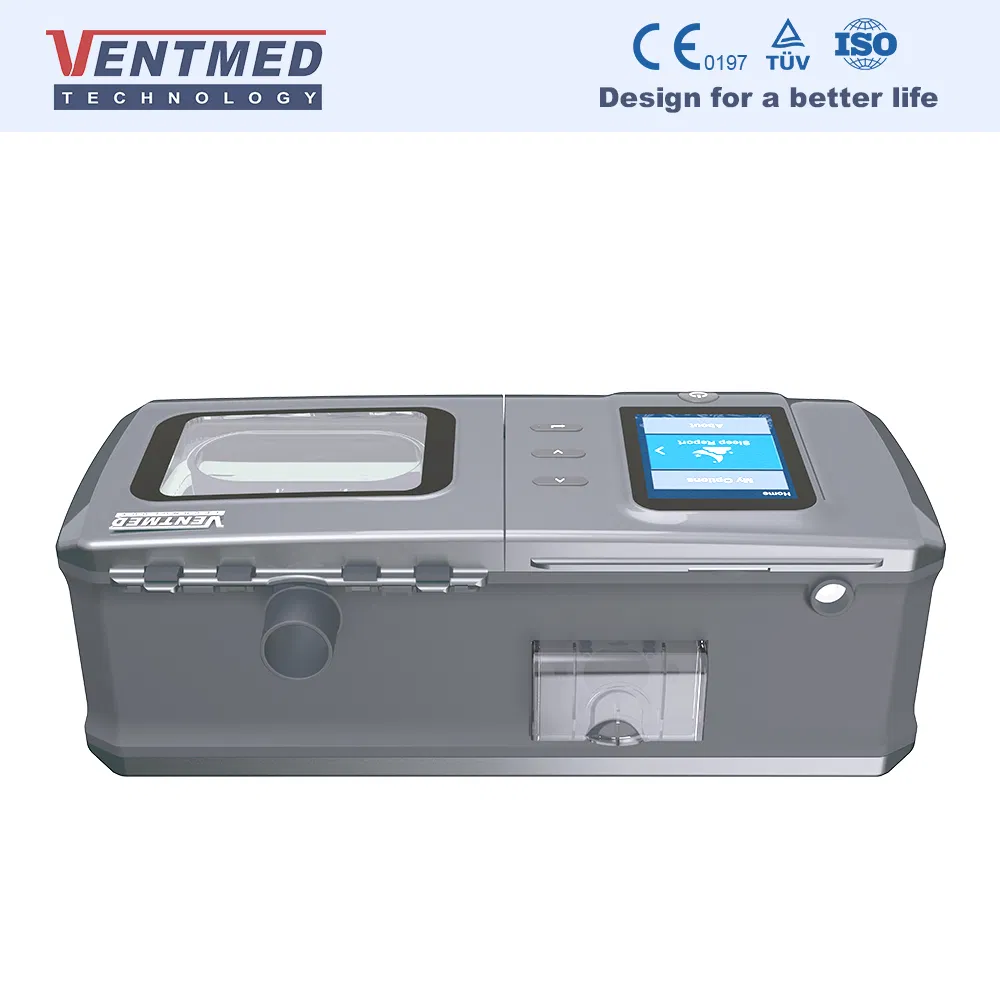

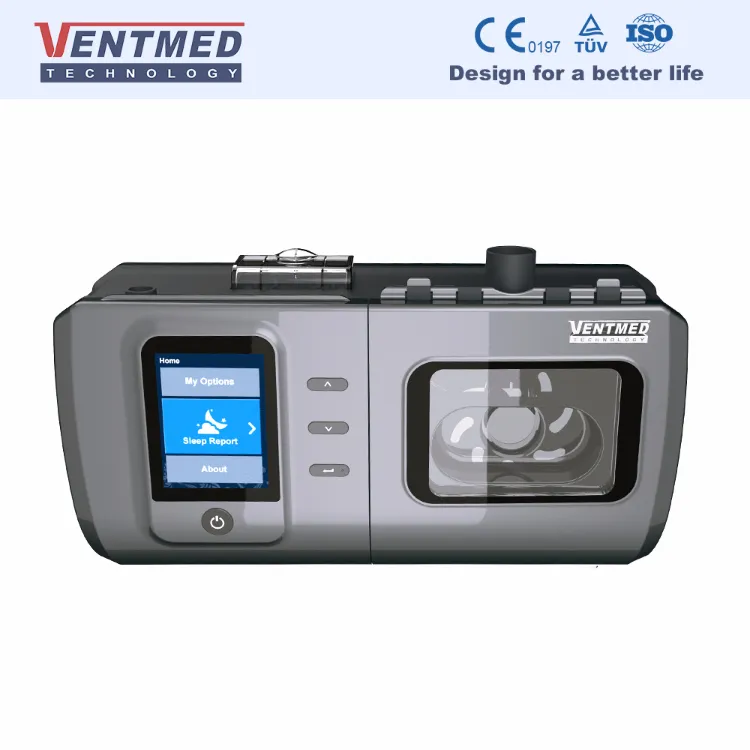

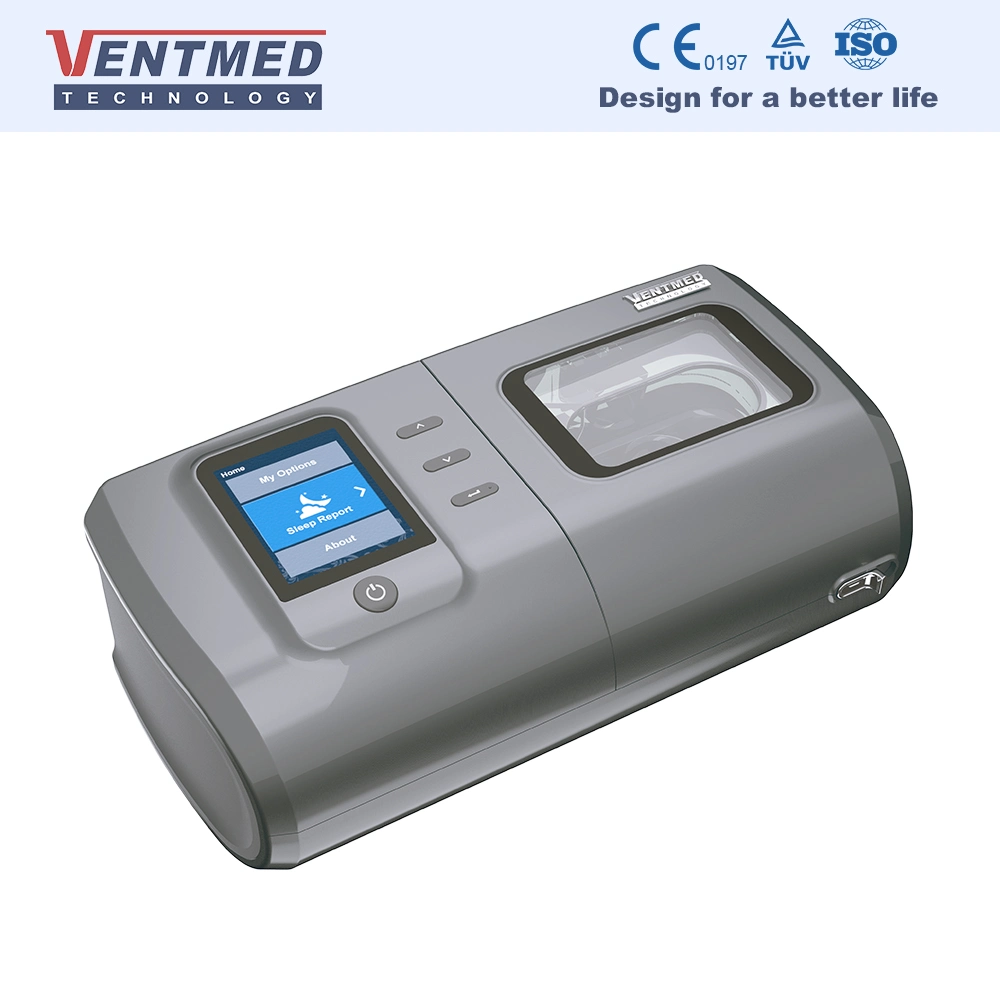

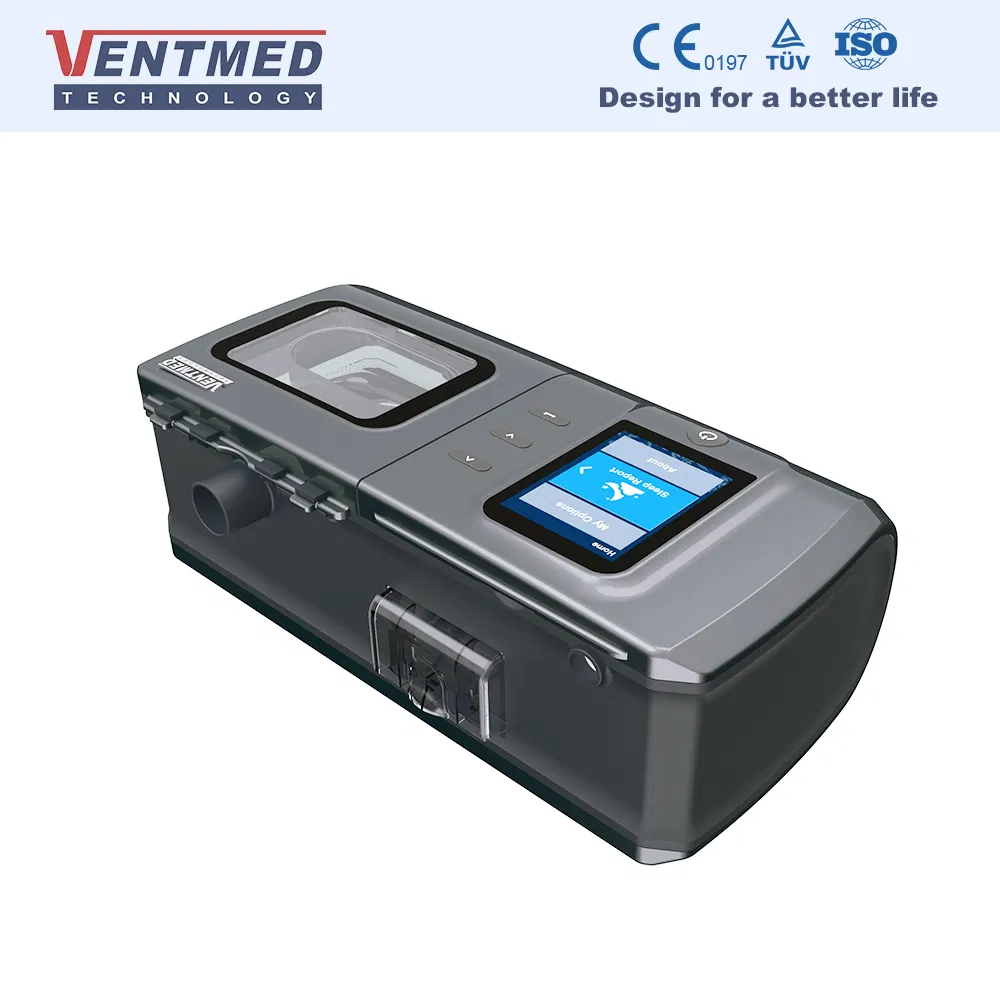

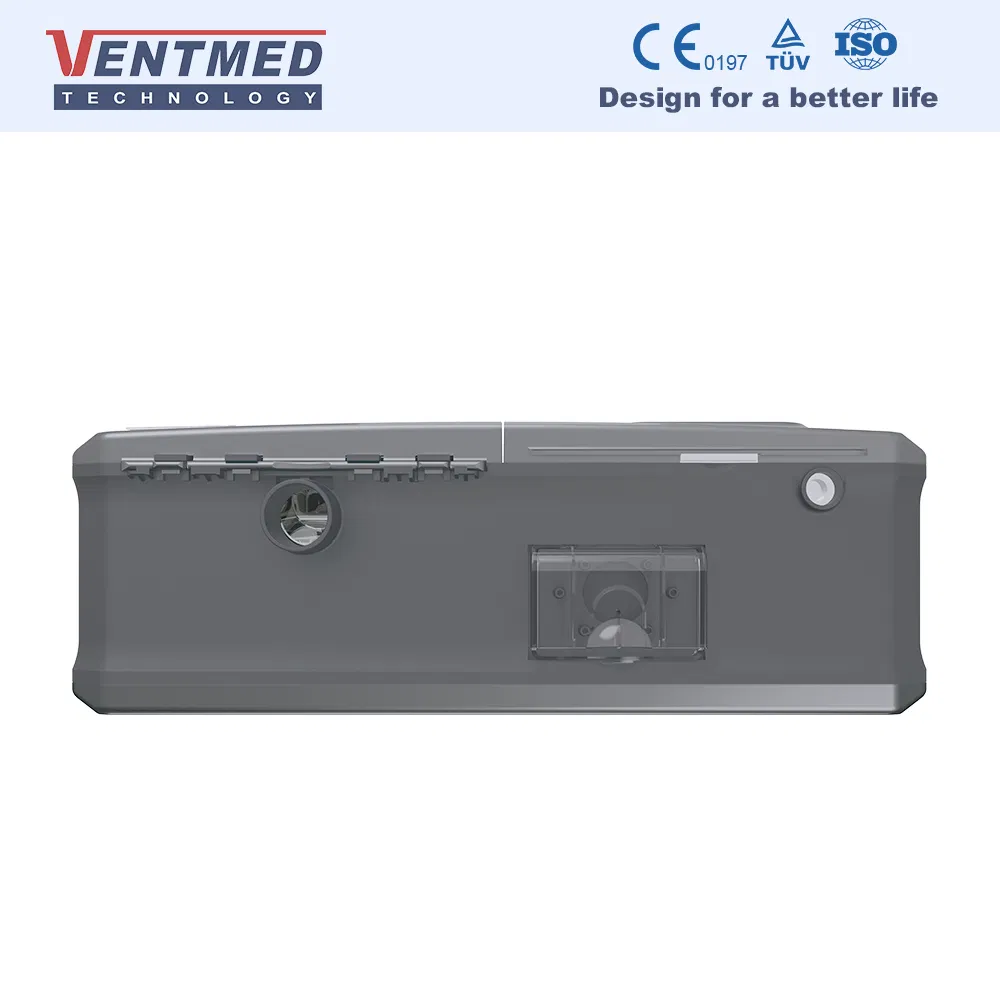

Auto Bilevel CPAP BiPAP System for Apnea Therapy

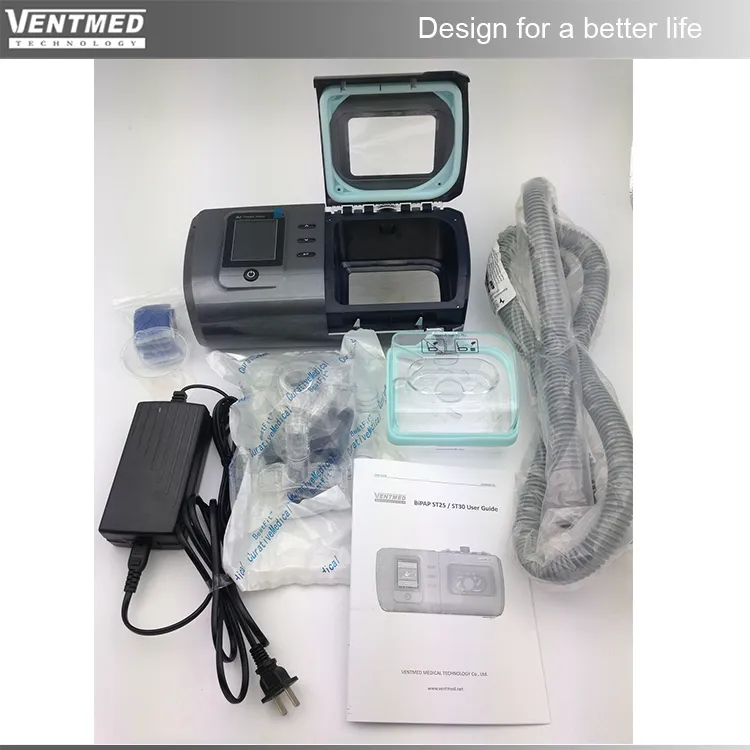

📦Standard Delivery Package Includes:
✓ Respirator host

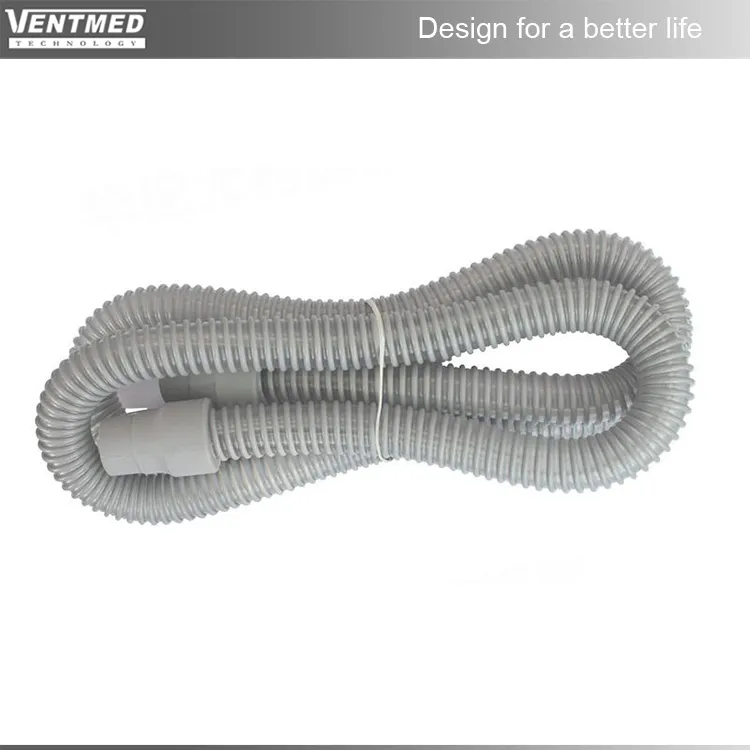

✓ Air tubing
✓ Full Face Mask
✓ Charger
✓ Water measuring cup
✓ 5 pieces of spare Filters

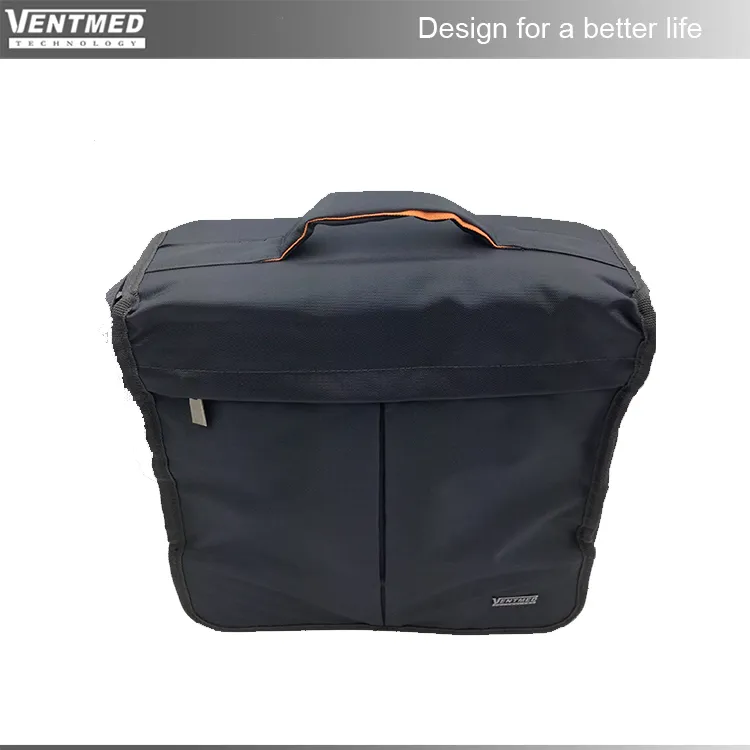

✓ Fabric travel Bag
Technical Specifications
The BiPAP ST30 is engineered for treating adult Obstructive Sleep Apnea (OSA), Central Sleep Apnea (CSA), Hypopnea, COPD (chronic obstructive pulmonary disease), and Snoring.
Advanced APCV Mode: Compared to standard models, the DS-8 (ST30) features the APCV mode. This is specifically designed for critical patients with rapid/shallow breathing and low tidal volume, primarily used for hospital-targeted tidal volume management.
| Screen | 2.8 inch TFT, 320 x 240 |
| Power Supply | Input: 100-240V | Output: +24V, 2.5A |
| IPAP / EPAP | 4-30 cmH2O / 4-20 cmH2O |
| Ramp Item | 0-60min adjustable (1min/Step) |

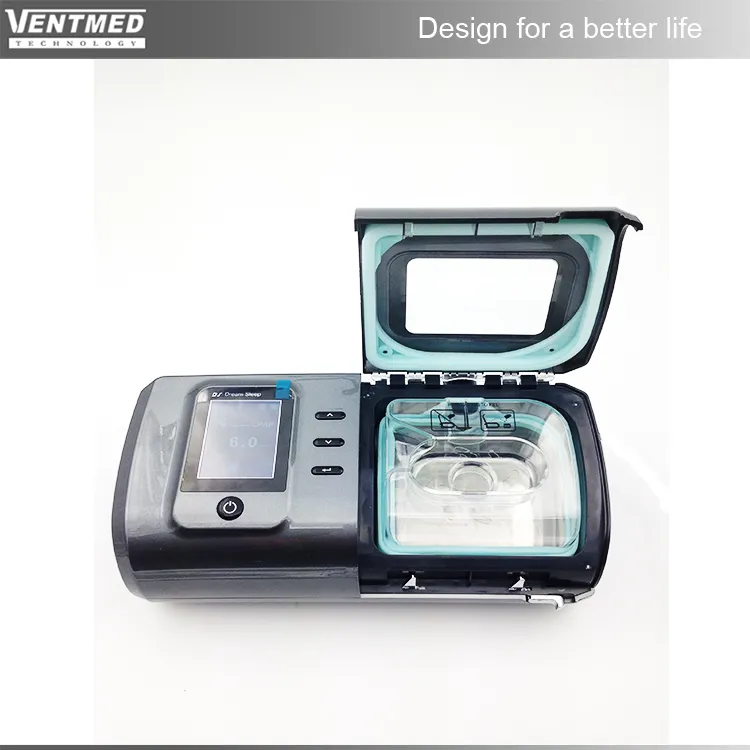

| Humidifier | Integrated Heated Humidifier (220ML max) |
| Safety Alarms | Mask Off Alarm, Power Off Alarm |
Key Features
★ Data Storage: Over 20 hours of real-time data and 1 year of usage records.
★ Communication: SD card slot for easy data transfer.
★ Intelligent Algorithm: Unique patterns for smarter therapy.
★ Premium Design: High-end UV technology with a fashionable dark grey finish.
★ Comfort Settings: EPR (expiratory pressure relief) and Auto-Leak/Altitude compensation.
★ Safety: Parameters lock prevents accidental changes after setting.

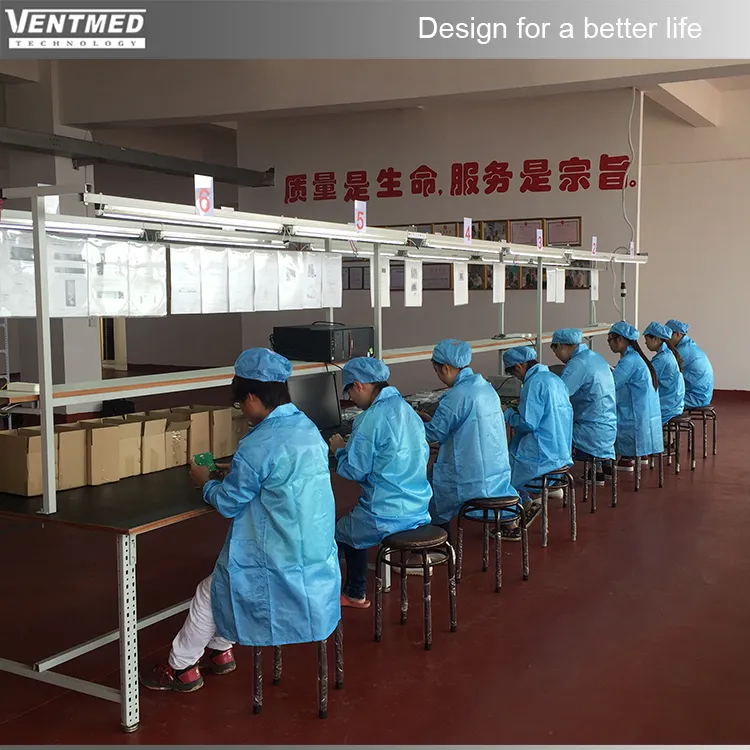

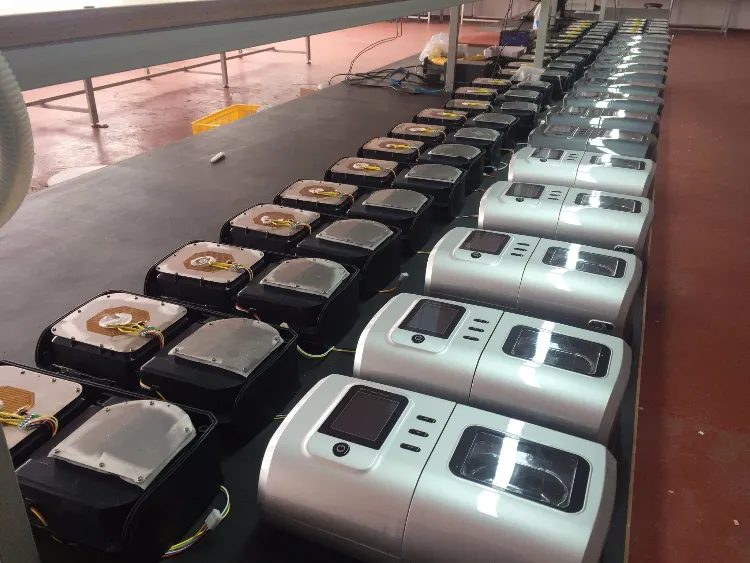

Certifications & Manufacturing
Our systems are fully certified for international safety and quality standards:
CE0197, ISO13485, CFDA (China Food and Drug Administration), Free Sale Certification (FSC).
Frequently Asked Questions
What conditions is the BiPAP ST30 DS-8-10 suitable for?
It is designed to treat Obstructive Sleep Apnea (OSA), Central Sleep Apnea (CSA), Hypopnea, COPD, and heavy snoring in adults.
What is the advantage of the APCV mode?
APCV mode is specifically for patients with rapid and shallow breathing. it helps achieve a targeted tidal volume, making it ideal for hospital use or critical care transitions.
How noisy is the machine during use?
The machine operates very quietly at a noise level of less than 28db, ensuring a peaceful sleep environment for both the user and their partner.
Does the device come with a humidifier?

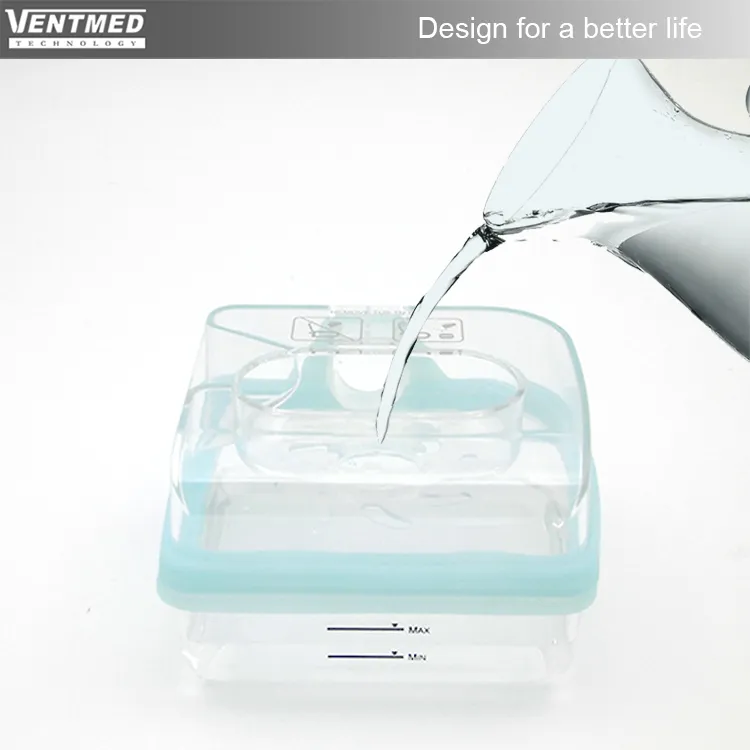

Yes, it includes an integrated heated humidifier with a 220ML maximum water capacity to prevent dryness and improve comfort during therapy.
How can I review my sleep data?
The device saves over 20 hours of real-time data and a full year of usage records. You can easily access this data via the built-in SD card slot for communication and analysis.
What happens if the power goes out or the mask falls off?
The machine includes built-in safety alarms. If the mask is removed, it will beep until it's replaced. In case of a power failure, it will sound a warning for over 30 seconds.
