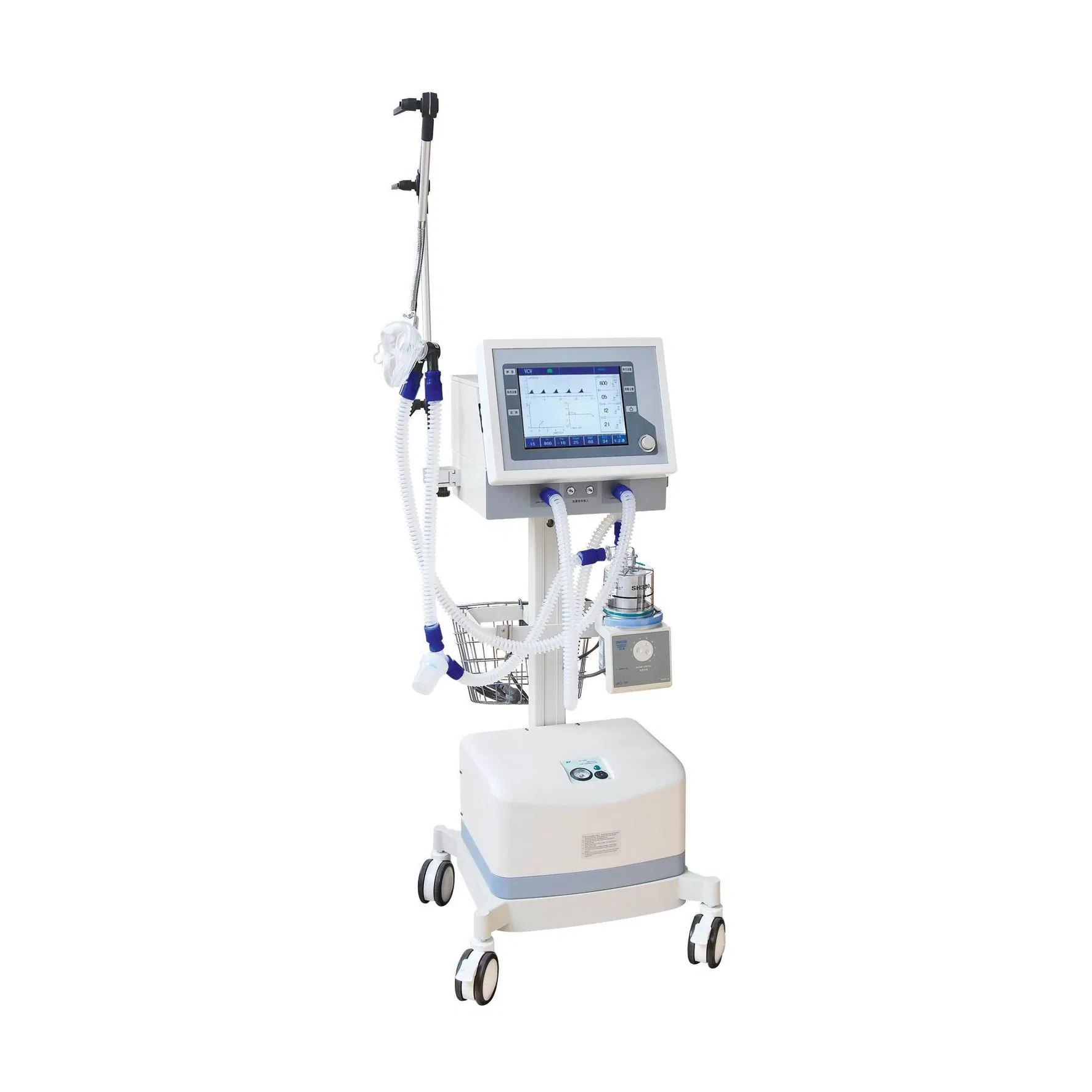

High Quality Medical Use ICU Ventilator for Adult and Chilren Respiratory Failure

1 / 5

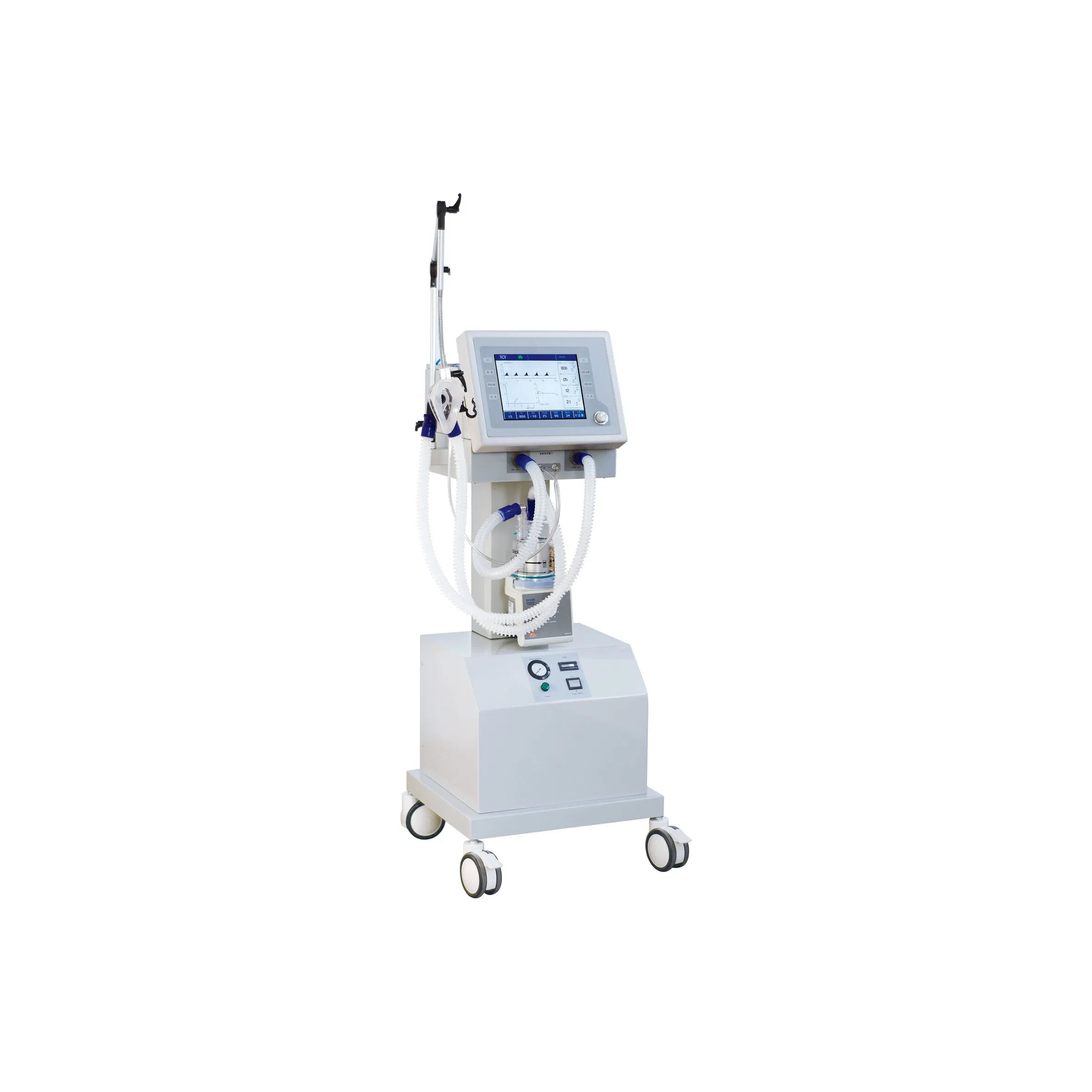

High Quality Medical Use ICU Ventilator for Adult and Chilren Respiratory Failure

Type:	Respiratory Therapy Ventilator
Used for:	Adult, Child
Ventilator Mode:	A/C, Sippv, Ippv, Simv, Psimv, Psv, CPAP, Pcv, Vcv

Send Inquiry

Product Description

Basic Information

Model NO.

YH-PA900

Tidal Volume (Vt)

20-1500ml

Frequency (Freq)

1-99bpm

Oxygen Concentration

21 % ~ 100 %

I : E

4 : 1 ~ 1 : 4

Peep

0 CMH2o ~ 10 CMH2o

Pressure Limit

1.0kpa~6.0kpa

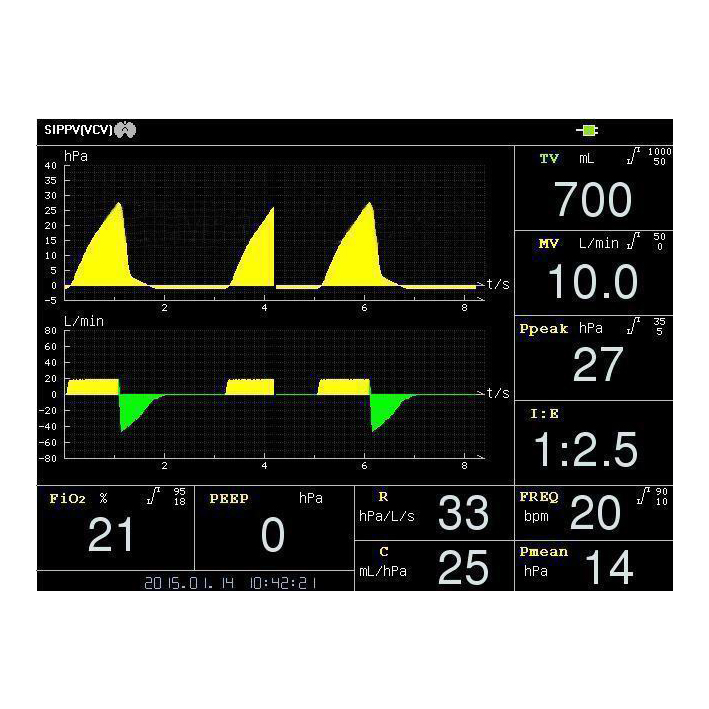

Oscillogram

P-T, F-T, P-V Loop

Gas Source

O2, Air

Pressure

280 Kpa - 600 Kpa

Voltage

220 V

Origin

China

Capacity

500 PCS / Month

Product Description

Application

The ventilator is suitable for various kinds of medical institutions for cardiopulmonary resuscitation respiratory support. Acute respiratory failure caused by various reasons or incomplete oxygenation dysfunction. Indra-operation, post-operation respiratory support, other respiratory treatment.

Key Features

Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Used for emergency clinical resuscitation and respiratory therapy

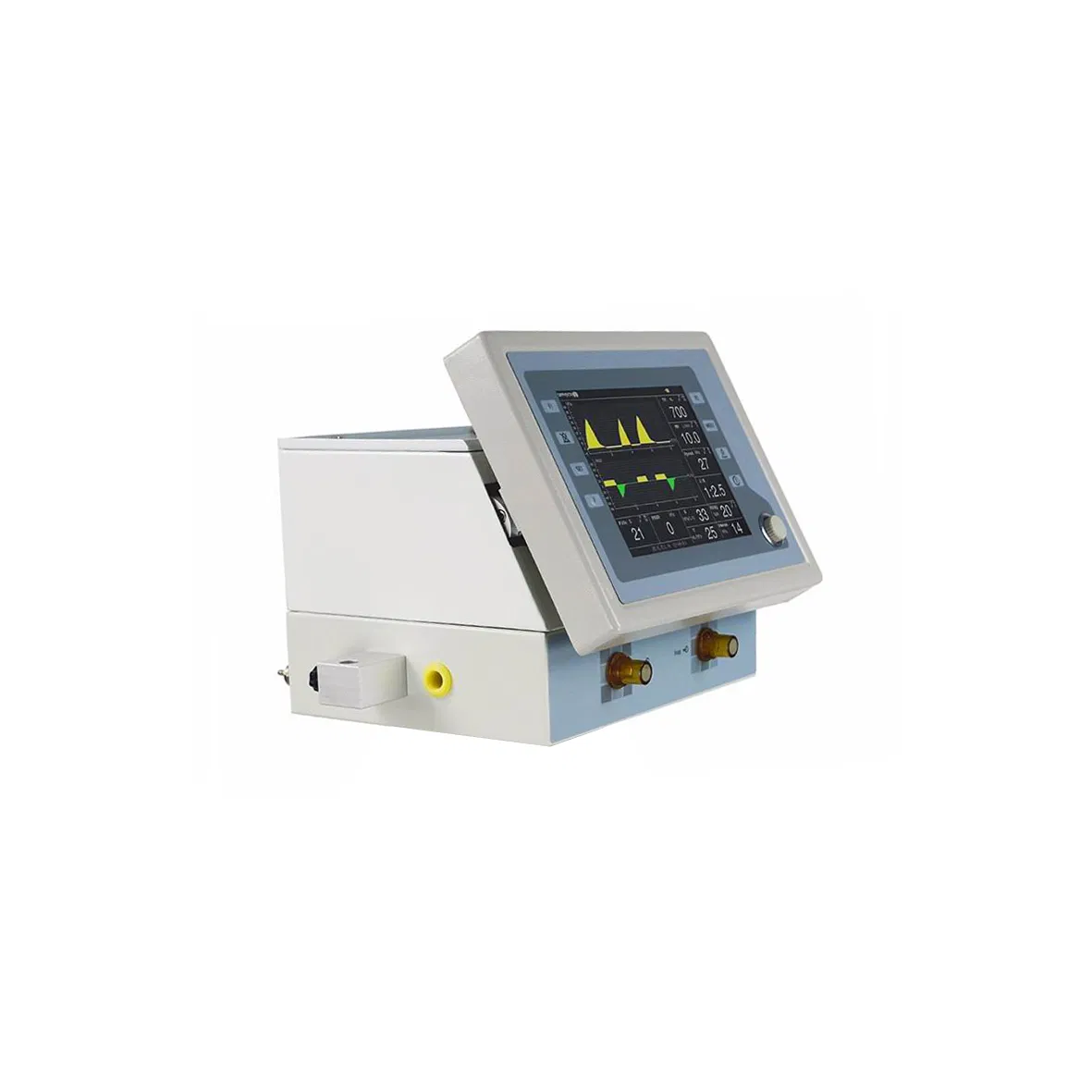

Display: Built-in 10.4 inch color TFT fully adjustable display
Trigger Types: Pressure trigger, Flow trigger
Sigh: Ability to insert 1-8 sigh breaths in every 100 breaths
Built-in dual electronic flow sensors and dual respiratory modules
Power Failure Support: Automatically converts to standby mode during AC power outages
Monitor Parameters: tidal volume, respiration rate, airway pressure, I:E ratio, and more
Equipped with infrared turbine flow sensor for precise gas flow measurement
Nine Level adjustable humidifier
Automated self-checking function during startup and self-calibrating sensor
Comprehensive Alarms: Ventilation volume, tidal volume, oxygen concentration, asphyxia, etc.

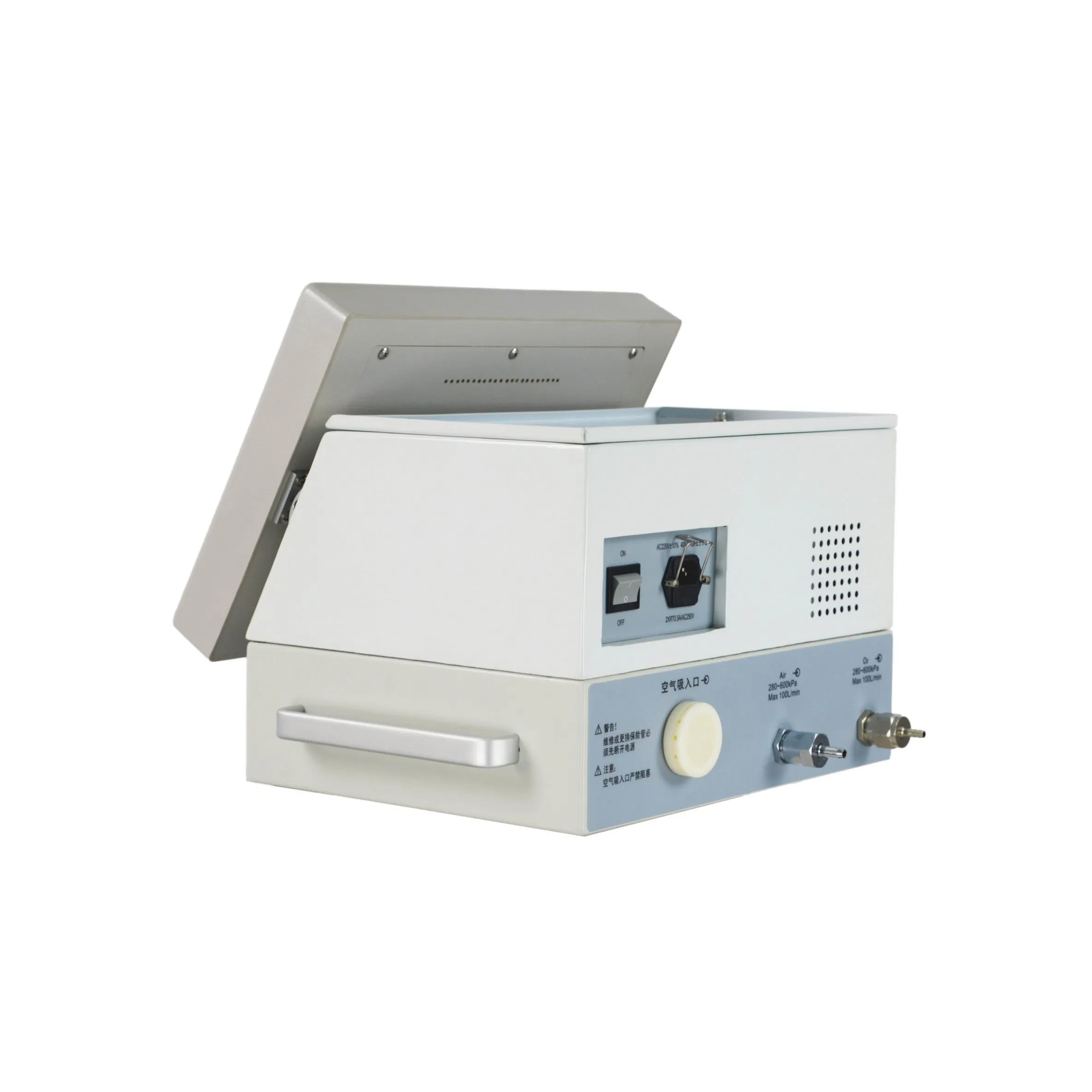

Advanced Air Compressor

Medical grade air compressor tailored for long clinical times and low noise
Power: 220V AC±10%, 50±1Hz, 700VA
Output Gas Pressure: 0.4MPa±20%
Continuous flow ≥ 20L/min; Instantaneous flow ≥ 60L/min

Product Parameters

Parameter	Specification
Display	10.4 inch high visibility color TFT display
Ventilation Mode	A/C, SIPPV, IPPV, SIMV, PSIMV, PSV, CPAP, PCV, VCV, SPONT MANUAL
Minute Volume	Greater than or equal to 18L
Back-up Power Supply	At least 4 hours
Tidal Volume	Adjustable range: 20-1500ml, Display range: 0-2000ml
Respiratory Rate	1-99bpm
I:E Ratio	4:1-1:4
PEEP	0-10cmH2O
SIMV Rate	1-20bpm
Inspiratory Pressure Trigger	-10-10cmH2O
Trigger Sensitivity (flow)	1-10L/m
Oxygen Concentration	21-100% (Adjustable)
Gas Supply Requirement	280~600 kPa medical grade oxygen and compressed air
Pressure Limit	1.0kPa~6.0kPa

Frequently Asked Questions

Q1: What are the primary applications of the YH-PA900 ventilator? A: It is designed for cardiopulmonary resuscitation support, treating acute respiratory failure, and providing respiratory support during or after surgery.

Q2: What is the range of tidal volume that can be adjusted? A: The adjustable tidal volume range is from 20ml to 1500ml, making it suitable for both adults and children.

Q3: Does the device include a battery backup? A: Yes, it features a back-up power supply that supports at least 4 hours of continuous operation in case of power outages.

Q4: What ventilation modes are available on this model? A: Supported modes include A/C, SIPPV, IPPV, SIMV, PSIMV, PSV, CPAP, PCV, VCV, and SPONT MANUAL.

Q5: Can the oxygen concentration be adjusted? A: Yes, the oxygen concentration is fully adjustable between 21% and 100%.

Q6: What safety features are integrated into the system? A: It includes visual and audible alarms for tidal volume, airway pressure, asphyxia, and power failure, along with an automated self-checking startup function.
