Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open.

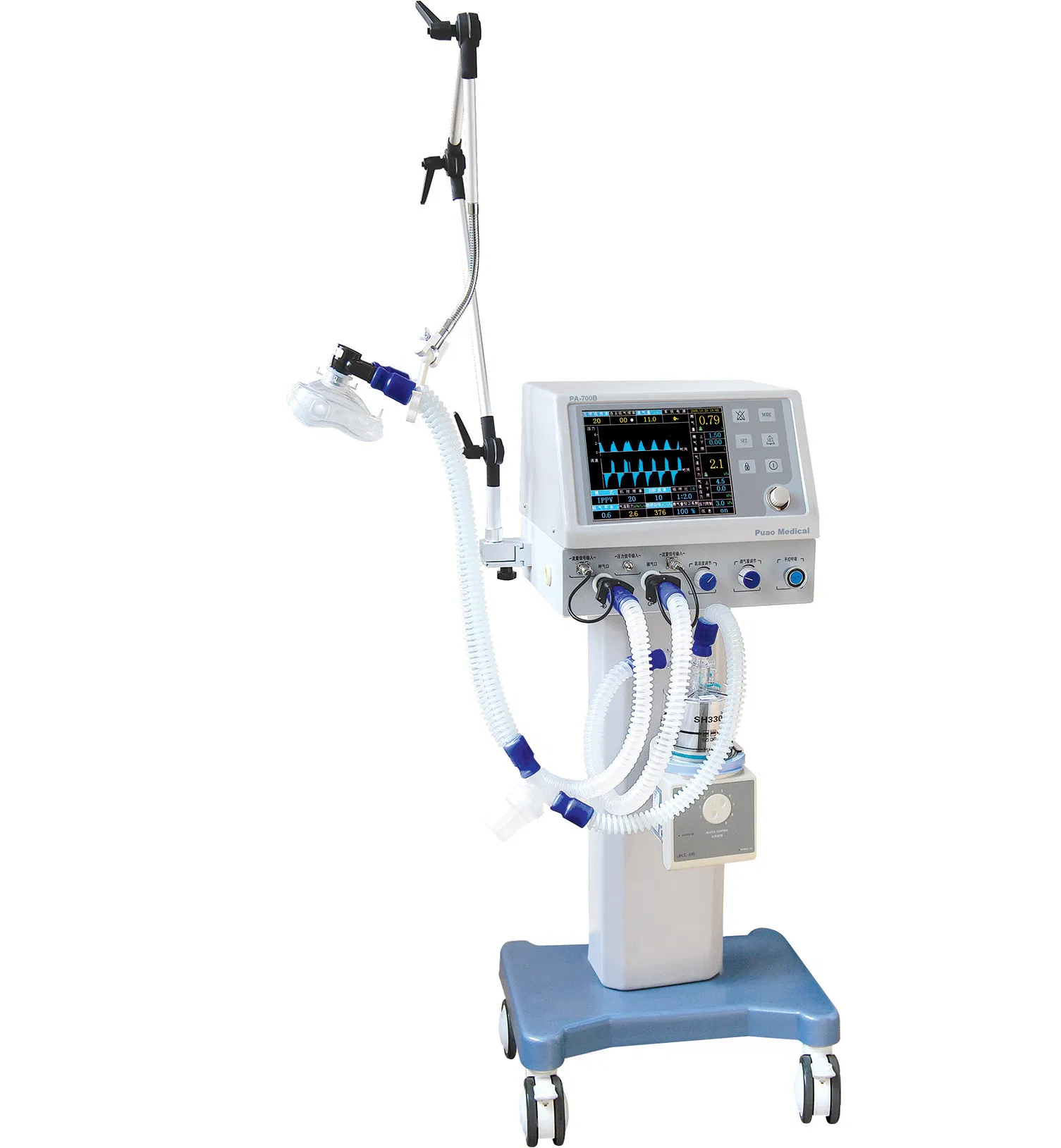

Pneumatically driven electrically controlled ventilator, suitable for emergency clinical resuscitation and respiratory therapy.
Nonhazardous environmentally friendly frame with precise construction and elegant design.
Automated self-checking function during startup and an automatic self-calibrating sensor.

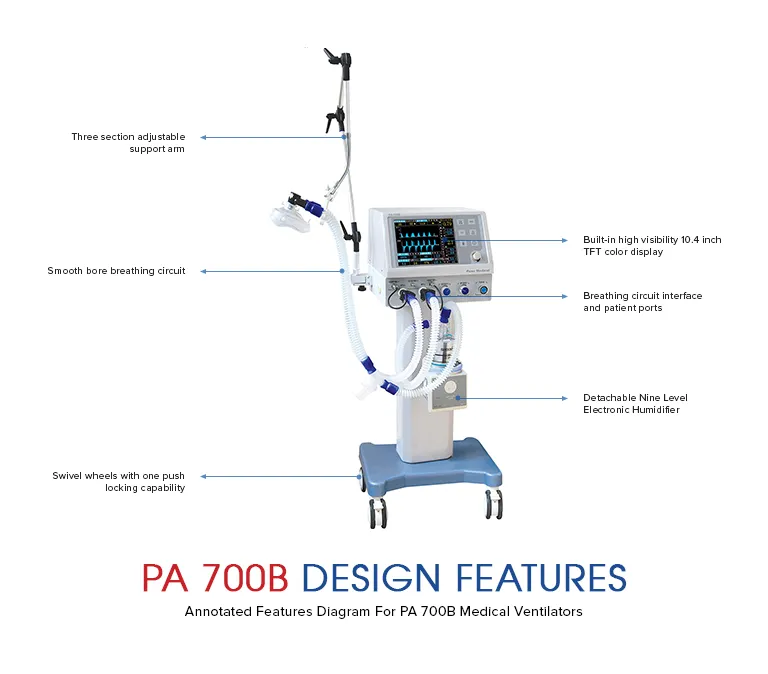

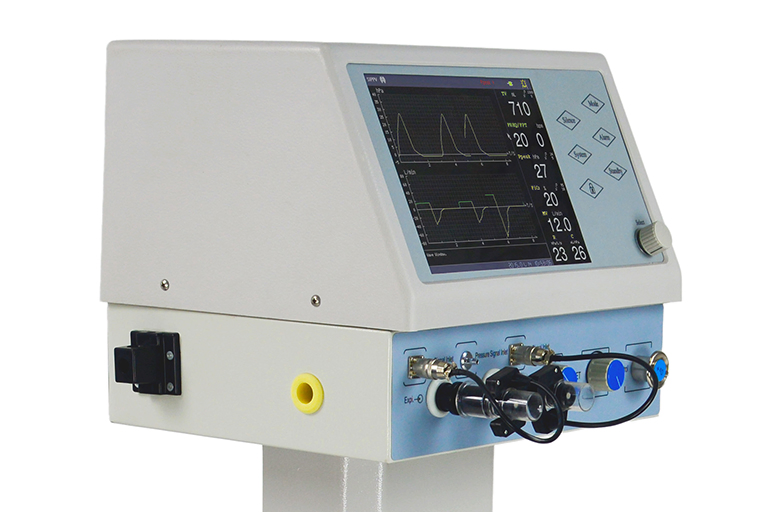

Display: Built-in 10.4 inch high visibility color TFT display, displaying Pressure-Time and Frequency-Time waveforms in real time.
Sigh: Ability to insert 1-8 sigh breaths in every 100 breaths (no less than 1.5 times the tidal volume).
Equipped with infrared turbine flow sensor for precise, stable, and reliable gas flow measurement.
Power Failure Support: Automatically converts to standby mode during AC power outages.
9 Level adjustable humidifier for patient comfort.
Comprehensive Monitoring: Tidal volume, respiration rate, airway pressure, I:E ratio, inspiratory trigger, and more.
Safety Alarms: Audible and visual alarms for ventilation volume, oxygen concentration, asphyxia, airway pressure, and power failure.

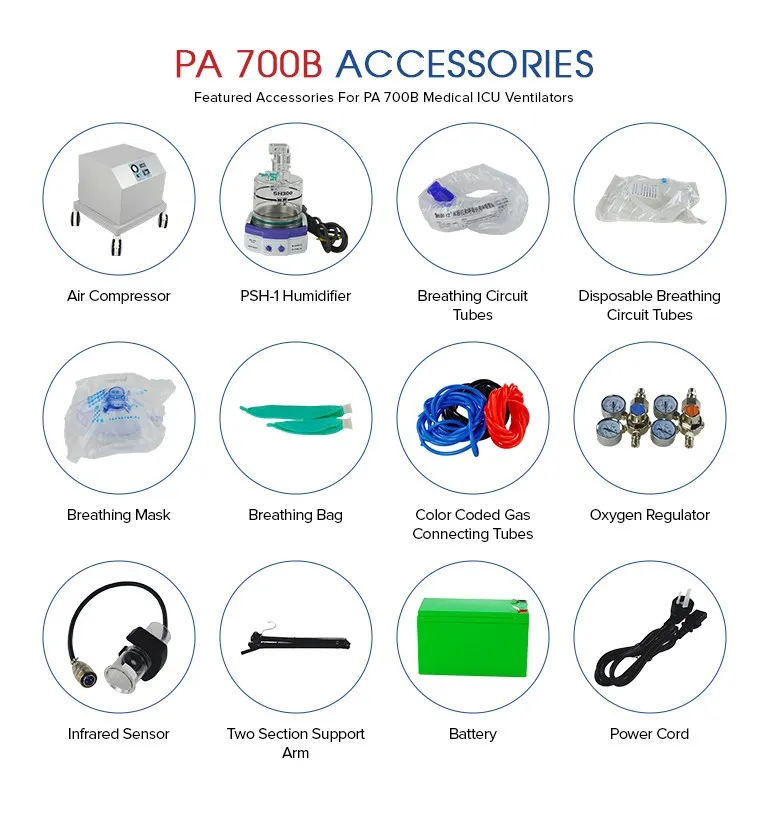

Professional medical grade air compressor tailored for long clinical operation with low noise.
Air Compressor Output: 0.4MPa±20% pressure.
Continuous output gas flow: ≥ 20L/min.
Instantaneous output gas flow: ≥ 60L/min.
Frequently Asked Questions
What patient types are suitable for the PA-700B ventilator?
The PA-700B is designed for both adult and infant patients in ICU settings, featuring an adjustable tidal volume range from 50ml to 1500ml.
How long does the battery last during a power failure?
The device is equipped with a backup power supply that provides at least 4 hours of operation in the event of an AC power outage.

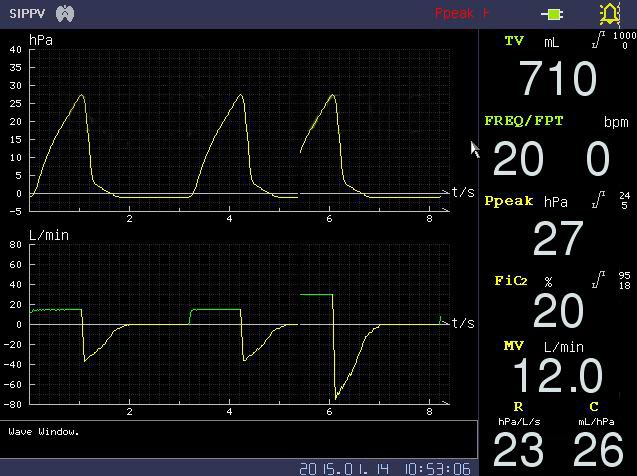

What monitoring capabilities does the 10.4-inch display provide?
The high-visibility color TFT display allows for real-time monitoring of Pressure-Time and Frequency-Time waveforms, tidal volume, respiration rate, and airway pressure.
Does the system include an air compressor?
The advanced model includes a professional medical-grade air compressor designed for low noise and long-term clinical use.
What safety alarms are integrated into the PA-700B?
It includes audible and visual alarms for airway pressure limits, tidal volume fluctuations, oxygen concentration levels, asphyxia, and intubation disconnection.
What are the supported ventilation modes?
The ventilator supports multiple modes including A/C, SIPPV, IPPV, SIMV, PSIMV, PEEP, and Manual mode to accommodate various clinical requirements.
