Basic Specifications
Work Mode
CPAP, Auto, S, T, St
Pressure Range
4-30CMH2o (Auto Adjust)
Screen
2.8inch Color TFT, 320*240
Weight
1.6kg (Net) / 3.9kg (Gross)
Application
Hospital or Home Use
Product Description

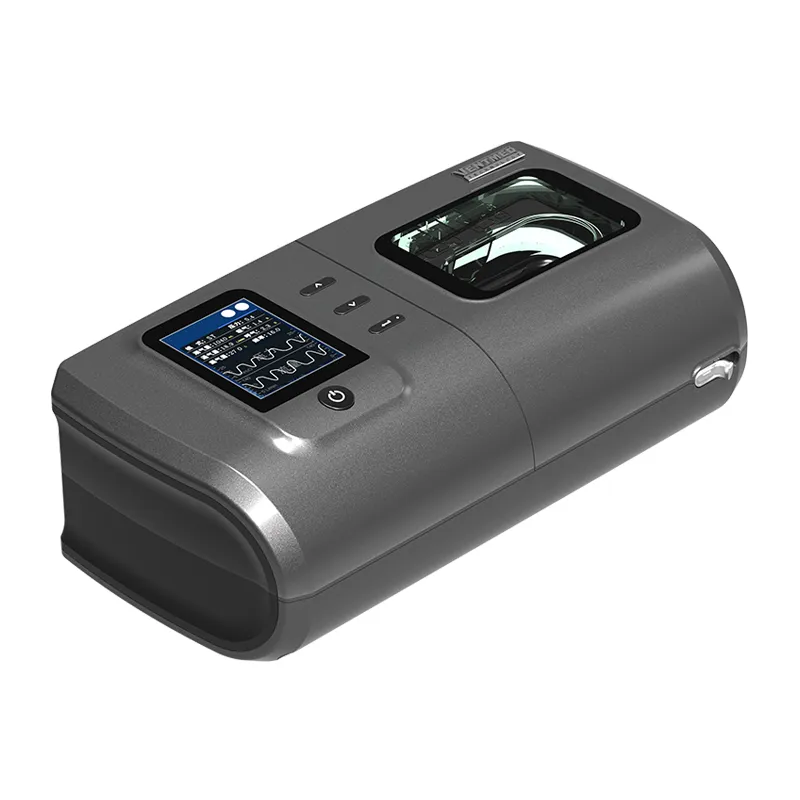

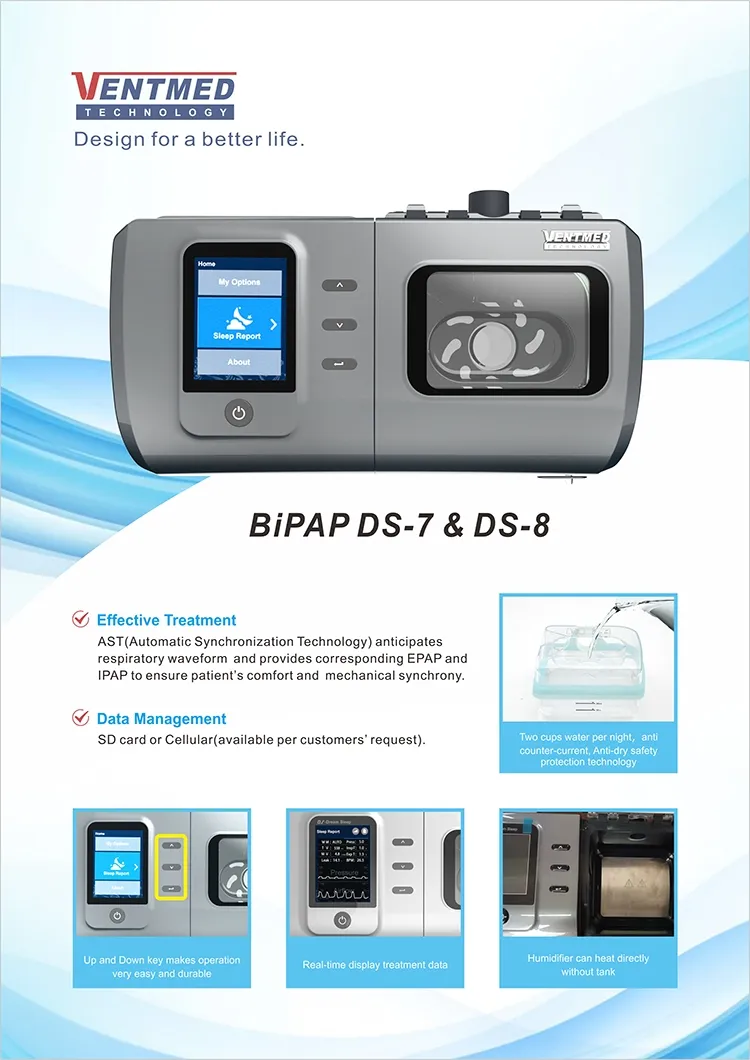

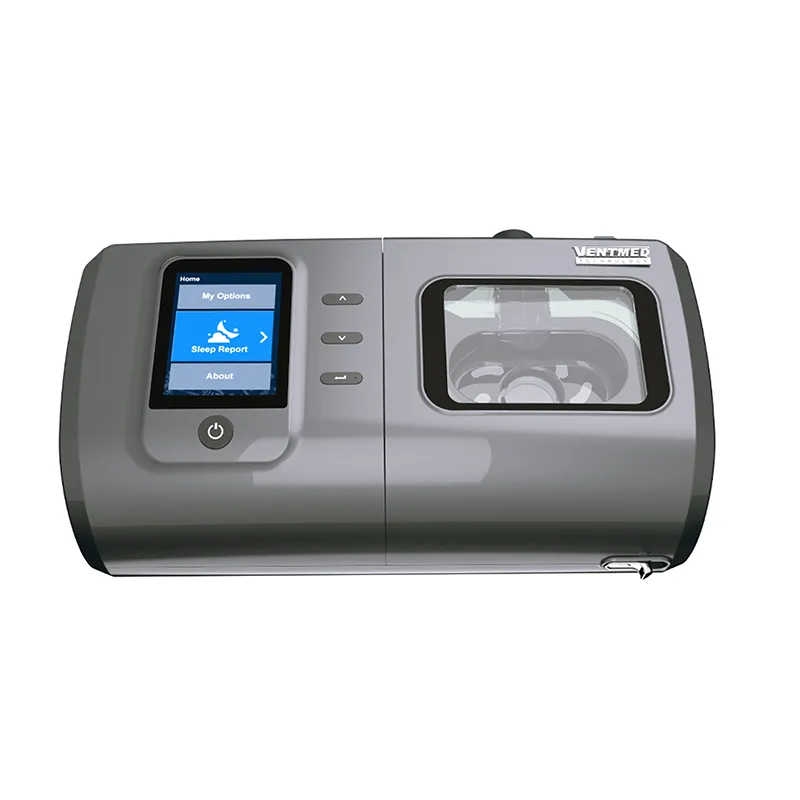

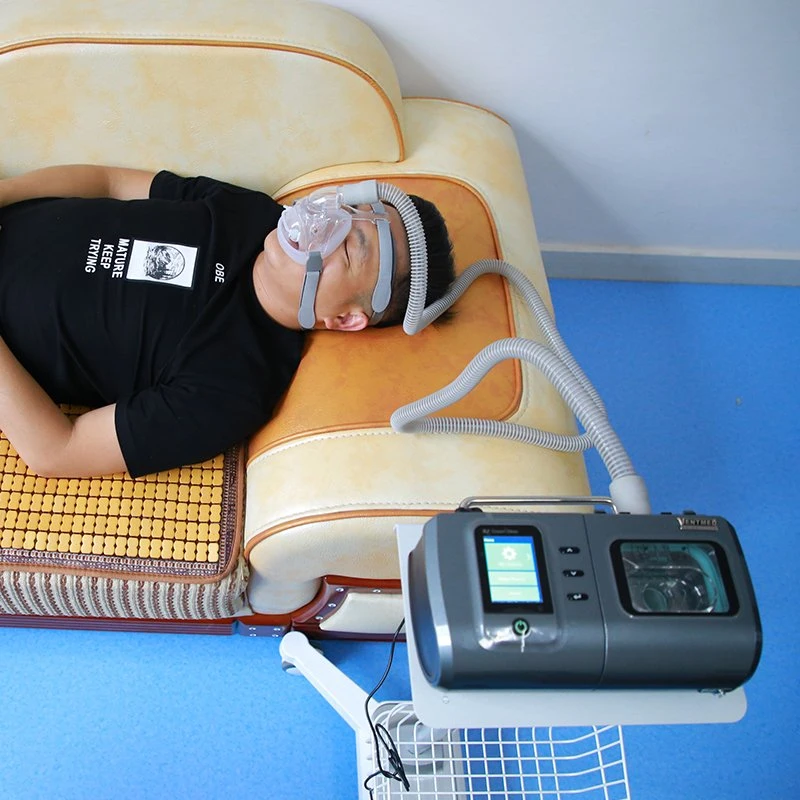

The Bi-level Positive Airway Pressure (BiPAP) system with EPR (Expiratory Pressure Relief) offers the ultimate in sleep therapy comfort. It combines auto-adjusting pressure delivery with breath-by-breath pressure relief for the most natural sleep therapy. It provides non-invasive ventilation for patients with respiratory insufficiency in both hospital and home environments.
BiPAP delivers pressurized air at two alternating levels: Inspiratory Positive Airway Pressure (IPAP) and Expiratory Positive Airway Pressure (EPAP). The IPAP is higher to support inhalation, while the EPAP is lower to allow for easy exhalation. These pressures alternate to match your natural breathing pattern.
Key Features
📊Real-time data: Over 20 hours of real-time data and 1 year of usage records.
🌊Waveform Display: Airflow and pressure waves shown directly on the 2.8" TFT screen.
🌬️EPR & Compensation: Features Expiratory Pressure Relief and Auto-Leak/Altitude compensation.

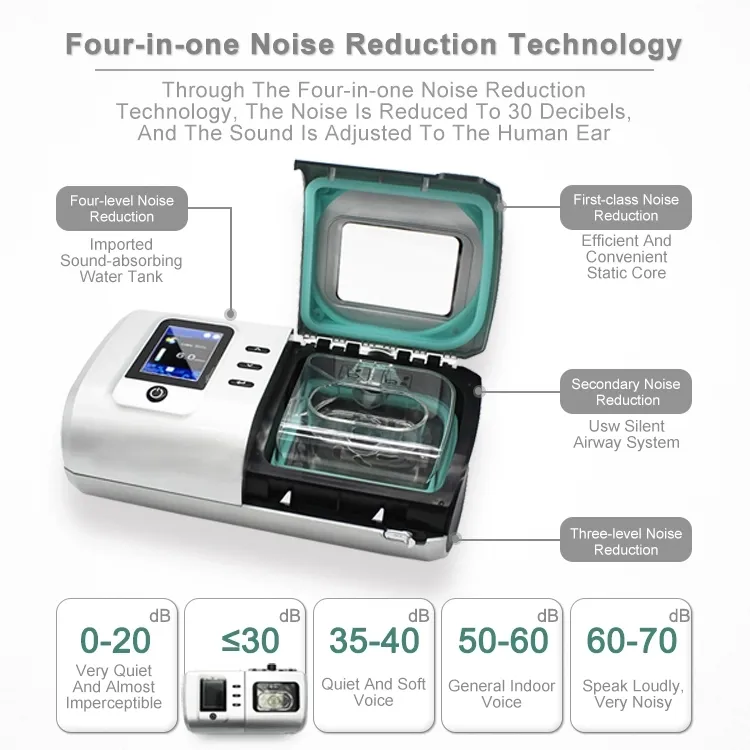

🔇Ultra Quiet: Noise levels below 28dB for a quietest sleep environment.
🔒Safety Lock: All parameters are locked after setting to prevent accidental changes.
⚠️Smart Alarms: Power cut-down and mask-off alarms for patient safety.

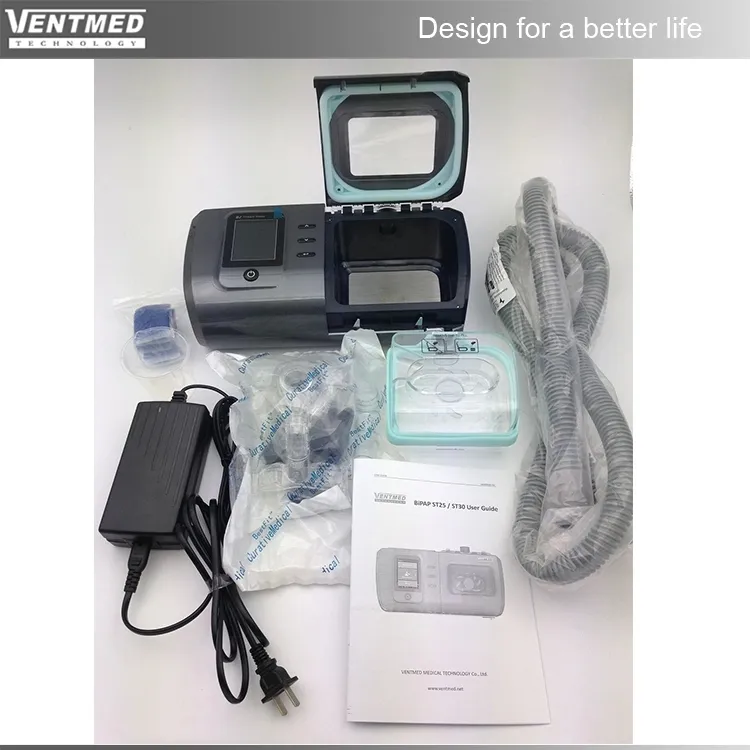

Packing List
1. Host Device with Integrated Humidifier

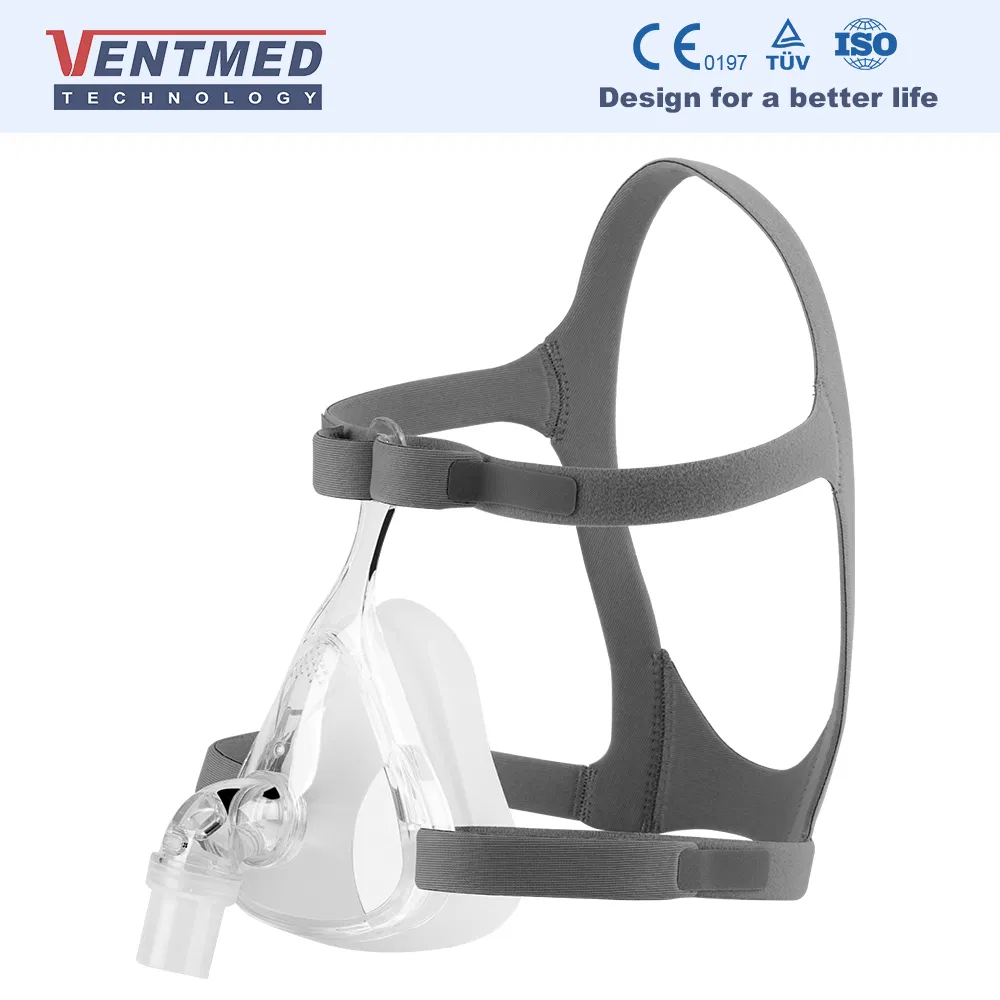

2. Full Face or Nasal Mask (Optional)
3. 5 Pieces of Filter Cotton
4. Air Tubing & Water Tub
5. SD Card & Measuring Cup
6. Power Supply & User Manual

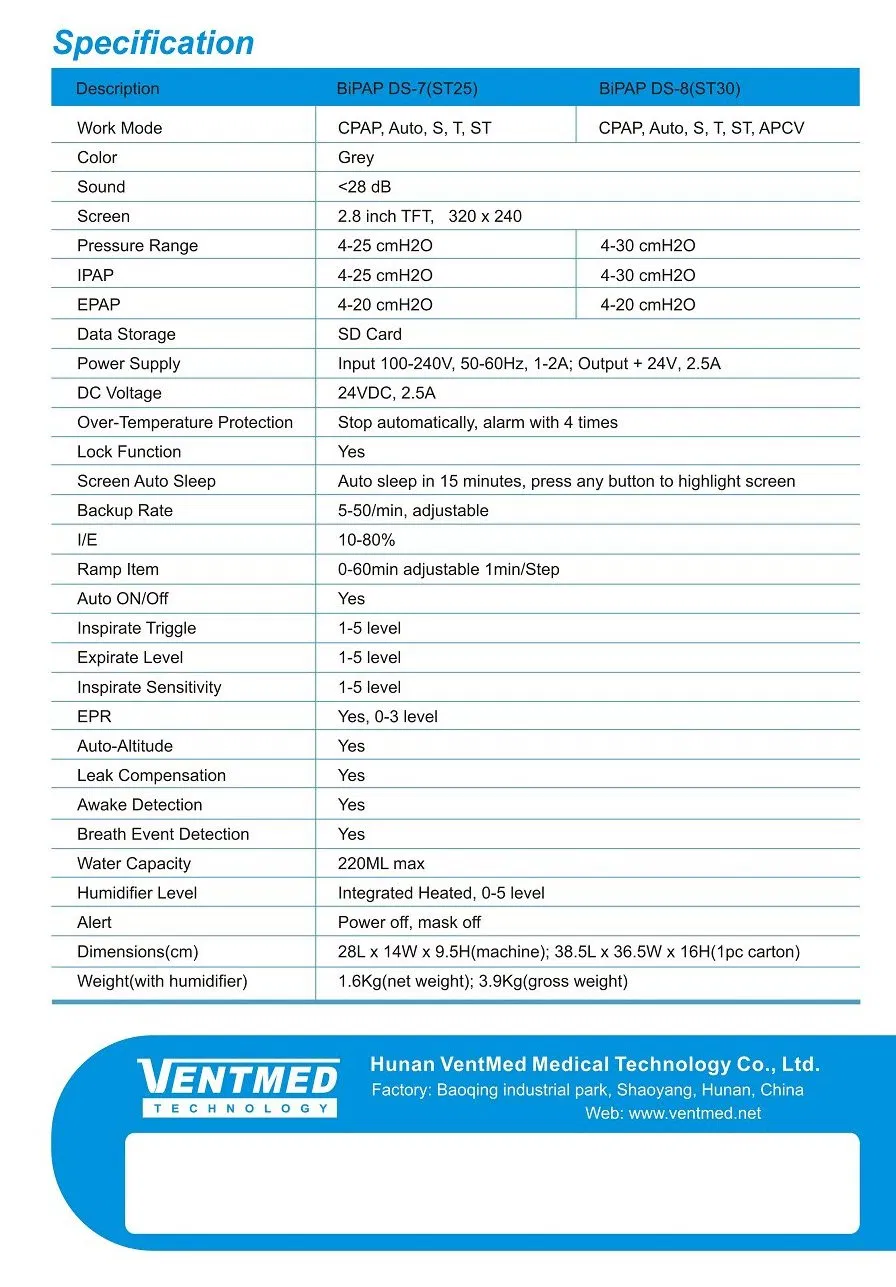

Detailed Specifications
| Parameter | Value |
| Working Mode | CPAP, Auto, S, T, STM, APCV |
| Pressure Range | 4-30 cmH2O |
| IPAP / EPAP | 4-30 cmH2O / 4-20 cmH2O |
| Inspirate Triggle | 1-5 level |
| Backup Rate | 5-50/min, adjustable |
| Ramp Item | 0-60min adjustable |

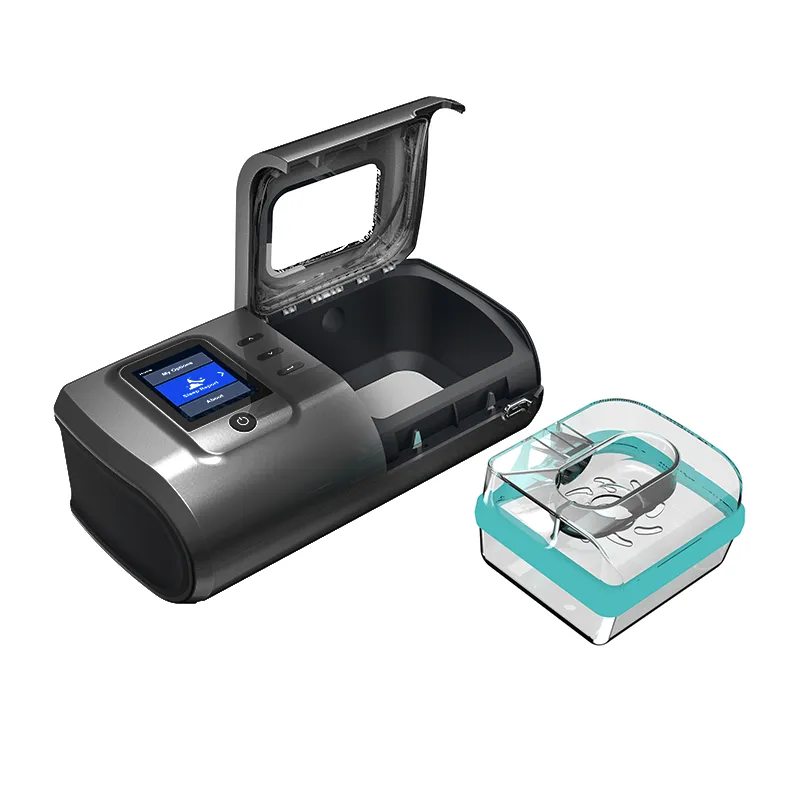

| Humidifier | 0-5 level Integrated Heated Humidifier |
| Water Capacity | 220ML max |
| Dimensions | 28L x 14W x 9.5H cm |

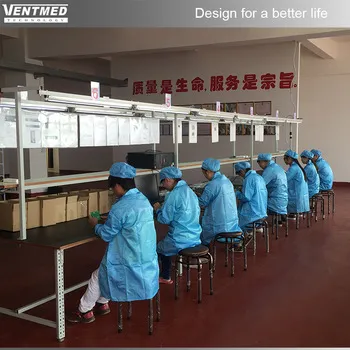

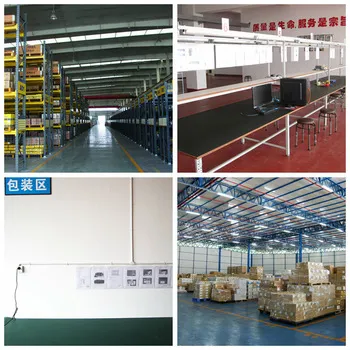

Production Facilities
Packaging & Shipping
Frequently Asked Questions
What ventilation modes does this BiPAP device support?
The device supports multiple modes including CPAP, Auto, S, T, and St, making it suitable for various respiratory therapy needs.
Is the machine noisy during the night?
No, the device operates at a sound level below 28dB, ensuring a quiet and peaceful sleep environment for the user.
How can I review my sleep data?
Data is stored on an SD card. The machine can save over 20 hours of real-time data and records of usage for more than a year.
Does it have an automatic pressure adjustment?
Yes, it features a pressure range of 4-30cmH2O with auto-adjust capabilities and auto-altitude/leak compensation.
What happens if the power goes out or the mask falls off?
The machine includes built-in alarms for both power failure and mask-off events to ensure patient safety at all times.
What is the warranty for this machine?
The product comes with a 2-year quality warranty, providing long-term reliability for users.
