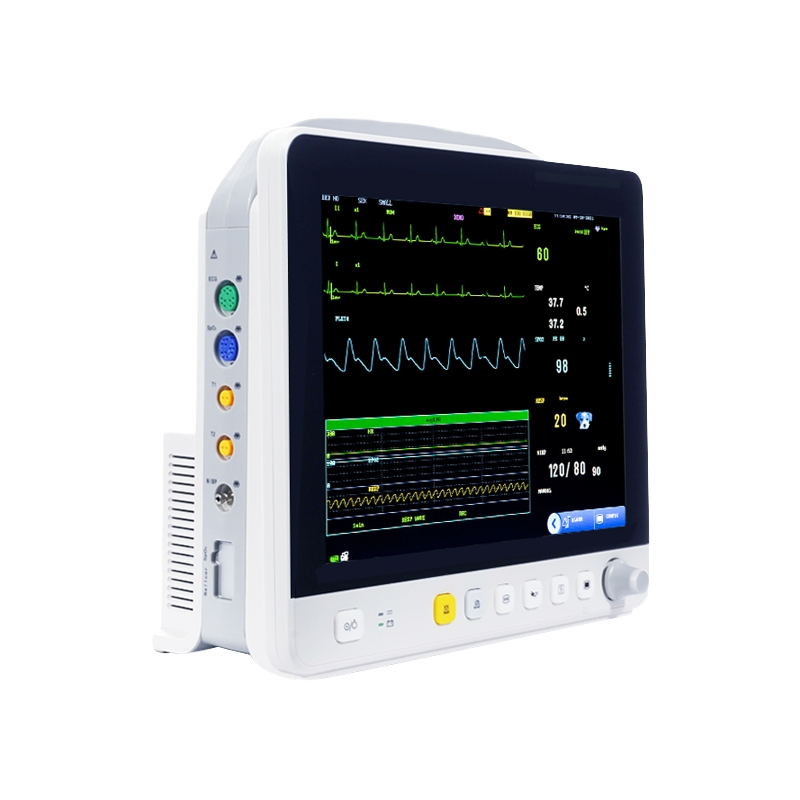

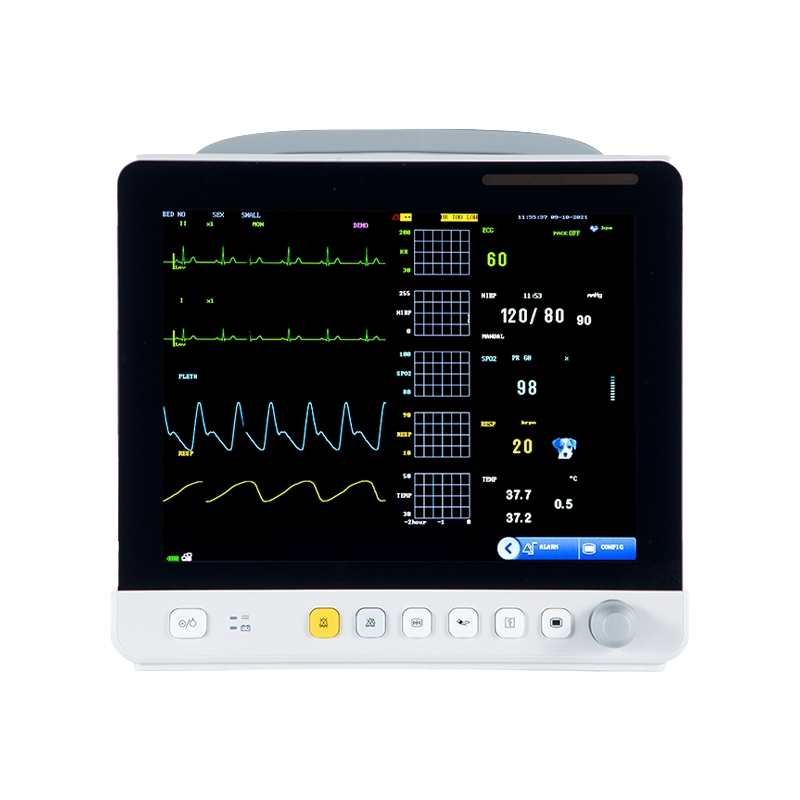

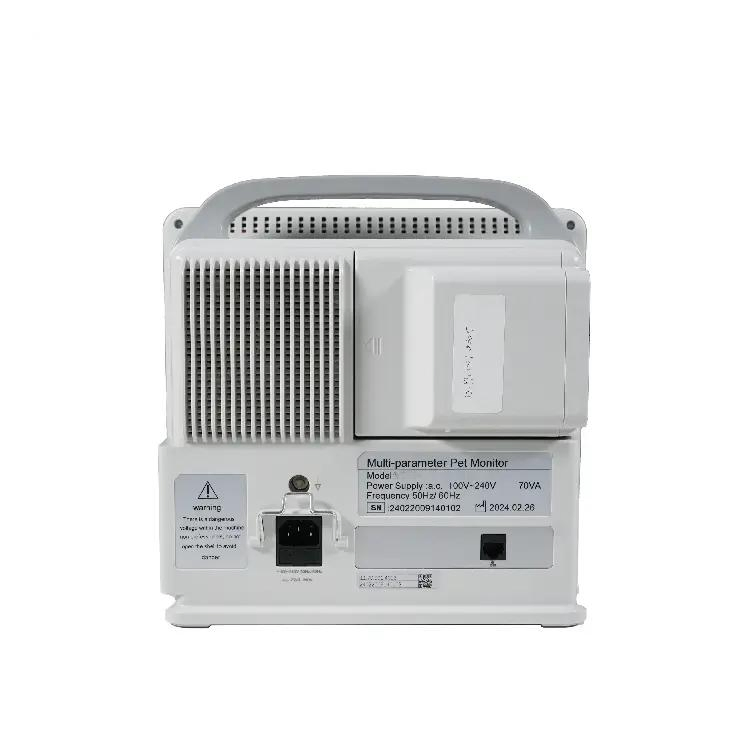

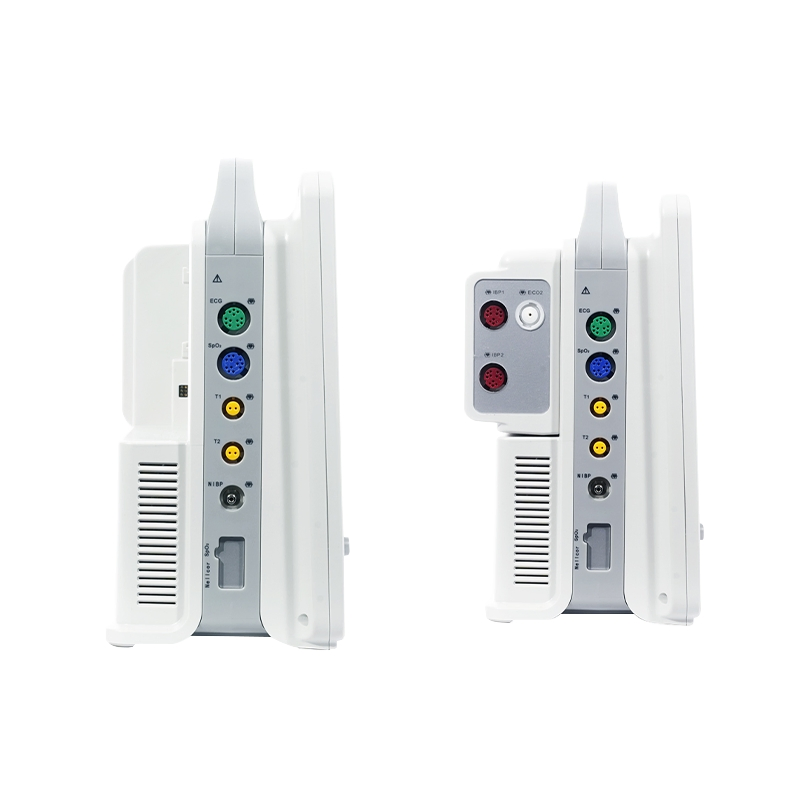

Veterinary Animal Cat Dog Pet Hospital Multi-Parameter ECG Monitor Cross-Border Monitoring Devices
Veterinary Animal Cat Dog Pet Hospital Multi-Parameter ECG Monitor Cross-Border Monitoring Devices
Veterinary Animal Cat Dog Pet Hospital Multi-Parameter ECG Monitor Cross-Border Monitoring Devices
Veterinary Animal Cat Dog Pet Hospital Multi-Parameter ECG Monitor Cross-Border Monitoring Devices
Veterinary Animal Cat Dog Pet Hospital Multi-Parameter ECG Monitor Cross-Border Monitoring Devices
1 / 5
Veterinary Animal Cat Dog Pet Hospital Multi-Parameter ECG Monitor Cross-Border Monitoring Devices
Veterinary Animal Cat Dog Pet Hospital Multi-Parameter ECG Monitor Cross-Border Monitoring Devices
Veterinary Animal Cat Dog Pet Hospital Multi-Parameter ECG Monitor Cross-Border Monitoring Devices
Veterinary Animal Cat Dog Pet Hospital Multi-Parameter ECG Monitor Cross-Border Monitoring Devices
Veterinary Animal Cat Dog Pet Hospital Multi-Parameter ECG Monitor Cross-Border Monitoring Devices

Veterinary Animal Cat Dog Pet Hospital Multi-Parameter ECG Monitor Cross-Border Monitoring Devices

Type: Operation Apparatus
Syringe: N
Blood Sampling Needle: N
Send Inquiry

Product Description

Basic Specifications

Model NO.
CCV-E12
Display
12-inch Color TFT
Standard Parameters
ECG, SpO2, NIBP, RESP, TEMP, PR
Warranty
1 Year
Origin
China
Production Capacity
1000 units/Month

Product Overview

The CCV-E12 is a high-performance multi-parameter monitor specifically designed for veterinary use in cat, dog, and pet hospitals. It features a 12-inch wide color monitor that displays vital signs in distinct colors for easy monitoring. With optional EtCO2 and IBP expansion, it meets the rigorous demands of animal hospital operating rooms.

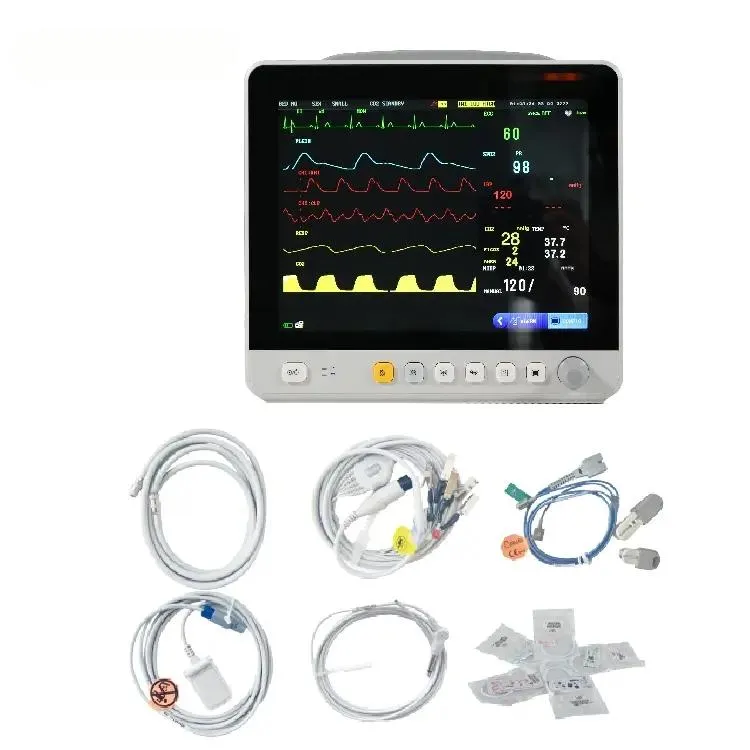

Veterinary ECG Monitor

Key Features

◈
Flexible Monitoring: Diagnostic, monitoring, and surgical modes suitable for large, medium, and small pets.
◈
Advanced Algorithms: Specialized NIBP and SpO2 technology designed for animal blood flow characteristics.
◈
Multi-Display: Supports standard, large characters, trend charts, and multi-lead ECG waveform displays.
◈
Data Documentation: Optional built-in thermal recorder for measured values and up to 5 waveforms.

Detailed Performance Specifications

Parameter Technical Specification
ECG 3/5-lead mode; Range: 10~400 bpm; Accuracy: ±1% or ±1 bpm
NIBP Manual, Sequence, Auto modes; Ranges for Big (40-270mmHg), Medium (40-200mmHg), Small (40-135mmHg) animals
SpO2 Range: 0~100%; Advanced anti-interference and weak perfusion technology
RESP Thoracic Electrical Bioimpedance; Range up to 150 rpm for small animals
Battery Rechargeable lithium battery, 4000mAh; Operating time ≥ 240 mins
Size & Weight 303*160*287mm; Weight: 3.87KG

Clinical Application & Solutions

Comprehensive medical veterinary clinic equipment solutions including X-ray, Ultrasound, Laboratory, and Operation Room setups.

Veterinary Equipment Display 1 Veterinary Equipment Display 2 Veterinary Equipment Display 3

Frequently Asked Questions

Q: Which animals can be monitored with the CCV-E12?
The device is specifically designed with algorithms for large, medium, and small pets, including cats and dogs, adjusting measurement ranges accordingly.
Q: What is the battery life of this veterinary monitor?
It is equipped with a 4000mAh rechargeable lithium battery that provides over 240 minutes of operating time under normal use and full charge.
Q: Does the monitor support EtCO2?
Yes, EtCO2 (both Sidestream and Mainstream) is available as an optional expansion module to meet specific surgical requirements.
Q: Can it be used in different hospital environments?
Absolutely. It features multiple operation modes: diagnostic, monitoring, and surgical mode, making it ideal for the animal hospital operating room.
Q: How accurate is the blood pressure measurement for small animals?
The monitor uses anti-weak signal and anti-interference algorithms specifically designed for animal blood flow characteristics to ensure fast and accurate NIBP measurement.
Q: Is a touch screen available?
The standard model uses a button/dial interface, but a touch screen is available as an optional feature.
