Medical Breathing Apparatus Ncpap Bubble Generator Infant Bubble CPAP Neonatal CPAP System

Customization: Available
Type: CPAP Machine
Product Name: Auto CPAP

Product Description

Basic Information
Model NO.
LBM-200/LBM-201/LBM-202
Feature
Breathcare Auto CPAP
Size
Small
Transport Package
Standard Export Packing
Origin
China
HS Code
9018390000
Capacity
1000
Detailed Photos
Detailed Product View 1
Detailed Product View 2

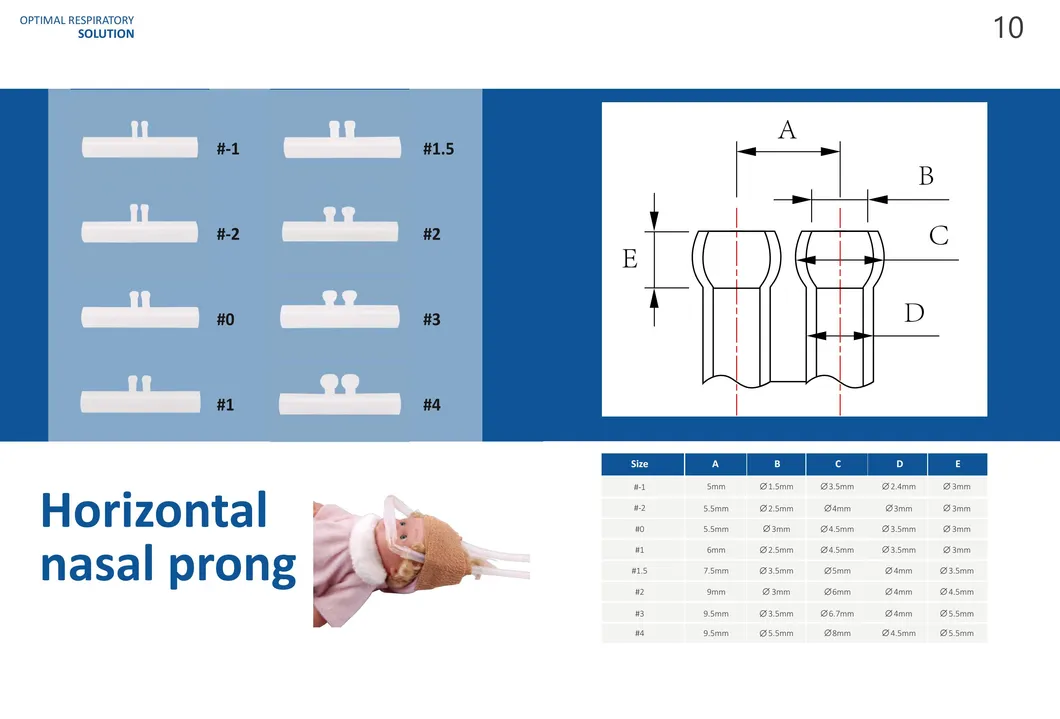

Detailed Product View 3
Product Description

The CPAP continuous positive airway pressure system AD-I is a pediatric respiratory support medical device designed based on the wide application of non-invasive continuous positive airway pressure in the pediatric field. It is designed for premature infants, newborns, infants and children up to 14 years old. It is used for nasal congestion CPAP ventilation treatment. CPAP mode keeps children breathing spontaneously, and can effectively reduce children's work of breathing.

Superiority:
  • Able to provide a controllable oxygen concentration for babies
  • Able to maintain functional residual capacity
  • Can help reduce the work of breathing done by babies
  • Can reduce the need for invasive mechanical ventilation
  • Able to provide warm and humid air to babies
  • Can reduce the incidence of chronic pneumonia (CLD)
  • Can improve lung physiological indicators, such as height and weight

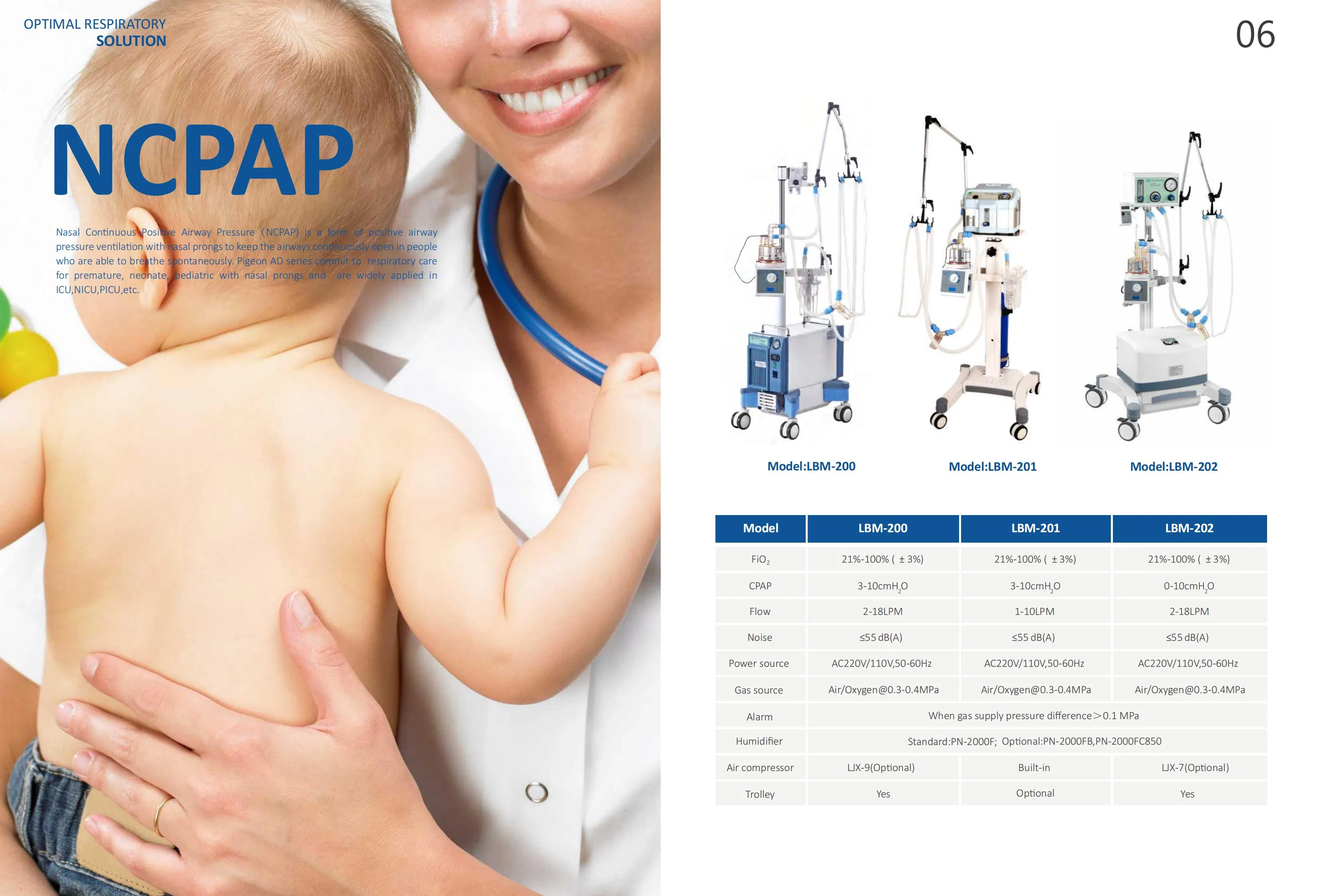

Performance Parameters:
Oxygen concentration adjustment 21%~100%
Flow adjustment 0~18LPM
CPAP pressure 0.3~1.0kPa (3~10cmH2O)
Generator water capacity 500ml or more
Differential pressure alarm Audible alarm when supply pressure difference > 0.1MPa

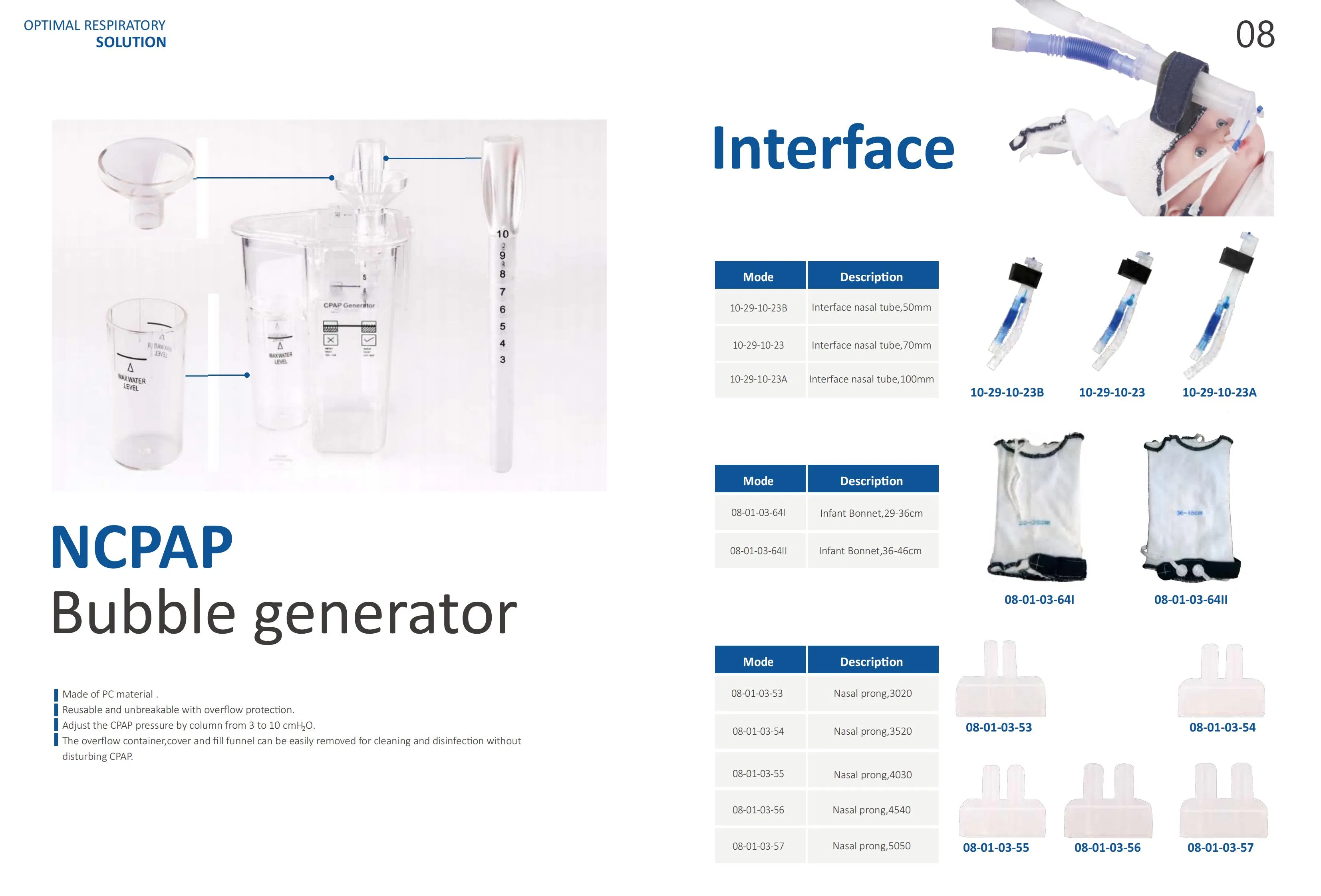

CPAP Generator Details
  • Oscillating gas pressure from 3 to 10 cmH2O set via CPAP pressure rod
  • Automatic water level adjustment mechanism for constant pressure
  • Detachable water tank for uninterrupted condensate drainage
  • Power supply: 220V AC 50Hz
  • Certification: ISO 13485
Optional Components

Medical Air Compressor:

  • Exhaust pressure: ≤ 0.7MPa
  • Output pressure: 0.25MPa~0.40MPa
  • Flow rate: ≥25L/min
  • Noise level: ≤55 dB(A)

Medical Electric Heating Humidifier:

  • Working temperature: 30 ºC ~37 ºC
  • Heating plate temperature: ≤ 85 ºC
  • Humidification tank capacity: 280ml (Adult) / 230ml (Child)
  • Maximum flow: 180L/min
Hot Seller
Hot Selling Product
Overview & Production

As a leading supplier of medical equipment, the specialization lies in providing high-quality surgical equipment, X-ray machines, laboratory equipment, patient monitors, and hospital furniture. With a commitment to quality and competitive pricing, an efficient global marketing network has been established across Africa, Latin America, the Middle East, Southeast Asia, Europe, and the United States.

Company Overview Image
Production Process
Packaging & Shipping
Packaging and Shipping Details
Frequently Asked Questions
What is the intended age group for this CPAP system?
The system is specifically designed for premature infants, newborns, and children up to 14 years old.
Can the oxygen concentration be adjusted?
Yes, the oxygen concentration can be precisely adjusted between 21% and 100%.
How does the CPAP pressure generator maintain constant pressure?
It features an automatic water level adjustment mechanism that ensures the CPAP pressure level remains constant during operation.
What safety alarms are included?
The system includes a differential pressure alarm that provides an audible signal if the air supply pressure difference exceeds 0.1MPa.
Is the water tank easy to maintain?
Yes, the device is equipped with a detachable water tank, allowing for easy drainage of condensate without interrupting the CPAP treatment.
What certifications does this medical device hold?
The equipment is manufactured according to ISO 13485 standards for medical devices.
