Customization: Available
Type: Emergency Ventilator
Used for: Adult and Children
Send Inquiry

Product Description

Turbine Medical Ventilator MS500 Driven High Frequency Electric Control ICU Infant Neonatal Ventilator Respirator

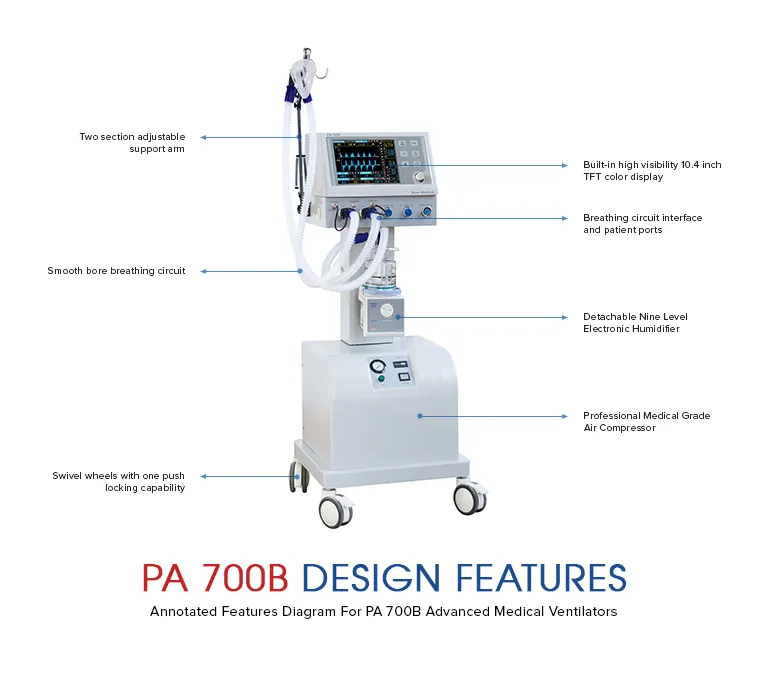

Medical Ventilator MS500

Basic Specifications

Model NO.
PA-700B
Ventilation Mode
A/C, IPPV, SIPPV, IMV, SIMV, Standby, Manual
Tidal Volume
50-1500ml
Respiratory Rate
1-99bpm
(I:E) Ratio
4:1-1:4
PEEP
0-10CMH2o
Trigger Sensitivity
-10-10CMH2o
Trademark
PA
HS Code
9019200000
Origin
China

Common Features

  • Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open systems.
  • Application: Suitable for emergency clinical resuscitation and respiratory therapy.
  • Design: Nonhazardous environmentally friendly frame, precise construction, and elegant design with automated self-checking and self-calibrating sensors.
  • Display: Built-in 10.4 inch high visibility color TFT display; simultaneously displays Pressure-Time and Frequency-Time waveforms in real time.
  • Sigh Function: Ability to insert 1-8 sigh breaths in every 100 breaths (no less than 1.5 the tidal volume).
  • Flow Sensor: Equipped with infrared turbine flow sensor for precise, stable, and reliable gas flow measurement.
  • Power Support: Automatically converts to standby mode during AC power outages.
  • Humidifier: Features a 9-level adjustable humidifier.
  • Alarms: Audible and visual alarms for ventilation volume, oxygen concentration, asphyxia, airway pressure, and power failure with history query function.

Advanced Model Exclusive Features

Equipped with a professional medical grade air compressor tailored for long clinical times and low noise requirements.

Air Compressor Specs: 220V AC±10%, 50±1Hz, 700VA; Output Gas Pressure: 0.4MPa±20%; Continuous flow ≥ 20L/min; Instantaneous flow ≥ 60L/min.

Technical Specifications

Parameter Standard Model (700B) Advanced Model (700B)
Display10.4 inch high visibility color TFT display
Ventilation ModeA/C, IPPV, SIPPV, IMV, SIMV, Standby, SPONT MANUAL
Minute Volume≥ 18L
Back-up PowerAt least 4 hours
Tidal VolumeAdjustable: 50-1500ml, Display: 0-2000ml
Respiratory Rate1-99bpm
I:E Ratio4:1 - 1:4
PEEP0-10 cmH2O
Oxygen Concentration45-100%21-100%
Gas Supply280~600 kPa medical grade O2 and compressed air
Airway Pressure AlarmUpper: 0.1~6kPa, Lower: 0~5kPa
Ventilator Detail 1
Ventilator Detail 2

Frequently Asked Questions

What is the tidal volume range for this ventilator?
The adjustable tidal volume range is 50-1500ml, with a display range of up to 2000ml, making it suitable for a wide range of patients.
How long does the backup battery last?
The device includes a built-in backup power supply that provides at least 4 hours of operation during power outages.
What ventilation modes are supported?
It supports multiple modes including A/C, IPPV, SIPPV, IMV, SIMV, Standby, and SPONT MANUAL.
Does the system include built-in monitoring?
Yes, it features a 10.4-inch color TFT display that monitors tidal volume, respiration rate, airway pressure, I:E ratio, and real-time waveforms.
What safety alarms are integrated?
The ventilator includes audible and visual alarms for oxygen concentration, airway pressure limits, tidal volume, asphyxia, and disconnection.
Is an air compressor required?
The Advanced Model comes equipped with a professional medical-grade air compressor, whereas the standard model requires an external medical-grade air supply.
