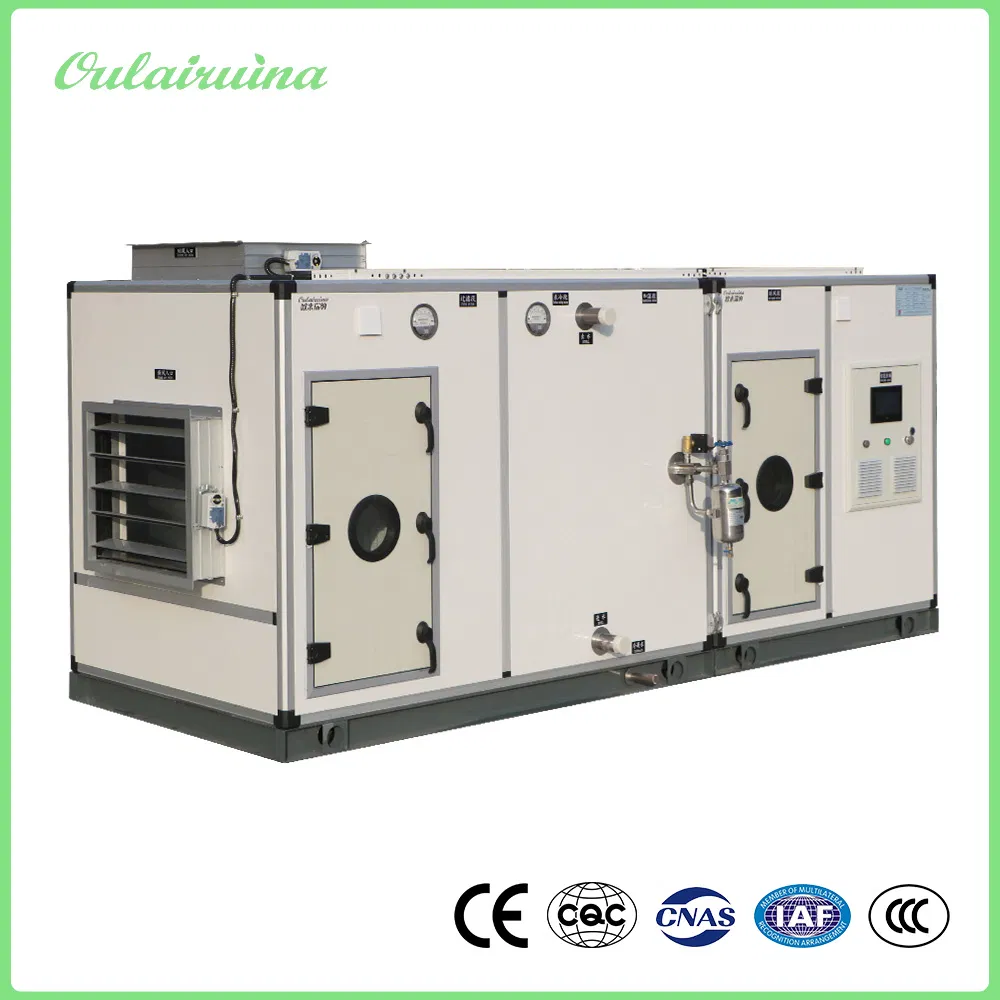

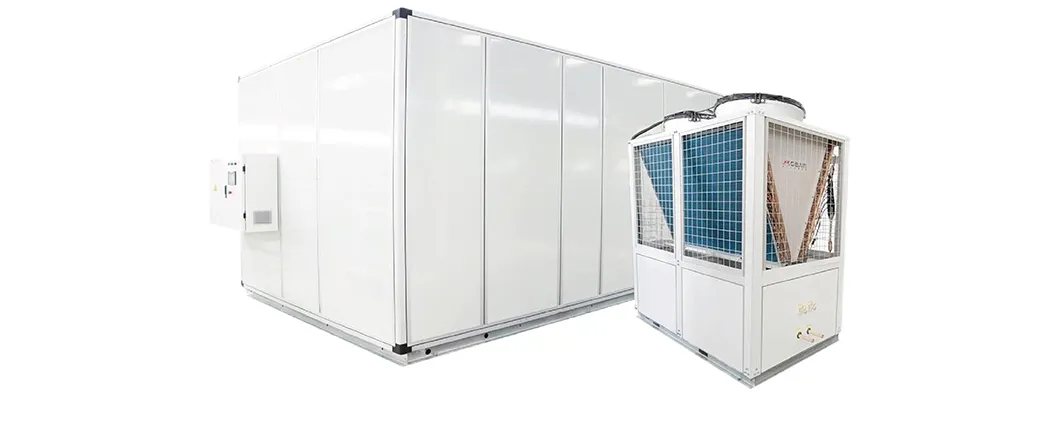

Compact Source Integration: The unit has a compact structure and comes with its own cold and heat source. It is an air-cooled direct expansion air conditioning equipment. The entire air conditioning system consists only of outdoor units and indoor air ducts, without the need for cooling water and chilled water systems.
Low Maintenance: There are no moving machinery or water pipes in the indoor air conditioning system, avoiding noise and water leakage troubles.
Outdoor Durability: Designed for rooftop or open space installation with sun protection, rust resistance, and rain protection properties, saving civil engineering costs.

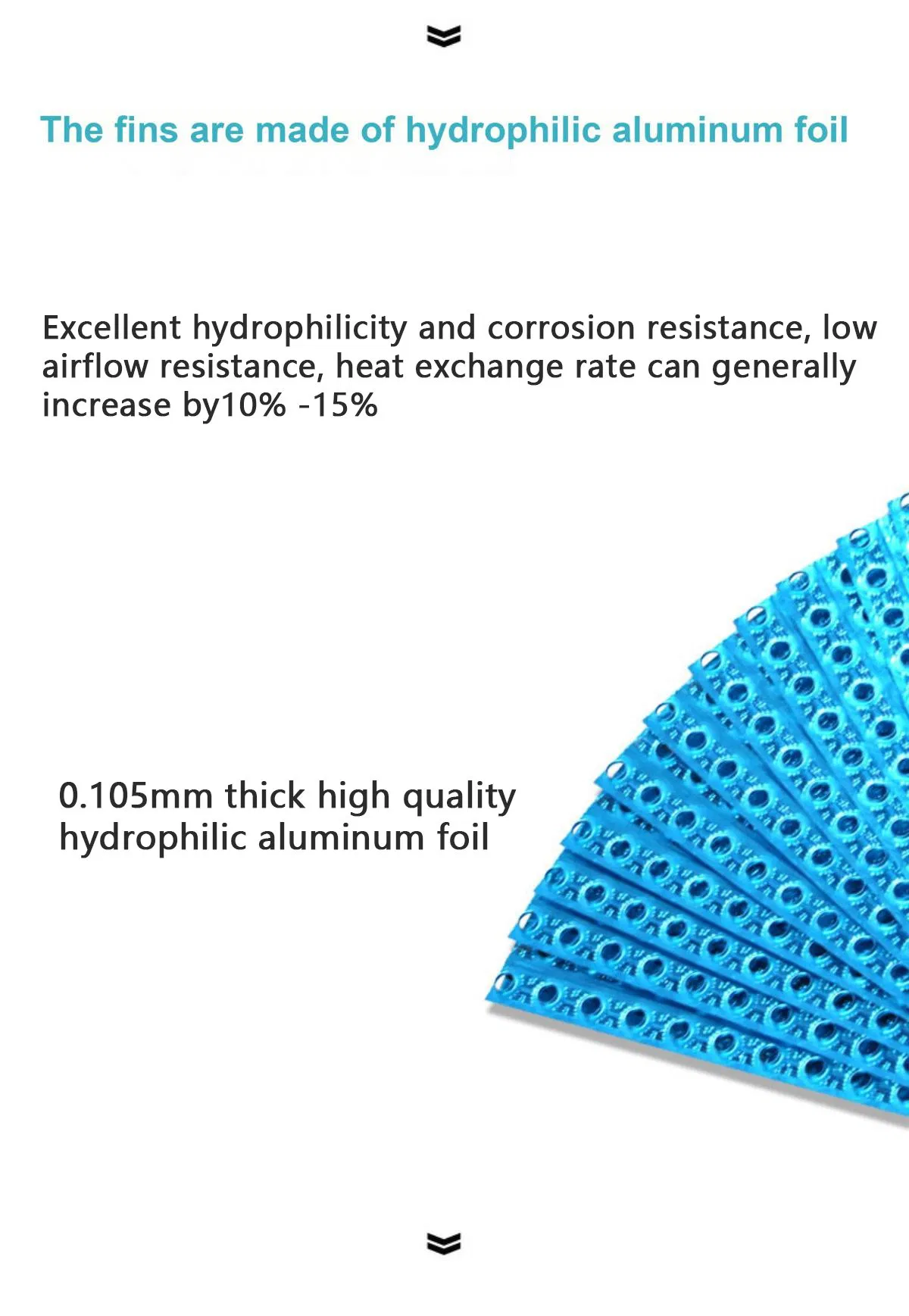

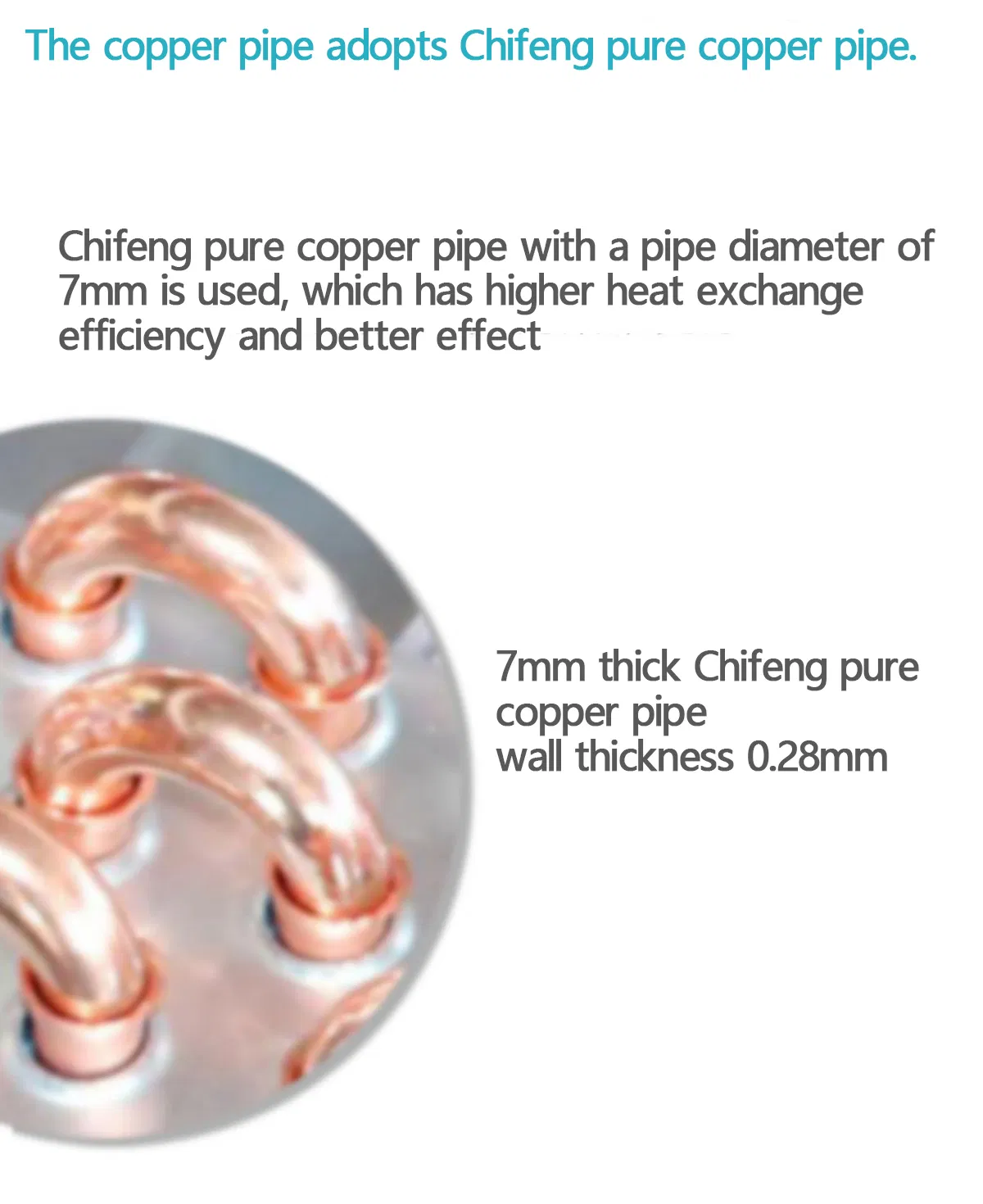

High Efficiency: Efficient refrigeration system with finned heat exchangers for both evaporator and condenser to ensure high heat transfer.
Smart Control: Equipped with a full computer control system for high automation. Minimal onsite electrical connection required.
| Serial No. | Model | Air Volume (m³/h) | Power (Kw) | Static Pressure (Pa) | Noise (dB) | Dimensions (LxWxH mm) | Cooling Capacity (KW) | Heating Capacity (KW) | Outdoor Unit |
|---|---|---|---|---|---|---|---|---|---|
| 1 | RNZK-15R | 1500 | 1.8 | 400 | 50 | 2600×1000×900 | 9 | 7.6 | 3 HP |
| 2 | RNZK-20R | 2000 | 1.8 | 400 | 50 | 2600×1000×900 | 15 | 13.5 | 5 HP |
| 3 | RNZK-30R | 3000 | 2.2 | 420 | 55 | 2800×1000×1000 | 21 | 19.6 | 7 HP |
| 4 | RNZK-40R | 4000 | 2.2 | 450 | 56 | 2800×1000×1000 | 24 | 22.8 | 8 HP |
| 5 | RNZK-50R | 5000 | 3 | 500 | 57 | 3200×1100×1100 | 30 | 28 | 10 HP |
| 6 | RNZK-60R | 6000 | 3 | 500 | 59 | 3400×1150×1200 | 36 | 34.6 | 12 HP |
| 12 | RNZK-200R | 20000 | 15 | 700 | 68 | 4200×1800×1400 | 150 | 138.9 | 50 HP |

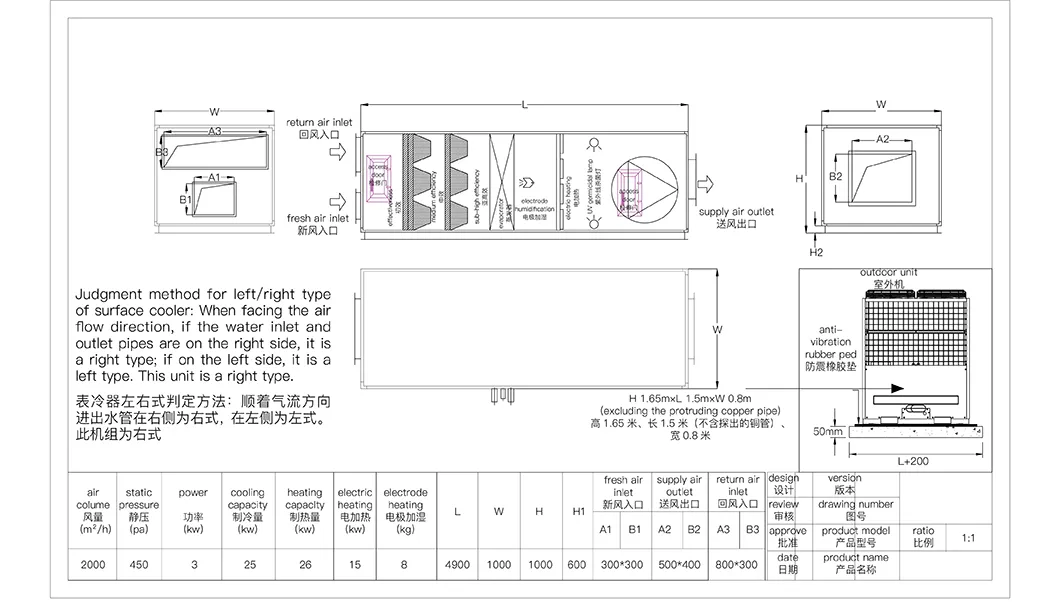

Note: Determine left/right type along the air flow direction: if the water inlet/outlet pipes are on the right, it is the right type.
Personalized customization in product design, production technology, and packaging to meet specific customer needs.
Strict quality control processes helping us win market trust and promote long-term development.
Flexible production plans and resource coordination to ensure timely delivery of standard and urgent orders.
Professional engineering teams providing technical support and optimization solutions during the sales process.
