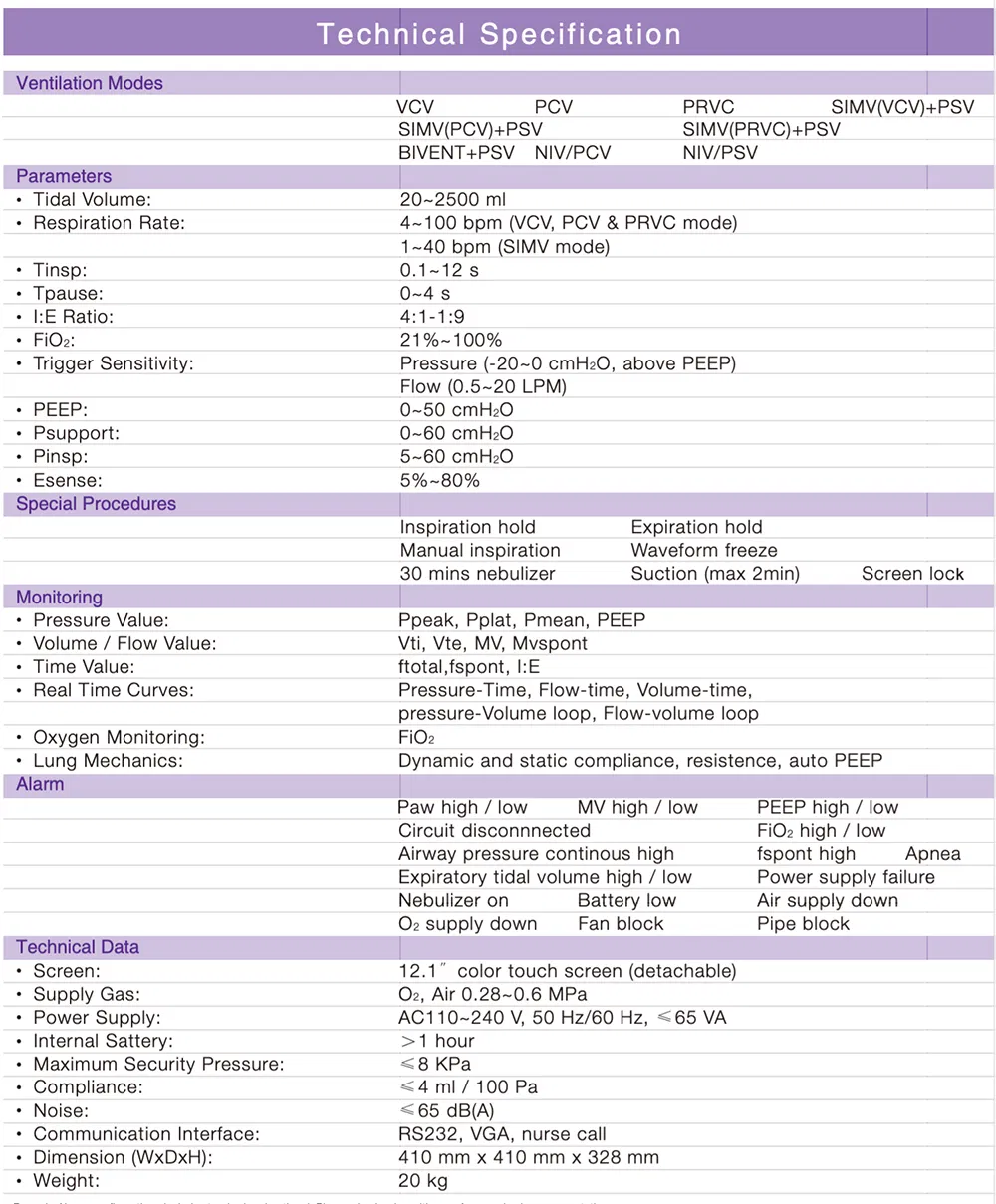

Technical Specifications
Certification
CE, ISO13485
Classification
Medical ICU Ventilator
Specification
1100*630*840 mm, 97.5KG

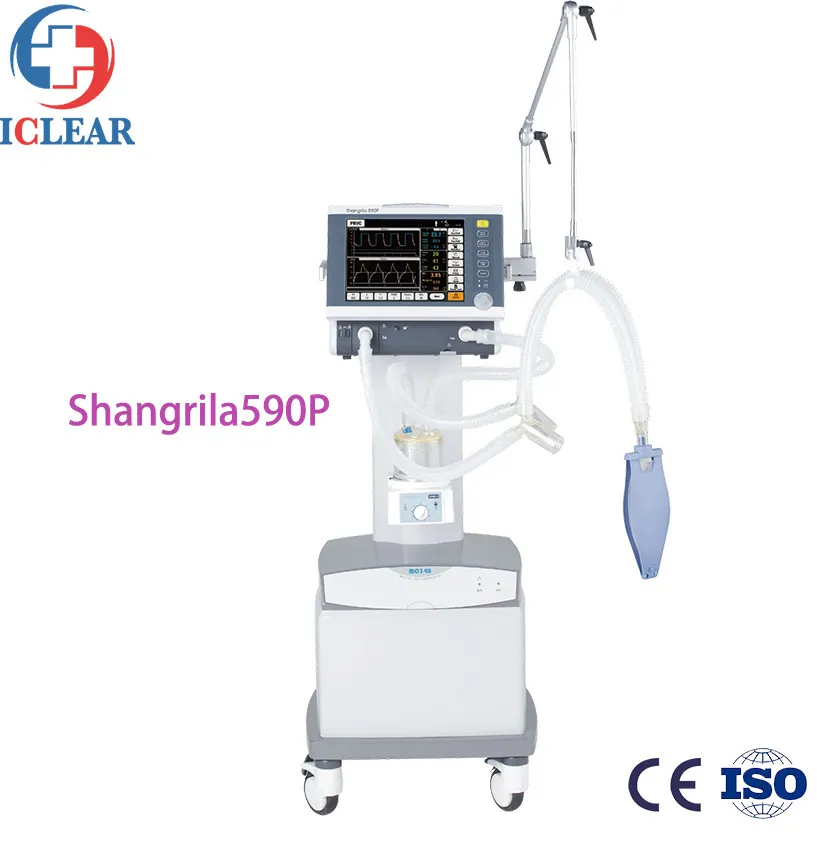

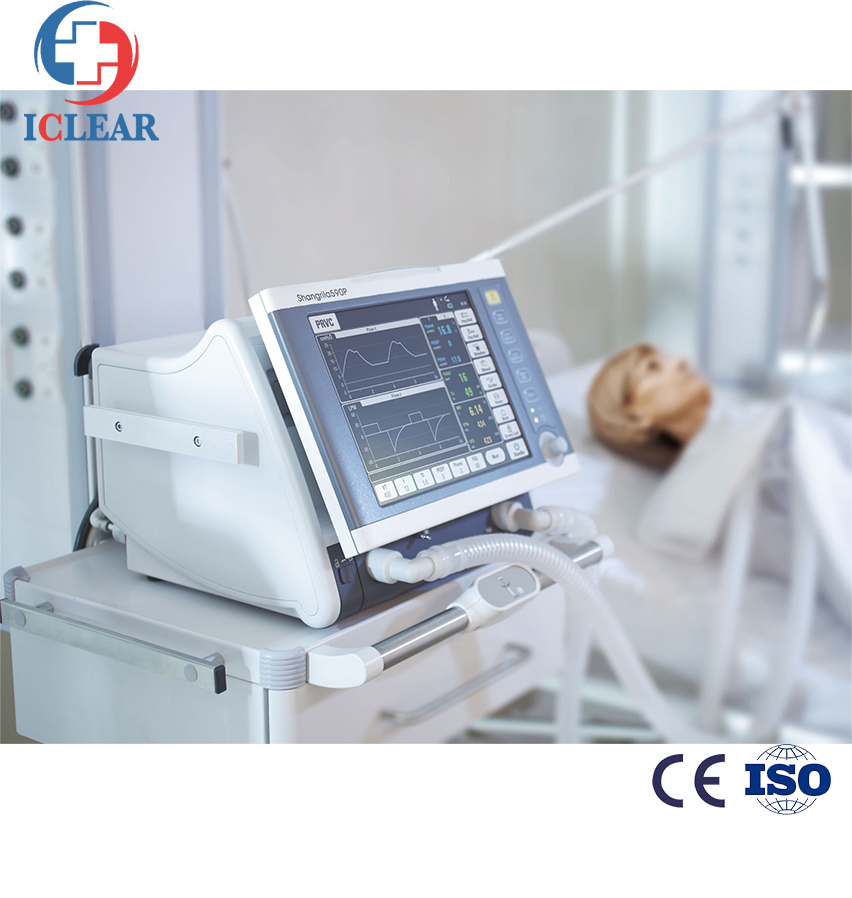

Shangrila 590P Mechanical Ventilation System
High-Performance ICU Ventilator with Compressor, Robot Arm, and Humidifier
◈
Advanced Control: Pneumatically driven and electronically controlled ICU ventilator suitable for both adult and pediatric patients.
◈

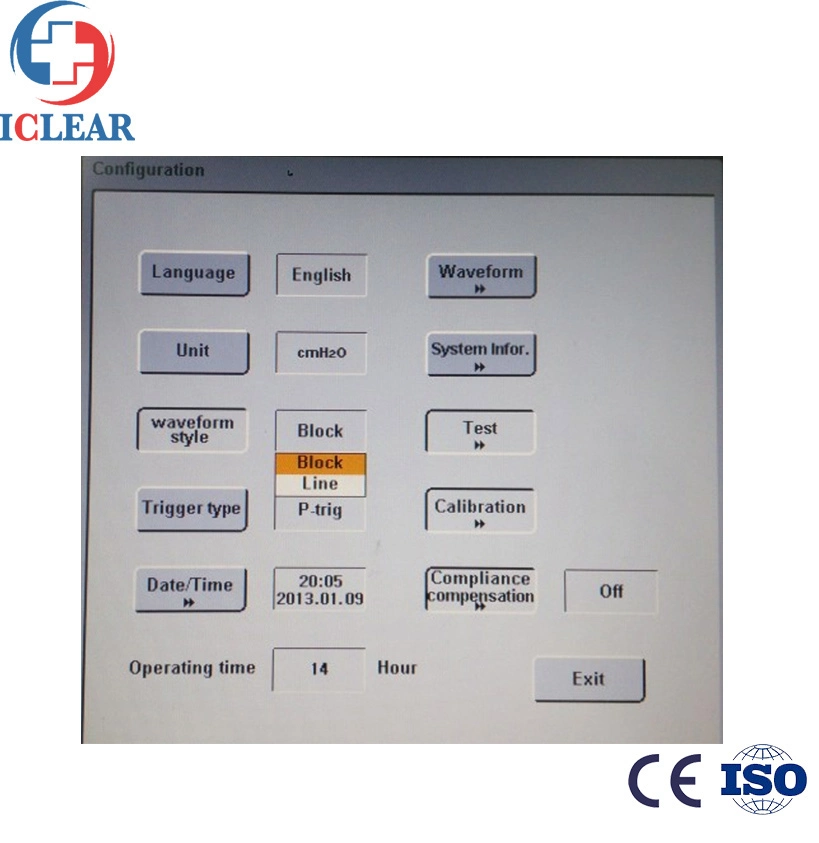

Intuitive Interface: 12.1" TFT touch screen equipped with a navigational wheel knob for simple operation.
◈
Infection Control: Detachable screen design effectively reduces the possibility of cross-infection.
◈
Safety First: Dual three-level alarms (sound and light) ensure maximum patient safety during operation.
◈

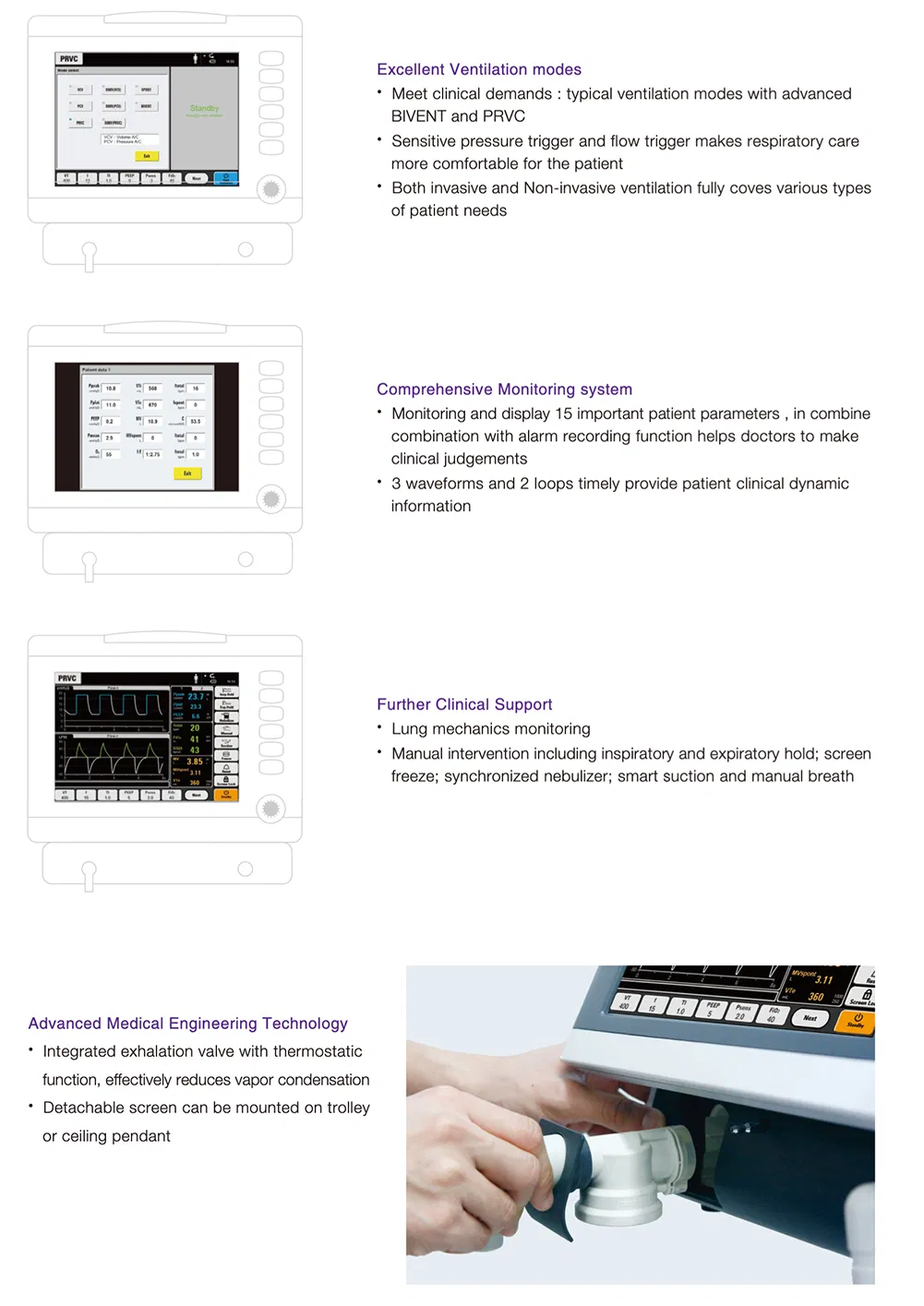

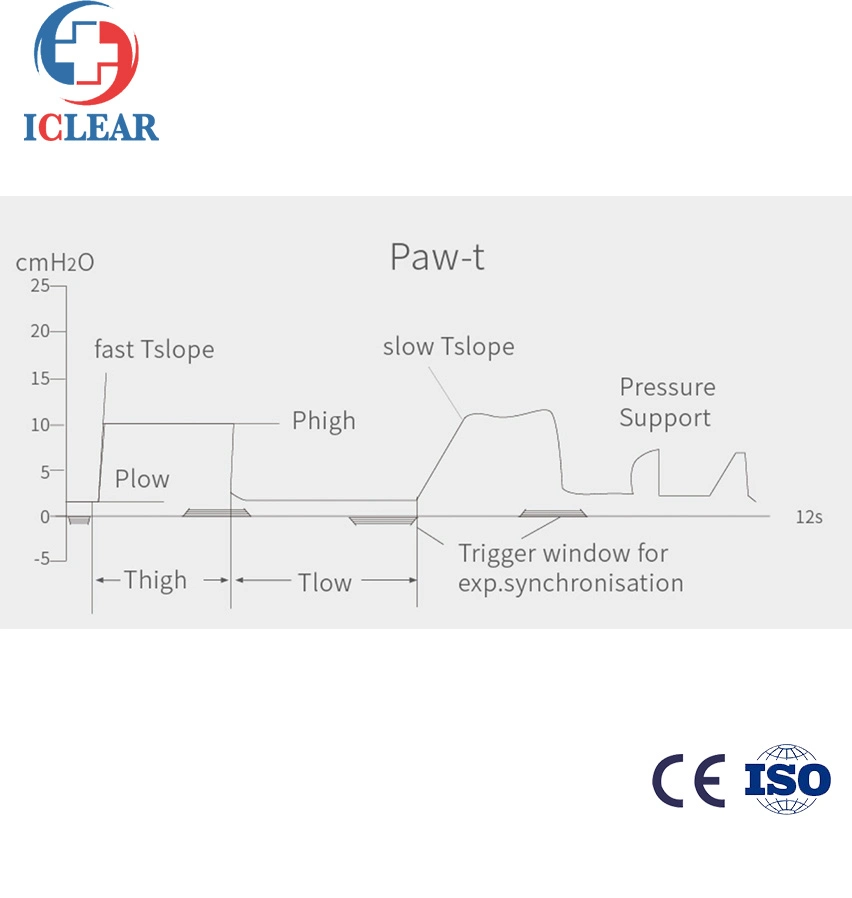

Versatile Modes: Comprehensive ventilation modes including PRVC and BIVENT to fulfill various clinical requirements.
◈

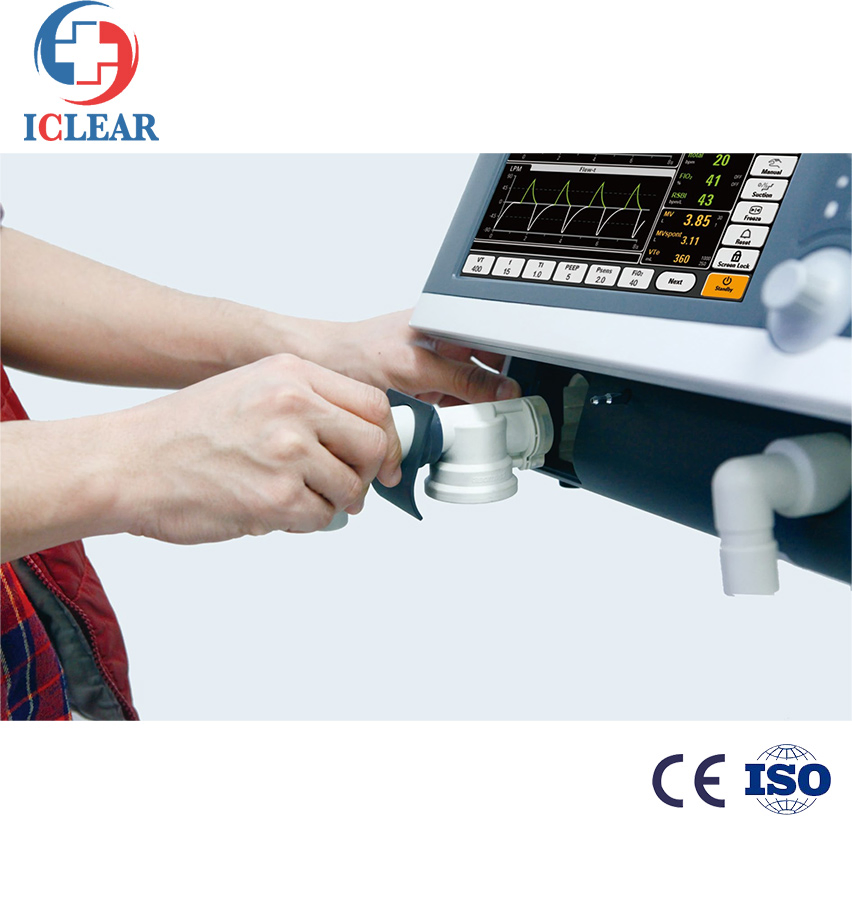

Cost-Effective: Autoclavable exhalation valve with a built-in flow sensor for durability and efficiency.
Frequently Asked Questions
Is this ventilator suitable for children?
Yes, the Shangrila 590P is designed for both adult and pediatric patients in ICU environments.
What if the equipment requires repair or service after use?
We maintain a secure and standard procedure for product returns and repairs. Please refer to the service policy for detailed instructions.
How do you ensure the quality of medical equipment?
All equipment is manufactured under strict quality standards. This model is CE and ISO13485 certified, aiming to provide high performance at a competitive price.
What are the estimated delivery times?
By Express: 5-7 working days; By Air: 3-4 days to international airports; By Sea: approximately 25-55 days depending on the destination port.
Do you provide solutions for complete hospital projects?
Yes, we offer complete solutions for clinic and hospital setups, having successfully supported projects in East Asia, Africa, and Saudi Arabia.
What makes the interface user-friendly?
The system features a large 12.1" TFT touch screen combined with a navigational wheel knob, providing an intuitive and easy-to-use interface for clinicians.
