Reliable Emergency Ventilator for Critical Care and Surgery

Customization:	Available
Type:	Ventilator Machine
Application:	Orthopedic, Abdominal, Ent, Neurosurgery, Microsurgery, Anorectal, Urology, Burns

Send Inquiry

Product Description

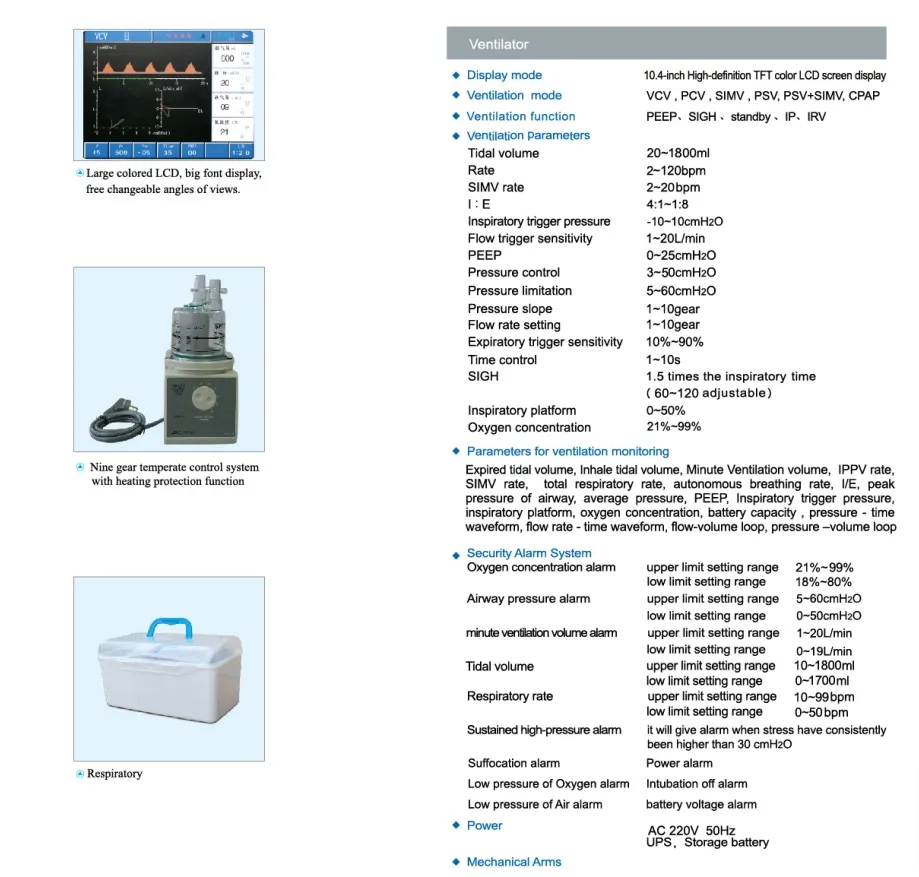

Basic Specifications

Model NO.

SD-2000B2

Material

Plastic

Feature

Reusable

Certification

CE, ISO13485

Group

Adult, Child

Ventilation Mode

Vcv, Pcv, Simv, Psv, Psv+Simv, CPAP

Tidal Volume

20-2000ml

Rate

2-120bpm

Simv Rate

2-20bpm

I:E

4:1-1:8

Peep

0-25 CMH2o

Power Supply

AC 100-240V, 50/60Hz

Pressure Control

3-60 CMH2o

Transport Package

Carton Packaging

Specification

57x60x123cm

Origin

China

Product Description

Reliable Emergency Ventilator for Critical Care and Surgery

Core Features

The SD-2000B2 Ventilator is a multi-functional device adopting pneumatic, electronic control, and microcomputer technology. Imported components guarantee operational stability and reliability. Featuring a 10.4" LCD color screen to display measuring and configuration parameters, it is ideally suited for respiratory treatment in first aid, surgical, gynecological, pediatrics, and ICU departments.

Ventilation Monitoring Parameters

VI tidal volume, VE tidal volume, Minute Ventilation volume, IPPV rate, SIMV rate, total respiratory rate, autonomous breathing rate, I/E, peak pressure of airway, average pressure, PEEP, Inspiratory trigger pressure, inspiratory platform, oxygen concentration, battery capacity, pressure-time waveform, flow rate-time waveform, flow-volume loop, pressure-volume loop.

Security Alarm System

Oxygen Concentration: Upper limit 21%~99%, Low limit 15%~80%
Airway Pressure: Upper limit 1~60 cmH2O, Low limit 0~50 cmH2O
Minute Ventilation: Upper limit 1~30L/min, Low limit 0~20L/min
Tidal Volume: Upper limit 10~2000ml, Low limit 0~1800ml
Respiratory Rate: Upper limit 10~99bpm, Low limit 0~50bpm
Sustained High Pressure: Alarm triggered if stress > 25 cmH2O for 15s
Power & Battery: Low battery alarm (at <14±0.5V), Power failure alarm
Safety: Gas shortage, Low Oxygen/Air pressure, Intubation off alarms

Power Supply Performance

AC 100~240V, 50/60Hz. Equipped with a built-in Li-Battery providing at least 4-6 hours of continuous operation.

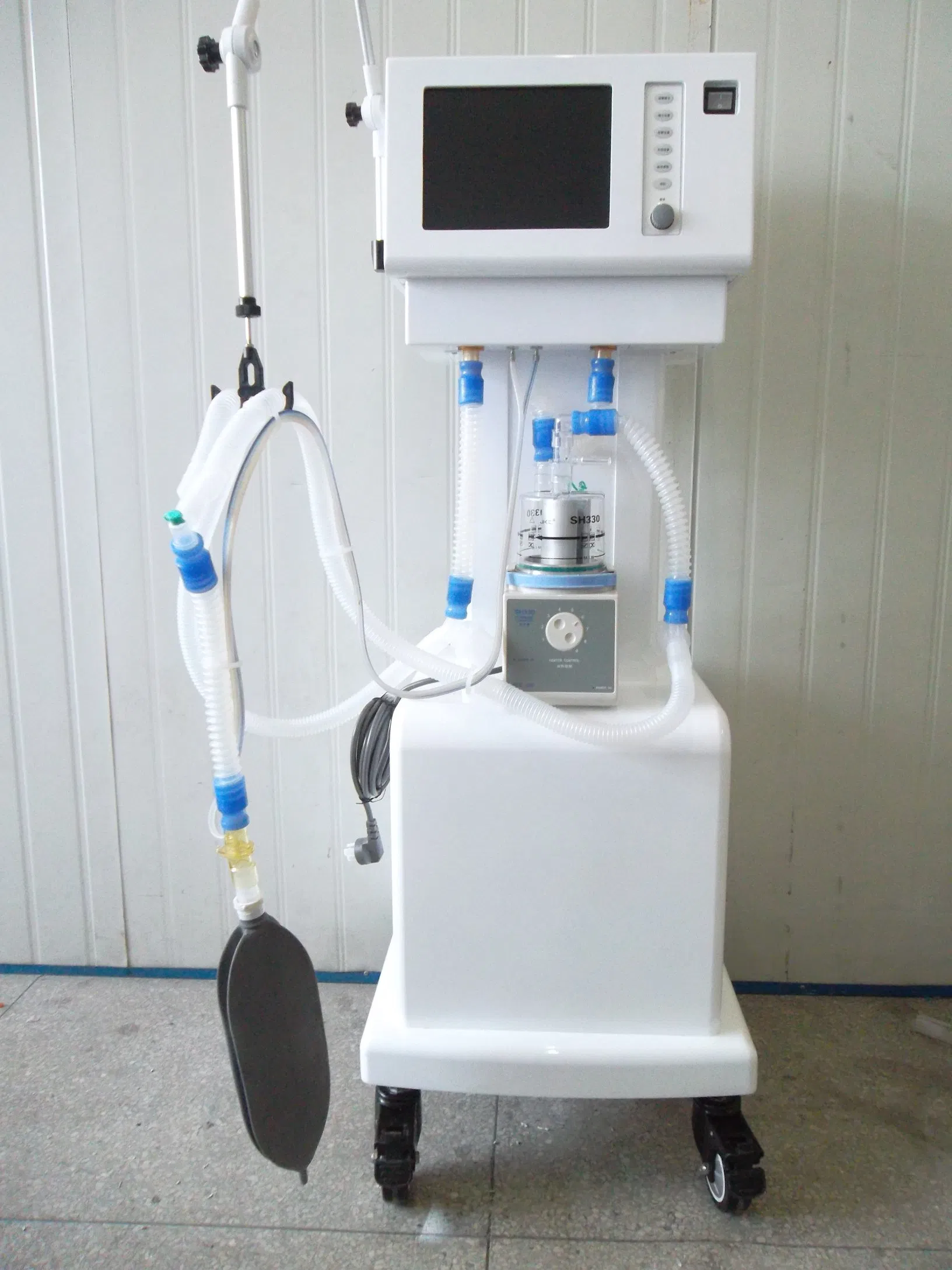

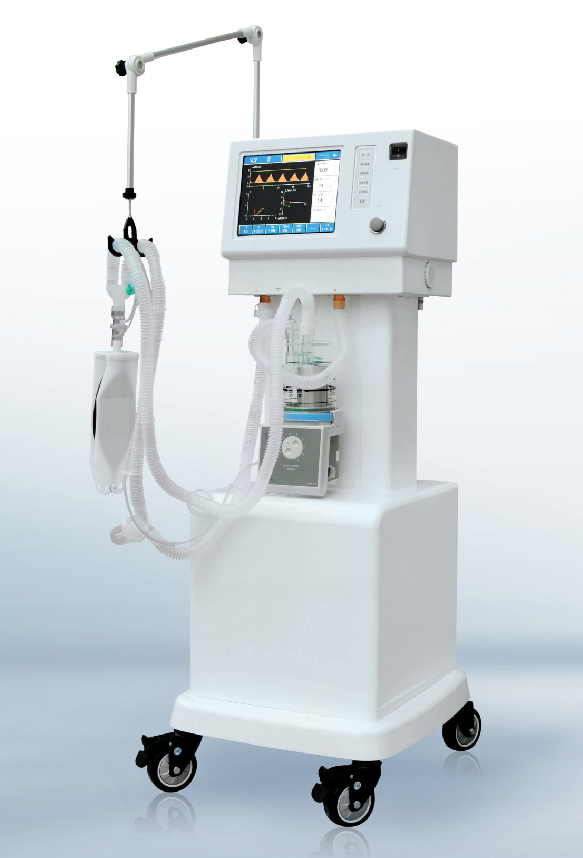

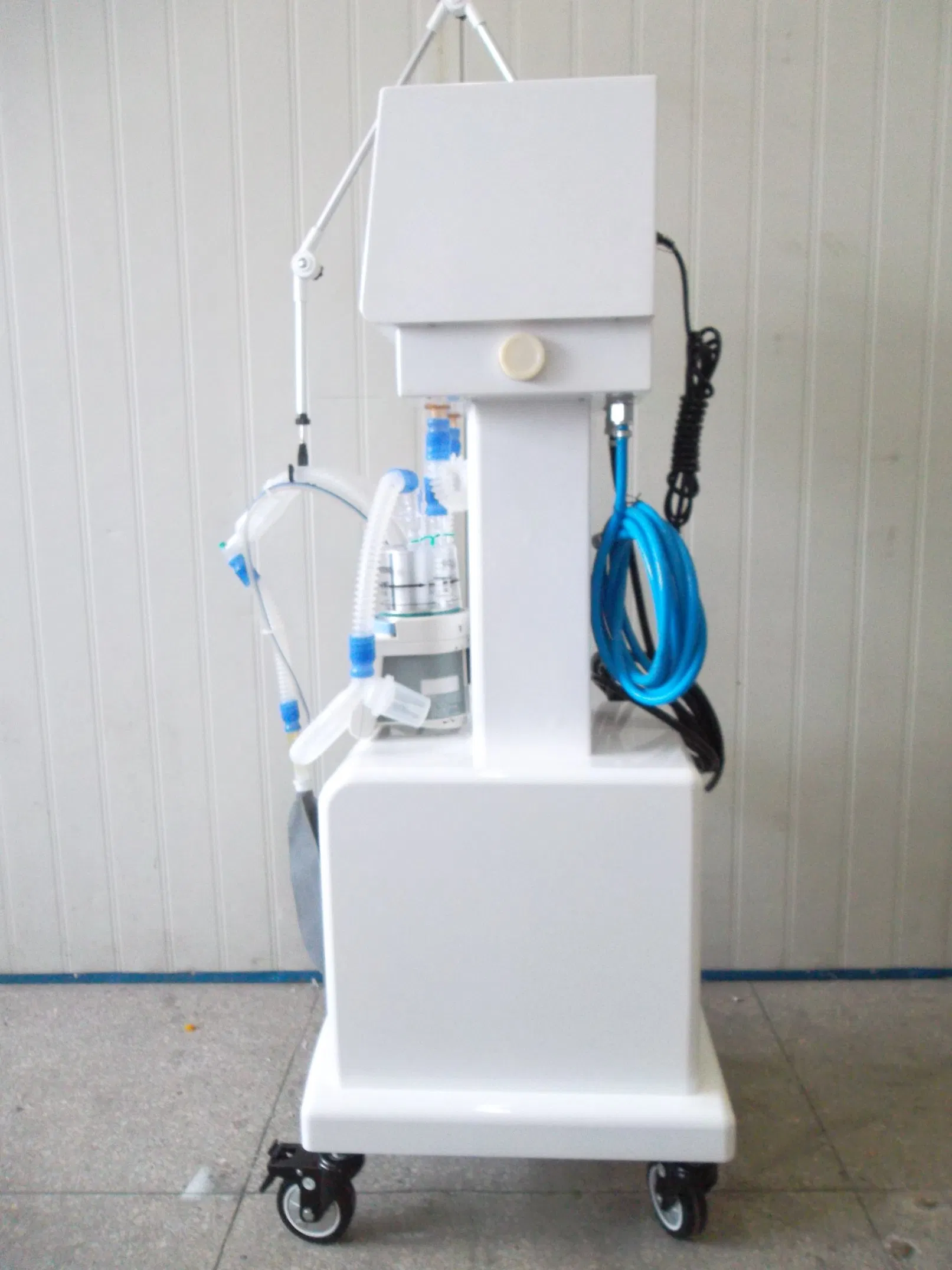

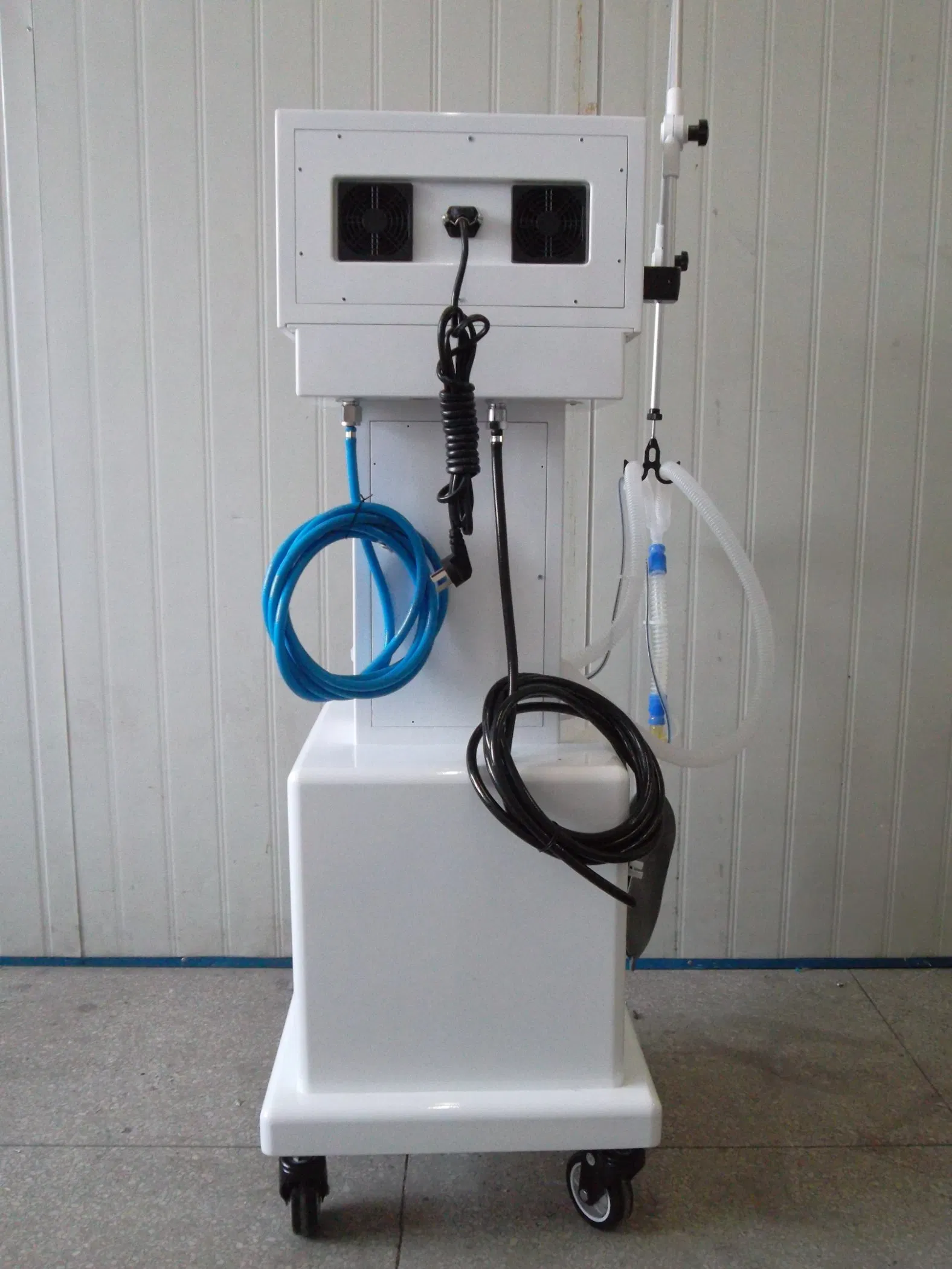

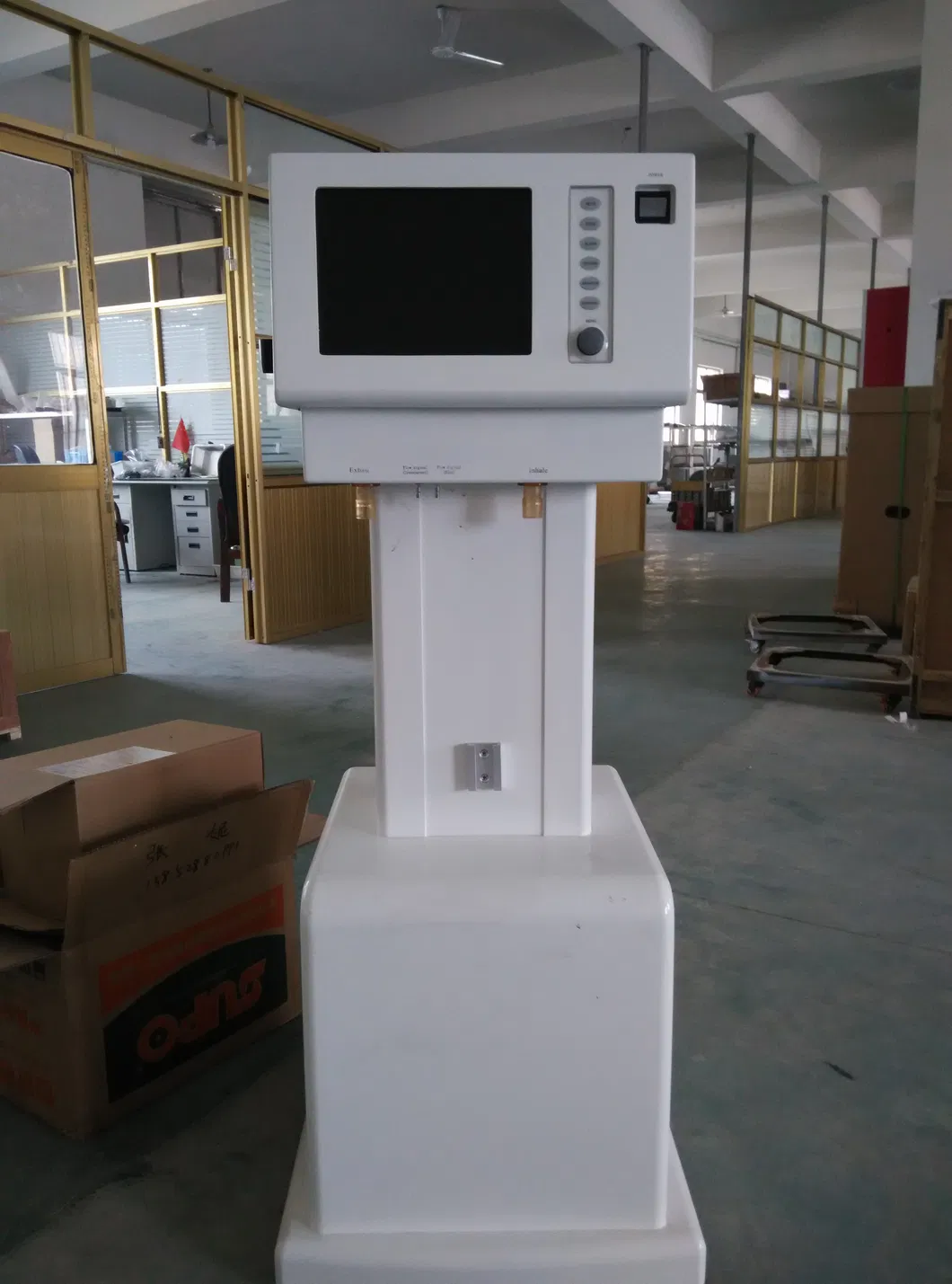

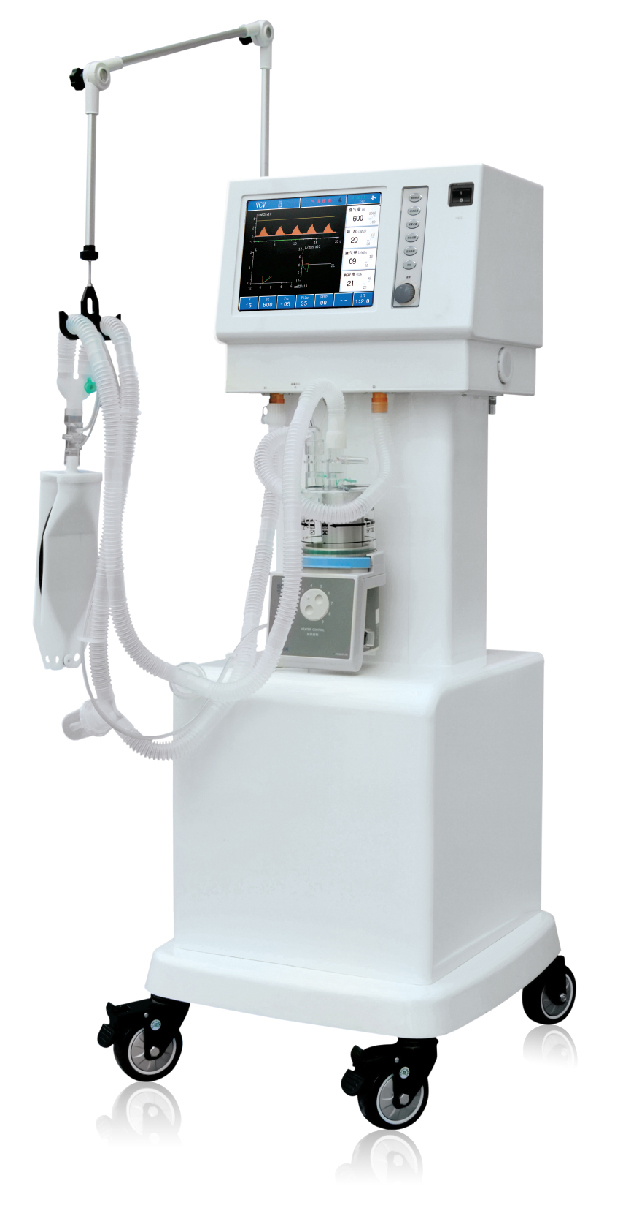

Visual Overview & Detailed Views

Frequently Asked Questions

1. What are your standard payment terms?

We accept various payment methods including T/T (Telegraphic Transfer), L/C (Letter of Credit), and Western Union to ensure a smooth transaction process.

2. What is the typical delivery timeframe for an order?

The delivery time usually ranges between 15 to 35 working days, depending on the specific order quantity and customization requirements.

3. Can you provide certificates of origin like FORM A or FORM E?

Yes, we can apply for FORM A, FORM E, C/O, and other Embassy certifications through the relevant government authorities as per your requirements.

4. Is OEM service available for these ventilators?

Absolutely. With our dedicated R&D team, we offer comprehensive OEM services, including the use of your own logo and specific branding.

5. Which regions and countries do you supply to?

Our medical products are widely utilized in over 70 countries and regions, including Africa, South America, Russia, the Middle East, and Southeast Asia. We offer worldwide delivery.

6. Does the ventilator include internal battery backup?

Yes, the device features a high-capacity built-in Li-Battery that supports at least 4-6 hours of operation during power outages or transport.
