Advanced SD-H3000b ICU Invasive Ventilator for Critical Care

Customization:	Available
Type:	Respiratory Therapy Ventilator
Used for:	Adult, Child

Send Inquiry

Product Description

Basic Specifications

Model NO.3000b

PackageCarton

Specification0.53CBM

HS Code9019200090

OriginChina

Capacity50 units/Month

ICU Ventilator 3000B Overview

The ICU ventilator 3000B is a pneumatic driven, microcomputer-controlled medical ventilator designed for high-end critical care environments.

Pneumatic driven electric control
High luminance digital LED screen
Continuous FlO2 monitoring
High-end level humidifier
Reusable tubes & accessories
Optional medical air compressor

Technical Index & Performance

Ventilation Modes: VCV, A/C, SIMV, PSV, Spont., MMV, PCV, SIGH, PEEP.

Application	Adult, Pediatric
Working Mode	Time switch
Respiratory Mode	AC, A/C+SIGH, SIMV(U2), SIMV(04), SPONT
Tidal Volume	100 ~ 1200mL
Frequency	6 ~ 60bpm
I:E Ratio	2:1 ~ 1:8 (9 shifts)
O2 Concentration	21% ~ 100% (Continuously adjustable)
Pressure Trigger Sensitivity	-3 ~ 0KPa
PEEP	0 ~ 2KPa (Optional)
Alarm Parameters	Low O2, High/Low airway pressure, Power failure, Apnea, Gas failure
Power Supply	AC 220V±10%, 50Hz±1%

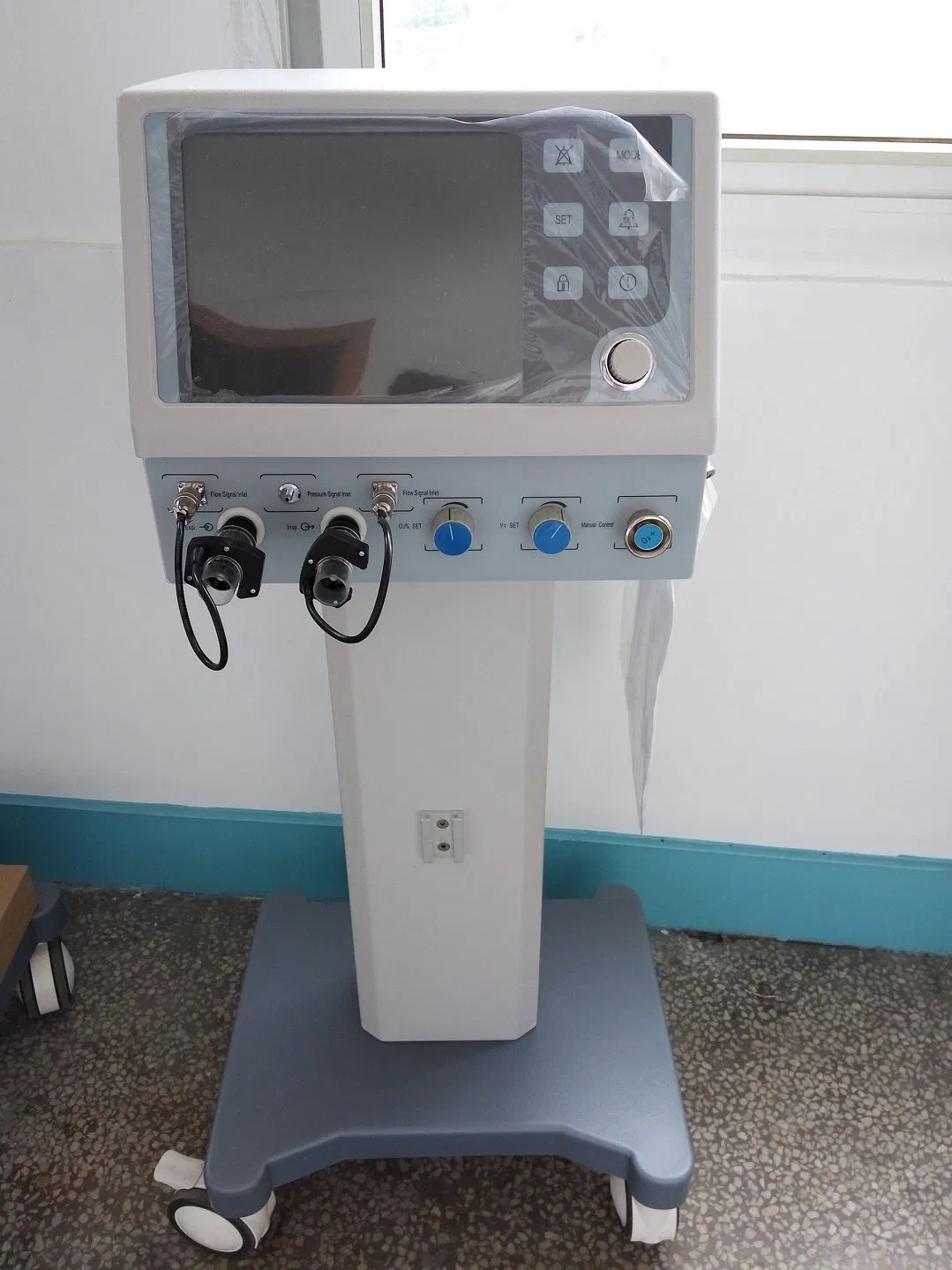

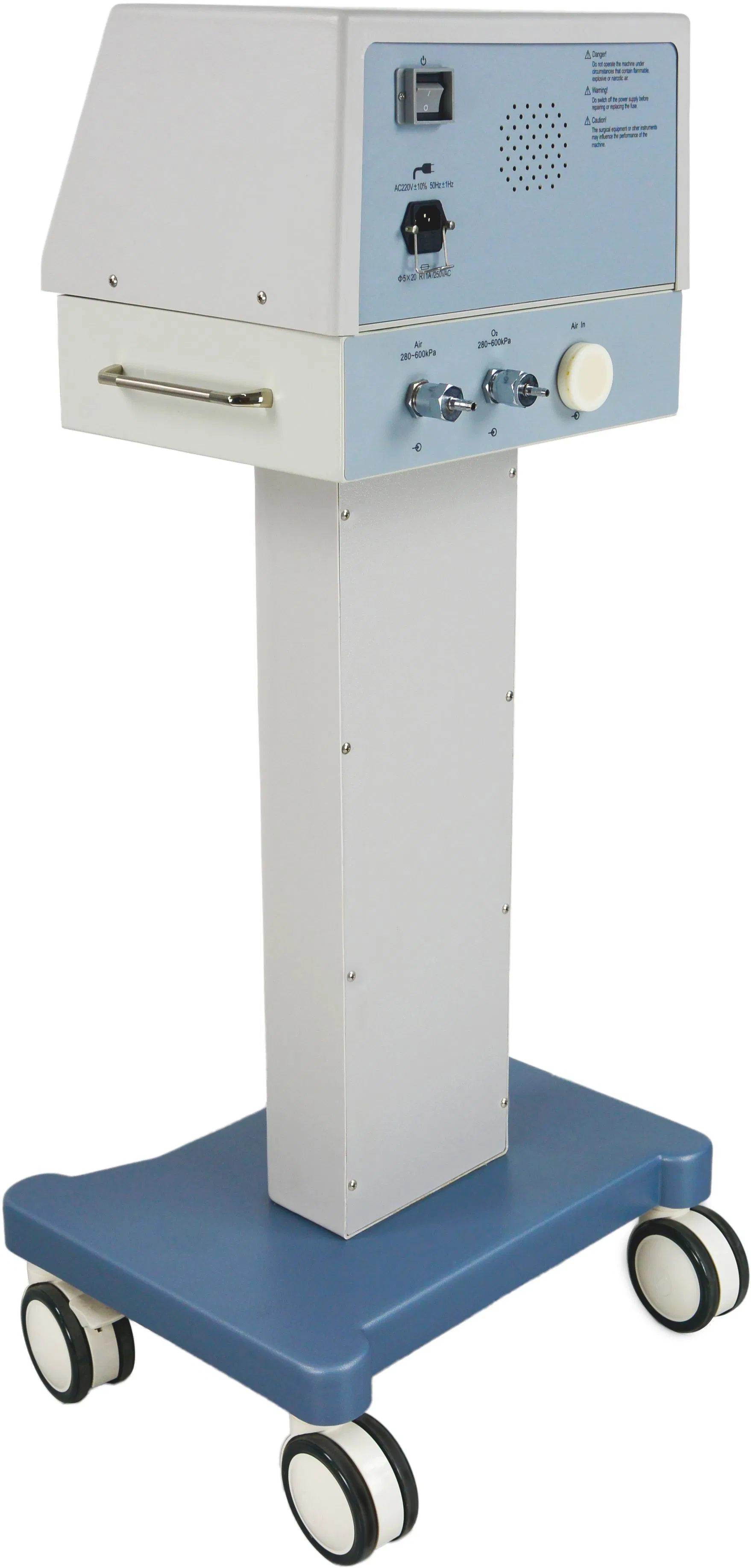

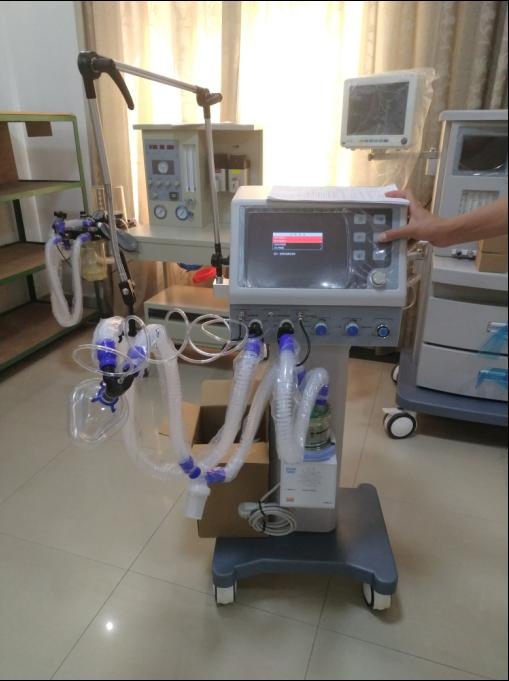

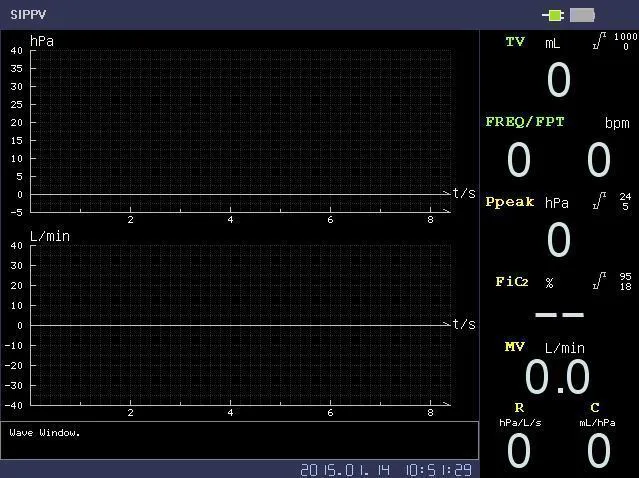

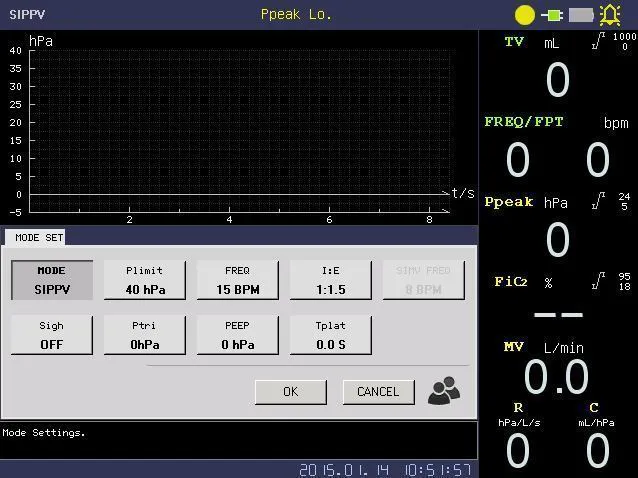

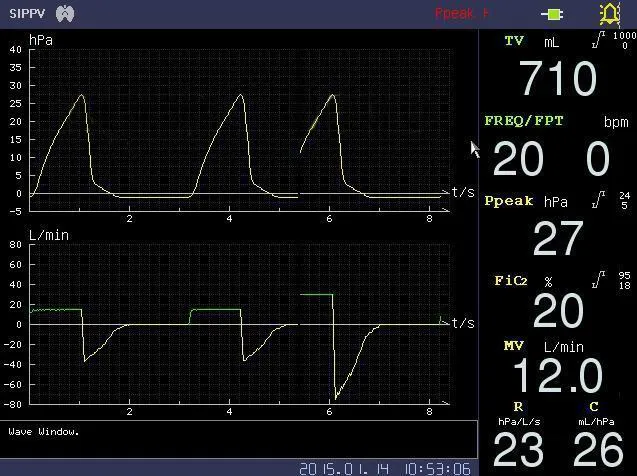

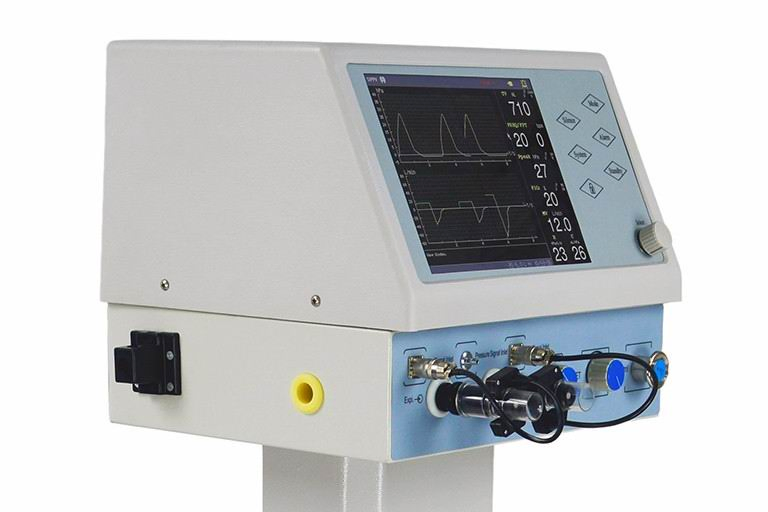

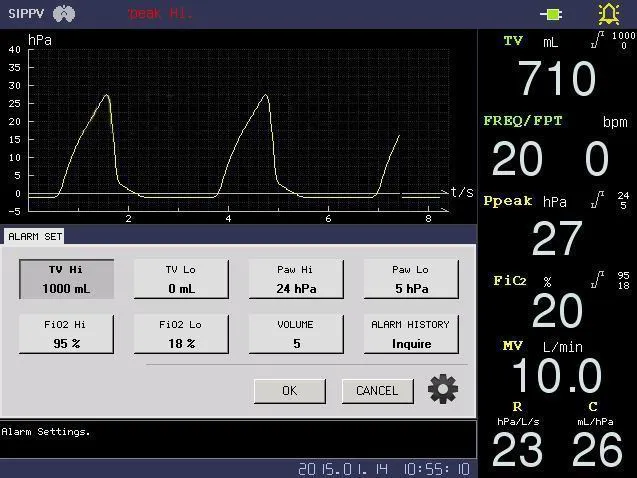

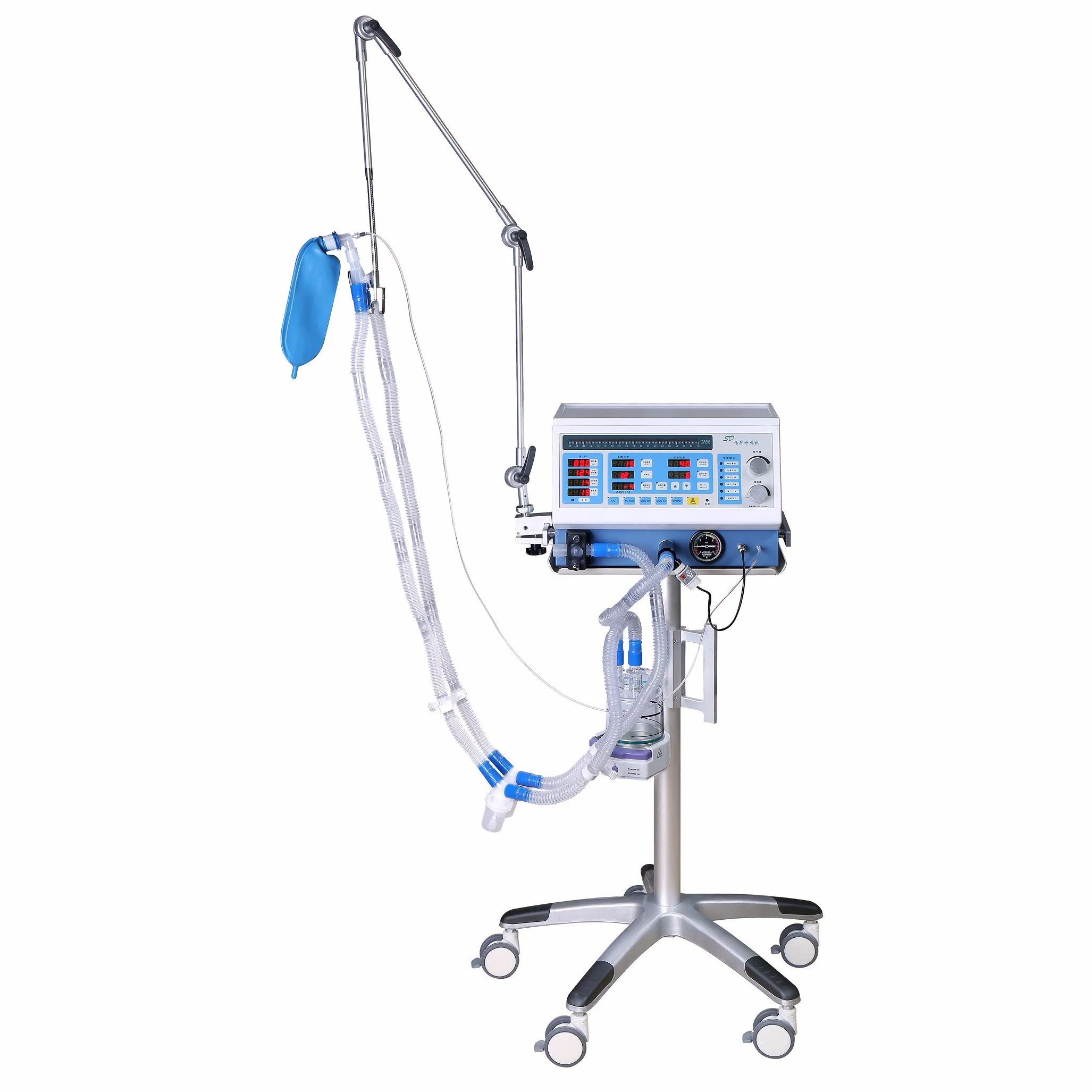

Product Visuals

Frequently Asked Questions

What patient groups can use the 3000B ventilator?

The ICU Ventilator 3000B is designed for both adult and pediatric patients, featuring a tidal volume range of 100mL to 1200mL to accommodate different lung capacities.

What ventilation modes are supported by this device?

It supports a comprehensive range of modes including VCV, A/C, SIMV, PSV, Spont., MMV, PCV, SIGH, and PEEP to meet various clinical requirements.

How does the 3000B ensure oxygen safety?

The device features continuous FiO2 monitoring and a wide O2 concentration adjustment range from 21% to 100%, along with alarms for high/low O2 levels and gas failure.

Is there a backup power option for emergencies?

Yes, the 3000B ventilator offers an optional backup UPS battery to ensure continuous operation in the event of a primary power failure.

What kind of maintenance do the breathing tubes require?

The system is equipped with high-quality reusable tubes and accessories, which are designed for durability and easy sterilization according to standard hospital protocols.

Can the trigger sensitivity be adjusted?

Yes, the pressure trigger sensitivity is adjustable from -3 to 0 KPa, allowing clinicians to fine-tune the device to the patient's spontaneous breathing efforts.
