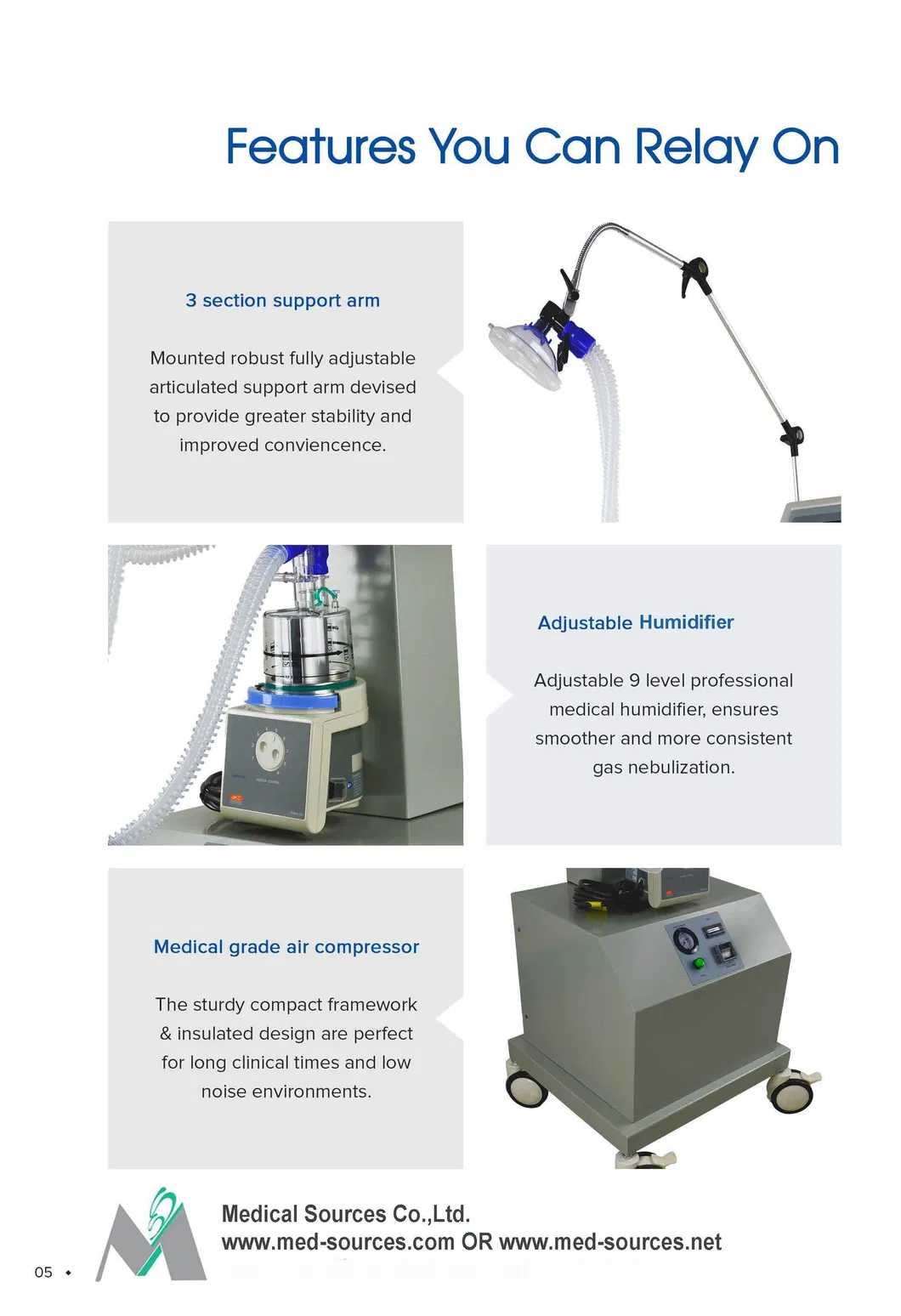

Medical Neonatal Ventilator Side View
Medical Neonatal Ventilator Controls

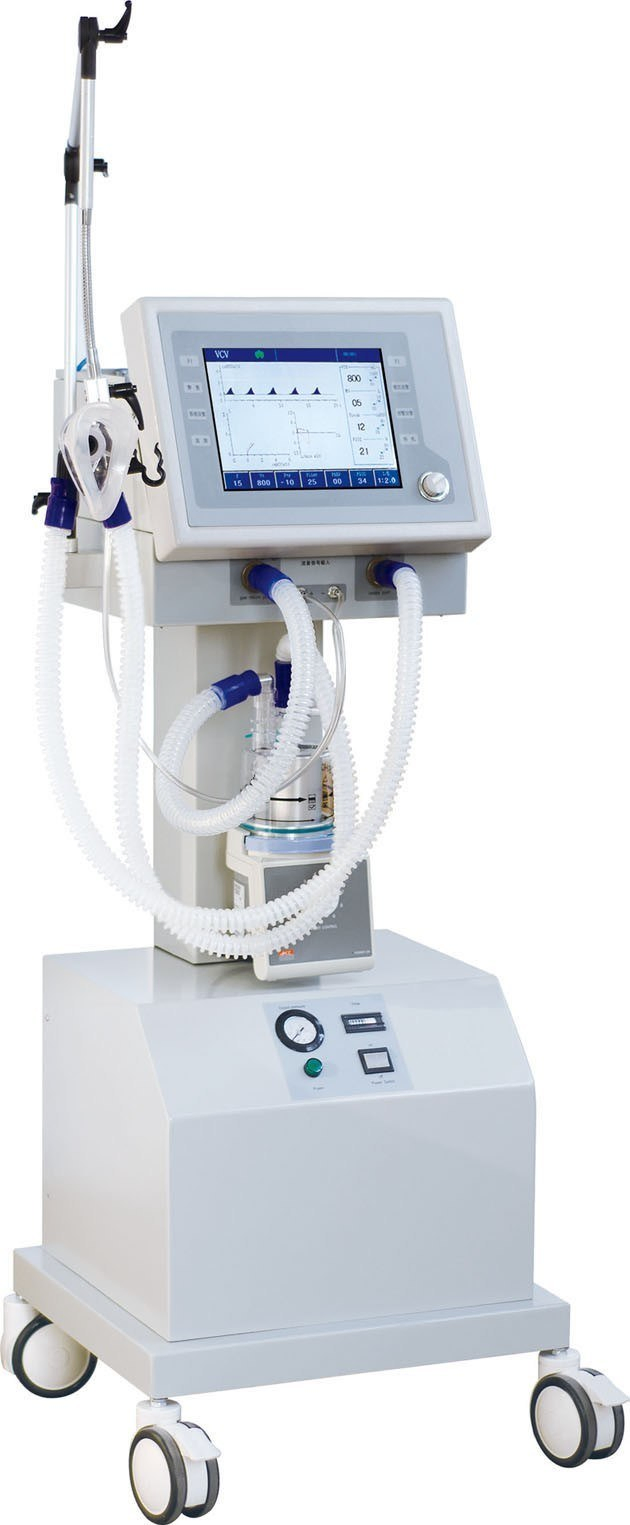

🏥 MS-S400A Medical Neonatal Ventilator

The MS-S400A is a versatile and high-performance medical ventilator designed for Adult, Pediatric, and specifically Neonatal patients, featuring a high-definition 10.4-inch TFT display for precise monitoring.

📋 Key Characteristics

Patient Compatibility
Adult, Pediatric & Neonatal
Display System
10.4 Inch TFT High-Resolution display
Power Backup
Built-in: 30 mins to 4 hours backup
Dimensions
130cm x 68cm x 60cm | 78kg

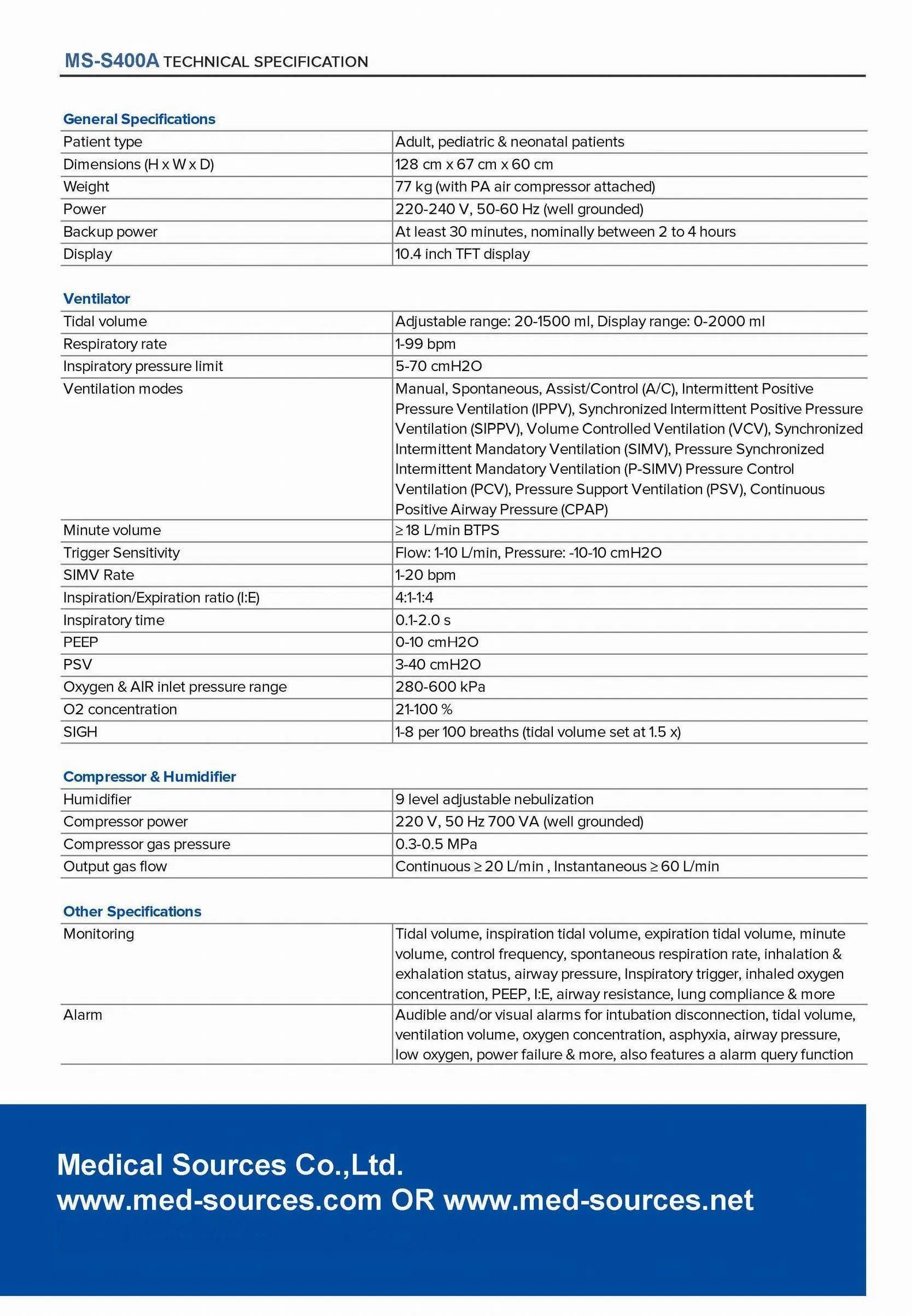

⚙️ Technical Specifications

Tidal Volume Adjustable: 20-1500 ml (Display: 0-2000 ml)
Respiratory Rate 1-99 bpm
Inspiratory Pressure Limit 5-70cm H₂O
O₂ Concentration 21-100%
I:E Ratio 4:1 - 1:4
PEEP / PSV PEEP: 0-10cm H₂O | PSV: 3-40 cm H₂O

🔄 Advanced Ventilation Modes

  • Assist/Control (A/C)
  • Volume Controlled Ventilation (VCV)
  • Pressure Control Ventilation (PCV)
  • Synchronized Intermittent Mandatory Ventilation (SIMV)
  • Continuous Positive Airway Pressure (CPAP)
  • Pressure Support Ventilation (PSV)
  • Intermittent Positive Pressure Ventilation (IPPV)
  • Manual & Spontaneous Modes

⚠️ Monitoring & Safety Alarms

Real-time Monitoring:

Tidal Volume (Inspiration/Expiration), Minute Volume, Control Frequency, Airway Pressure, I:E Status, O2 Concentration, PEEP, Airway Resistance, and Lung Compliance.

Audible/Visual Alarms:

Intubation Disconnection, Ventilation Volume, Asphyxia, Airway Pressure, Low Oxygen, and Power Failure.

💧 Compressor & Humidifier

  • Humidifier: 9 Level Adjustable Nebulization
  • Compressor Gas Pressure: 0.3-0.5Mpa
  • Output Gas Flow: Continuous ≥20L/Min, Instantaneous ≥60L/min

Frequently Asked Questions

Q: What type of patients can the MS-S400A ventilator support? A: The MS-S400A is designed to support Adult, Pediatric, and Neonatal patients, offering specialized care for newborns.
Q: Does the ventilator have a backup battery for emergencies? A: Yes, it features an internal backup power supply that lasts at least 30 minutes, with a nominal operating time between 2 to 4 hours.
Q: What are the primary ventilation modes available? A: It supports a wide range of modes including A/C, VCV, PCV, SIMV, P-SIMV, CPAP, PSV, IPPV, and SIPPV, as well as manual and spontaneous breathing.
Q: What kind of display does the unit use? A: The device is equipped with a high-clarity 10.4-inch TFT display for monitoring all vital respiratory parameters and waveforms.
Q: How does the alarm system notify medical staff? A: The ventilator includes both audible and visual alarms for critical issues such as power failure, low oxygen, airway pressure changes, and disconnection.
Q: Can the oxygen concentration be adjusted? A: Yes, the oxygen concentration is fully adjustable within a range of 21% to 100%.
