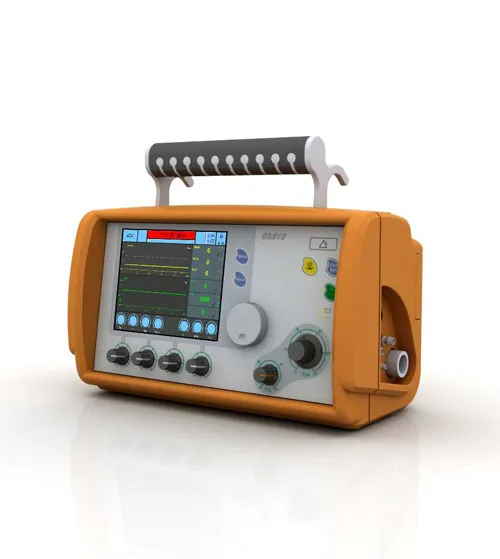

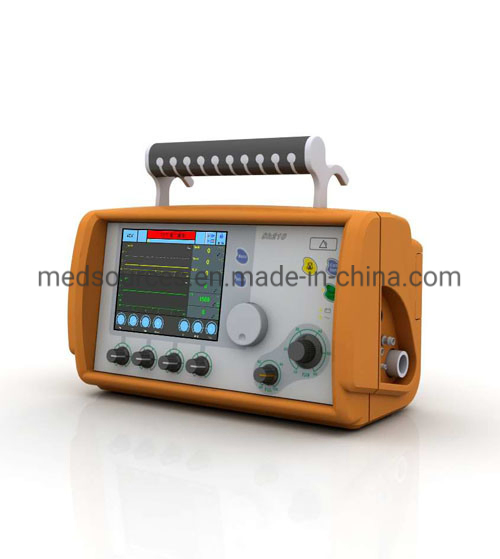

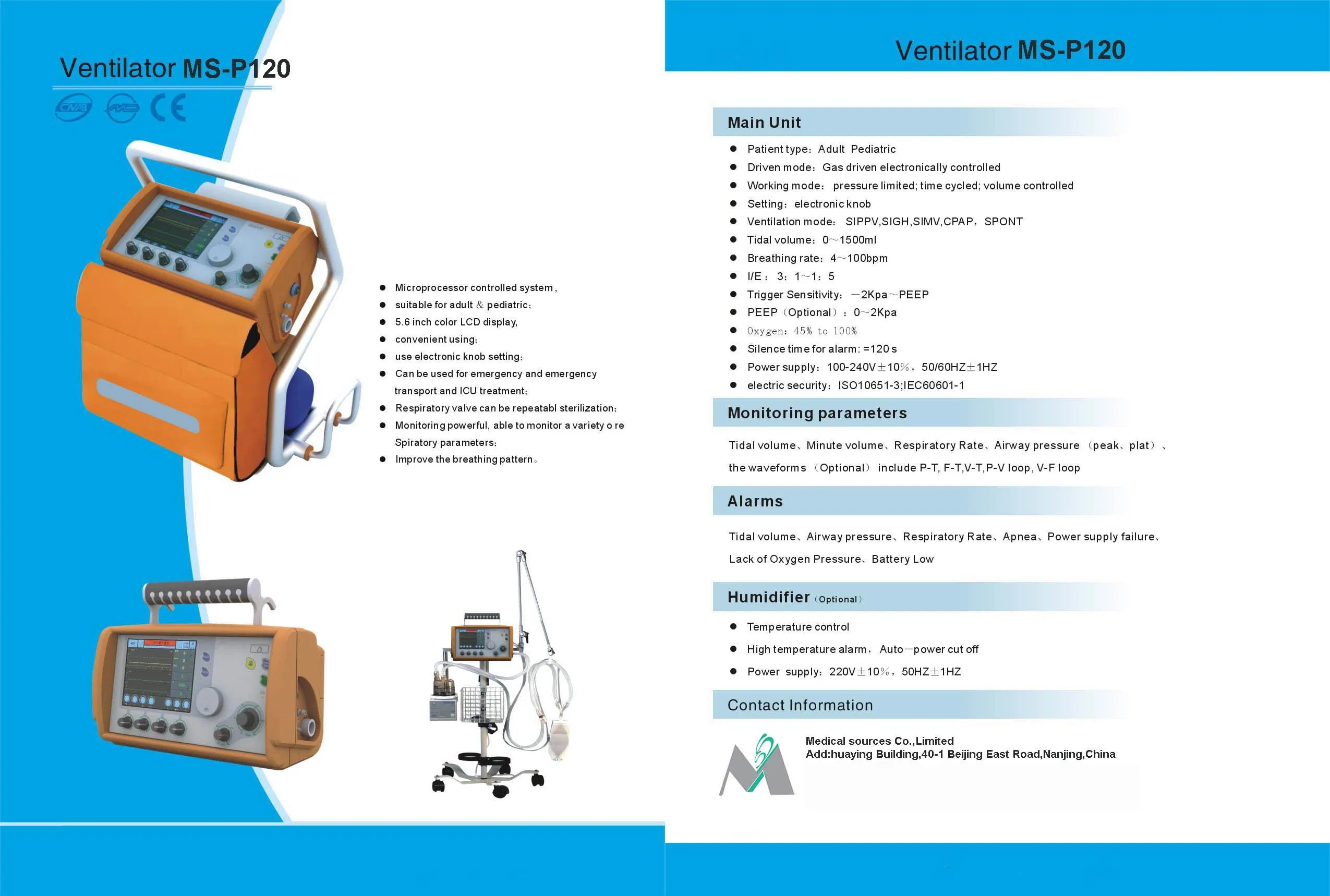

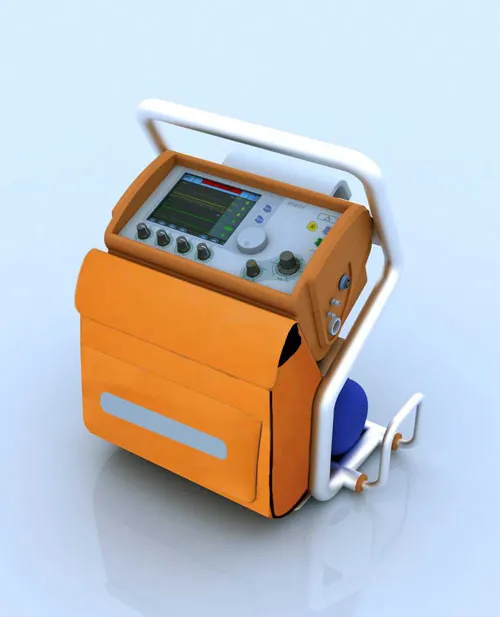

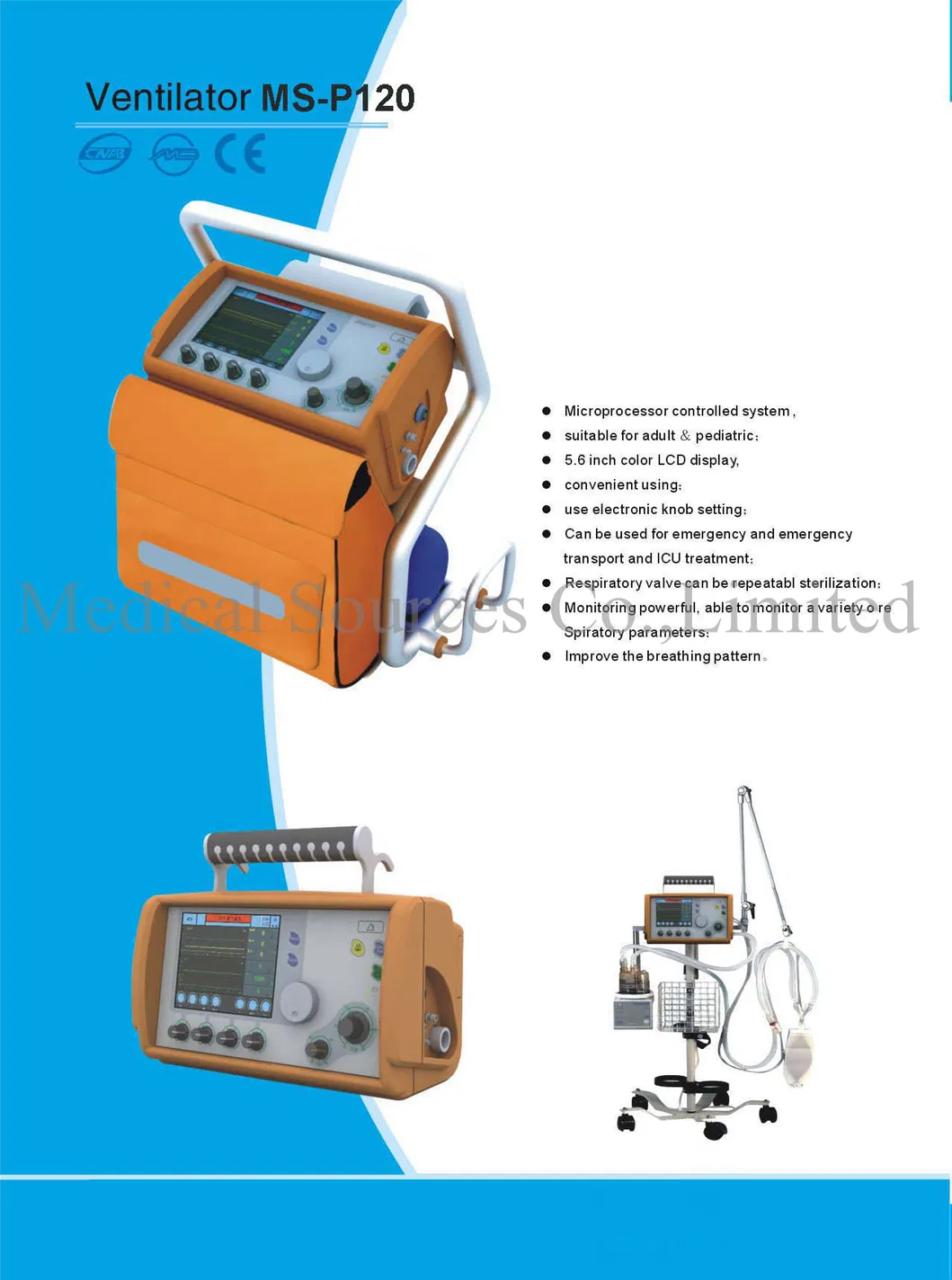

(MS-P120) Medical Use ICU Ambulance Transport Emergency Portable Ventilator

Send Inquiry

Product Description

📋 Basic Information

Model NO.

MS-P120

N.W

1.8 Kg

Certification

CE, FDA, ISO13485

Group

Adult & Pediatric

LCD Display

With LCD Display

Kind

Portable

Transport Package

1 Piece in Carton

HS Code

9018193010

📌 Product Description

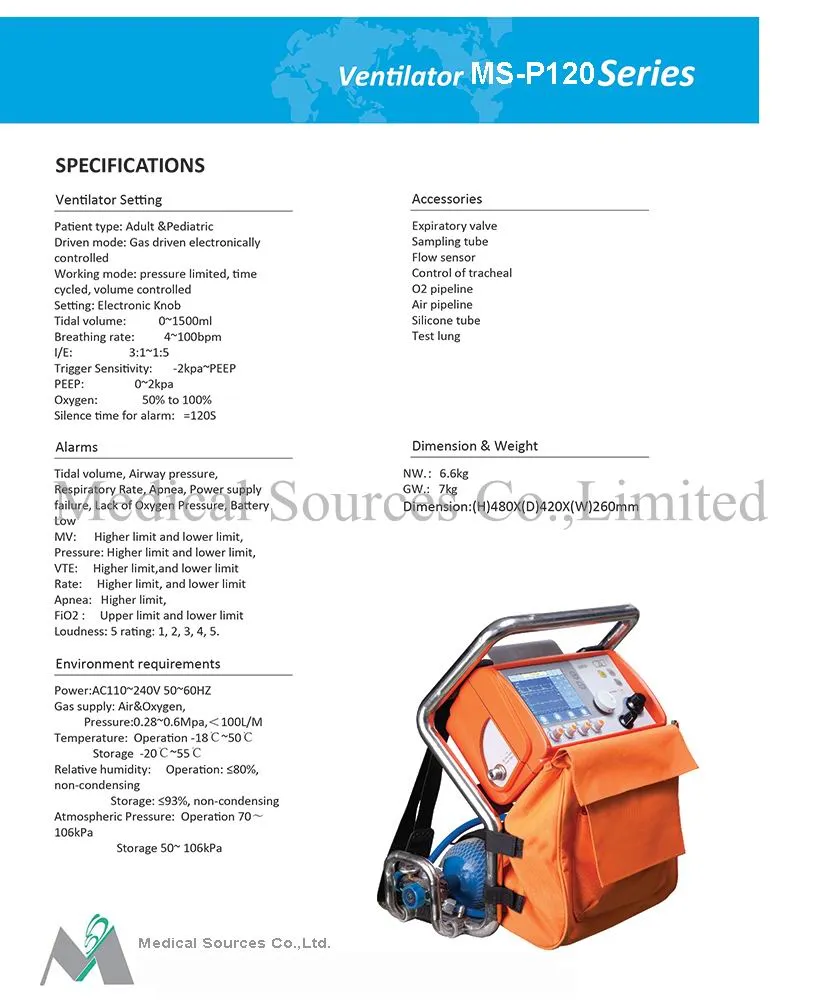

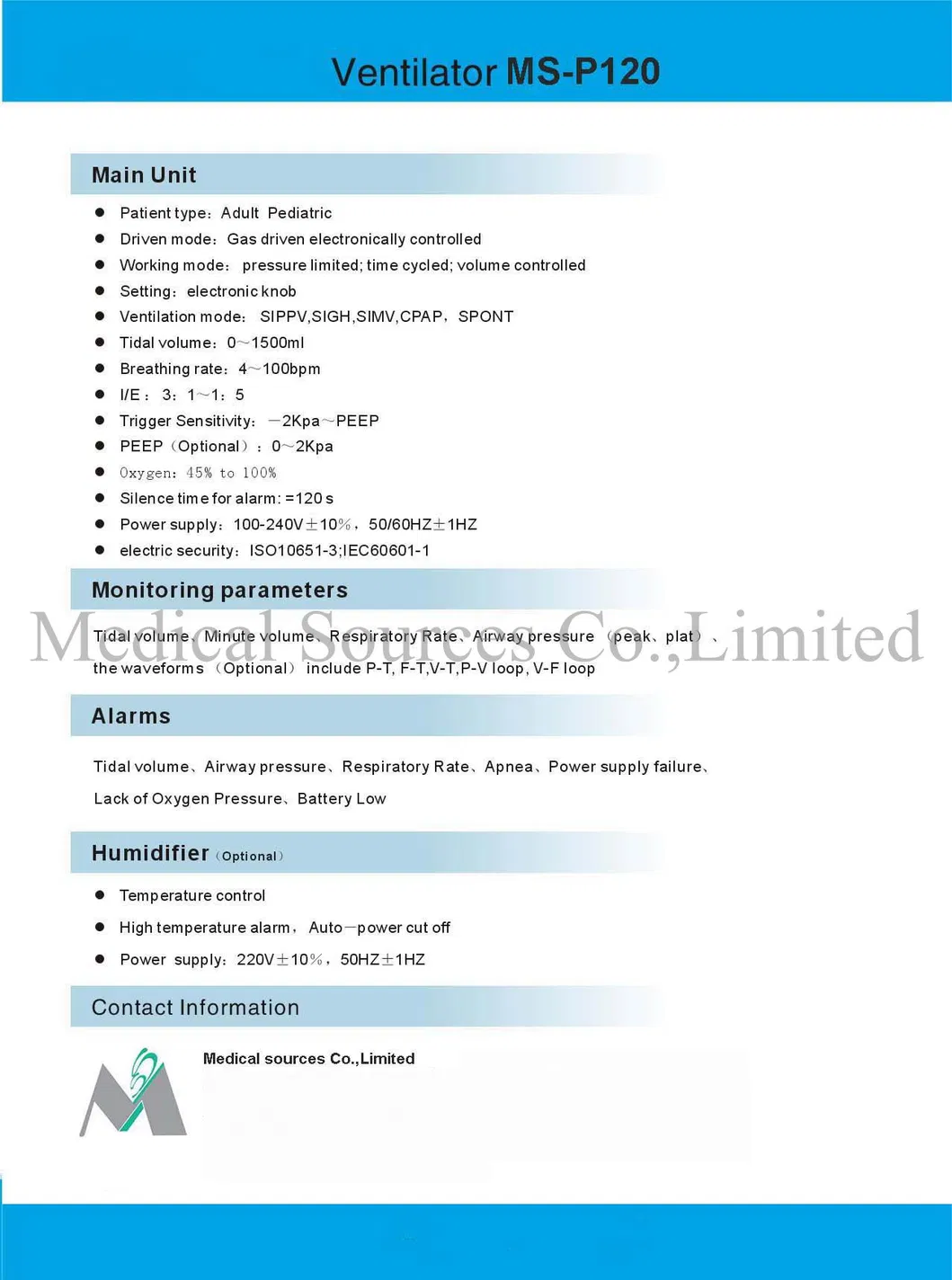

⚙ Technical Specifications

Driven Mode	Gas Driven electronically controlled
Working Mode	Pressure Limited; Time Cycled; Volume controlled
Ventilation Mode	SIPPV, SIGH, SIMV, CPAP, SPONT
Tidal Volume	0 ~ 1500ml
Breathing Rate	4 ~ 100bpm
I/E Ratio	3:1 ~ 1:5
Oxygen Concentration	45% to 100%
Power Supply	100-240V ±10%, 50/60HZ

Monitoring: Tidal Volume, Minute Volume, Respiratory Rate, Airway Pressure (Peak, Flat). Waveforms (Optional): P-T, F-T, V-T, P-V loop, V-F loop.

Alarms: Tidal Volume, Airway pressure, Respiratory Rate, Apnea, Power Supply Failure, Lack of Oxygen Pressure, Battery Low.

❓ Frequently Asked Questions

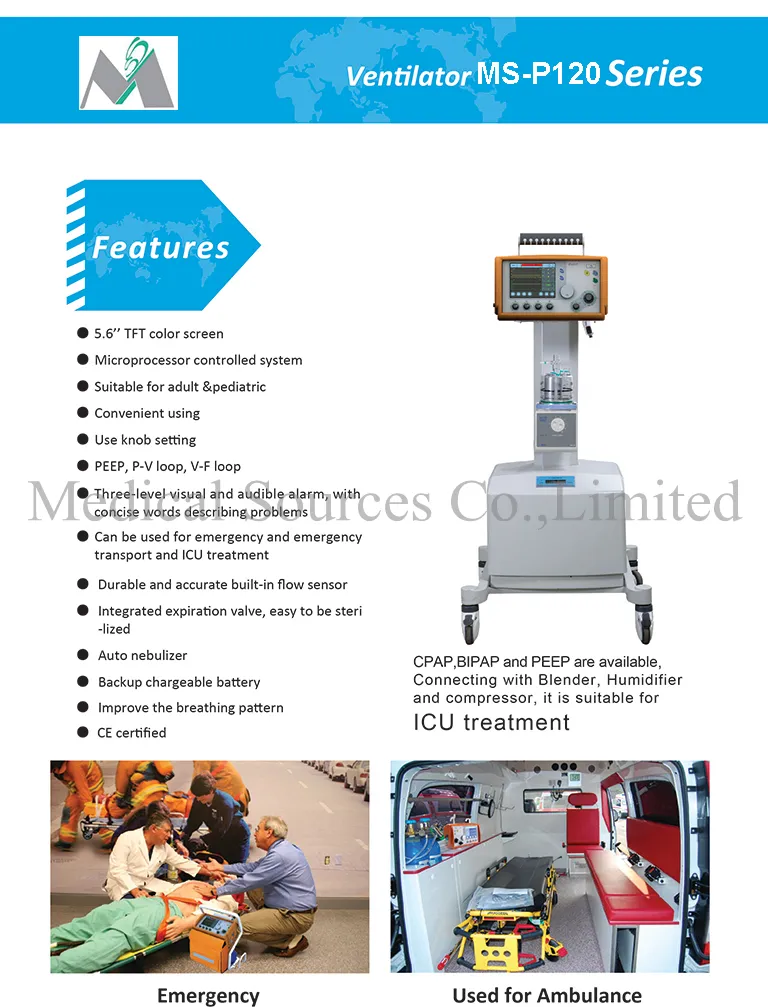

💡 What are the primary applications for the MS-P120 ventilator?

The MS-P120 is designed for emergency use, ambulance transport, and ICU treatment settings.

💡 Is this device suitable for pediatric use?

Yes, the microprocessor-controlled system is suitable for both adult and pediatric patients.

💡 What certifications does the MS-P120 hold?

The device is certified with CE, FDA, and ISO13485 standards.

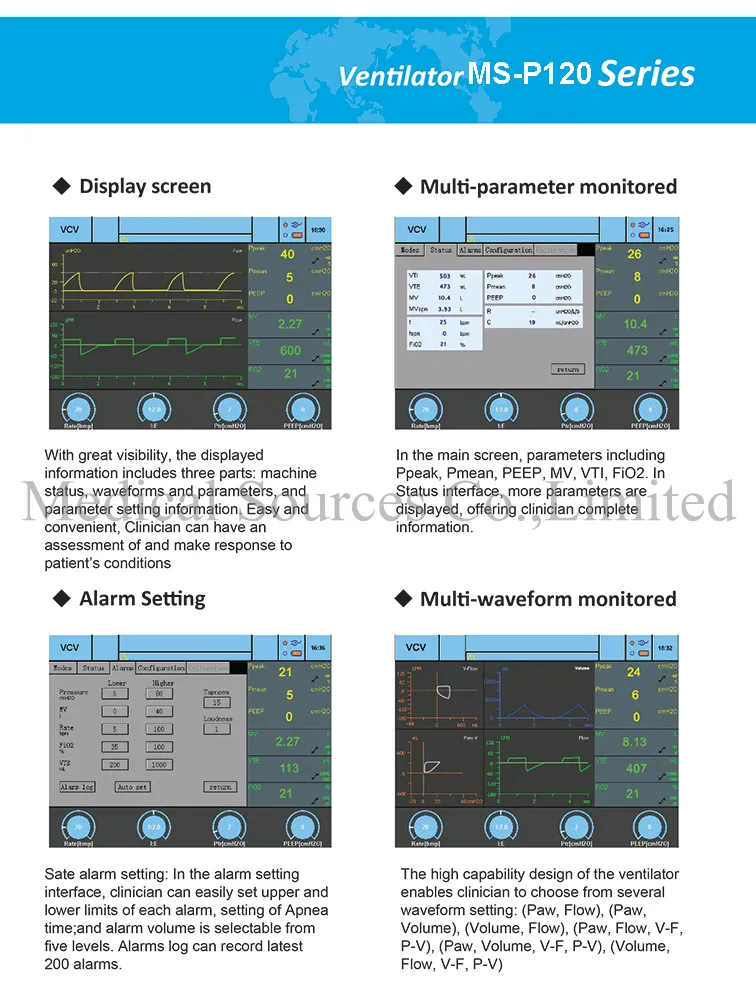

💡 Does the ventilator feature a visual monitoring display?

Yes, it is equipped with a 5.6-inch color LCD display to monitor various respiratory parameters and waveforms.

💡 What is the weight and portability of the unit?

The unit is highly portable with a net weight (N.W) of only 1.8 Kg, making it ideal for transport.

💡 What ventilation modes are available?

The MS-P120 supports SIPPV, SIGH, SIMV, CPAP, and SPONT ventilation modes.
