Product Name
Closed Suction Catheter
Sterilization
Ethylene Oxide Sterilization
Guarantee Period
Five Years
Specification
10fr/12fr/14fr/16fr
Relative Type
24h/72h/Child/Adult
Certificates
ISO13485/ FDA
Production Capacity
100,000PCS/Month

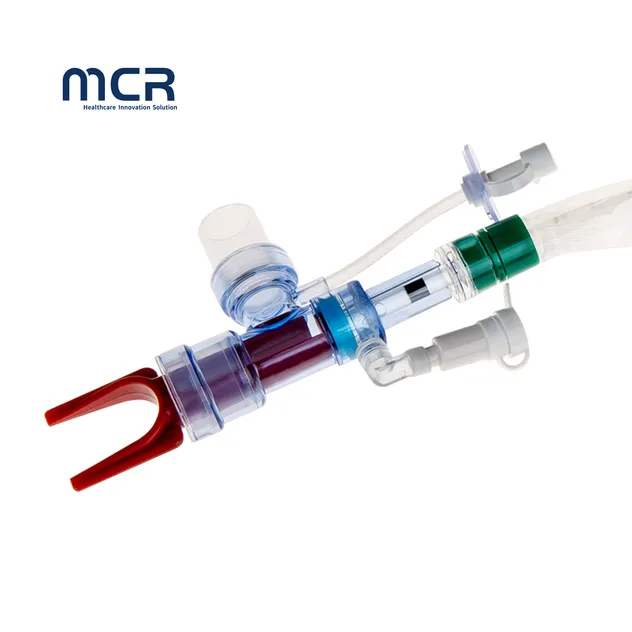

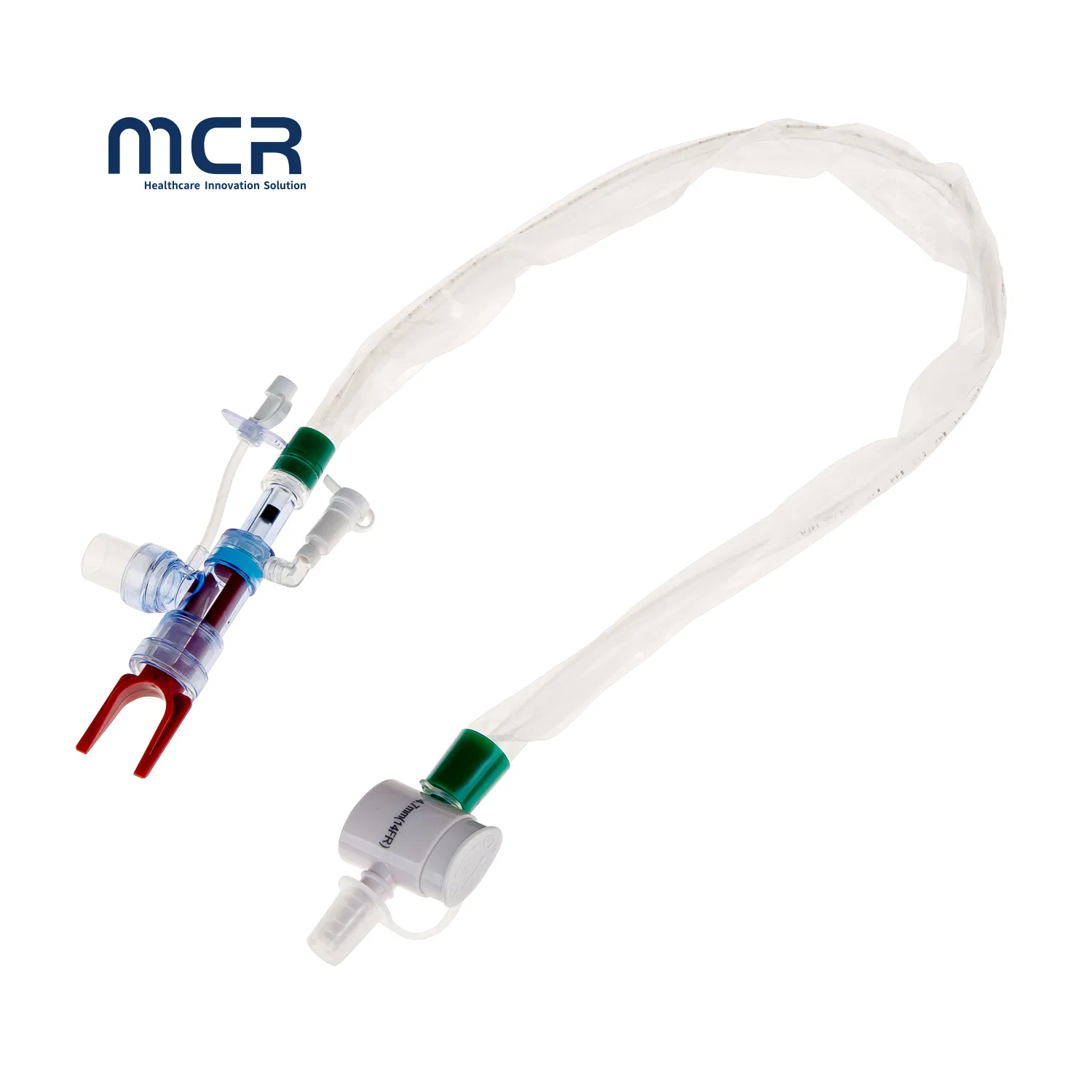

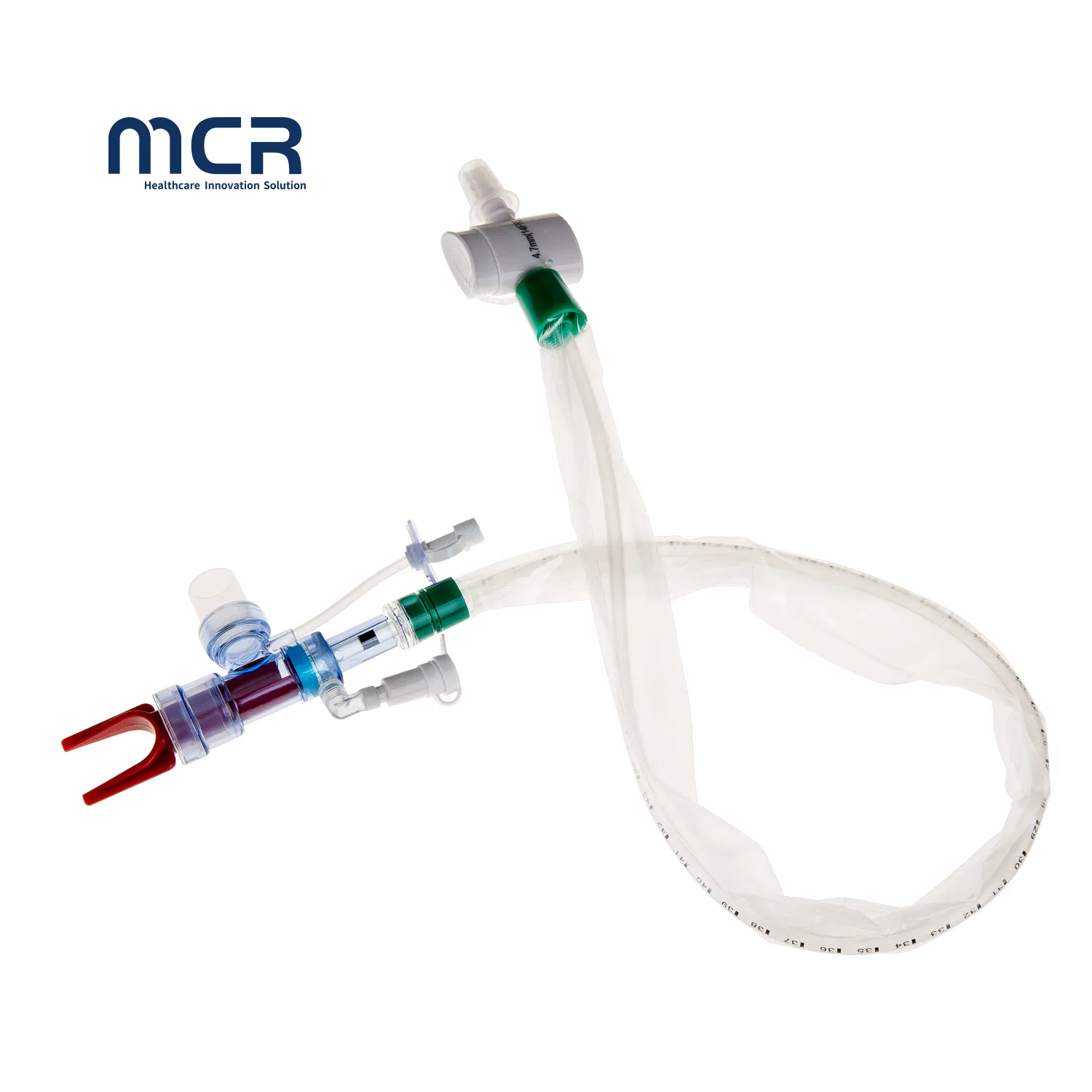

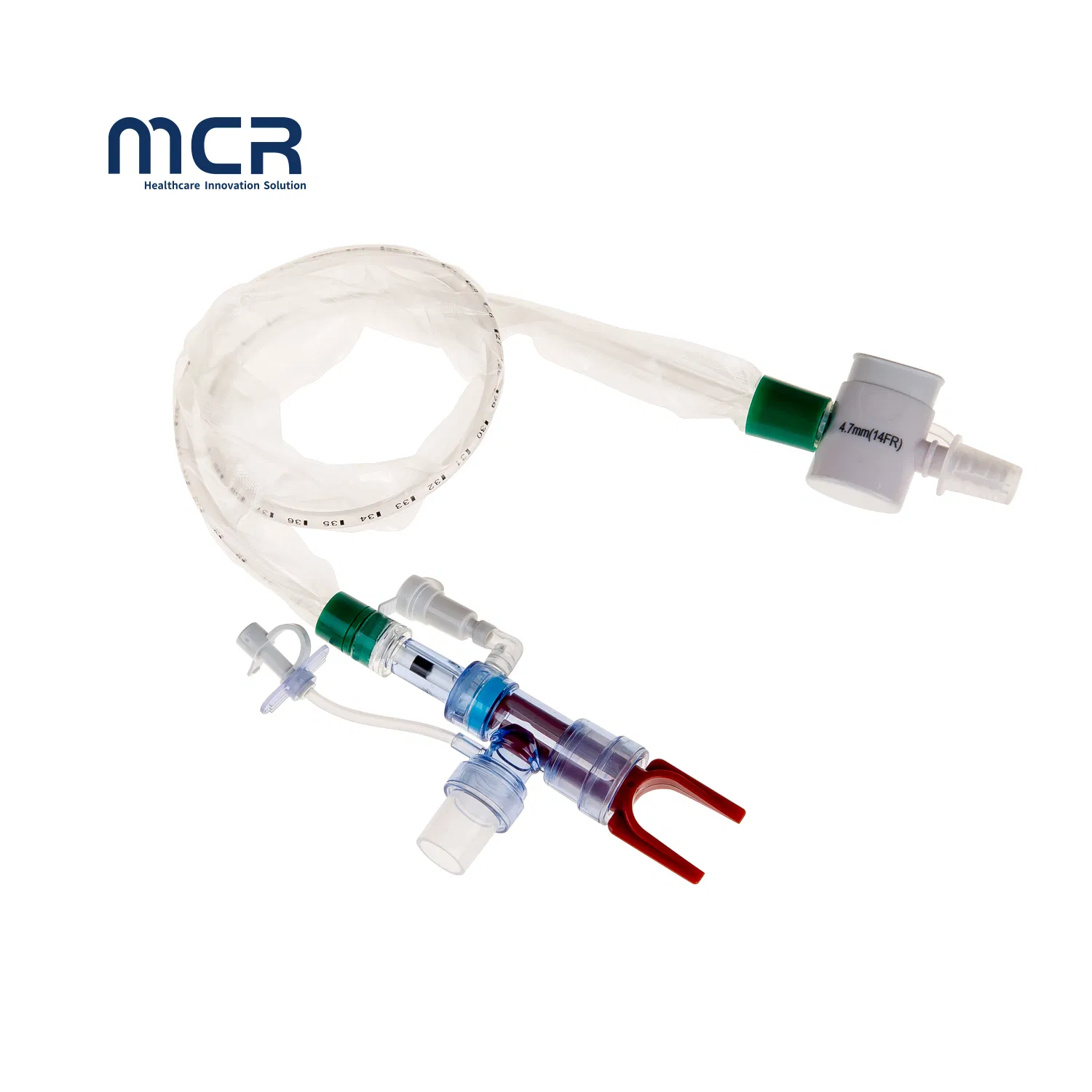

Disposable 72h Automatic Flushing L-Type Double Swivel Closed Suction System
The 72-hour closed suction catheter is a premium respiratory care solution designed to remove secretions from the airway while maintaining continuous ventilation and oxygenation. By utilizing a fully enclosed system and a patented turbulent cleaning technology, it significantly reduces the risk of Cross-Infection, Ventilator-Associated Pneumonia (VAP), and Ventilator-Associated Events (VAE).
Applications
Mechanical ventilation patients in ICU, CCU and emergency departments, Tracheostomy patients requiring long-term airway management. Patients with ARDS, COPD and other respiratory disorders, Post-operative patients needing respiratory support, Patients at high risk of cross-infection.
Core Clinical Benefits
- Patented Automatic Flushing Technology: Features a unique isolated turbulent cleaning chamber. Achieves 89% higher catheter tip cleanliness compared to standard systems.
- 72 Hours Extended Use Duration: High-quality seamless PU protective sleeve allows safe use for up to 72 hours, reducing healthcare costs.

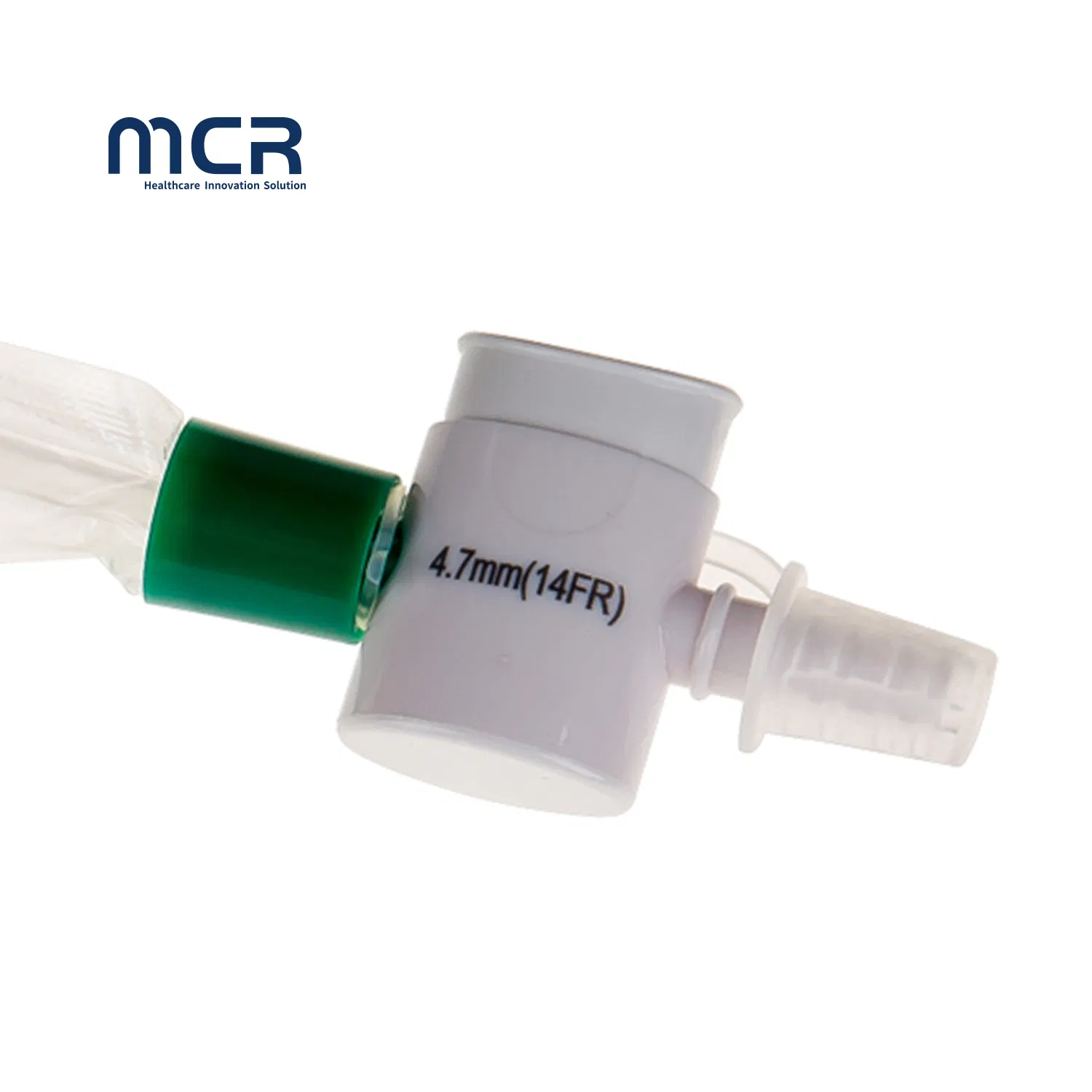

- Precision Engineering: Hinged Isolation Valve effectively isolates the catheter tip and prevents inadvertent lavage.
- Atraumatic Soft Blue Tip: Minimizes mucosal trauma during suctioning, ensuring patient safety and comfort.

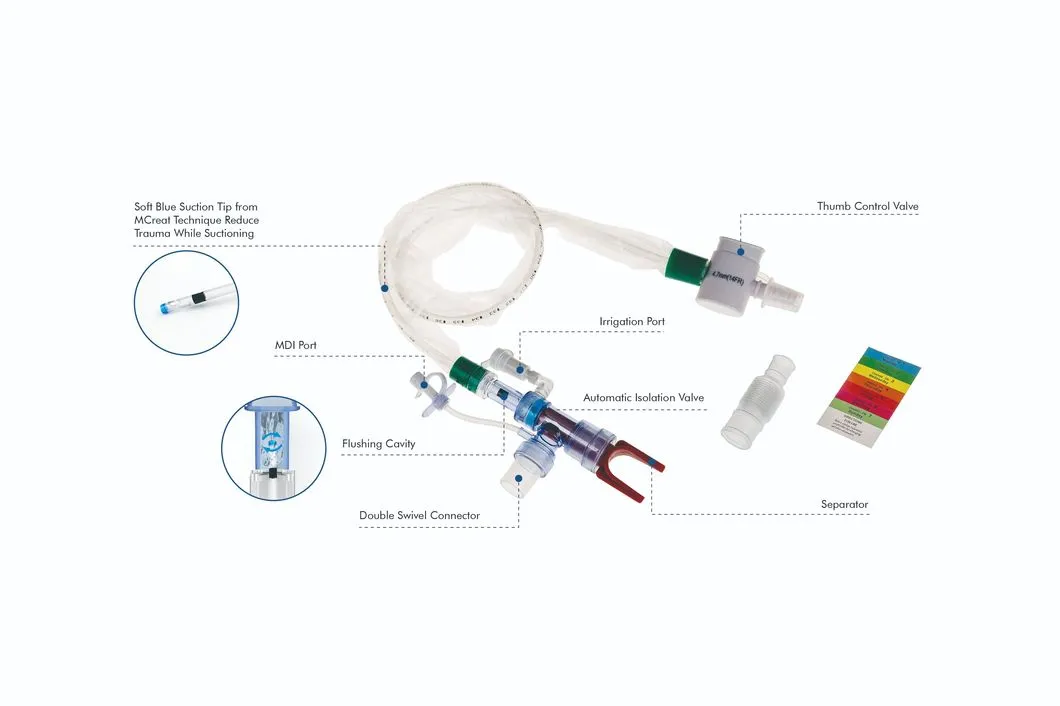

Innovative Features
- Double Swivel L-Type Elbow: 360° connector offers flexibility, eliminates tubing kinks, and reduces strain.
- Full Closed System Protection: Prevents aerosol spread and protects healthcare workers from infectious secretions.
- Accurate Depth Markings: Permanent centimeter markings for precise control of insertion depth.
- Ergonomic One-Hand Operation: Equipped with a wedge separator for easy disconnection and clip functions.
- Integrated MDI Port: Allows efficient aerosol medication delivery without breaking the circuit.
Suctioning Procedure
1. Grip the three-way adaptor in one hand and feed the suction catheter into the tube to the required depth using the markings for guidance.
2. Once in position, depress the vacuum control valve to begin suctioning.
3. Remove the suction catheter until the protective sleeve is straight.
4. Repeat as necessary according to clinical guidelines.
Specifications
| Colour Code |
Size |
Tube OD (mm) |
Length (mm) |
Product Code |
| Black | Adult/72H/Endotracheal | 10Fr(3.35mm) | 600mm | MC-07210 |
| White | Adult/72H/Endotracheal | 12Fr(4.05mm) | 600mm | MC-07211 |
| Green | Adult/72H/Endotracheal | 14Fr(4.75mm) | 600mm | MC-07212 |
| Orange | Adult/72H/Endotracheal | 16Fr(5.45mm) | 600mm | MC-07213 |
| Black | Adult/72H/Tracheostomy | 10Fr(3.35mm) | 300mm | MC-07200 |
| White | Adult/72H/Tracheostomy | 12Fr(4.05mm) | 300mm | MC-07201 |
| Green | Adult/72H/Tracheostomy | 14Fr(4.75mm) | 300mm | MC-07202 |
| Orange | Adult/72H/Tracheostomy | 16Fr(5.45mm) | 300mm | MC-07203 |
Product Qualification & Quality Control

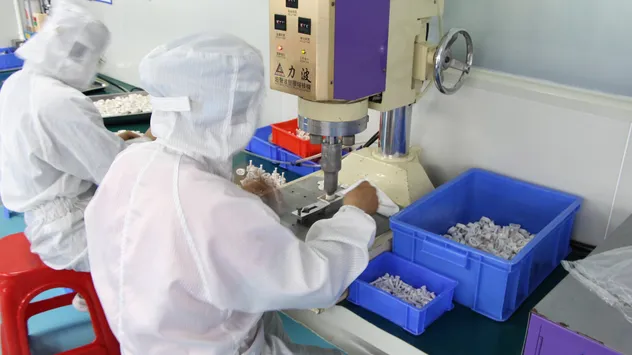

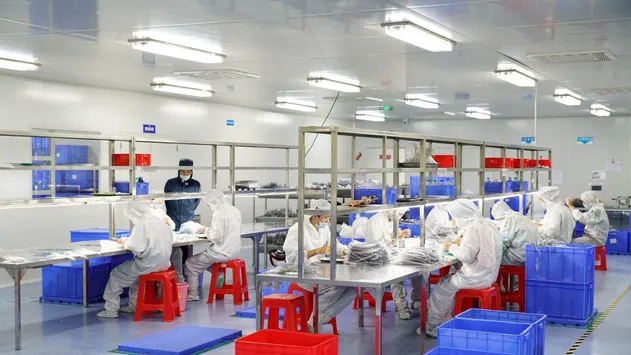

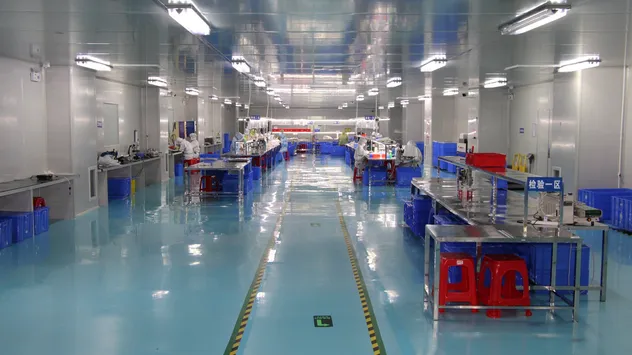

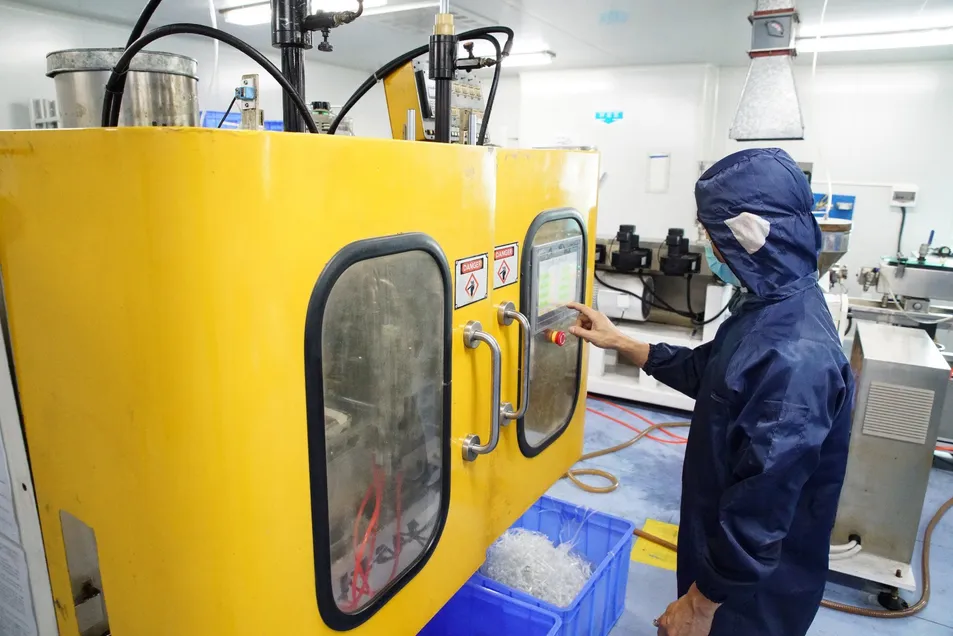

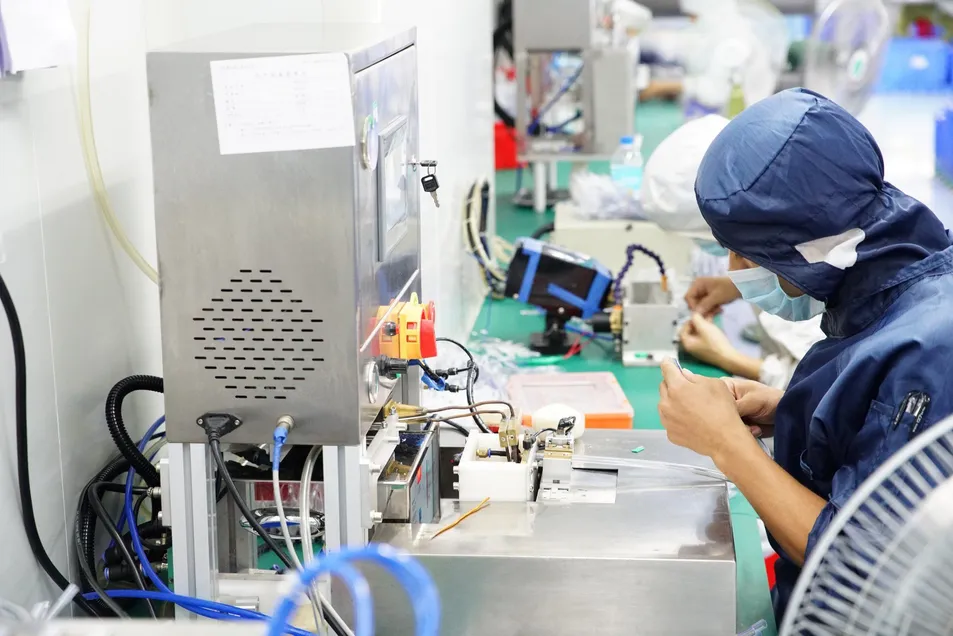

Operating under ISO 13485 quality control systems, products are CE certificated. Produced in Cleanroom environments with strict SOP adherence for trackable production processes. Finished goods testing reports are provided for every shipment.
Global Presence & Packaging
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer with 10 years of experience in disposable medical products, serving customers in over 88 countries.
What is the standard lead time?
Typically 15-30 working days after payment and artwork confirmation, depending on order quantity and packaging requirements.
Do you offer OEM/Private Label services?
Yes, we provide comprehensive OEM services including private logo and label printing upon legal authorization.
How can I obtain samples?
We provide free samples for quality testing; customers only need to cover the shipping costs, which can be deducted from future bulk orders.
What certifications do your products hold?
Our products have passed FDA, CE, ISO, FSC, and GMP certifications to ensure the highest medical standards.
Why choose this system?
We offer the best balance of clinical safety, patented flushing technology, and competitive pricing, backed by rigorous quality control.
