Product Description

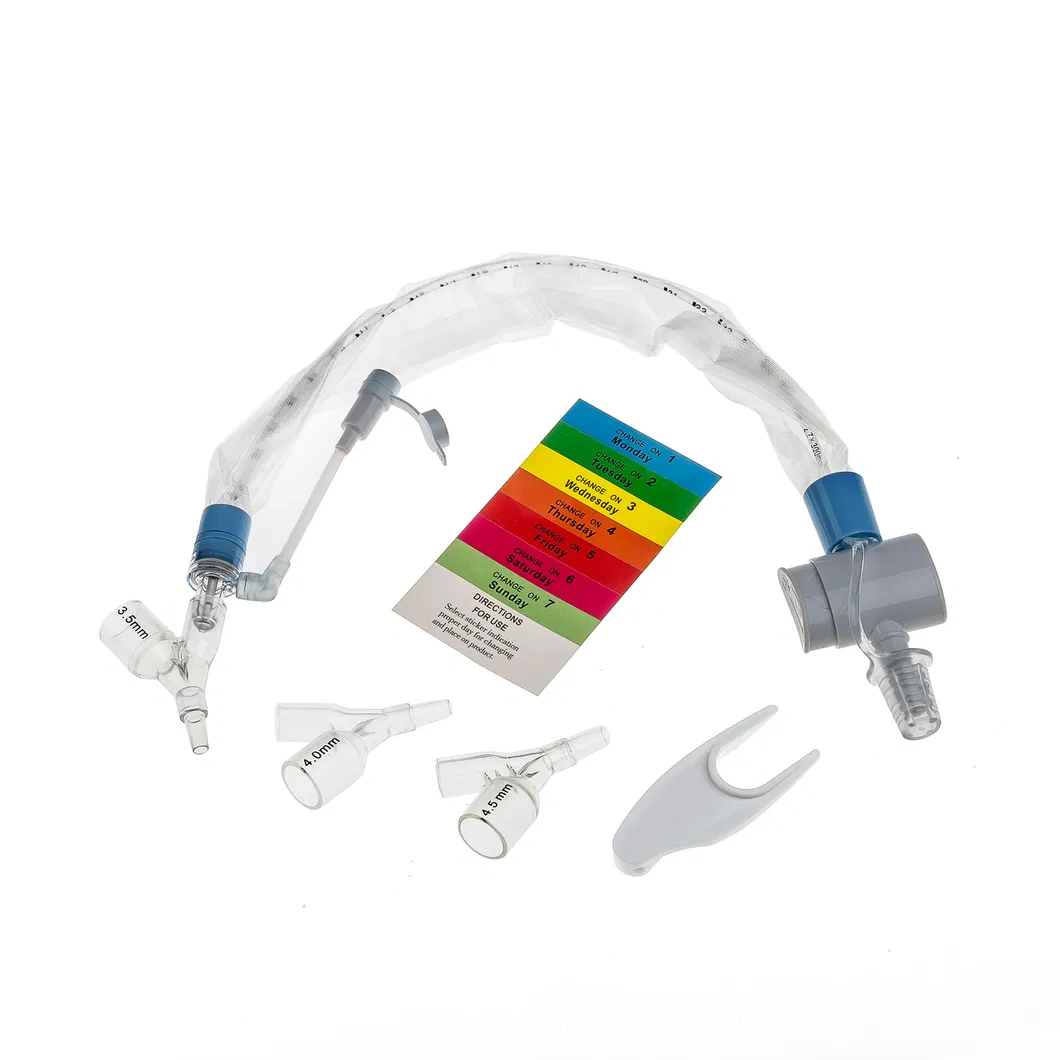

Disposable Closed Suction System Child Type 24H

This system is designed with a protective sleeve to isolate the germs inside and help caregivers avoid cross-infection. Simultaneously ventilation design allows the patients comfort of suctioning without stopping the air ventilation.

Key Features

🫁

Continuous Breathing Simultaneously ventilation for patient comfort during suctioning.

🔹

Soft Blue Suction Tip Reduces damage to the patient while suctioning; easier for irrigational cleaning.

📐

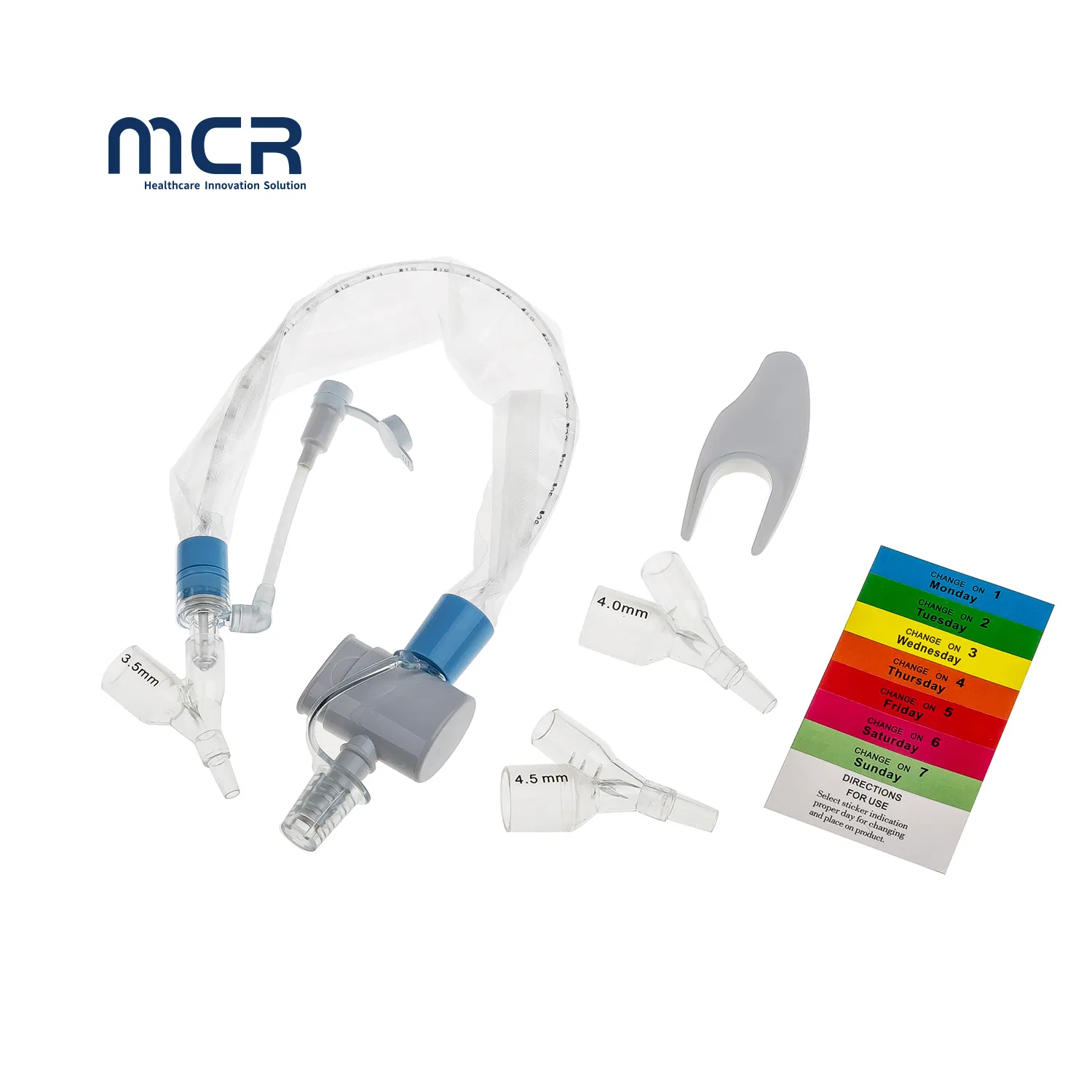

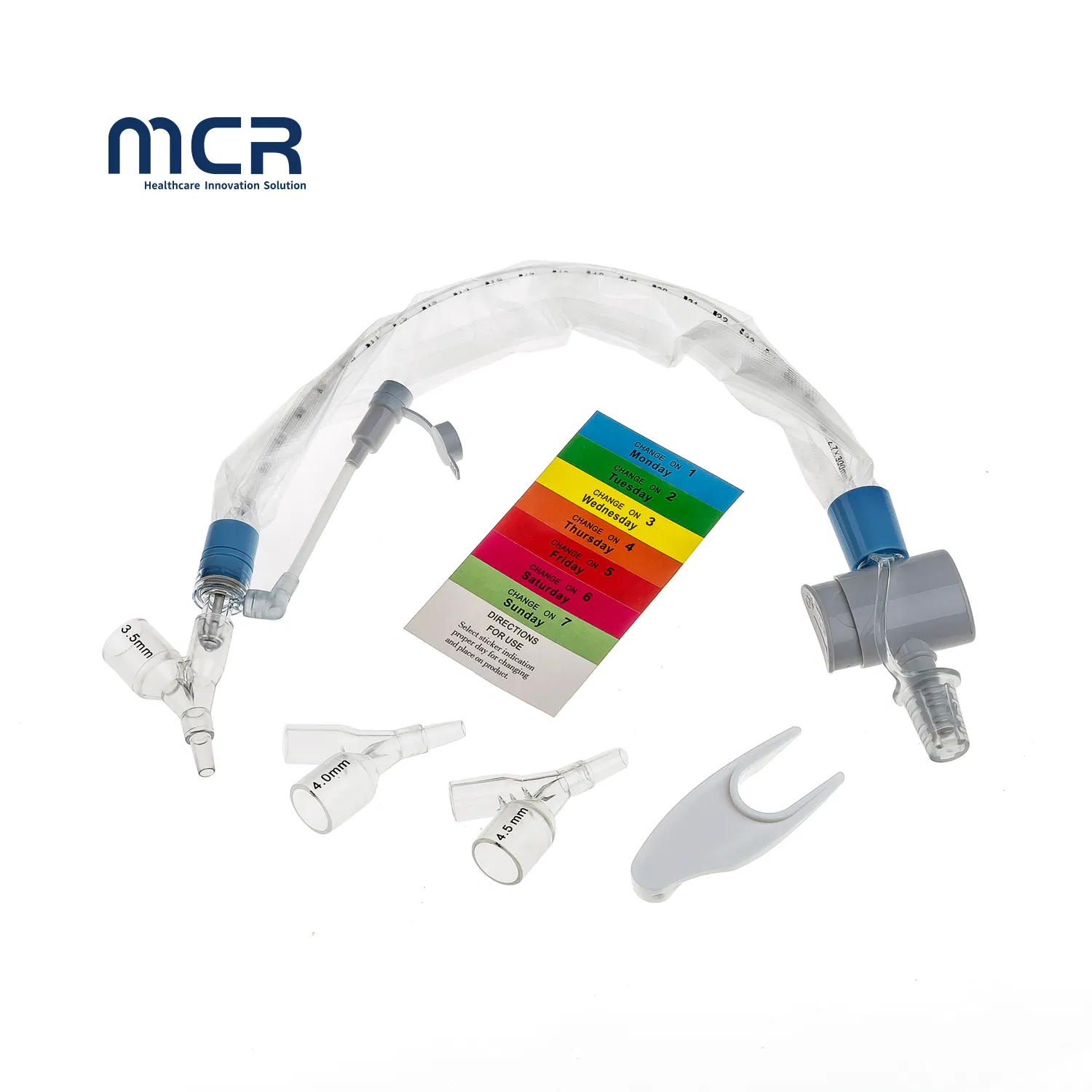

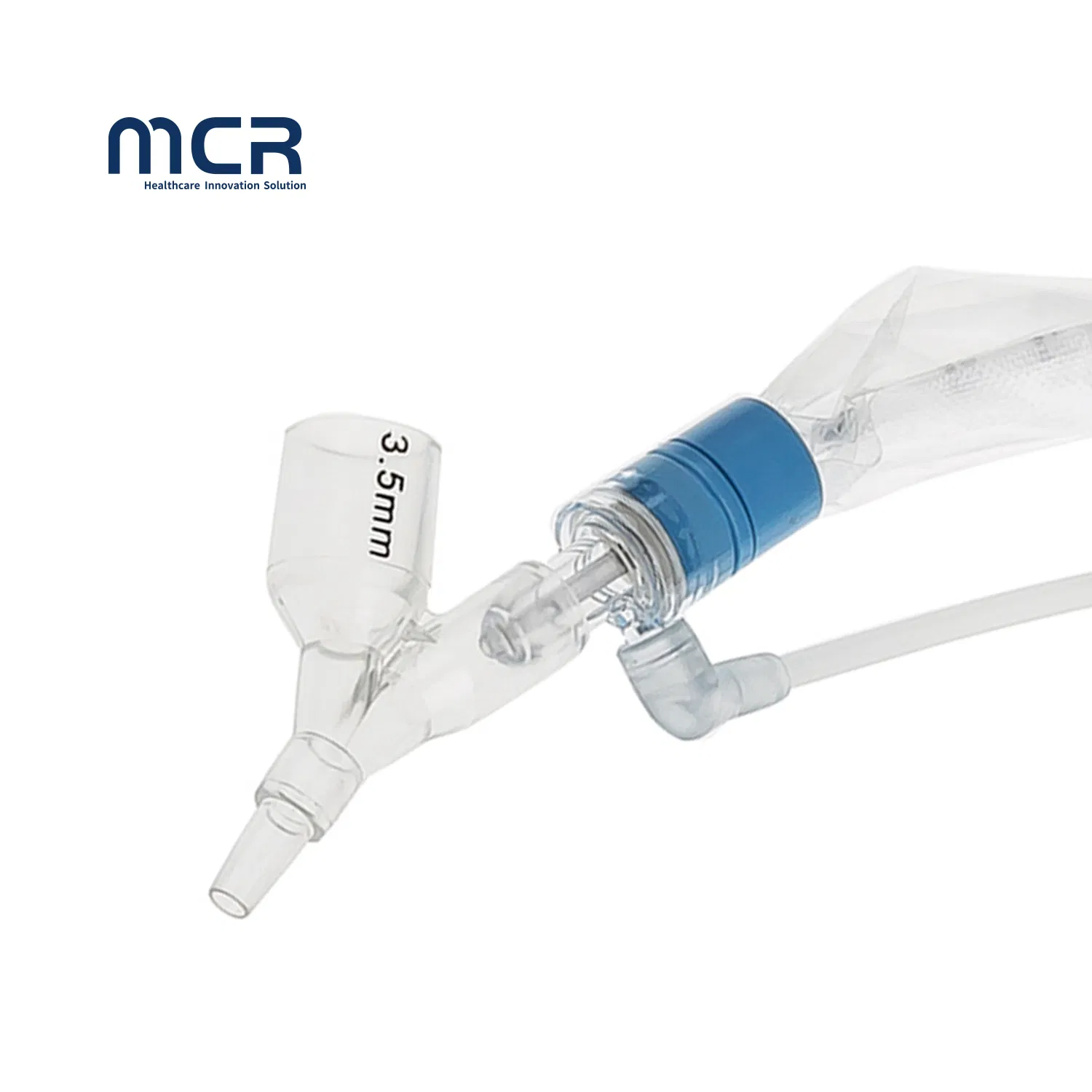

Y Connector Type ET "Y" neonatal and pediatric care adapters available for 5Fr to 8Fr sizes.

✂️

Disconnecting Wedge Equipped with both disconnecting and clipping functions.

🛡️

Prevent Cross Infection Protective sleeve isolates bacteria inside to protect caregivers.

💧

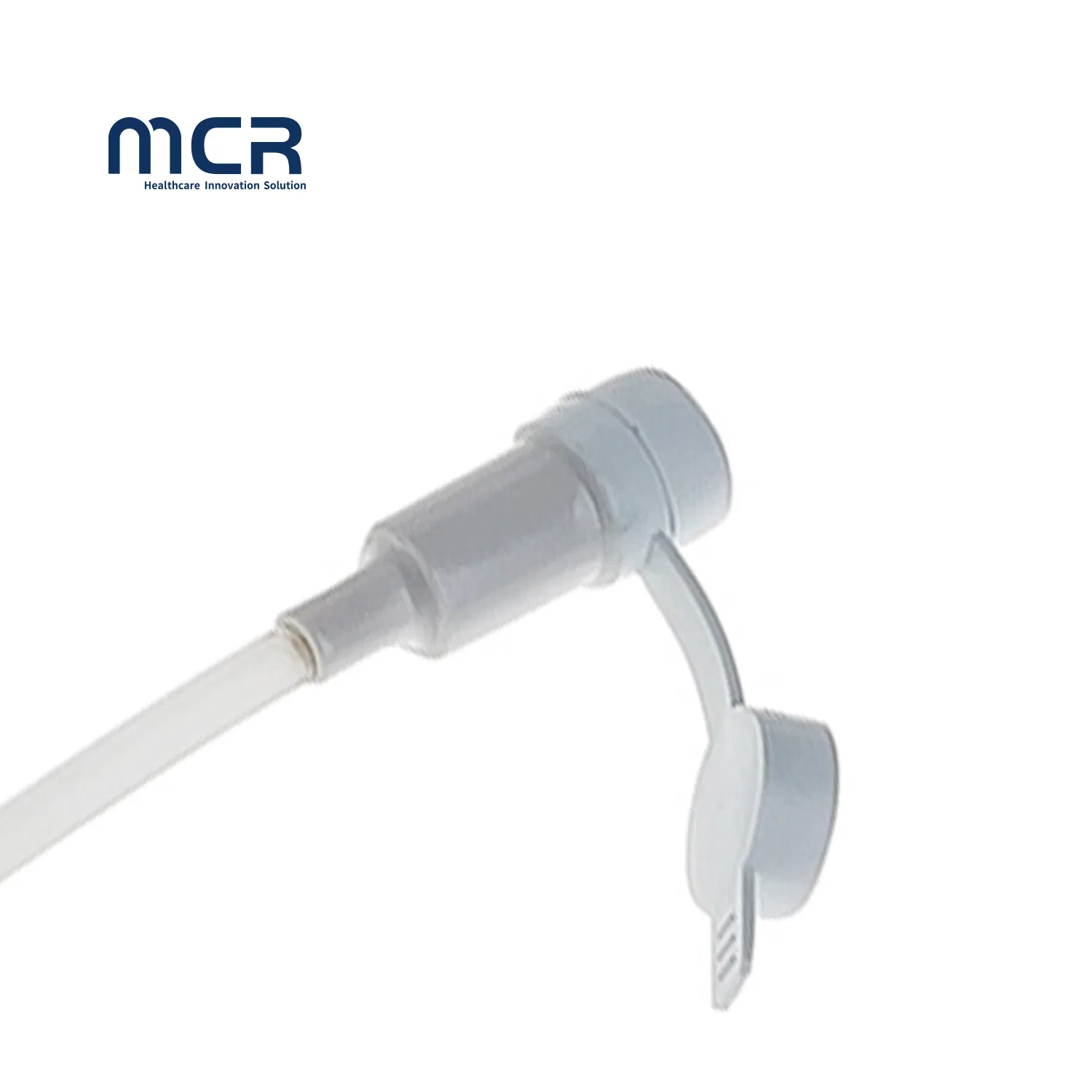

Irrigation Port Non-return valve prevents backflow leakage and secretion contamination.

Product Data Sheet

Colour	Size	Specification & Description	Tube OD	Length	Product Code
Grey	Neonatal/24H	"Y" Endotracheal Tube Adapter (2mm, 2.5mm, 3.0mm)	5Fr (1.7mm)	300mm	MC-02440
Light Green	Neonatal/24H	"Y" Endotracheal Tube Adapter (2.5mm, 3mm, 3.5mm)	6Fr (1.95mm)	300mm	MC-02441
Ivory	Pediatric/24H	"Y" Endotracheal Tube Adapter (2.5mm, 3mm, 3.5mm)	7Fr (2.3mm)	300mm	MC-02442
Light Blue	Pediatric/24H	"Y" Endotracheal Tube Adapter (3mm, 3.5mm, 4mm)	8Fr (2.7mm)	300mm	MC-02443
Black	Pediatric & Child/24H	"Y" Endotracheal Tube Adapter (4.5mm, 5mm, 5.5mm)	10Fr (3.35mm)	400mm	MC-02444
White	Big Child/24H	"Y" Endotracheal Tube Adapter (5.5mm, 6mm, 6.5mm)	12Fr (4.05mm)	400mm	MC-02445

We can produce the closed suction catheter according to customers' requirements!

📋 Set up Procedure

Inspect the product before use. Do not use if package is not intact.

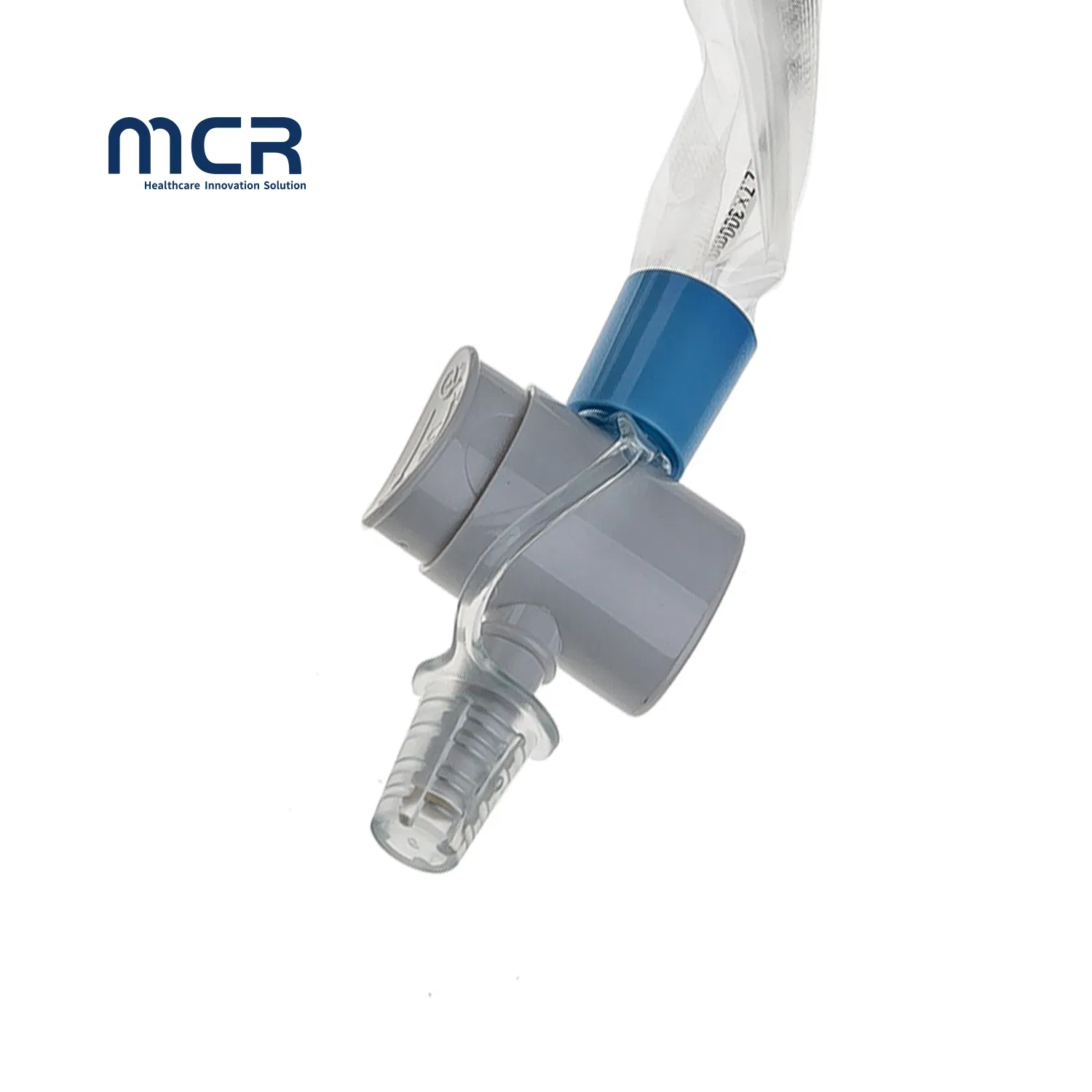

Connect the Endotracheal/Tracheostomy Tube to the Revolvable adapter.
Connect ventilator tube to the Revolvable Ventilator Connector.
Attach the date label to the color ring.
Ensure irrigation port cap is closed before suctioning.
Ensure on-off valve is in the open position.

🩺 Suctioning Procedure

Grip the three-way adaptor and feed the catheter to the required depth (visible through protective cover).
Once in position, depress the vacuum control valve to begin suctioning.
Remove the catheter until the protective sleeve is straight.
Repeat steps as necessary using recommended vacuum levels.

Visual Gallery

Frequently Asked Questions

Q1: How long can this closed suction system be used? A: This specific model is designed for 24-hour use, providing a safe and effective solution for daily patient care.

Q2: Does suctioning require stopping the ventilator? A: No, the "Simultaneously Ventilation" design allows for continuous air ventilation, ensuring patient comfort and oxygenation during the suctioning process.

Q3: What are the benefits of the protective sleeve? A: The protective sleeve isolates the catheter and germs from the external environment, significantly reducing the risk of cross-infection for both the patient and the caregiver.

Q4: Is the blue suction tip safe for pediatric patients? A: Yes, the soft blue suction tip is specifically designed to minimize mucosal damage during suctioning, making it safer for neonatal and pediatric patients.

Q5: Can it be used with both Endotracheal and Tracheostomy tubes? A: Yes, the system is compatible with both types of tubes, and various lengths are available to suit clinical needs.

Q6: What is the function of the non-return valve on the irrigation port? A: The non-return valve prevents backflow of liquids during cleaning and prevents aerosolized secretions from contaminating the surrounding area.
