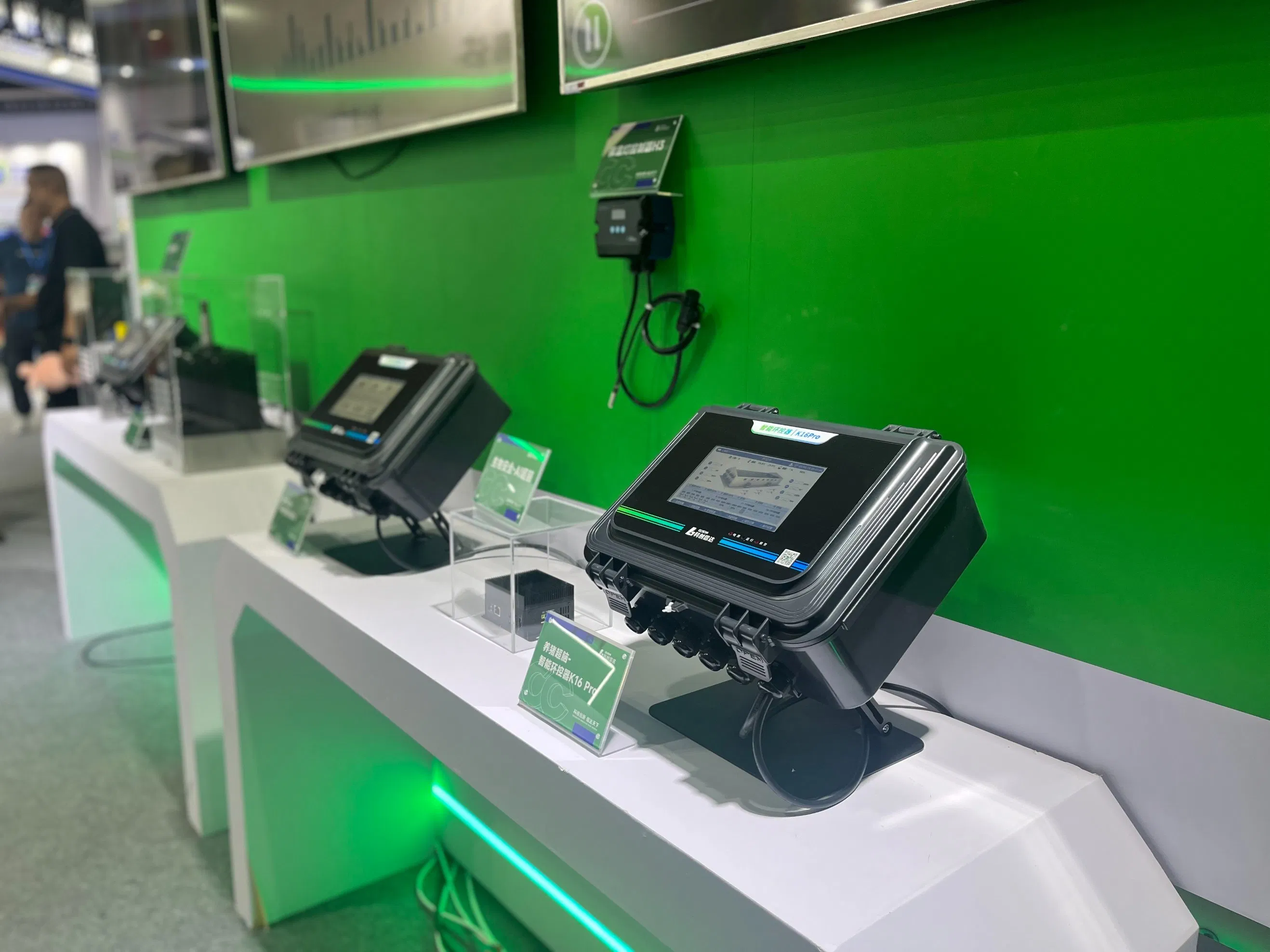

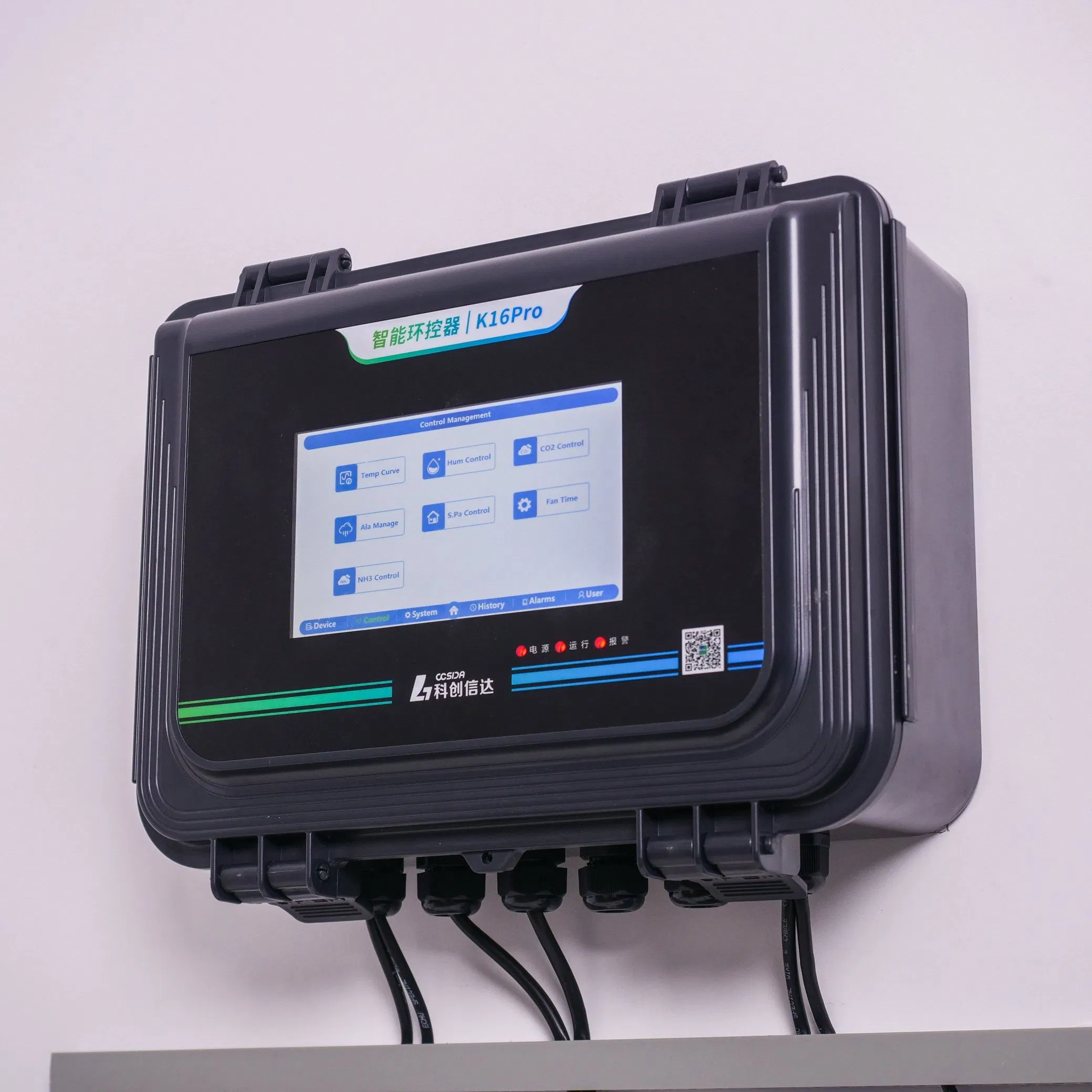

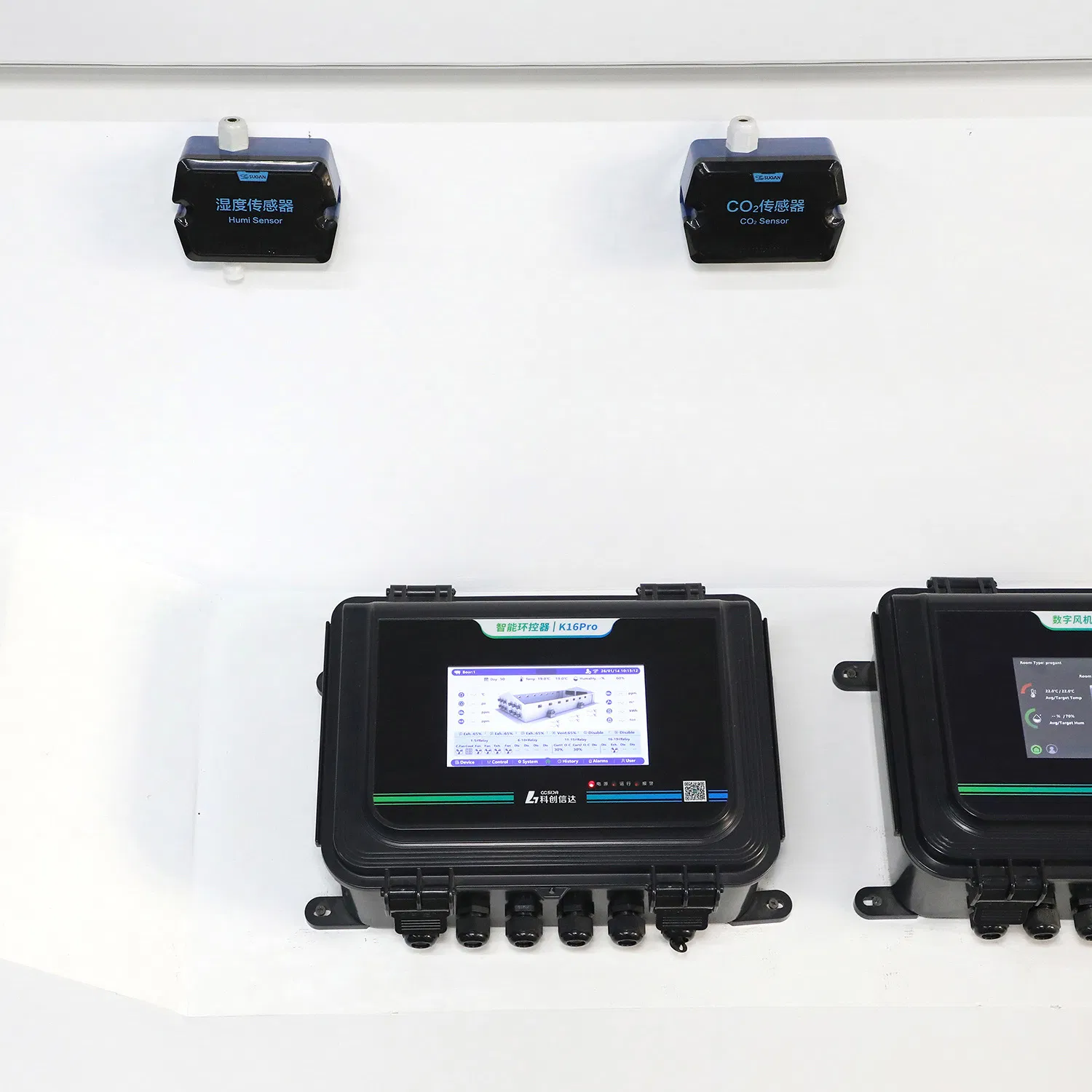

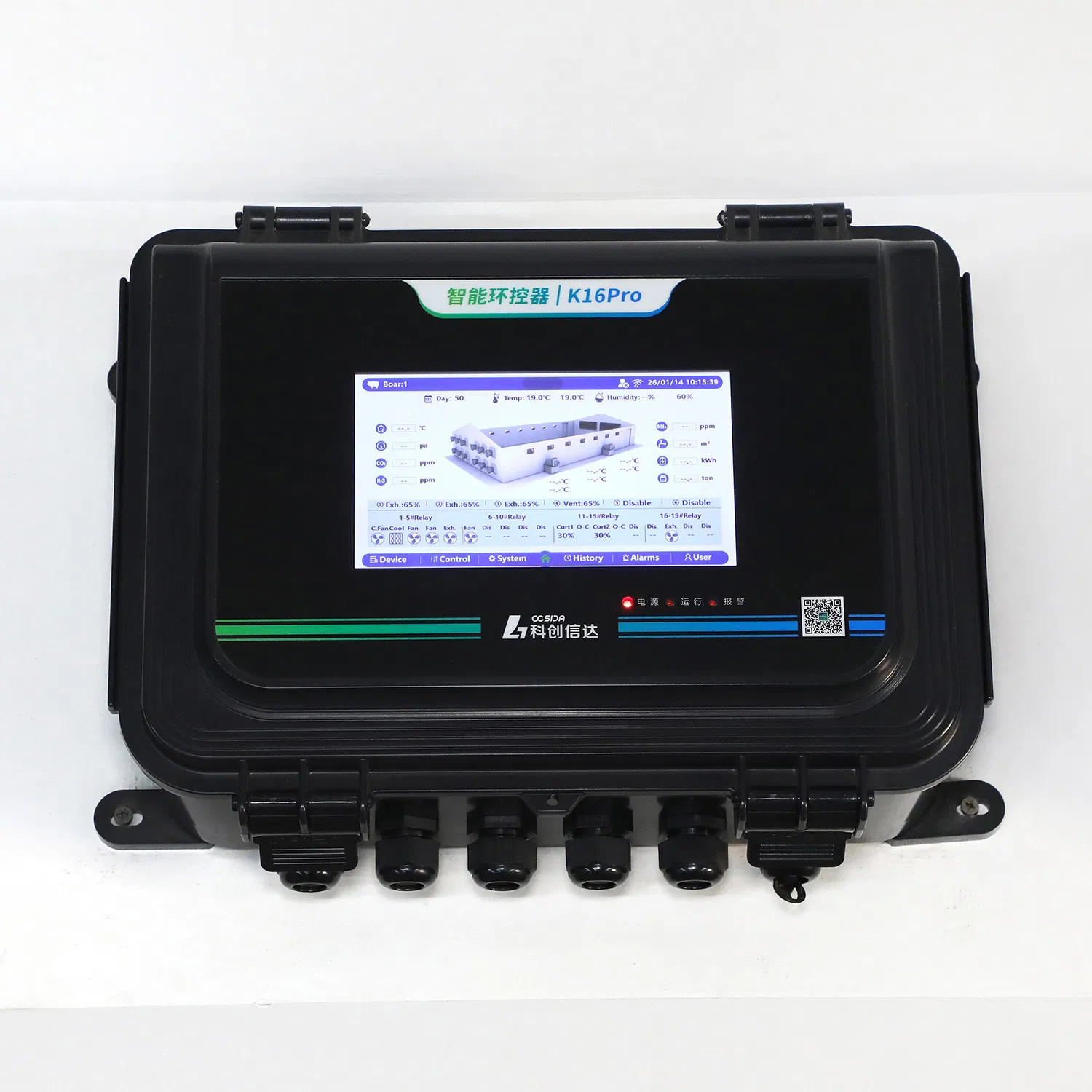

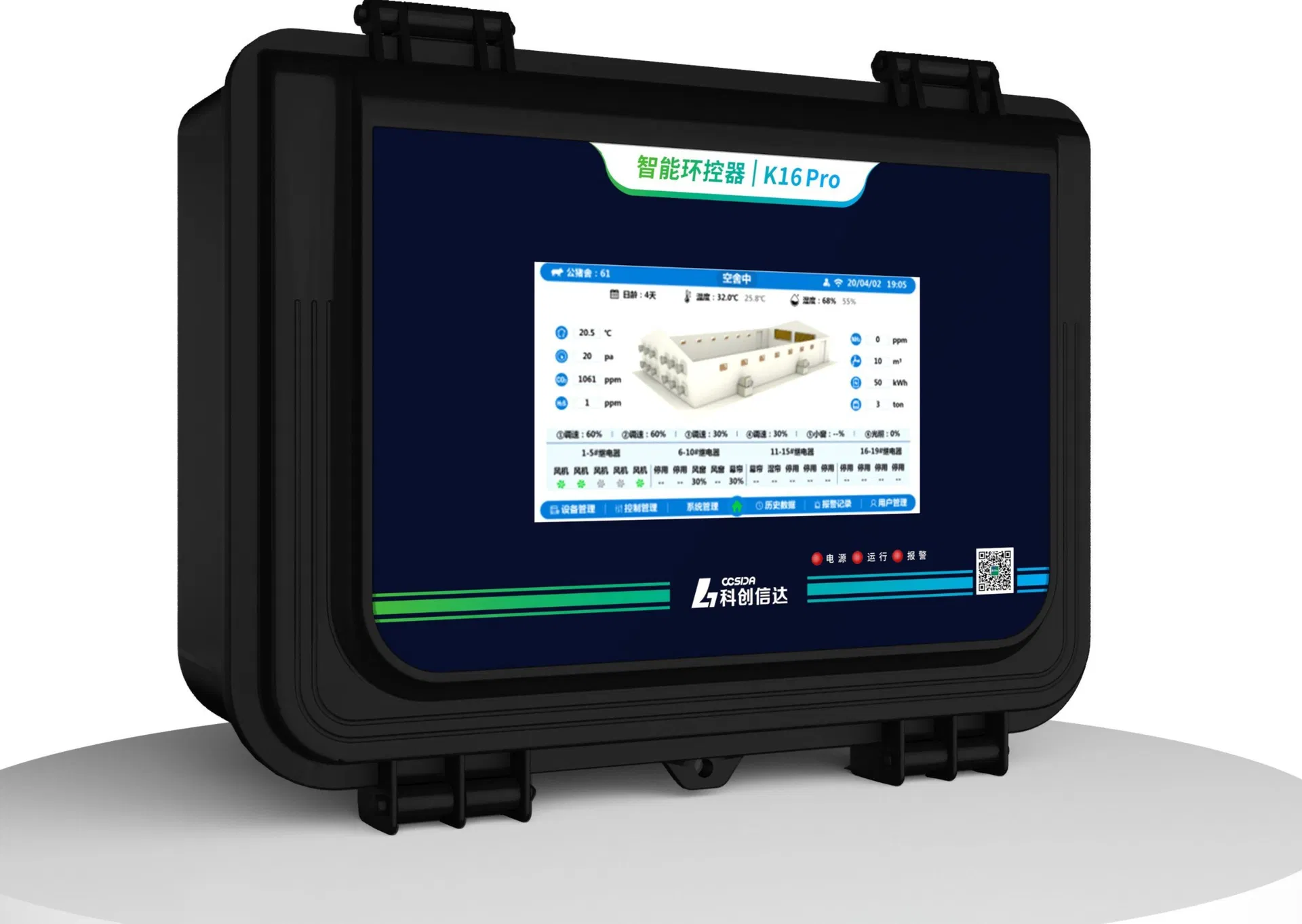

Super Brain Advanced IoT System
Comprehensive Monitoring: Unlike standard controllers, K16Pro monitors H2S (Hydrogen Sulfide) and Static Pressure, which are critical for pig health and efficient ventilation.
Production Management: It doesn't just control the air; it tracks water and feed consumption to give managers a refined view of production data.
Scalability: With 20 relay outputs, it can manage even the largest and most complex modern swine facilities.

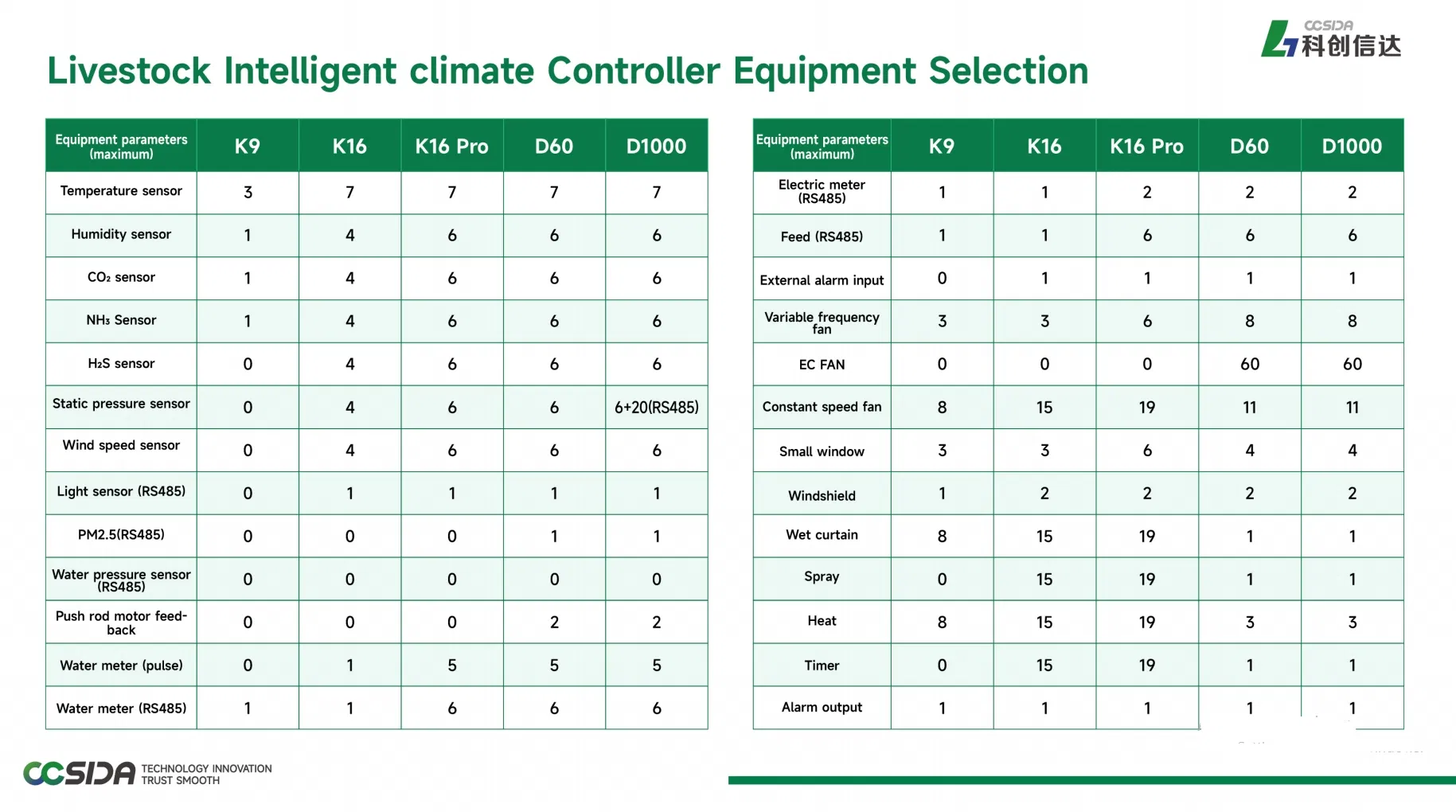

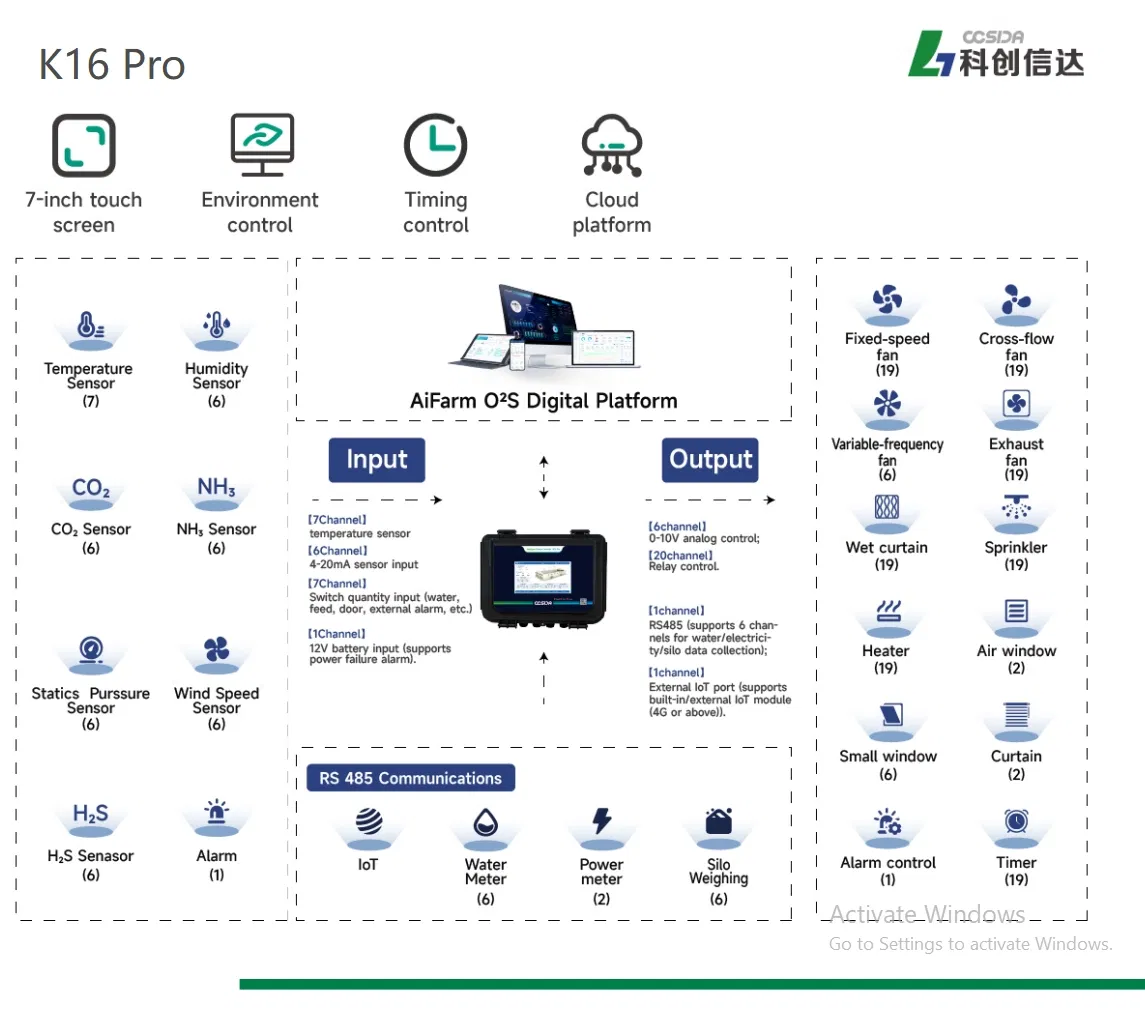

• 7 channels: High-precision temp sensors
• 6 channels: 4-20mA signal (CO2, NH3, H2S, Humidity)
• 7 channels: Switch, water/feed pulse measurement
• 1 channel: 12V battery input (Outage alarm)
• 6 channels: 0-10V analog (Variable frequency fans)
• 20 channels: Relay (Constant speed fans, pumps, heaters, timers, curtains, alarms)
• 3 channels: 485 interface

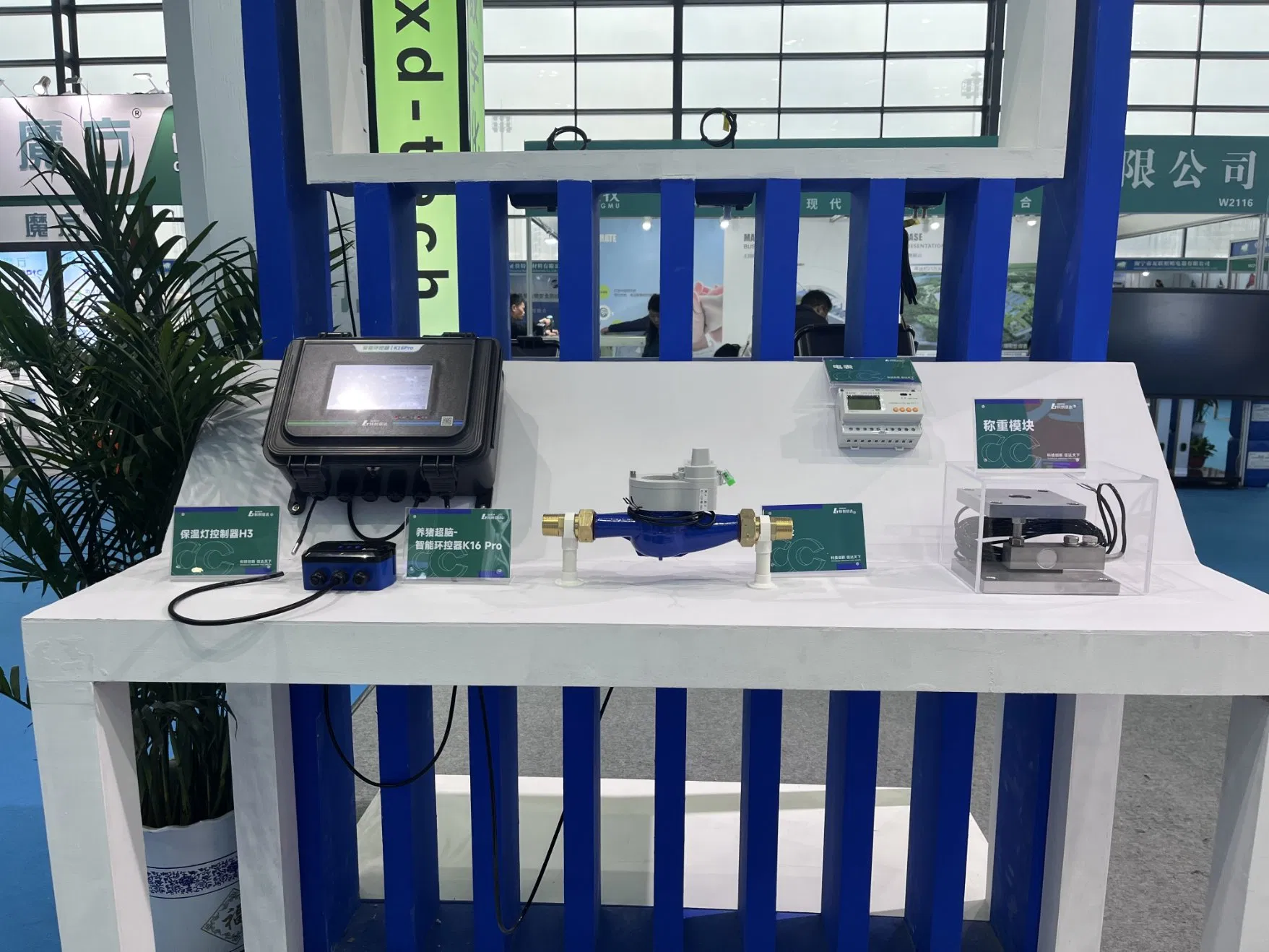

• Supports: Smart sensors, electricity meters, water meters, and IoT expansion

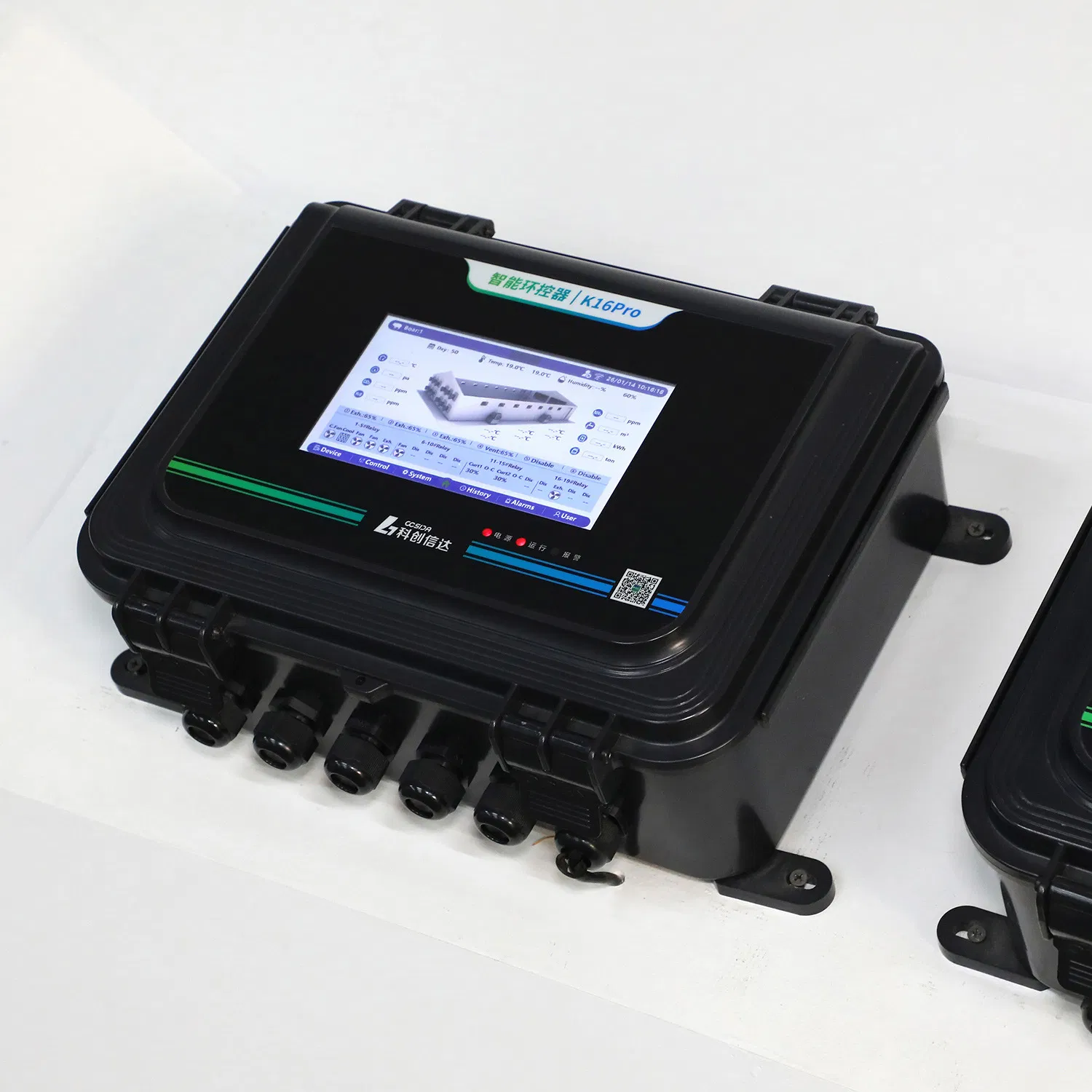

| Model # | K16 Pro | Display | 7 Inch Touch Screen |
| Rated Power | <25W | Relay Output | 20 |
| Minimum Ventilation | Yes | Display Accuracy | 0.1 °c |
| Rated Voltage | AC85-305V, 50/60Hz | HS Code | 8436290000 |
| Specification | 350*250*130mm | Certification | CE & ISO9001:2015 |
| Production Capacity | 10,000 Pcs/Year | Life Span | Above 10 Years |
| Package Weight | 5kg | Package Size | 35.00cm * 25.00cm * 20.00cm |
12 months. Free repair for product failures or damages caused by normal use in accordance with operating instructions.
Professional installation guidance, operation training, and remote fault diagnosis are available with timely response.
Long-term supply of core spare parts (sensors, relays, touch screens, etc.) to ensure continuous equipment operation.
