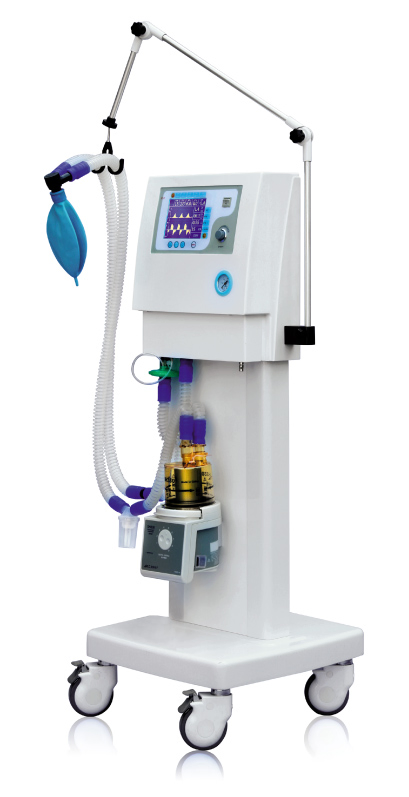

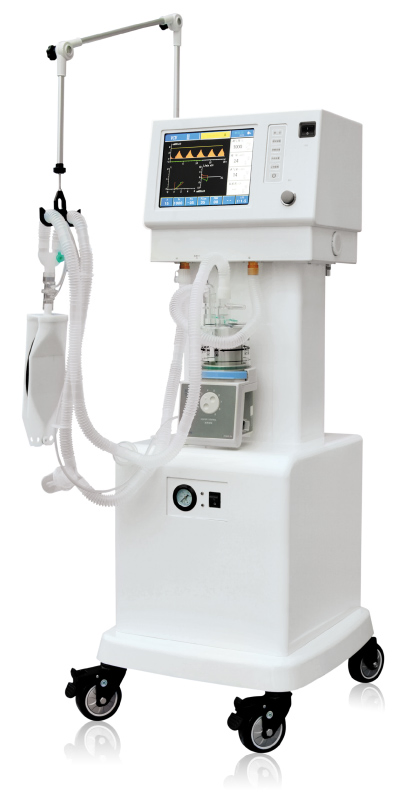

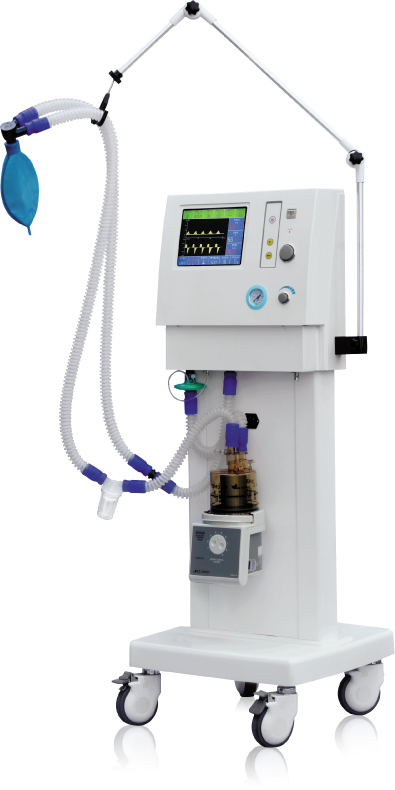

Product Name: Multi-Function ICU Surgical Ventilator machine H-100A
The H-100A is a professional-grade ventilator featuring a 5.7" LCD screen for clear visualization of respiratory parameters. It is designed for multi-function ventilation support in surgical and ICU environments.
| Parameter | Specifications |
|---|---|
| Modes | IPPV(CMV), IPPV+SIGH, SIPPV(A/C), SIMV, MANUAL, SIGH, PEEP, IRV |
| Tidal Volume Range | 50~1500ml (Monitoring: 0~2560ml) |
| Breath Rate | 5~60 bpm (1~12 bpm for SIMV) |
| PEEP Range | 0~2.0 kPa |
| %O2 | 45~100% |
| Inspiratory Time | 0.5~3sec |
| Trigger Level | -1.0~2.0 kPa |
| Minute Volume Alarm | High: 3.0~30L/min | Low: 1.0~10L/min |
| Airway Pressure Alarm | Upper: 1.0~6.0 kPa | Lower: 0.4~2.0 kPa |
The H-100A supports various modes including IPPV, SIPPV, SIMV, PEEP, MANUAL, and SIGH to accommodate different clinical needs.
Yes, it features a 5.7-inch high-definition LCD screen that displays pressure-time and flow-time waveforms alongside all critical respiratory parameters.
The device includes a comprehensive security alarm system for airway pressure (high/low), minute volume, sustained high pressure, suffocation (15s delay), and power failure.
The H-100A is equipped with an internal UPS and storage battery, allowing it to continue operation during AC power interruptions.
The adjustable tidal volume range is from 50ml to 1500ml, making it versatile for different adult respiratory therapy requirements.
