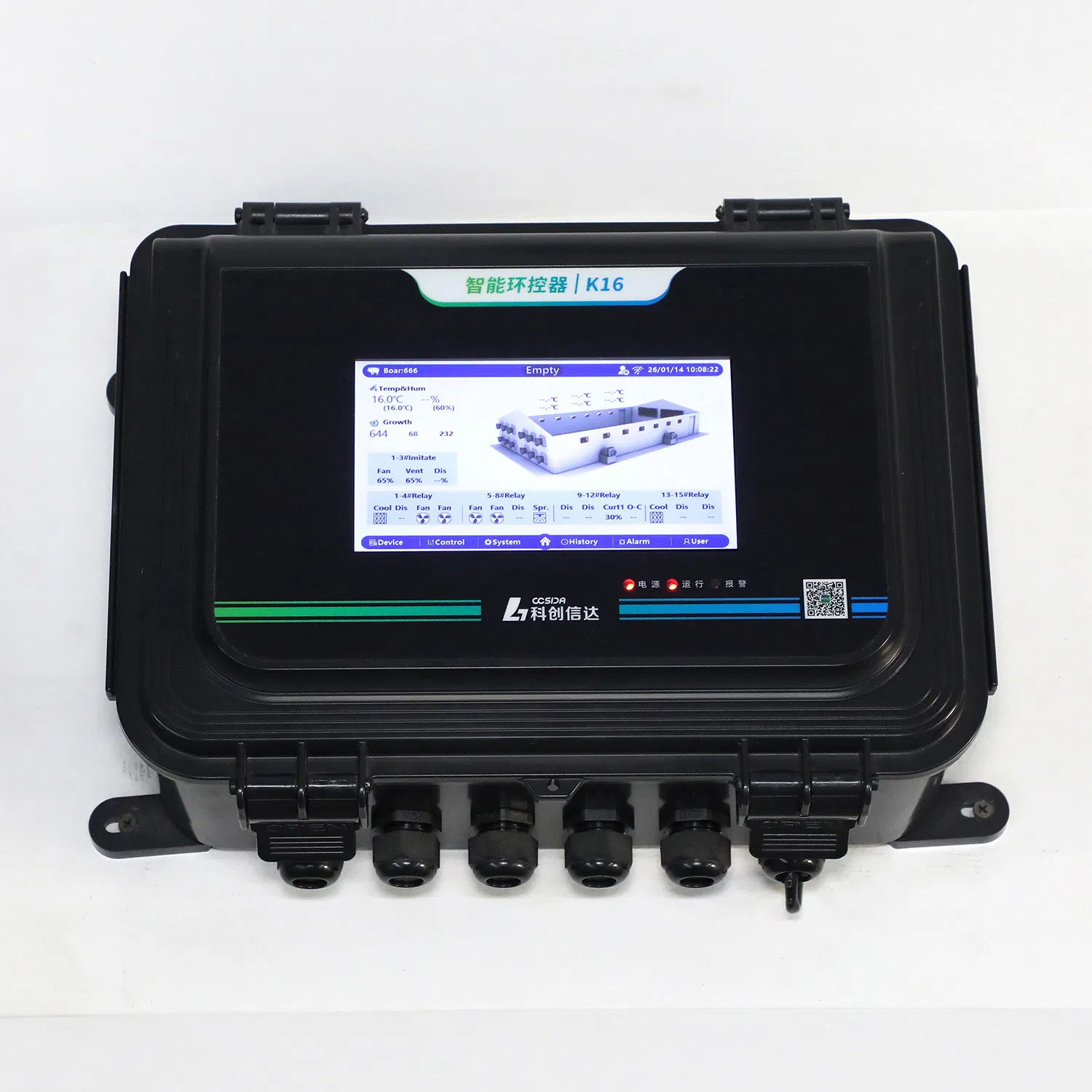

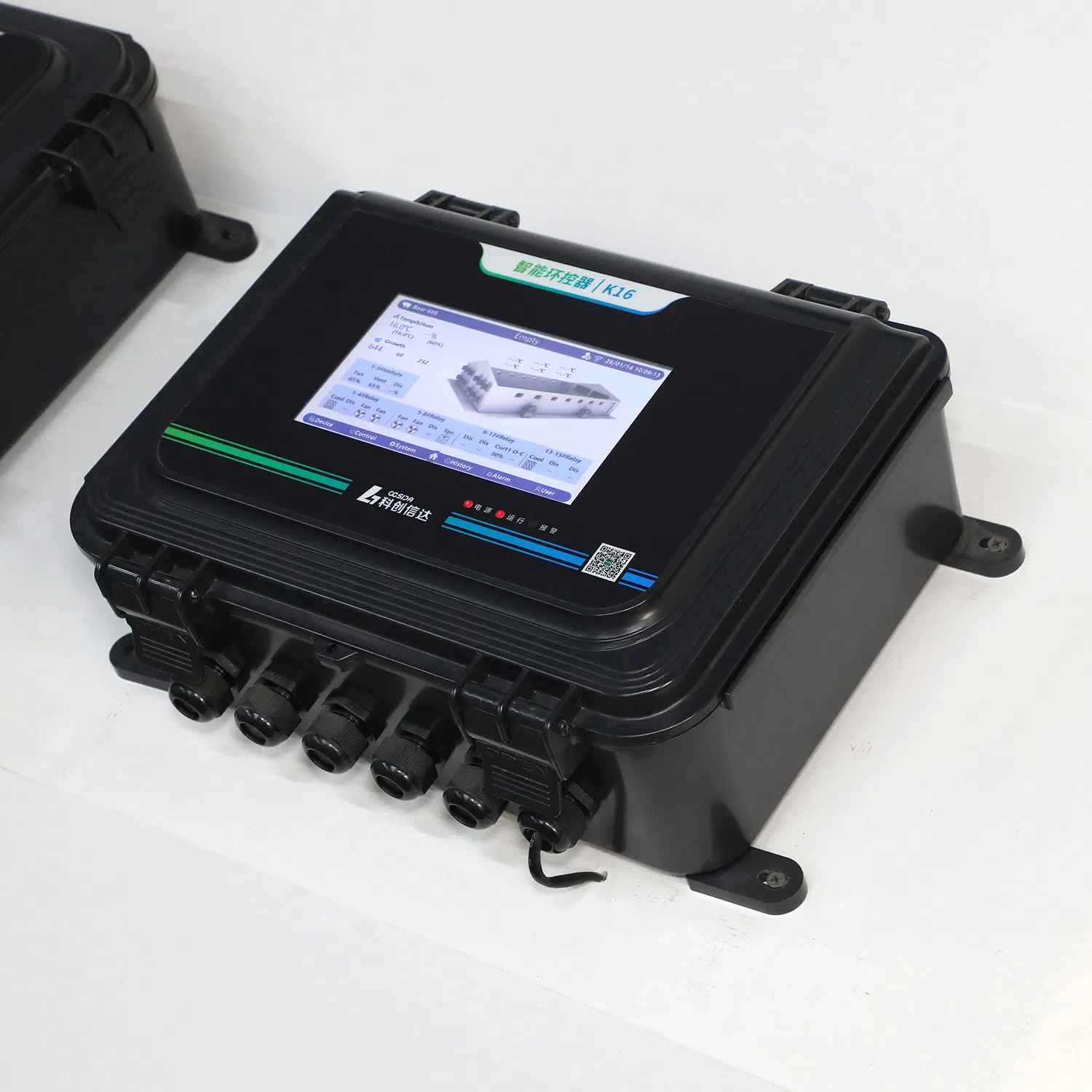

IoT-Enabled K16 Climate Control System with Real-Time Farm Data Sync

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

K16

Control Method

Remote Control, Onsite Control

Rated Power

<25W

Rated Voltage

AC85-305V, 50/60Hz

Display

7 Inch Touch Screen

Protection Level

IP65

Origin

China

HS Code

8436910000

Product Description

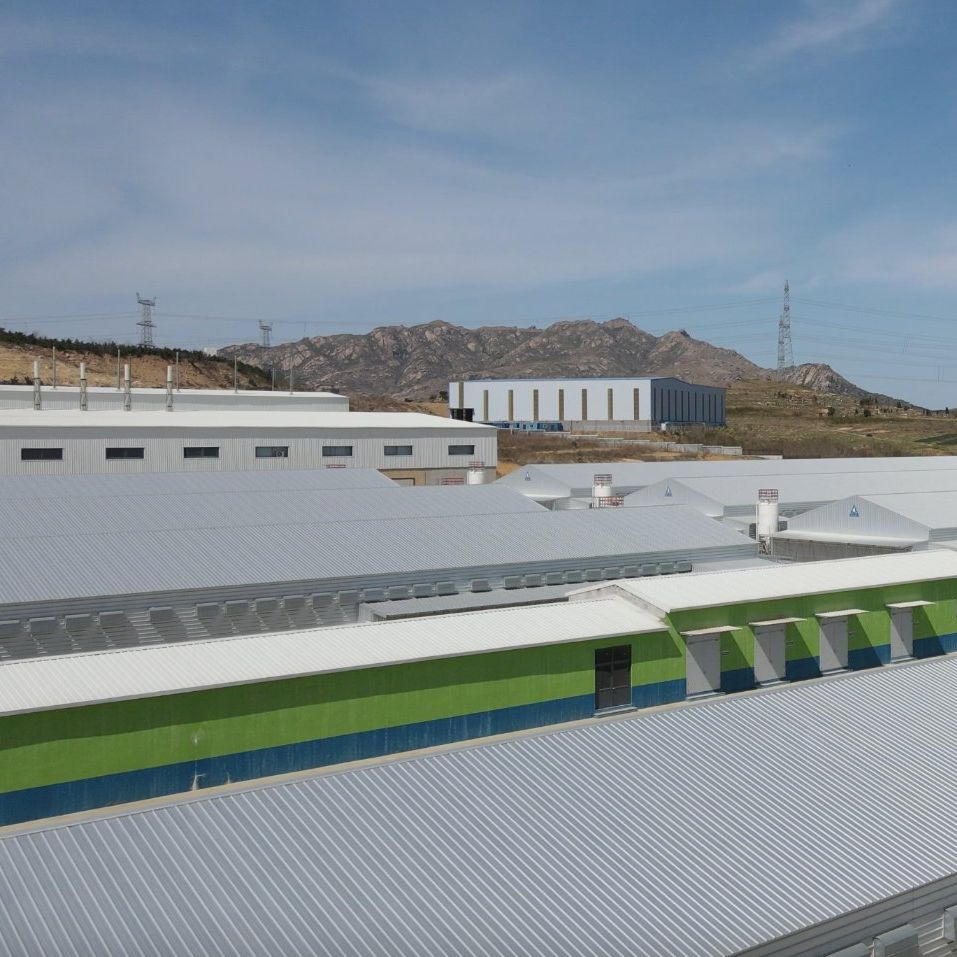

A cost-effective integrated intelligent control device designed for medium and large-scale poultry farms, integrating multi-parameter environmental monitoring, equipment automation control, and production data management. It supports precise regulation of temperature, humidity, and harmful gas concentrations, suitable for standardized breeding facilities to achieve intelligent ventilation, temperature control, and safety protection, reducing labor costs and improving breeding efficiency.

Core Functions

Multi-parameter Monitoring Real-time collection of temperature, humidity, CO2, NH3, and optional H2S/static pressure data to dynamically monitor environmental changes.

Comprehensive Equipment Control Automatically regulates variable-speed fans, fixed-speed fans, small windows, heaters, wet curtains, spray systems, and curtains.

Intelligent Curve Setting Supports up to 10 segments of day-age-based temperature curves, adapting to different growth stages automatically.

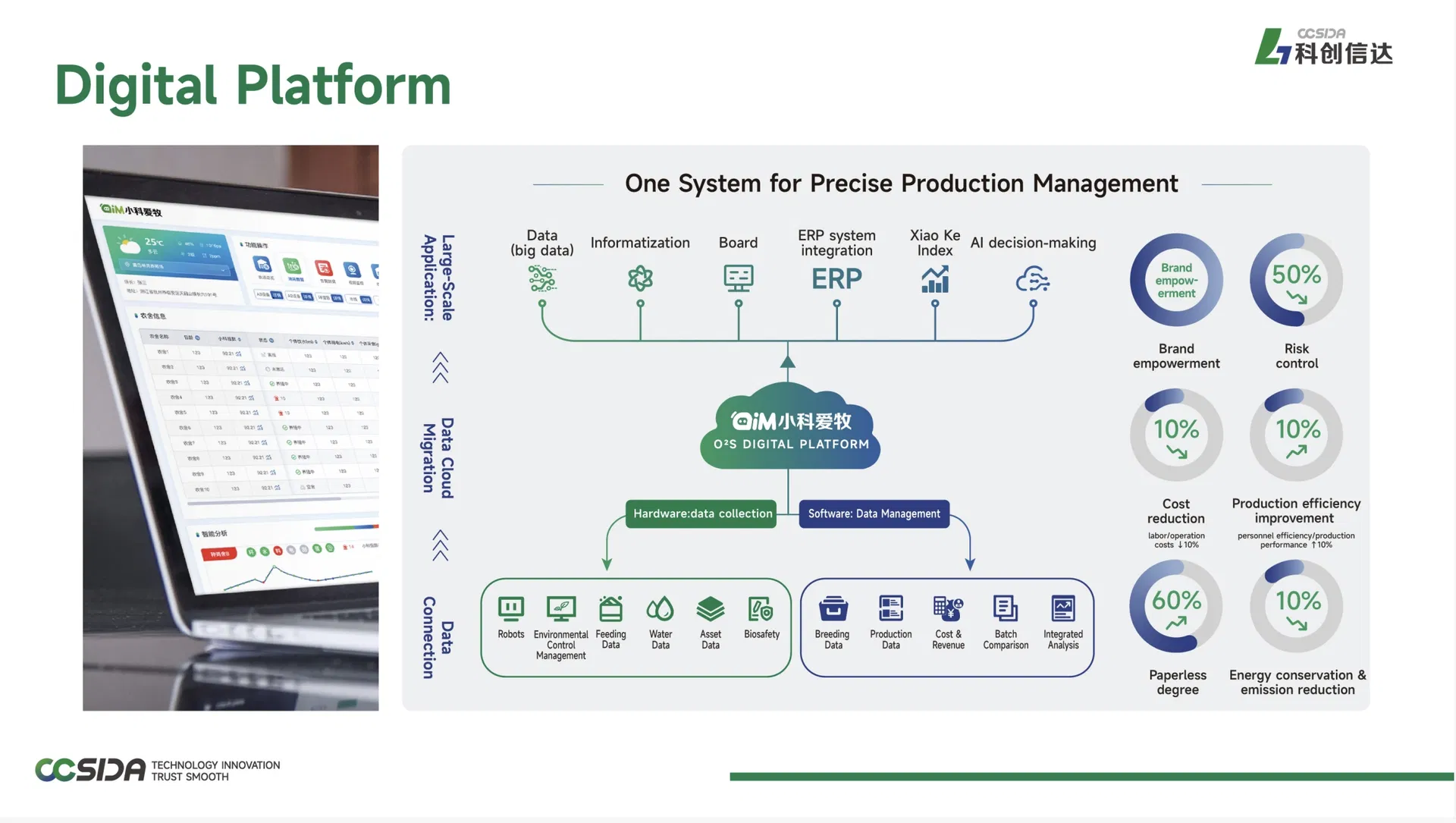

Dual-mode Management Local control via 7-inch color touchscreen + remote management through IoT platforms (supports mobile/PC access).

Production Data Management Records water/electricity/feed consumption, animal stock, and mortality; supports USB export for breeding analysis.

Comprehensive Alarms Alerts for sensor faults, environmental parameter overruns, and external equipment failures with remote transmission.

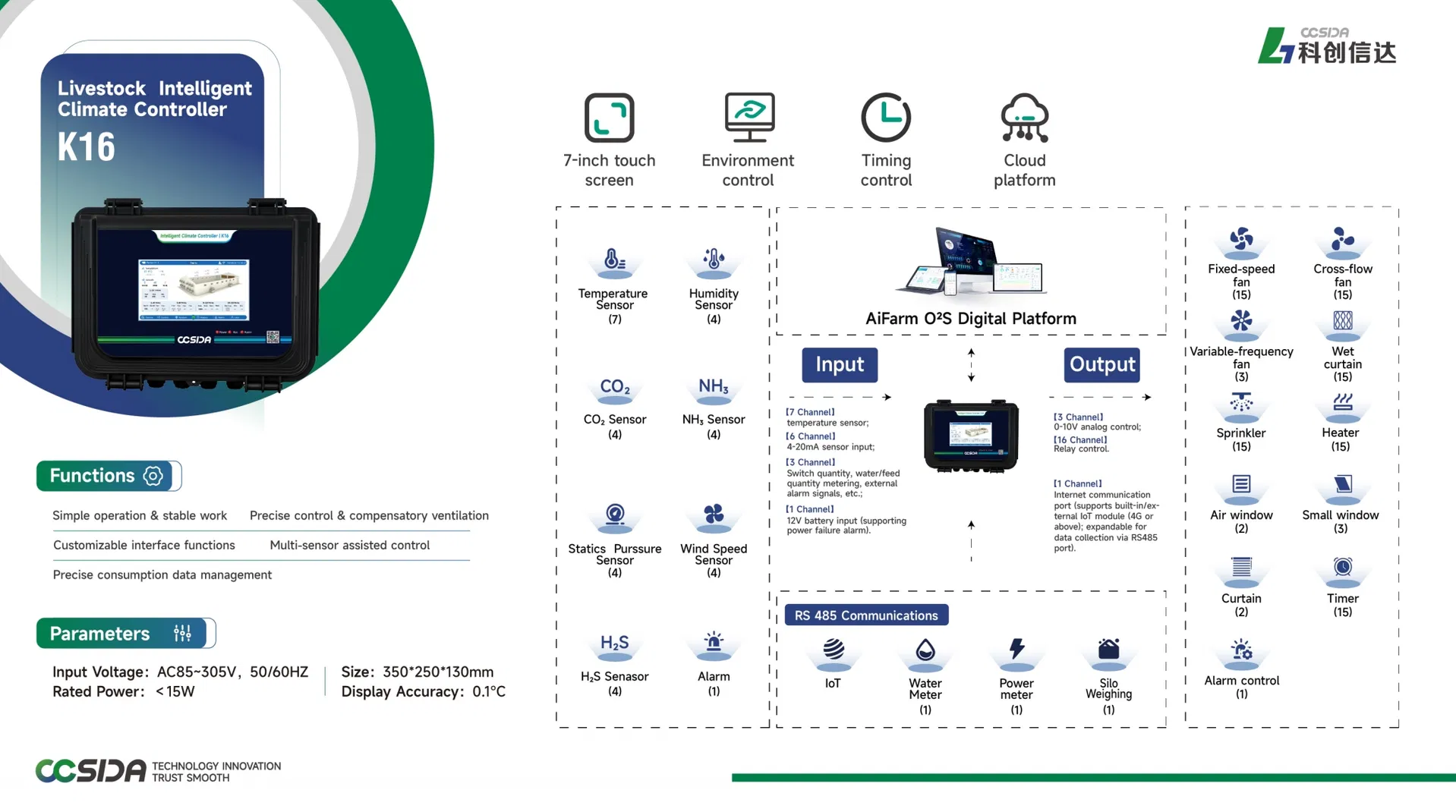

Technical Specification

Item	Specification
Input Voltage	AC85-305V, 50/60HZ
Rated Power	<15W
Operating Temperature	-30-60℃ (indoor)
Dimensions	350250130mm

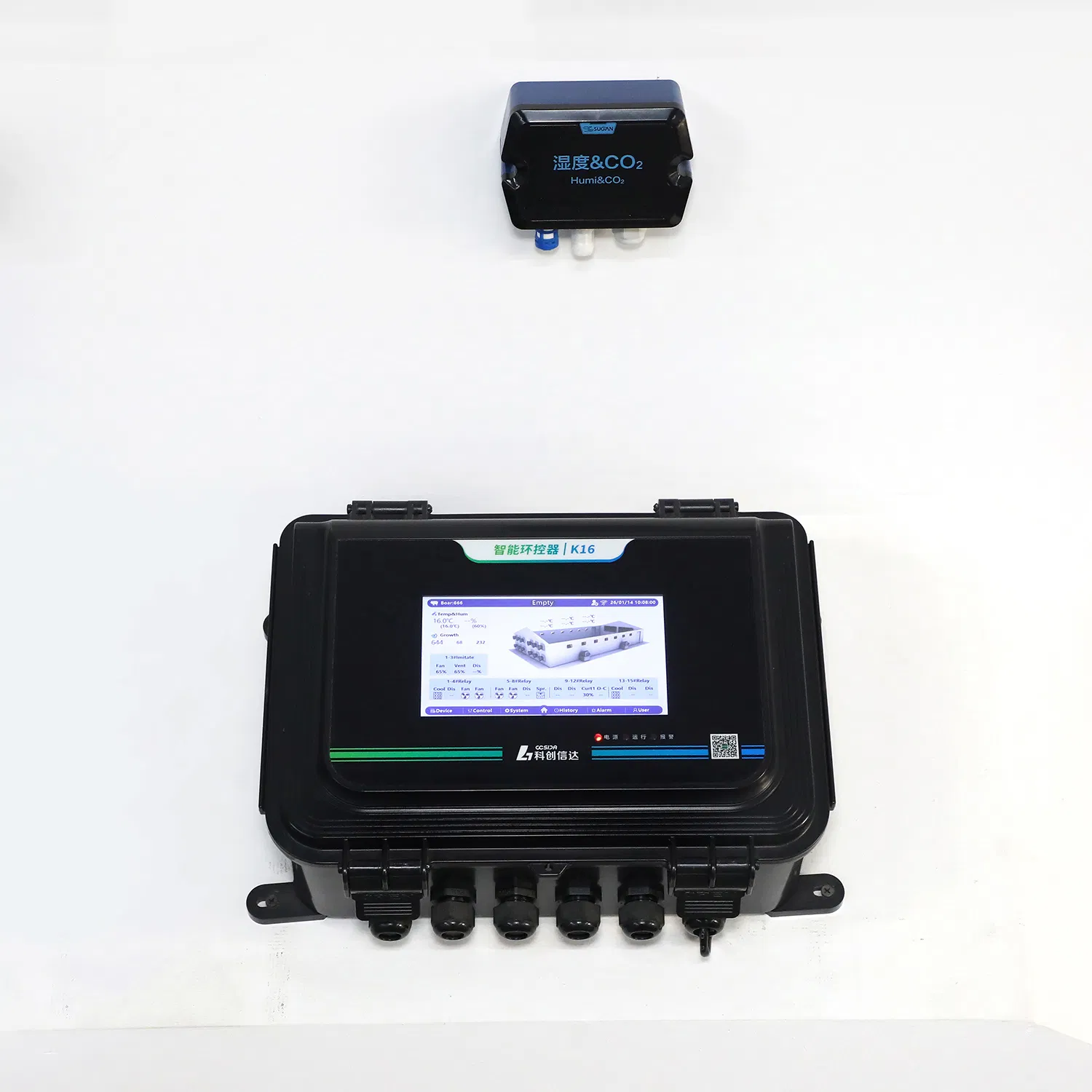

Display	7-inch color touchscreen (0.1℃ accuracy)
Protection Level	IP65 (ABS potting-sealed housing)
Input Interfaces	7 temp sensors + 4-channel 4-20mA sensors + 3 switch inputs
Output Interfaces	3-channel 0-10V analog + 16-channel relays
Communication	2-channel RS485 (supports IoT and meters)
Data Storage	Historical records, production logs, alarm records

After Sales Service

■ Warranty Period: 12 months. Free repair for product failures caused by normal use.

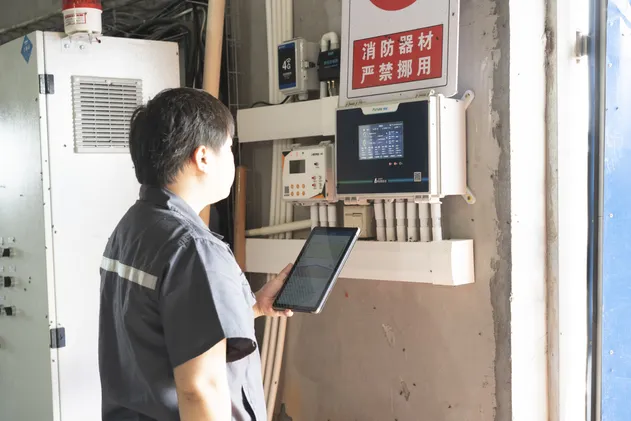

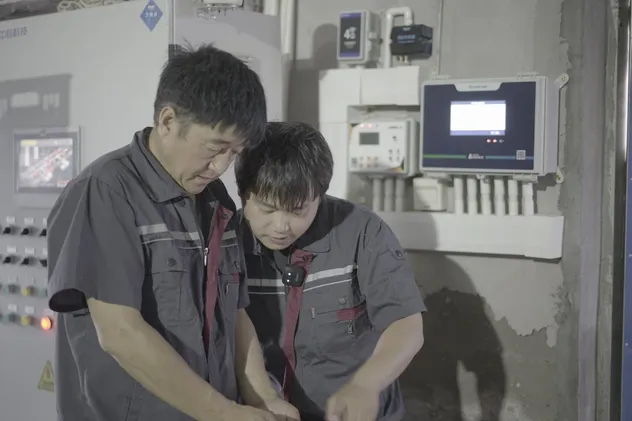

■ Technical Support: Professional installation guidance, operation training, and remote fault diagnosis.
■ Spare Parts: Long-term supply of sensors, relays, and touch screens.

Visual Overview

[Product Video: IoT-Enabled Climate Control System]

Frequently Asked Questions

What environment parameters can the K16 monitor?

The K16 system monitors temperature, humidity, CO2, and NH3 in real-time. It also supports optional sensors for H2S and static pressure.

Is the system suitable for harsh farm conditions?

Yes, it features an industrial-grade IP65 dustproof and waterproof housing, specifically designed for humid and dusty breeding environments.

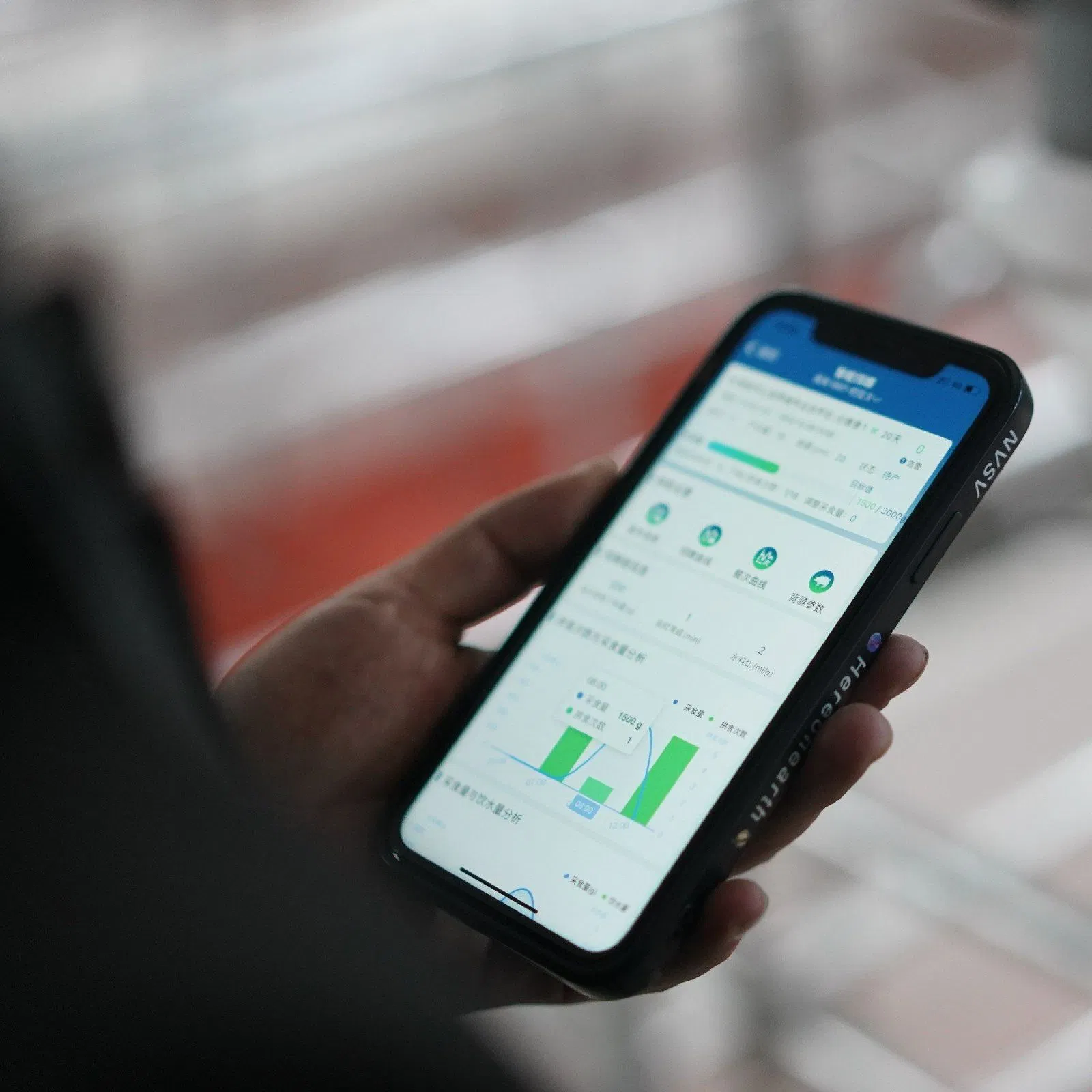

How can I access the farm data remotely?

The system supports IoT integration, allowing you to manage and monitor your farm through mobile devices or PCs via the cloud platform.

Does the system automate ventilation?

Yes, it includes a fan duration auto-adjustment feature that regulates fan operation time based on indoor temperature to maintain the optimal environment.

Can I export historical breeding data?

Absolutely. The device supports USB data export for environmental records, production logs, and alarm history for detailed breeding analysis.

How many stages of growth does the temperature curve support?

The K16 supports up to 10 segments of day-age-based temperature curves to automatically adapt to the different growth stages of poultry.
