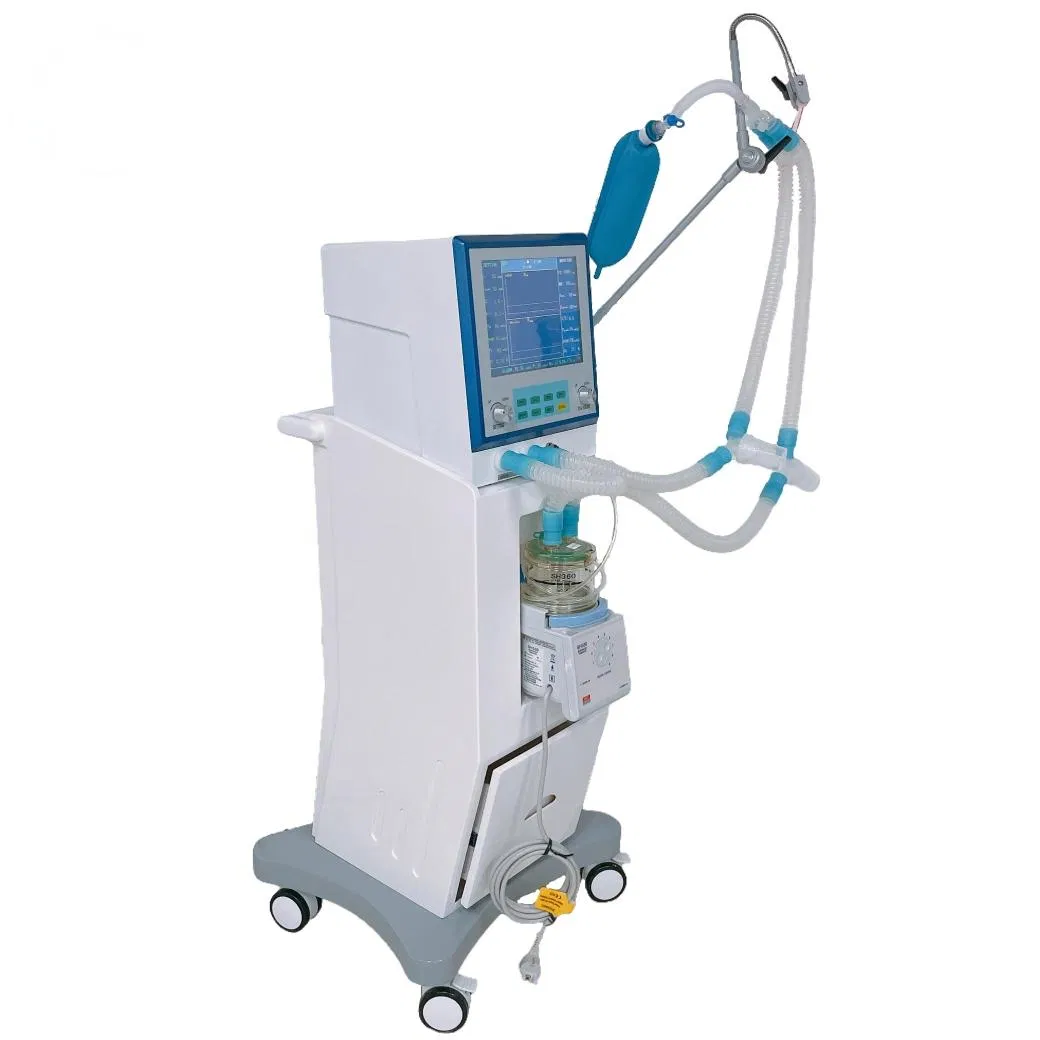

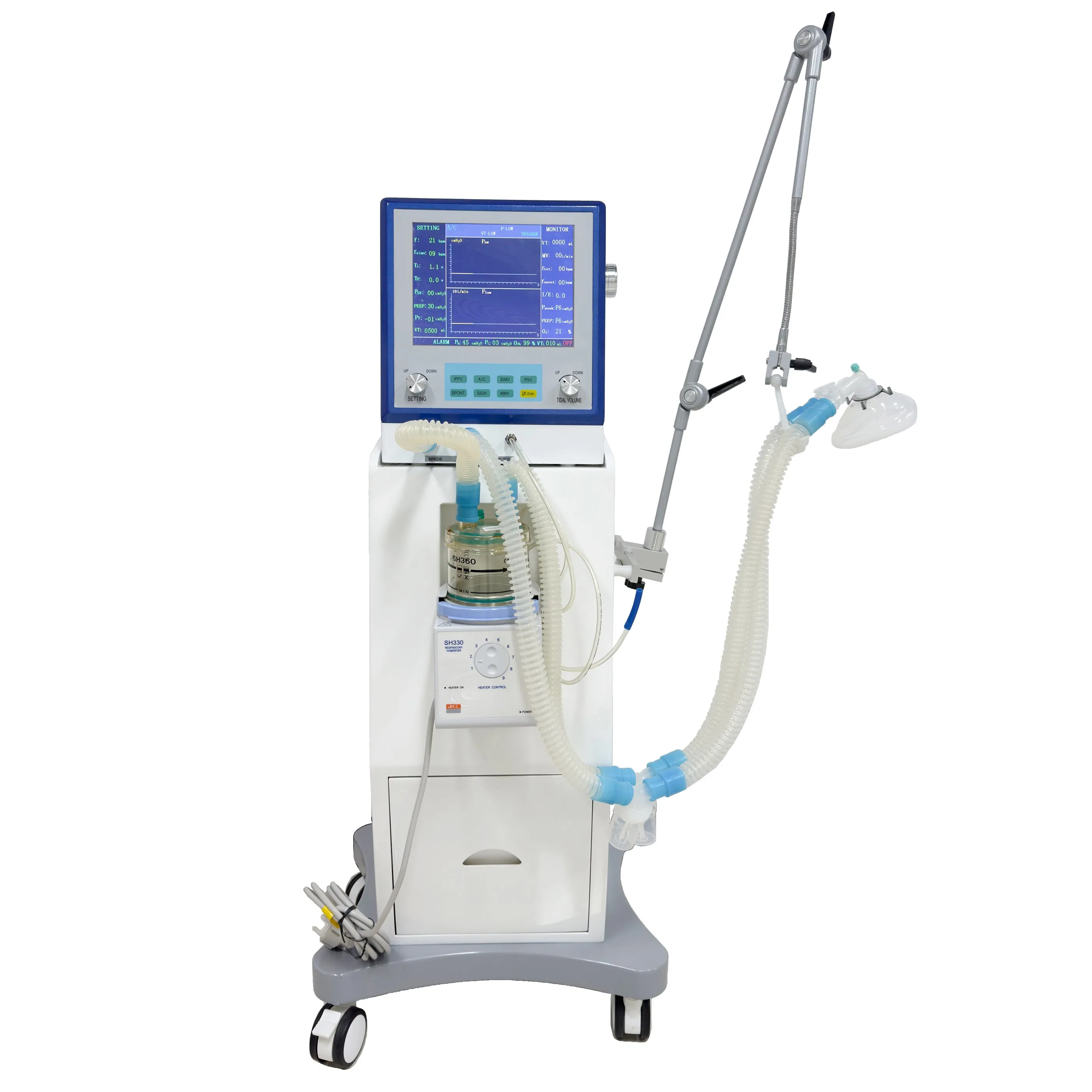

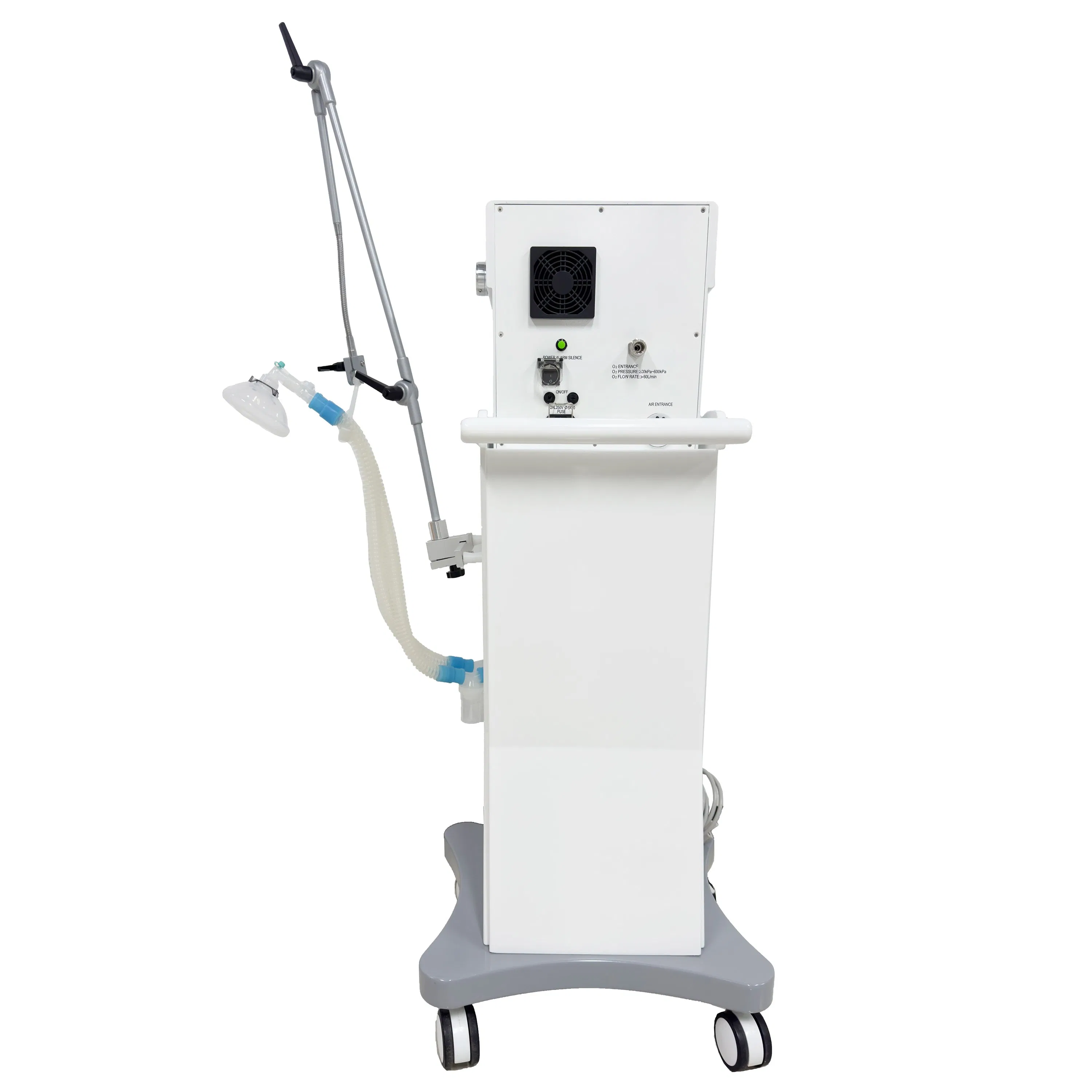

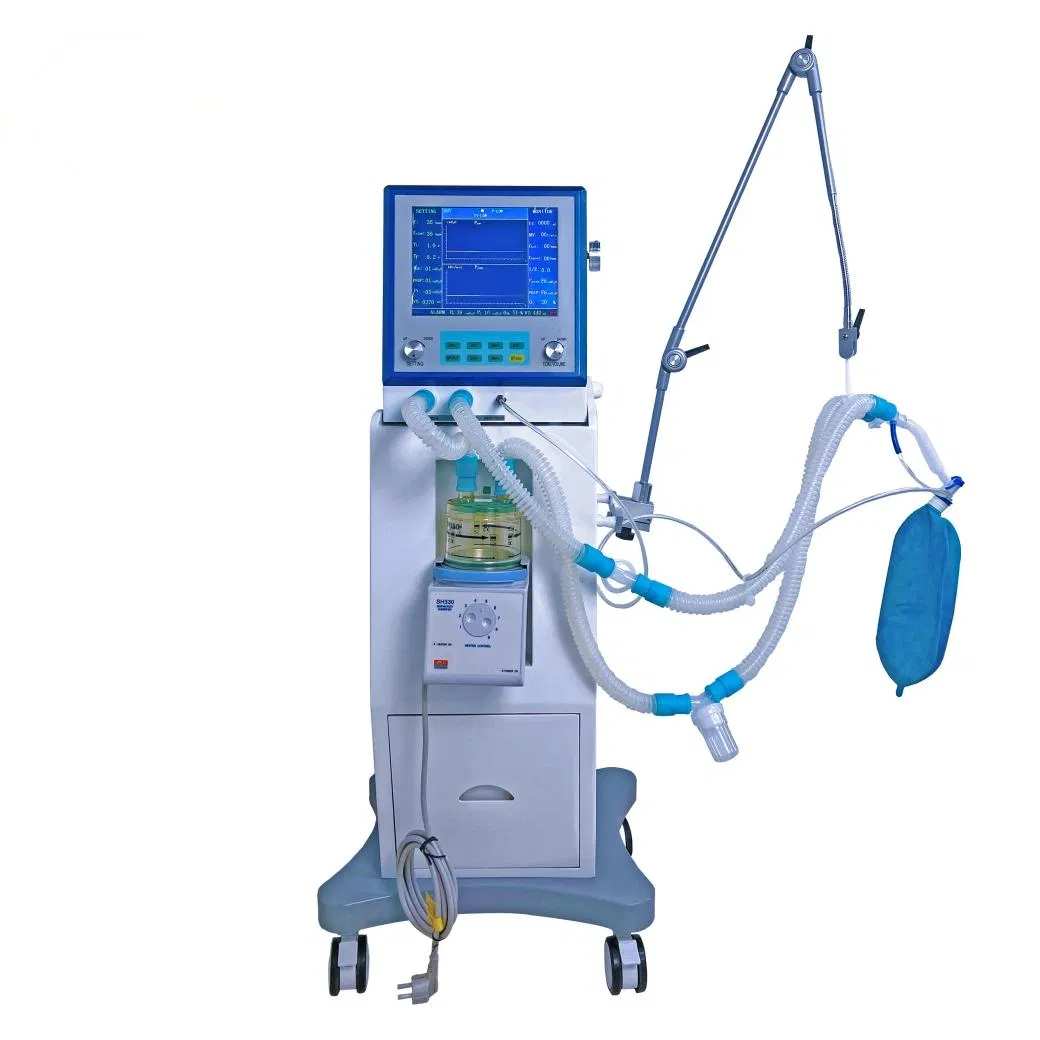

Tailored for Critical Care Patients ICU Ventilator Equipment

1 / 5

Tailored for Critical Care Patients ICU Ventilator Equipment

Send Inquiry

Product Description

Key Features

◈ Pneumatic electric control, microcomputer control
◈ Suitable for invasive and non-invasive respiratory management

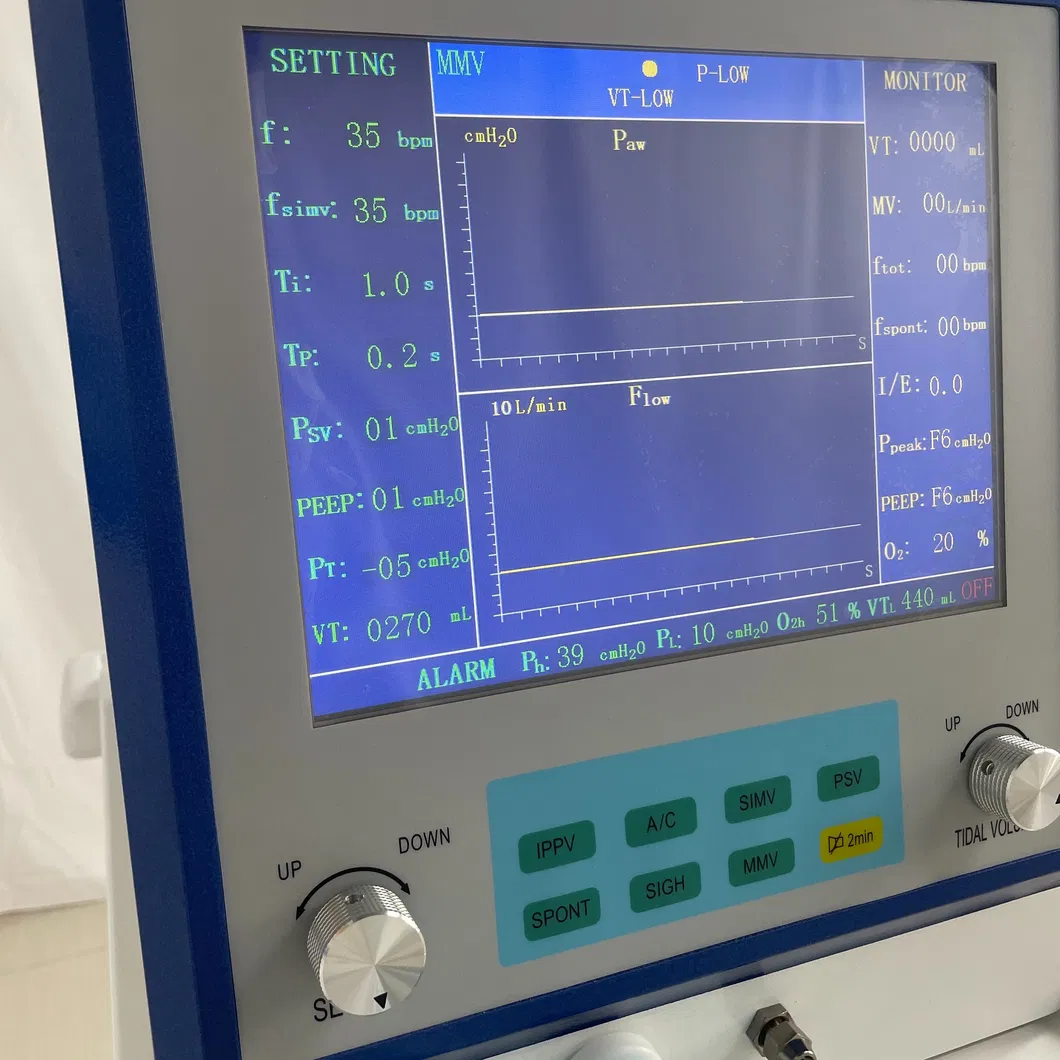

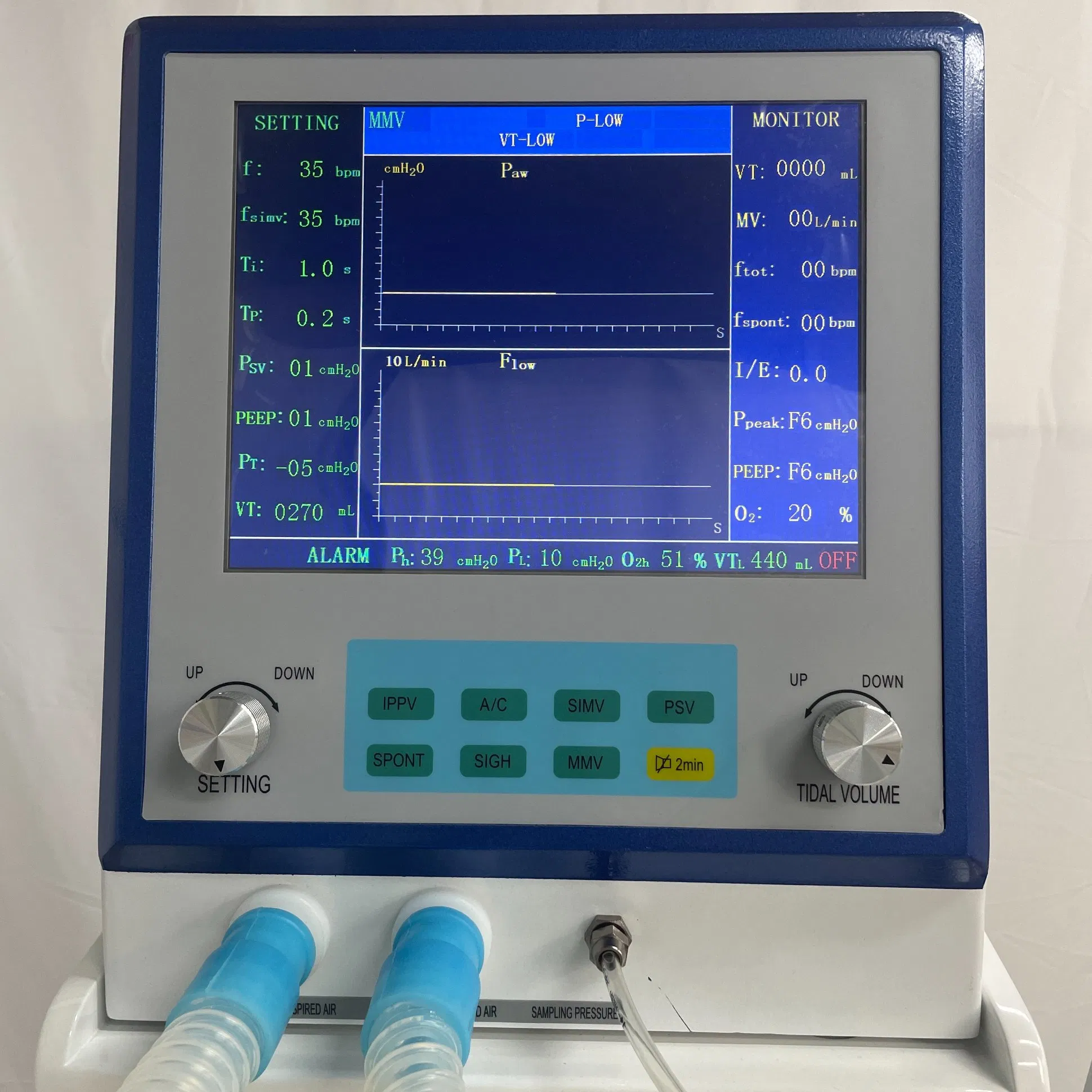

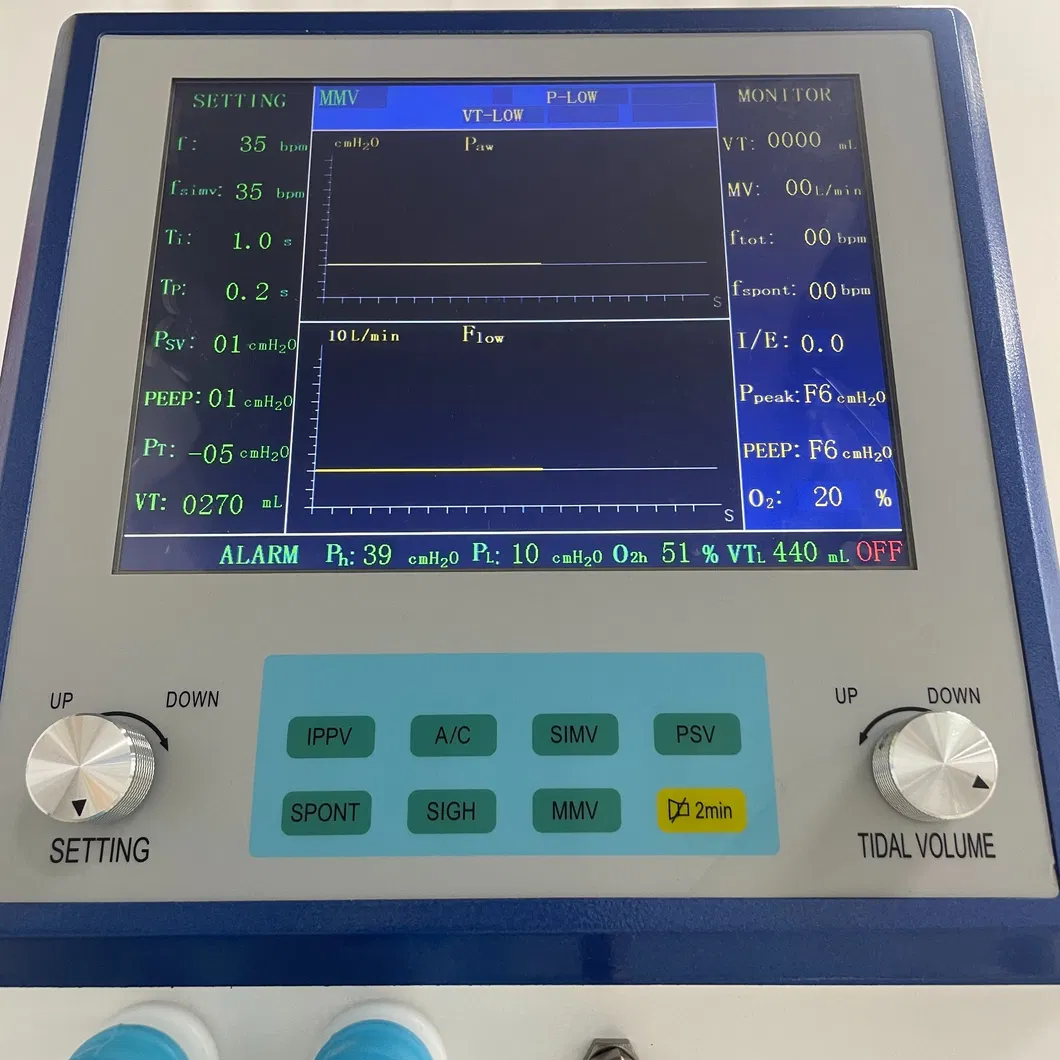

◈ 10.5" TFT Color Screen for clear monitoring
◈ Ventilator With Humidifier: temperature control adjustment, over-temperature automatic power-off protection
◈ Compact design: convenient for pendant or ambulance installation, designed for portable use

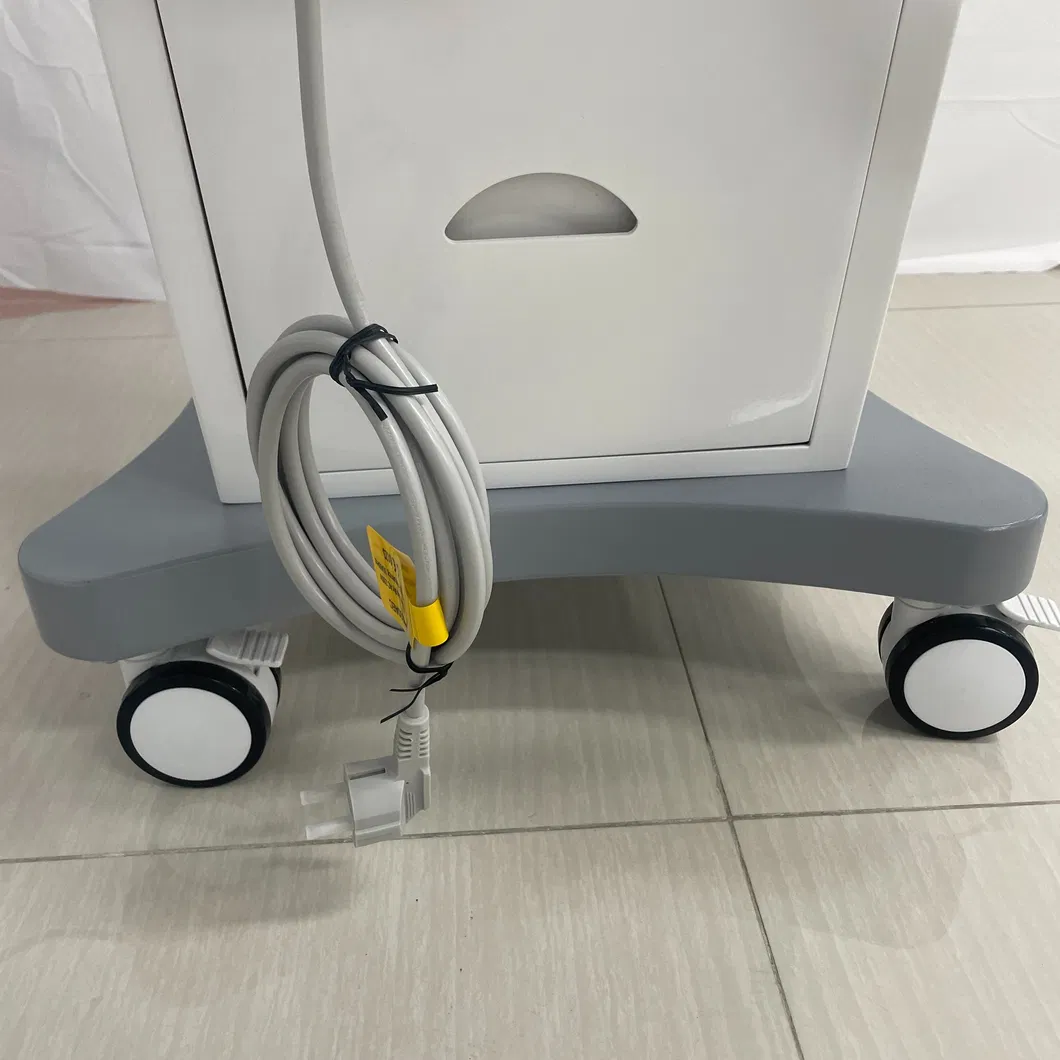

◈ Standard trolley for easy mobility
◈ Optional UPS backup power supply support
◈ Multi Ventilation Modes: A/C, SIMV, PSV, IPPV, PEEP, SIGH, SPONT, MMV

Technical Specifications

Ventilator Machine Technical Specification
Main Frame		Alarm Performances
Overall Dimension	5563120CM (LWH)	Tidal volume	Upper limit 20~3000 mL, Lower limit OFF, 20~2990 mL
Display	10.5 Inch Color TFT High-Luminance Screen	Minute volume	Upper limit 1~99 L, Lower limit 0~99 L
Driven	Aerodynamic, electric-controlled	Oxygen concentration	Upper limit 22~100%, OFF, Lower limit 20~99%
Waveform	P-T (pressure-time), F-T (flow rate-time)	Airway pressure	Upper limit 2~6KPa, Lower limit 0~4KPa
Noise	≤65dB(A)	Respiratory frequency	Upper limit 1~120 bpm, Lower limit 0~99 bpm
Apnea Alarm	Set time 15~60s, Increment 5s	O2 Supply Down	Pressure less than 0.28 MPa
Ventilation Mode		Working Condition

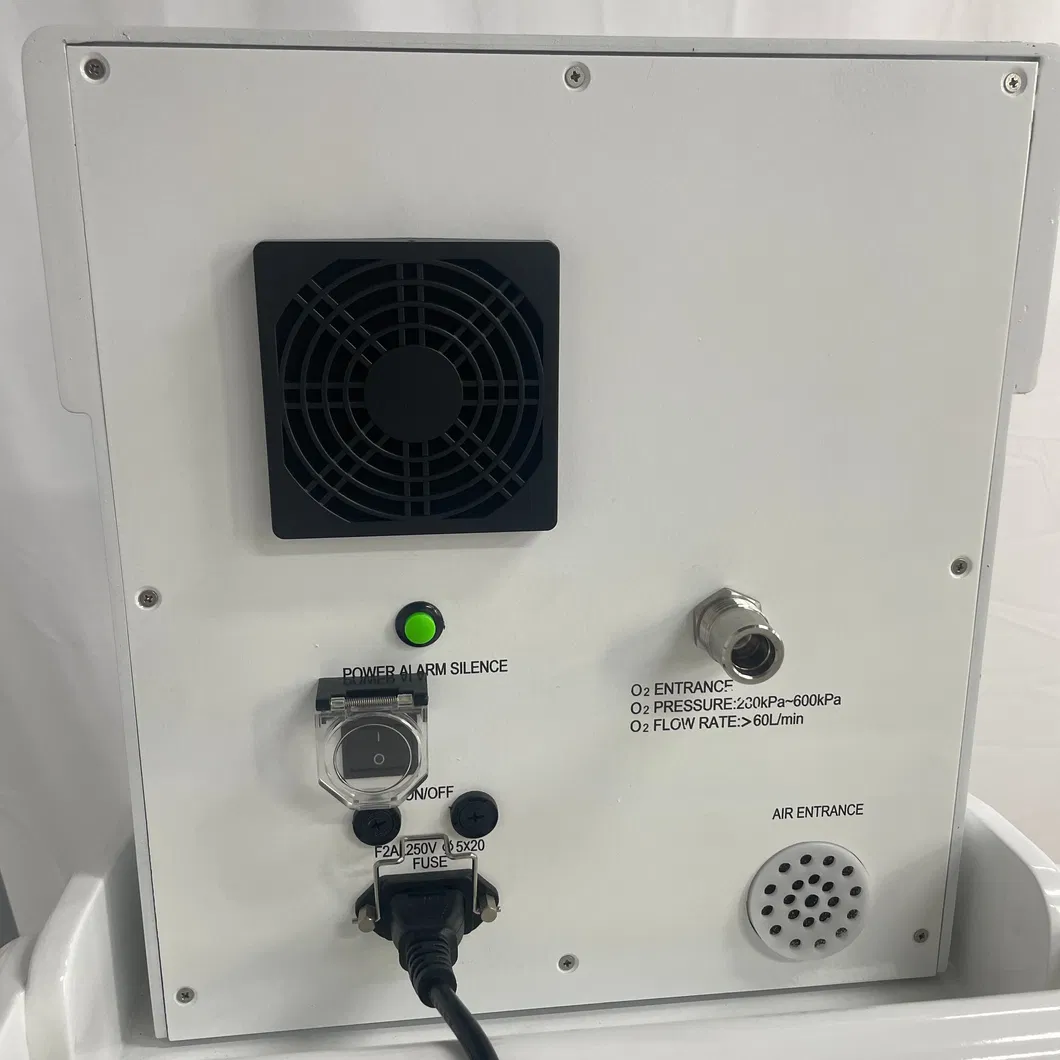

A/C, SIMV, PSV, IPPV, MMV, SPONT, SIGH		Gas Supplies	O2: 0.3~0.6MPa
Tidal Volume (Vt)	50~2000mL	Voltage	AC 100~220V, 50/60Hz
Inspiratory time (Ti)	0.2~6 s	Power Input	65VA
PEEP Pressure	0.1~2KPa	Internal Battery	Work at least 4-6 hours

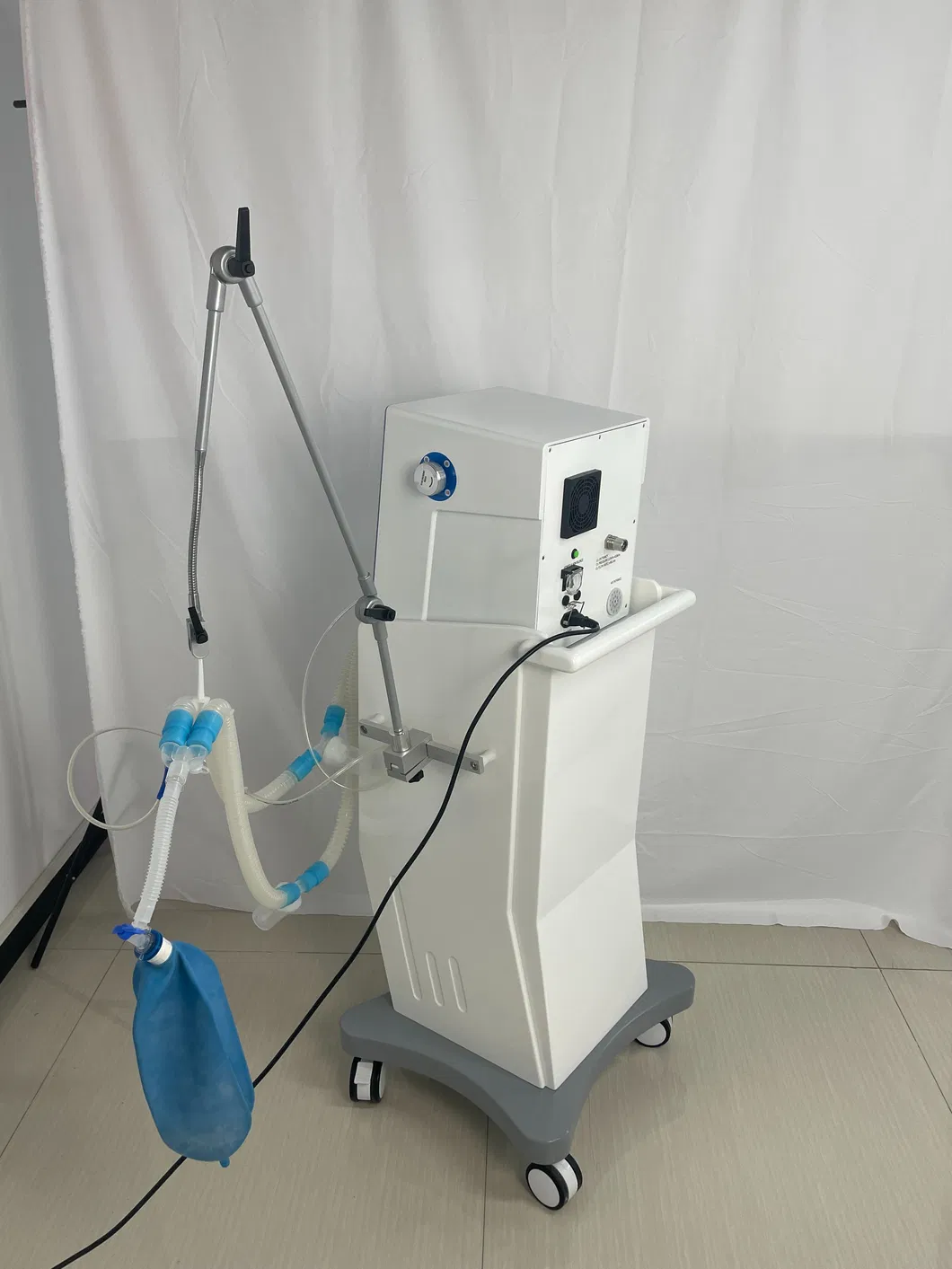

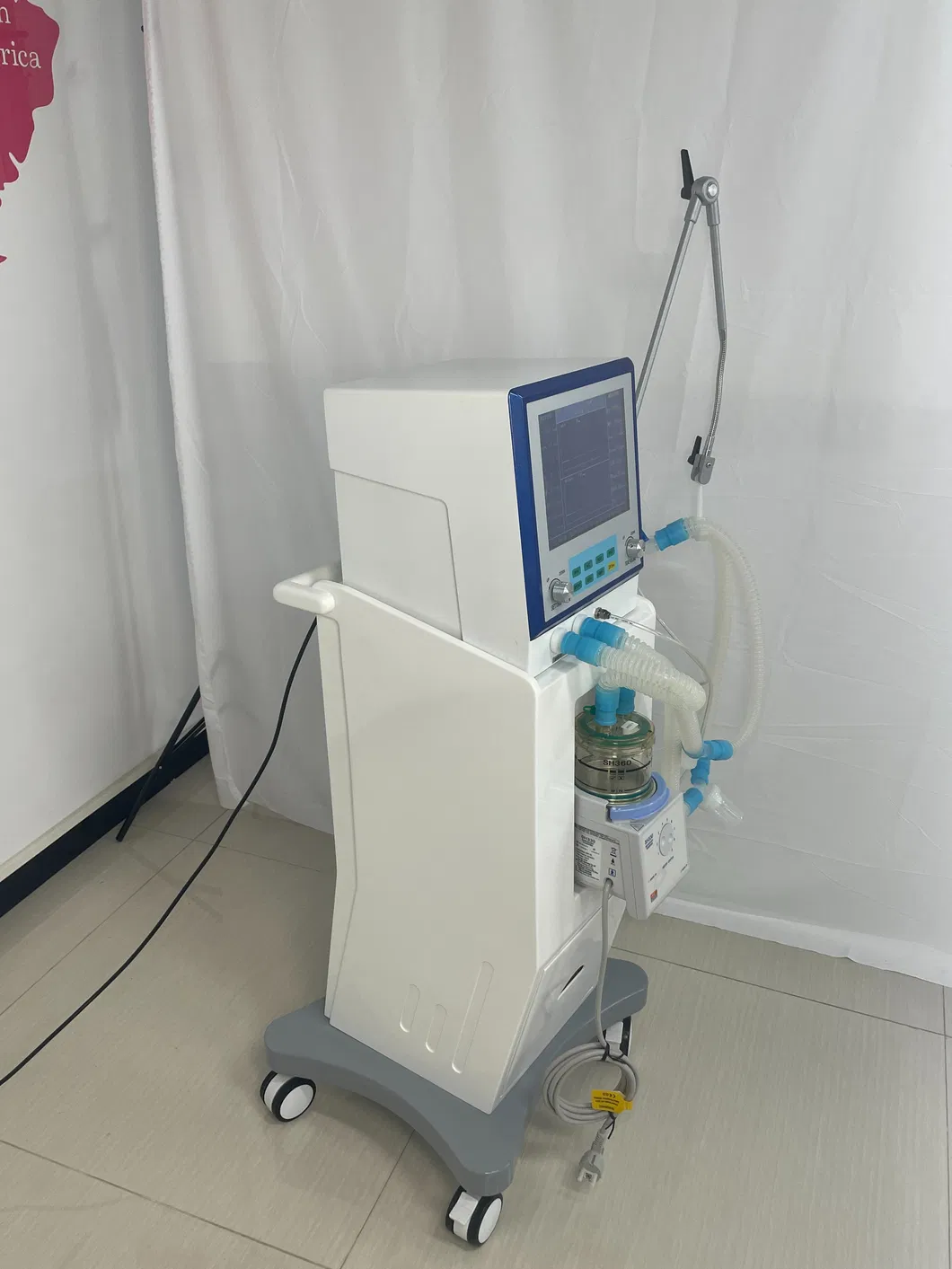

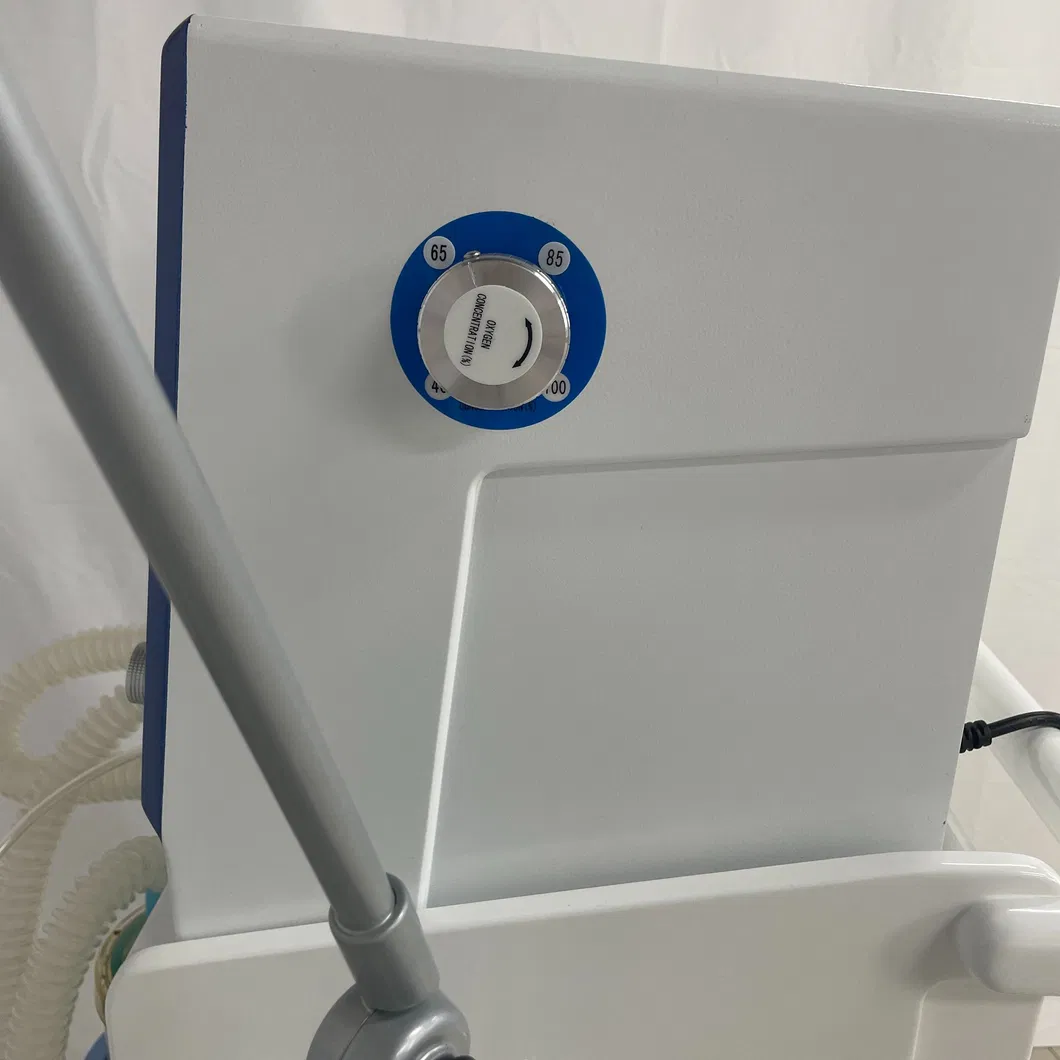

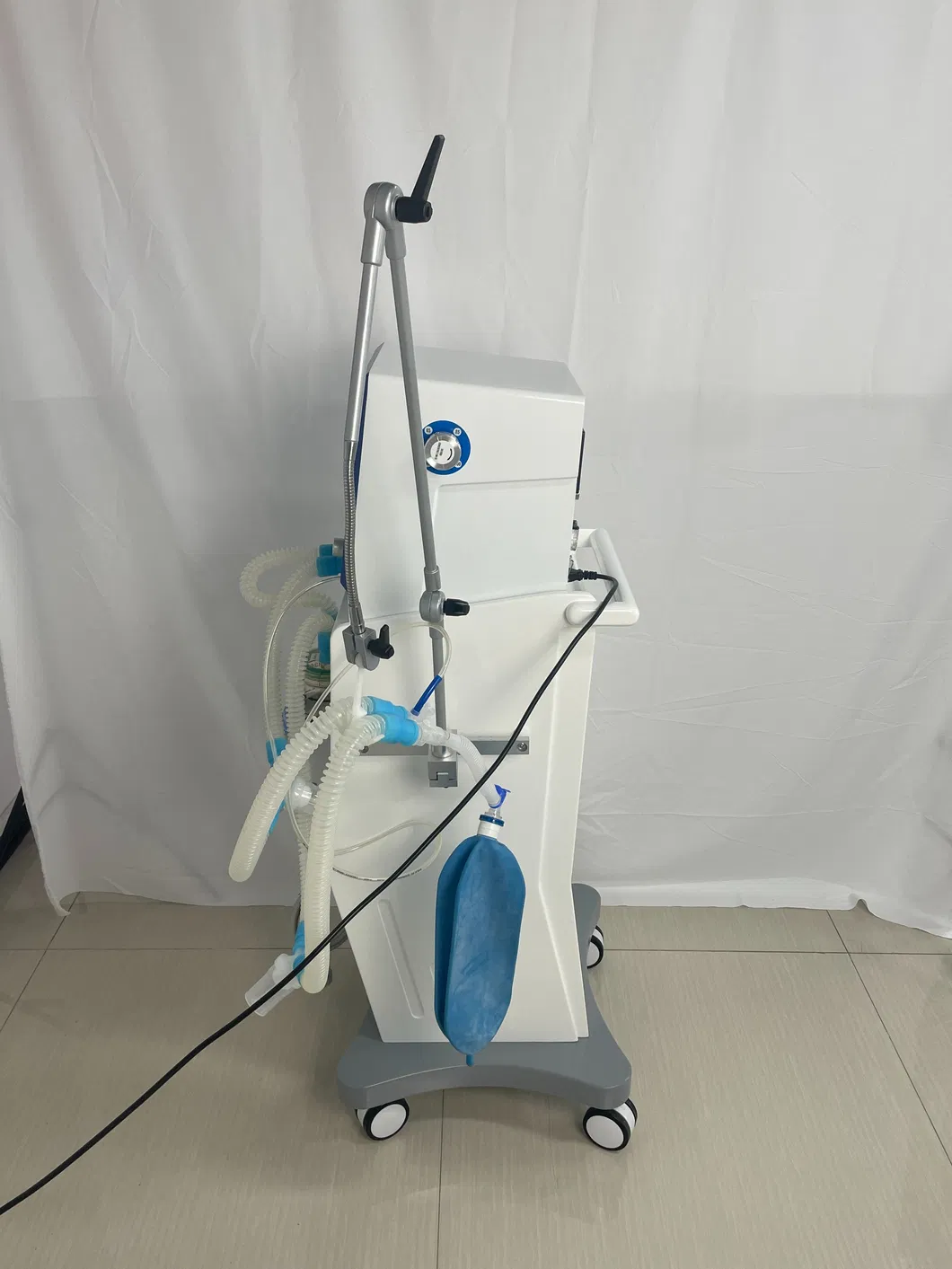

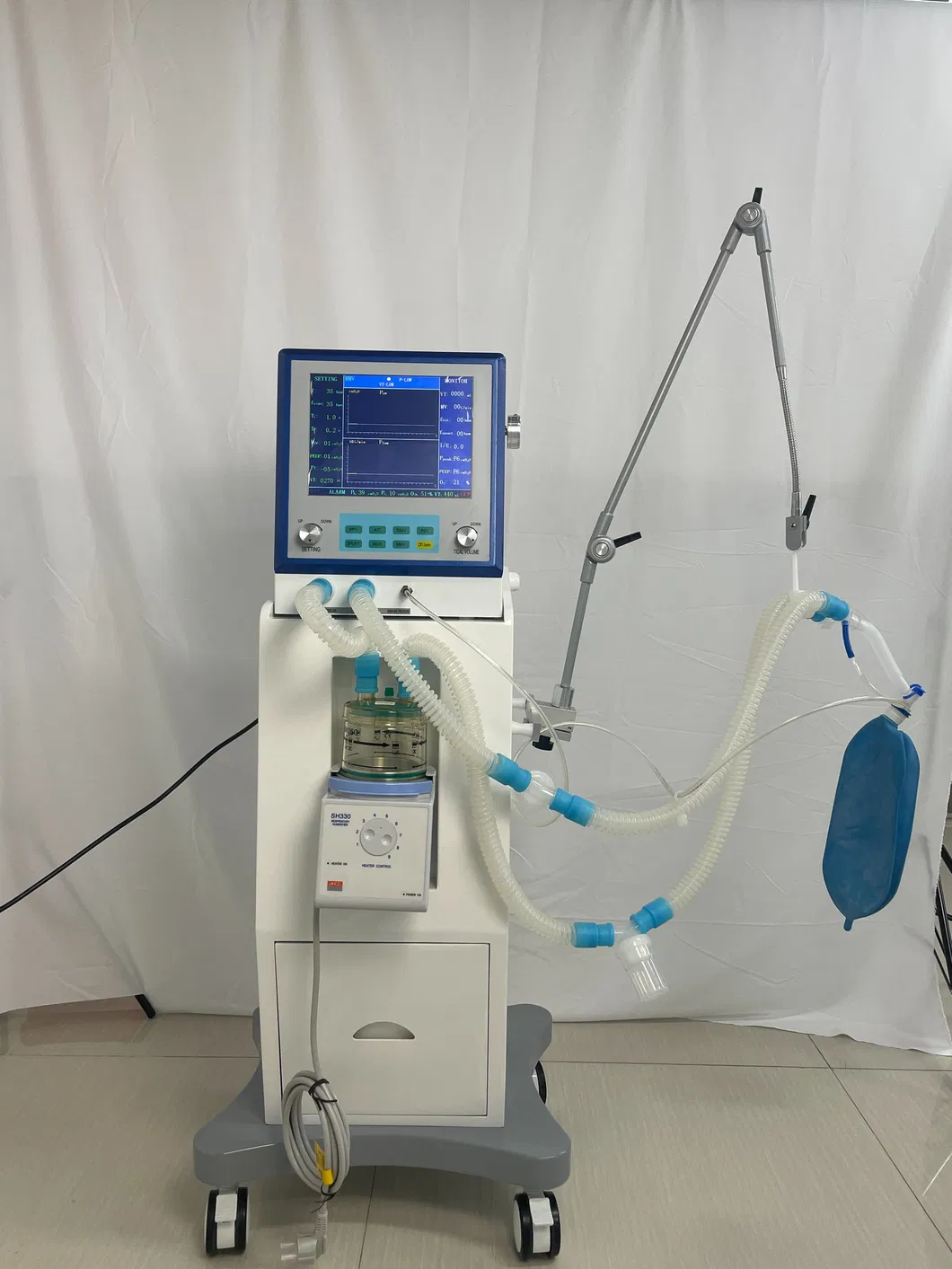

Product Detail Gallery

Frequently Asked Questions

1. What is your payment term? We accept T/T, L/C, Western Union, and other standard payment methods.

2. What is your delivery time? Usually 15-35 working days based on the specific order quantity.

3. Can you provide official certifications for customs? Yes, we can apply for FORM A, FORM E, C/O, and other Embassy certifications as required by your local government.

4. Is OEM service available? Yes, we provide OEM services including the use of your LOGO, supported by our professional R&D team.

5. Which regions do you deliver to? We deliver orders worldwide, with a strong presence in Africa, South America, Russia, the Middle East, and Southeast Asia.

6. How long does the built-in battery last? The built-in Li Battery is designed to work for at least 4-6 hours to ensure patient safety during power interruptions or transport.
