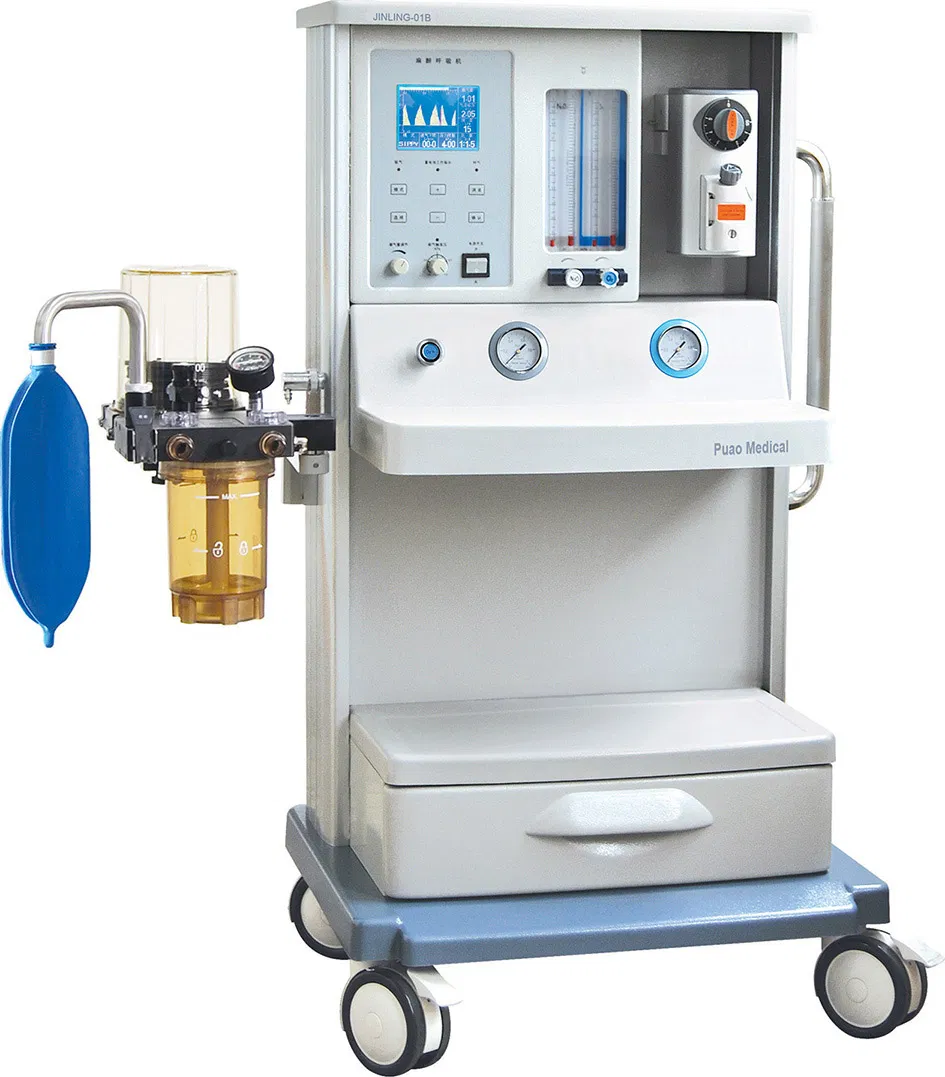

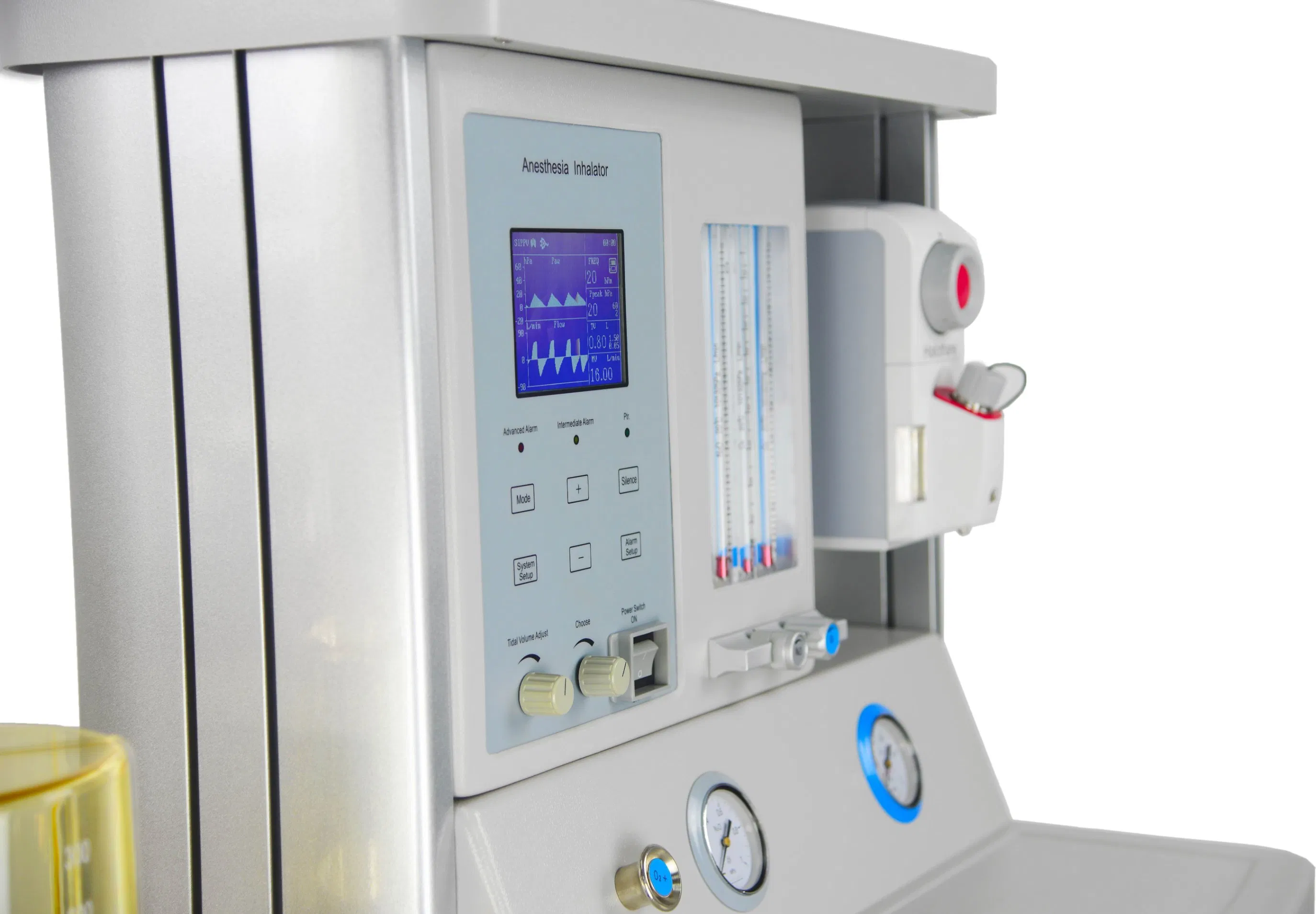

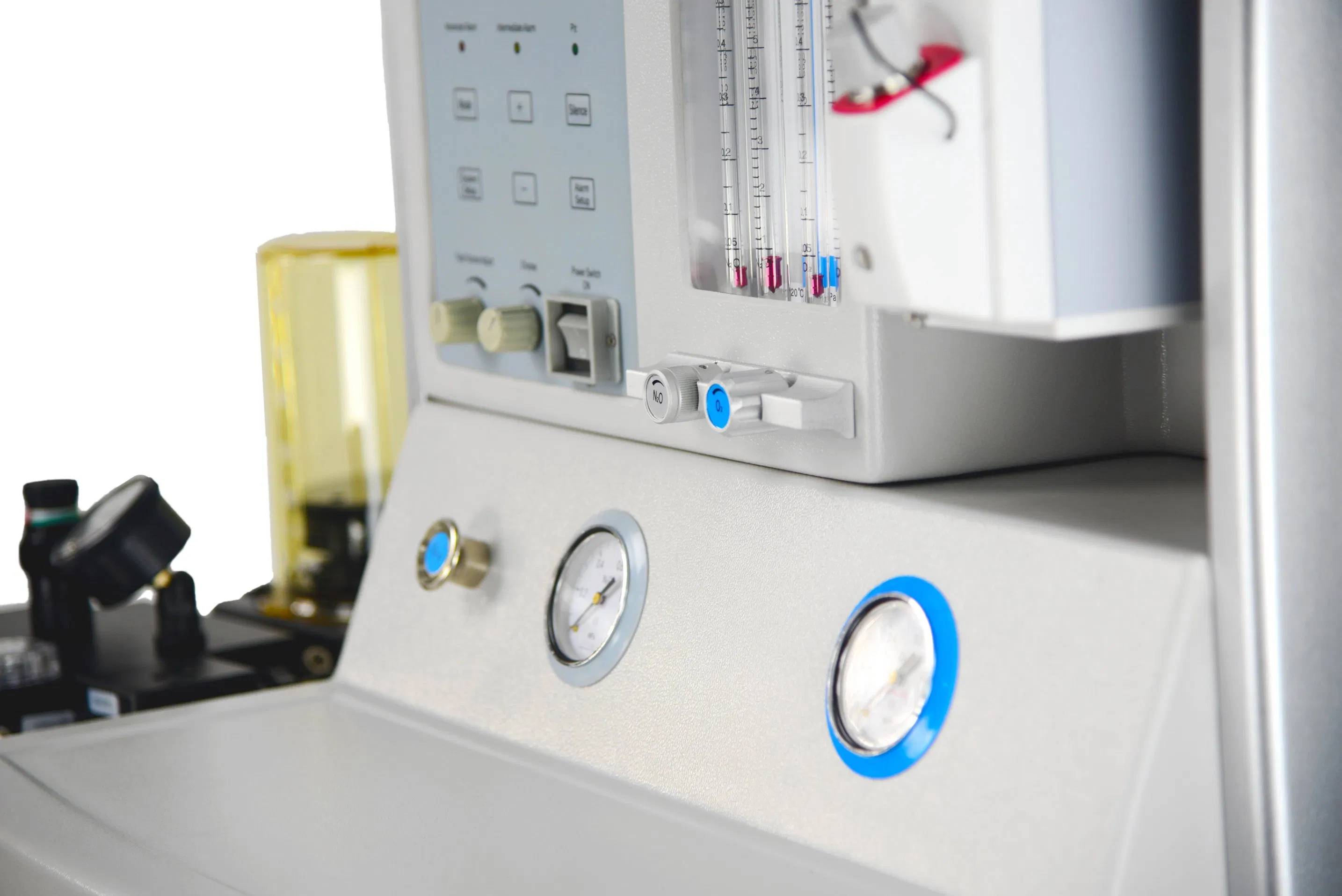

Anesthesia System of ICU & Emergency Puao Jinling 01b Factory Supply Hospital Ventilator
Anesthesia System of ICU & Emergency Puao Jinling 01b Factory Supply Hospital Ventilator
Anesthesia System of ICU & Emergency Puao Jinling 01b Factory Supply Hospital Ventilator
Anesthesia System of ICU & Emergency Puao Jinling 01b Factory Supply Hospital Ventilator
Anesthesia System of ICU & Emergency Puao Jinling 01b Factory Supply Hospital Ventilator
1 / 5
Anesthesia System of ICU & Emergency Puao Jinling 01b Factory Supply Hospital Ventilator
Anesthesia System of ICU & Emergency Puao Jinling 01b Factory Supply Hospital Ventilator
Anesthesia System of ICU & Emergency Puao Jinling 01b Factory Supply Hospital Ventilator
Anesthesia System of ICU & Emergency Puao Jinling 01b Factory Supply Hospital Ventilator
Anesthesia System of ICU & Emergency Puao Jinling 01b Factory Supply Hospital Ventilator

Anesthesia System of ICU & Emergency Puao Jinling 01b Factory Supply Hospital Ventilator

Customization: Available
Type: Anaesthesia Machine
Kind: Surgery
Send Inquiry

Product Description

📋 Basic Info.
Model NO.
JINLING 01B
Certification
CE, ISO13485
Group
Adult
LCD Display
With LCD Display
Ventilation Mode
A/C, Ippv, Sippv, Manual, Imv, Simv
Tidal Volume
50-1500ml
(I:E) Ratio
4:1~1:10
Respiratory Rate
1~99 Bpm
Display
5.4 Inch TFT Display
Simv Rate
1-20bpm
Sigh Function
1 Sigh Breath in Every 80-160 Breaths
Origin
China
🏥 Product Description
Anesthesia system of ICU & Emergency JINLING 01B Hospital Ventilator

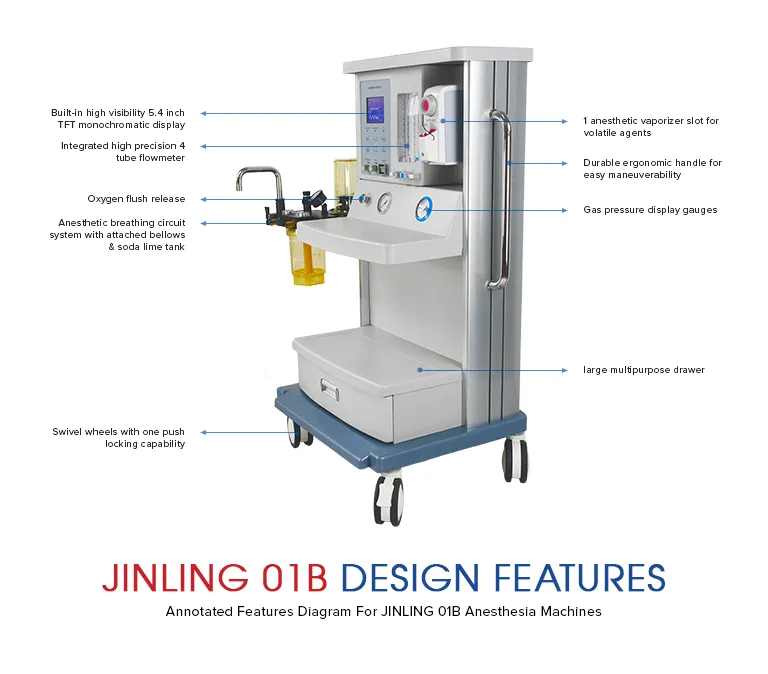

Anesthesia System Ventilator

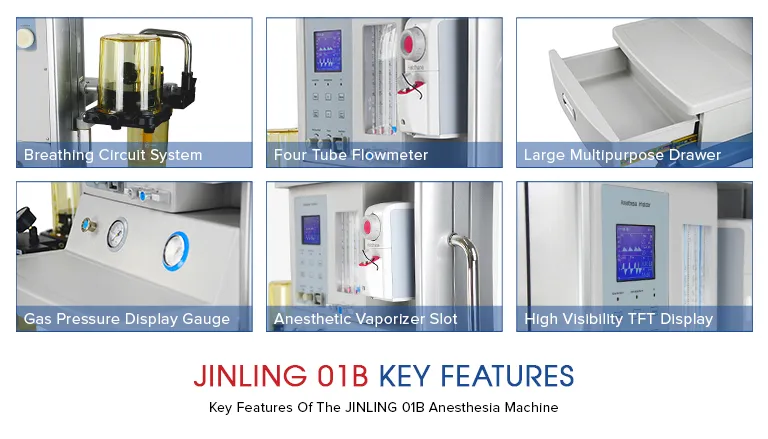

Ventilator Display
Features
  • Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open.

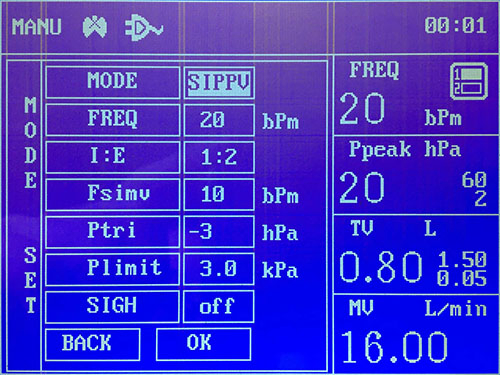

  • Anesthesia Ventilator: Built-in 5.4 inch TFT display, able-display Pressure-Time and Frequency-Time waveforms.
  • Standard integrated metallic modular respiratory circuit; high temperature disinfection compatible.
  • Equipped with electronic pressure differential flow sensor and imported respiratory control valve.
  • Vaporizer: Enflurane, Isoflurane and Sevoflurane options with self-compensating functionality.
  • High precision four tube flowmeter with interlocking oxygen-nitrous oxide supply.
  • Power Failure Support: Automatically converts to backup power mode during AC power outages.
  • Alarms: Audible and visual alarms for tidal volume, airway pressure, asphyxia, and power failure.
  • Advanced rotating Na-lime tank using imported PPSU material, temperature resistant to 134°C.

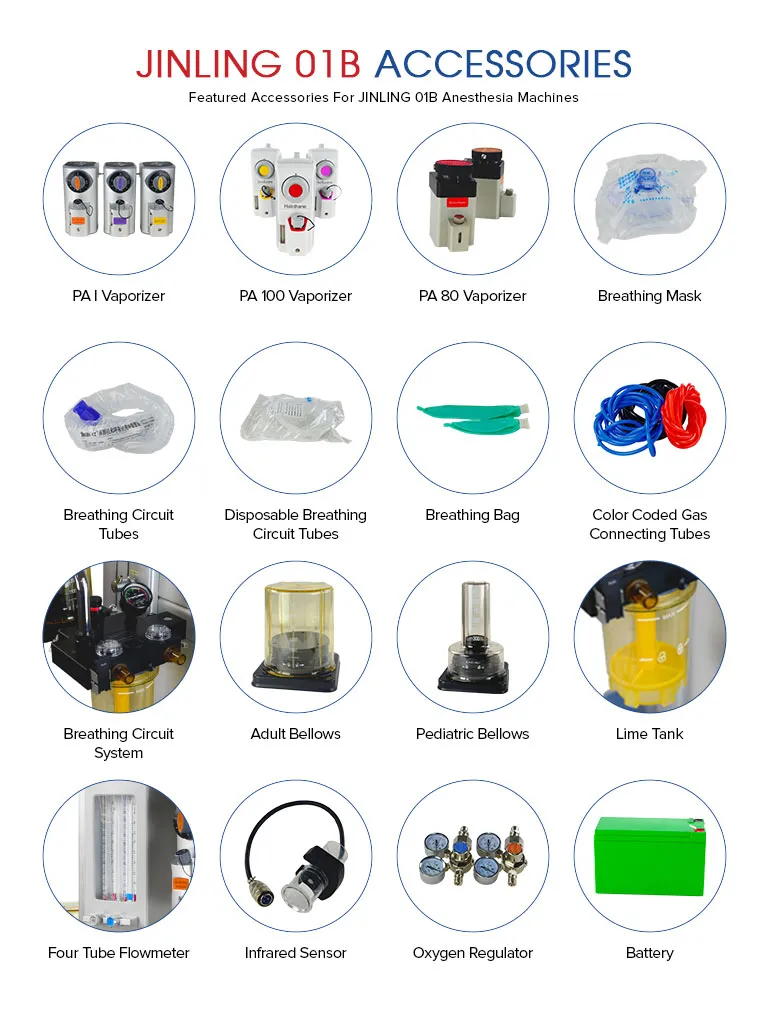

Anesthesia Machine Specifications
⚙️ Technical Specifications
Parameter Specifications
ModelJINLING-01B advanced model
Display5.4 inch TFT display
Flowmeter RangeO2: 0.1-10L/min; N2O: 0.1-10L/min
Ventilation ModeIPPV, SIPPV, IMV, SIMV, MANUAL
Back-up Power SupplyAt least 4 hours
Tidal VolumeAdjustable: 50-1500ml; Display: 0-2000ml
Respiratory Rate1-99bpm
I:E Ratio4:1-1:10 (inverse ratio supported)
Oxygen Supply Flow25~75L/min
Vaporizer SlotsDouble PA-I type slot
Anesthesia System Detail
Anesthesia System Setup
❓ Frequently Asked Questions
1. What are the primary ventilation modes of the JINLING 01B? The system supports multiple modes including IPPV, SIPPV, IMV, SIMV, and MANUAL, making it versatile for ICU and emergency use.
2. Does the system provide backup power in case of electricity failure? Yes, it features an automatic power failure support function that converts to backup mode, providing at least 4 hours of operation.
3. What is the adjustable range for Tidal Volume? The Tidal Volume is adjustable from 50ml to 1500ml, with a display range reaching up to 2000ml.
4. Can the respiratory circuit be disinfected at high temperatures? Yes, it is equipped with a standard integrated metallic modular respiratory circuit designed to solve gas sealing issues under high-temperature disinfection.
5. What types of safety alarms are integrated into this system? The JINLING 01B includes audible and visual alarms for tidal volume, airway pressure, asphyxia, power failure, and oxygen supply failure.
6. What type of display does the unit feature? The unit is equipped with a built-in 5.4-inch TFT display capable of showing Pressure-Time and Frequency-Time waveforms instantly.
