Customization: Available
Type: Emergency Ventilator
Used for: Adult, Child
Send Inquiry

Product Description

i

Basic Information

Model NO.CWH-3010
DriveGas Drive
Gas SourceO2 Air
Tidal Volume20-2000ml
Pressure Range5-80CMH2O
ApplicationICU
PackageStandard Export Packing
SpecificationISO, CE
TrademarkCW
OriginChina
HS Code90189070
Capacity5000PCS/Year
D

Product Description

This is a classic model ICU-Ventilator designed for comprehensive respiratory care. It is suitable for both adult and pediatric applications, offering versatile performance in critical care environments.
✔Operating Panel: English (Standard)
✔Drive Mode: Gas driven
✔Available in trolley mount
✔Display Graphic: Waveforms of P-T, F-T, V-T
✔Oxygen Concentration: 21%-100%
✔Respiration Rate: 1-100 bpm
✔Working Mode: Manual & Automatic
✔Quality Cert: ISO9001, 13485
Operating PanelEnglish (Standard)
DriveGas driven
ApplicationApplied for child and adult
Gas sourceOxygen, Air
Tidal volume20~2000ml (10ml optimal)
Modes of VentilationVCV, SIGH, SIMV, SIPPV, etc
Pressure Range5-80cmH2O
Oxygen Concentration21%-100%
Dimensions450mm X 550mm X 1400mm
Net Weight65Kg
P

Product Gallery

ICU Ventilator View 1

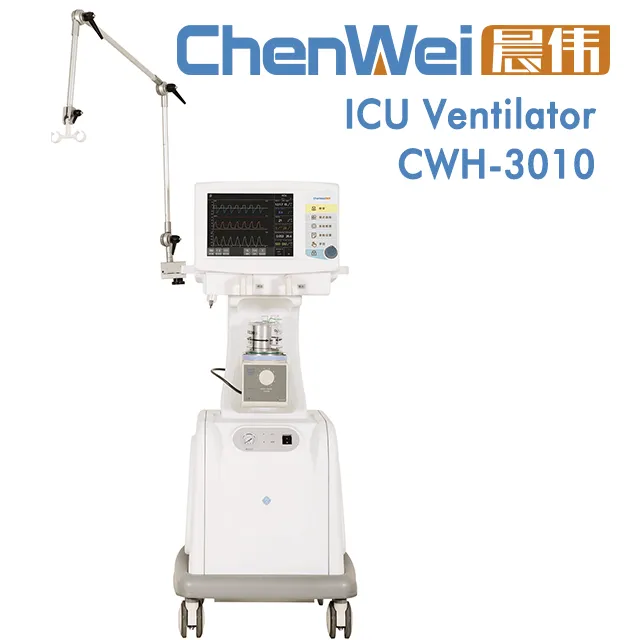

ICU Ventilator View 2

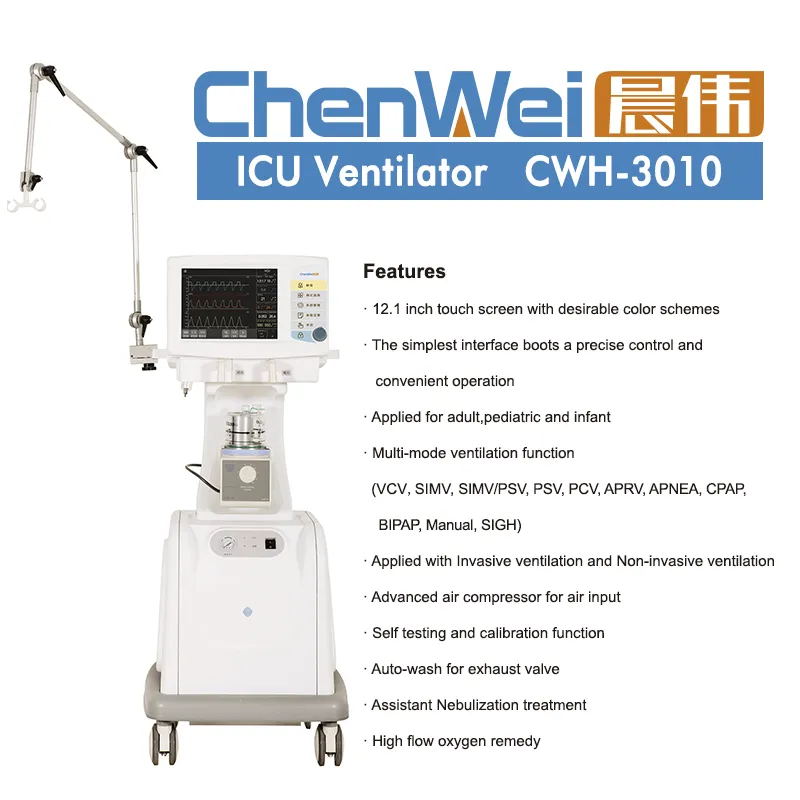

ICU Ventilator View 3
ICU Ventilator View 4

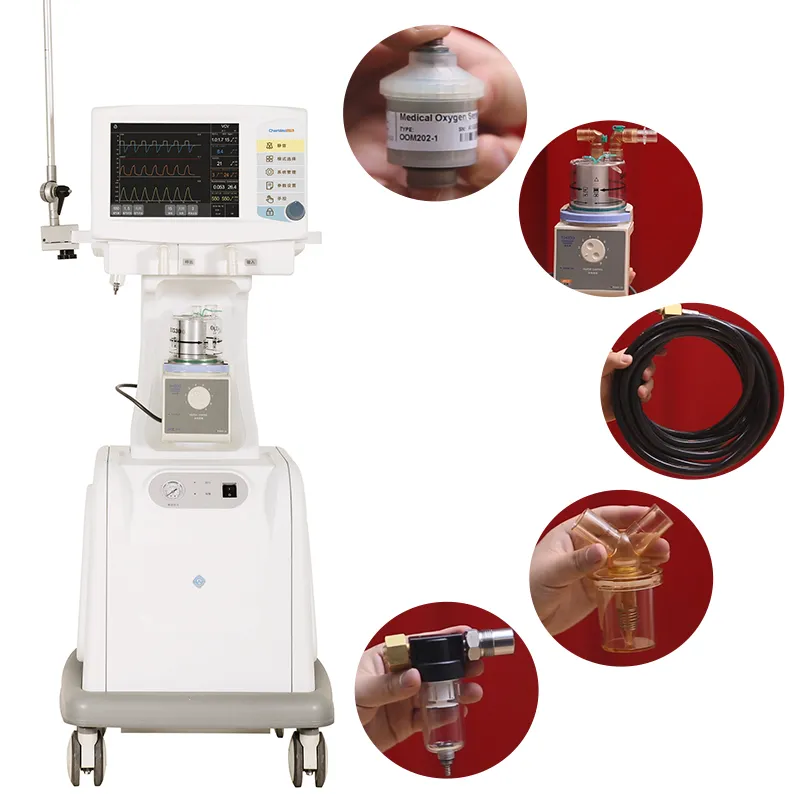

ICU Ventilator View 5
?

Frequently Asked Questions

1. What is the tidal volume range for the CWH-3010 ventilator?
The CWH-3010 offers a wide tidal volume range from 20ml to 2000ml, making it suitable for both pediatric and adult patients.
2. Which ventilation modes are supported by this device?
This model supports multiple ventilation modes including VCV, SIGH, SIMV, and SIPPV, providing flexibility for various clinical scenarios.
3. Can the oxygen concentration be adjusted?
Yes, the oxygen concentration is fully adjustable from 21% to 100% to meet specific patient needs.
4. Does the unit display real-time waveforms?
Yes, the ventilator provides clear display graphics for waveforms including Pressure-Time (P-T), Flow-Time (F-T), and Volume-Time (V-T).
5. Is the operating interface available in English?
The standard configuration comes with a professional English operating panel and English user manual.
6. What are the gas source requirements?
The device requires a medical-grade gas source of Oxygen and Air for proper operation.
