🔹 Basic Specifications
Minute Ventilation Upper Limit
1L/Min - 80L/Min
Minute Ventilation Lower Limit
0L/Min - 79L/Min
Airway Pressure Upper Limit
15CMH2o - 70 CMH2o
Suffocation Alarm Time
5-60s
Production Capacity
1000 units/Month

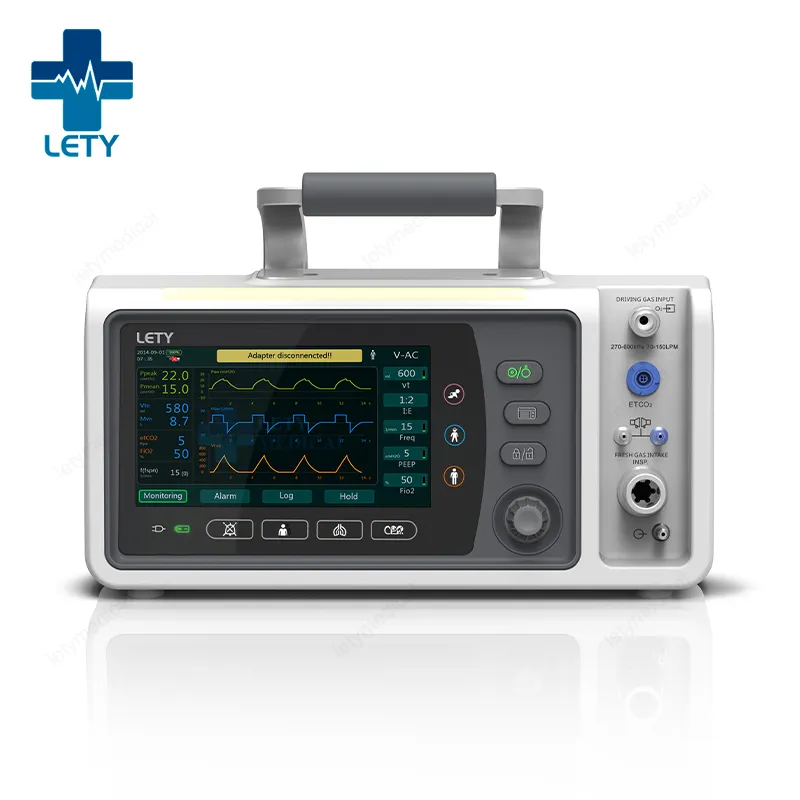

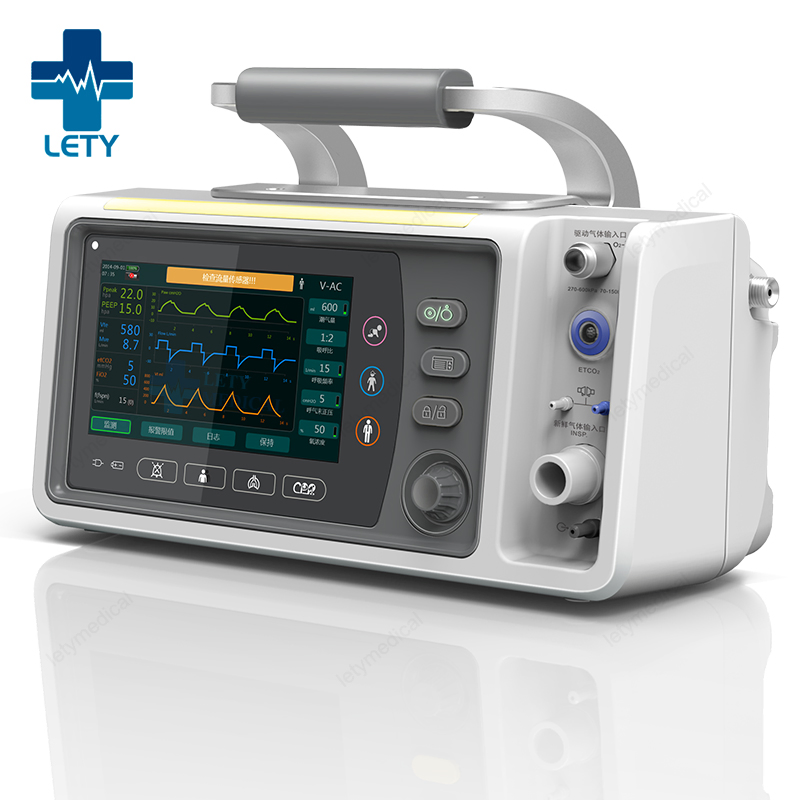

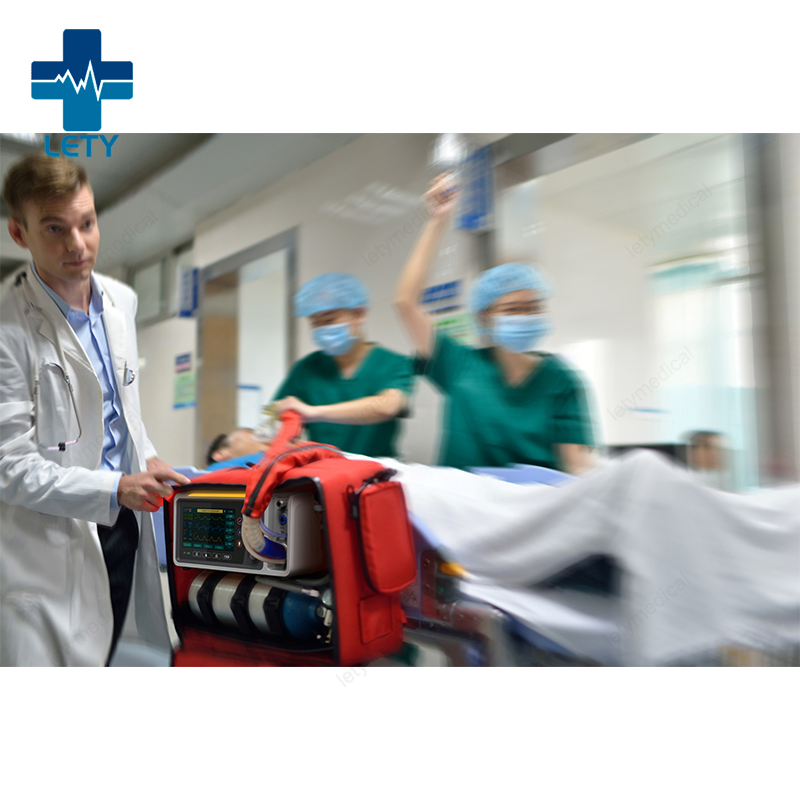

🔹 Portable ICU Emergency & Transport Ventilator
Key Features
- ✓ Elegant and portable design suitable for emergency transport.

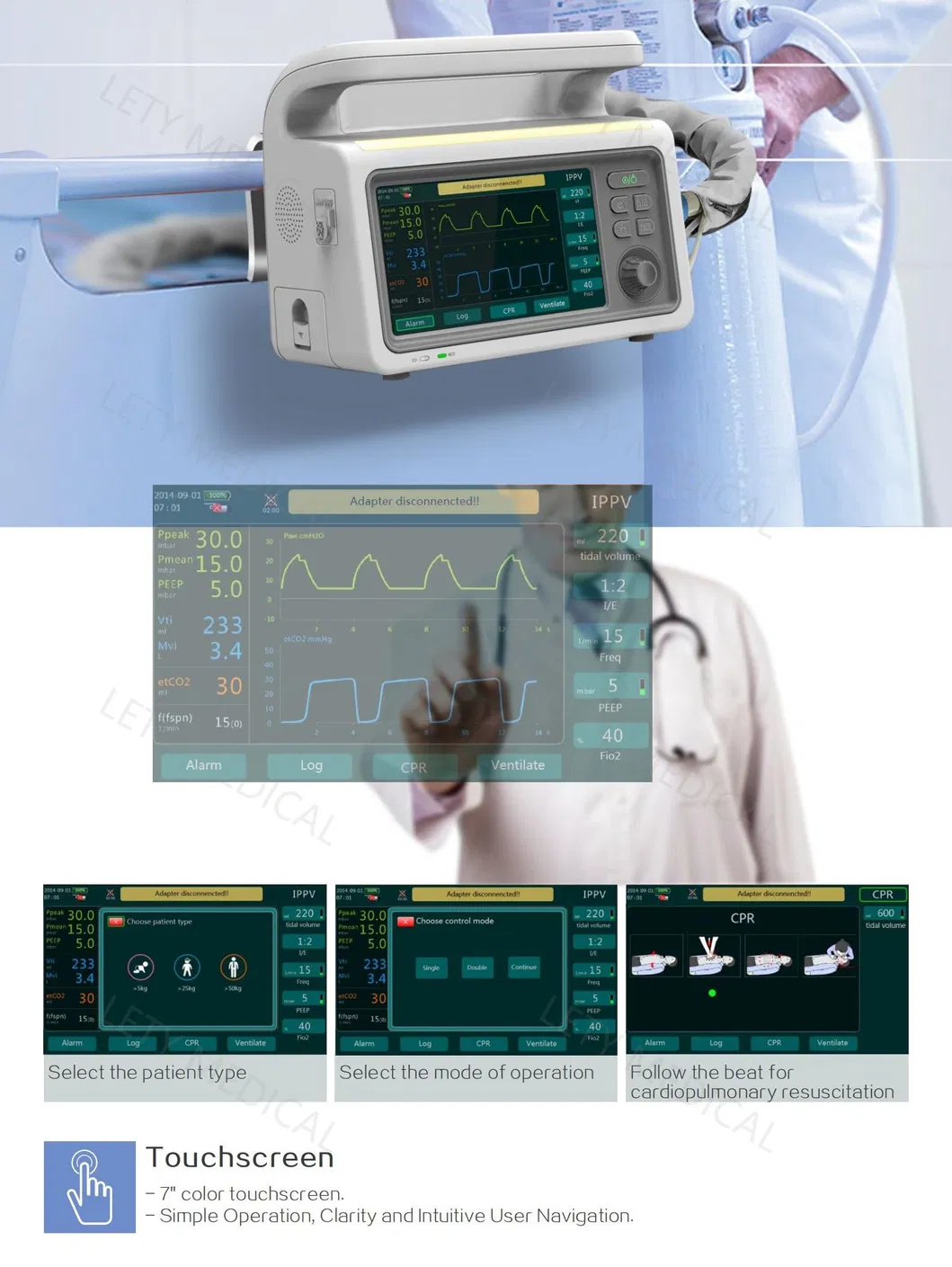

- ✓ 7'' color touch screen with screen lock function.
- ✓ Real-time display of 4 waveforms and 3 loops.
- ✓ Tidal Volume range: 20-2500ml; I:E ratio 1:59 to 99:1.
- ✓ 17 ventilation modes: V-AC, V-SIMV, PRVC, PRVC+, P-AC, P-SIMV, PCV, CPAP, CPAP+, BiPPV, BiPPV+, APRV, APRV+, CPR, RSA, HFNC.
- ✓ CPR mode according to AHA guidelines.
- ✓ Dual trigger ways: pressure and flow.
- ✓ O2 concentration adjustment from 40% to 100%.
- ✓ Internal PEEP valve with audible and visual alarms.
- ✓ Rechargeable Li-ion battery providing 5 hours of working time.
- ✓ IPX4 waterproof rating for challenging environments.
🔹 Configuration & Application
Standard Configuration:
Main Unit, Power Adapter, Reusable Ventilation Hose Kits, Reusable Mask, Mask Hook, Silicone Headgear, Flow Meter, Oxygen Tube.
|
Applications
On-spot rescue, patient transport, emergency care, and ICU environments.
Installation Features
- ▶ Easy to mount main unit, O2 cylinder, and accessory bag to a portable bracket.
- ▶ Water-resistant accessory bag for hoses and masks.
- ▶ Carbon fiber O2 cylinder to reduce overall system weight.
- ▶ Multiple ports: O2 source, Pressure measurement, PEEP air supply, Fresh air outlet, and ETCO2 port.
❓ Frequently Asked Questions
1. What is the tidal volume range for this ventilator?
The ventilator supports a wide tidal volume range from 20ml up to 2500ml, making it versatile for various patient needs.
2. How long does the battery last during transport?
It is equipped with a high-capacity rechargeable Li-ion battery that provides up to 5 hours of continuous working time.
3. How many ventilation modes does the LTJ-Ve2 offer?
The device features 17 comprehensive ventilation modes, including V-AC, V-SIMV, PRVC, CPR, and HFNC, among others.
4. Is the device suitable for outdoor emergency use?
Yes, it features an IPX4 waterproof rating and a portable design with a carbon fiber O2 cylinder, specifically designed for on-spot rescue and ambulance transport.
5. Does it feature a touchscreen interface?
Yes, it has a 7-inch color touch screen with a screen lock function for easy operation and real-time monitoring of waveforms and loops.
6. Can the oxygen concentration be adjusted?
Absolutely. The O2 concentration can be precisely adjusted from 40% to 100% depending on the clinical requirement.
