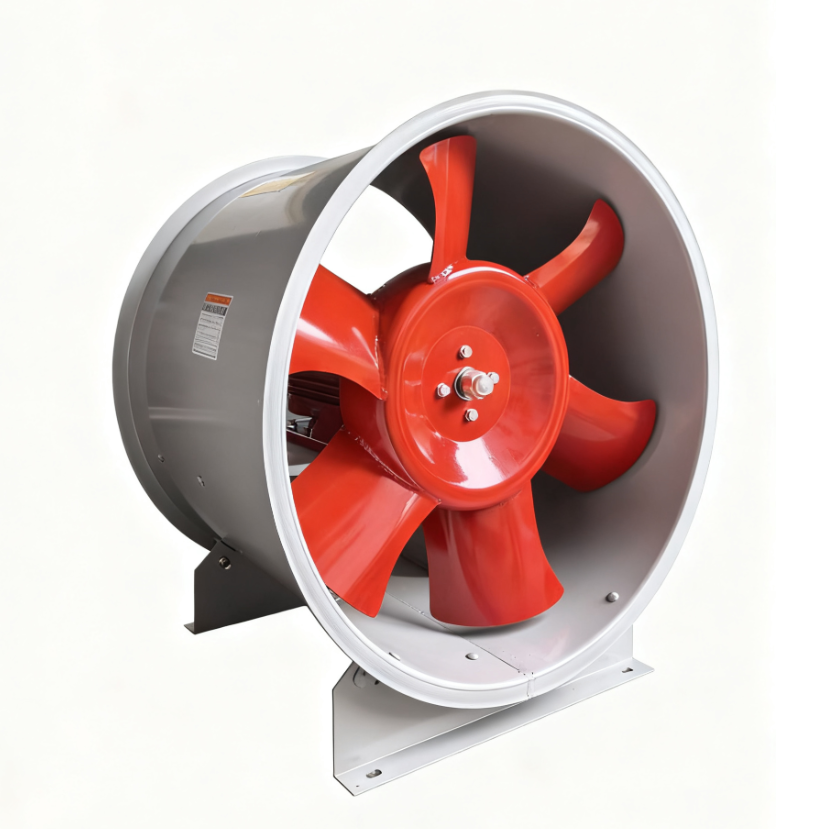

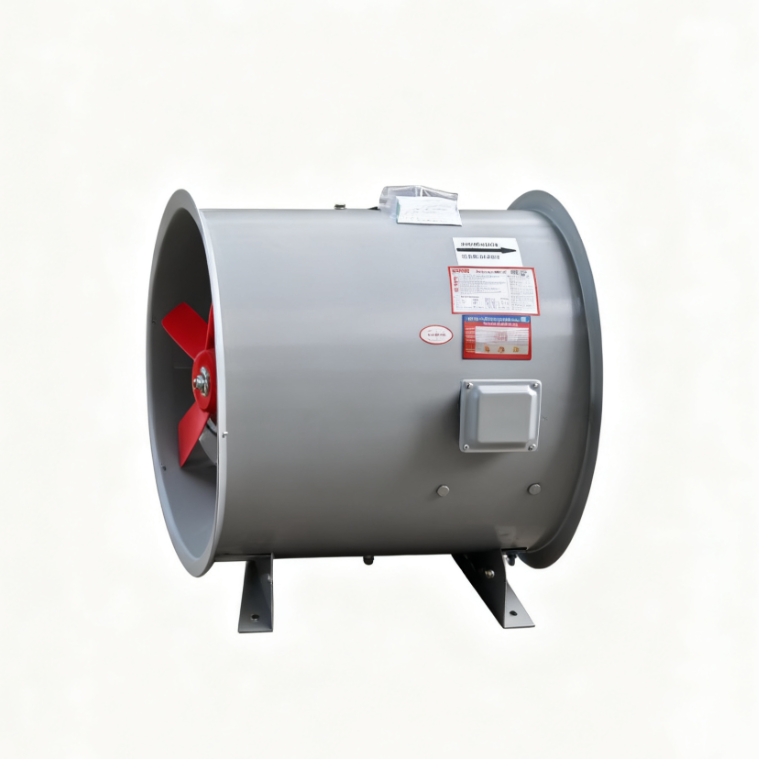

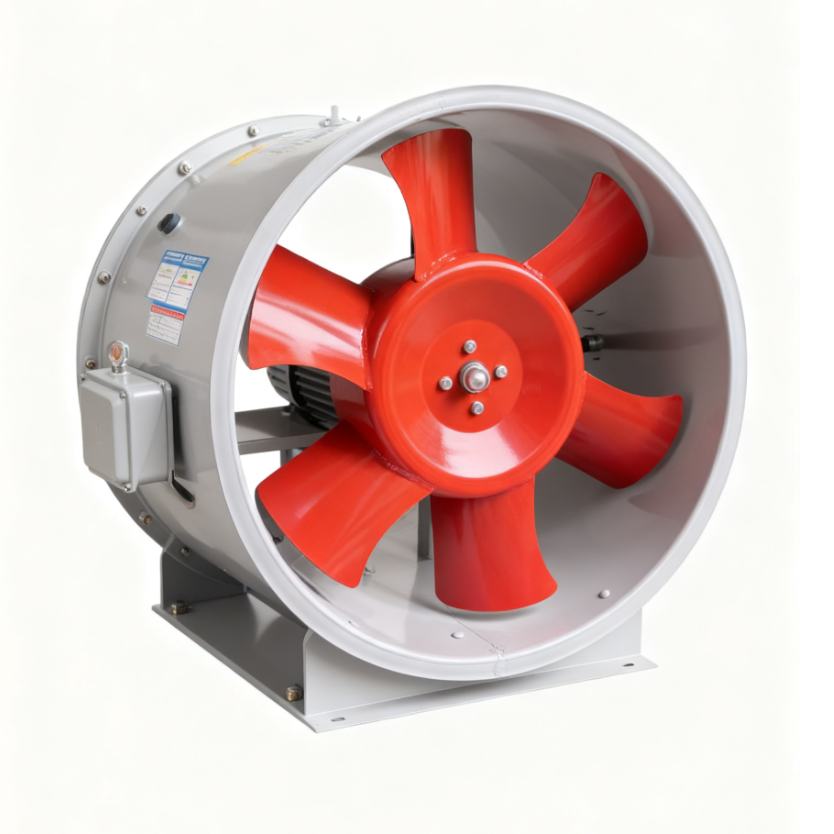

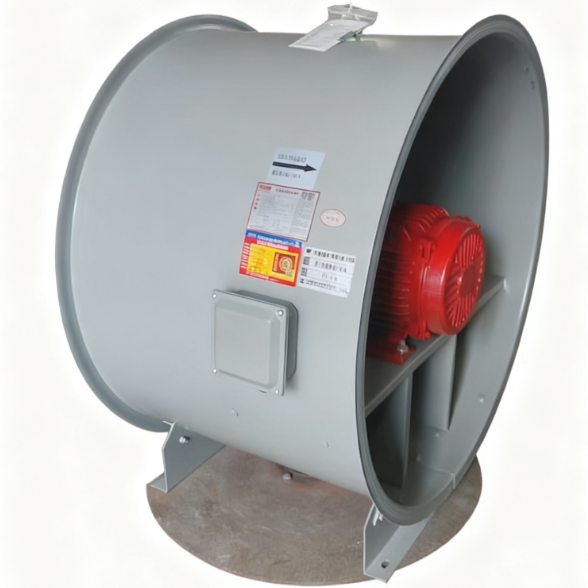

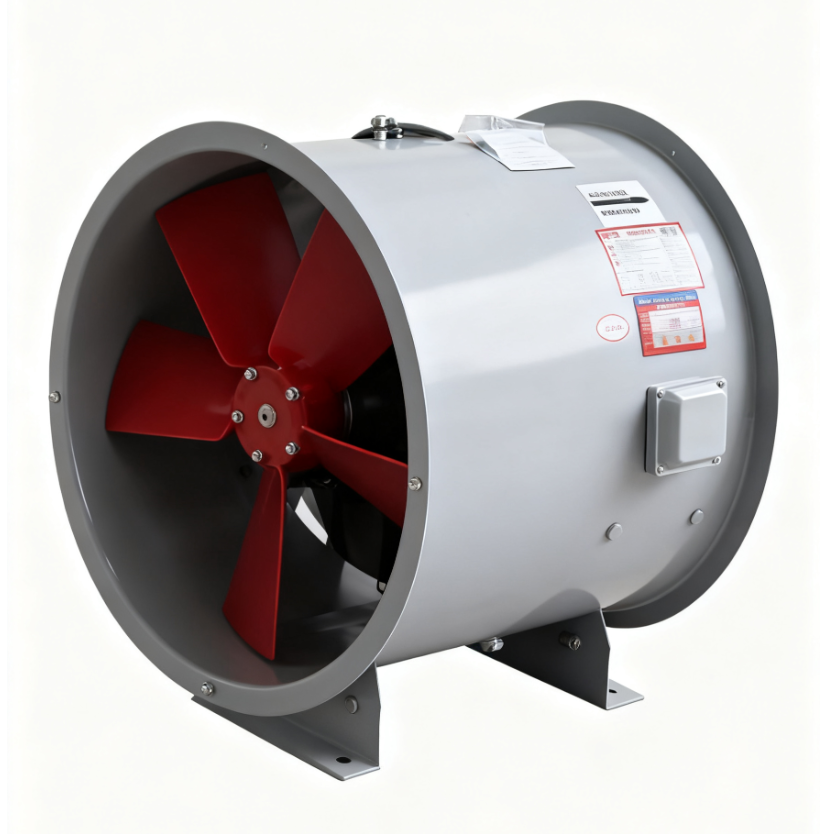

The HTF series of fans is a high-temperature dedicated axial flow/inclined flow fan series specially designed for fire smoke exhaust. It features excellent high-temperature resistance and operational reliability, capable of achieving dual functions of daily ventilation and fire smoke exhaust. It complies with the national fire protection 3C mandatory certification standards.
As a key piece of equipment in the building fire protection system, this fan can quickly expel high-temperature smoke when a fire occurs, effectively reducing the temperature at the fire scene and buying precious time for personnel evacuation and fire rescue. It can also be used as a regular ventilation device in non-emergency situations. The product features a wide range of performance coverage, a reasonable structural design and high safety, and is suitable for various building environments.
| Model | Air volume (m³/h) | Total pressure (Pa) | Power (KW) | Rotational speed (r/min) |
|---|---|---|---|---|
| HTF-I-7 | 18900-24380 | 610-728 | 7.5 | 1450 |
| 12600-19000 | 210-300 | 3 | 960 | |
| HTF-I-8 | 26000-31400 | 600-723 | 7.5 | 1450 |
| 18800-23680 | 230-330 | 3 | 960 | |
| HTF-I-9 | 16840-33860 | 350-680 | 11 | 1450 |
| 19000-31620 | 290-695 | 4 | 960 | |
| HTF-I-10 | 35000-56580 | 630-770 | 11 | 1450 |
| 30240-44800 | 300-451 | 5.5 | 960 | |
| HTF-I-11 | 46650-53100 | 516-726 | 15 | 1450 |
| 22500-36000 | 250-400 | 5.5 | 960 | |
| HTF-I-12 | 27740-65860 | 582-740 | 18.5 | 960 |
| 43500-53420 | 320-400 | 11 | 720 | |
| HTF-I-13 | 56000-74700 | 600-807 | 18.5 | 960 |
| 24500-55000 | 280-460 | 11 | 720 | |
| HTF-I-14 | 63300-85500 | 612-812 | 22 | 960 |
| 46000-64500 | 350-400 | 15 | 720 | |
| HTF-I-15 | 76000-93800 | 623-819 | 22 | 960 |
| 34000-64500 | 330-470 | 15 | 720 |
