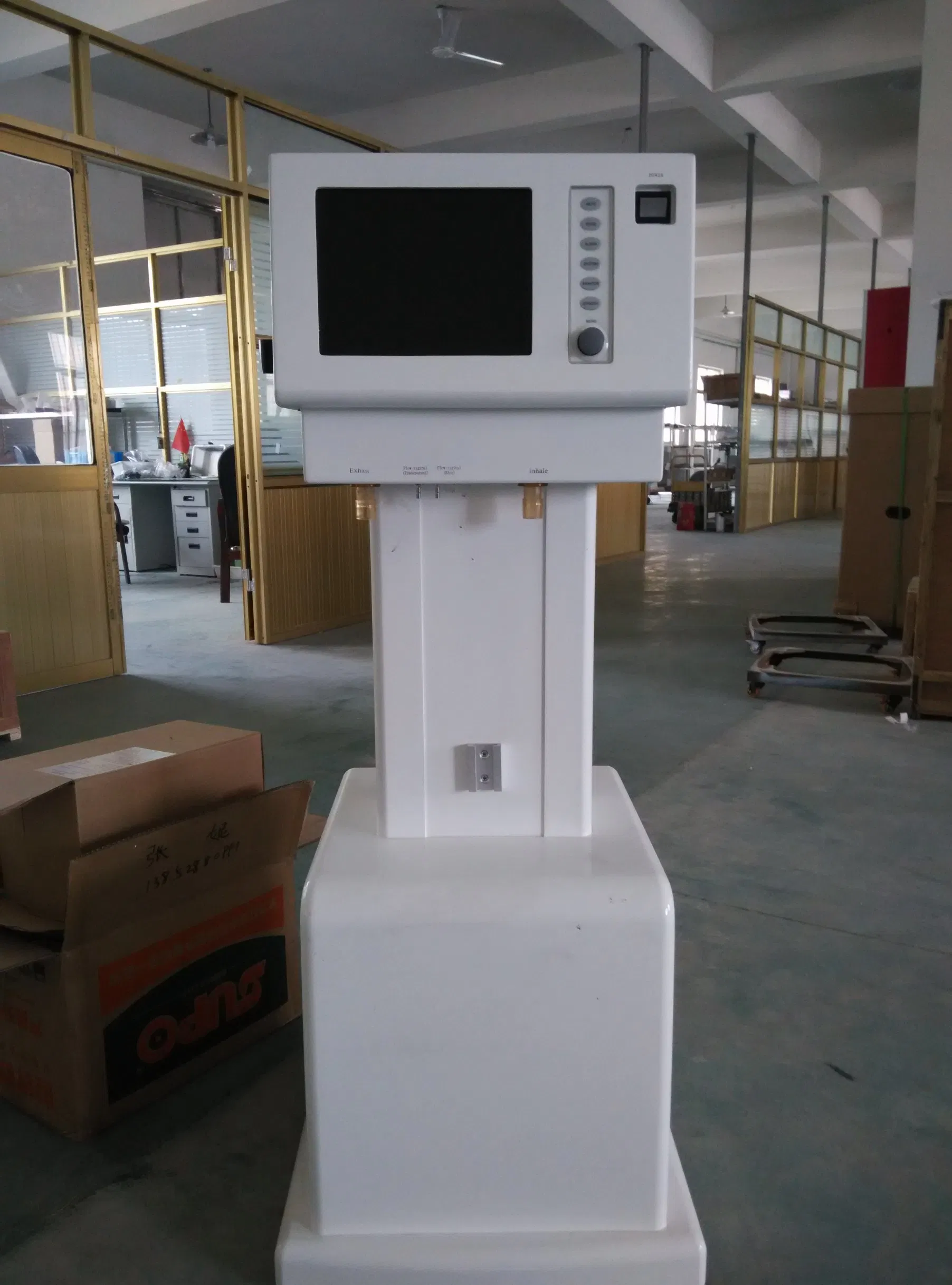

Compact Emergency Ventilator for Surgical and Critical Care

Customization:	Available
Type:	Ventilator Machine
Application:	Orthopedic, Abdominal, Ent, Neurosurgery, Microsurgery, Anorectal, Urology, Burns

Send Inquiry

Product Description

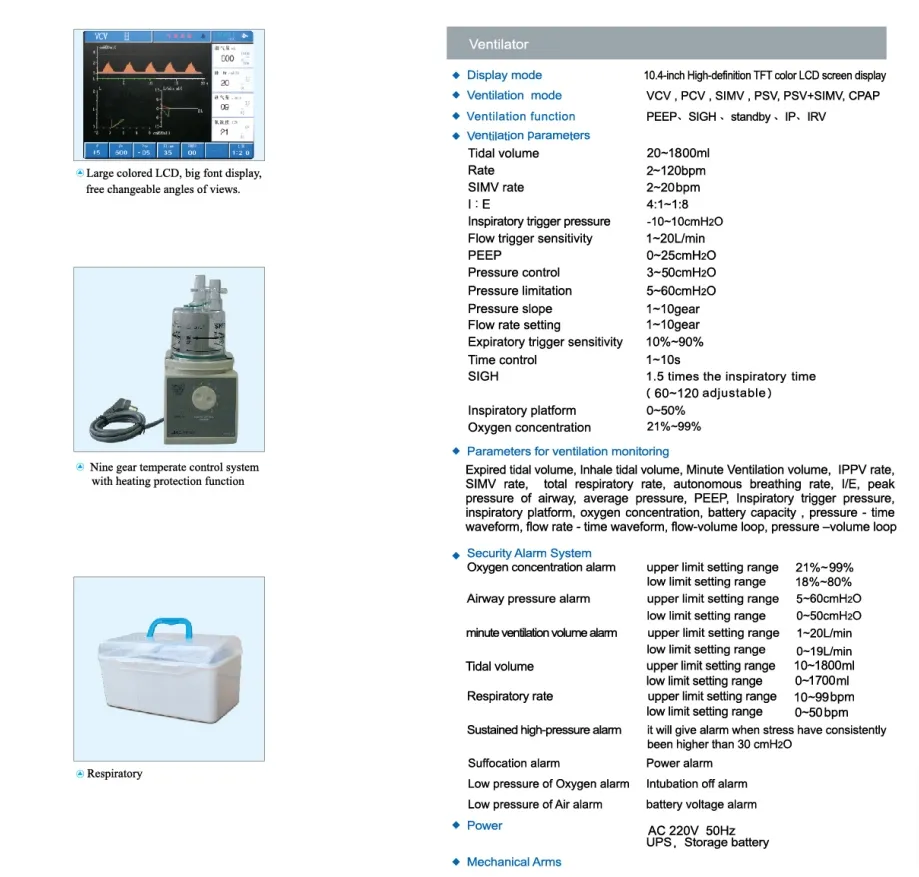

Basic Specifications

Model NO.	SD-2000B2
Material	Plastic
Feature	Reusable
Certification	CE, ISO13485
Patient Group	Adult, Child
Ventilation Mode	Vcv, Pcv, Simv, Psv, Psv+Simv, CPAP
Tidal Volume	20-2000ml
Rate	2-120bpm
I:E Ratio	4:1-1:8
PEEP	0-25 CMH2O
Power Supply	AC 100-240V, 50/60Hz
Origin	China

Product Description

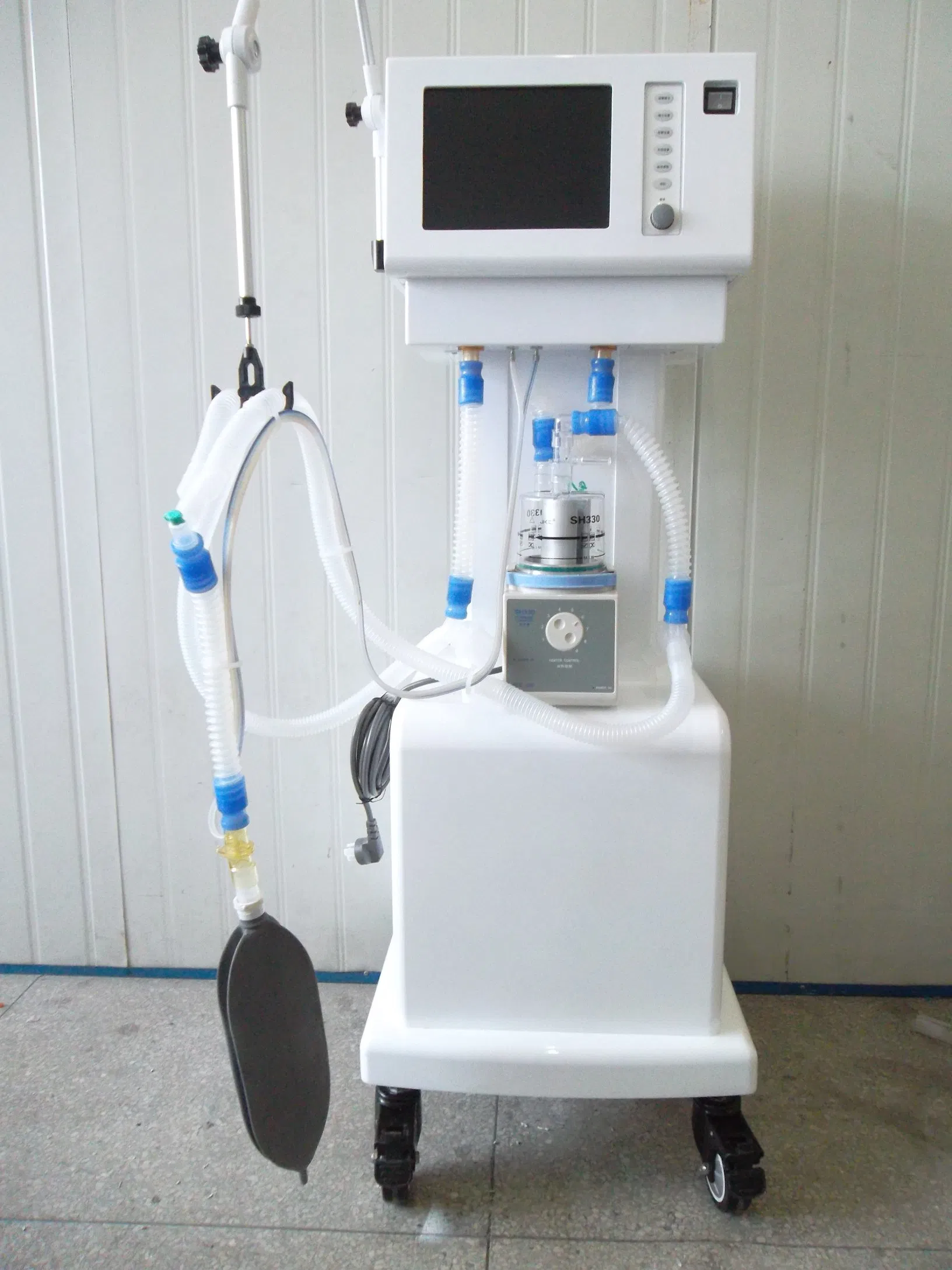

Compact Emergency Ventilator for Surgical and Critical Care

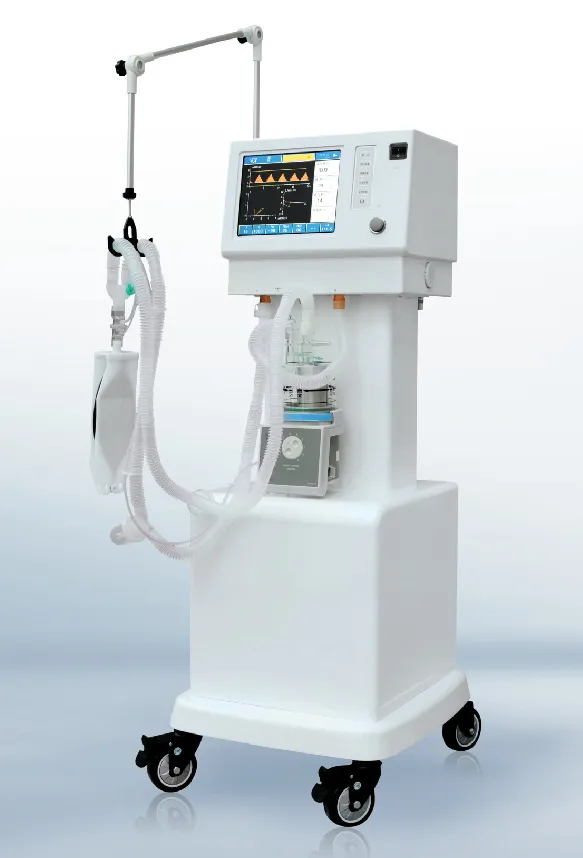

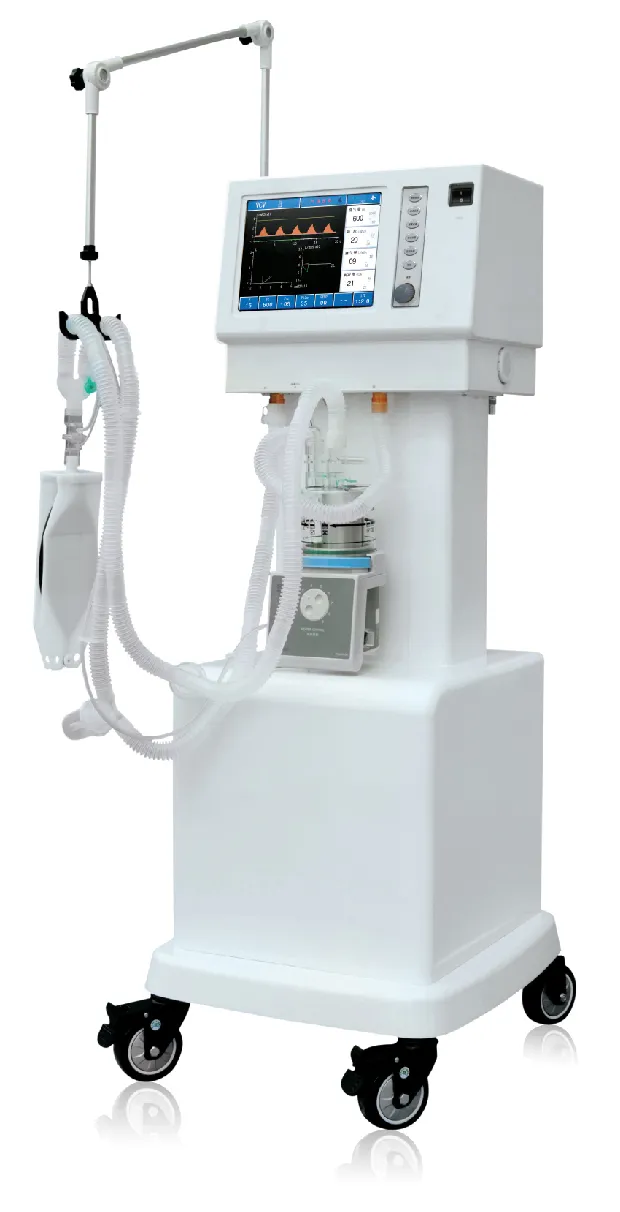

SD-2000B2 Ventilator is a multi-functional device adopting pneumatic, electronic control, and microcomputer technology. Imported components guarantee operational stability and reliability. Featuring a 10.4" LCD color screen, it is ideal for first aid, surgical, gynecology, pediatrics, and ICU departments.

Ventilation Monitoring Parameters

VI tidal volume, VE tidal volume, Minute Ventilation, IPPV rate, SIMV rate, total respiratory rate, autonomous breathing rate, I/E, peak airway pressure, average pressure, PEEP, Inspiratory trigger pressure, oxygen concentration, battery capacity, pressure-time waveform, flow rate-time waveform, flow-volume loop, pressure-volume loop.

Security Alarm System

Oxygen Concentration: Upper (21%~99%), Low (15%~80%)
Airway Pressure: Upper (1~60 cmH2O), Low (0~50cmH2O)
Per-minute Ventilation: Upper (1~30L/min), Low (0~20L/min)
Sustained High Pressure Alarm (>25 cmH2O for 15s)
Gas/Oxygen/Air shortage and Power/Battery alarms

Frequently Asked Questions

What is the payment term for orders?

We accept various payment methods including T/T, L/C, and Western Union to suit your needs.

How long is the typical delivery time?

The delivery time usually ranges from 15-35 working days, depending on the specific order quantity.

Can you provide official origin certifications?

Yes, we can apply for certificates such as FORM A, FORM E, or C/O and other Embassy certifications as required.

Is OEM customization available?

Yes, we have our own R&D team and can supply OEM items, including the use of your custom LOGO.

Which global markets do you serve?

Our products are distributed worldwide, covering over 70 countries and regions across Africa, South America, Russia, the Middle East, and Southeast Asia.

Does the ventilator include a backup battery?

Yes, it features a built-in Li Battery that can support the device for at least 4-6 hours of continuous operation.
