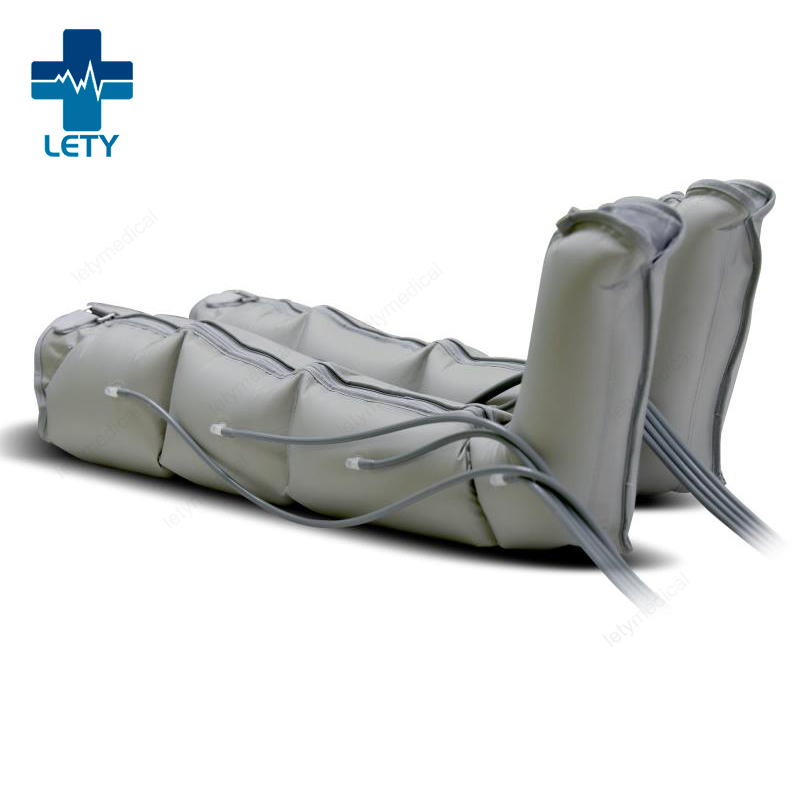

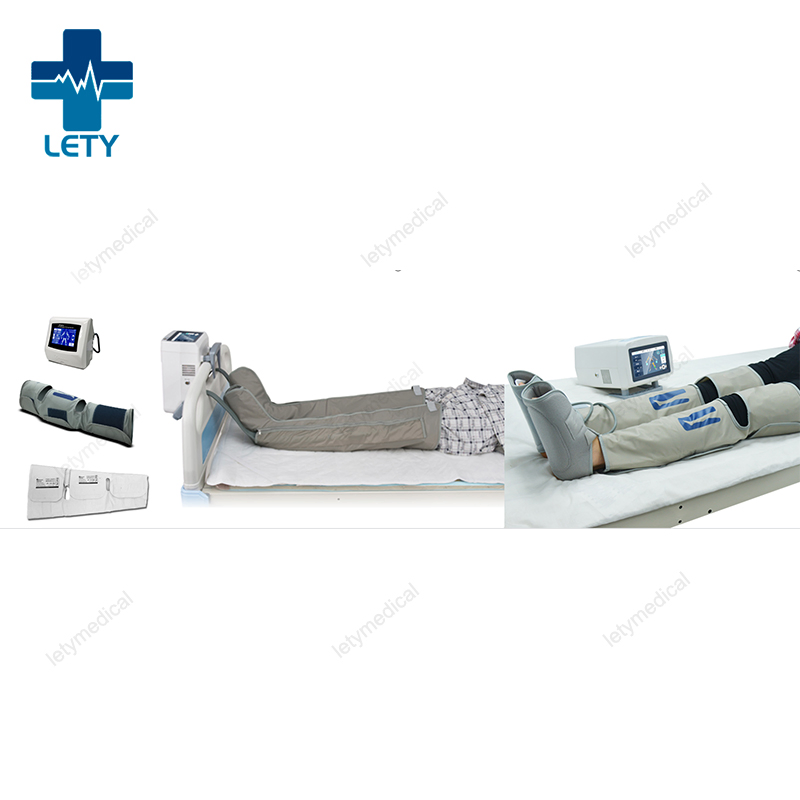

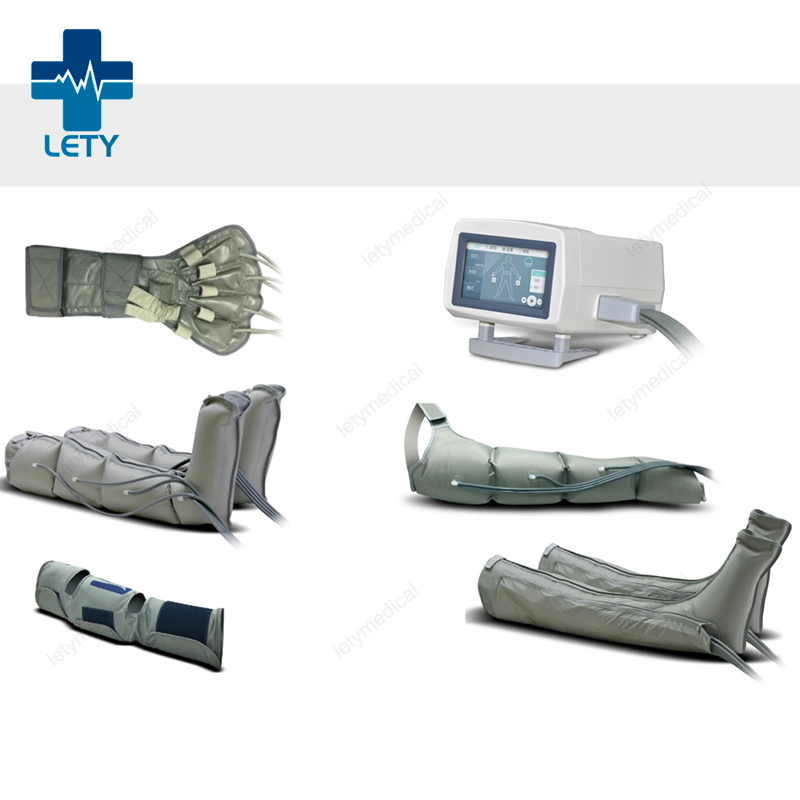

Ntithrombotic Pump Air Compression Therapy System (DVT) Compression Therapy Device

Customization: Available
Type: Air Compression Therapy
Function: Air Compression Therapy

Product Description

Basic Information
Model NO.
Airpro-6000
Certification
CE
LCD Display
With LCD Display
Group
Adult
Product
Compression therapy System
Transport Package
Standard Pack
Specification
standard
Trademark
LETY
Origin
China
Production Capacity
1000units/Month

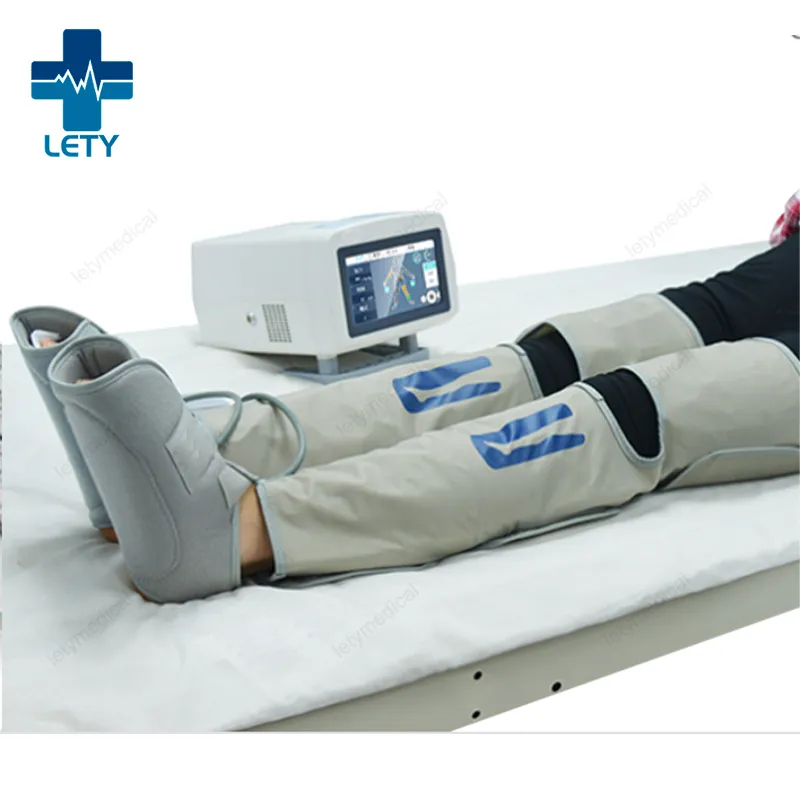

Airpro-6000 Compression Therapy System (DVT)

Air Compression Therapy System

Airpro-6000 Compression Therapy system is a clinically effective, non-invasive system designed for prevention of DVT, PE and secondary embolism. Widely applied to all types of major surgery, makes it welcomed in orthopedics, traumatology, urology and general surgery department.

Venous Refill Detection
Gradient Pressure Setting
Every Chamber Pressure Adjustable
Key Functions

01. Venous Refill Detection

The frequency of compression cycles is automatically adjusted according to the patients venous refill time, maximize blood flow compared to fixed compression cycle.

02. Gradient Pressure Setting

Professional for DVT prevention, pressure of calf and thigh 20-60mmHg adjustable, pressure of foot 120-140mmHg adjustable.

03. Every Chamber Pressure Adjustable

Ensure more flexible treatment. For patients with pain area or not suitable for compression area can adjust the local chamber without pressure.

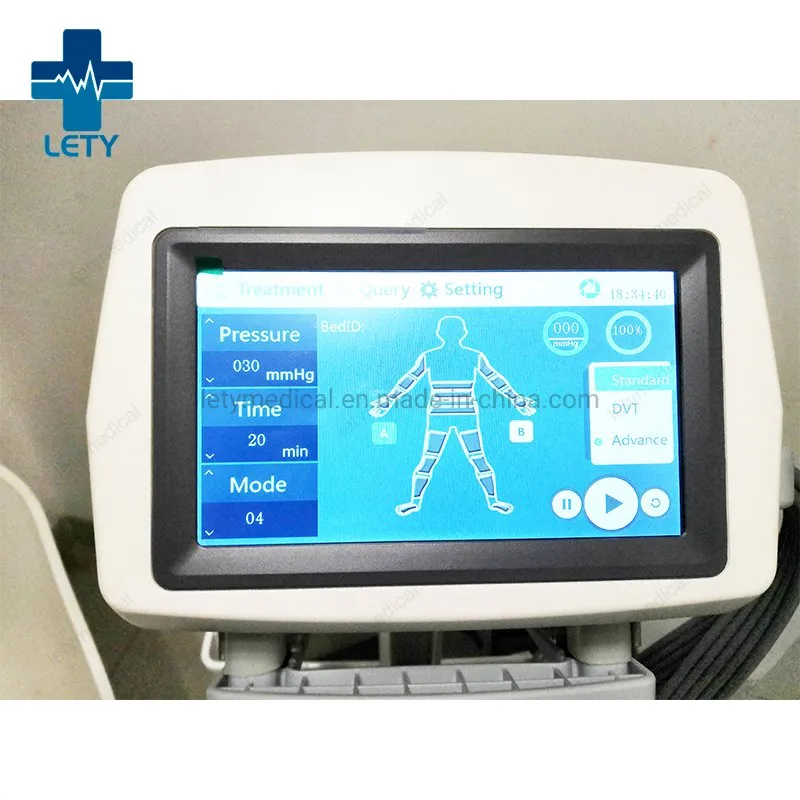

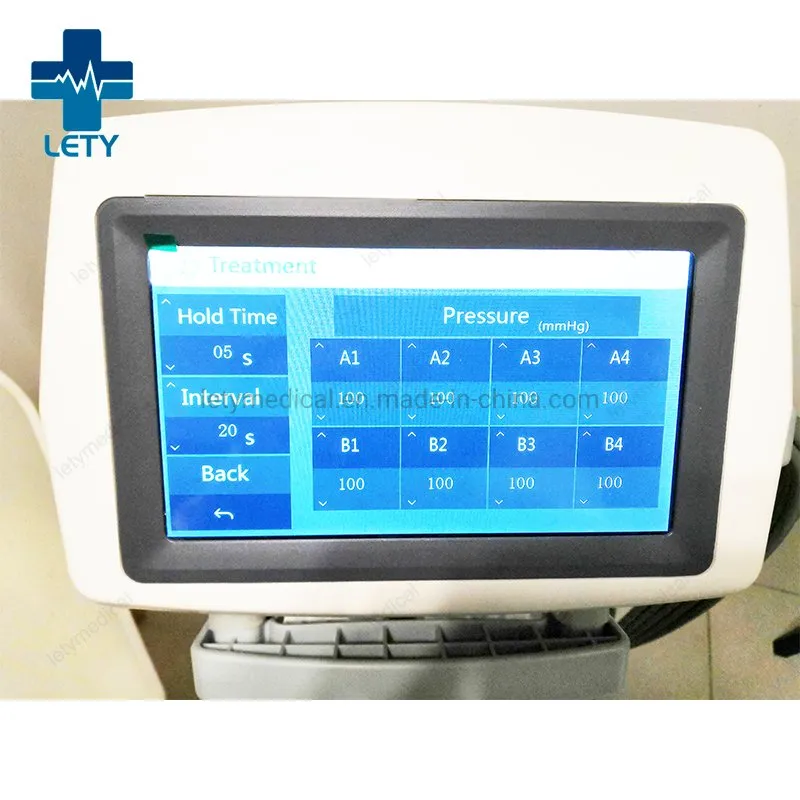

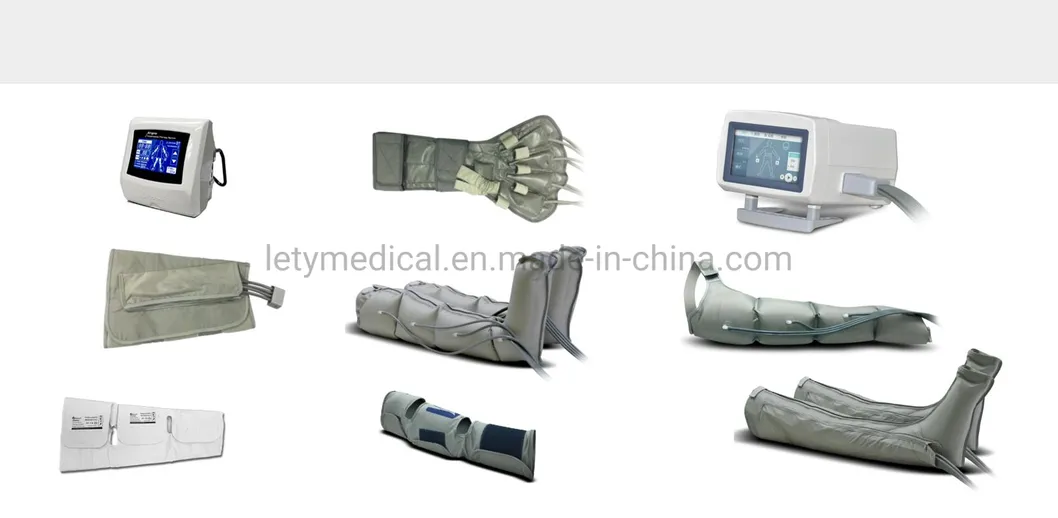

DVT Device Detail 1 DVT Device Detail 2 DVT Device Detail 3

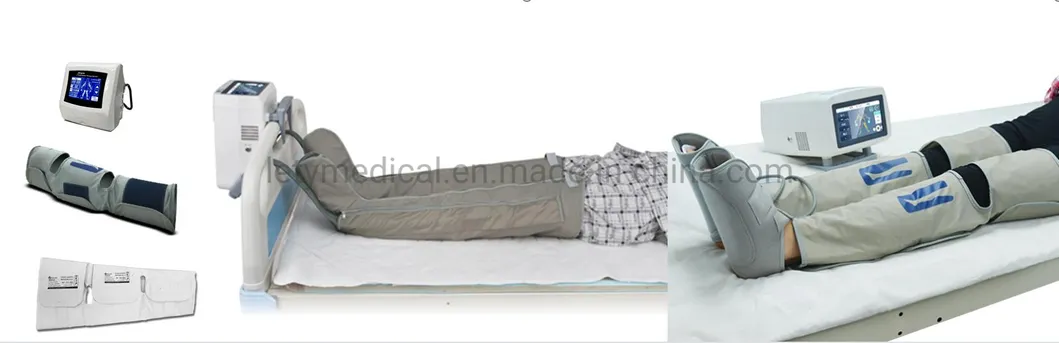

Interface Specifications

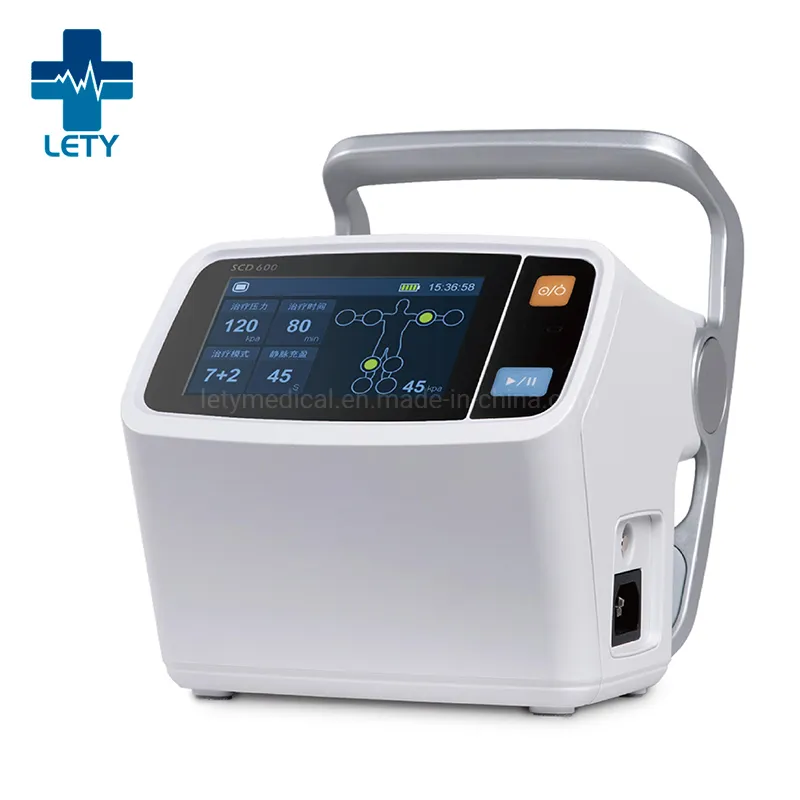

Doppler Operating Platform

Model: LTLL-SCD600 integrating ultrasound and ECG positioning.

LTLL-SCD600

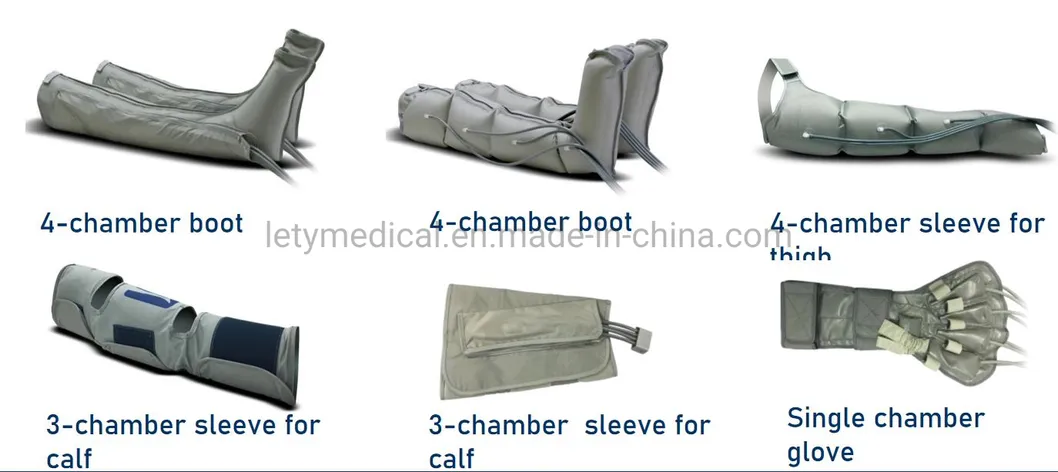

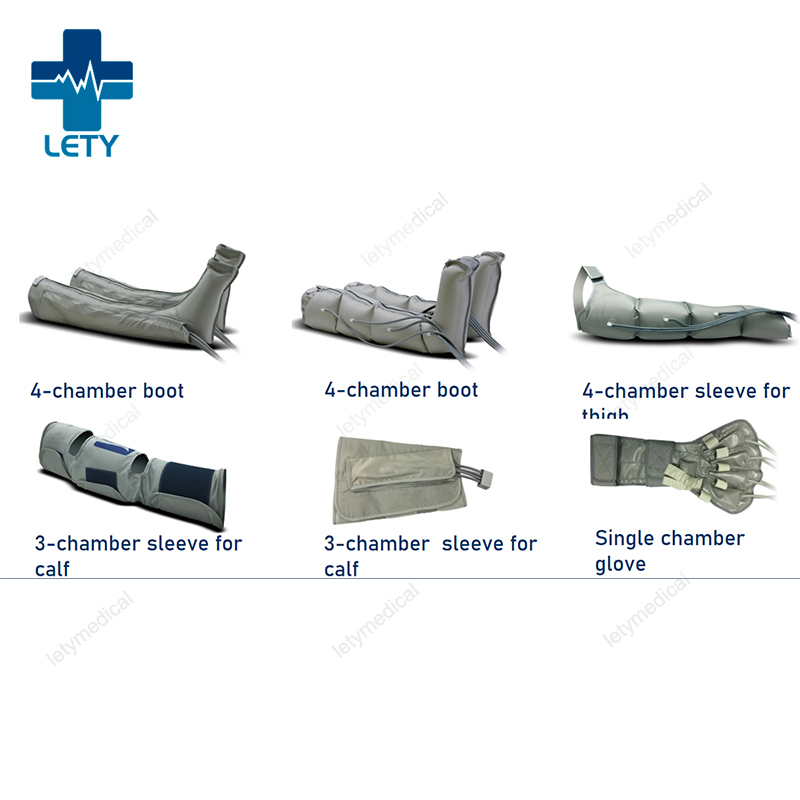

Comfortable and Durable Accessories
  • The reusable sleeves can be inflated 50,000 times; disposable sleeves 5,000 times.
  • Sleeves lining made of medical non-woven fabric, breathable and comfortable.
  • Medical-grade TPU material, soft for all seasons.
  • Extension tube with anti-static treatment, easy to clean.

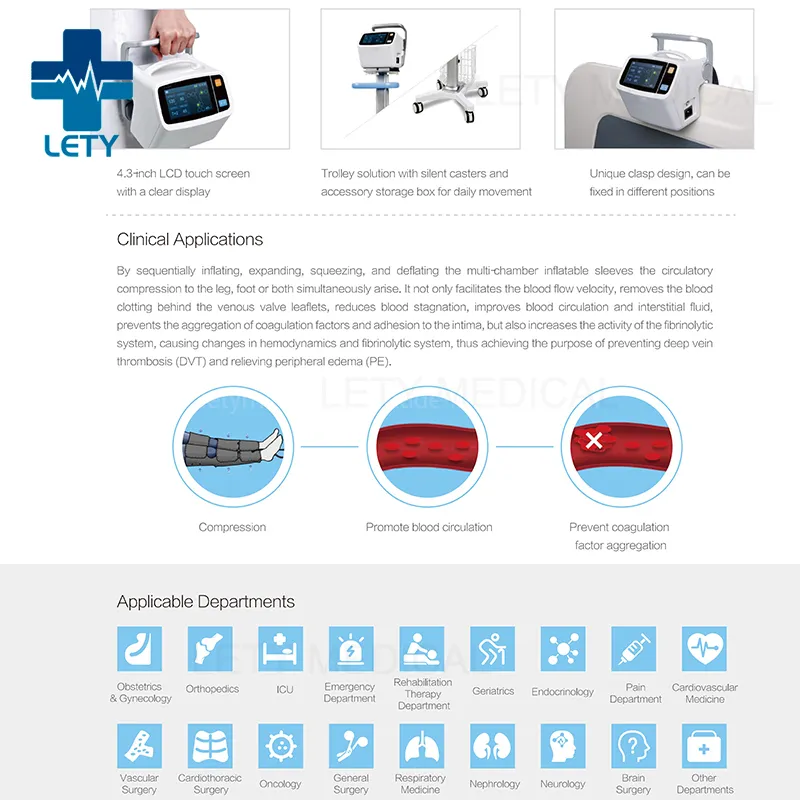

Clinical Application

By sequentially inflating, expanding, squeezing, and deflating the multi-chamber inflatable sleeves, the circulatory compression to the leg, foot or both simultaneously arise. It facilitates blood flow velocity, removes blood clotting behind venous valve leaflets, reduces blood stagnation, and increases the activity of the fibrinolytic system to prevent deep vein thrombosis (DVT) and relieve peripheral edema (PE).

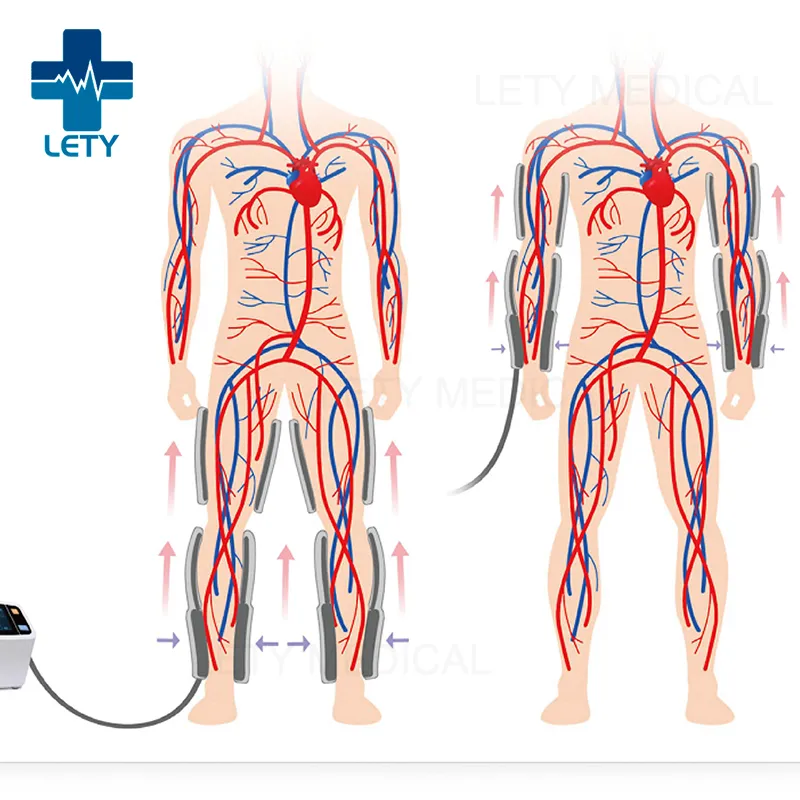

Clinical Illustration
Accurate and Reliable

PID dynamic self-adaptive algorithm automatically adjusts pressure, ensuring stable control (error ≤ ±5mmHg). Medical-grade dual pressure sensors and Dual CPU processors provide real-time monitoring and overpressure protection for patient safety.

Technical Design
Application Department
Obstetrics & Gynecology Orthopedics
ICU Emergency Department
Rehabilitation Therapy Geriatrics
Endocrinology Pain Department
Cardiovascular Medicine Vascular Surgery
Cardiothoracic Surgery Oncology
General Surgery Respiratory Medicine
Nephrology Neurology
Brain Surgery Other Departments
Department Application Chart
Frequently Asked Questions
Q1: What is the primary use of the Airpro-6000? A: It is a non-invasive system designed primarily for the prevention of Deep Vein Thrombosis (DVT), Pulmonary Embolism (PE), and secondary embolism.
Q2: How does Venous Refill Detection improve treatment? A: It automatically adjusts compression cycles based on the patient's specific venous refill time, maximizing blood flow efficiency compared to standard fixed-cycle devices.
Q3: Can the pressure be adjusted for patients with localized pain? A: Yes, the Airpro-6000 allows for individual chamber pressure adjustment, meaning specific painful areas can be set to zero pressure while still treating other areas.
Q4: What are the durability specs for the inflatable sleeves? A: Reusable sleeves are tested for up to 50,000 inflations, while disposable sleeves are designed for up to 5,000 inflations, ensuring a long and cost-effective service life.
Q5: Is the device safe for use in intensive care environments? A: Absolutely. It features a Dual CPU processor and dual medical-grade pressure sensors for real-time monitoring and overpressure protection.
Q6: What materials are used for the patient-contact parts? A: The sleeves are made from medical-grade TPU and lined with breathable medical non-woven fabric for maximum patient comfort in all seasons.
