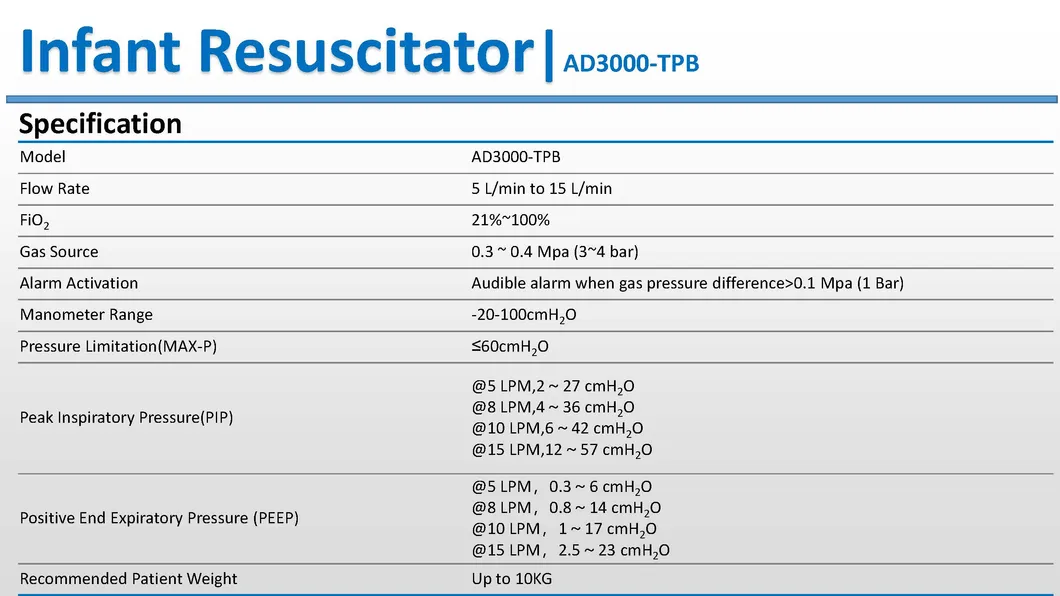

Technical Specifications

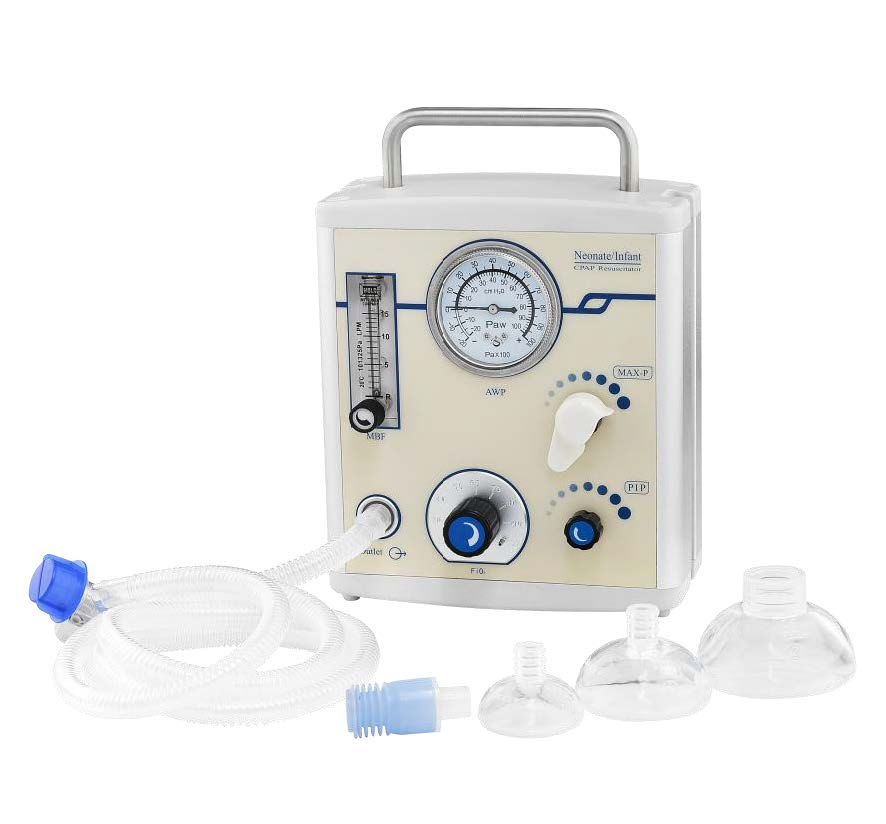

Model: AD3000-TPB
Flow Control: 5LPM ~ 15LPM
Oxygen Concentration: 21% ~ 100%
Pressure Gauge: -2 ~ 10KPa (-20 ~ 100cmH2O)
MAX-P: ≤ 6kPa (60cmH2O) @ 0~15LPM
PIP: 0.2 ~ 5.7kPa (2 ~ 57cmH2O) @ 5~15LPM
PEEP: 0.03 ~ 2.3kPa (0.3 ~ 23cmH2O) @ 5~15LPM
Working Noise: ≤ 55dB(A)
Quality Certification: ISO 13485
❓
Frequently Asked Questions
What is the maximum infant weight suitable for this resuscitator?
The device is specifically designed for infants with a maximum weight of up to 10KG.
How is the oxygen concentration adjusted?
The oxygen concentration can be adjusted from 21% to 100% by changing the proportion of oxygen and air.
Does the device include a safety alarm?
Yes, it features a differential pressure alarm system. If the air supply is interrupted or the pressure difference exceeds 0.1MPa, a sound alarm will trigger for at least 60 seconds.
Is the output pressure affected by the operator's experience?
No, the design ensures that the output pressure is controlled and accurate, independent of the operator's experience, training, or fatigue level.
What quality standards does this product meet?
This infant resuscitator is certified under ISO 13485 quality management standards for medical devices.
What are the environmental requirements for storage?
The device can be operated and stored in environments ranging from -20ºC to 50ºC with relative humidity up to 90%.
