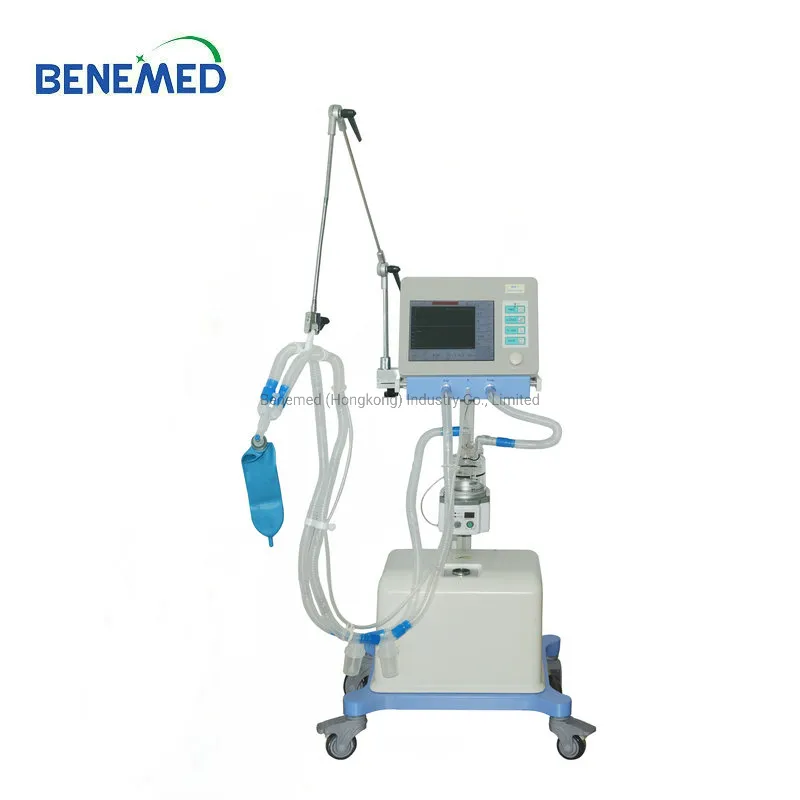

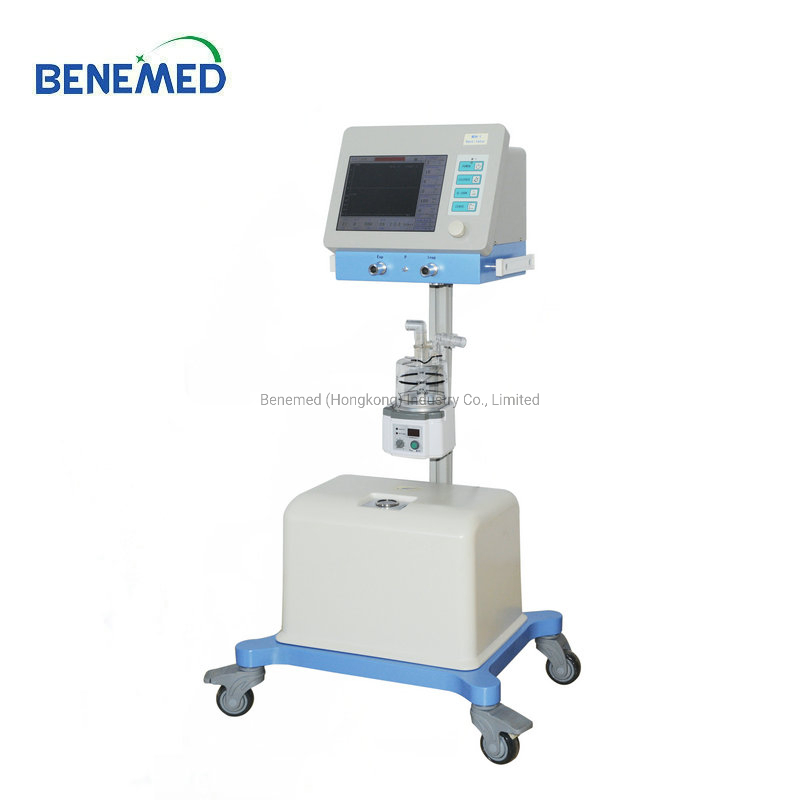

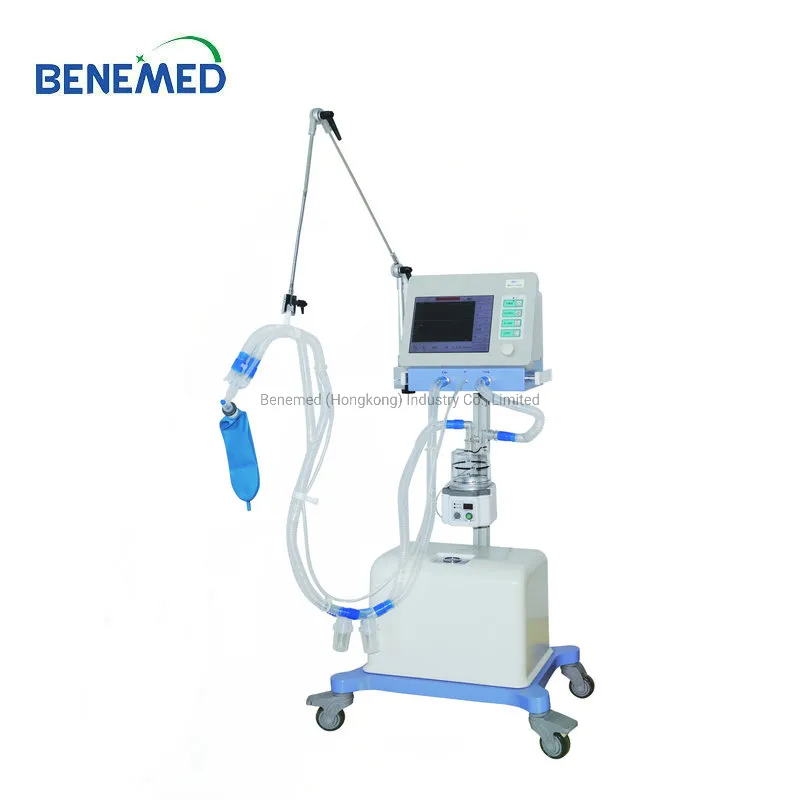

Medical Portable 10.4" TFT Color Screen ICU Ventilator WDH-1
Basic Specifications
Operation Method
Knob and Key

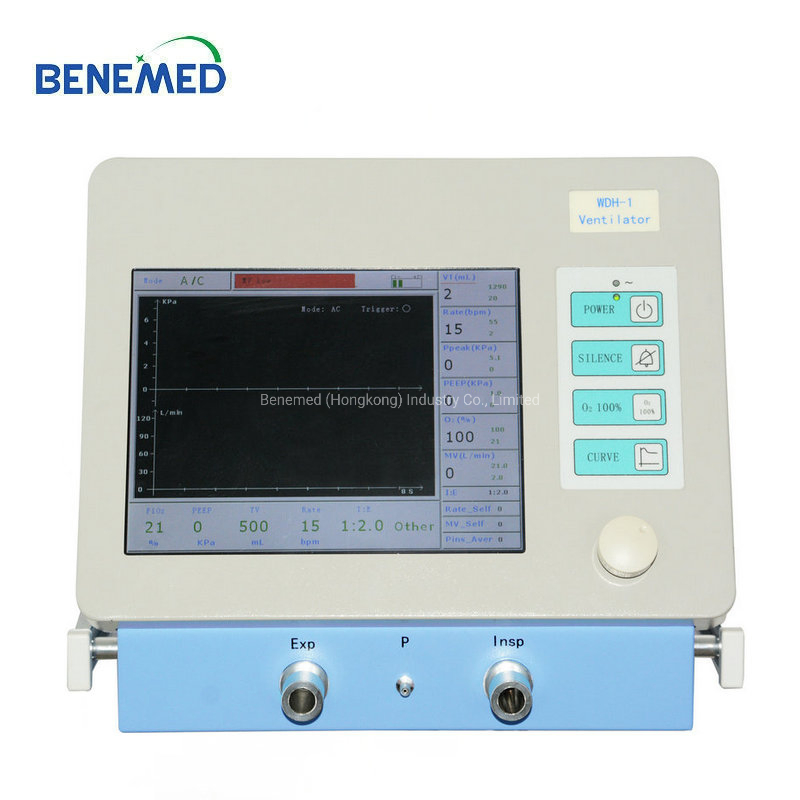

Display
10.4" TFT color screen
Special Features
Modes: A/C, A/C+SIGH, SIMV, SIMV+PSV, PCV, PSV, MMV, PEEP
Computer Controlled Pneumatically Driven System
User-friendly Interface: 10.4" TFT color screen
High versatility: Suitable for Emergency, ICU, Operation Rooms, and Internal Medicine.
Technical Specifications
Ventilation Wave
Square/Deceleration
Oxygen Concentration
21% ~ 100%
Trigger Sensitivity
-0.1 ~ -2.0kPa
Monitoring & Alarms
Waveform Monitoring: Pressure-time (P-t), Flow-time (F-t)
Parameters: Tidal Volume, Breath Frequency, I:E Ratio, PEEP, Ppeak, MV, Oxygen Concentration, Pmean
Alarm System: Apnea Alarm (3~12S), Tidal Volume, Peak Pressure, PEEP Upper, MV Upper
Frequently Asked Questions
Q: What are the primary ventilation modes available on the WDH-1?
A: The WDH-1 supports multiple modes including A/C, A/C+SIGH, SIMV, SIMV+PSV, PCV, PSV, MMV, and PEEP to accommodate various clinical needs.
Q: What range of Tidal Volume can this ventilator provide?
A: It offers a wide Tidal Volume range from 50ml up to 1500ml, making it suitable for a variety of patient profiles.
Q: Can the oxygen concentration be adjusted?
A: Yes, the oxygen concentration is fully adjustable from 21% to 100%.
Q: What type of display does the unit use?
A: The unit features a high-clearance 10.4" TFT color screen for monitoring waveforms and ventilation parameters.
Q: Does the WDH-1 include an apnea alarm?
A: Yes, it is equipped with an apnea alarm that can be set within a range of 3 to 12 seconds.
Q: Where can this ventilator be used?
A: It is designed for use in various medical environments including emergency departments, ICUs, operating rooms, and internal medicine wards.
