Intelligent Control & Reliable Backup | 12.1" Touchscreen: Easy operation with gesture controls, external reciprocating air compressor & humidifier, 1.5h battery for power-fail safety, Precision pressure/volume control for critical cases

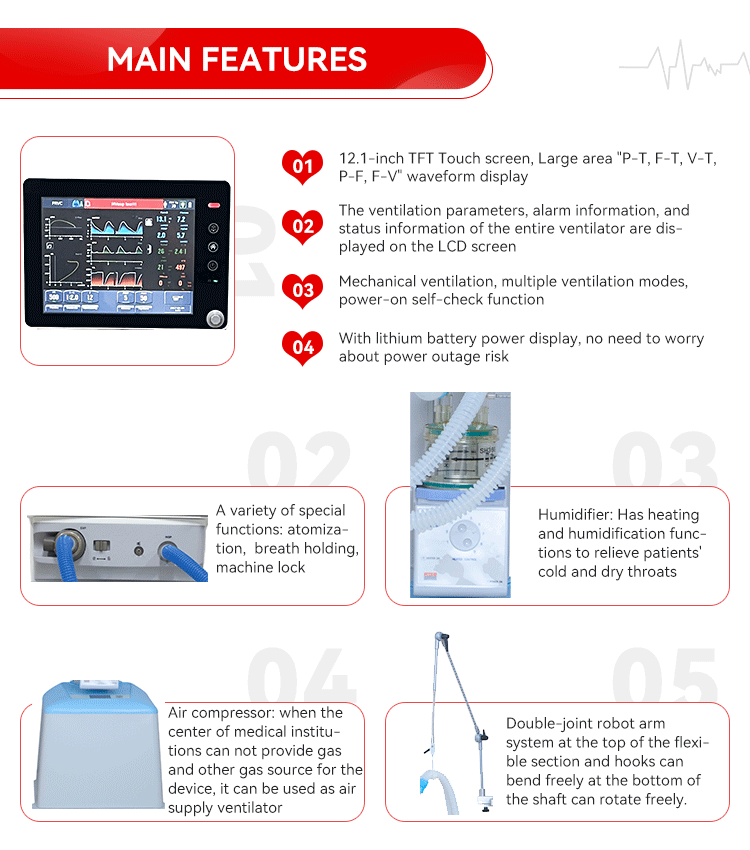

12.1-inch Full-Color Multi-Touch Screen
Operates like a smartphone or tablet, significantly reducing the learning curve. The large screen can display multiple real-time waveforms simultaneously.
External Professional-Grade Independent Piston Air Compressor
Provides a stable, high-pressure medical-grade air source with better heat dissipation, lower noise, and lower maintenance costs.
Intelligent Ventilation Mode Suite
Features advanced lung protection strategies such as Pressure Regulated Volume Control (PRVC) and Airway Pressure Release Ventilation (APRV).
Integrated Heated Humidifier
Automatically maintains optimal airway temperature and humidity, suitable for long-term mechanical ventilation.
Built-in emergency power supply
Equipped with a medical-grade nickel-metal hydride battery pack providing continuous ventilation for 1.5 hours.

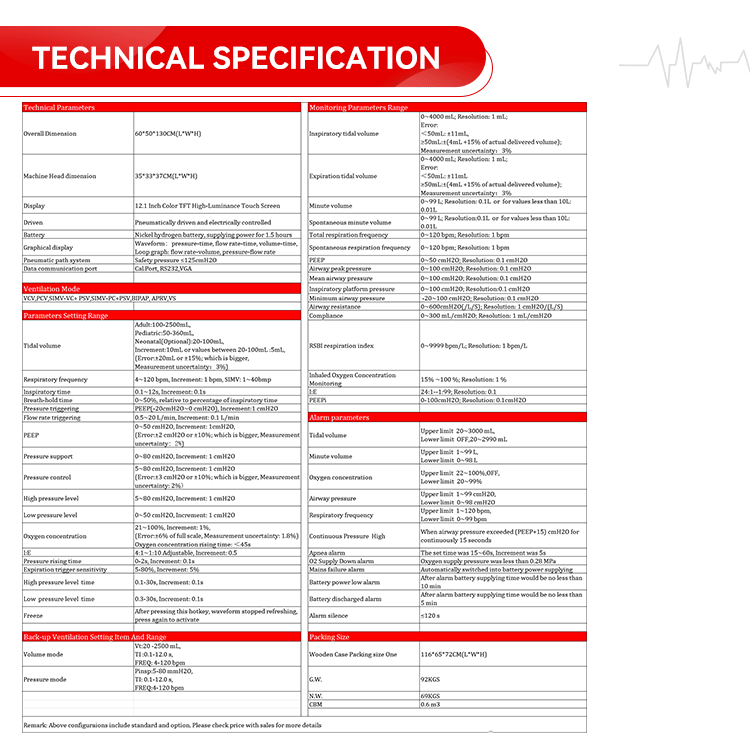

| Feature | Details |
|---|---|

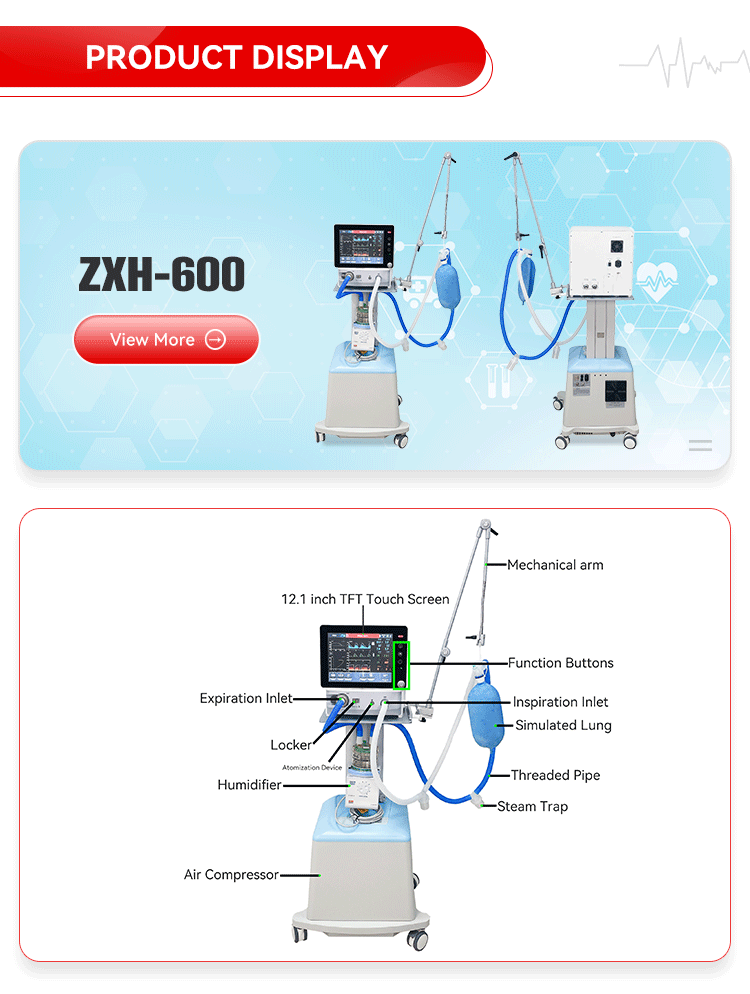

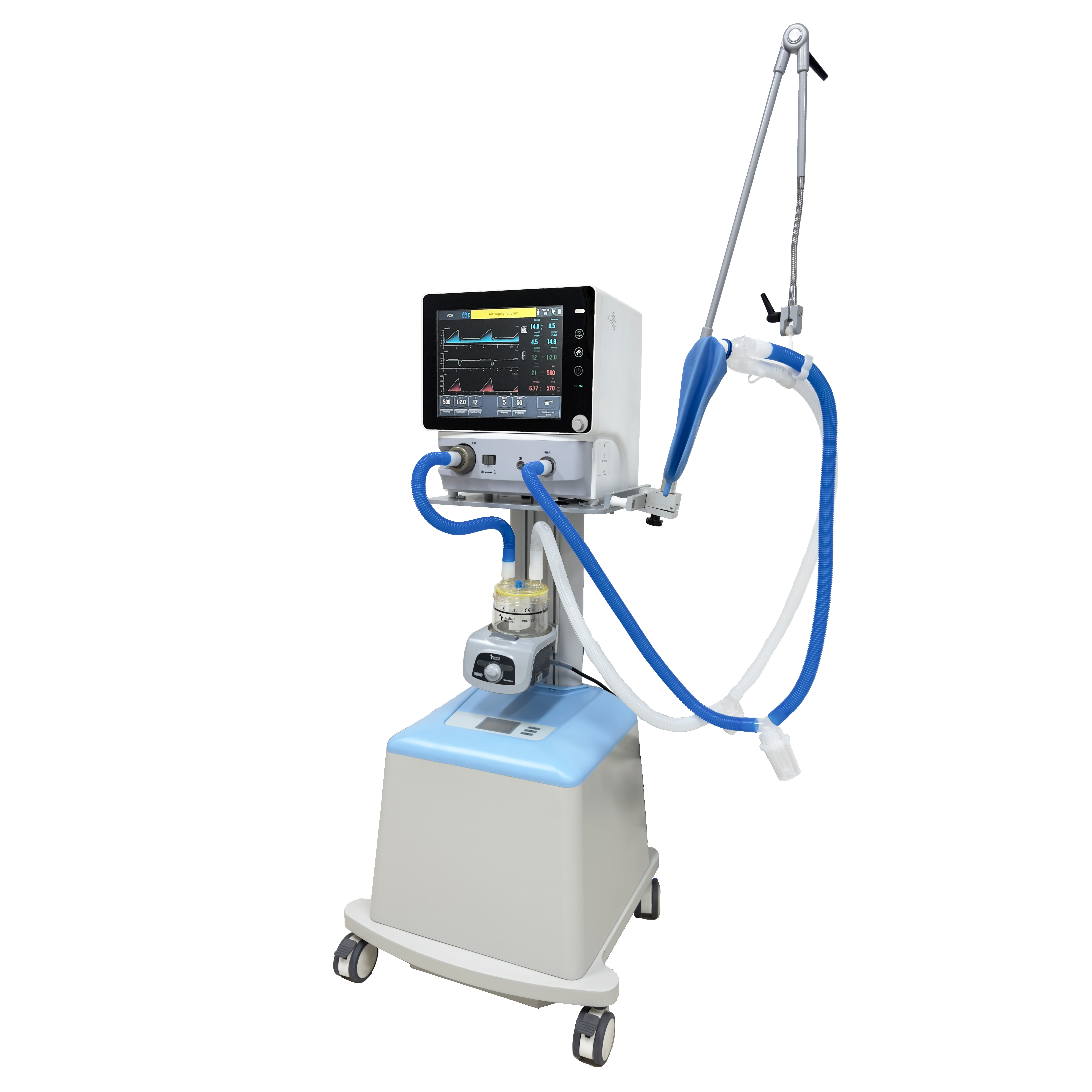

| Product Name | ICU Ventilator |
| Brand Name | HRD |
| Model No. | ZXH-600 |
| Usage | Intensive Care Unit (ICU), Operating Room, High-End Wards |
| Apply For | Pediatric to geriatric patients |
| Display | 12.1 Inch Color TFT High-Luminance Touch Screen |
| Product Size | 60*50*130CM(L*W*H) |
| Driven | Pneumatically driven and electrically controlled |
| Waveforms | Pressure-time, flow rate-time, volume-time; Loop graph: volume-flow rate, pressure-volume |
| Ventilation Mode | VCV, PRVC, SIMV-VC, SIMV-PRVC, PCV, SIMV-PC, CPAP/PS, BIPAP, APRV, VS |
| Tidal Volume(Vt) | Adult: 100-2500mL, Pediatric: 50-360mL, Neonatal(Optional): 20-100mL |
| Oxygen concentration | 21~100% |
| Gas supply | Air Compressor or central oxygen supply |
| Battery | Nickel hydrogen battery, 1.5 hours backup |
| Net Weight | 69 KGS |
1. Efficiency in Resuscitation: Touchscreen pressure adjustment, click-to-setup modes, and two-finger waveform zooming significantly reduce operational steps and cognitive load.
2. Rapid Response: The ZXH-600 features intelligent modes such as PRVC, which automatically finds the optimal balance between ensuring tidal volume and using minimum pressure.
3. Maintenance Flexibility: The external air compressor can be maintained independently, while the main unit can still operate through a central air source.
Connect the power cords and air compressor tubing. Connect to central oxygen as needed.
Press the power button. The machine performs a self-test. Adjust parameters on the touchscreen.
After connecting the patient, press the ventilation start button.
| Description | ZXH-550P | ZXH-550 | ZXH-600D | ZXH-600 |
|---|---|---|---|---|
| Position | Mobile emergency | Clinics/wards | ICU (space-optimized) | ICU (User experience oriented) |
| Screen | 10.4-inch color | 10.4-inch color | 12.1-inch foldable | 12.1-inch touchscreen |
| Accessories | 5L oxygen cylinder | Humidifier; Compressor optional | Compressor + Humidifier | Compressor + Humidifier |
| Battery | Lithium (Several hours) | AC Power only | NiMH (1.5 hours) | NiMH (1.5 hours) |
