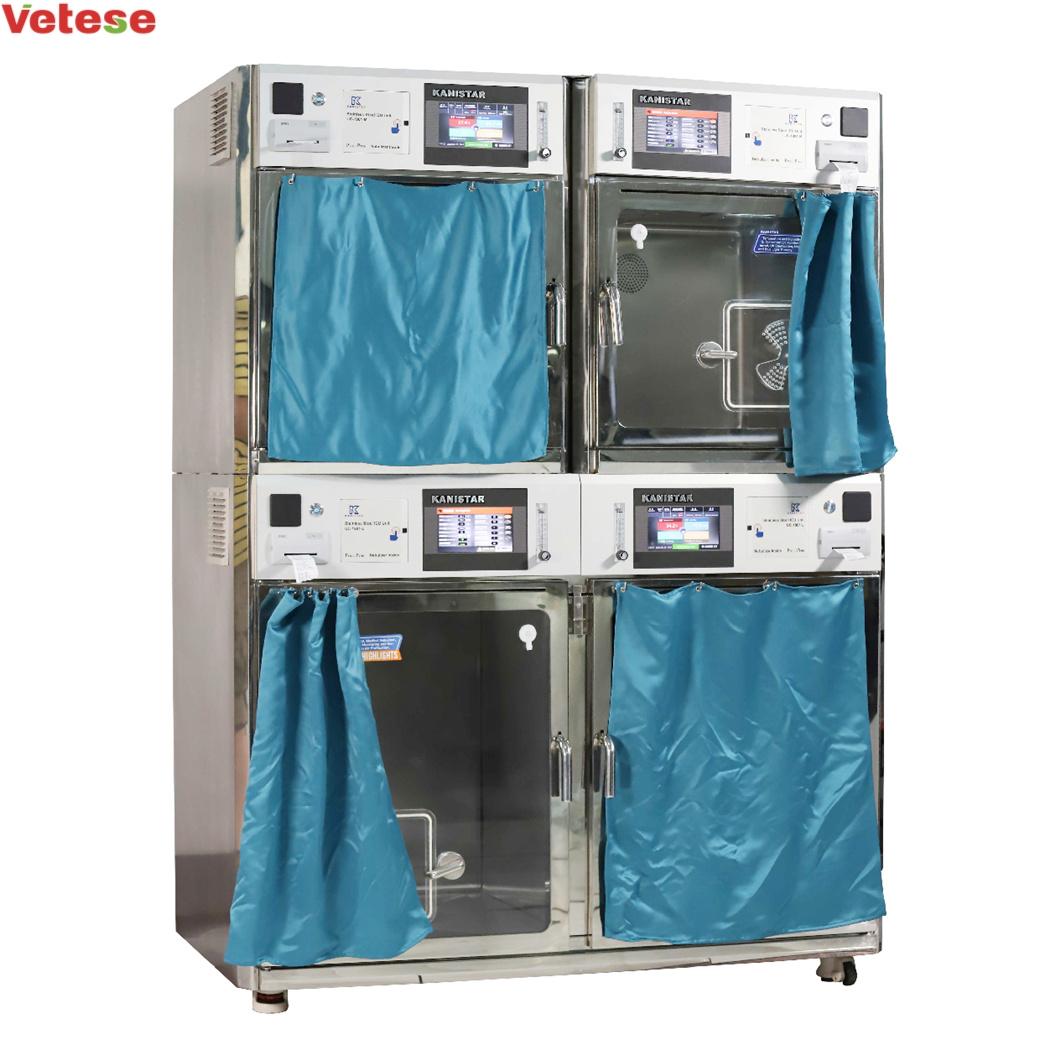

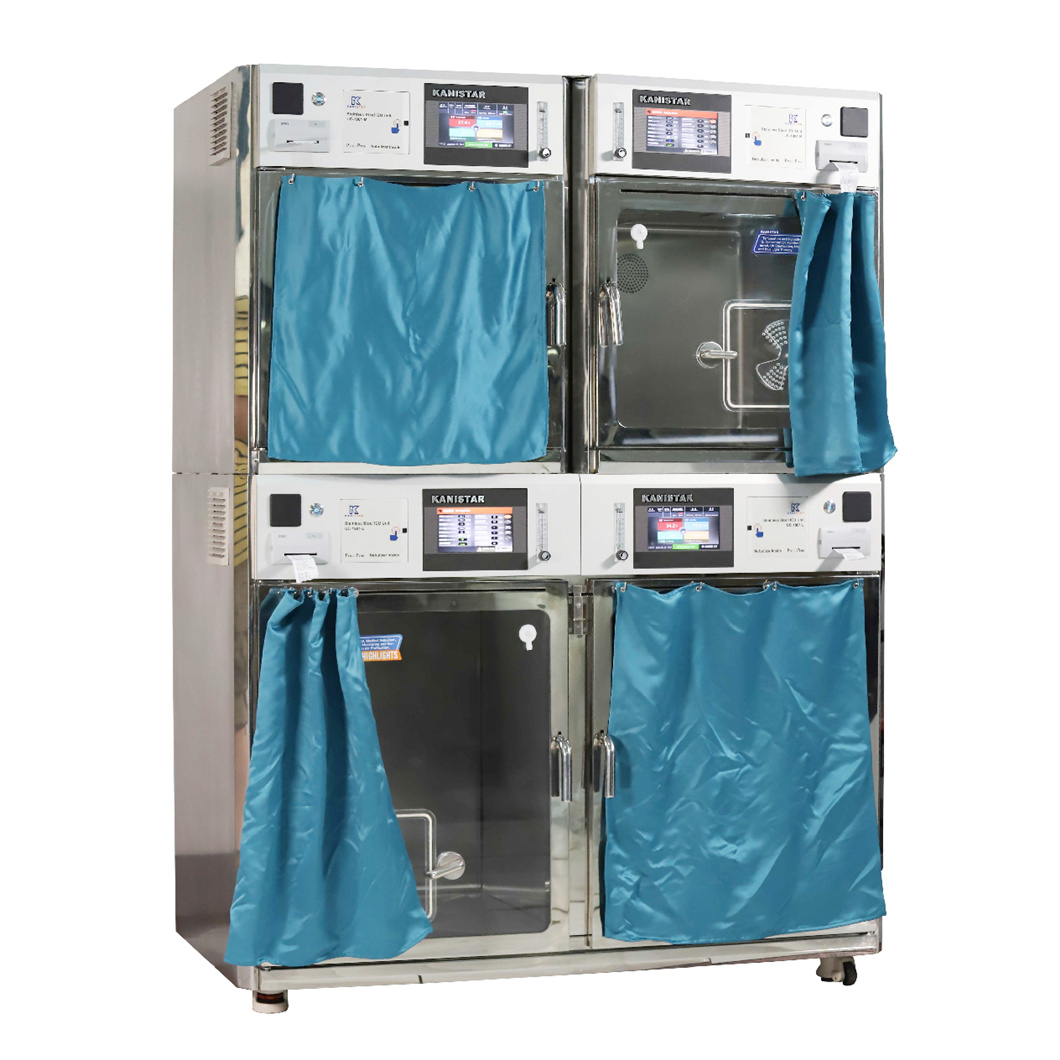

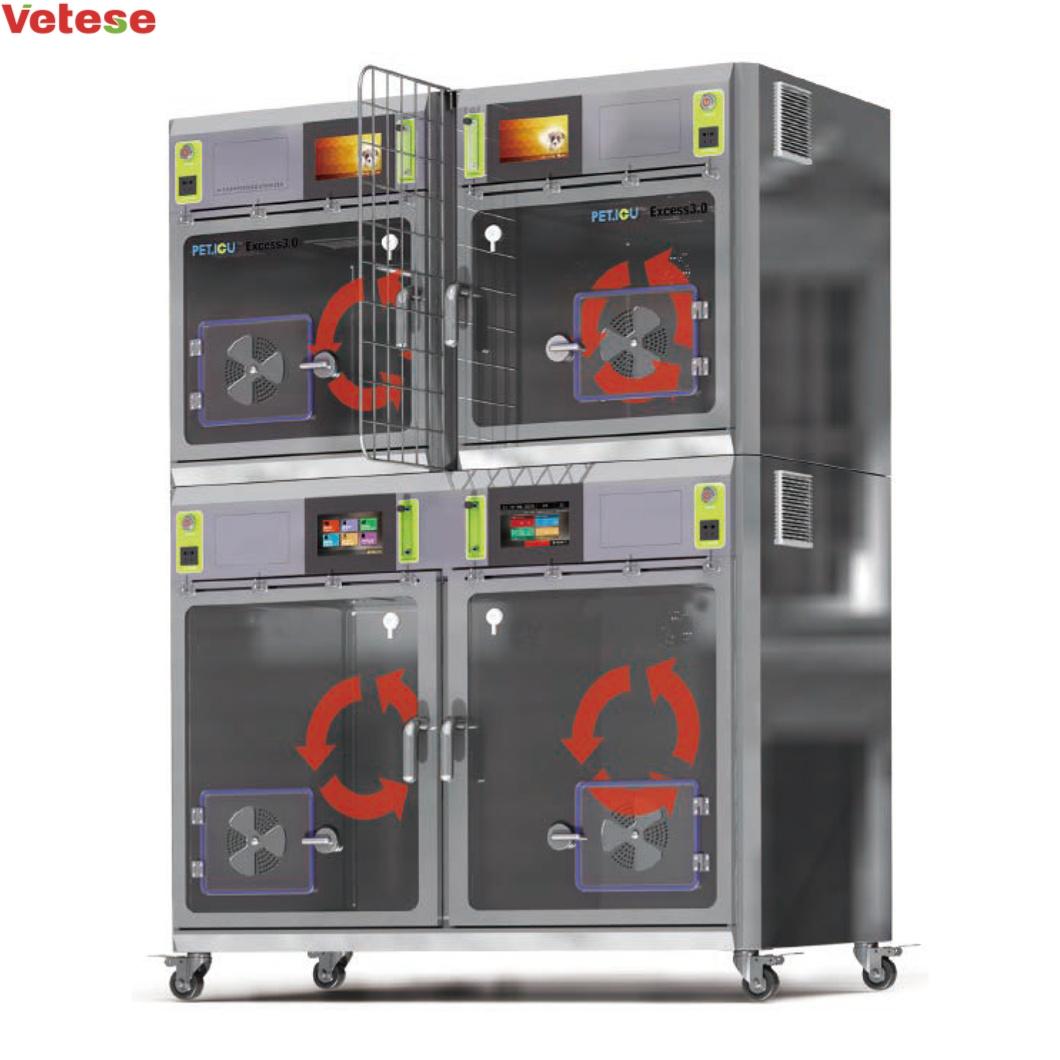

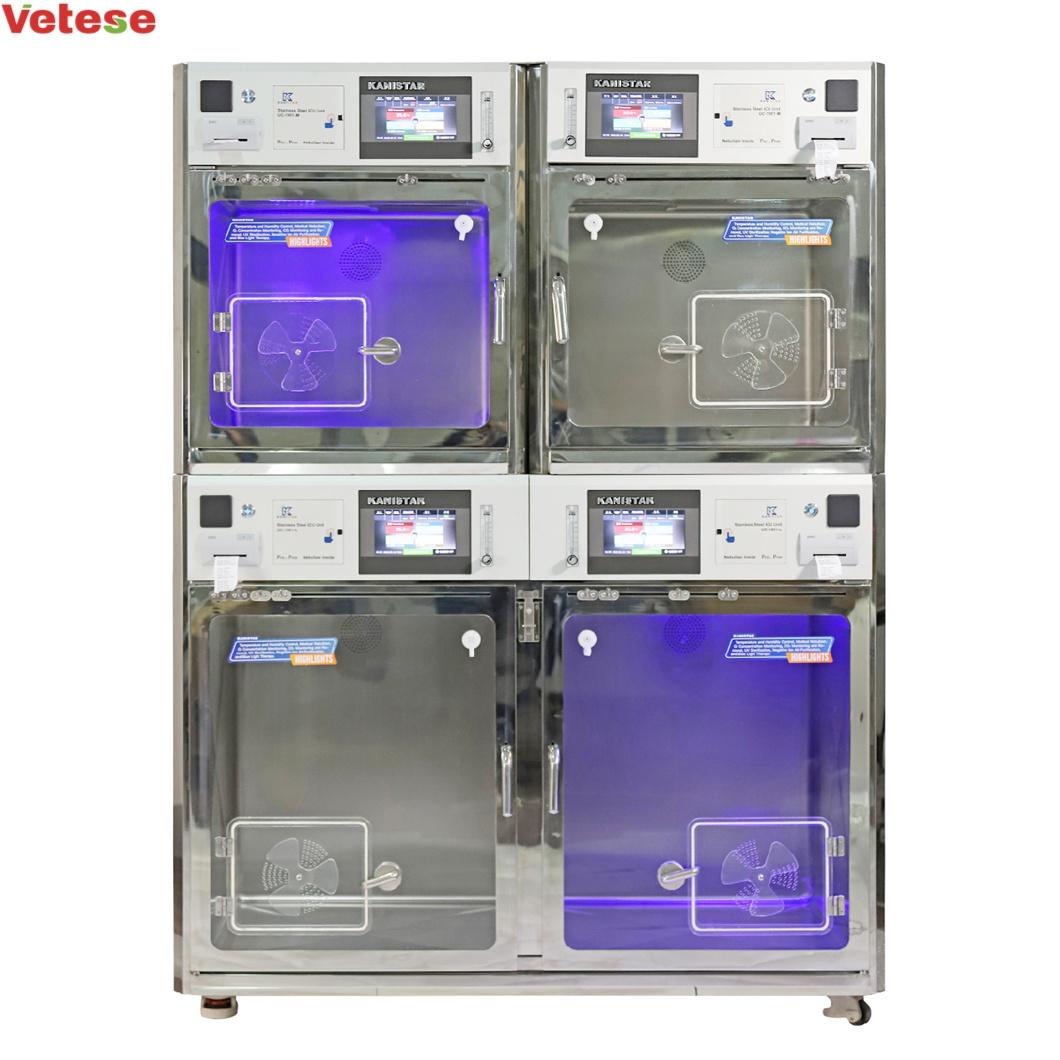

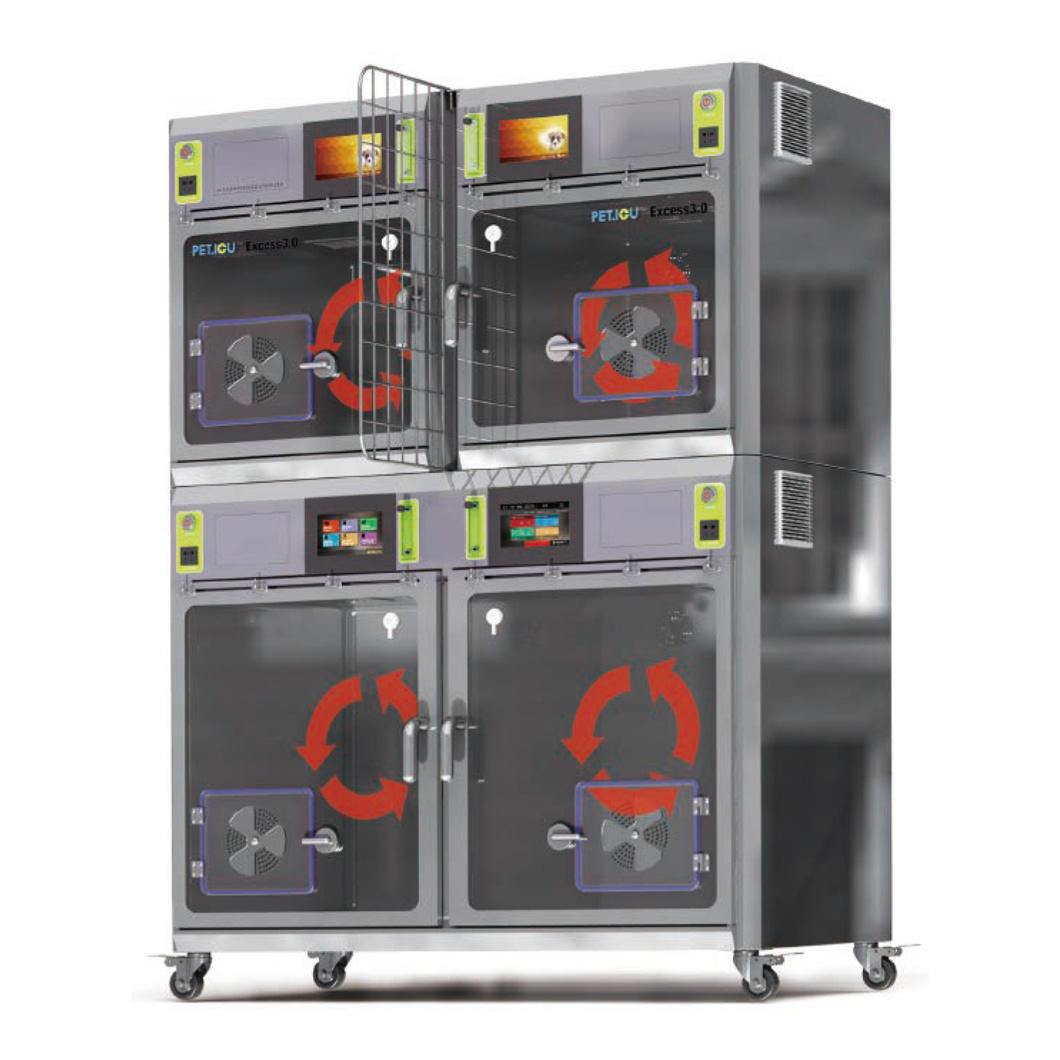

VTS-1901 Professional Multifunction Veterinary Intensive Care Unit
Key Features
⚙️
Widely used for Normothermia maintenance, fluid transfusion, oxygen supplement, blue light therapy, nebulization treatment, emergency rescue, and in house observation.
🛠️
Convenient self-diagnostic and all the components are easy to be replaced.
🛡️
Safer as a result of power supply failure protection and ventilation fan control.
🌱

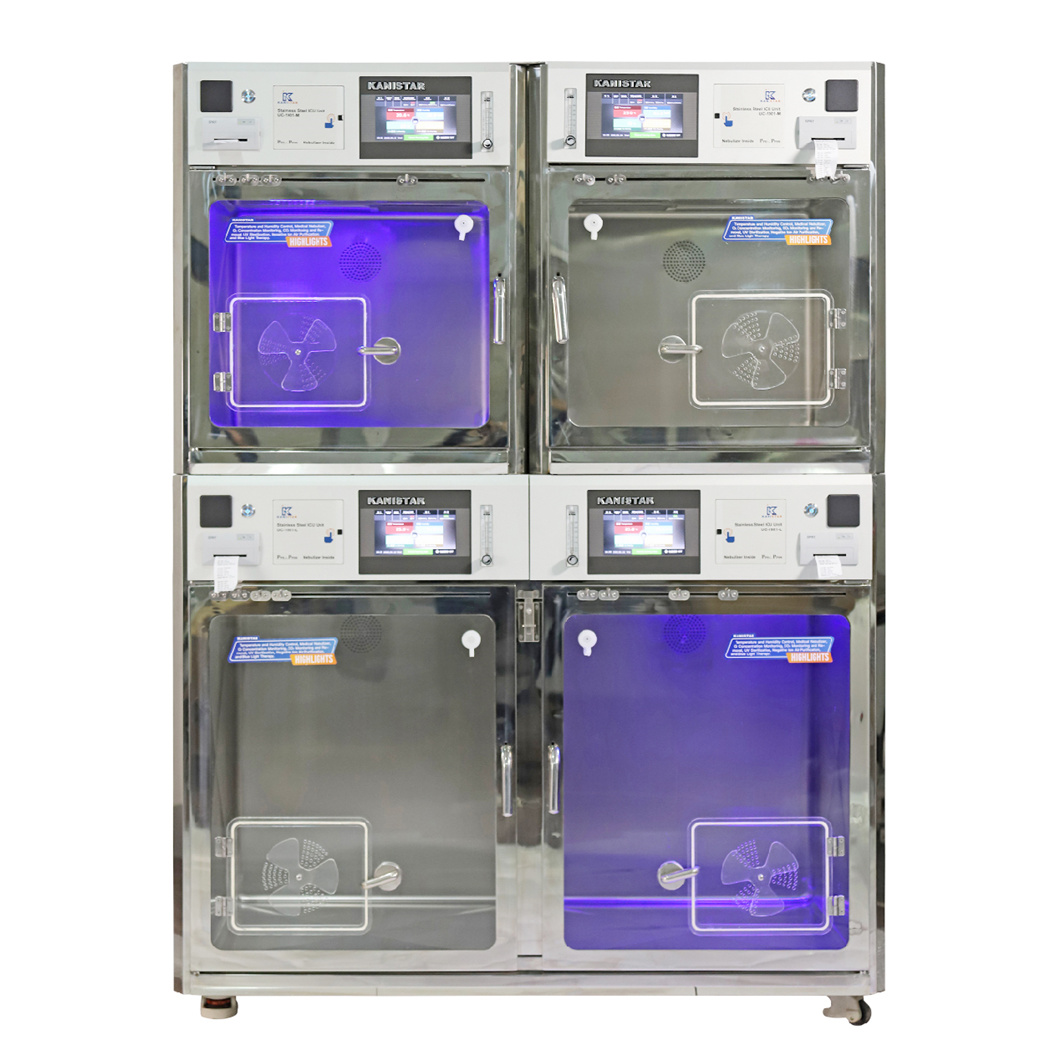

Creating a friendly medical circumstance by Ultra Violet Sterilization, High Concentration Negative Ion Air Purification, Temperature and Humidity Control, Carbon Dioxide Monitoring and Removal, Oxygen Concentration and Medical Nebulizer.
📐

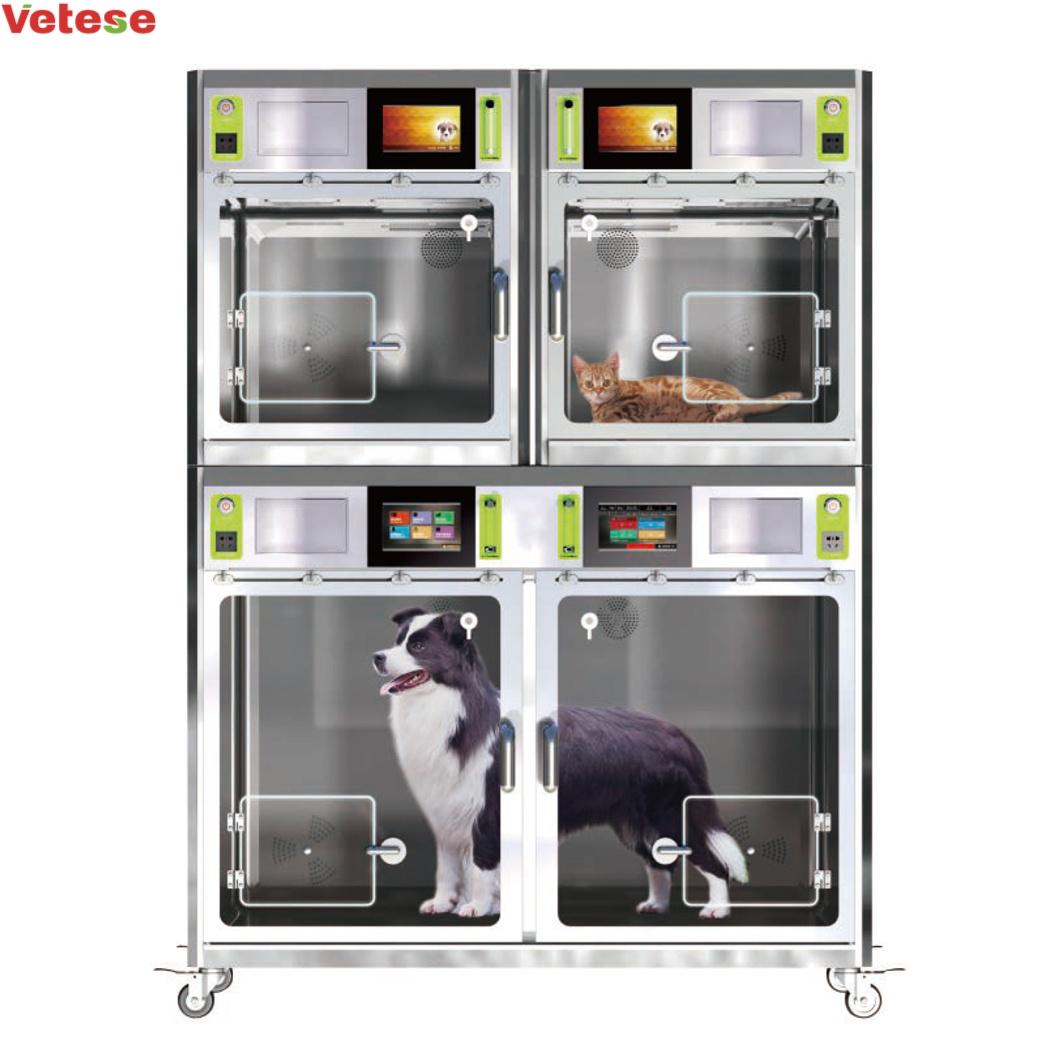

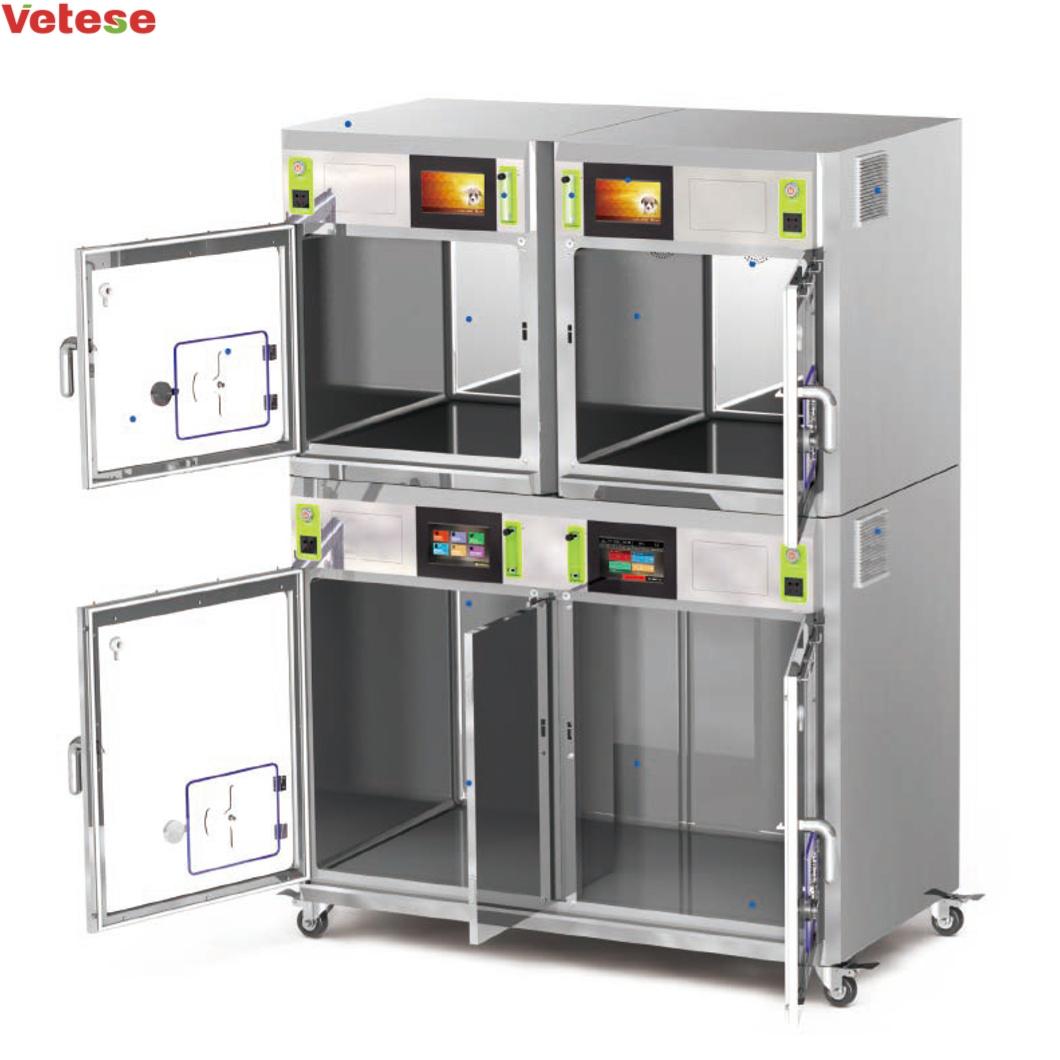

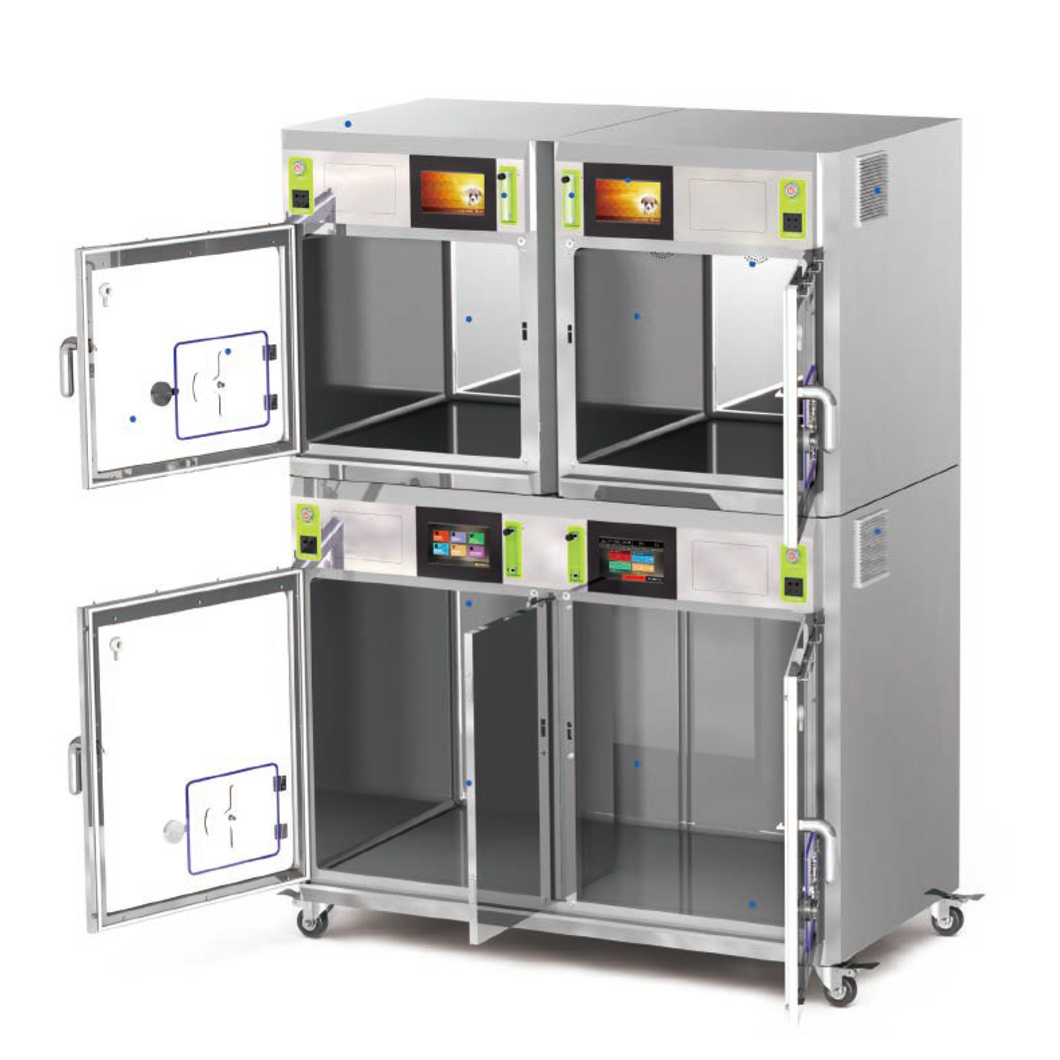

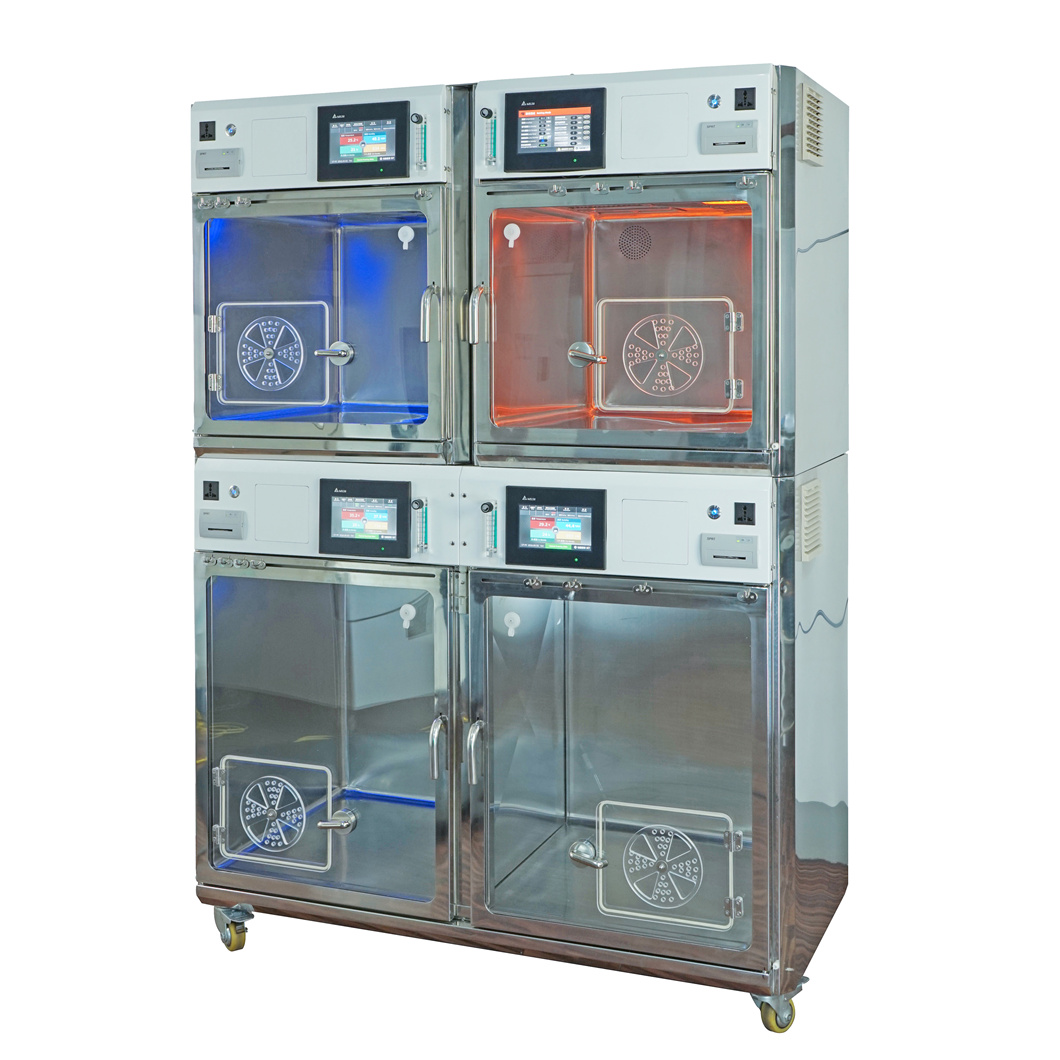

Four separately controlled compartments provide specialized and individual cooling and heating. Two medium compartments on top tier, one large compartment on bottom tier which could be divided into two medium compartments when needed.
📈
Operating History Documenting Temperature, Humidity, CO2 Density and O2 Density, displayed in intuitive curves, providing up to 72 hours maximum tracking.
📎
Designed for the mounting all necessary accessories, such as IV pole, infusion pump, syringe pump, monitor, and door shade curtain.
Technical Specifications
| Dimension |
1509mm W x 884mm D x 1899mm H (59.5''W x 35''D x 75''H) |
| Weight |
Approximate 300kg (660lbs) |
| Power Supply |
AC100-120V/220-240V 50/60Hz (Grounded) |
| Temperature Setting Range |
15-38°C, Tolerance at 0.5°C |
| Oxygen Concentration Setting |
21-65%, Tolerance at ±1% |
| Negative Ion Generator |
7.2x10^6 pcs/cm³ |
| Ultra-violet Sterilization |
253nm UV Sterilization |
| Medical Nebulizer |
≥0.2ml/min, particle size: 0.5 - 2μm, noise ≤ 40dB(A) |
Certifications
Frequently Asked Questions (FAQ)
What are the primary medical applications for the VTS-1901 ICU?
It is widely used for normothermia maintenance, fluid transfusion, oxygen supplementation, blue light therapy, nebulization treatment, emergency rescue, and clinical observation.
How many compartments does the unit offer?
The unit features four separately controlled compartments: two medium compartments on the top tier and one large compartment on the bottom tier (which can be divided into two medium sections).
What sterilization and purification features are included?
The ICU includes 253nm Ultra Violet (UV) sterilization and high concentration Negative Ion air purification for a sterile medical environment.
Can the device track patient history?
Yes, it documents and displays intuitive curves for Temperature, Humidity, CO2 Density, and O2 Density with up to 72 hours of tracking data.
What is the temperature and oxygen control range?
The temperature can be set between 15-38°C (±0.5°C tolerance), and oxygen concentration can be adjusted from 21% to 65% (±1% tolerance).
Does it support external medical equipment?
Yes, the design allows for mounting essential accessories such as IV poles, infusion pumps, syringe pumps, monitors, and door shade curtains.
