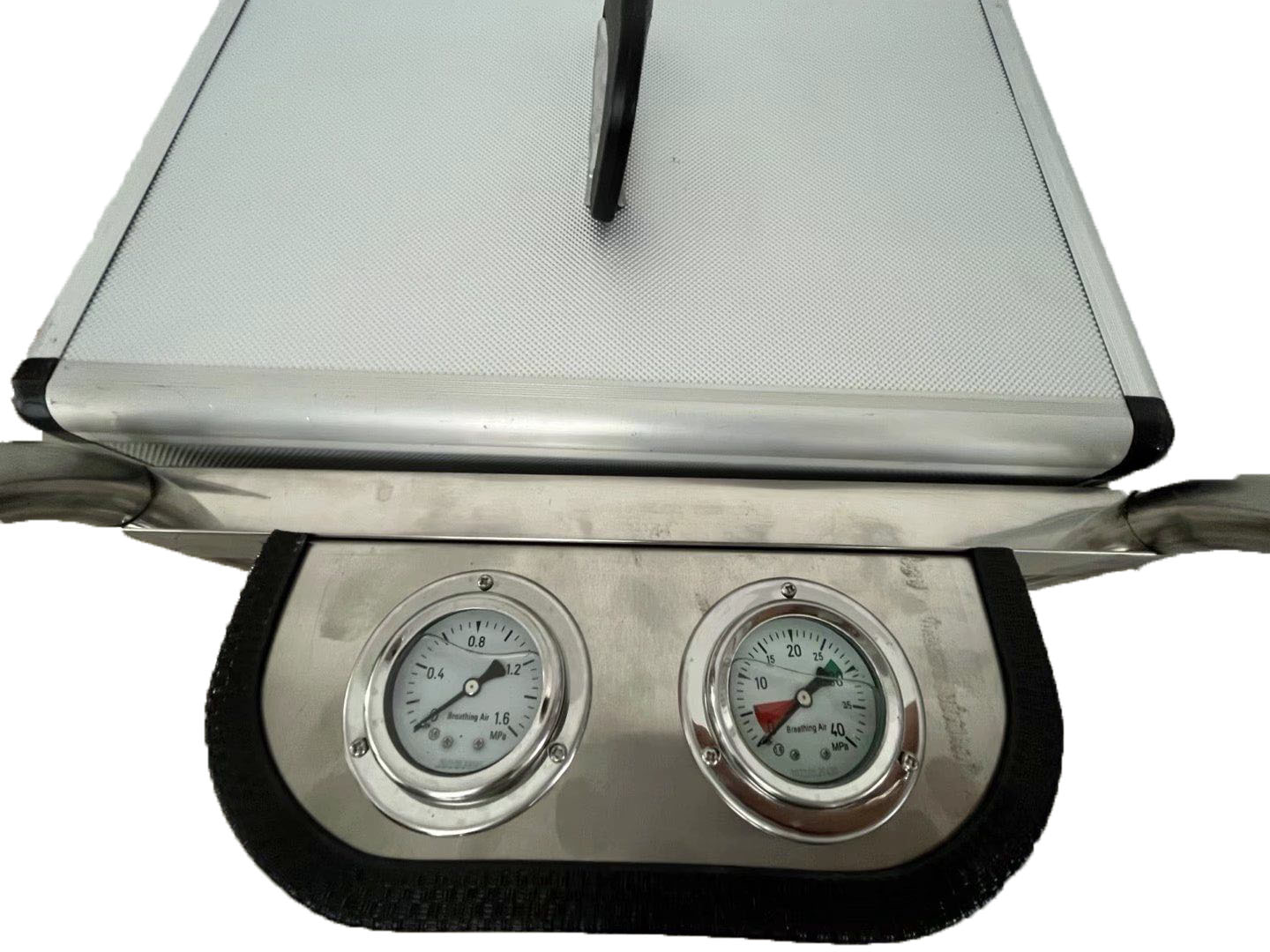

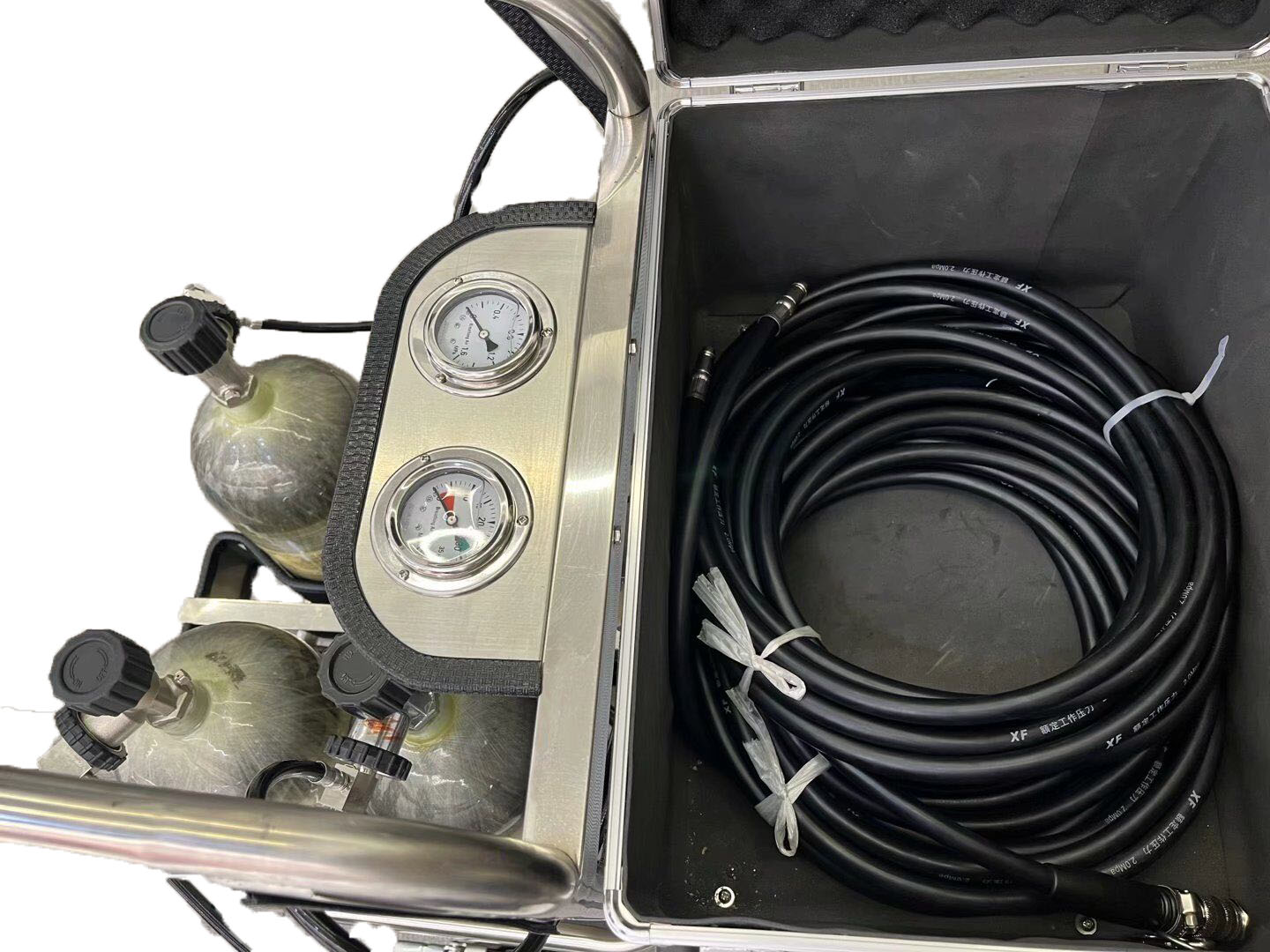

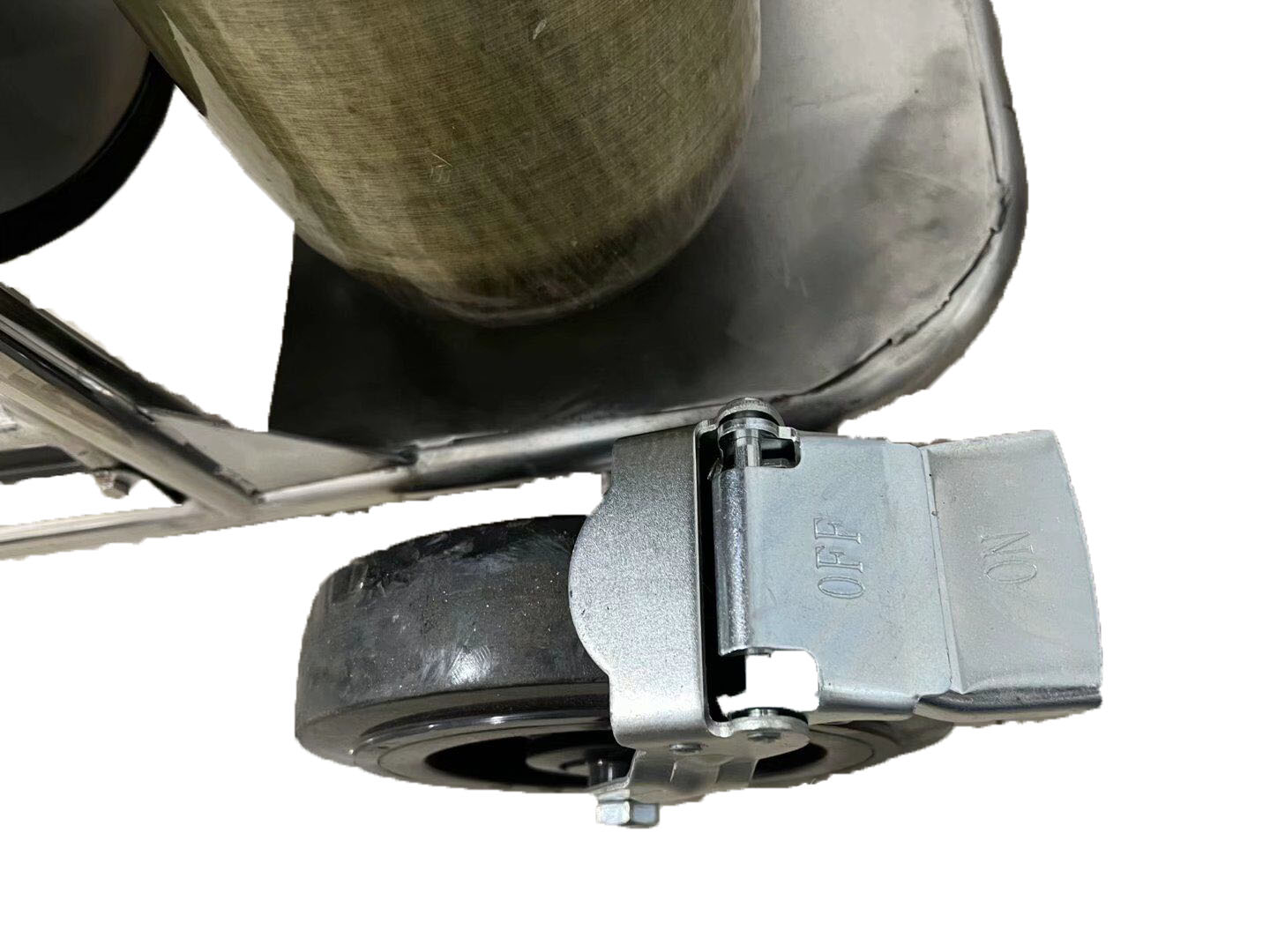

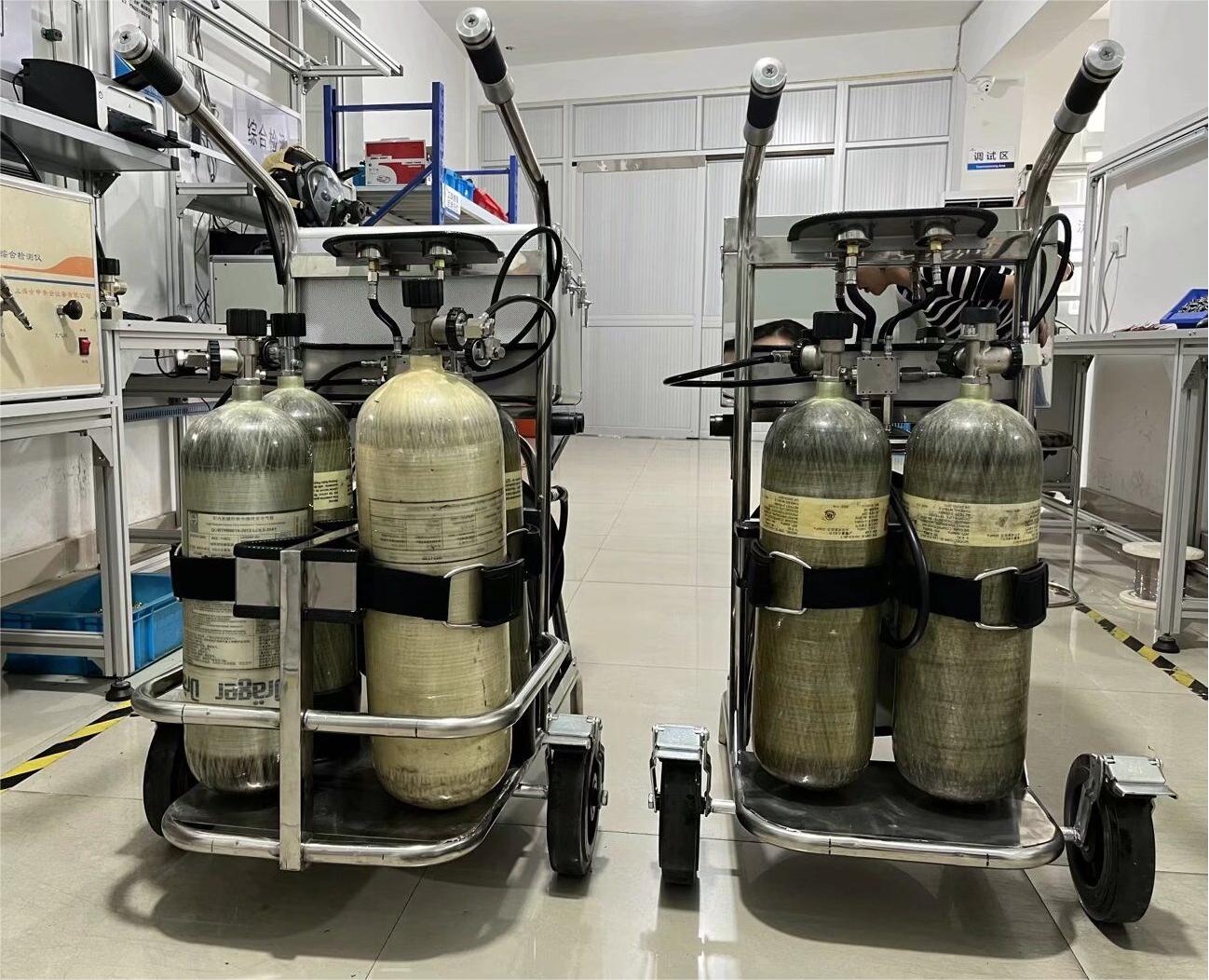

Positive Pressure Air Breathing Apparatus With 2/4 Cylinders, Long Tube Trolley Apparatus
Positive Pressure Air Breathing Apparatus With 2/4 Cylinders, Long Tube Trolley Apparatus
Positive Pressure Air Breathing Apparatus With 2/4 Cylinders, Long Tube Trolley Apparatus
Positive Pressure Air Breathing Apparatus With 2/4 Cylinders, Long Tube Trolley Apparatus
Positive Pressure Air Breathing Apparatus With 2/4 Cylinders, Long Tube Trolley Apparatus
1 / 5
Positive Pressure Air Breathing Apparatus With 2/4 Cylinders, Long Tube Trolley Apparatus
Positive Pressure Air Breathing Apparatus With 2/4 Cylinders, Long Tube Trolley Apparatus
Positive Pressure Air Breathing Apparatus With 2/4 Cylinders, Long Tube Trolley Apparatus
Positive Pressure Air Breathing Apparatus With 2/4 Cylinders, Long Tube Trolley Apparatus
Positive Pressure Air Breathing Apparatus With 2/4 Cylinders, Long Tube Trolley Apparatus

Positive Pressure Air Breathing Apparatus With 2/4 Cylinders, Long Tube Trolley Apparatus

Send Inquiry

Product Description

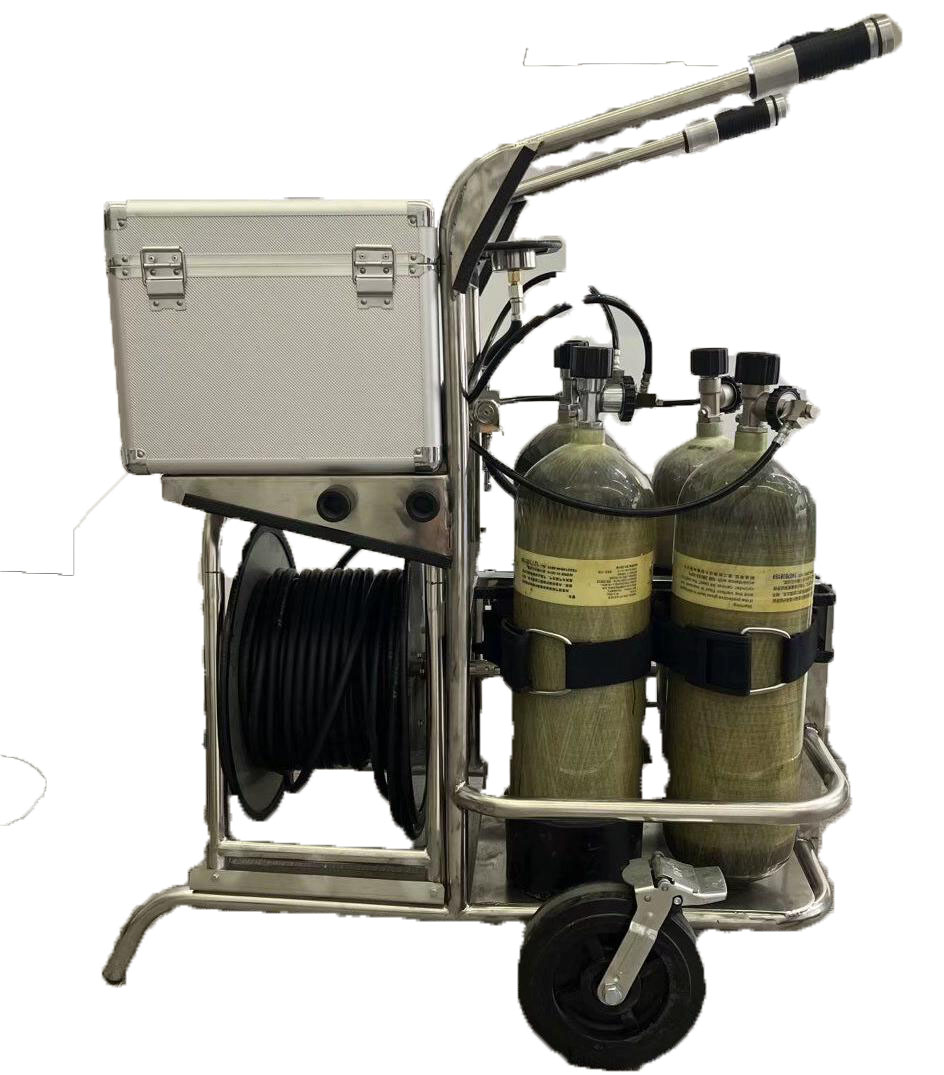

Long Tube Breathing Apparatus Cart
Breathing Apparatus 1
Breathing Apparatus 2
Breathing Apparatus 3

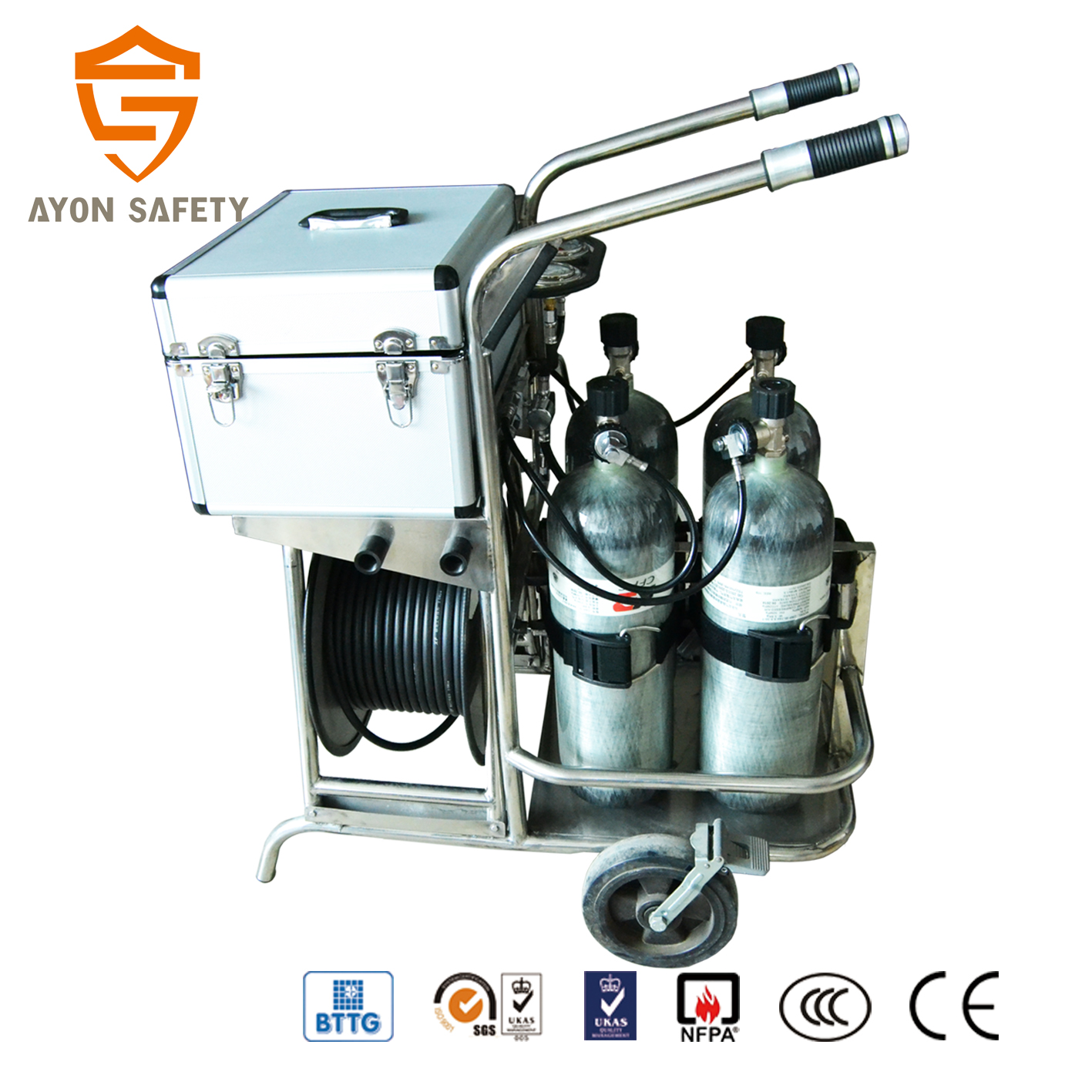

Breathing Apparatus 4
Product Description
Long Tube Breathing Apparatus is a kind of respiratory protection device with compressed air as the source of supply and for conveying clean air through a long tube (provide gas for pneumatic equipment can be called airpack).
  • Suitable for narrow working environment.
  • Material of trolley is stainless steel.
  • The cylinder can be replaced at work to provide continuous gas supply.
Specification
Model CGW4CF-T*6.8/30 CGW4CF-T*9.0/30
Air source Cylinder material Carbon Fiber Winding Cylinder with Aluminum Liner
Cylinder Rated Pressure (bar) 300
Cylinder Nominal Capacity (L) 4*6.8 4*9.0
Use of Time for One Person(min) 272 360
Pressure reducer Output pressure (bar) 6~9
Output flow (L/min) ≥600
Alarm apparatus Alarm pressure (bar) 40~60
Clothing band Dress Belt Tension (Kgf) 70
Air hose Extended distance (m) 30+2*10 m/60+2*15
Supply valve Maximum air supply (L/min) ≥300
Complete machine Exhalation resistance (Pa) <700
Inhalation resistance (Pa) 0~500
Size 950*800*540 mm
Weight 72kg 78kg
Applications
Applications
Packing & Delivery
Packing 1
Packing 2
About Us

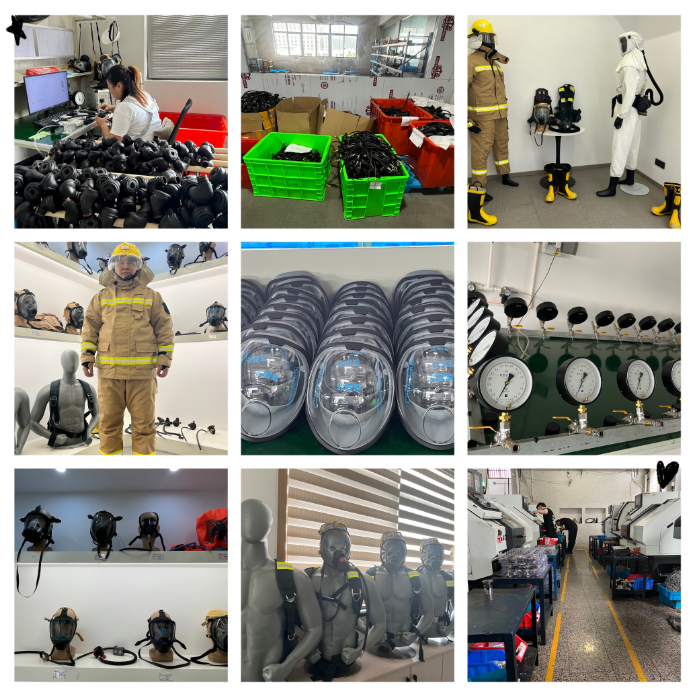

Facility
We are a professional supplier and manufacturer of firefighting safety & security products, registered in 2009. With ten years of rapid development, we have established a global sales & marketing network, production, R&D, and service team. Our products are widely exported to more than 50 countries around the world, across South America, Africa, Europe, and Asia.
Certifications

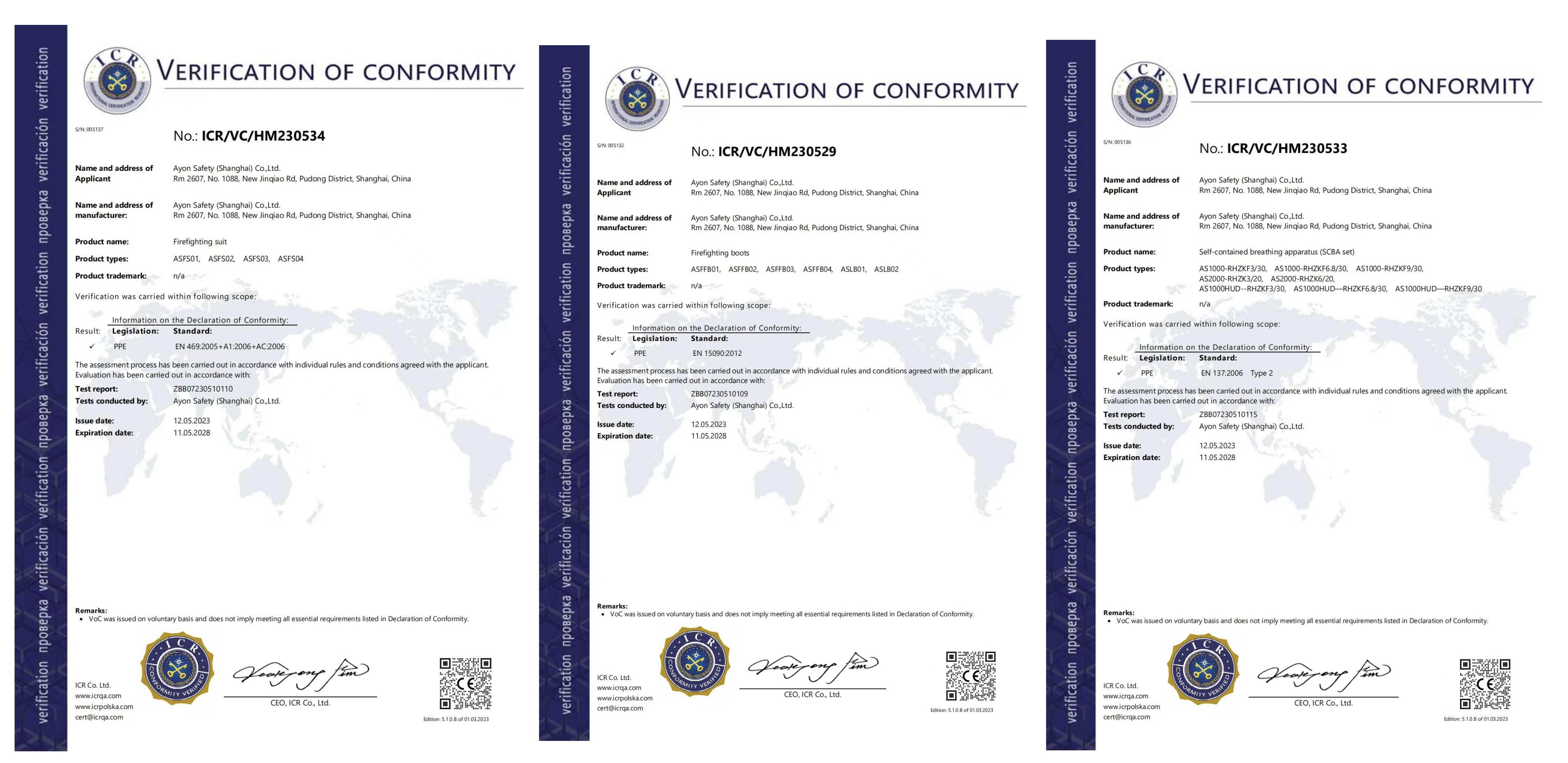

Certification 1

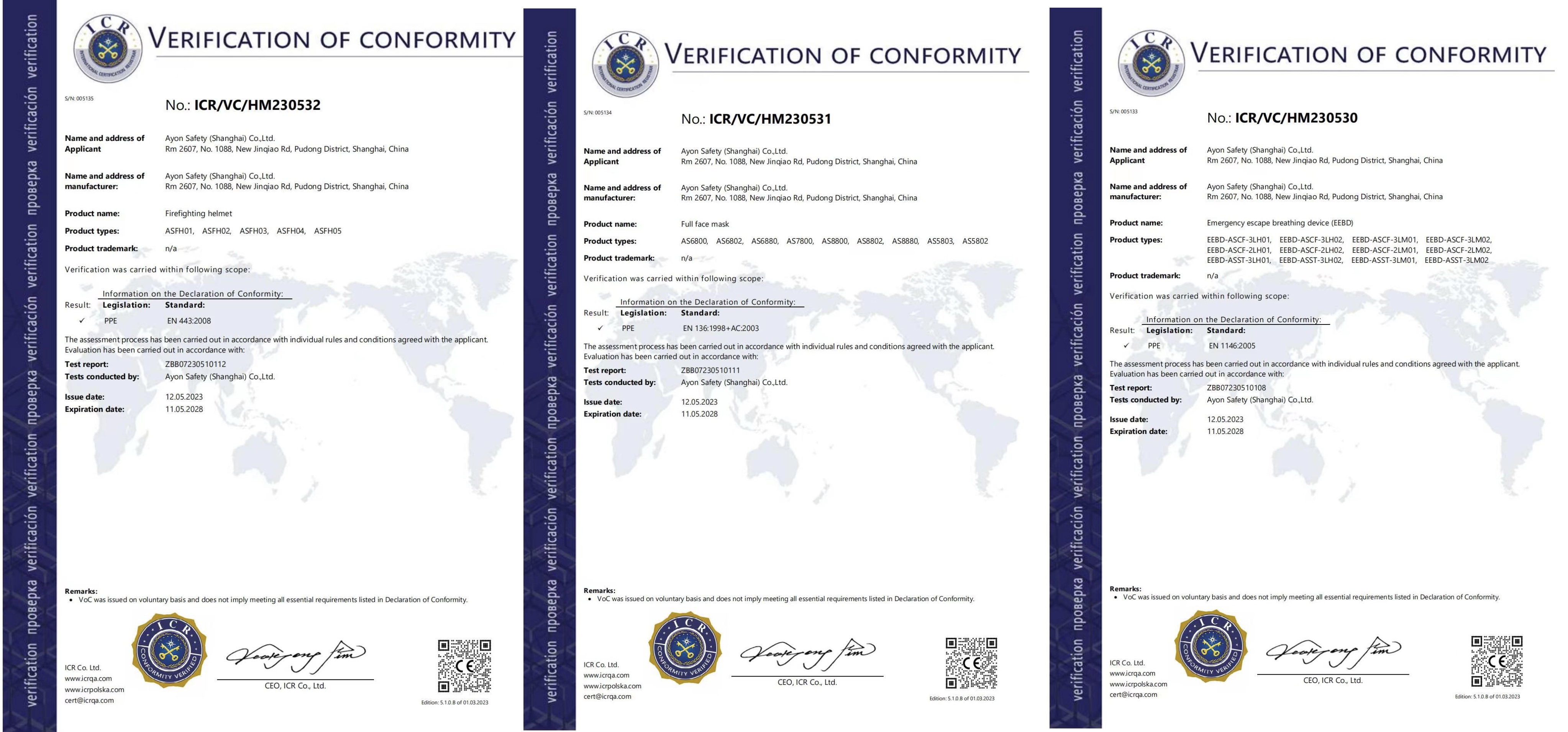

Certification 2
Exhibition
Exhibition 1
Exhibition 2
Exhibition 3
Exhibition 4
Exhibition 5
Exhibition 6
Exhibition 7
Exhibition 8
Product Summary
Frequently Asked Questions
What is the primary function of this apparatus?
It is a respiratory protection device that conveys clean compressed air through a long tube to provide a safe breathing source in hazardous environments.
Is this equipment suitable for confined spaces?
Yes, it is specifically designed to be suitable for narrow working environments where traditional SCBA might be too bulky.
Can the cylinders be replaced while the device is in use?
Yes, the cylinders can be replaced during operation to ensure a continuous and uninterrupted supply of gas.
What material is the trolley made of?
The trolley is constructed from high-quality stainless steel for durability and corrosion resistance.
What is the maximum use time for one person?
Depending on the model, the use time ranges from 272 minutes (6.8L cylinders) up to 360 minutes (9.0L cylinders).
What are the safety alarm features?
The apparatus includes an alarm system that triggers when the pressure reaches between 40 and 60 bar to alert the user.
