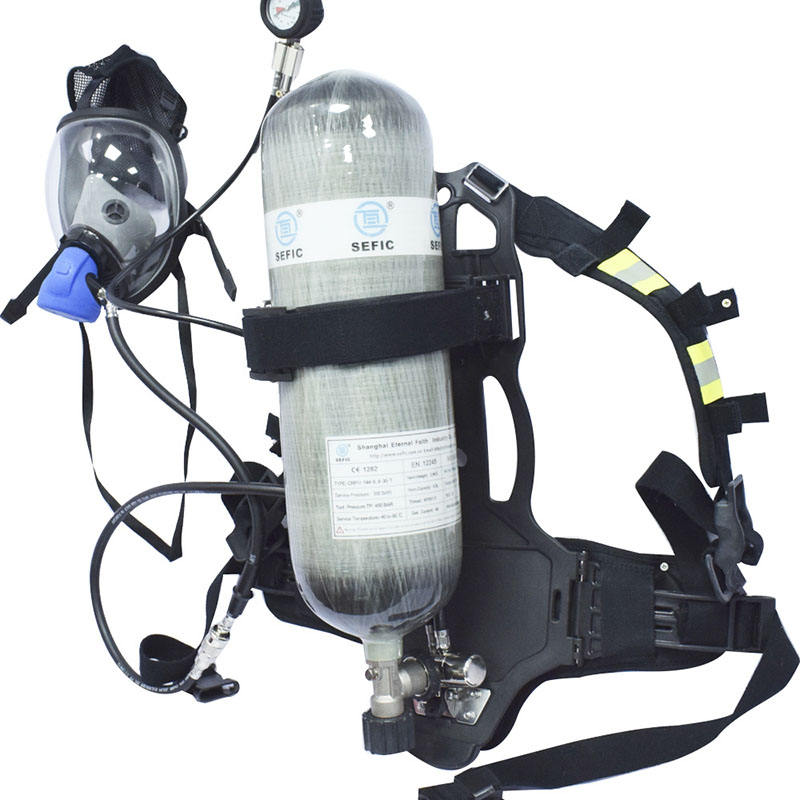

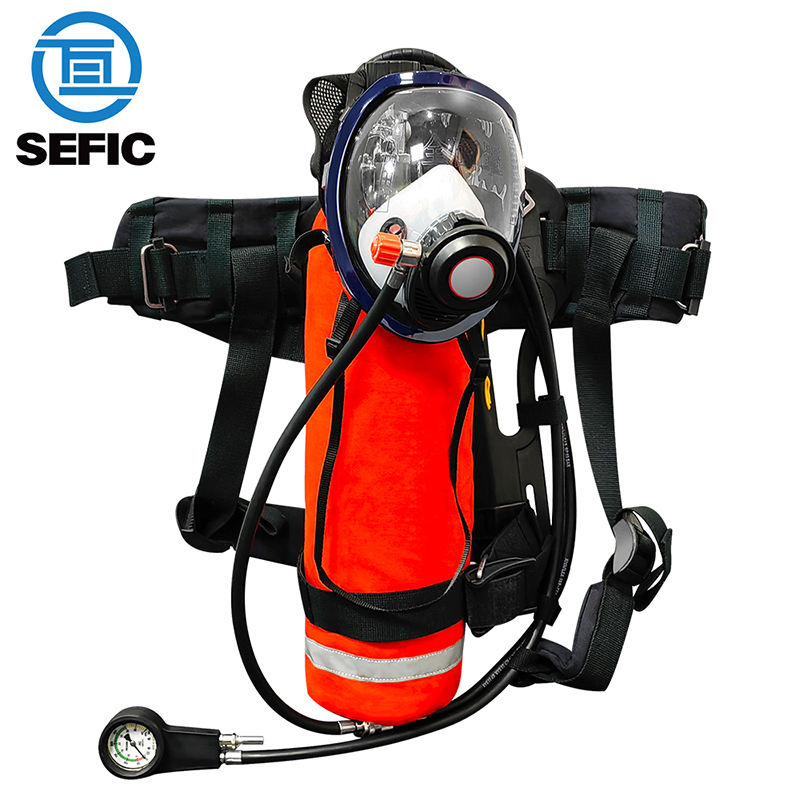

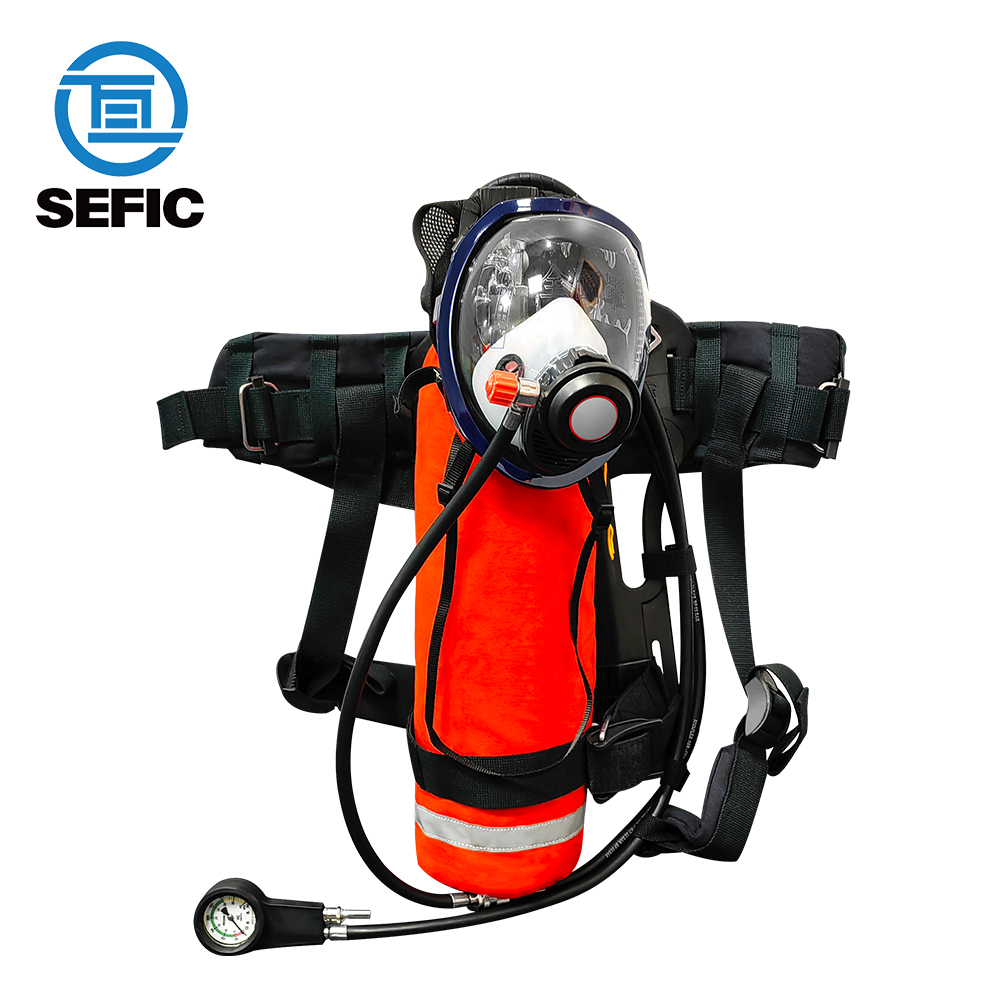

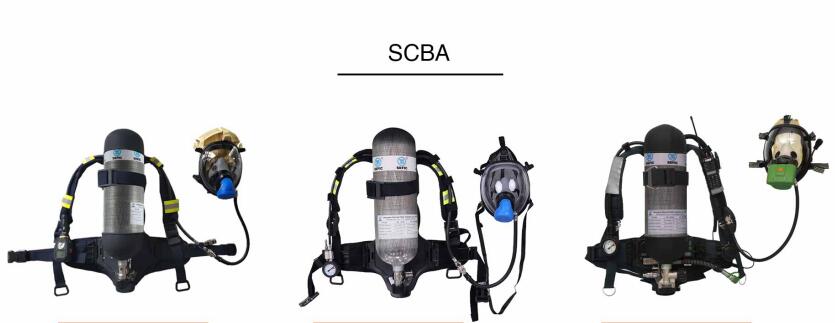

| Type | SCBA Fire Fighting Equipment |
| Outside diameter | 157mm |
| Water capacity | 6.8L |
| Height | 530mm |
| Weight | 3.9kg |
| Working pressure | 300Bar |
| Test pressure | 450Bar |
| Thread Size | M18*1.5 |
| Material | Carbon Fiber |

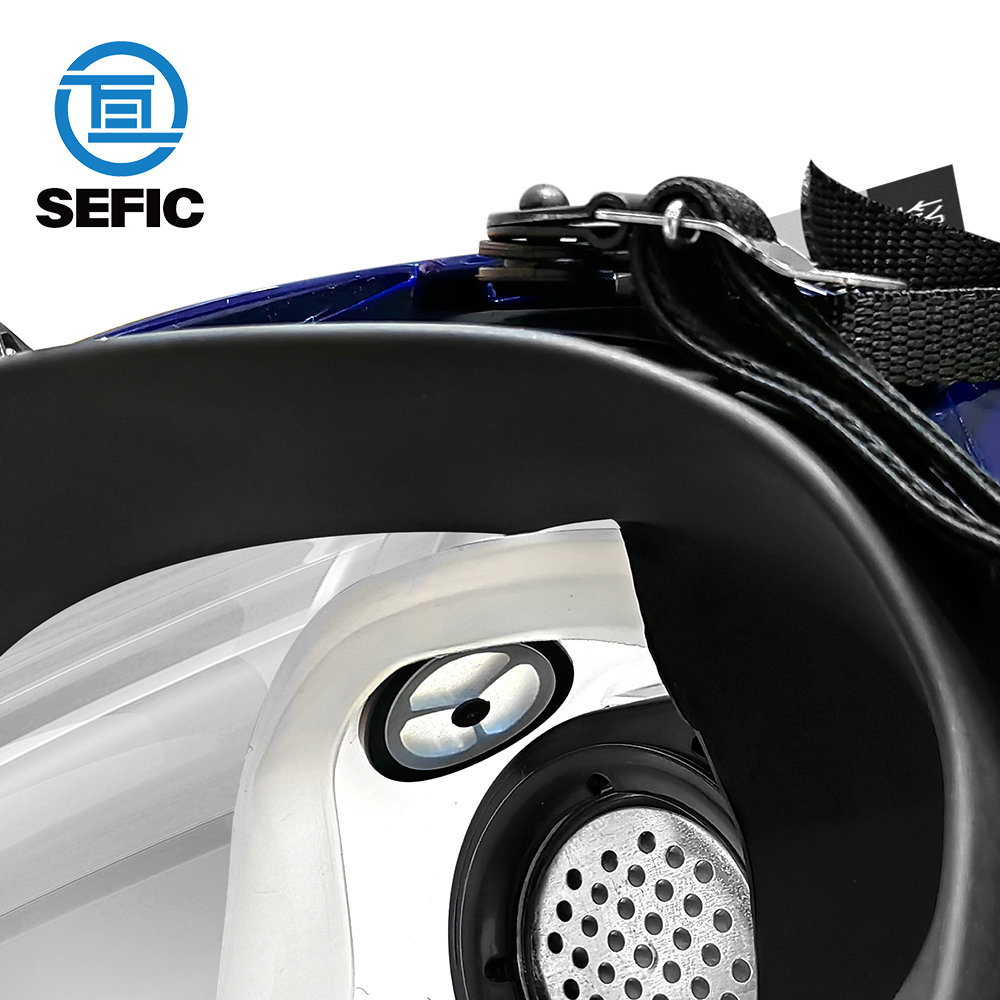

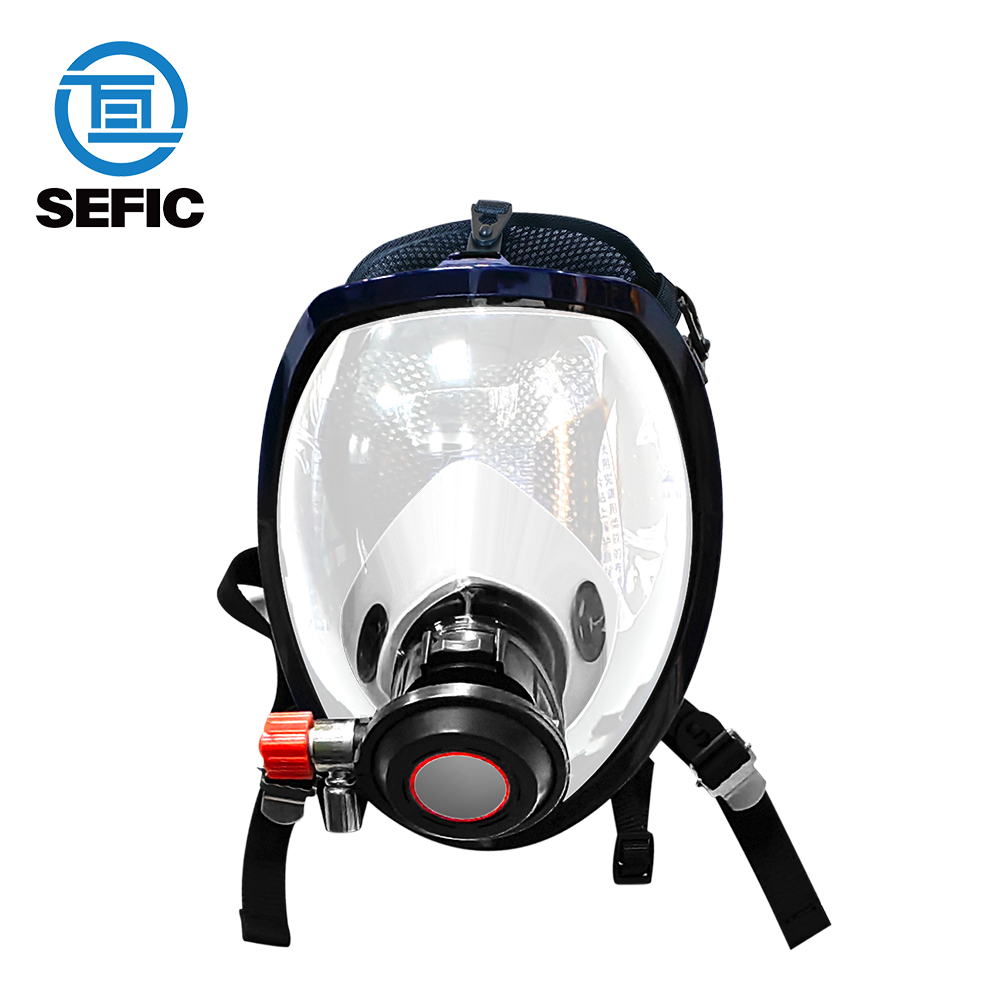

| Full Face Mask Specs |
|---|
| Material | Silicone |
| Visual field | ≥90% |
| Service life | 15 years |
| Advantage | Permanent double anti-fogging, Scratch and abrasion resistant lens |
| Exhalation resistance | ≤ 0.76bar |
| Inhalation resistance | ≤ 0.25bar (30L/min) |

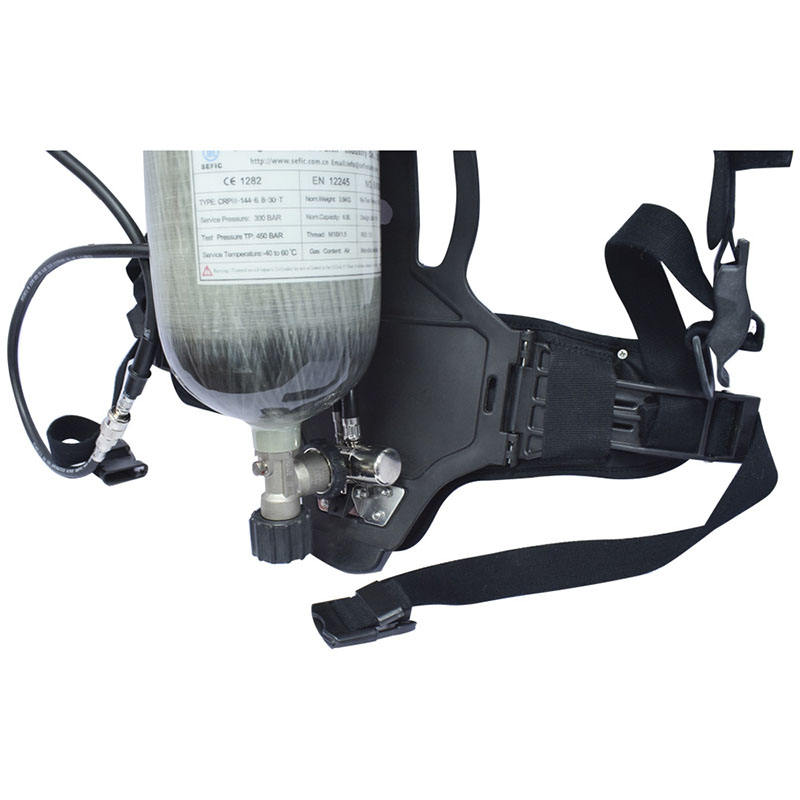

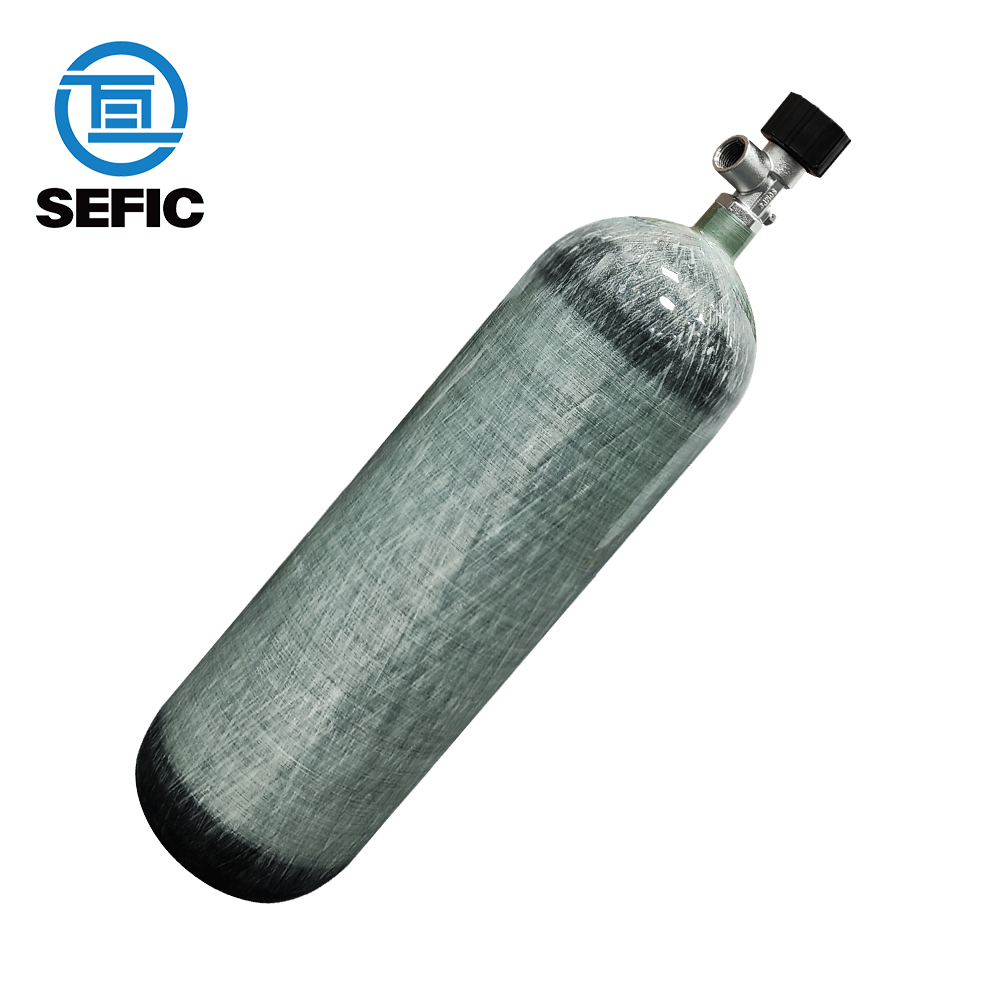

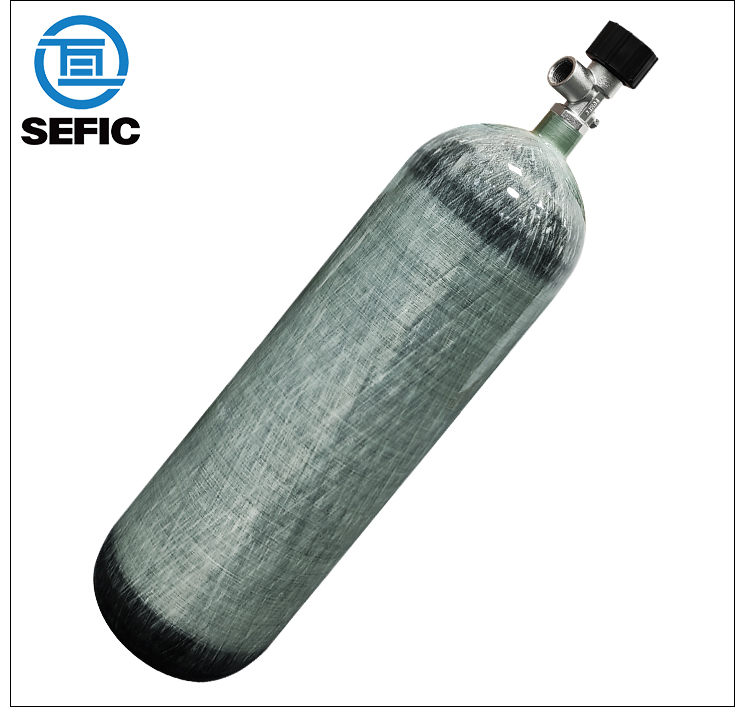

| Gas Cylinder Specs |
|---|
| Material | Carbon Fiber |
| Volume | 6.8L |
| Working pressure | 300bar |
| Alarm pressure | (55±5)bar |
| Operating temperature | -30°c to 60°c |
| Service time | 45-60 mins |

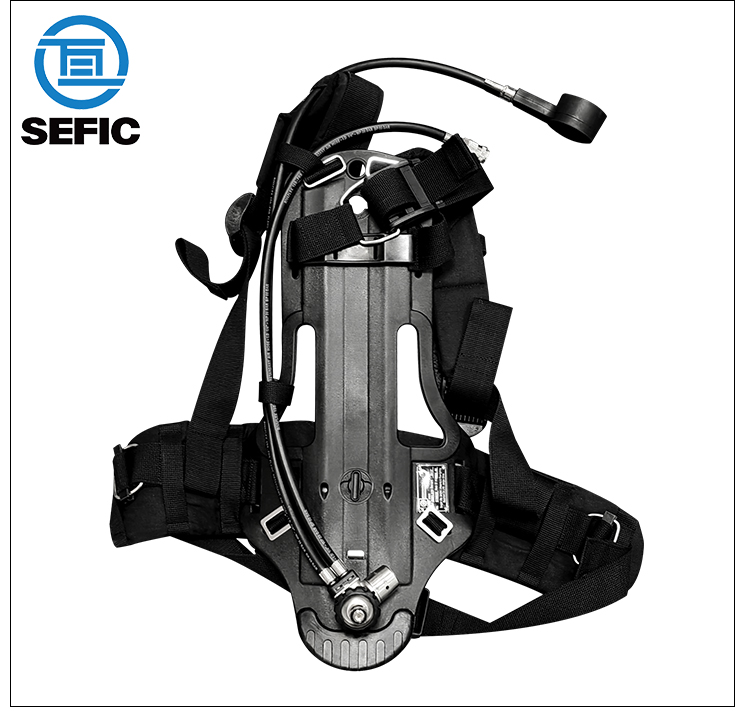

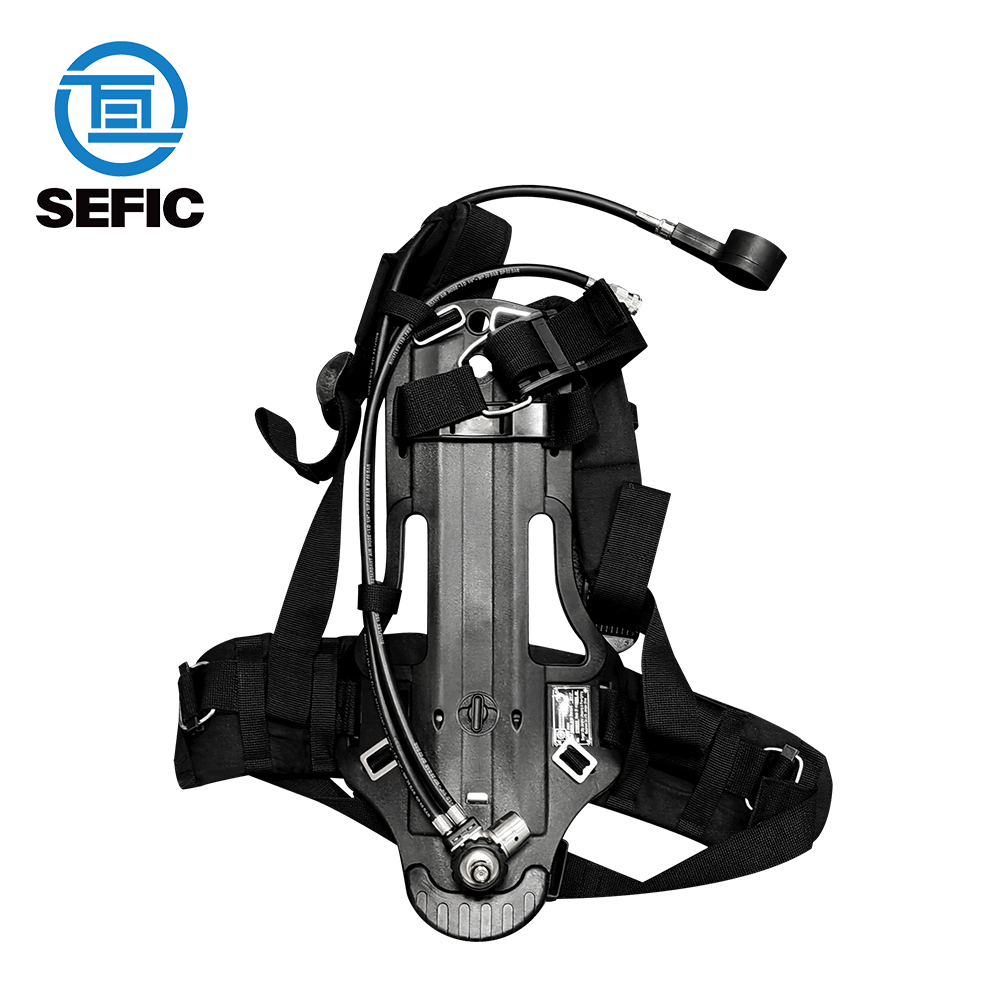

| Back Plate & Reducer |
|---|
| Back Plate Use | Comfortable, Flexible and light-weight / 180 degrees bending |
| Max Air Supply | More than 500L/min |
| Display | Digital screen HUD, displays cylinder pressure, remaining time, temperature, and compass |
| Reducer Design | Balanced pressure reducing design with medium pressure alarm |
🏆
Production & Certifications
The company has rich experience in business operating and management, and own capability of processing various gas cylinders. We have adopted certifications of ISO by International Standardization Organization, DOT of America, TC of Canada, TUV of Germany, KGS of Korea and some other certifications. Adhering to the Corporate Philosophy of "regard quality as credit, credit as brand and brand as life".
🏢

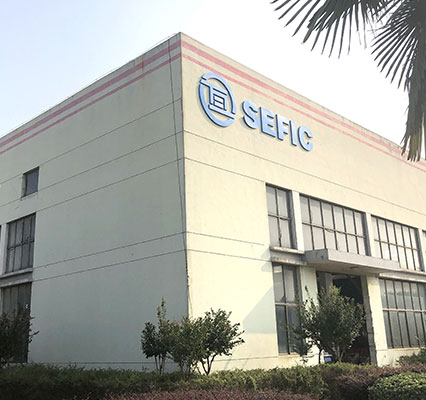

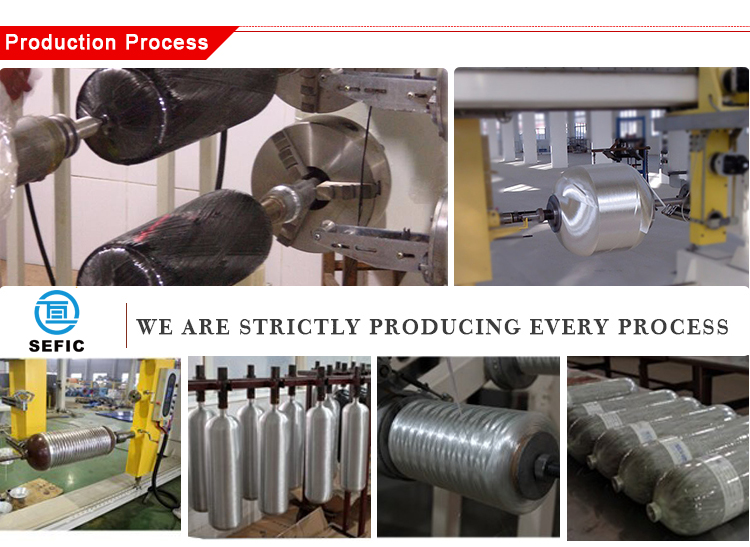

Manufacturing Excellence

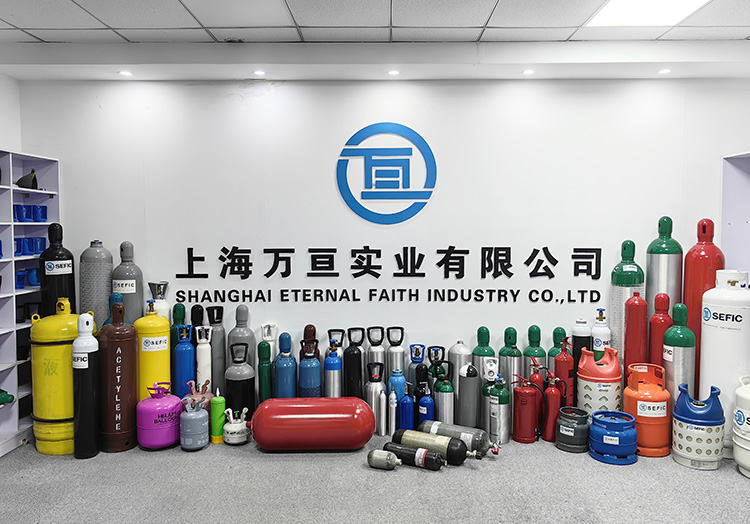

As a professional supplier of gas and gas equipment, the company has accumulated extensive experience and became one of the leading suppliers of all kinds of gas and gas equipment. We hold licenses for Pressure Vessel Type A2 and C2, ISO9001 and ISO14000 Certification. Our main products include Industry Gas Cylinders, Medical/CO2/Diving Aluminum Cylinders, Carbon Fiber Cylinders, and Cryogenic Tanks, supporting standards such as ISO9809, DOT3AA, EN12245, and more.
"Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us."
❓
Frequently Asked Questions
What is the capacity of the carbon fiber composite cylinder?
The standard capacity is 6.8L. We also provide 3L, 9L, and 12L specifications to meet different requirements.
What is the typical delivery time for orders?
Delivery is generally within 30 days once the deposit is paid and workshop drawings are confirmed.
Can you provide specific valves for different countries?
Yes, different gases and countries require different cylinder valves. We can customize the valve according to your specific request.
Is there any protection for the cylinder head during transport?
Yes, each carbon fiber composite cylinder is equipped with a tulip cap to ensure the security and protection of the product during transportation.
What certifications can you provide for your cylinders?
We can provide a wide range of certifications including DOT, TPED, PED, GB, ISO, and KGS certificates.
What are the advantages of your manufacturing process?
We offer a one-stop solution producing cylinders, caps, neck rings, and valves. We use professional automatic machines for installing valves to ensure no gas leakage.
